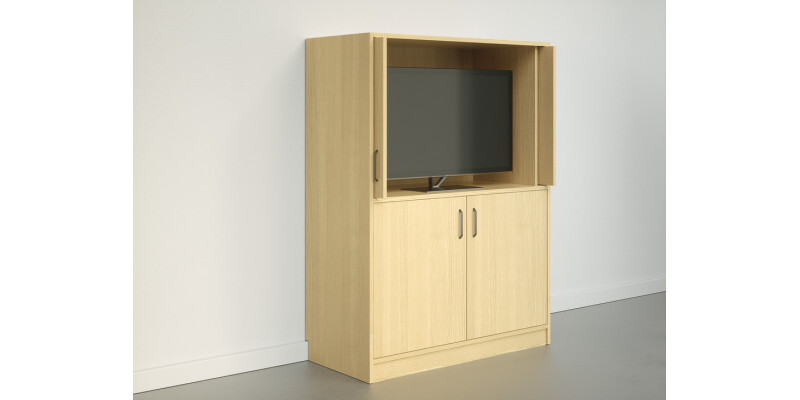

Accuride 1319 Pivot Sld Dr Run SZP 550mm

Accuride 1319 Pivot Sld Dr Run SZP 550mm

Part Number: 408.07.556

For horizontal or vertical use, Installed length 550 mm, extension length 444 mm, bracket position 386 mm

Price:

£62.99

Per Item

VAT excluded

Quiet and easy movementFor taller/heavier doors use synchronised control system Accuride 1316 in conjunction with... Read More

Product Information

Product Details

Quiet and easy movement
For taller/heavier doors use synchronised control system Accuride 1316 in conjunction with Accuride 1319
2 hinges required
A trial installation should be made for other door heights and weights beyond recommended sizes

For horizontal or vertical use

Order reference

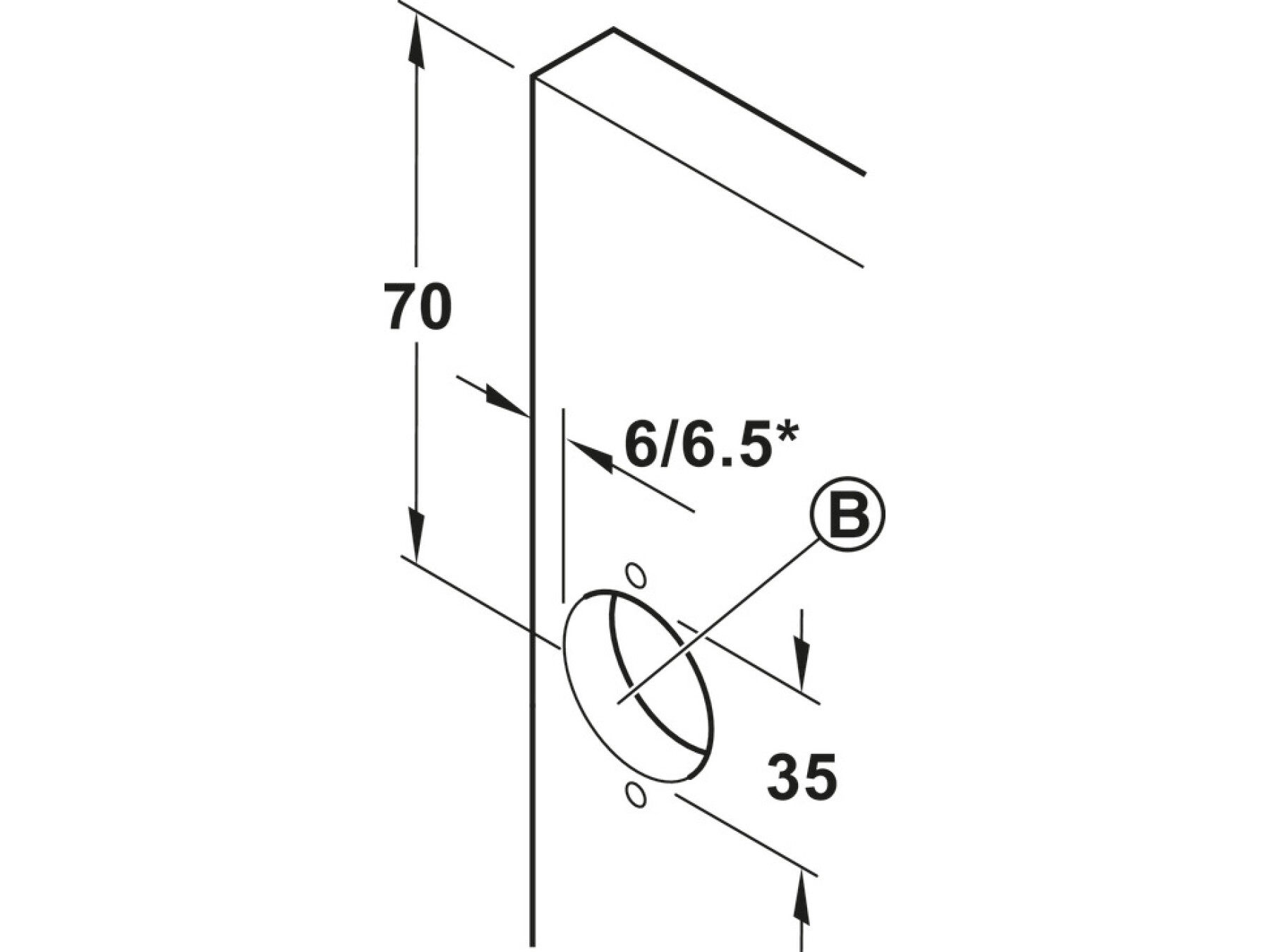

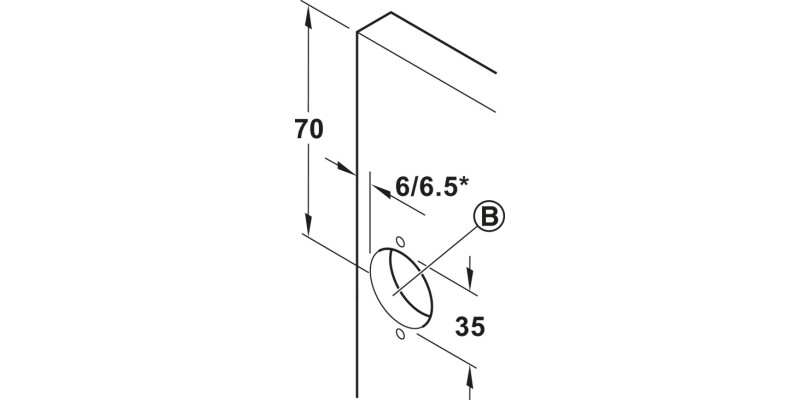

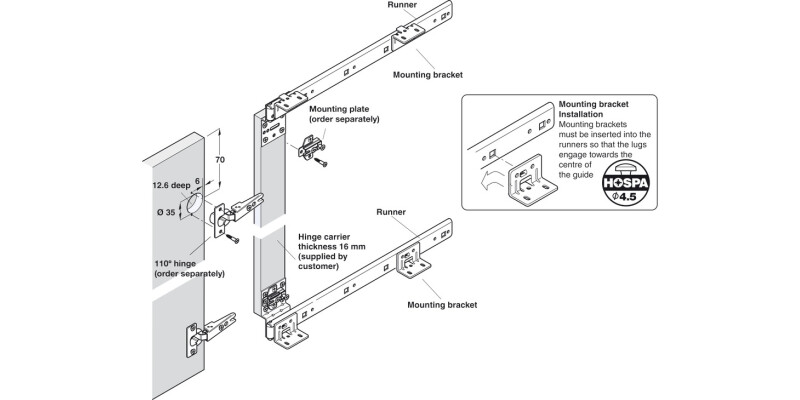

Hinge 322.17.530 and mounting plate 322.85.750 to be ordered separately
Please note hinge carrier strip is not supplied and should be made on site

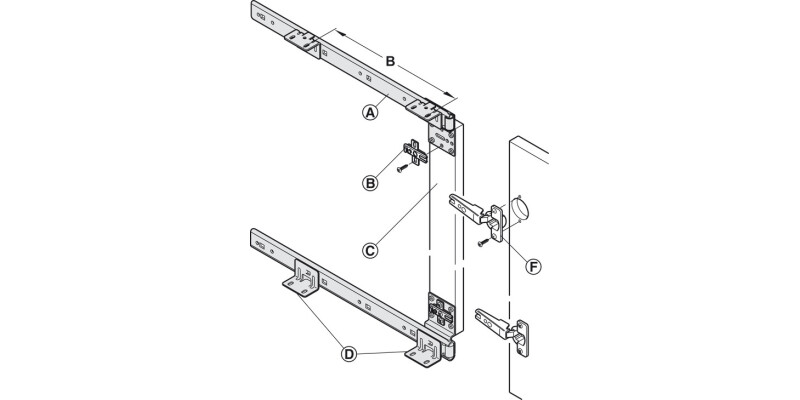

Supplied with

Compromises:
4 x Mounting brackets, zinc plated steel
2 x Runners, zinc plated, to accommodate cruciform mounting plates

Specifications

Area of application

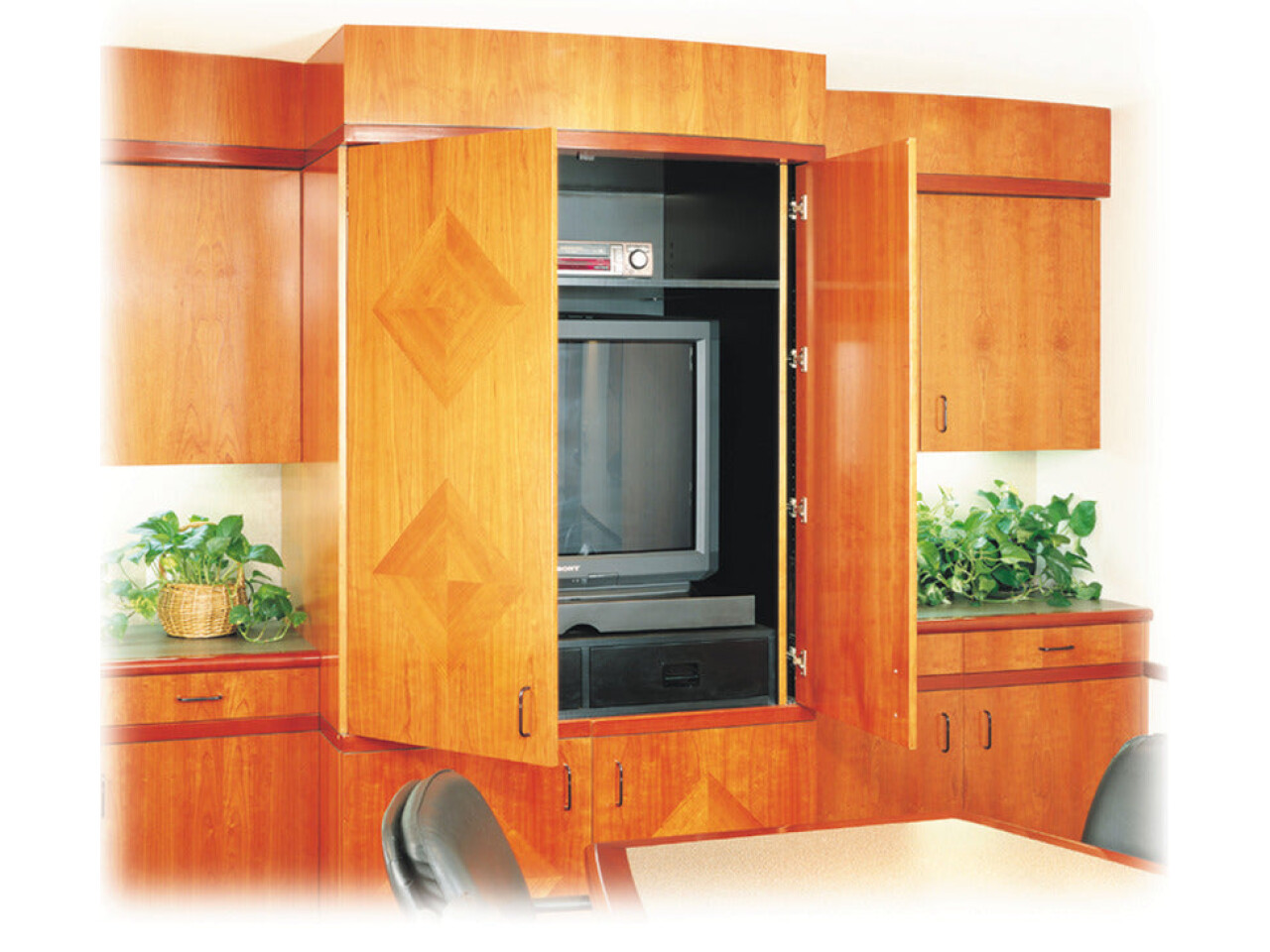

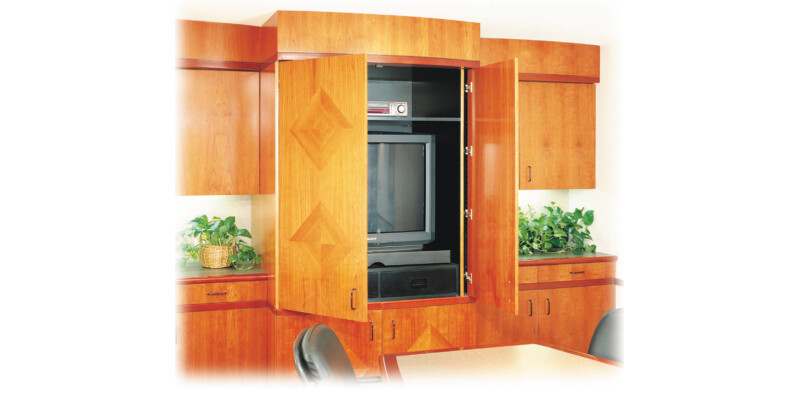

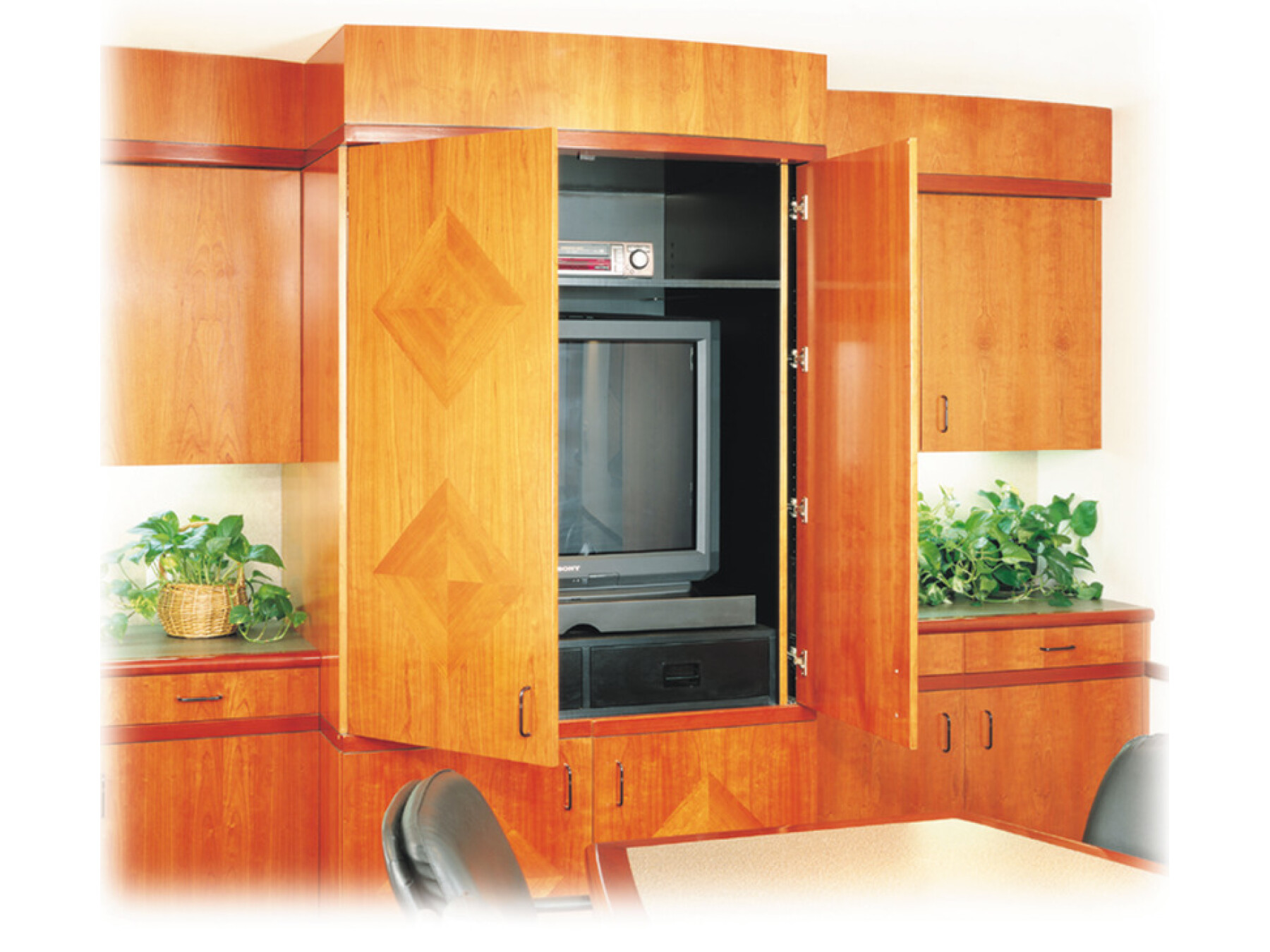

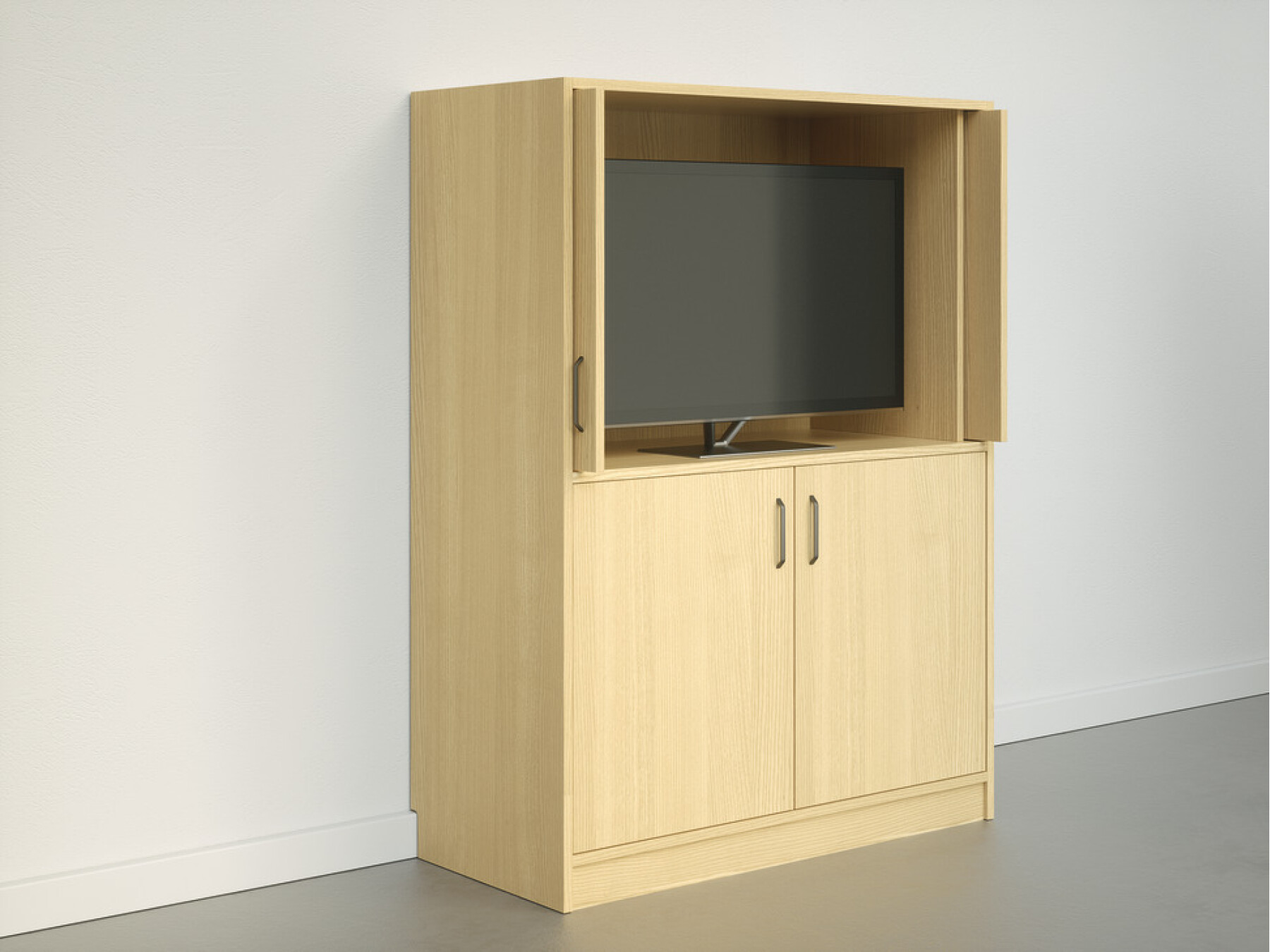

Inset cabinet doors

For door material

Wood

Set

Set with tracks

Number of door leaves per set

1.00

For door height

≤700 mm

Note on door height

For taller/heavier use synchronised control system Accuride 1316 in conjunction with Accuride 1319

For door weight

≤5.5 kg

For door thickness

16 – 20 mm

Material/finish

Steel, Galvanised

Installation

Screw fixing
