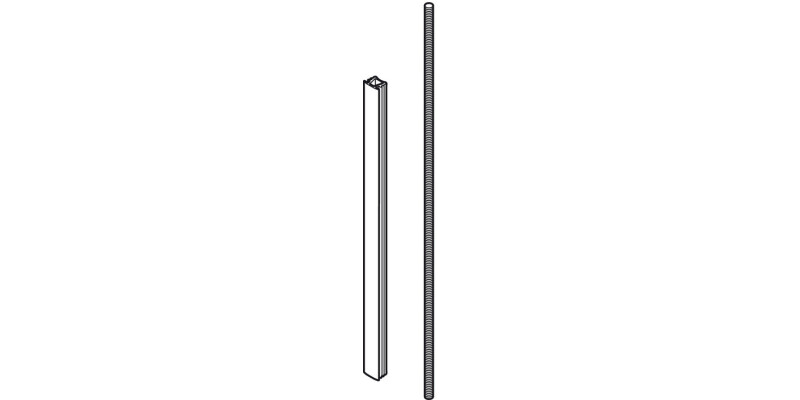

Planofit Threaded Rod+Cover 2195mm White
Planofit adds rigidity to wooden sliding and hinged doors from 16 mm thick and prevents warping in either... Read More
Product Details
Planofit adds rigidity to wooden sliding and hinged doors from 16 mm thick and prevents warping in either direction
Ideal for large, heavy doors
Can also be used to straight doors that have warped over a period of time
Normally two straightening fittings are recommended per door panel
1. The threaded rod is inserted into the trim strip and 2 x U-washers and a hexagonal nut is attached to both sides of it
2. The pre-mounted rod is then inserted into the groove
3. The tensioners are inserted into the boss drilling job and fixed with screws
4. Screw fix the retaining plates
5. The door can now be aligned using the tensioners with an open ended SW10 wrench
6. Position the cover caps on the tensioners
Specifications
Material
Steel
Plastic
Thread Ø
Order reference
Fitting set to be ordered separately
Supplied with

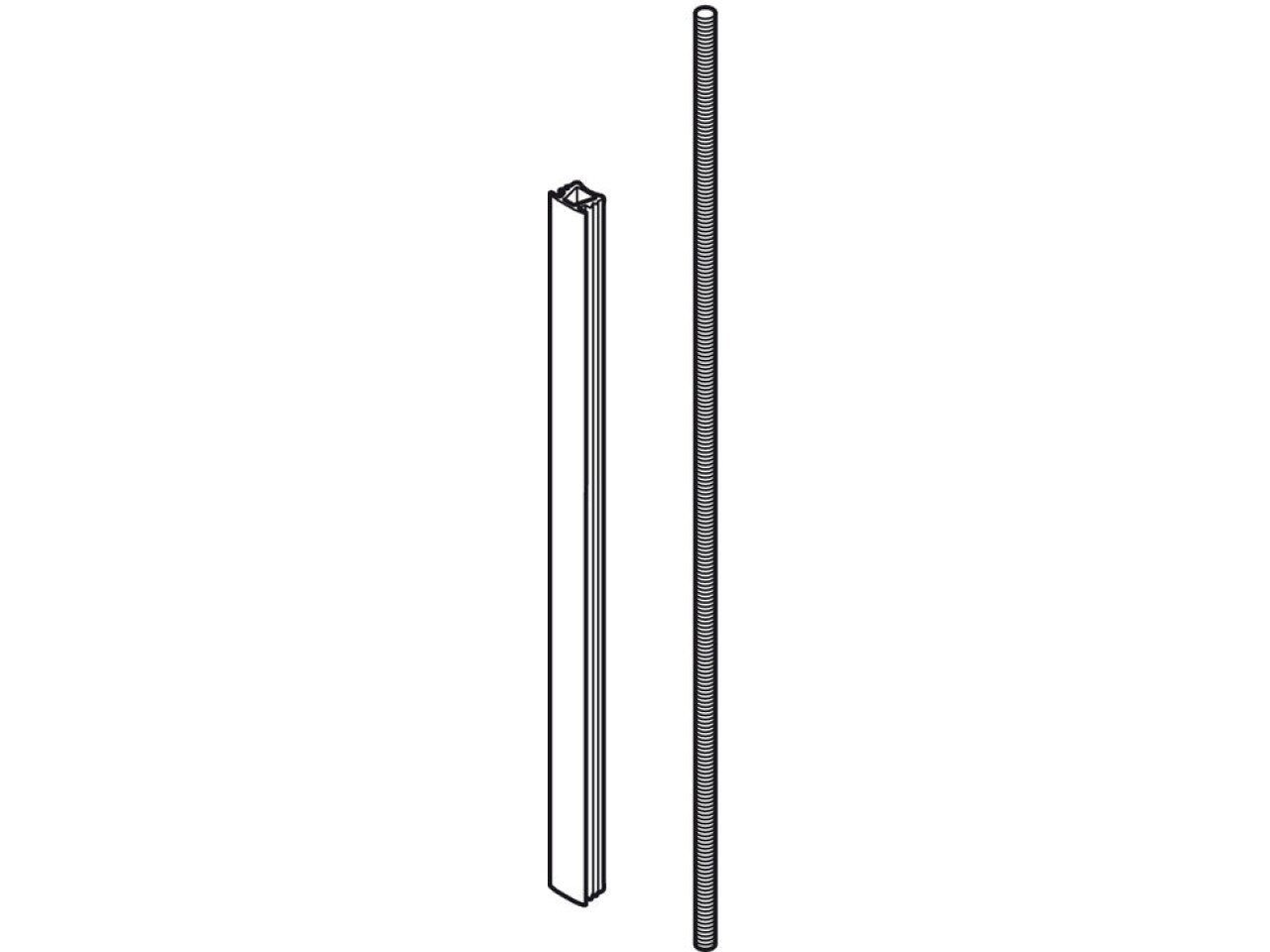

Set consists of 1 x M6 threaded rod 1920 mm long, bright steel, 1 x trim strip, 1863 mm long
