Complete Set, for Flush Sliding Cabinet Doors, Hawa-220 Planfront 40/70
Part Number: 407.74.338
Top hung system, For 1 left opening door
Price:
£2,533.64
Per Item
Complete Set, for Flush Sliding Cabinet Doors, Hawa-220 Planfront 40/70 is a premium heavy duty sliding &... Read More
Product Information
Product Details

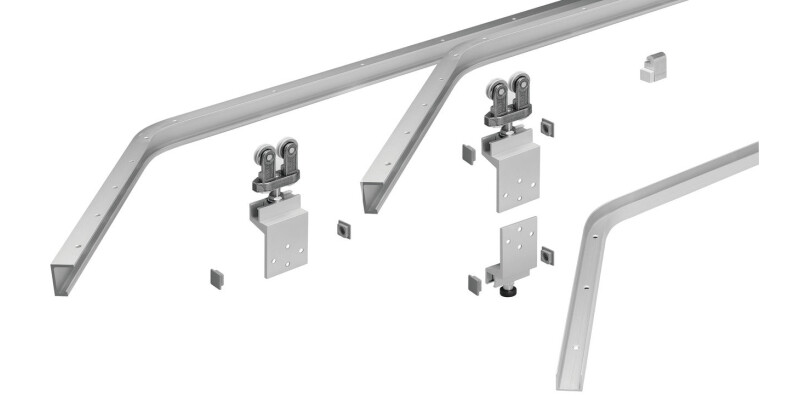

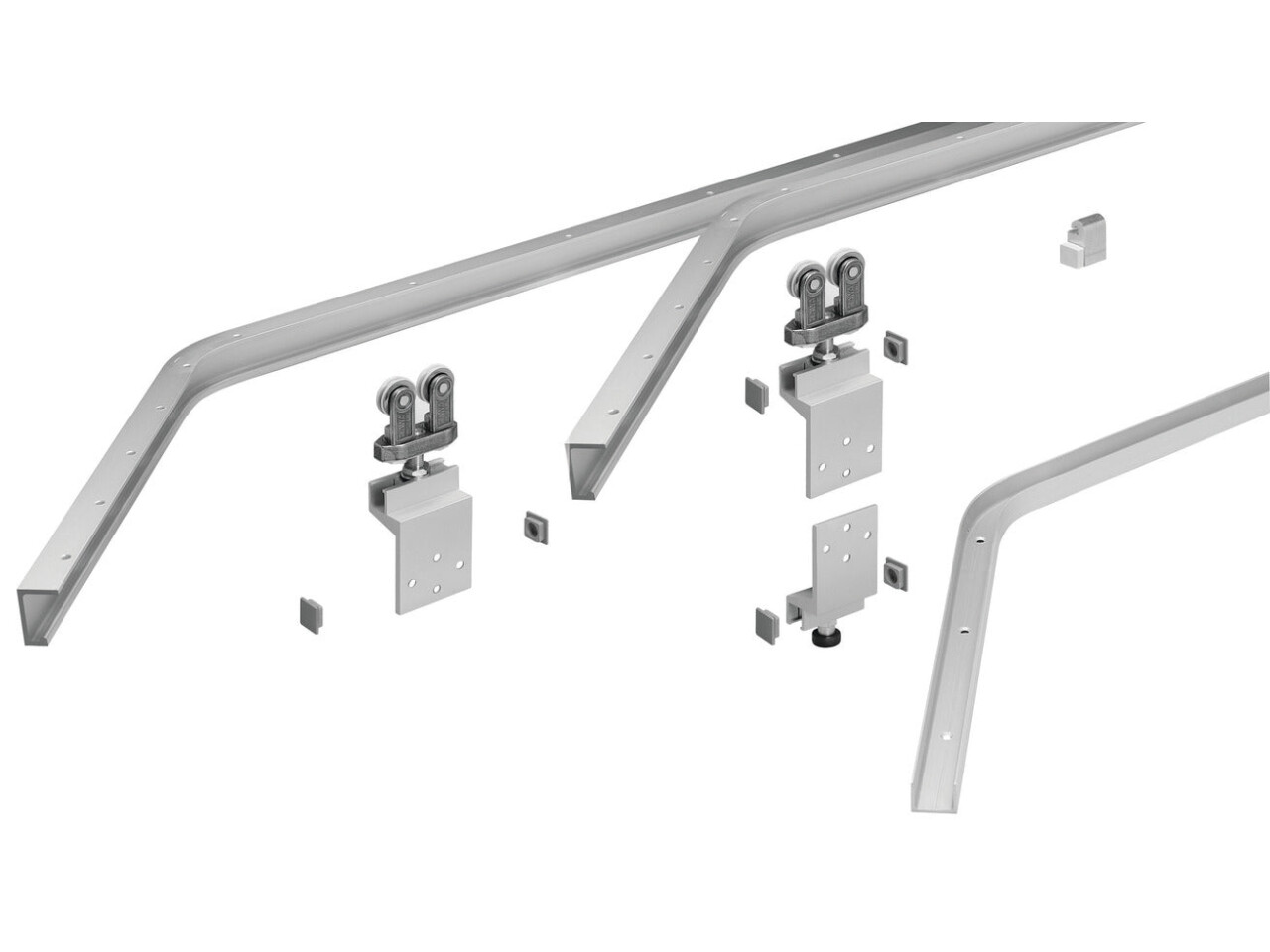

Complete Set, for Flush Sliding Cabinet Doors, Hawa-220 Planfront 40/70 is a premium heavy duty sliding & folding door gear solution built for smooth, reliable performance. Designed as a top hung system for a left opening flush cabinet door, this complete set brings an effortless gliding feel to your interior storage while keeping your installation neat and professional.
When you want hardware that can handle everyday use, the Hawa 220 Planfront FitSet delivers. Its running gear is guided by ball bearings, providing consistent movement with reduced friction—ideal for wardrobes, kitchens, and high-traffic cabinet applications.
This FitSet is engineered for door dimensions and strength: suitable for door thickness 19–45 mm, door width 400–1,500 mm, and door weight up to 70 kg. With height adjustment ± 5 mm, you can fine-tune alignment for a clean, flush finish that looks great and closes smoothly.
Crafted in aluminium, the system is durable and supports a long service life. Installation is made simple with screw-on running gear, and the set is prepared for screw fixing and door processing for secure mounting.
Complete set with tracks included, specifically for a cabinet version with 1 door wing left. For order reference, please note that Hospa Ø 5.0 mm countersunk screws should be ordered separately.
If you’re upgrading to a top-quality sliding and folding door mechanism, choose Complete Set, for Flush Sliding Cabinet Doors, Hawa-220 Planfront 40/70 (Product Part No: 407.74.338) for confident performance and a refined, flush-cabinet look.
Specifications
For door thickness
19 – 45 mm
For door width
400 – 1,500 mm
For door weight
≤70 kg
Running gear guided by
Ball bearing
Cabinet version
with 1 door wing left
Area of application
Flush cabinet doors
Material/finish
Aluminium
Adjustment facility
Height adjustment ± 5 mm
Installation
Screw-on running gear
Door processing
for screw fixing
Set
Set with tracks
Type of opening
flush
Order reference
Order Hospa Ø 5.0 mm countersunk screws separately
