Complete Fitting Set, for Sliding Cabinet Doors, Hawa Frontino 20 H OS FS

Product Details

Is this sliding and folding gear suitable for flush cabinet doors?

Yes. Eku Frontino 20HOS FS FitSet 2Dr OS4 is designed for flush cabinet doors and is intended for cabinetry applications such as wall units with matching door leaves.

How many door leaves does this complete fitting set support?

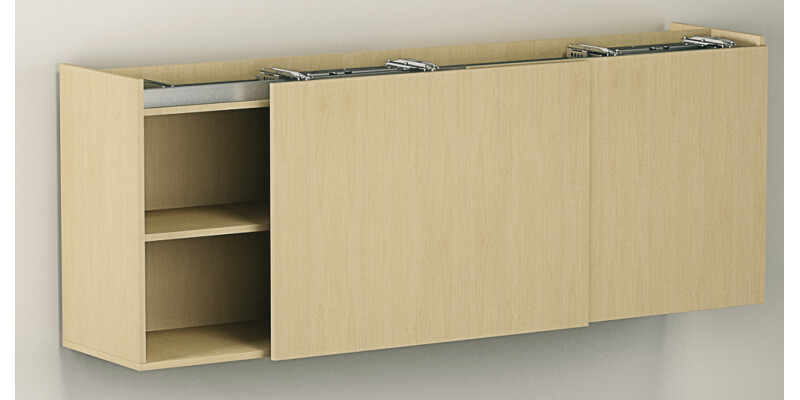

This set is for two door leaves. It is an OS4 model for systems with 2 symmetrical flush doors, making it suitable for many double door furniture layouts.

What cabinet widths does Model OS4 cover?

For cabinet width 1800 to 1999 mm. Please ensure your cabinet falls within this range to match the intended system sizing for the OS4 model.

What door thickness, height, width, and weight can I use?

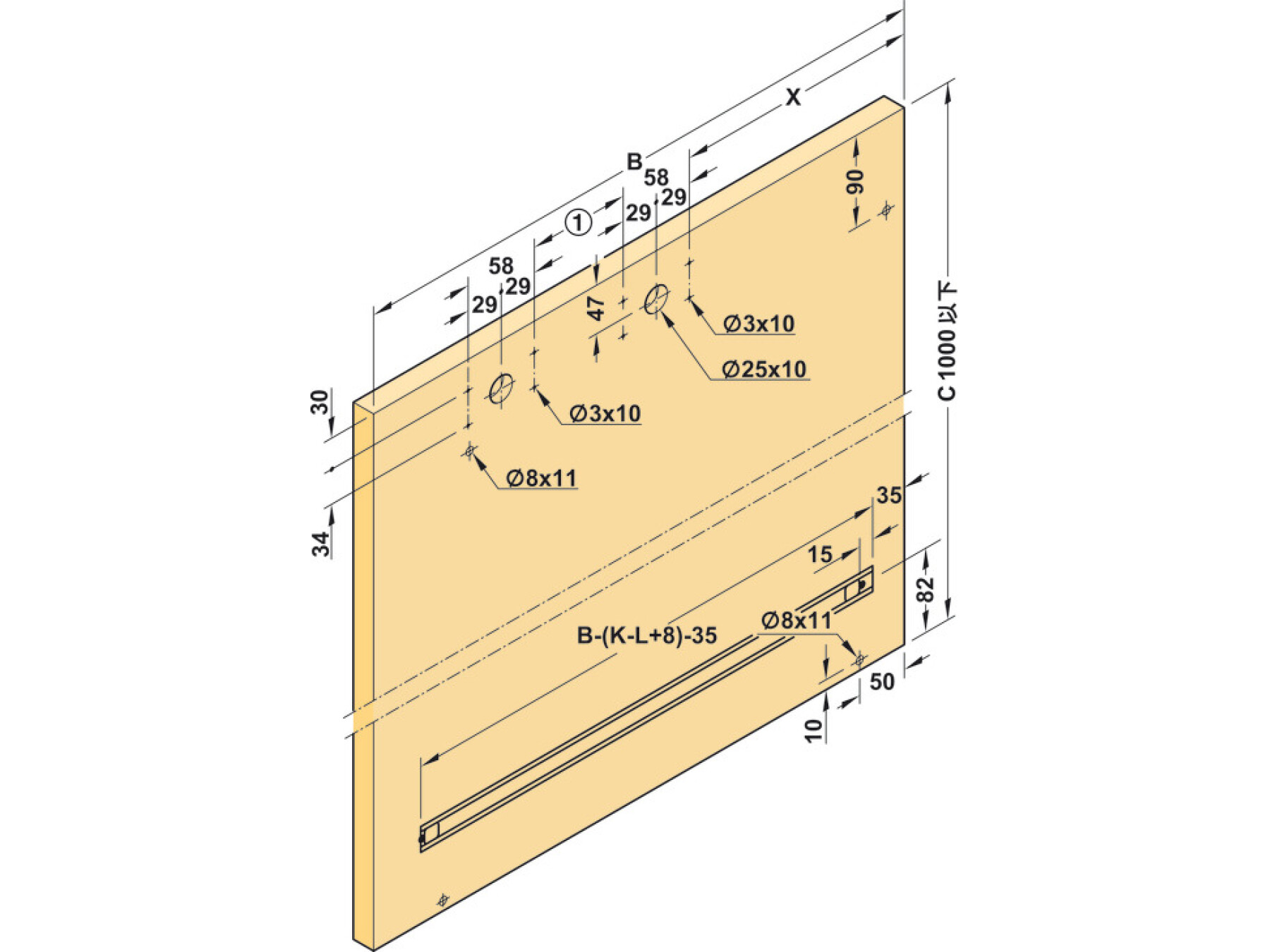

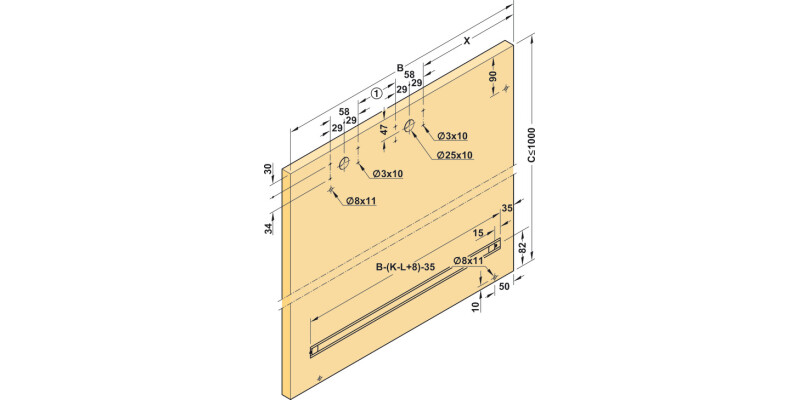

Door thickness: 19 to 25 mm. For typical performance limits, the system supports door height up to 1000 mm, door width up to 1200 mm, and door weight up to 20 kg per door leaf. Staying within these ranges helps ensure smooth movement.

Does it include soft closing for smoother operation?

Yes. The running equipment includes an integrated stopper system with soft closing mechanism, which helps reduce impact at the end of travel.

How is the system installed and what does “top hung” mean?

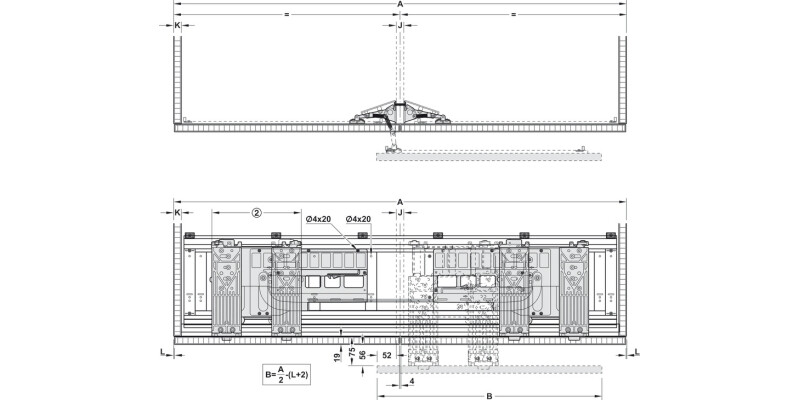

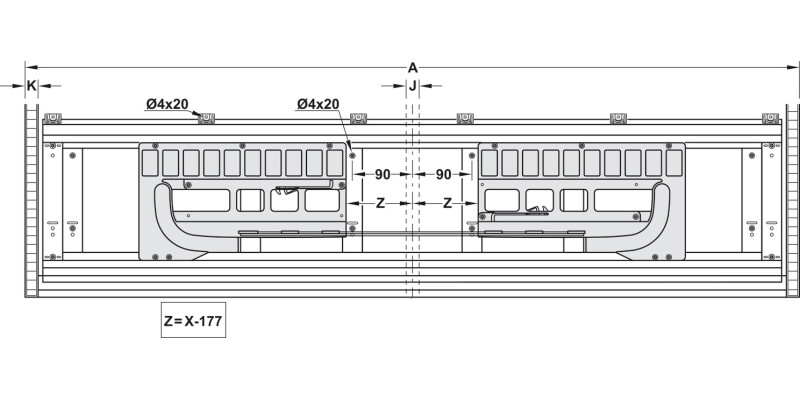

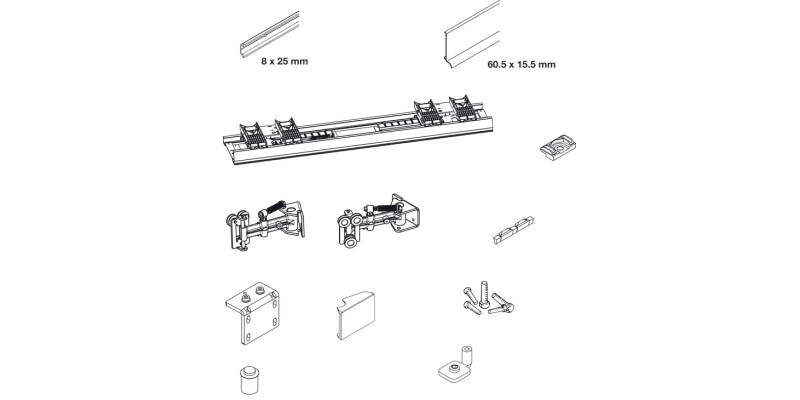

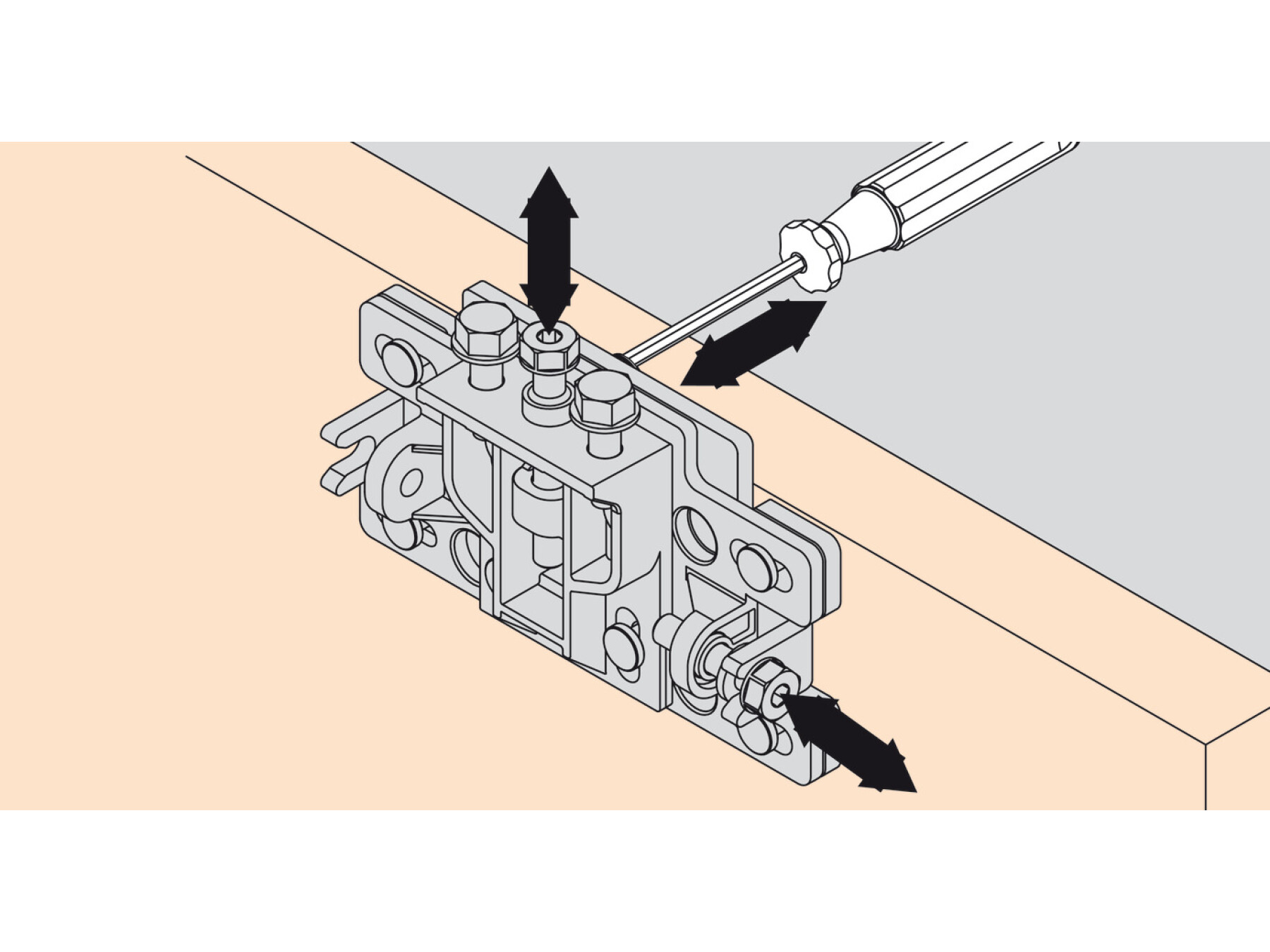

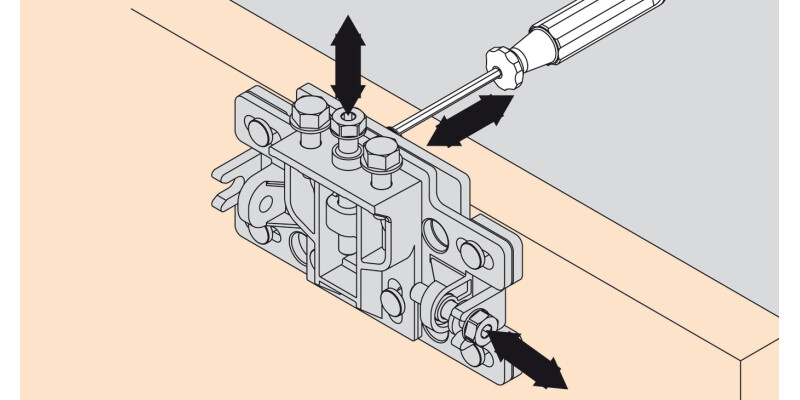

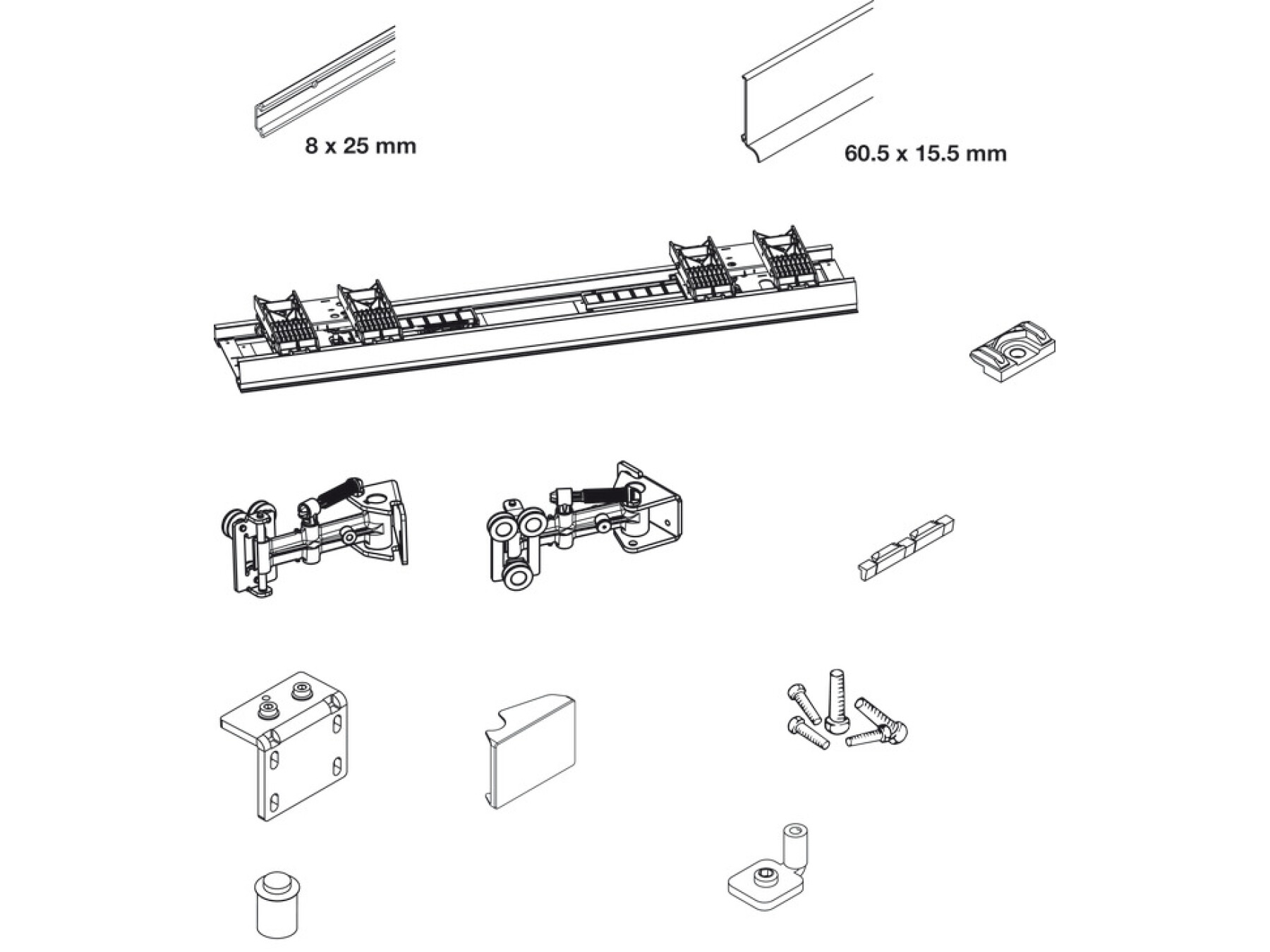

It is a top hung running position system. Installation uses the running gear and tracks for screw fixing, with the geometry guided via a ball bearing guided running setup. If you are building a top mounted door arrangement, this layout is designed for that purpose.

Will my door handle position work with the required clearances?

Check the handle to door edge distance. The system is designed for a minimum distance of 35 mm and a maximum distance of 41 mm. If your handle is within this range, it should align properly with the required movement and clearance.

What is the part number and how can I order it?

Product part number: 406.02.073. If you are matching this to an OS4 top hung 2 door flush installation for a cabinet width of 1800 to 1999 mm, ordering this exact fitting set helps avoid compatibility issues.
