Complete Fitting Set, for Sliding Cabinet Doors, Hawa Frontino 20 H FS

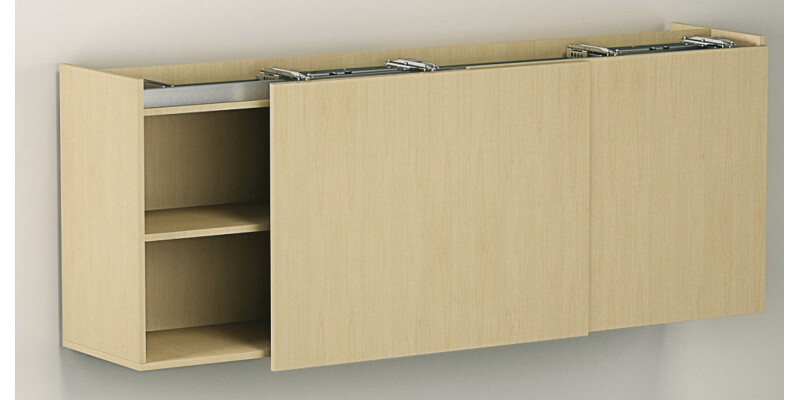

Can the Eku Frontino 20H FS FitSet S4 be used for two flush cabinet doors?

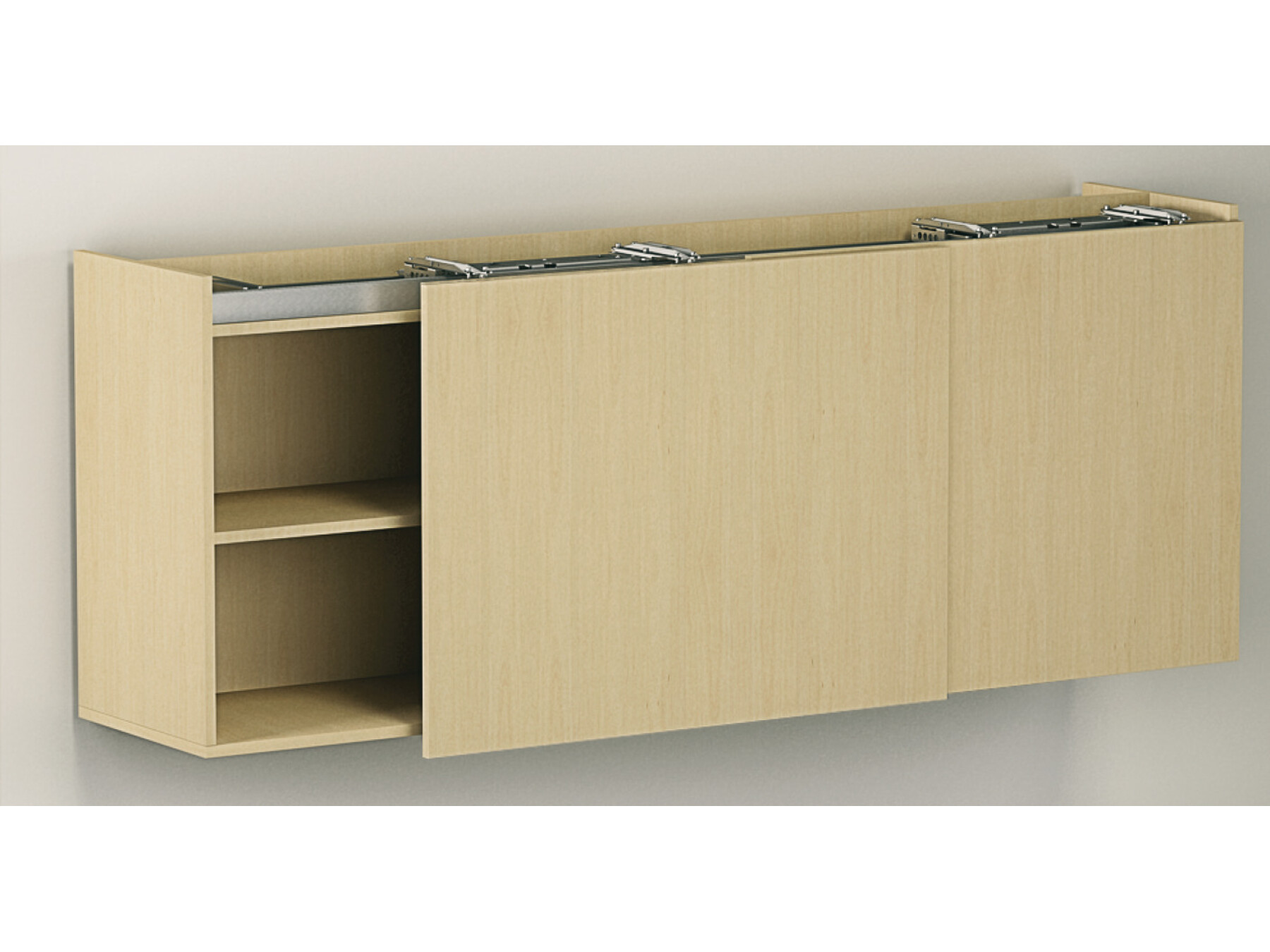

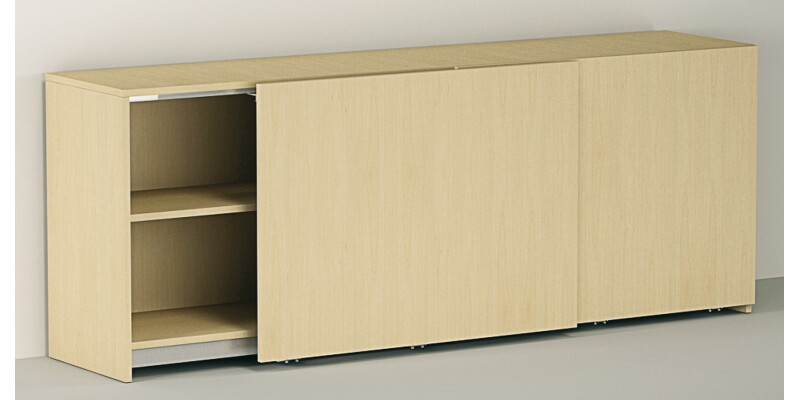

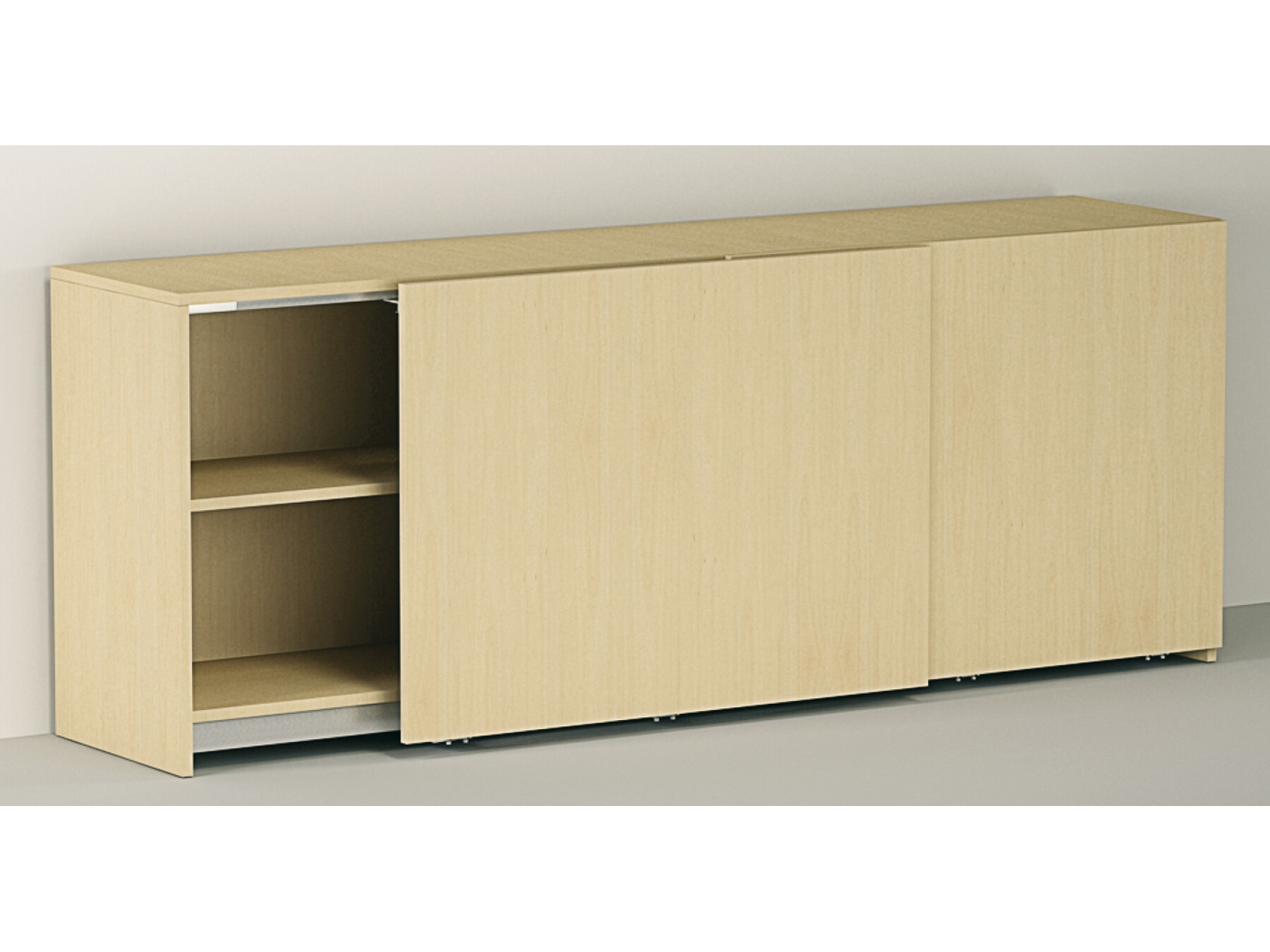

This fitting set is designed for 2 flush door leaves, making it suitable for cabinet openings that use two equal sliding and folding doors.

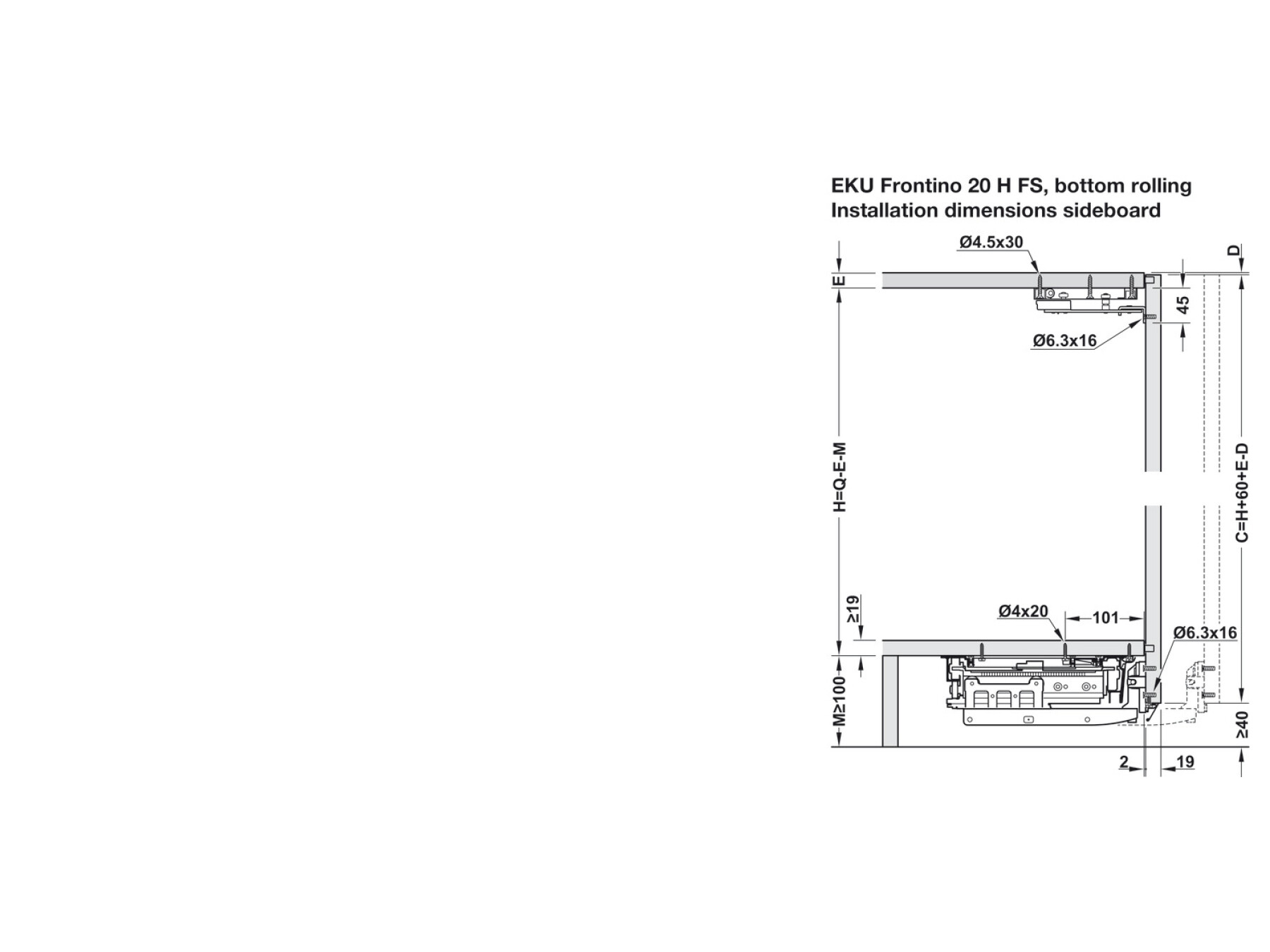

Does this system run from the top or the bottom of the cabinet?

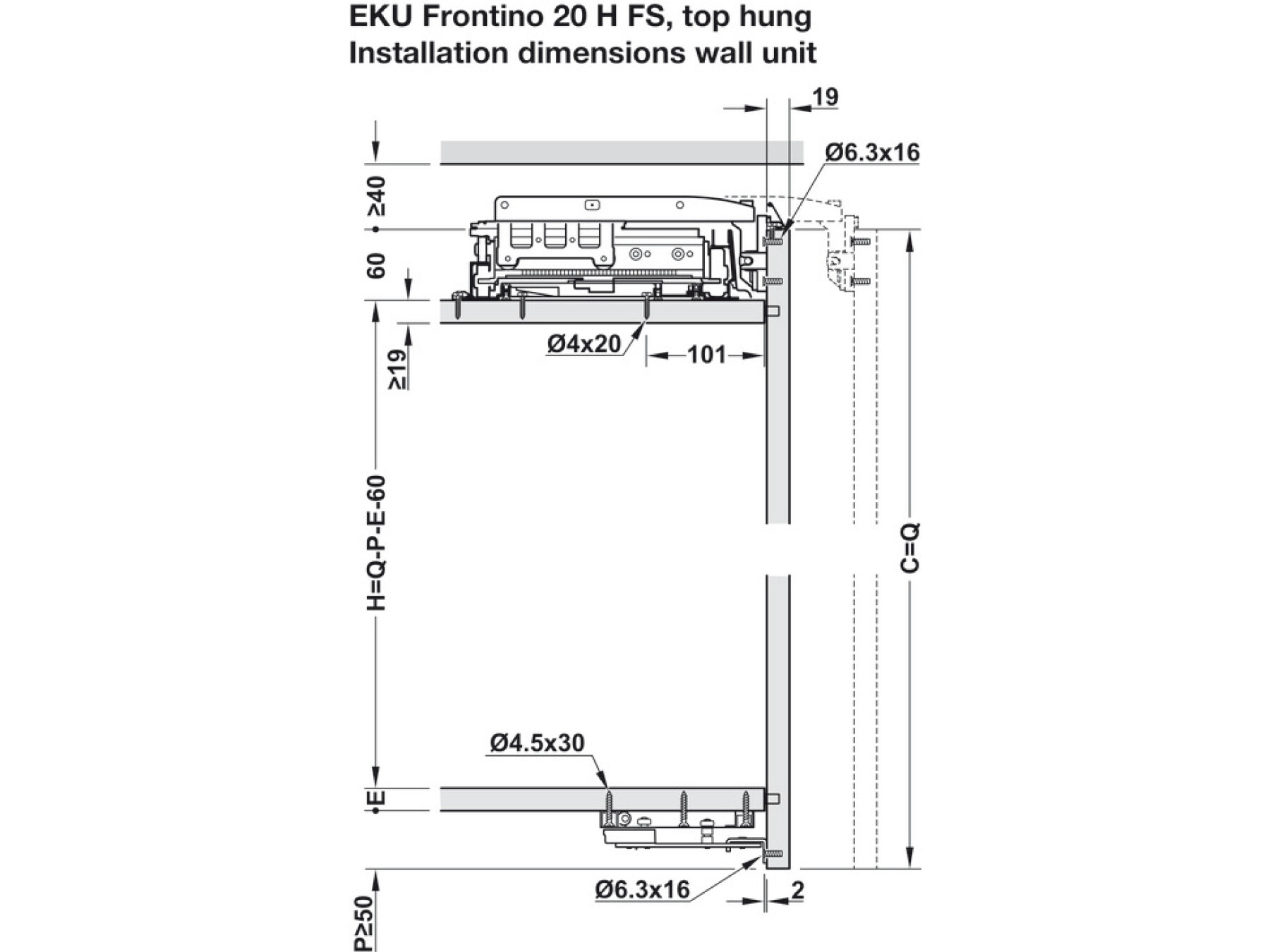

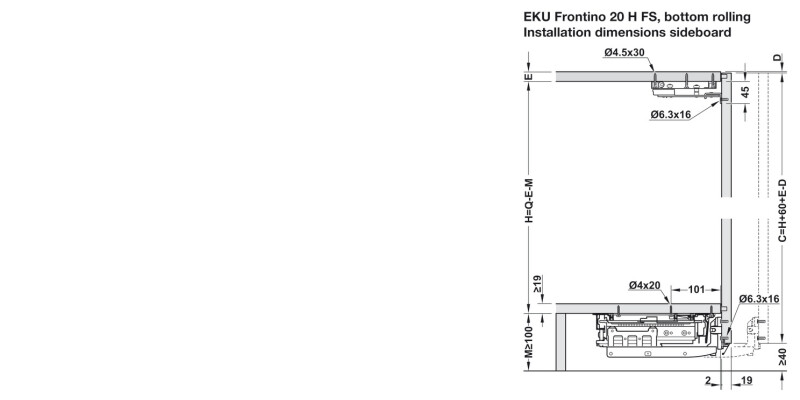

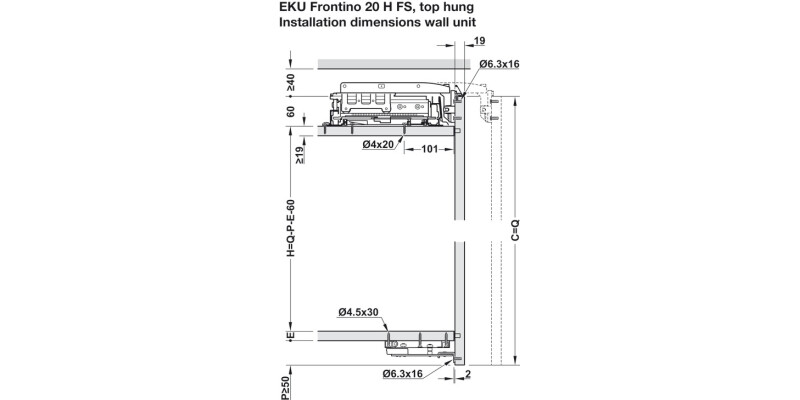

The S4 model supports a top hung or bottom rolling running position, so you can choose the arrangement that best matches your cabinet design.

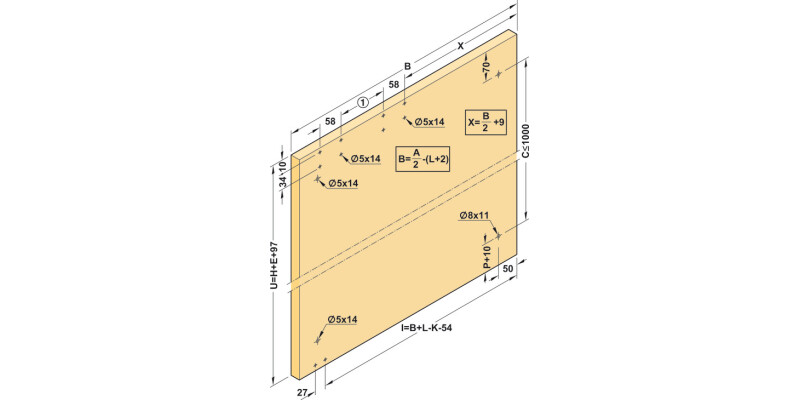

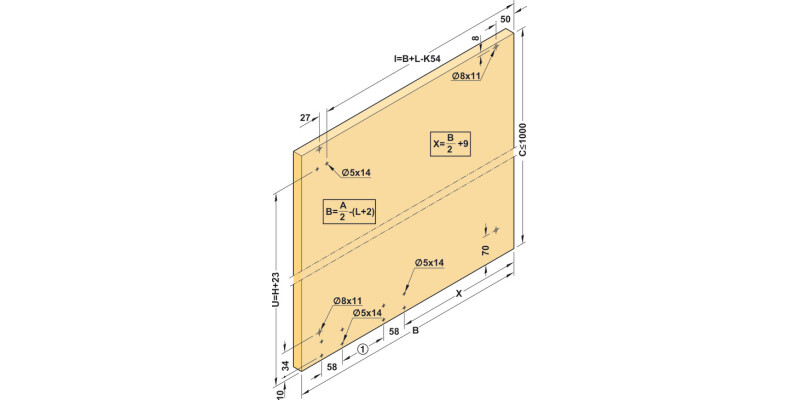

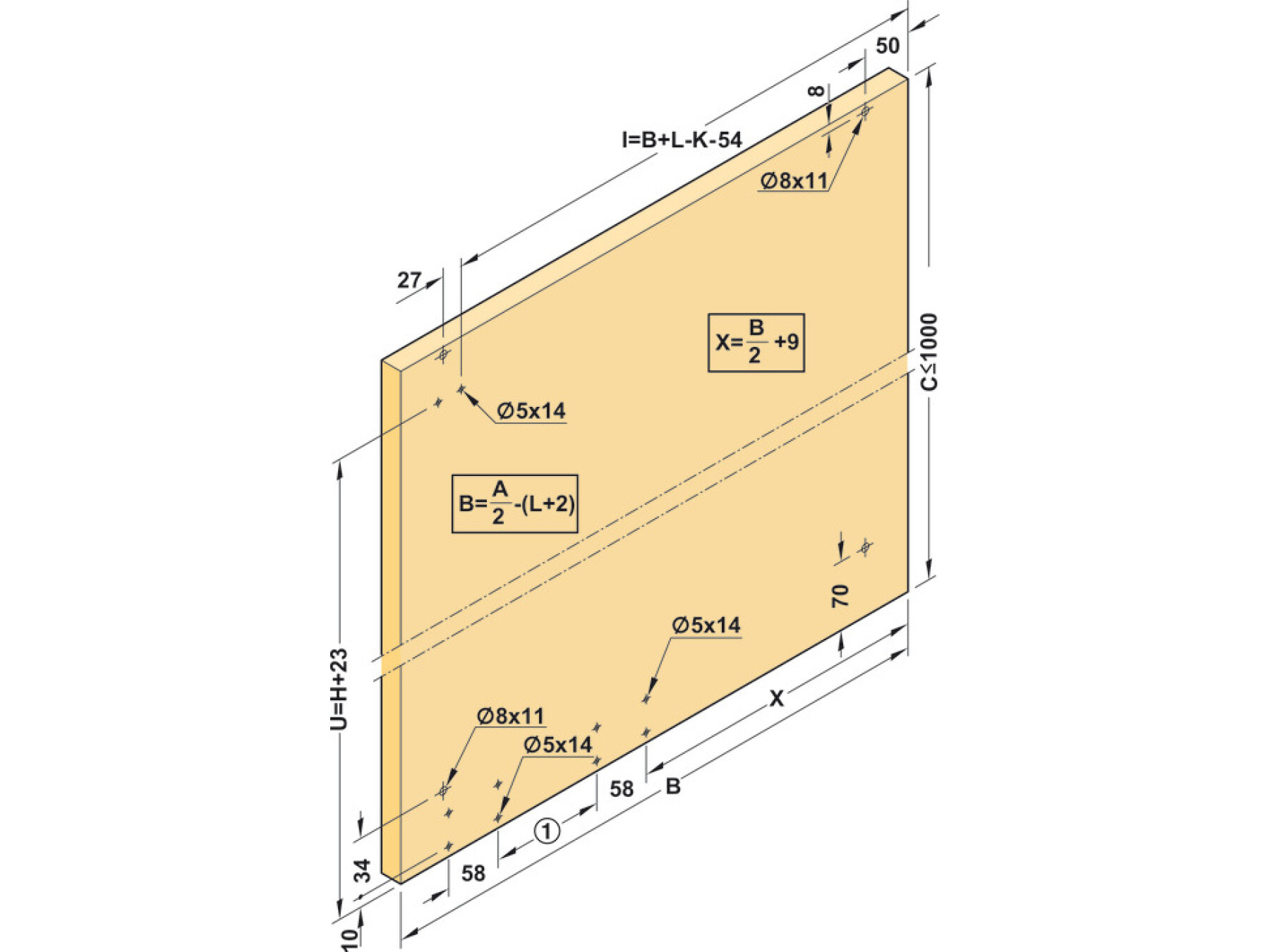

What door thickness range is compatible with this gear set?

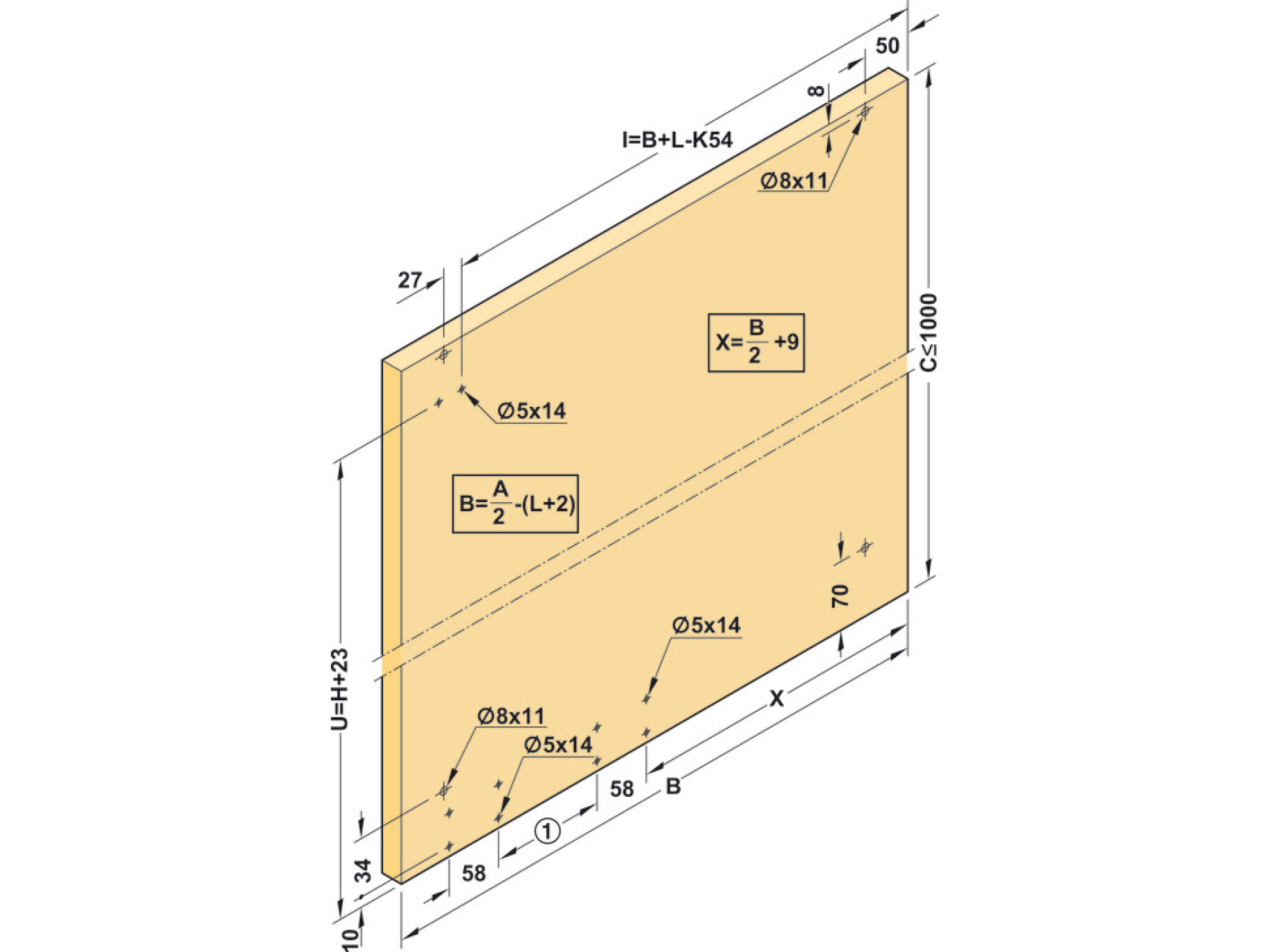

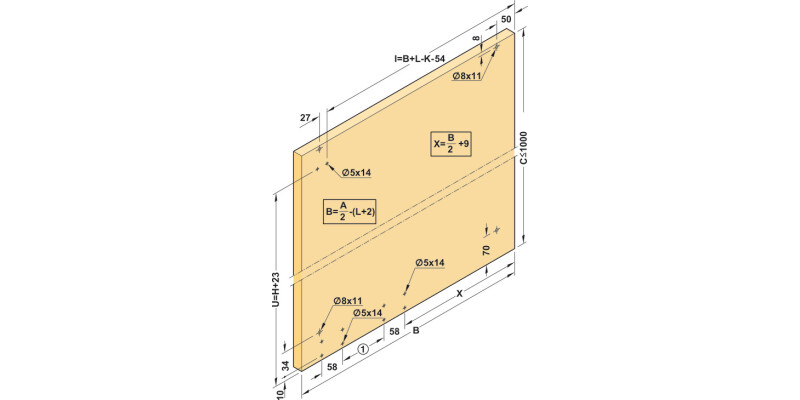

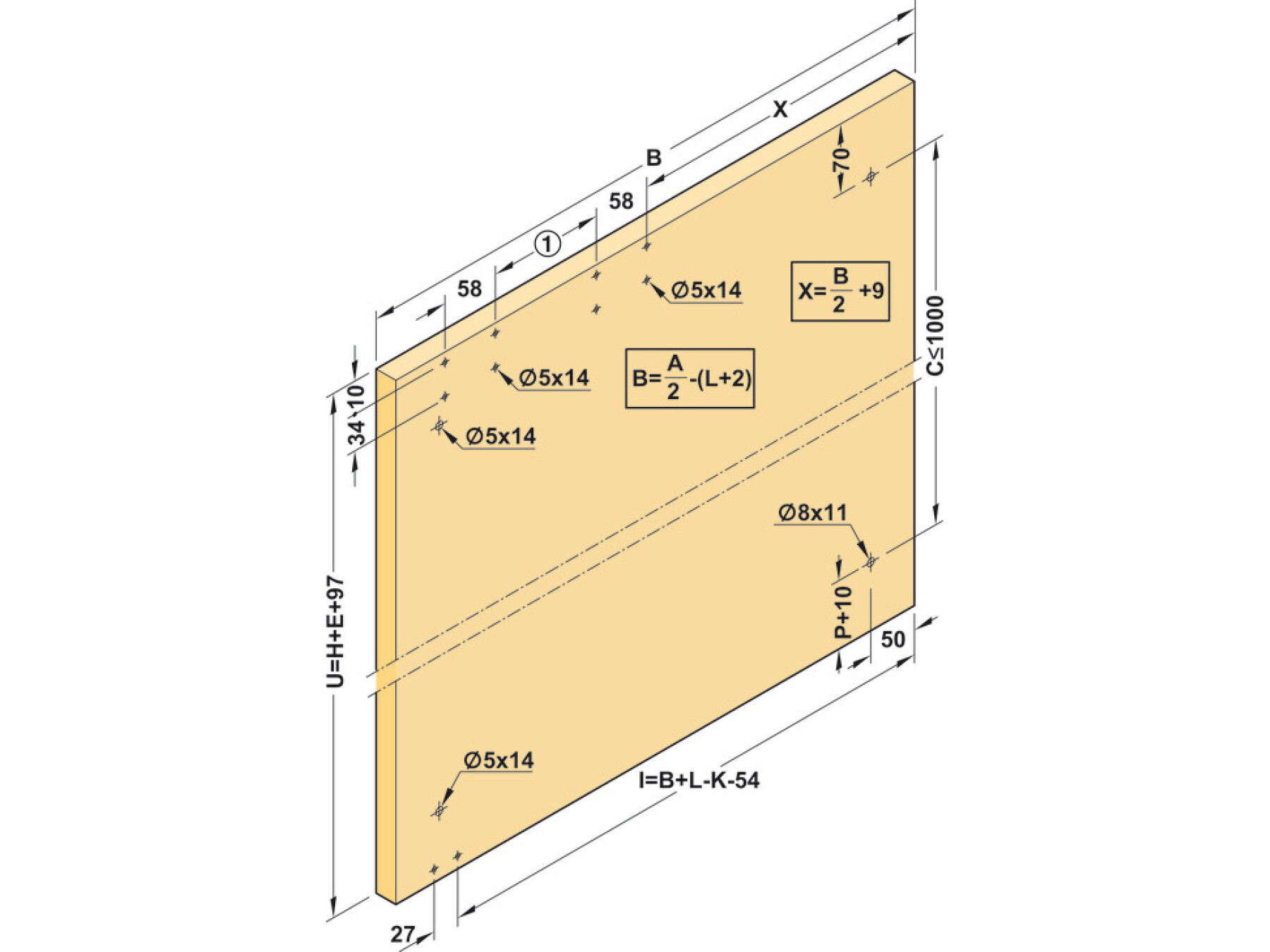

For reliable operation, the door should be within 19 to 25 mm thickness. This helps the fittings sit correctly and keeps door movement stable.

Will the soft closing mechanism work as part of the running system?

Yes. The set includes a stopper system with a soft closing mechanism integrated into the running equipment, helping the doors slow down smoothly before they reach the end position.

What cabinet width does this S4 FitSet suit?

This model is specified for cabinets with a width of 1800 to 1999 mm, which makes it a good fit for many standard wide furniture layouts.

Are the rollers suitable for smooth day to day opening and closing?

The running gear is guided by ball bearing, which is typically used to provide smooth, low friction movement for frequently used sliding and folding door applications.

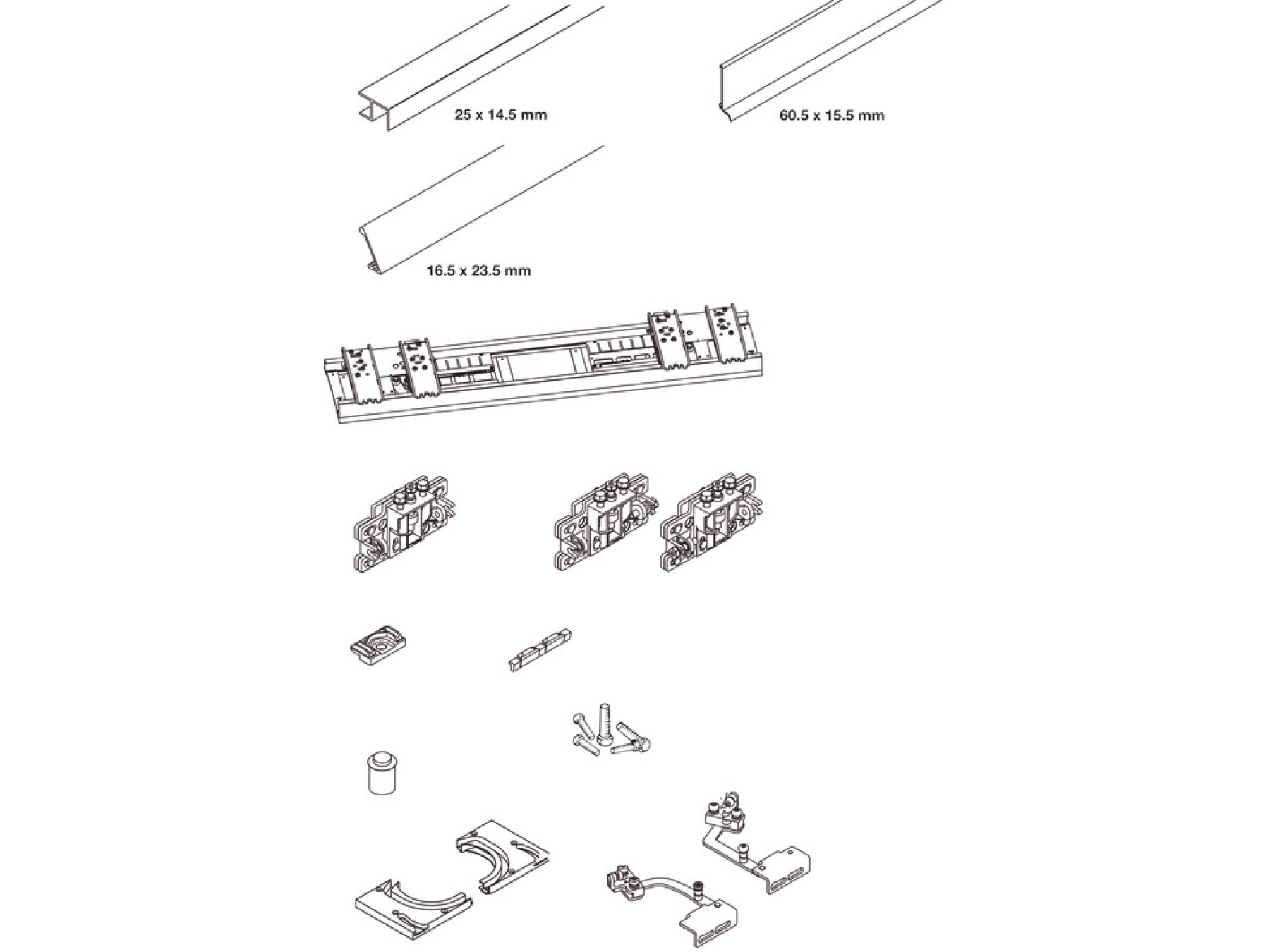

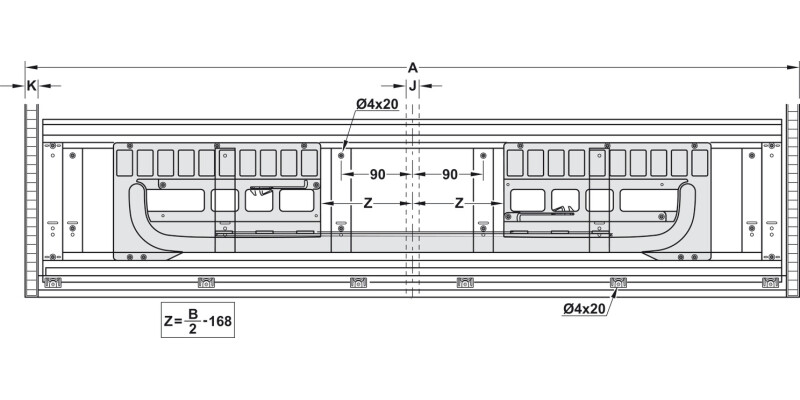

How is the gear fitted during installation?

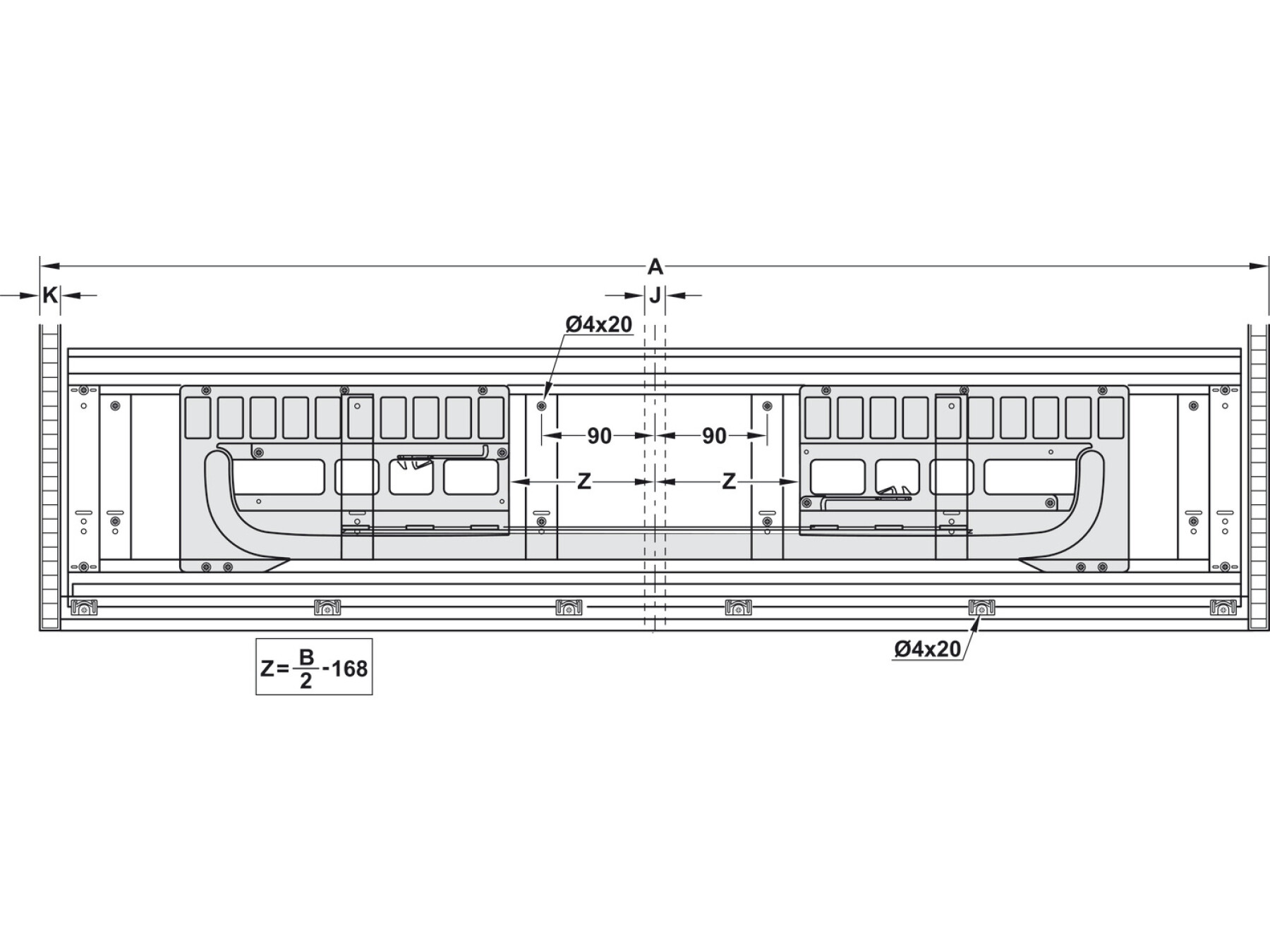

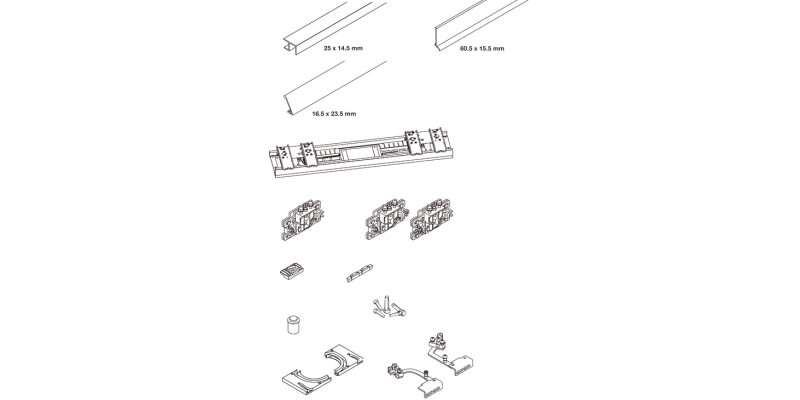

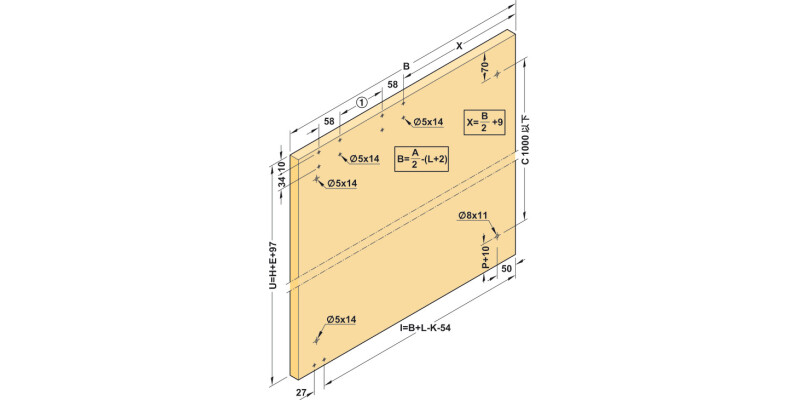

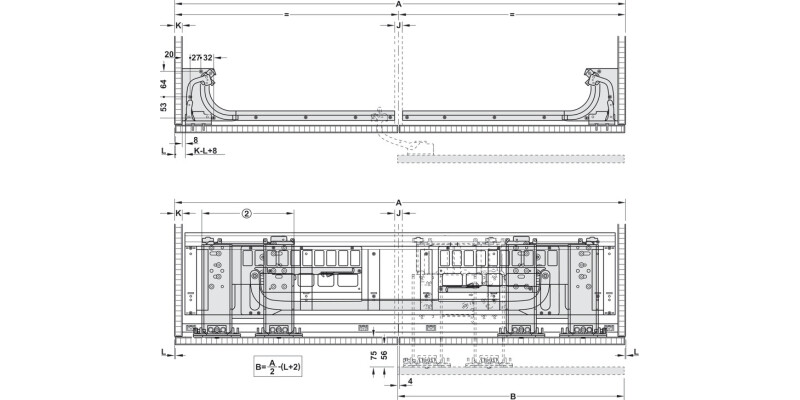

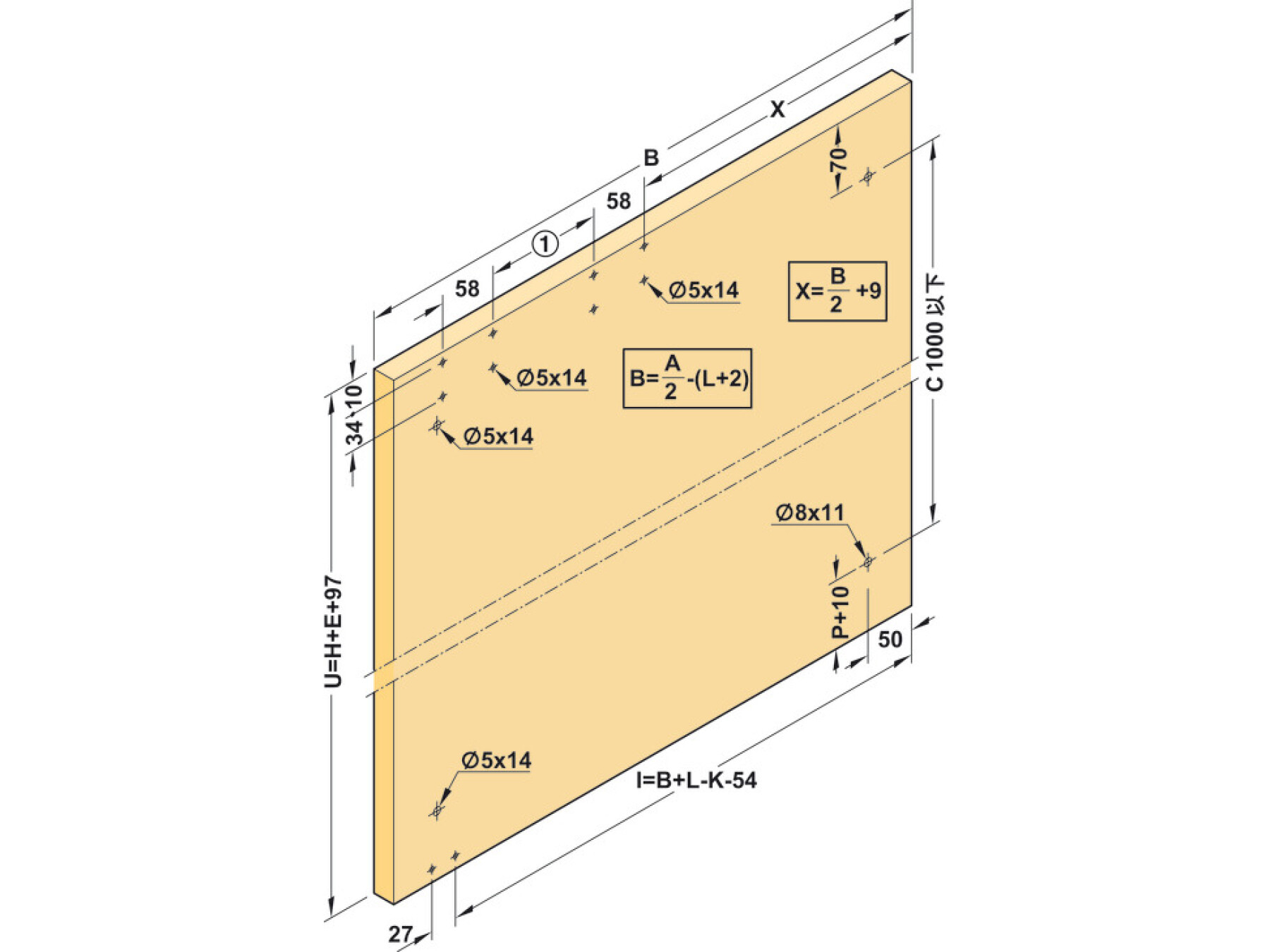

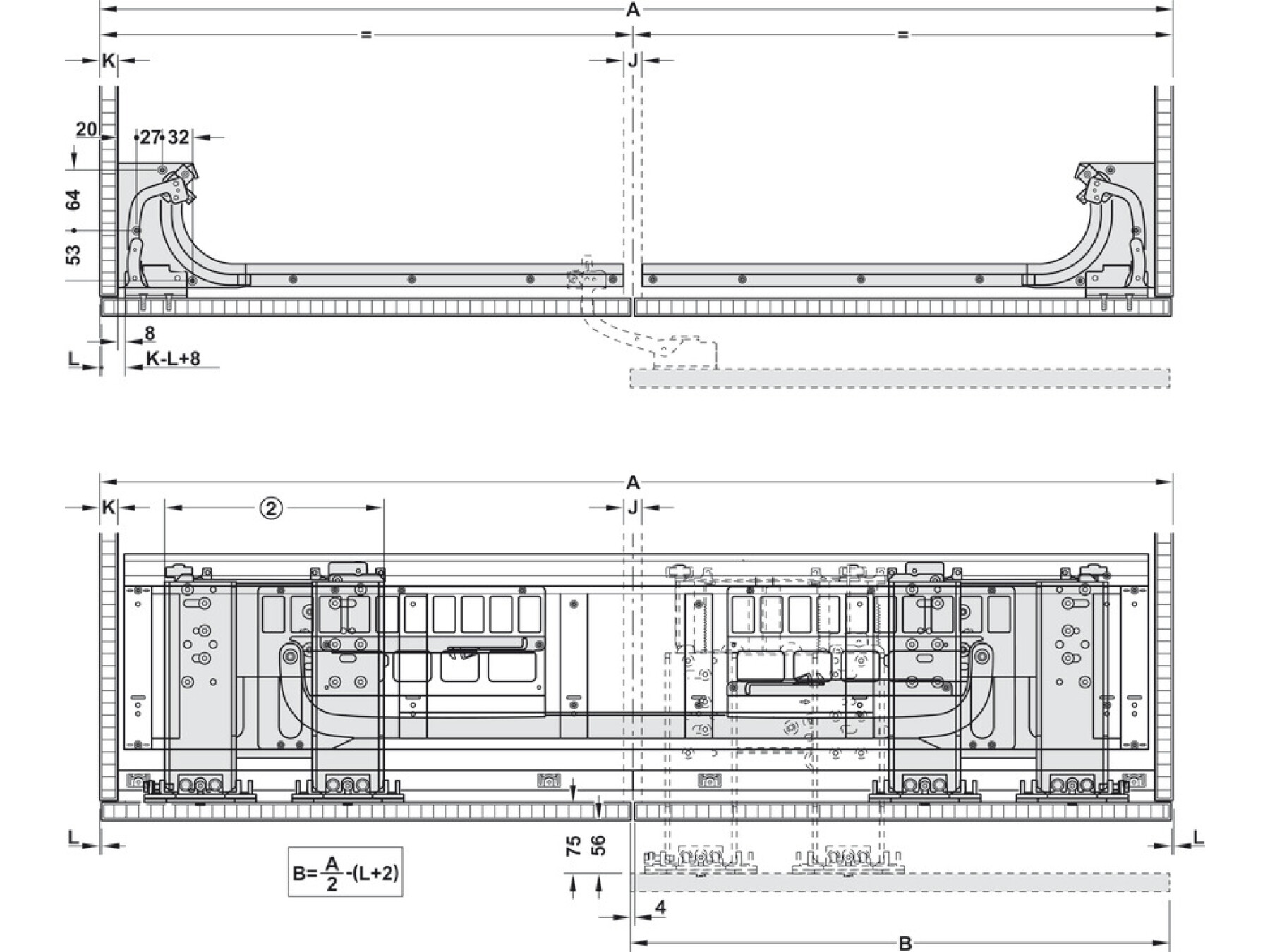

The set is intended for installation using running gear and tracks for screw fixing, with a 3 point guidance support flange connection to help with alignment.

What do I need to check about door size and weight before ordering?

The specification supports doors up to 1,000 mm height, with a door weight of up to 20 kg. It is also intended for door widths up to 1,200 mm and a maximum handle to door edge distance of 41 mm so the travel and fit work correctly.
