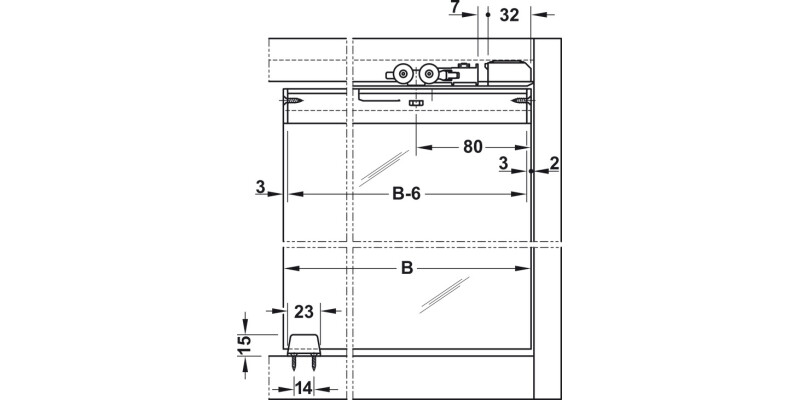

Eku Clipo 36GPPK FitSet 1Dr
Inset single and double parallel sliding glass panels with frame profileFor high quality workClipo 36 GPK -... Read More
Product Details

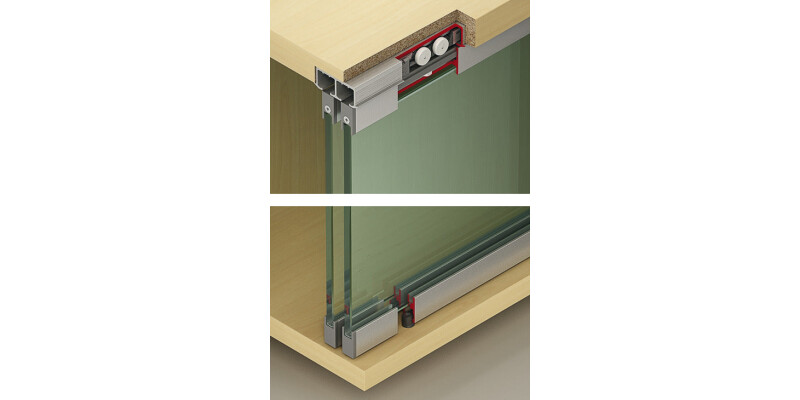

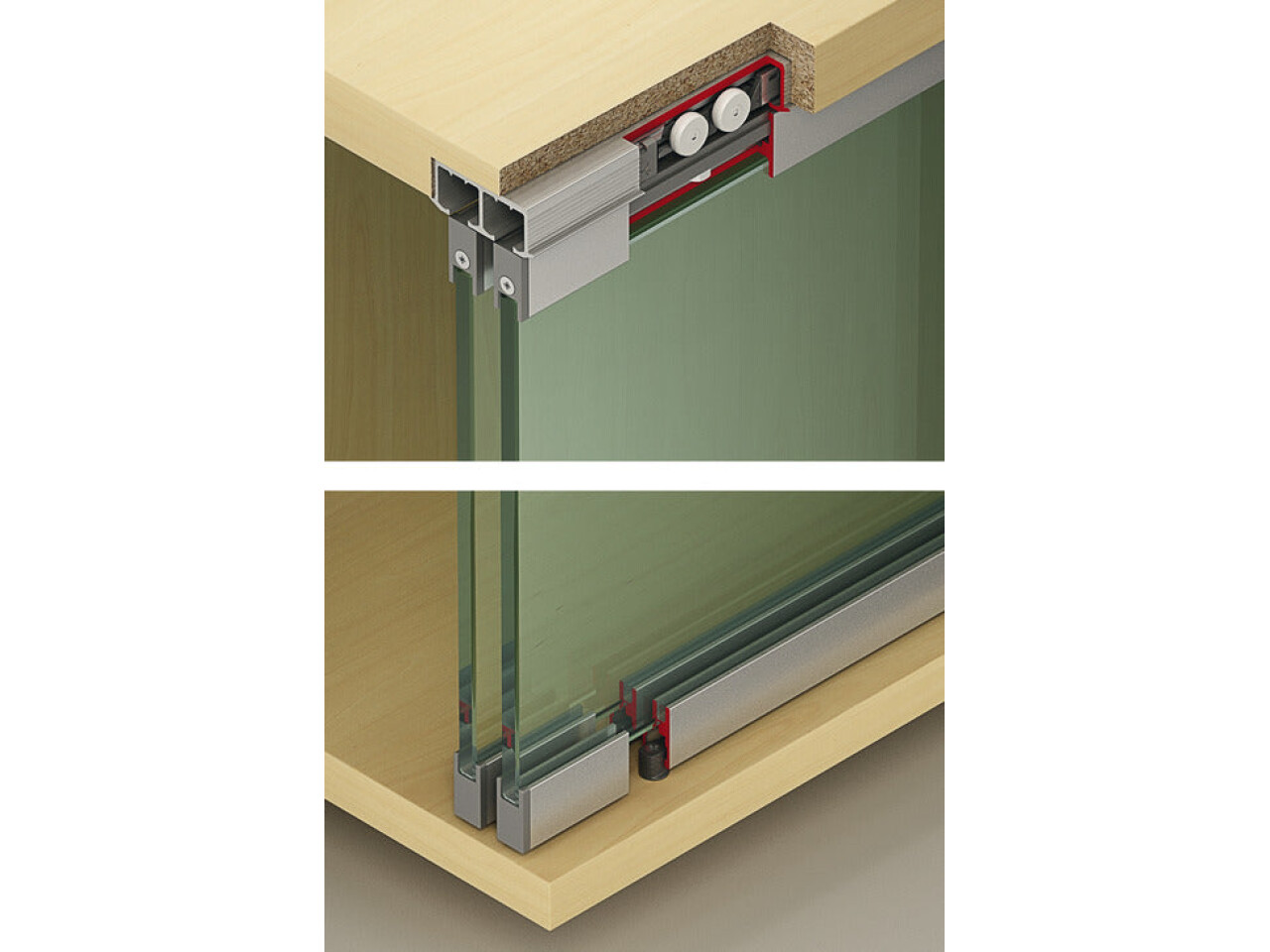

Inset single and double parallel sliding glass panels with frame profile
For high quality work

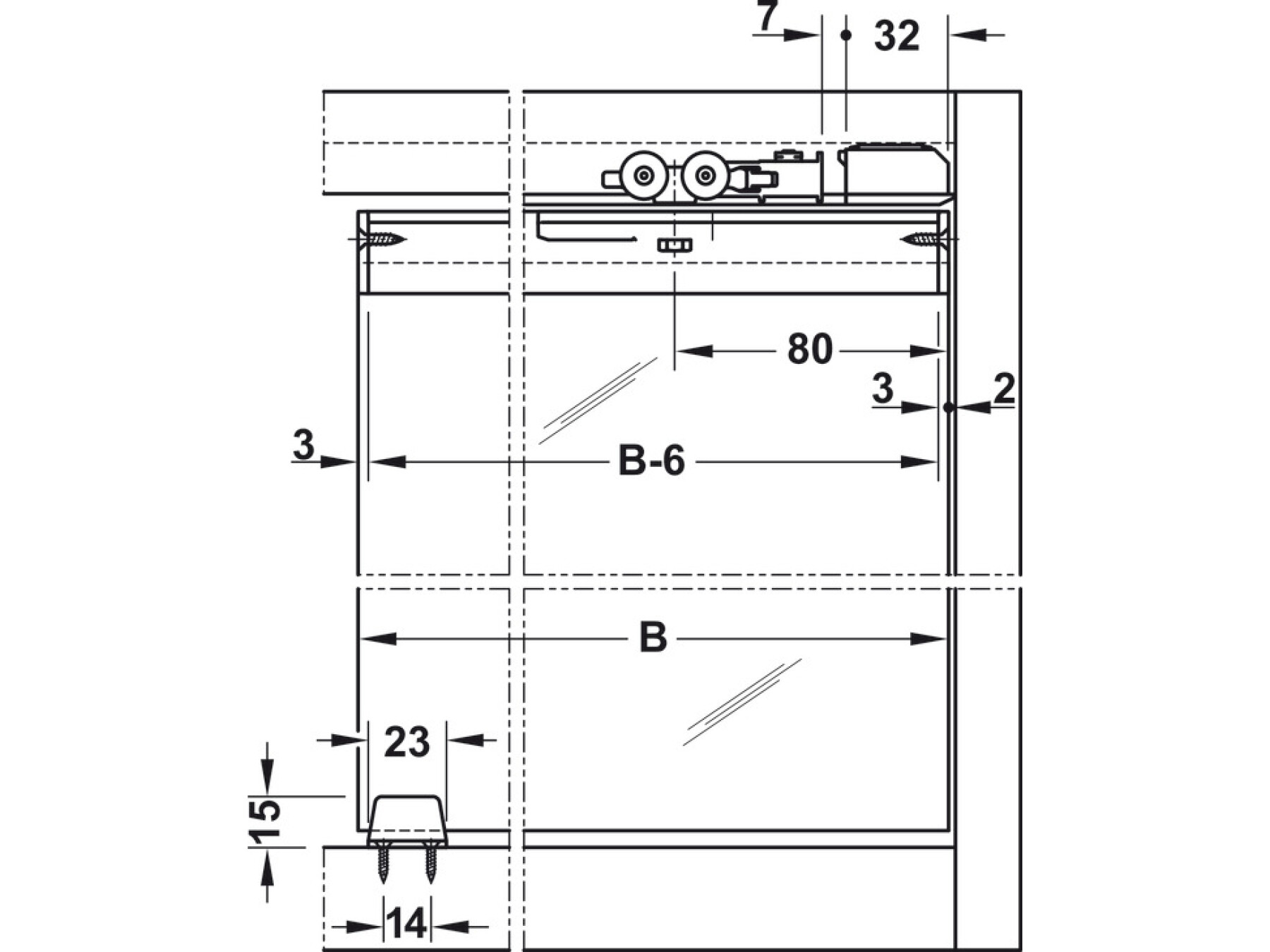

Clipo 36 GPK - Aluminium glass fixing frame at top only and surface fixed guide at base

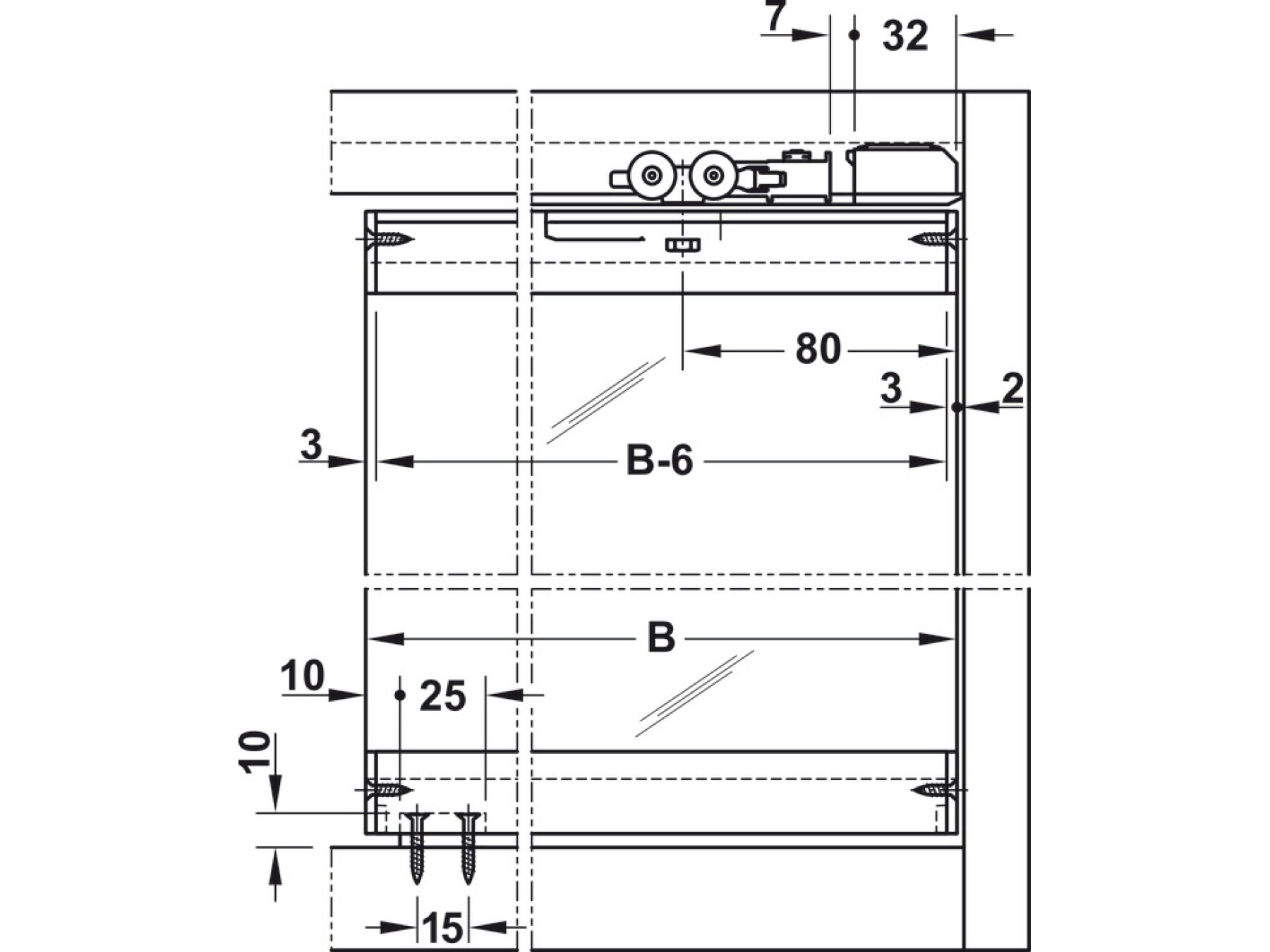

Clipo 36 GPPK - Frame at top and bottom of the panel
Order reference
Please order running tracks, guide tracks and glass fixing profiles (GPK: top, GPPK: top and bottom) separately.
Soft closing at one side is possible from a centre distance of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism set separately.
Supplied with

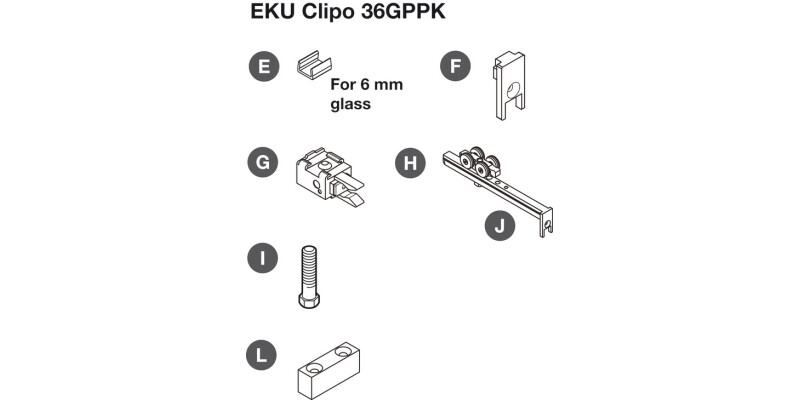

Set consists of 4x Spacer, for use with 6 mm glass in profile, grey plastic, 2x Profile cover cap, GPPK, screw fixing to bottom profile, zinc alloy, 2x Stopper, for top track, with retaining spring, grey plastic, 2x Running gear, +/- 2 mm vertical adjustment, bright zinc alloy, 2x Mounting screw, M5 x 20 mm, for fixing running gear to suspension block, galvanised steel, 2x Suspension block, for insertion and screw fixing in profile, bright zinc alloy, 1x Bottom guide, GPPK, rattle proof, screw fixing to profile, grey plastic
Only use tempered safety glass
Specifications
Number of door leaves per set
Soft closing mechanism
For glass thickness
For door width
For door weight
Cabinet version
Area of application
For 1 doors
For door height
Door stopper
Top clip-in door stopper, for sliding into single or double top running track
