Fitting Set, for Sliding Cabinet Doors, Slido F-Line21 20C

Product Details

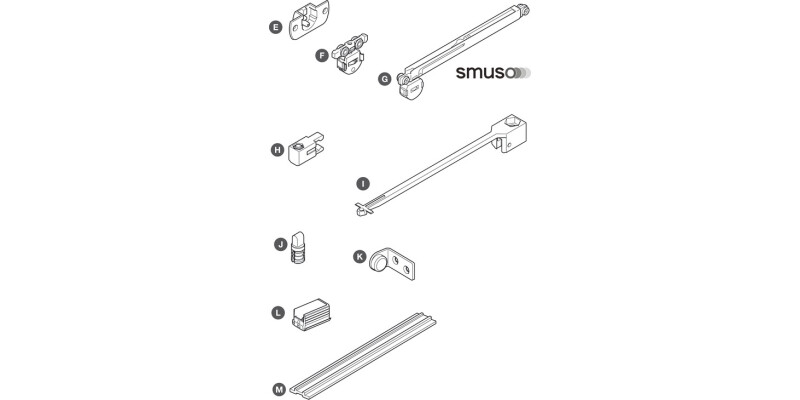

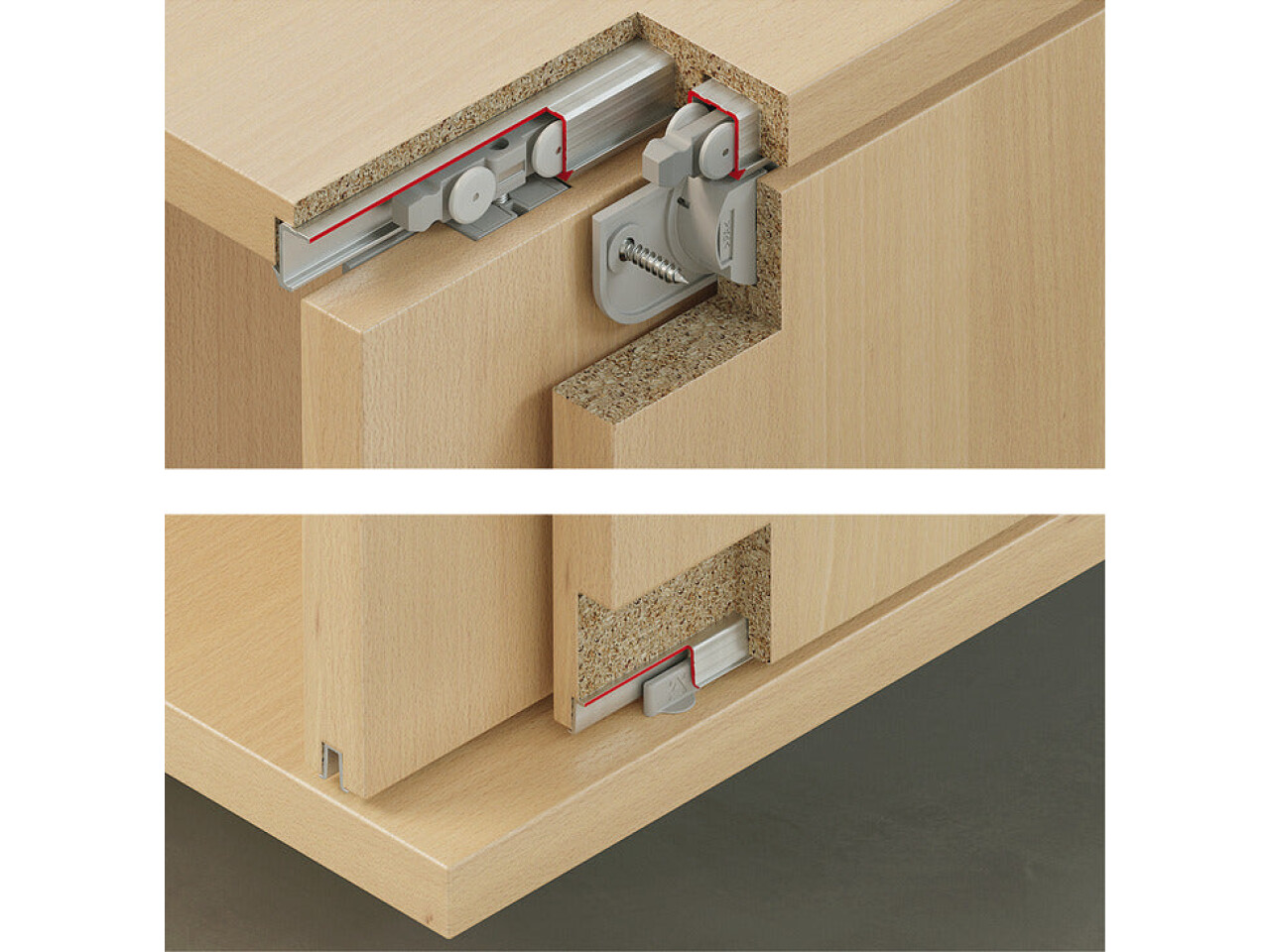

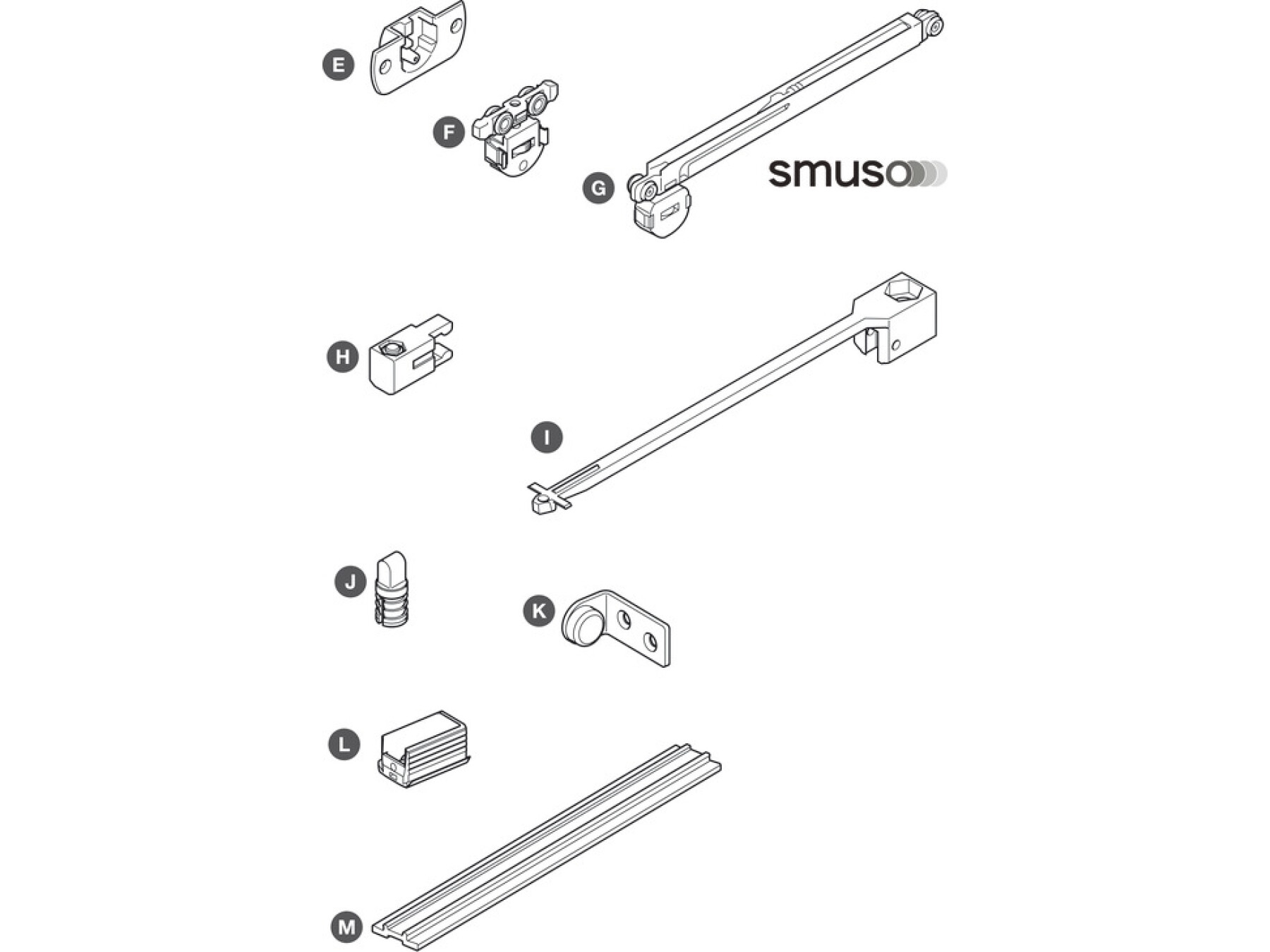

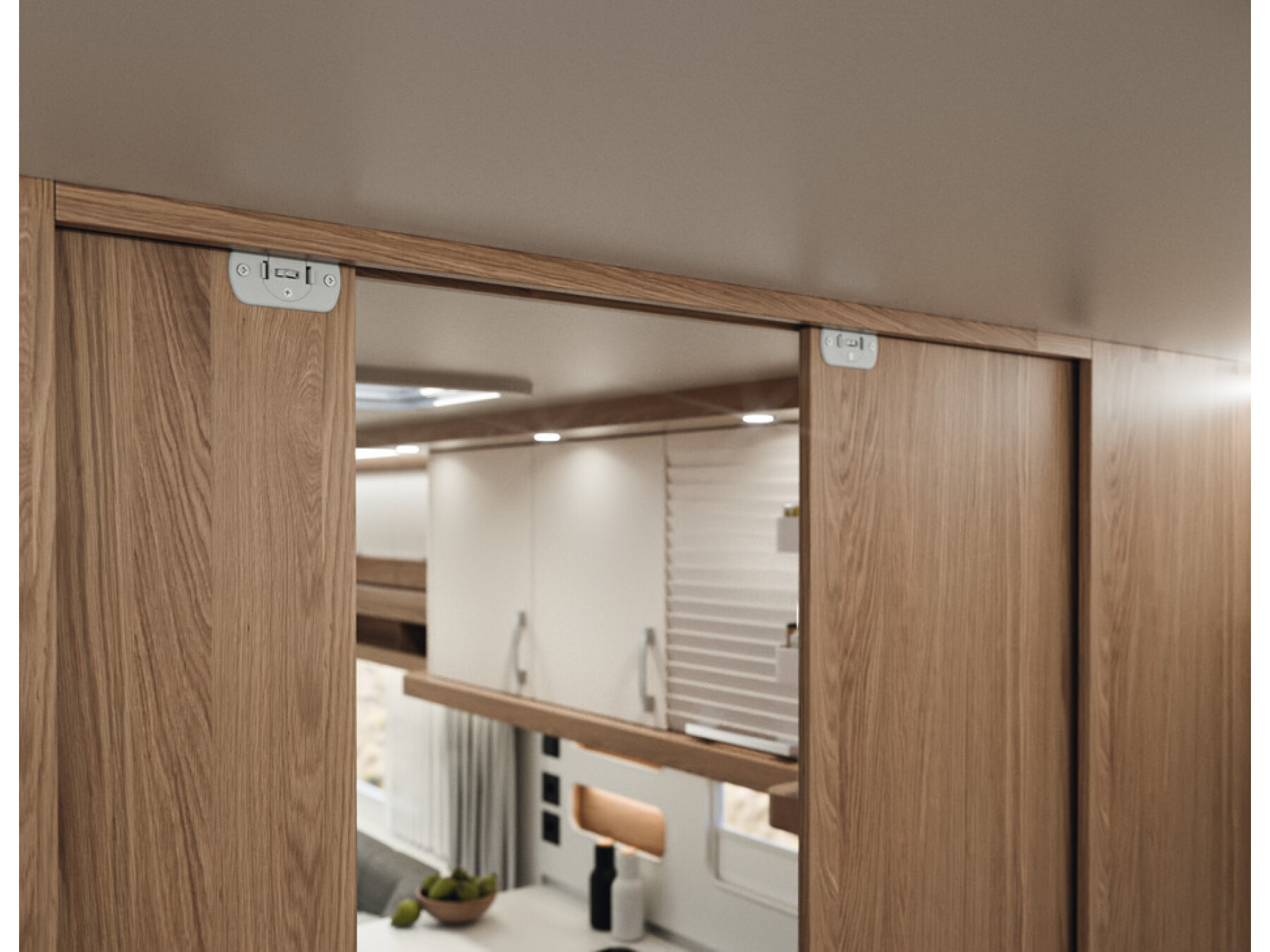

Fitting Set, for Sliding Cabinet Doors, Slido F-Line21 20C is a robust, space-saving top hung sliding and folding door fitting set engineered for smooth everyday operation—ideal when you’re designing a refined, heavy-duty solution for wood doors. The FitSet 2Dr w SC is supplied for two door leaves and features a soft close function for quieter, controlled movement.

This top hung system is designed for door thickness 16–19 mm and supports door sizes with width 350–1,250 mm and height up to 1,400 mm. Each set accommodates doors weighing 13–20 kg (please adhere to the minimum door weight recommendation for best performance). With four rollers running on friction bearing technology, your doors glide effortlessly along the guide track.

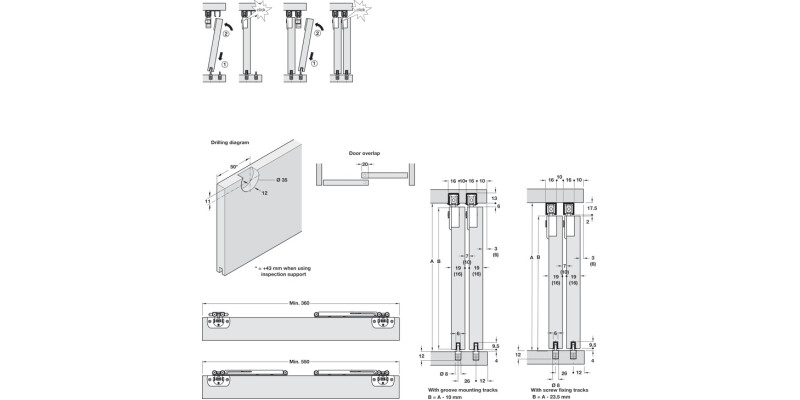

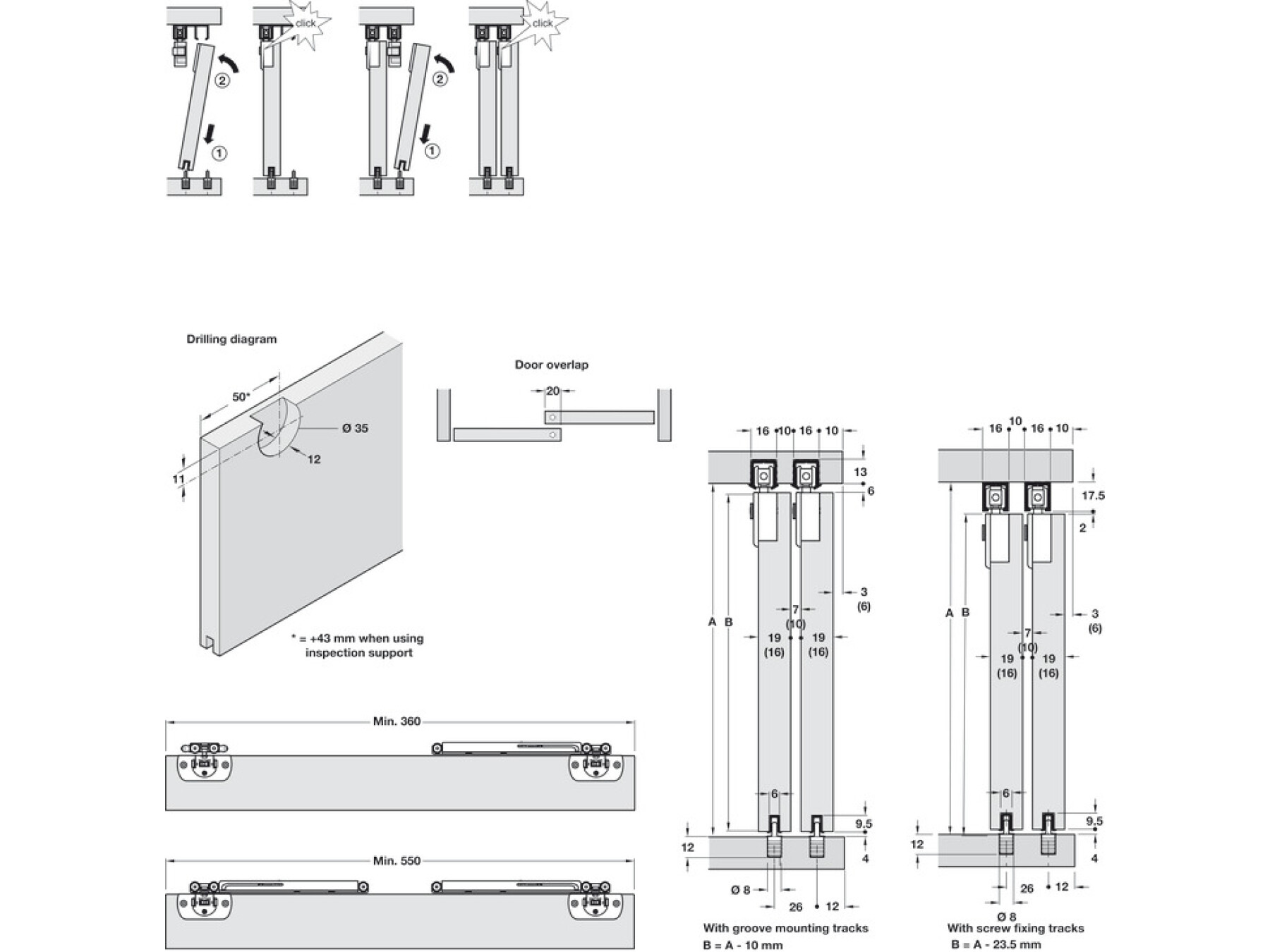

Installation is made practical with a quick-fixing approach: the housing is screw-on, and the running gear can be fitted without tools. Fine tuning is available via height adjustment (-2 to +2 mm) using an adjusting wheel—helping you achieve a precise, professional alignment.

Important: Please note the product subtitle references a catalogue discrepancy—402.30.019 may be incorrectly shown in the TCH Architectural Hardware 2019 catalogue for this function. Also, order note: this set is without tracks, so running and guide tracks must be ordered separately.

Backed by the Hafele Lifetime Guarantee (10 years), Slido Cls Cls 20IFC FitSet 2Dr w SC is the dependable hardware choice for quality sliding and folding door projects.

Please order running and guide tracks separately.
