Bottom Guide Track, for Sliding Cabinet Doors, Slido F-Line31

Product Details

Is this bottom guide track suitable for 20A and 40A Slido systems?

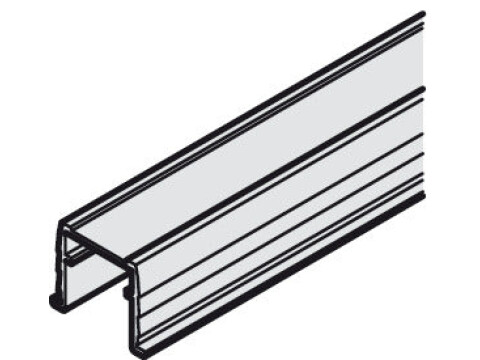

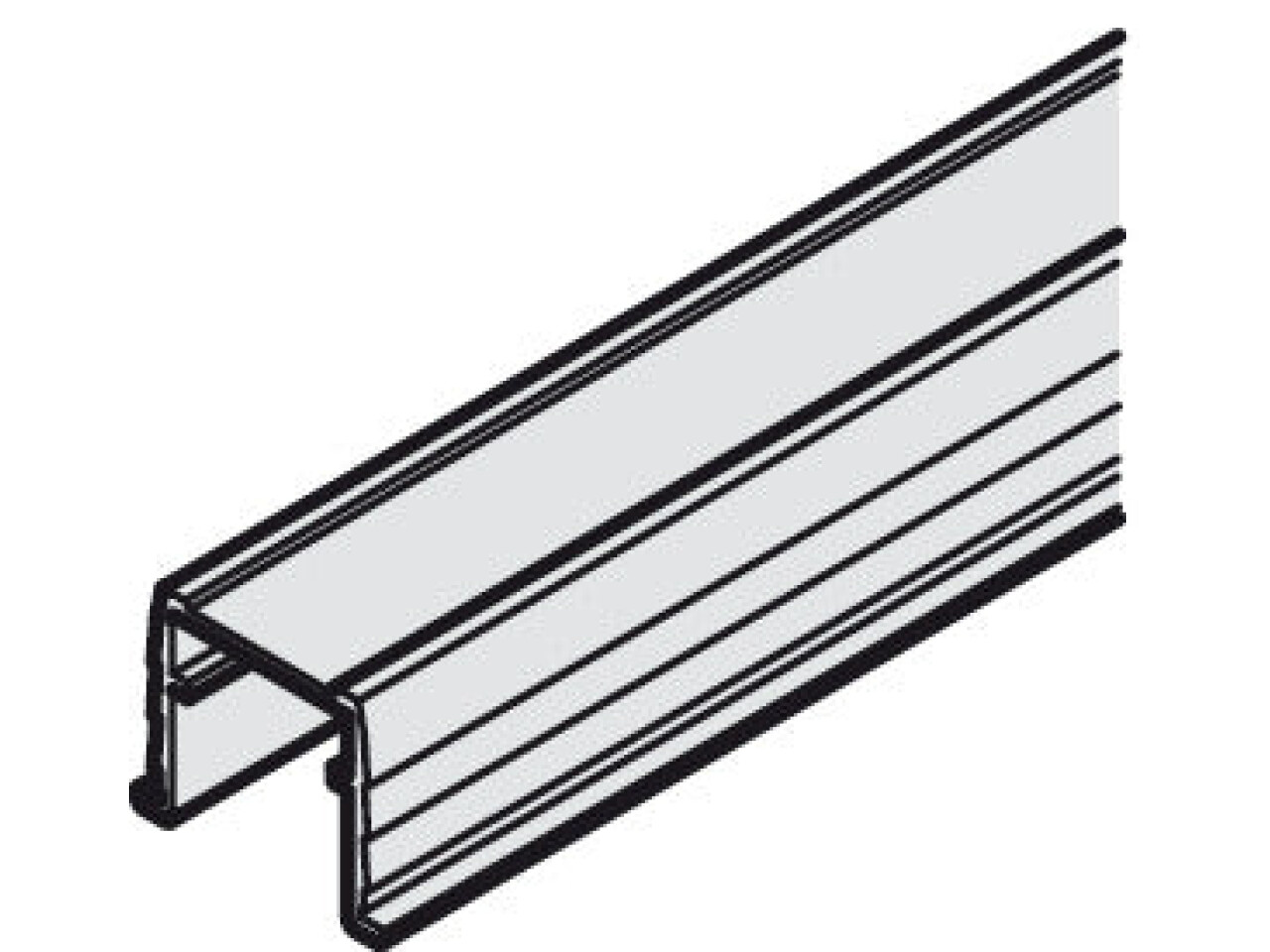

Yes. The Slido Cls 20/40VFT Btm Track 3.5m, part number 402.31.633, is designed for Slido F Line21 20A and Slido F Line31 40A sliding and folding door applications. It helps keep the door aligned when opening and closing.

How much weight and size can this track support?

Up to 40 kg per door is supported. It is also suitable for doors with width up to 1,250 mm and height up to 2,400 mm, with a typical door thickness range of 16 to 25 mm.

Where is the track installed in the mechanism?

This is a bottom position track. It is intended for use on the bottom of the door system to guide movement smoothly along the run.

What cabinet and top panel thickness is required for installation?

Cabinet top panel thickness minimum is 19 mm. This ensures there is enough material for a secure fix, supporting stable operation over time for sliding and folding furniture doors.

What is the fixing method, and does it require drilling?

Installation is press and glue fixing. This approach is commonly used for furniture hardware where a clean alignment matters, and it can reduce the need for drilling depending on your furniture build and fitting method.

How is the track length specified, and will it cover my application?

The track length is 3.5 m (3500 mm). Choose this option when your layout calls for a 3500 mm bottom guide run for the relevant Slido system.

What guarantee is available for this hardware?

Hafele Lifetime Guarantee of 10 years. If you are planning a long lasting wardrobe or cabinet door solution, this guarantee gives additional confidence in the hardware quality.

Can I use this track with overlay cabinet and wardrobe doors?

Yes. It is intended for overlay cabinet and wardrobe doors, supporting correct door alignment as the doors slide or fold during use.
