Slido Cls 55IF FitSet 3Dr
Bottom rolling sliding system for timber door applicationsVery good running properties due to the large guide... Read More
Product Details

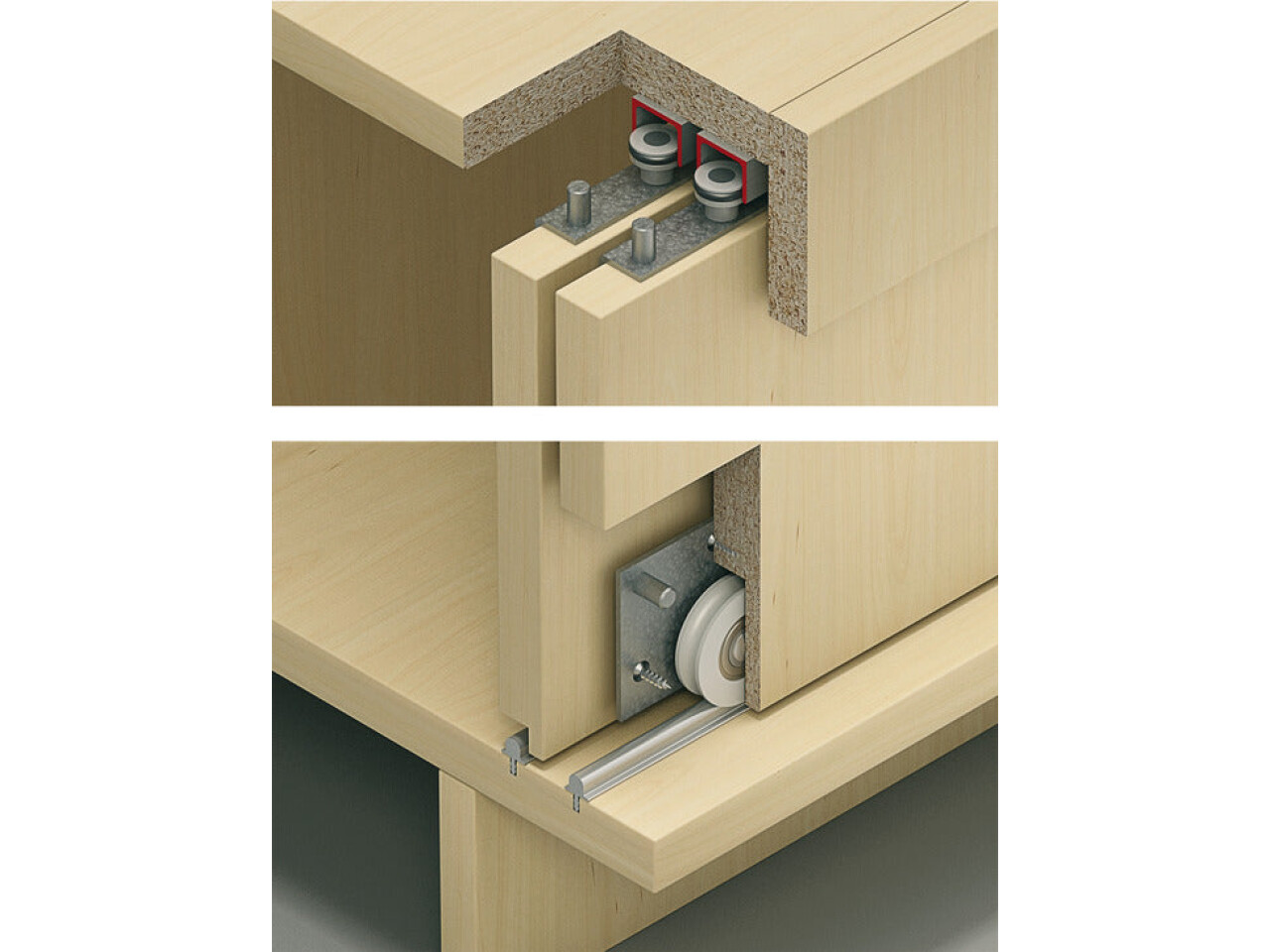

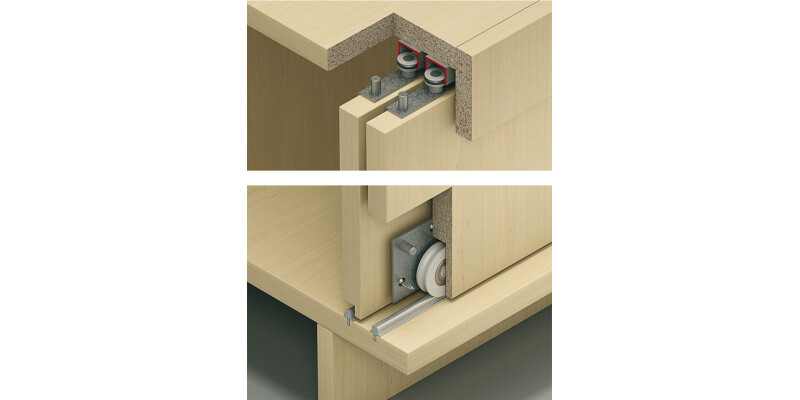

Bottom rolling sliding system for timber door applications
Very good running properties due to the large guide rollers

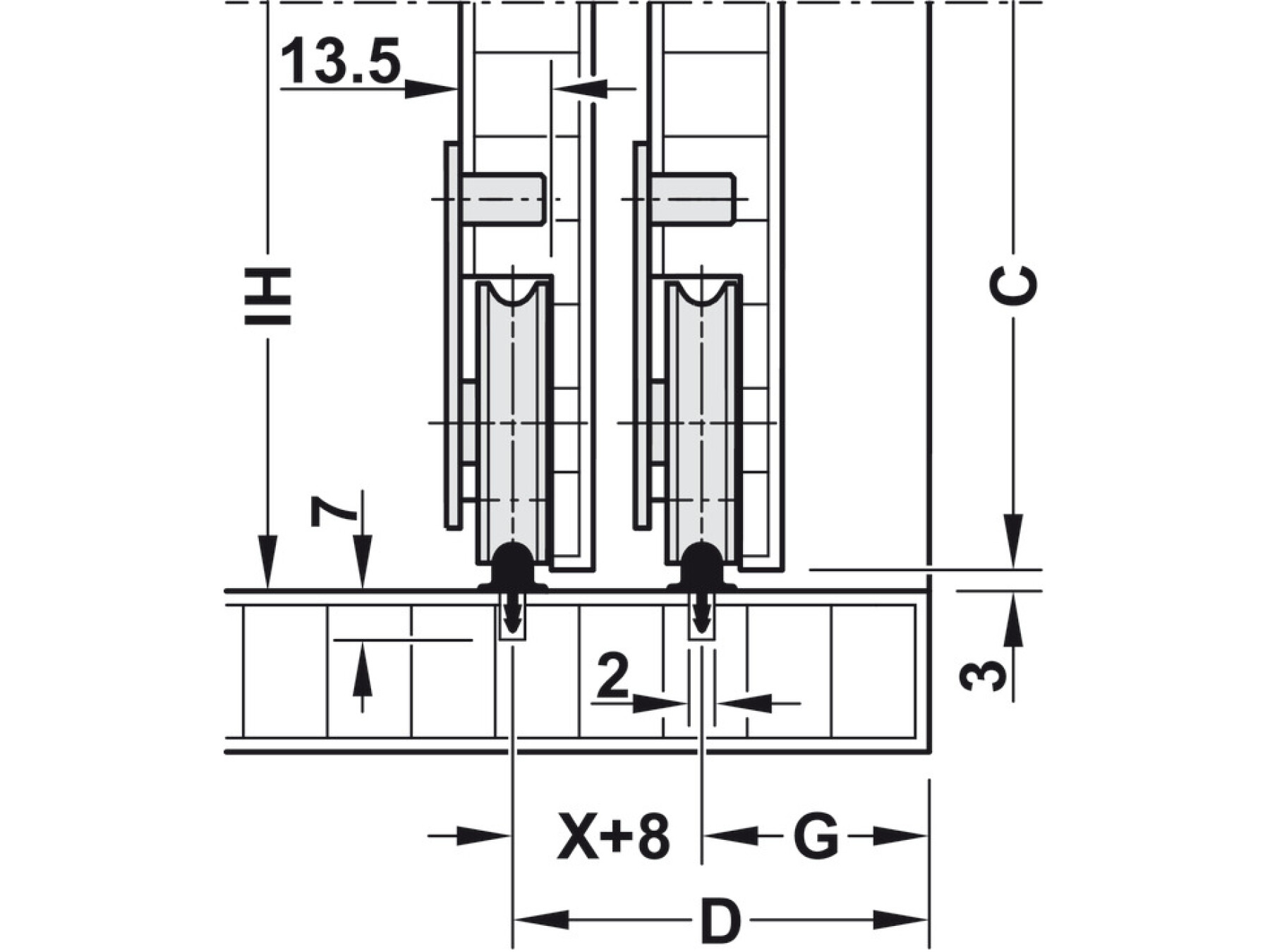

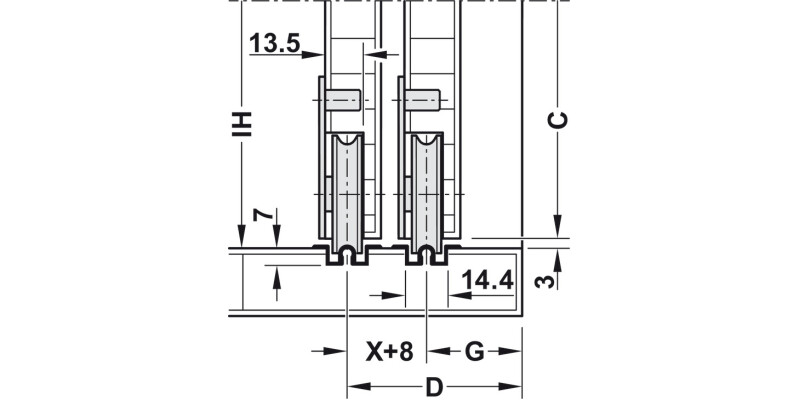

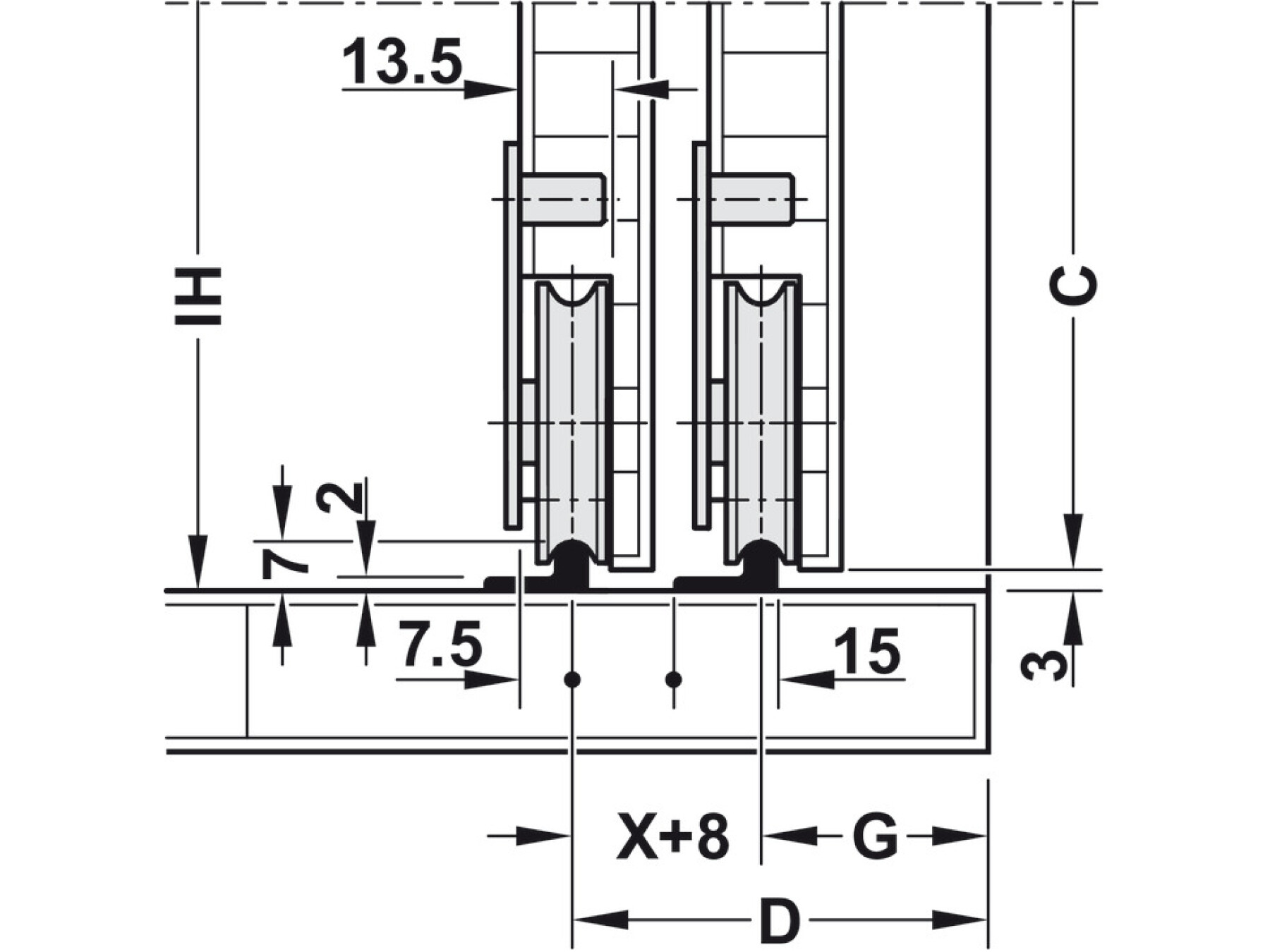

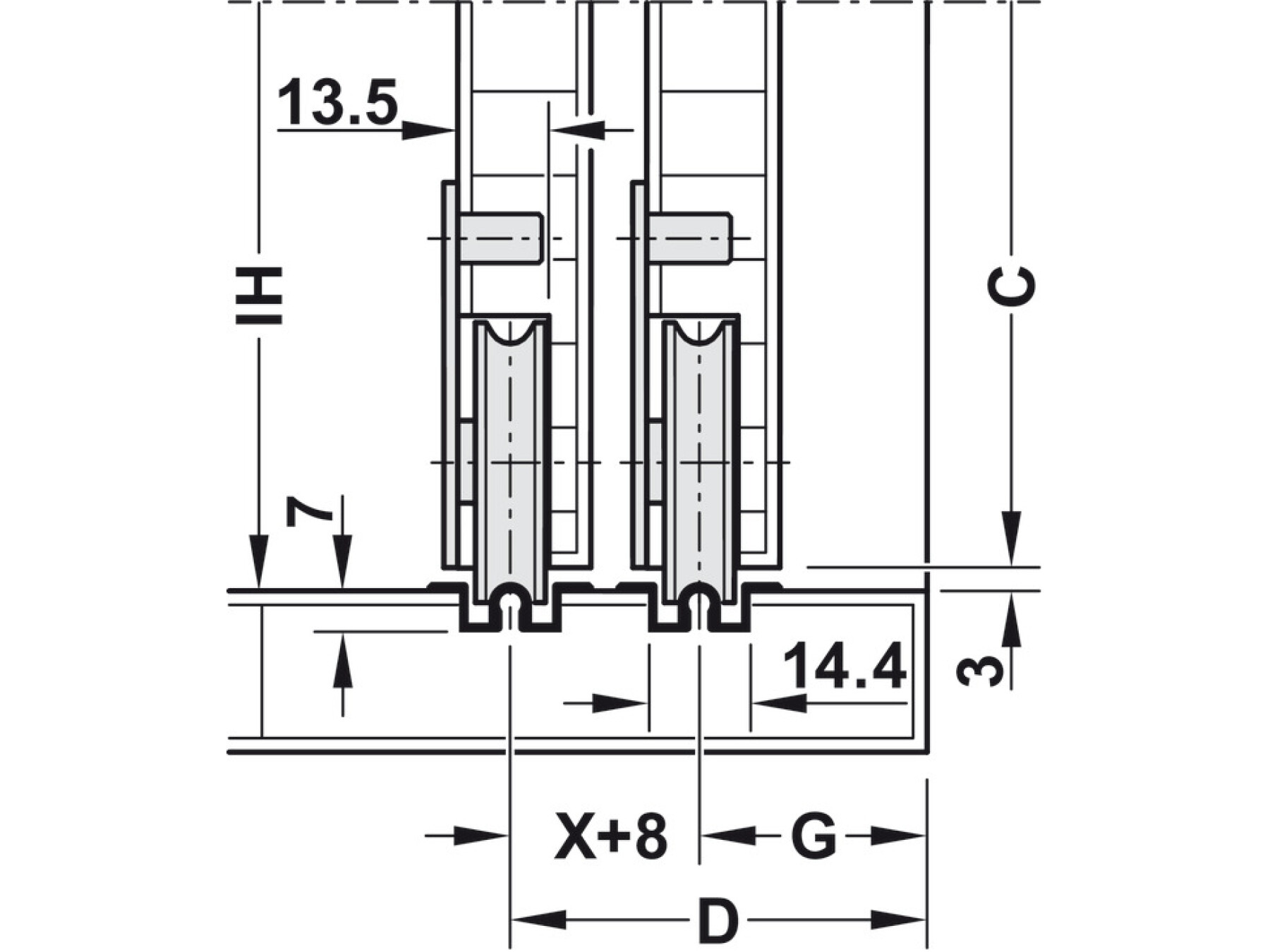

Bespoke door thicknesses possible when guide tracks run separately
For min. door thickness 16-19 mm
Running gear: Single roller, bottom rolling
Running gear guided by: Ball bearing roller, plastic, steel axle
Supplied with

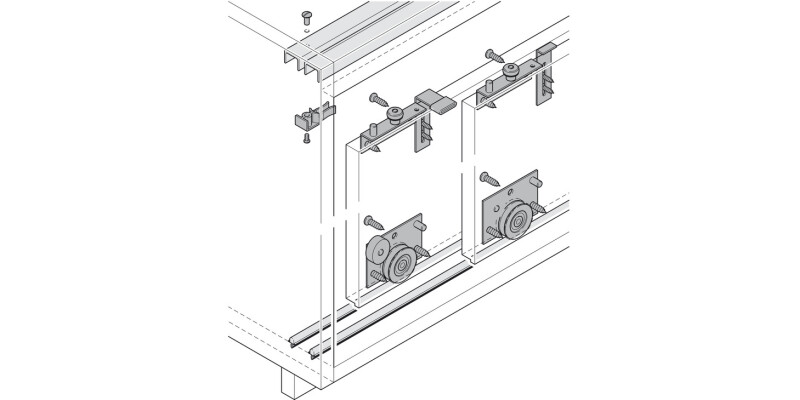

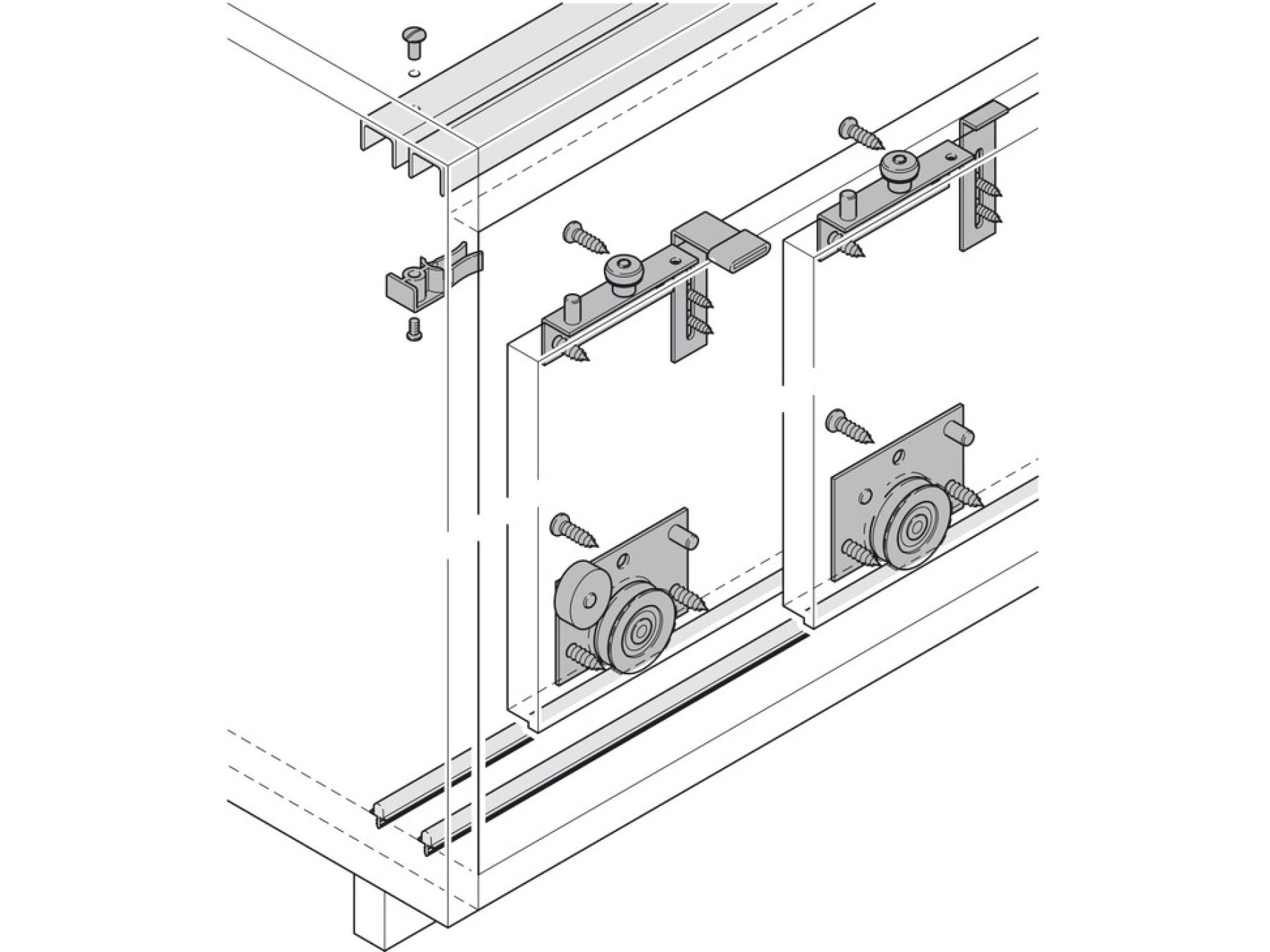

Fitting sets include:
3x Top door stopper
3x Guide, top left
3x Guide, top right
2 x Anti-derailment device for rear door
4x Anti-derailment device for front door
3x Height adjustment
3 (3)x Bottom running gear (with height adj.) - Consists of: 1x LH, 1x RH and 1 (2) blank
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee
Planofit door straightening system must be used to add rigidity to wooden doors, must be ordered separately

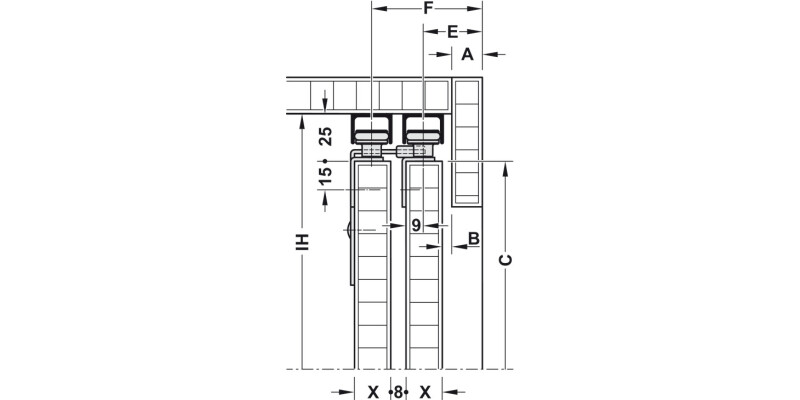

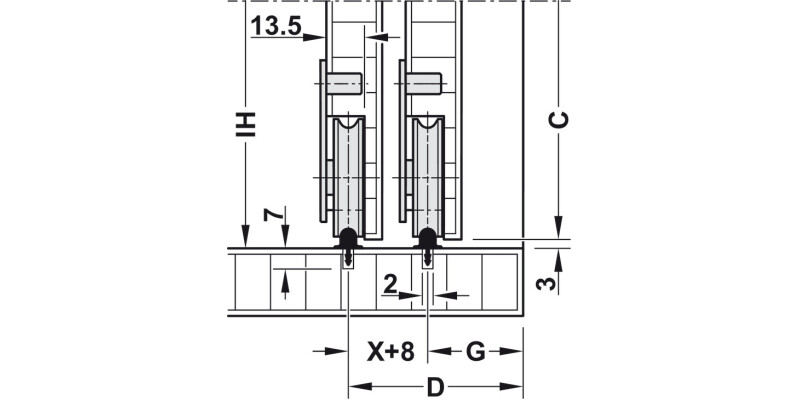

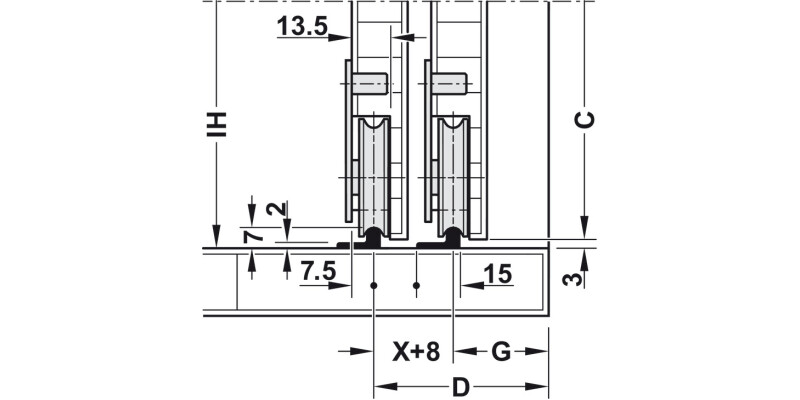

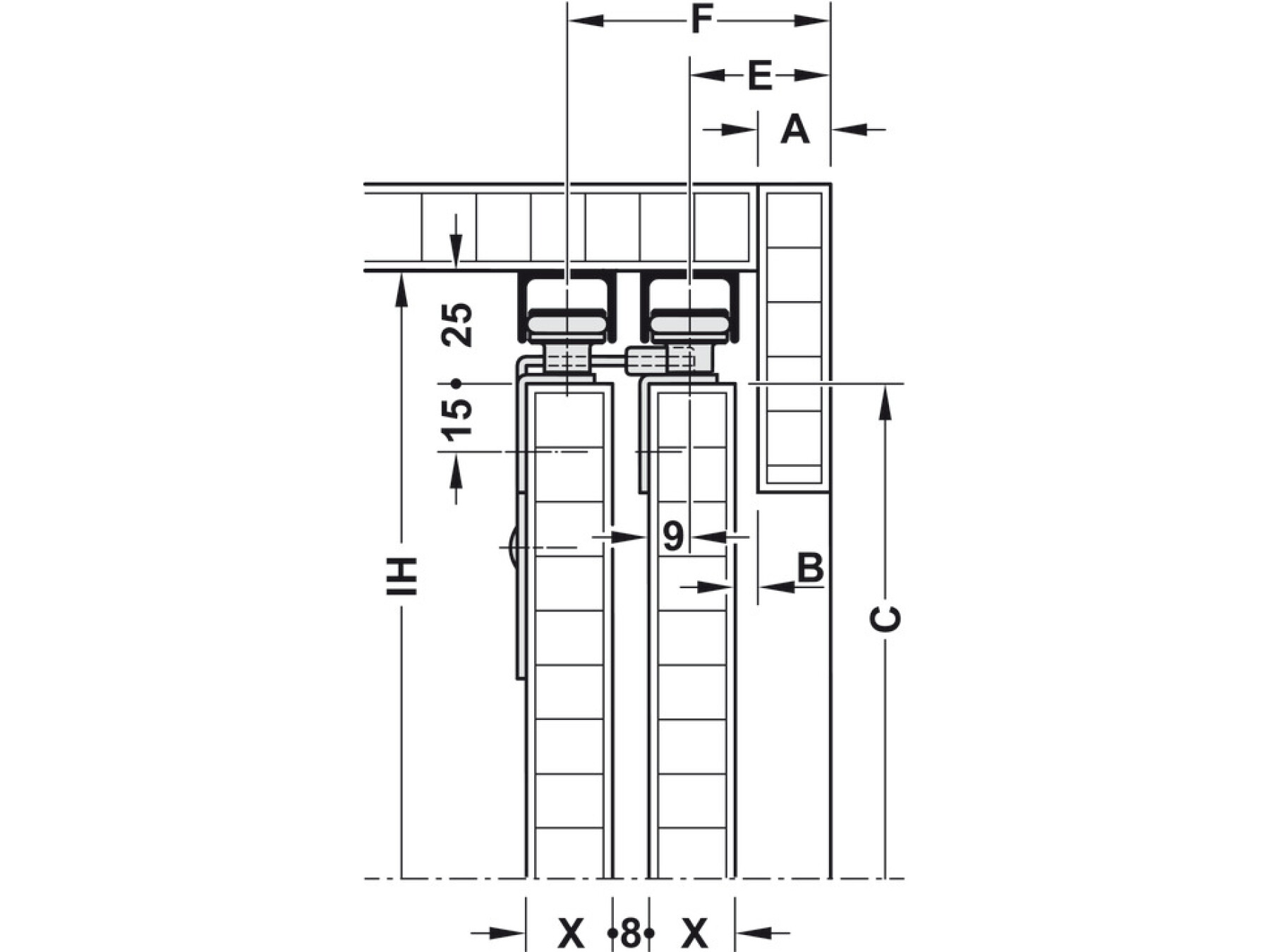

Fitting sets with height adjustment each contain drilling diagrams with and without height adjustment
The middle door should always be drilled on the left hand side for height adjustment
The drilling for the other doors is always on the edge of the side panel
Specifications
Version
for 2 doors also with soft closing mechanism
Height adjustment
For door thickness
For door weight
Cabinet version
Area of application
For 3 doors
Material/finish
Running position
Number of rollers
Running gear guided by
Adjustment facility
Hafele Lifetime Guarantee
Running position
Set
Type of opening
Number of door wings in a system max.
Order reference
Tracks, channels and fixing materials to be ordered separately
