Fitting Set, for Flush Sliding Wardrobe Doors, Door Thickness 16-55 mm, Häfele P

Product Details

Is PS40 FitSet 1Door LH suitable for a left hand sliding and folding door?

Yes. PS40 FitSet 1Door LH is designed as a left hand top hung system for cabinets with 1 door wing left. It is intended for sliding and folding wardrobe doors where the opening movement is guided from the top.

What door sizes and weight does this fitting set support?

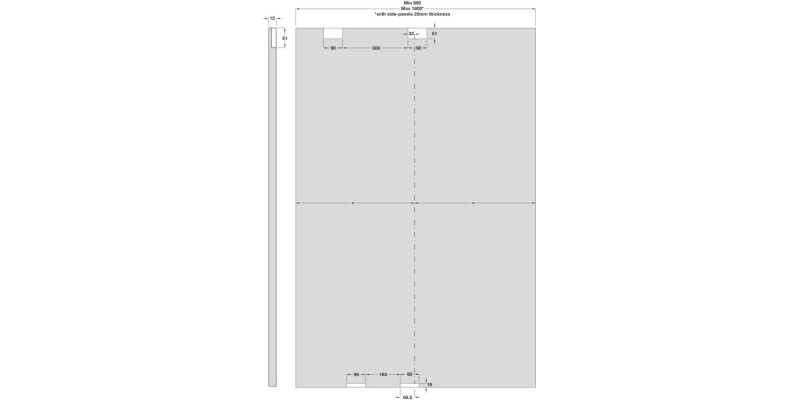

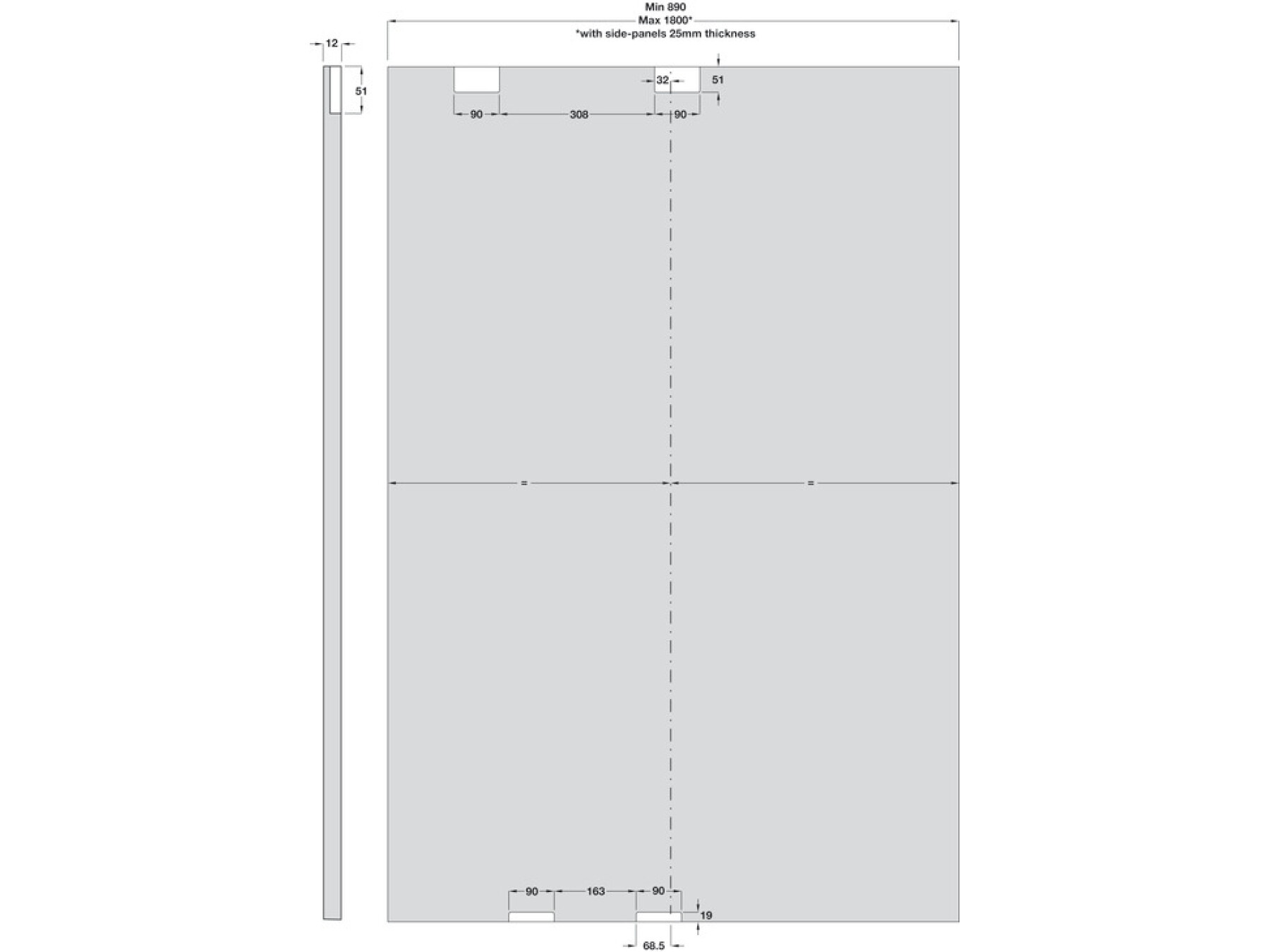

It supports door thickness of 16 to 55 mm, door width from 890 to 1,800 mm, and door weight up to 60 kg. This range is ideal for heavy duty wardrobe doors where smooth movement and stability are important.

How does the soft closing work on this top hung system?

The system includes a soft and self closing mechanism on both sides. This helps the door move smoothly and close gently, reducing impact at the end of travel.

Does this set include tracks or guide rails?

No, it is supplied without tracks. The set is for the fitting system only, so if you are planning a complete installation you will need to order the relevant guide rails separately.

Can I adjust the door after installation?

Yes. The fitting offers height adjustment of 4 mm to minus 6 mm, which helps you fine tune alignment after fitting.

What cabinet type is this system designed for?

It is designed for flush wardrobe doors, including wardrobes configured with a single door wing on the left. If your door and cabinet are not flush style, you may need a different fitting set.

Are there any important installation notes to be aware of?

Yes. For example, the installation guidance notes that door width is 600 mm when using only one door. It is also intended for screw fixing for door processing, so you will need to prepare fixing points accordingly.

What part of the track system needs to be ordered separately?

You need to order the top and bottom guide rails separately. If you require replacement components later, spare upper and lower rail hooks are also available separately.
