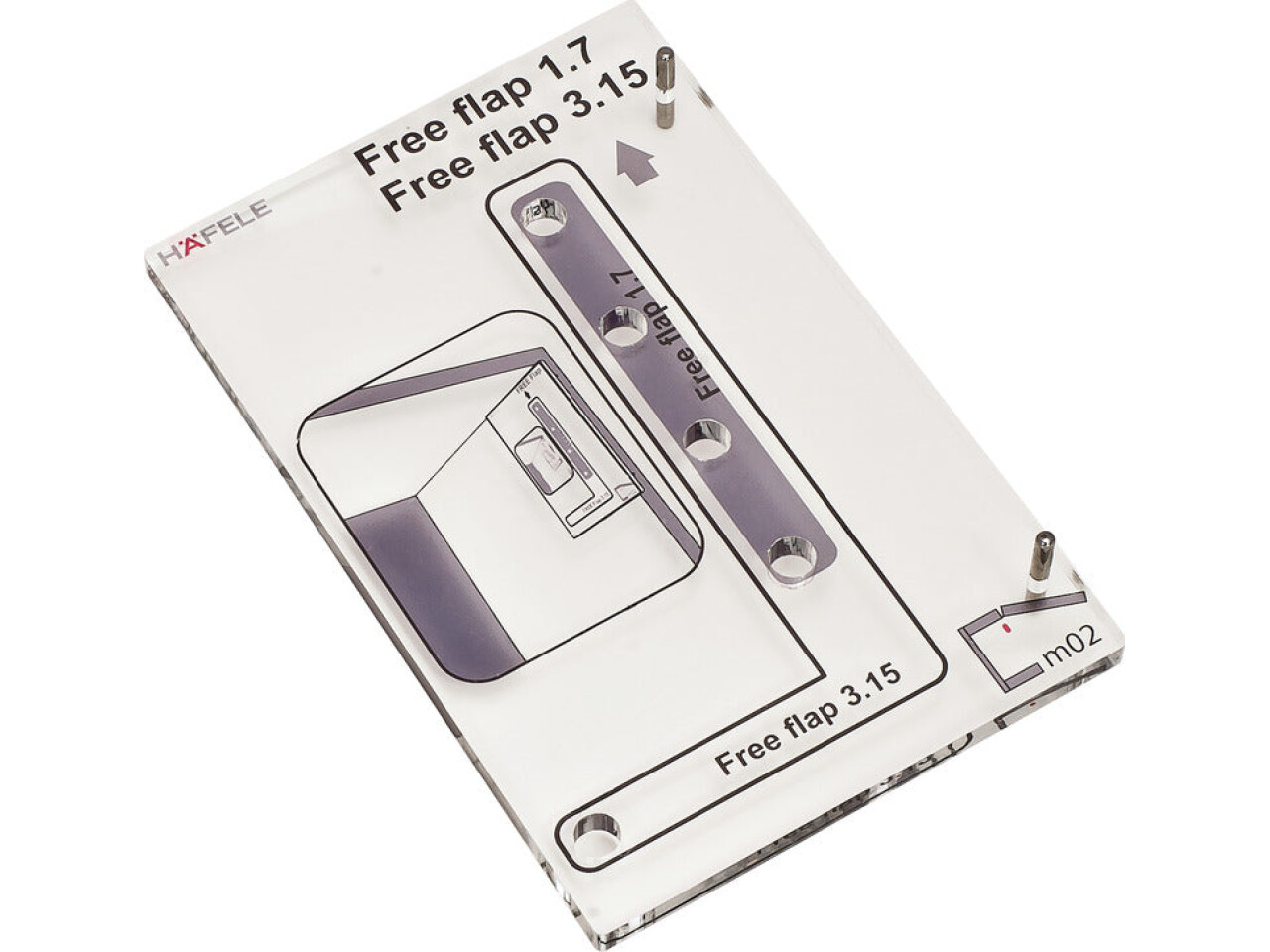

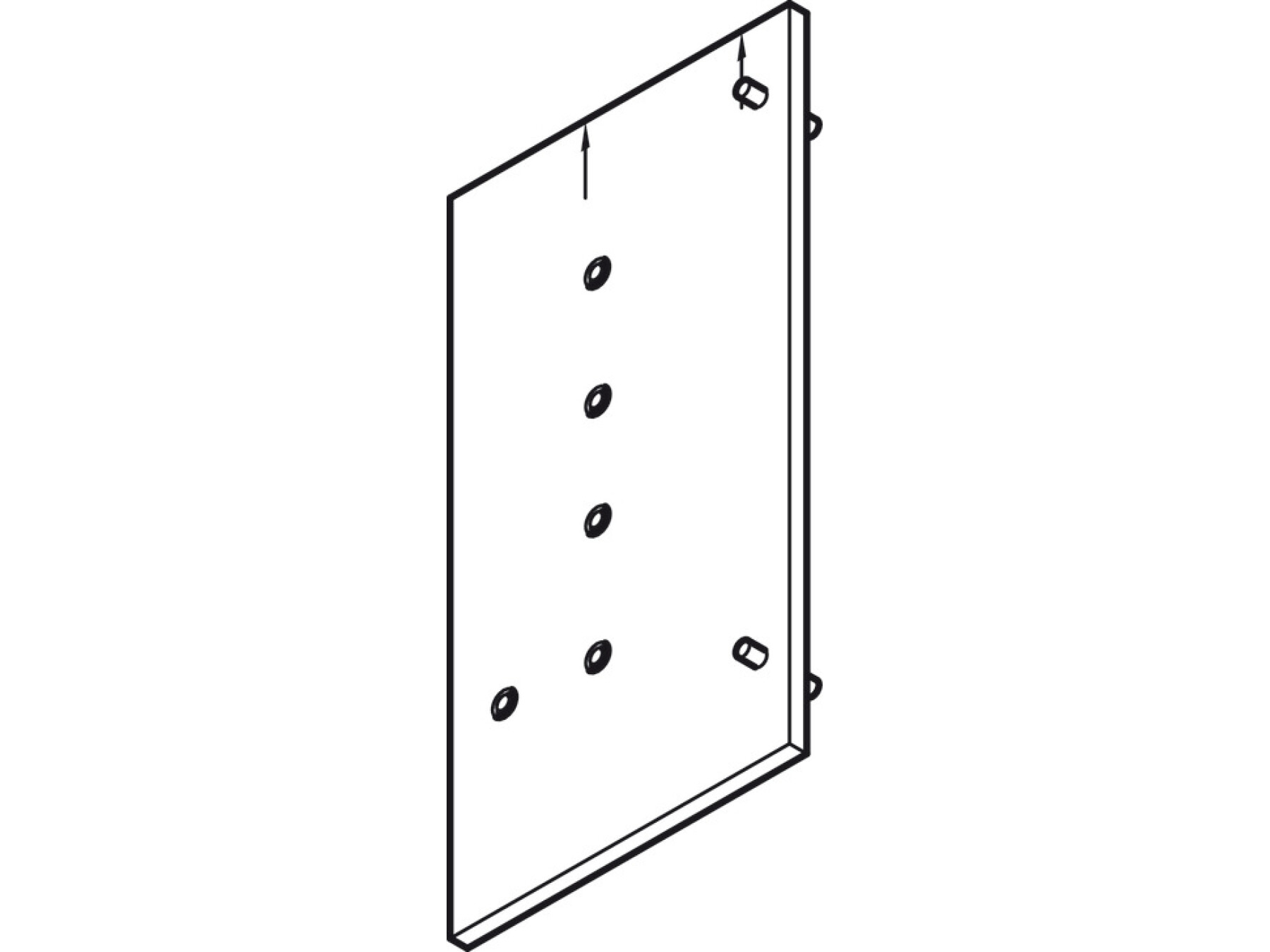

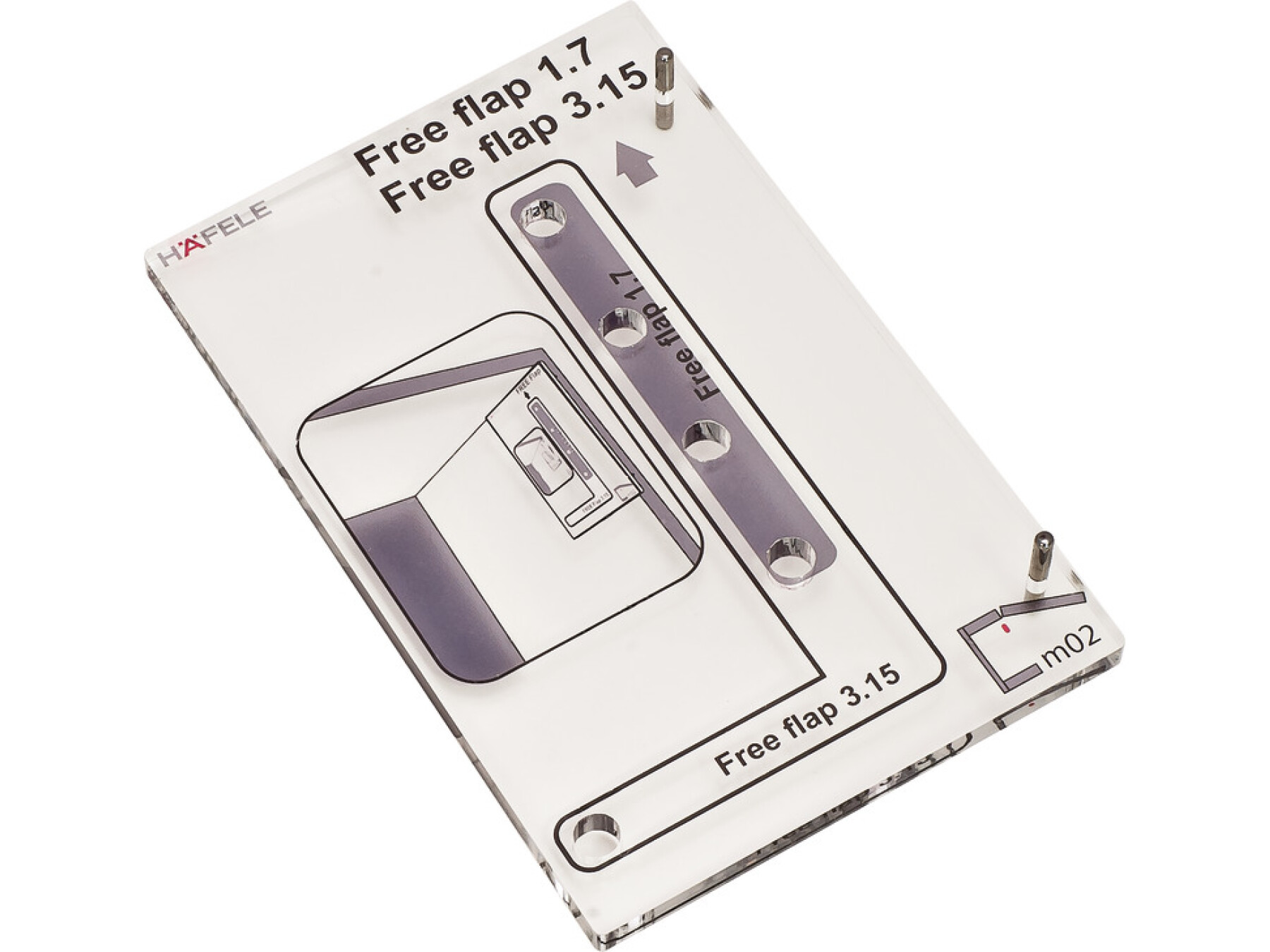

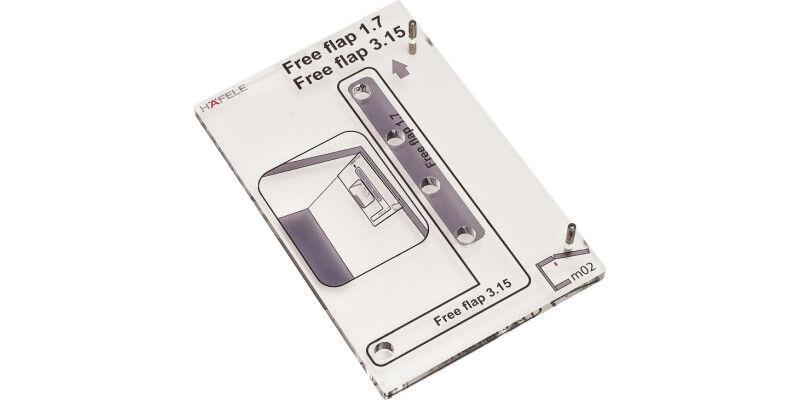

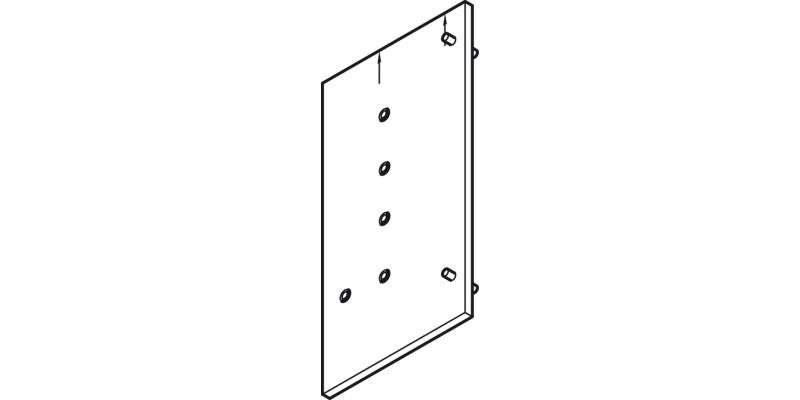

Drilling Jig for Free Flap Fittings
Part Number: 372.91.023
For pre-drilling the cabinet side panels, For Free Flap fittings only
Price:
£16.31
Per Item
Warranty/Guarantee information This product is covered under Häfele’s Lifetime Guarantee.All products... Read More
Product Information
Product Details
Warranty/Guarantee information
This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.
For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

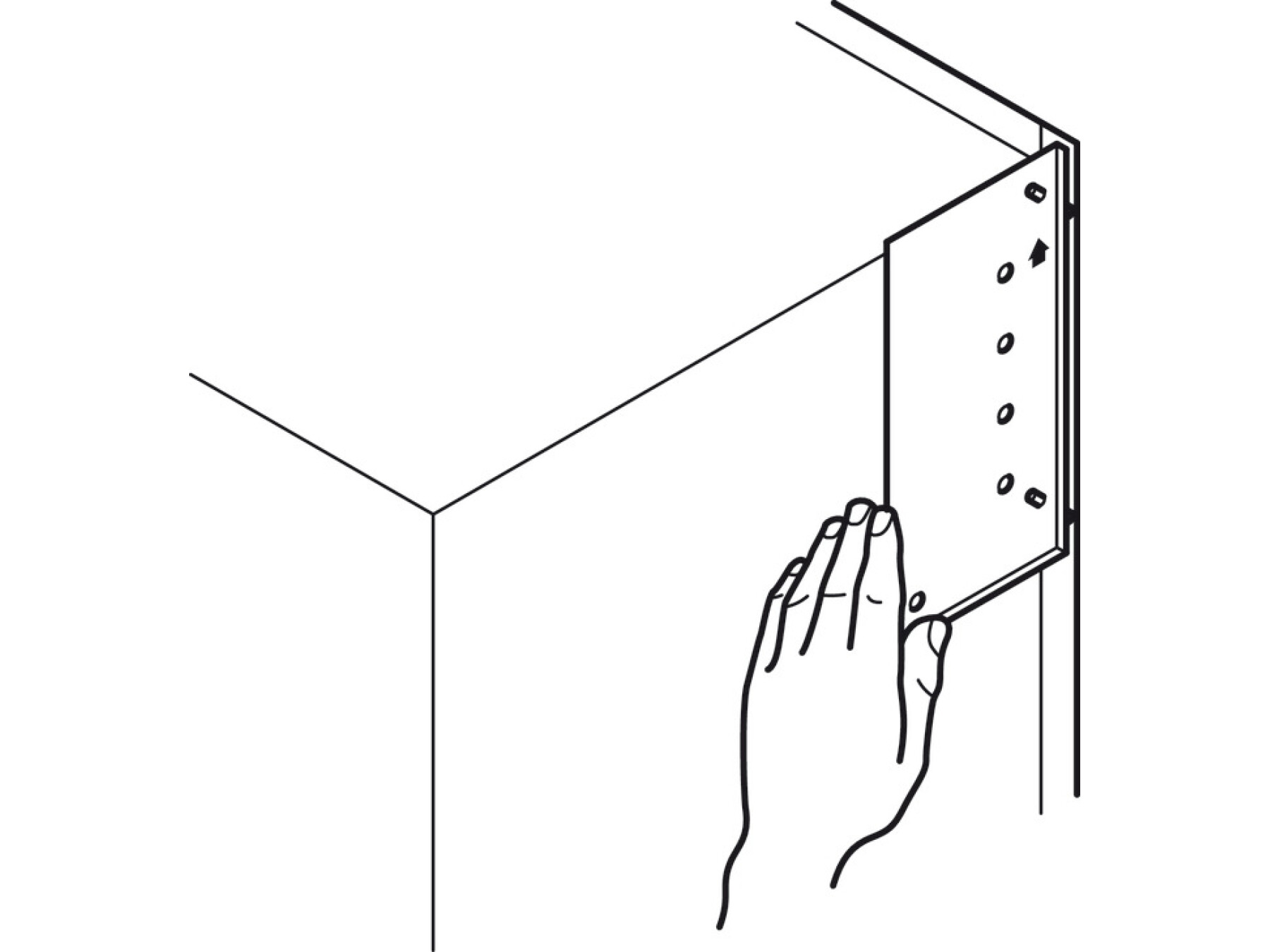

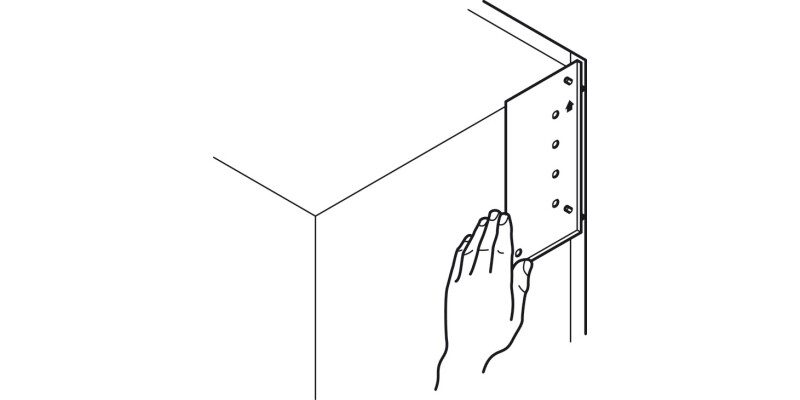

Drilling pattern, see installation instructions of the fitting. The drilling jig is positioned directly in the top left or top right cabinet corner.
Specifications
Product category
Drilling Jig
Area of application
For pre-drilling cabinet side panels for fitting
Suitable for
Häfele Free flap 1.7 and Free flap 3.15 flap fittings
Material
Acrylic glass with hardened steel inserts
Colour/finish
Length
21 mm
Hafele Lifetime Guarantee
25 years
Order reference
Please order self centering drill bit ⌀ 5 mm (Cat. No. 001.25.792) separately.
