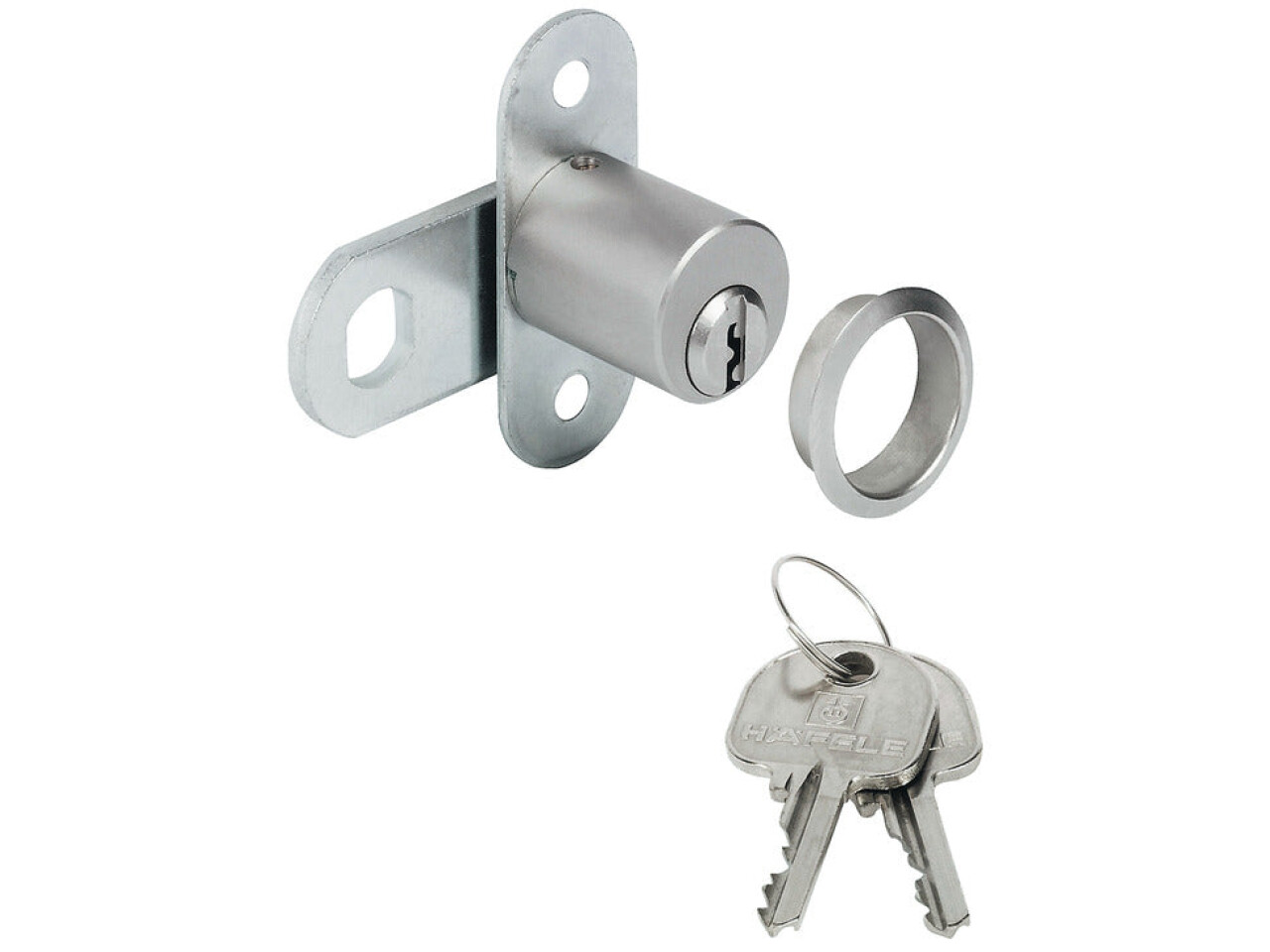

Cam Lock, with Ø 19 mm Cylinder and Key Trap

Product Details

Cam Lock, with Ø 19 mm Cylinder and Key Trap (Part No: 235.03.210) is a dependable choice for secure, everyday cabinet and furniture applications. Designed to deliver smooth operation and a professional finish, this standard profile cam lock combines a straight cam action with a key trap closure for added control—ideal for doors that require consistent locking performance.

With its straight cam and 90° (reversible, with key trap) closure travel (options marked C,E,H), this lock makes alignment simple while helping prevent unwanted key removal during operation. The cam travel is matched for a reliable fit and smooth engagement every time—so your cabinet hardware feels solid, not fiddly.

Built for practical installation, the lock is made for door thicknesses up to 21 mm and is screw-fixed using a screw-on plate. The round 19 mm cylinder features a 24.00 mm cylinder length and a durable internal setup with 5 pin tumblers for dependable security.

Finished in a nickel plated, matt look, the housing is crafted from zinc alloy with a brass cylinder, balancing strength and corrosion resistance for long-term use in both living and commercial environments.

Each unit is supplied with key, making it ready for immediate use. Upgrade your cabinet locking system with a compact, secure, and stylish solution—choose Cam Lock, with Ø 19 mm Cylinder and Key Trap today.
