Specialist Hinge, 92° Mini, Sprung, for Overlay Doors

Product Details

Specialist Hinge, 92° Mini, Sprung, for Overlay Doors (Part No: 361.73.500) is a compact, specialist concealed cabinet hinge designed for beautifully smooth, reliable door performance—ideal for modern living spaces and professional commercial installations. If you’re looking for a neat full-overlay solution with a generous opening range, this Grass 92D Mini Hinge delivers a clean look and dependable spring action.

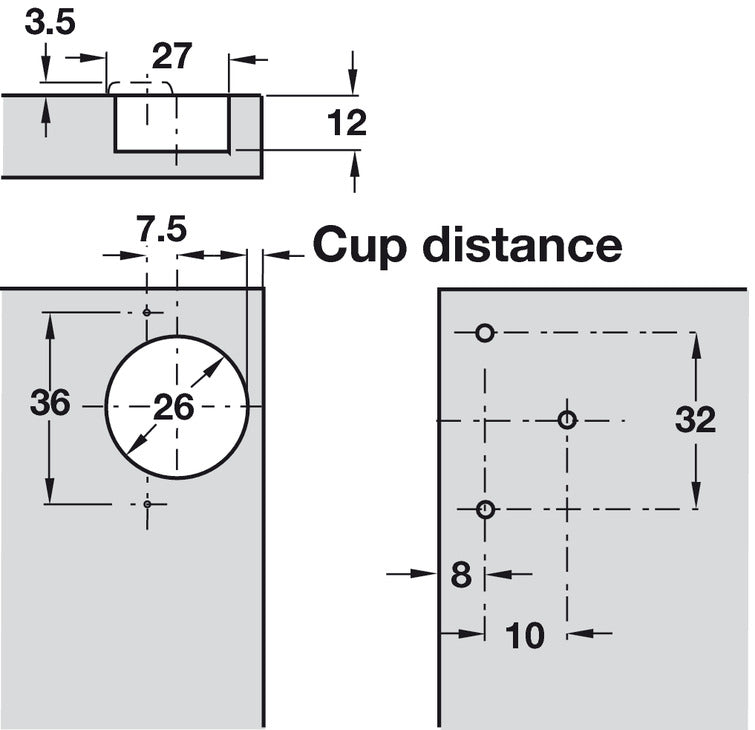

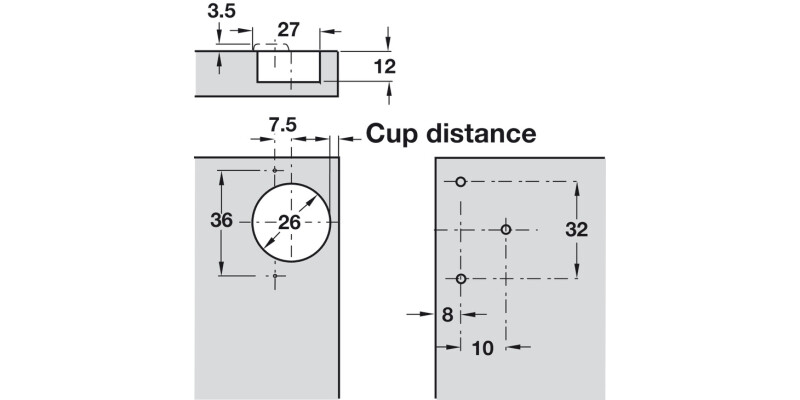

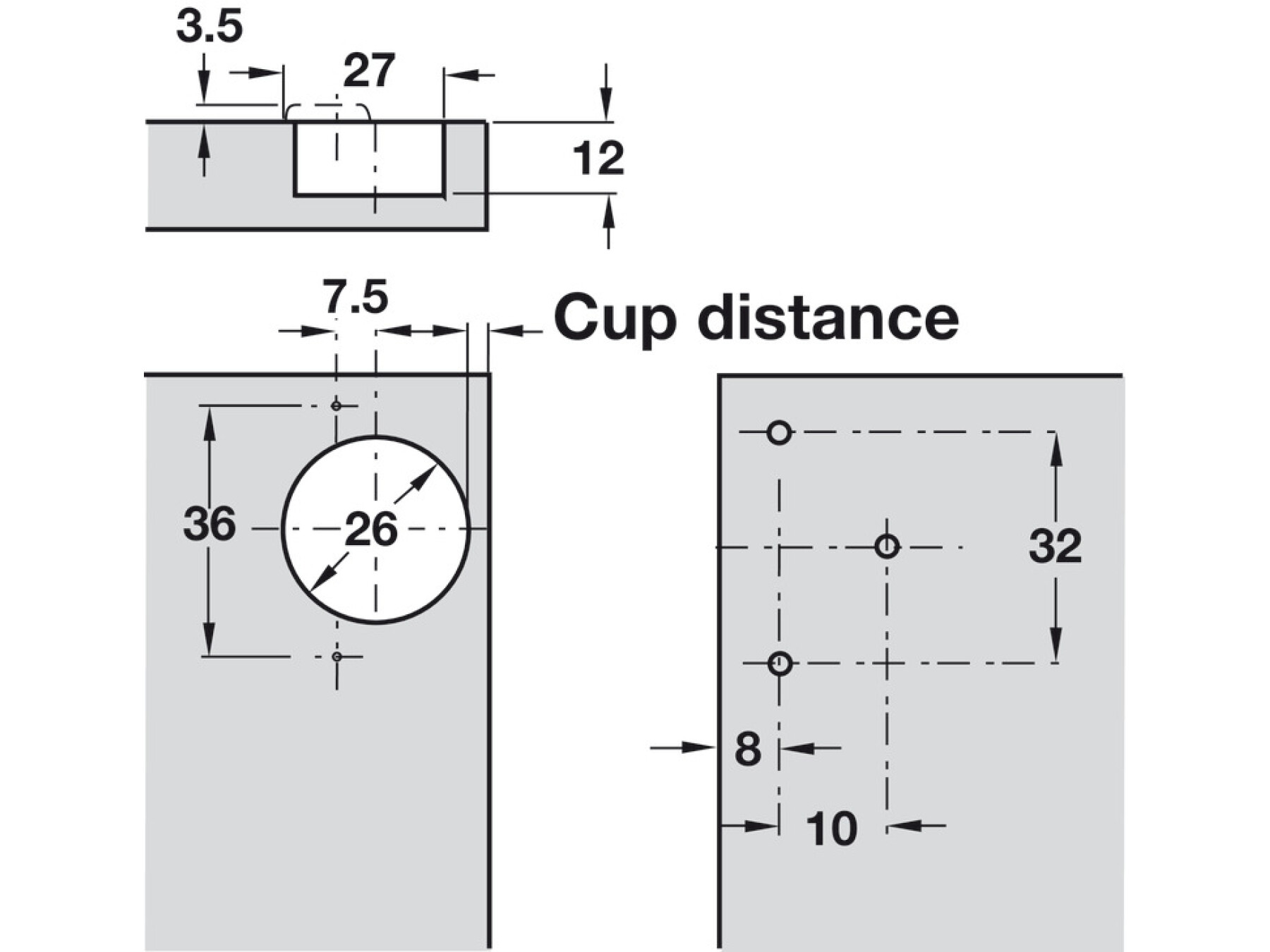

Product subtitle: 36/7.5 refers to the precise drilling pattern, making this hinge a great choice when you need accurate, repeatable alignment for overlay door assemblies.

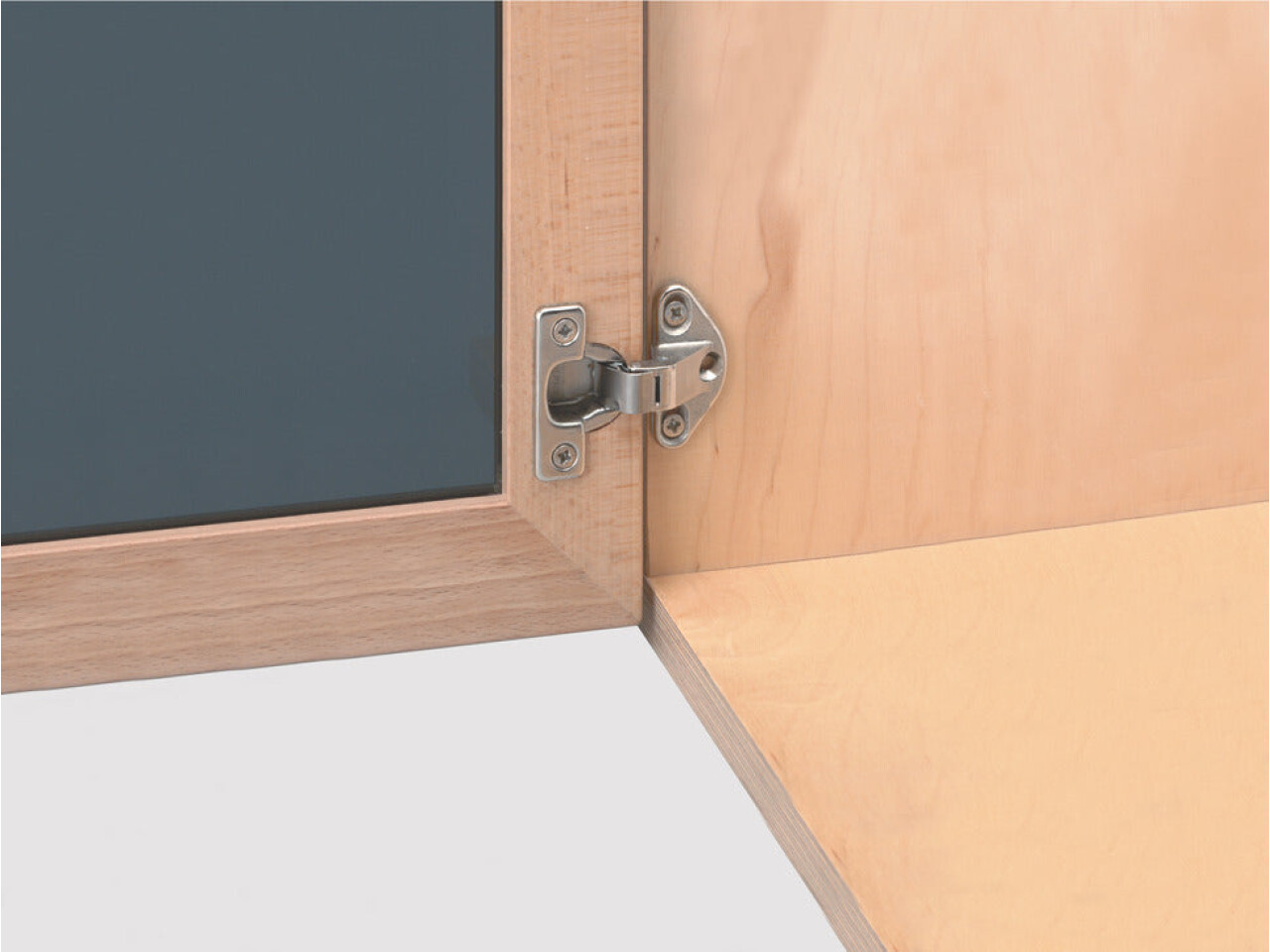

Area of application: Suitable for overlay doors, helping you achieve a crisp, seamless cabinet front. The concealed hinge version is built for a full overlay appearance, so doors sit neatly over the cabinet frame for a premium finish.

Engineered for easy fitting: Supplied as a concealed hinge version with cup drilling, it’s designed for efficient installation. Use the required screw fixings (order reference notes Hospa ⌀ 3.5 mm raised head countersunk screws separately).

Key performance details: Enjoy an opening angle of 92°, with compatibility for door thicknesses up to 19 mm. The hinge cup features a 26.00 mm diameter with a 12.00 mm cup drilling depth—ideal for tidy, consistent recessing.

Materials & build: The cup is made from steel, while the hinge arm is zinc alloy, combining strength and durability for long-term use.

Upgrade your cabinet hinges with the Specialist Hinge, 92° Mini, Sprung, for Overlay Doors—a smart, precise option for installers and DIYers aiming for a clean, professional result.

Order Hospa ⌀ 3.5 mm raised head countersunk screws separately
