Swing Up Flap Hinge, Opening Angle 90°, Nickel Plated Steel

Product Details

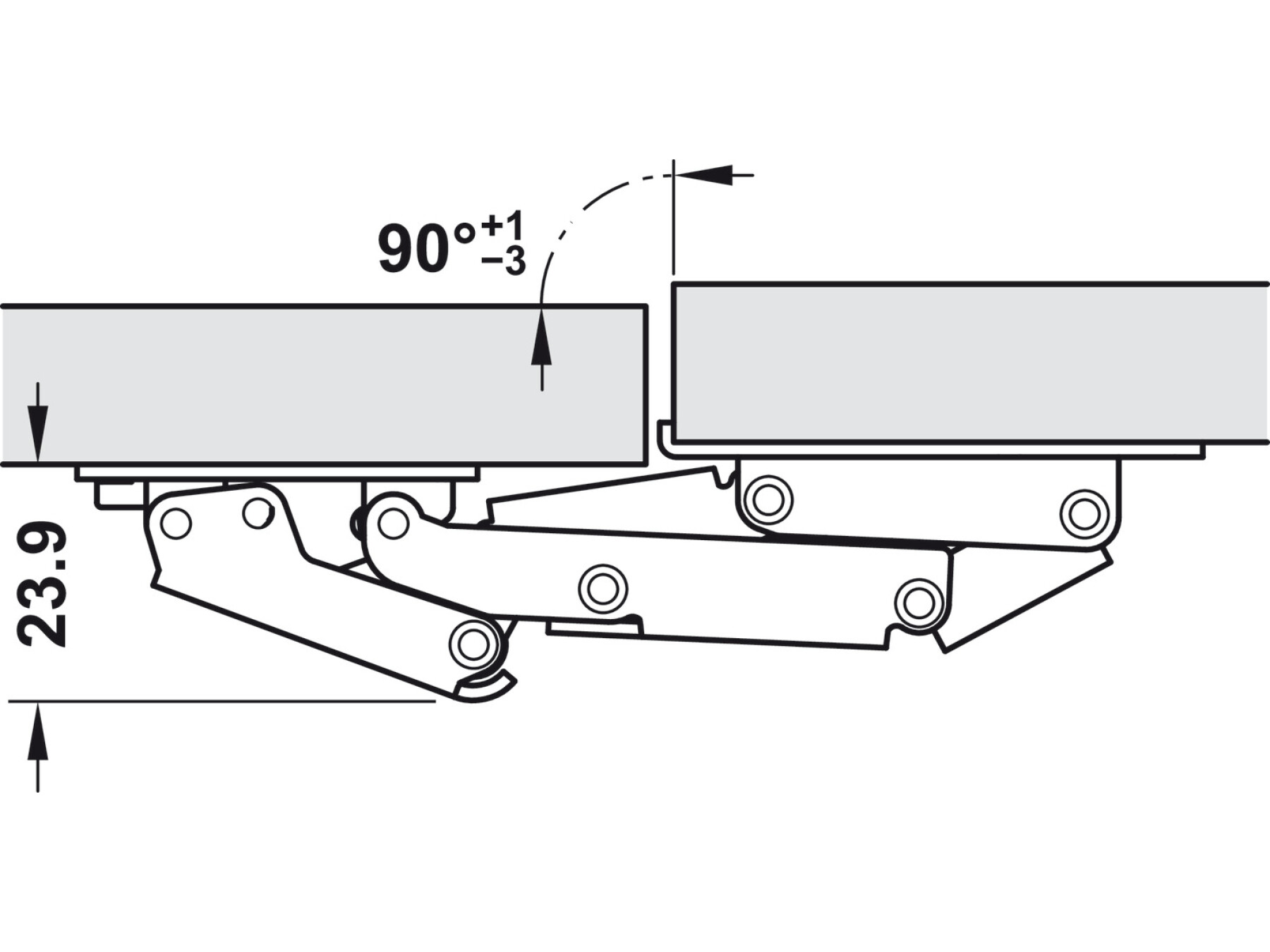

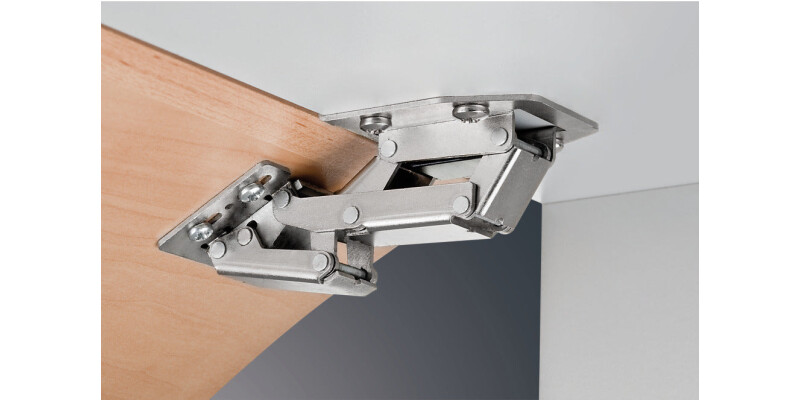

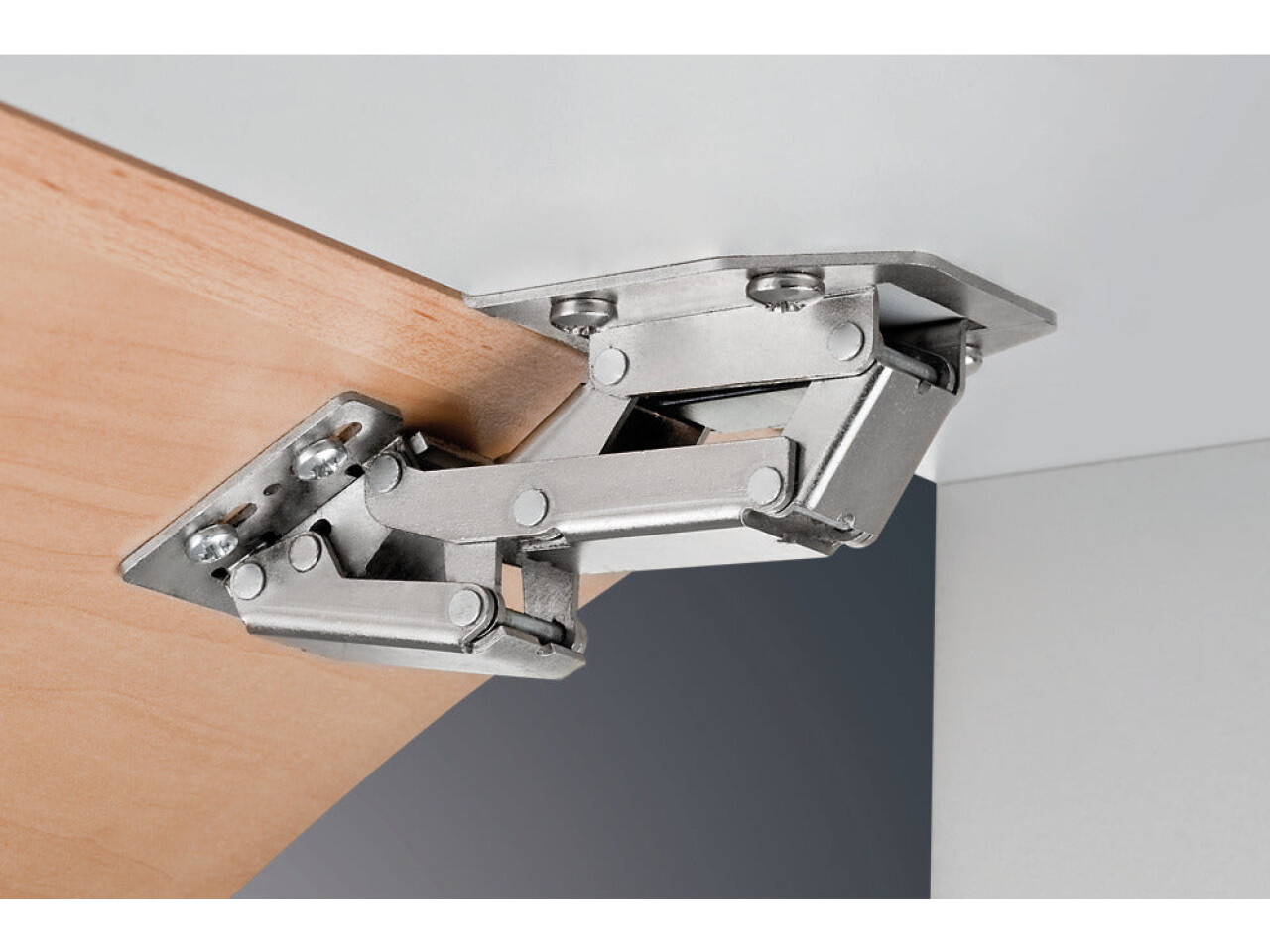

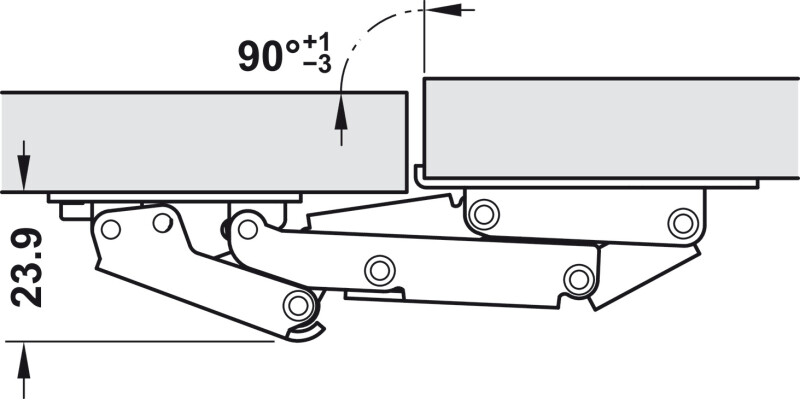

Swing Up Flap Hinge, Opening Angle 90°, Nickel Plated Steel. : Cabinet Hinges, Furniture Fittings, Living & Commercial Solutions (Part No: 356.36.602) is an excellent choice for anyone upgrading cabinet hardware with a clean, reliable flap-opening solution. Designed specifically for overlay mounting, this Swing Up Flap Hinge provides smooth swing-up operation at a generous 90° opening angle, making it ideal for practical storage access in both living and commercial environments.

Built for consistency and durability, the hinge is made from steel and finished in nickel plated for an attractive look and long-lasting performance. It’s made for lightweight flaps and works well with wood door materials, delivering stable support without unnecessary complexity.

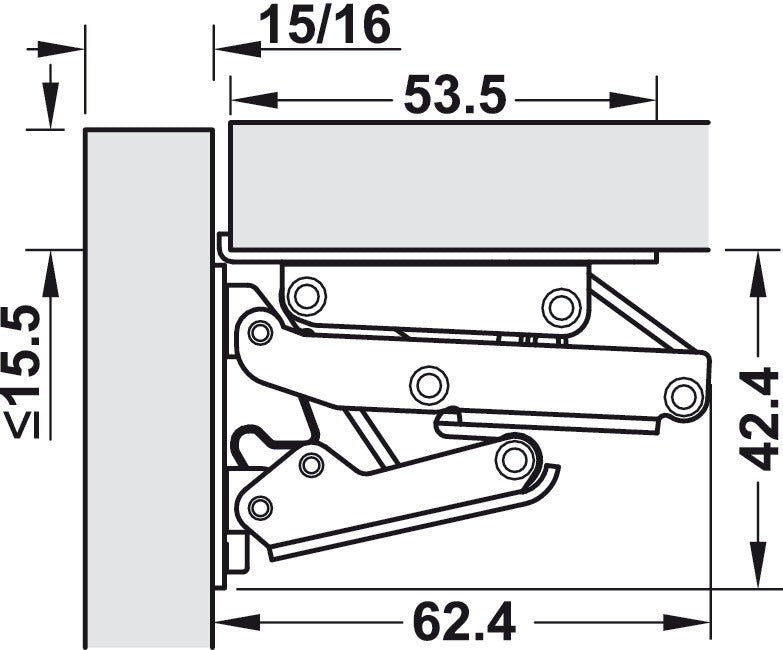

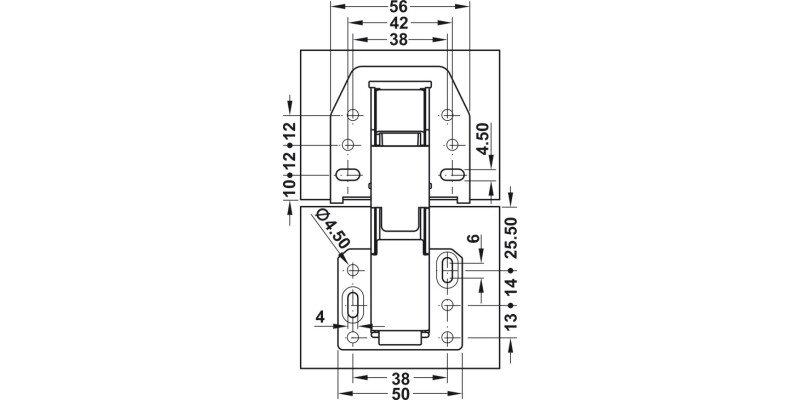

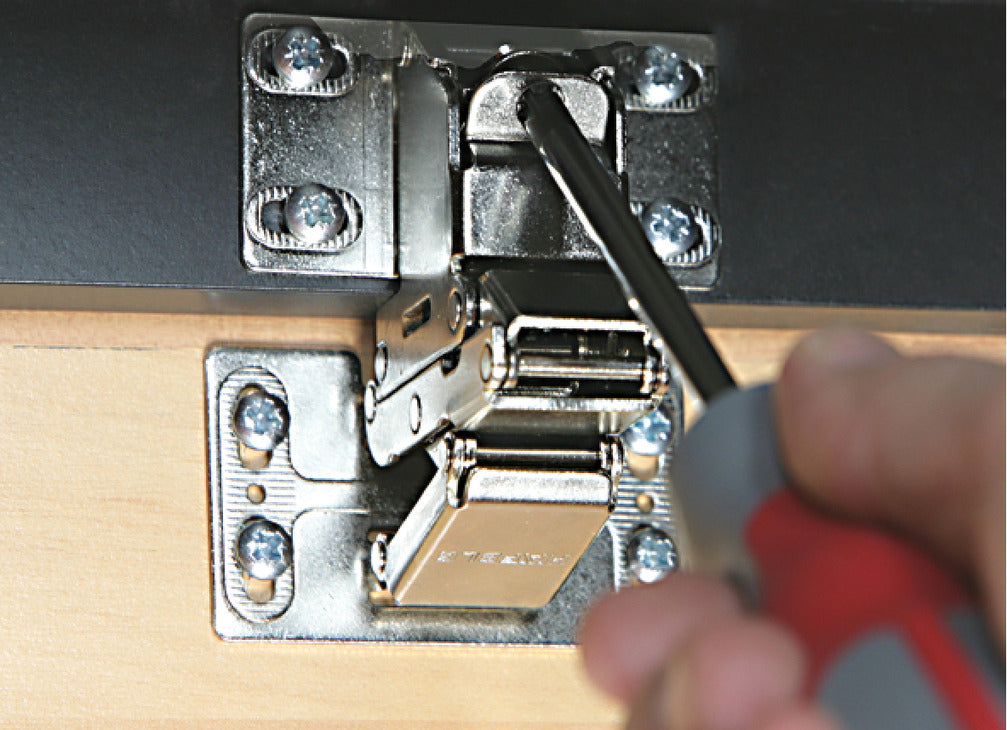

With compatibility for lid thickness of 15–16 mm, and suitable dimensions including lid width up to 800 mm and lid height up to 340 mm, this hinge is versatile across many cabinet styles. The model CH 300 supports a lid weight up to 2.1 kg, while offering convenient side and height adjustment via slots to help you achieve a precise alignment during installation.

Installation is screw fixing, and you’ll need to order the Ø 4.0 mm pan head screws separately (order reference: Hospa Ø 4.0 mm pan head screws separately).

Choose Swing Up Flap Hinge, Opening Angle 90°, Nickel Plated Steel. for a dependable flap hinge solution—ideal when you want overlay mounting and without soft closing mechanism for straightforward, cost-effective cabinet hardware.

Order Hospa Ø 4.0 mm pan head screws separately
