Butt Hinges, Steel

Product Details

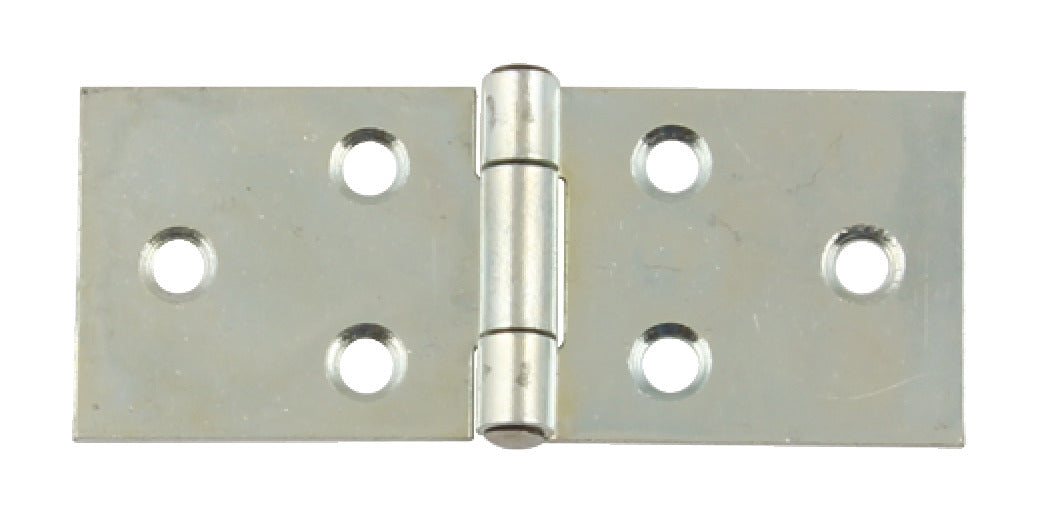

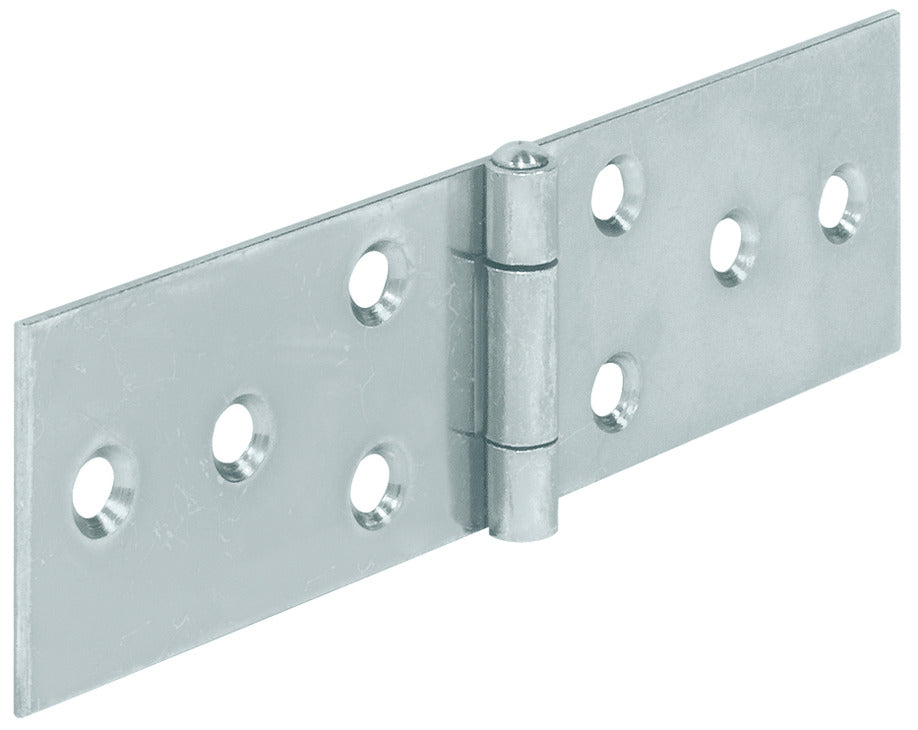

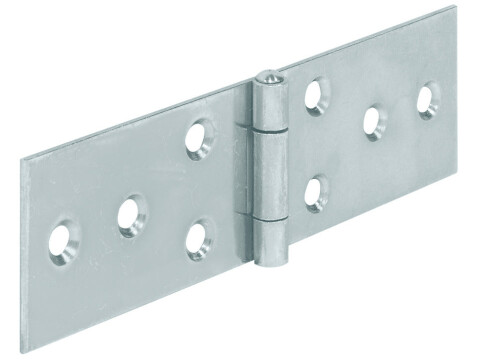

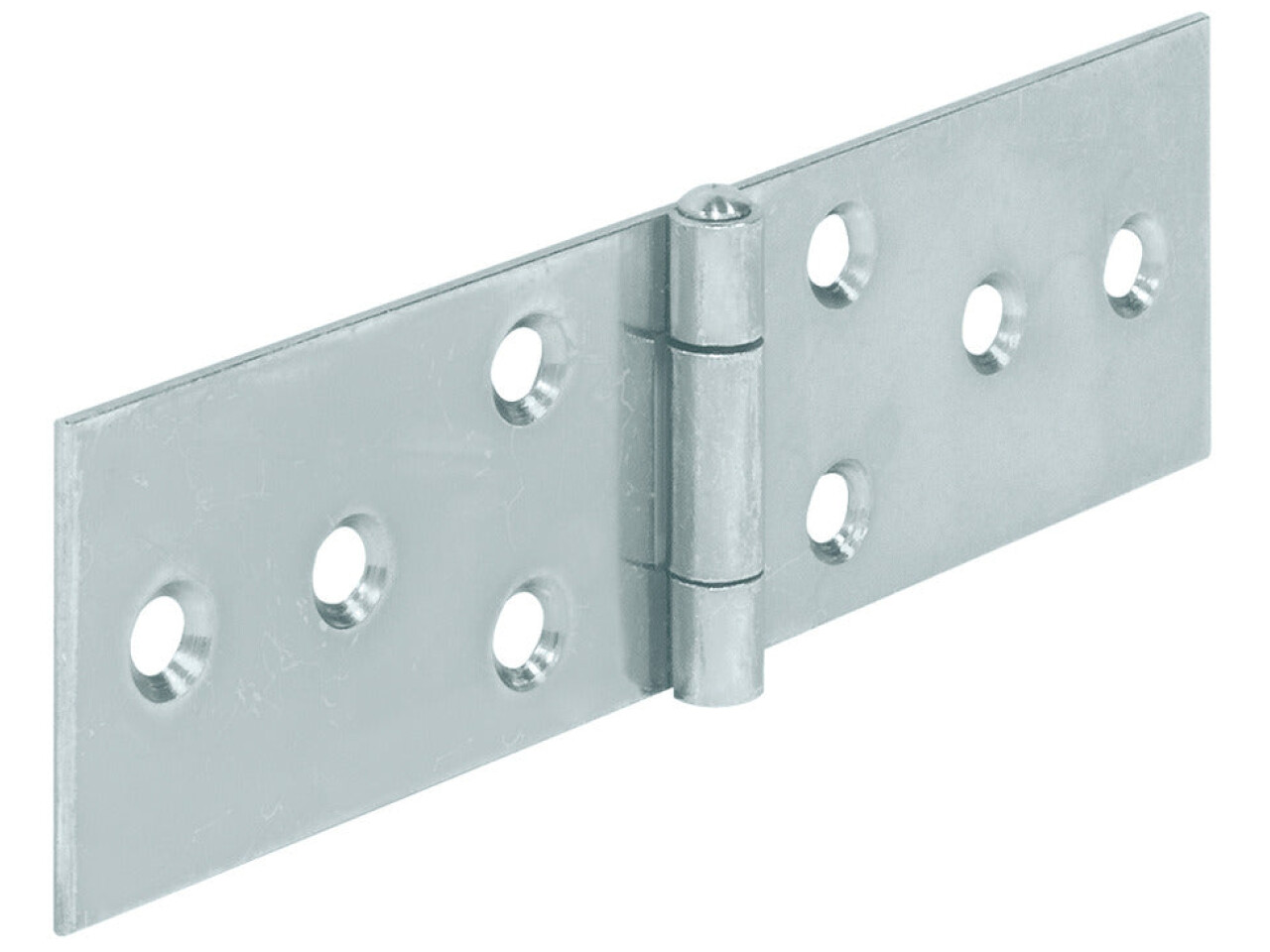

What is a back flap hinge and where is it typically used?

A back flap hinge is designed to support a flap or access panel that opens smoothly on a cabinet or furniture frame. It is commonly used in cupboards, service panels, and commercial storage where a reliable butt hinge solution is needed.

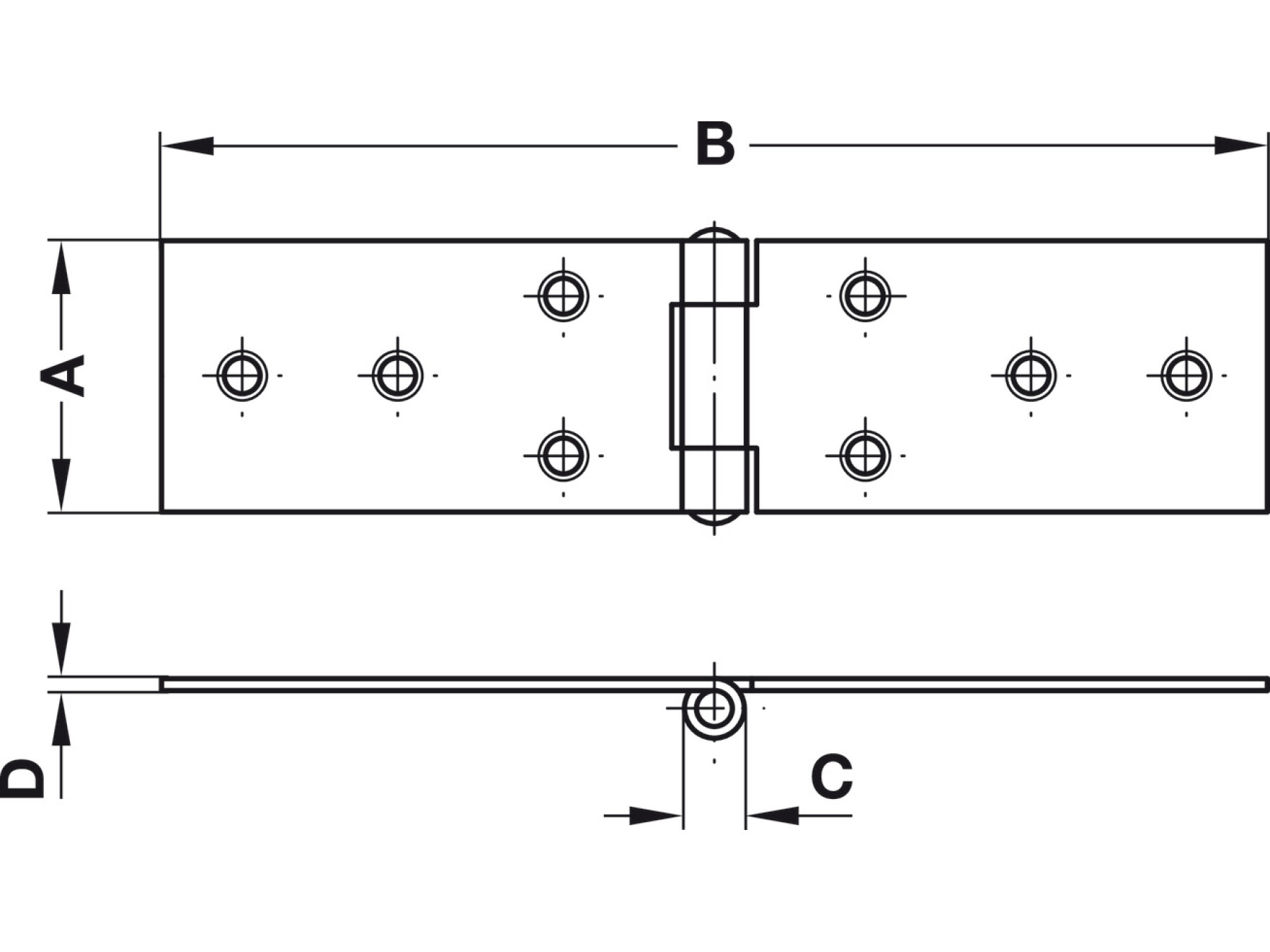

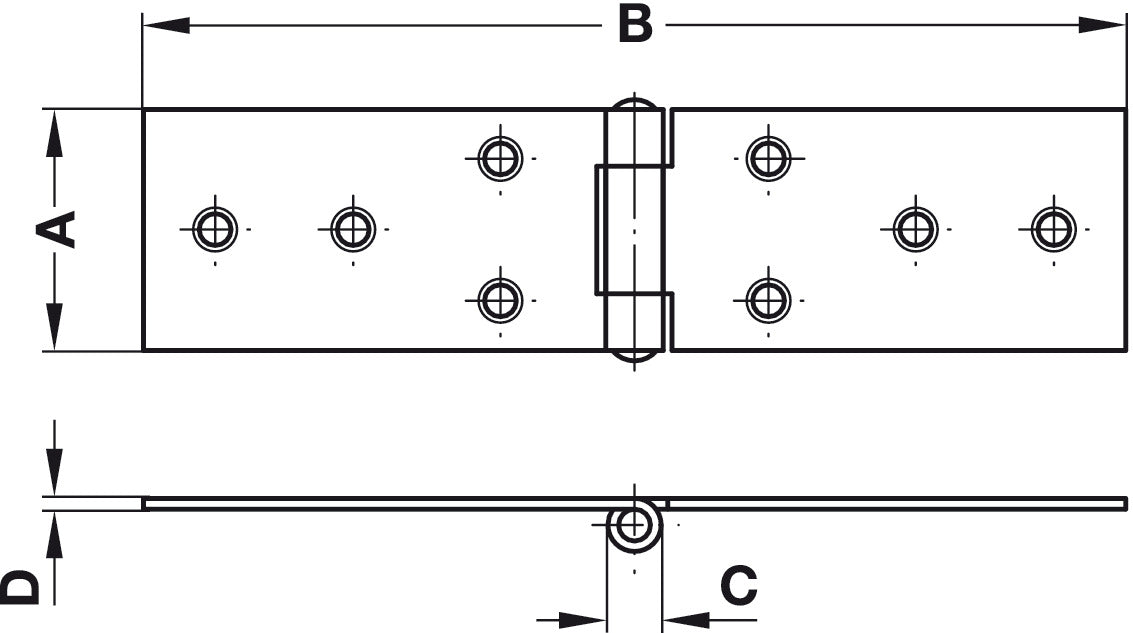

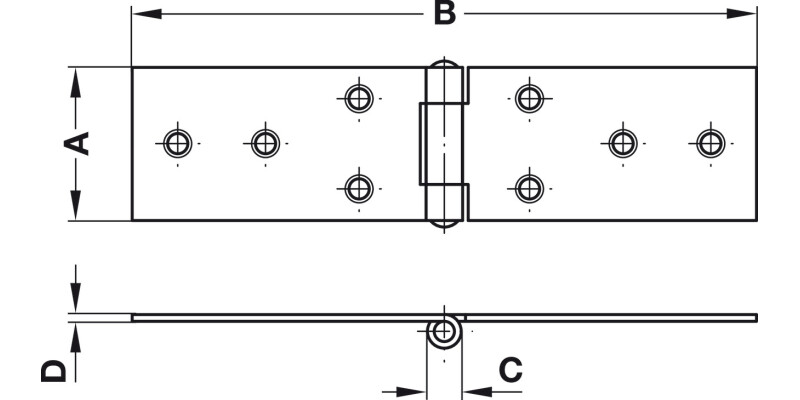

What are the hinge dimensions for part number 354.31.922?

This hinge is sized at 25 x 60 mm (height x width). You should check these measurements against your cabinet cut-outs or existing hardware layout to ensure a straightforward fit.

How should this hinge be installed?

The Back Flap Hinge is for screw fixing. Align the hinge in position, mark the screw holes, then fasten securely using suitable cabinet or furniture screws for the thickness of your frame.

Is this hinge suitable for indoor and commercial use?

Yes. It is a zinc plated steel butt hinge designed for everyday openings in both living and commercial environments. Zinc plating helps provide extra protection against corrosion compared with uncoated hardware.

What hinge type and design features does it use?

It is a butt hinge with a square flange shape, and the version is straight, rolled with a riveted pin. These features help deliver a stable hinge line and consistent movement for cabinet doors or flaps.

Will the zinc plated finish match common cabinet hardware?

The zinc plated finish is a practical choice for many cabinet and furniture styles because it is a neutral metallic coating. If you are replacing existing hinges, matching the finish and size will help the hardware look uniform.

Can I replace an existing butt hinge with this one?

You can often replace similar butt hinges if the overall size, flange shape, and screw fixing pattern are compatible. Measure the current hinge footprint and compare it with the 25 x 60 mm specification before ordering.
