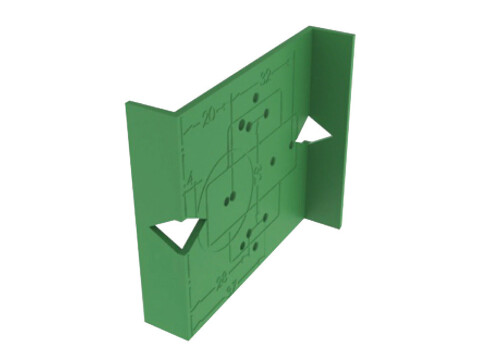

Marking Jig, for Tiomos Concealed Hinges
Marking Jig, for Tiomos Concealed Hinges (Part No: 348.40.051) is the go-to hand tool for anyone who wants clean,... Read More
Product Details
Marking Jig, for Tiomos Concealed Hinges (Part No: 348.40.051) is the go-to hand tool for anyone who wants clean, accurate hinge and plate positioning without guesswork. Designed around the 45/9.5 drilling pattern, this marking jig helps you set up pre-drilling quickly and consistently—ideal for repeat installs, professional workshops, and confident DIY projects alike.
Built for precision hinge work, the Tiomos Marking Jig delivers easy marking and pre-drilling for Tiomos hinges, cruciform mounting plates, and inline mounting plates. With the correct drilling layout at your fingertips, you can reduce measuring time, minimize errors, and move from marking to drilling with far less friction.
Whether you’re fitting new cabinet hardware or upgrading existing applications, this jigs-first approach keeps your results tidy and dependable. It’s especially helpful when alignment matters and you want repeatable outcomes across multiple doors or panels.
Smart, practical workflow: simply use the jig to guide your marking, then carry out pre-drilling with greater accuracy. The result is a smoother installation process, better fitment, and a more professional finish.
Product category: Marking Jig (Tools & Consumables → Tools & Accessories → Hand Tools & Jigs → Marking Jig). If you’re looking for a reliable marking and pre-drilling solution tailored to the 45/9.5 drilling pattern, the Marking Jig, for Tiomos Concealed Hinges is a smart purchase that pays off every time you install.
Specifications
Product category
Area of application
Easy marking and pre-drilling for Tiomos hinges, cruciform and inline mounting plates
Colour/finish
Product Details
Which drilling pattern does the Tiomos Marking Jig 45/9.5 support?
The Tiomos Marking Jig 45/9.5 is designed for a 45/9.5 drilling pattern. This makes it suitable for consistent marking and pre drilling when fitting compatible Tiomos hinges and mounting components.
What is the best way to use the jig for accurate hinge and plate positioning?
Use the jig to mark your fixing points and then drill where indicated. It is intended to help you achieve repeatable alignment, reducing the need for measuring out holes each time on the workpiece.
Can I use this jig for cruciform and inline mounting plates?
Yes. The jig is intended to provide easy marking and pre drilling for Tiomos hinges as well as cruciform and inline mounting plates, helping you set up quickly and accurately for common installation configurations.
Does the marking jig help reduce drilling errors when fitting hinges?
It is designed to support pre drilling and marking using the specified pattern. By using the jig as a reference, you can improve consistency from one installation to the next, which is particularly useful for multi door or repeat projects.
What does the part number 348.40.051 refer to?
Product part number 348.40.051 uniquely identifies the Tiomos Marking Jig 45/9.5. When ordering or replacing a jig, use this number to make sure you receive the correct version for the 45/9.5 drilling pattern.
Is this marking jig a good choice if I am fitting hinges more than once?
If you want a straightforward way to speed up repeat setups, this jig can help because it supports repeatable marking and pre drilling. It is especially useful for customers fitting hinges in multiple locations or working through several similar jobs.
