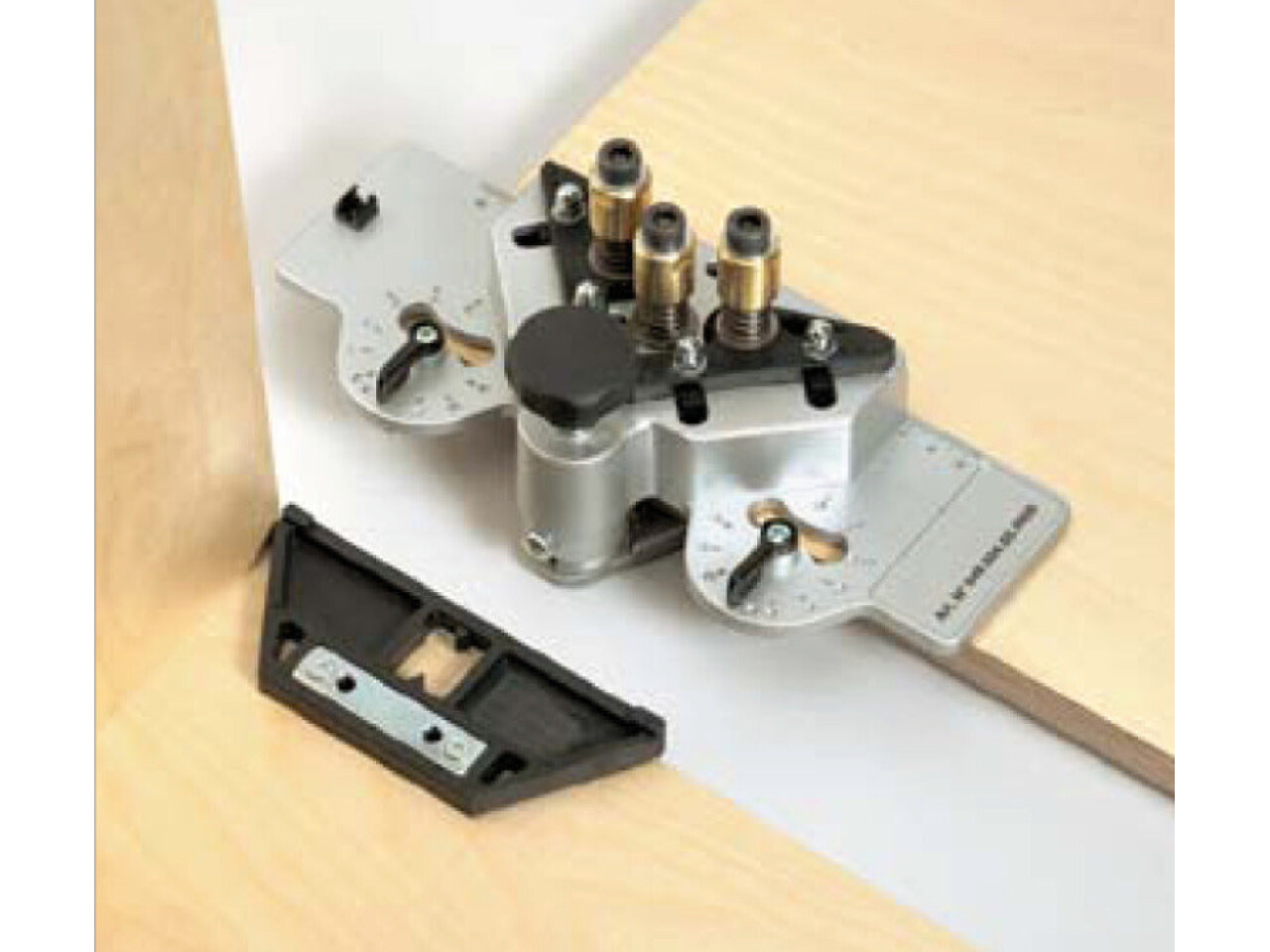

Hinge Drilling Jig, for Tiomos Concealed Hinges

Product Details

Hinge Drilling Jig, for Tiomos Concealed Hinges (Product Part No: 348.40.050) is the smart, time-saving solution for clean, accurate hinge installations—ideal for workshops, furniture makers, and DIY enthusiasts who want professional results without guesswork. Designed around the 45/9.5 drilling pattern, this jig helps you position boring points consistently so your hinges align smoothly every time.

When you’re working with cabinet doors and frame systems, drilling accuracy is everything. The Tiomos hinge drilling jig guides your drill in the right locations, reducing the risk of misalignment, wasted materials, and frustrating re-drills. Whether you’re fitting new hardware or upgrading existing cabinetry, this tool streamlines the process while delivering reliable, repeatable outcomes.

Product category: Hinge Drilling Jig — a dedicated hand tool built for efficient hinge preparation. You get a practical, user-friendly approach to marking and drilling, so you can move from layout to installation with confidence. Built to suit real-world workshop demands, the jig makes it easier to achieve neat, factory-style results even when working on multiple doors.

Bring consistency to every project with the Hinge Drilling Jig, for Tiomos Concealed Hinges. If you’re ready to upgrade your workflow and improve accuracy on hinge mounting, add Part No: 348.40.050 to your toolbox today.
