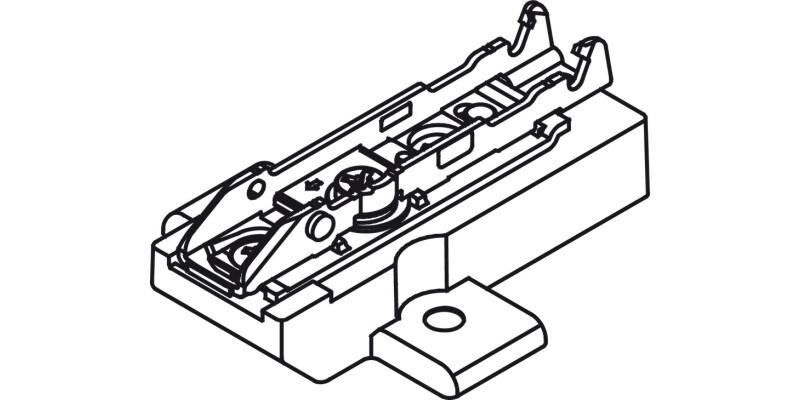

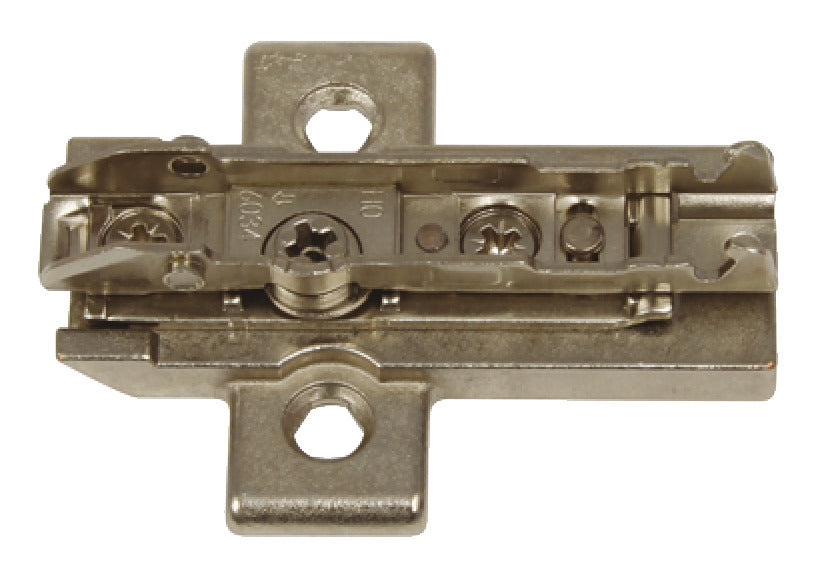

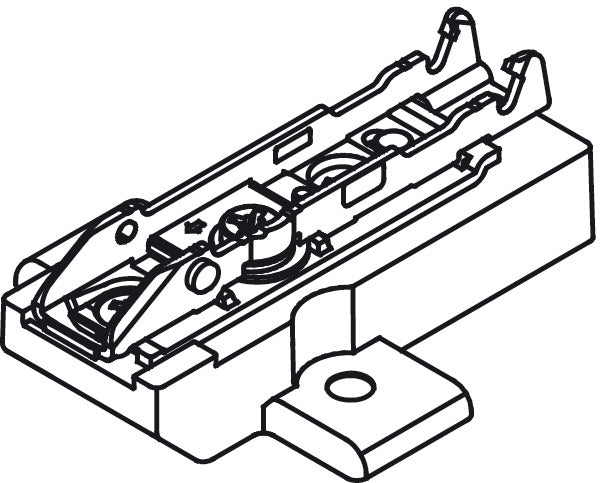

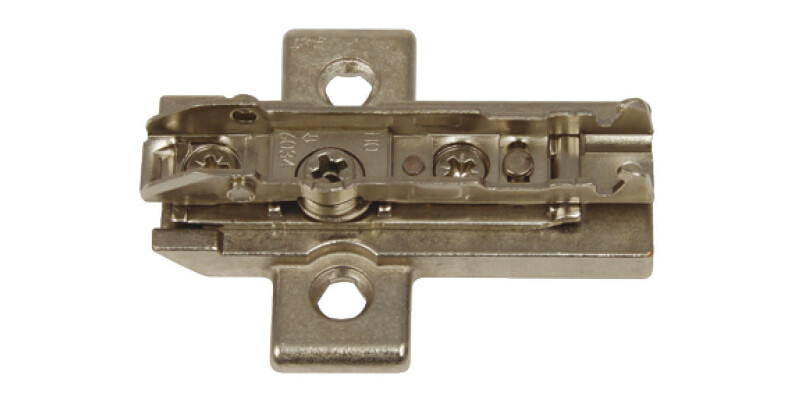

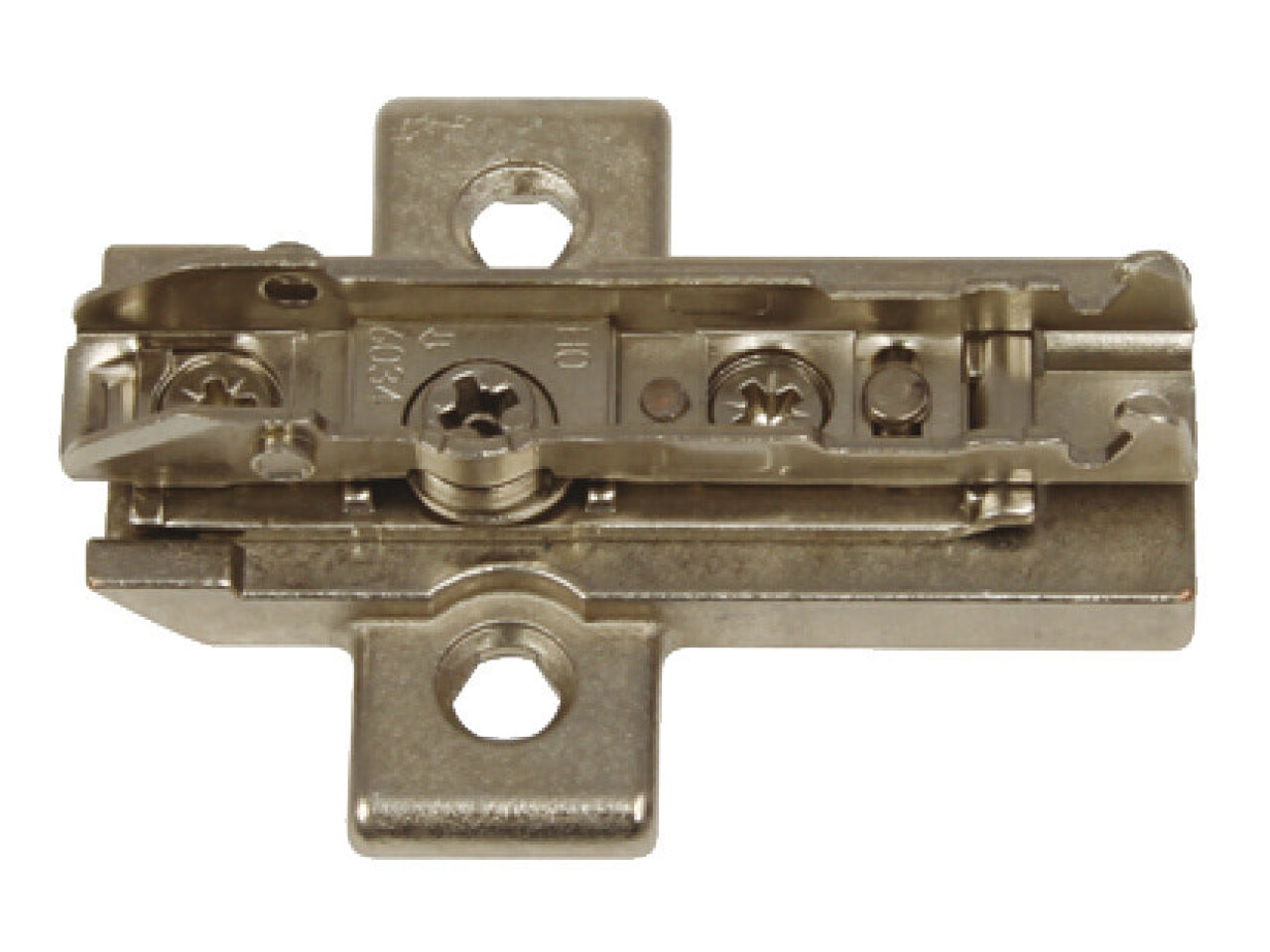

Mounting Plate, Cruciform, 2 Point Fixing, for Tiomos Click On Hinges

Product Details

Mounting Plate, Cruciform, 2 Point Fixing, for Tiomos Click On Hinges. (Part No. 348.39.511) is a premium mounting plate designed to give your cabinet hinges a secure, accurate foundation. Built for smooth installation and reliable long-term performance, this mounting plate supports the efficient alignment of your door hardware—ideal for both living spaces and professional fit-outs.

Product subtitle: 6 mm height, Hospa screw fixing. With a 6 mm height, it’s engineered to suit TIOMOS click-on fixing hinge applications only, helping you achieve a clean, professional finish while keeping hinge positioning consistent.

Key features & specifications

Version: Two-part plate for dependable stability.

Material: Steel for strength and durability.

Finish: Nickel plated for a refined look and enhanced corrosion resistance.

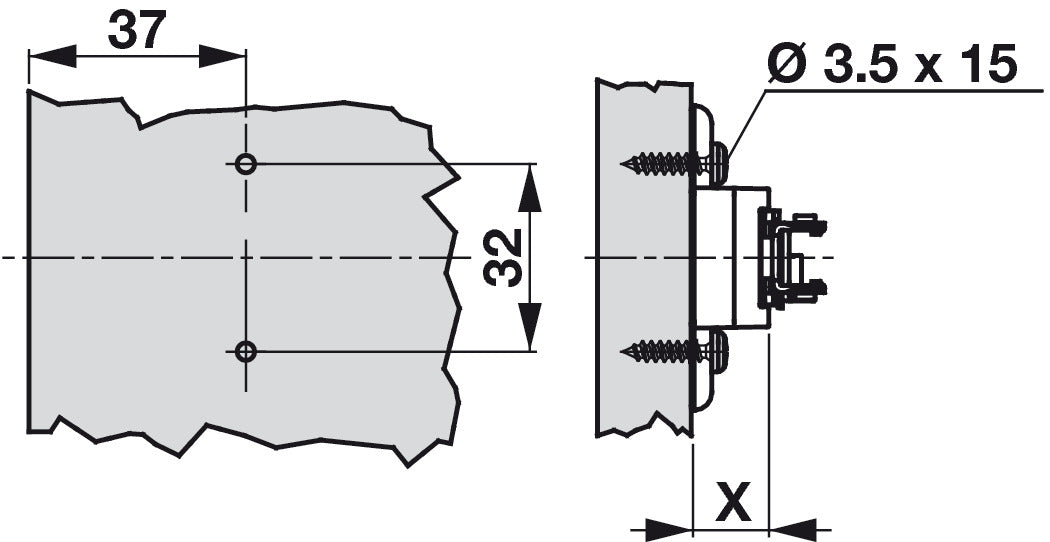

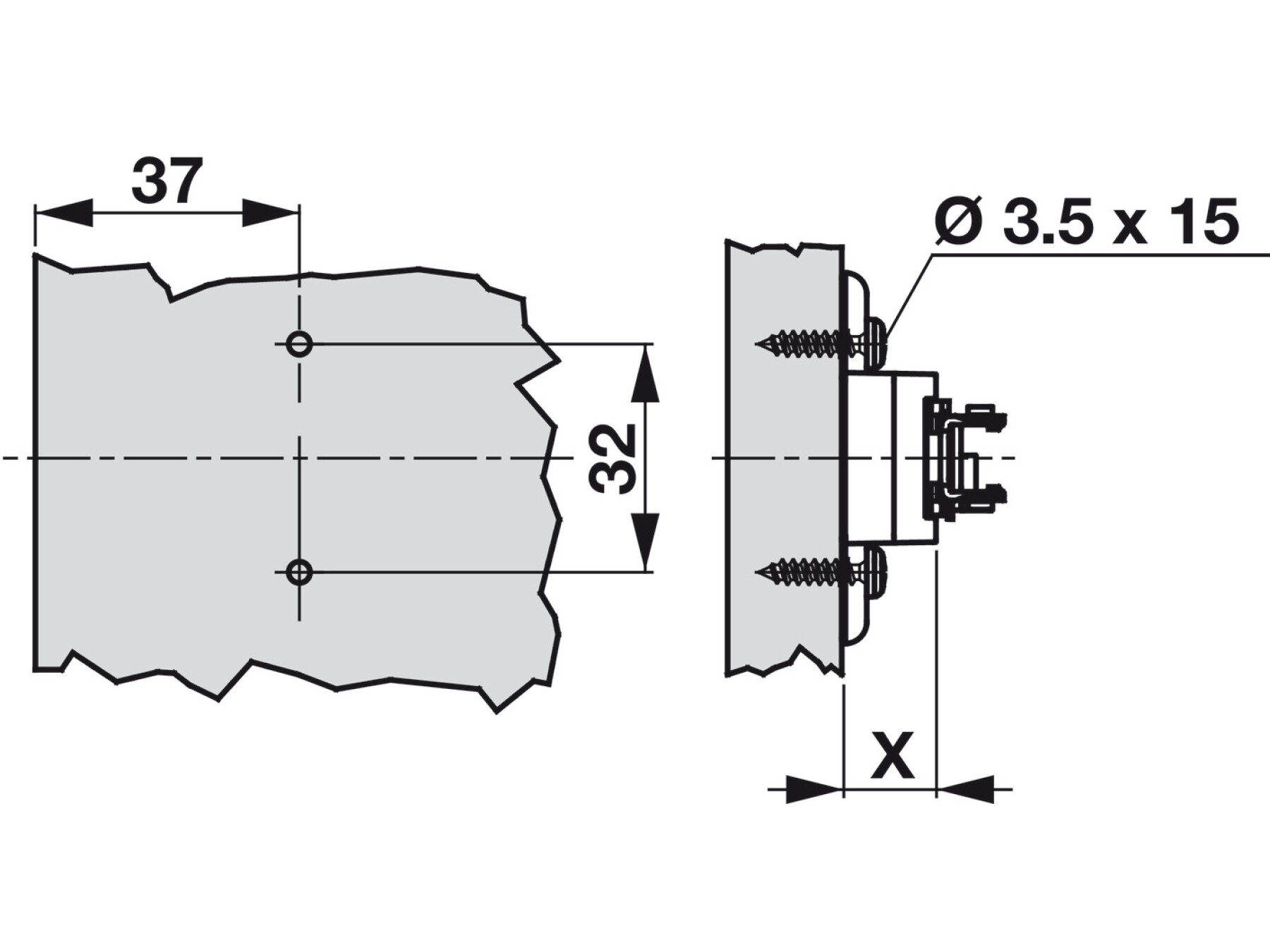

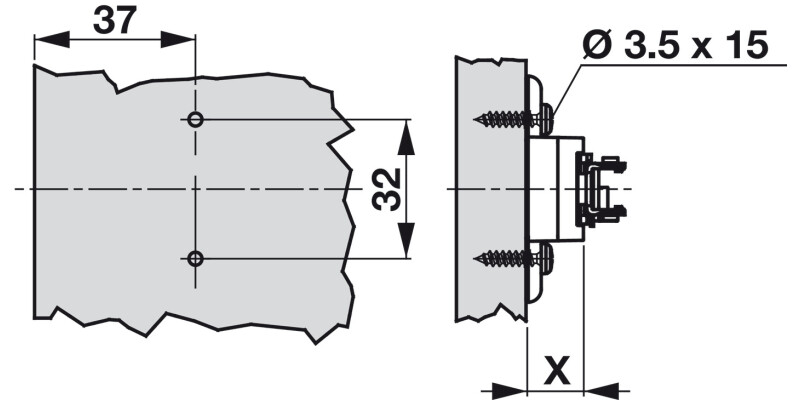

Drill hole (Ø): 3.50 mm.

Screw length: 15.00 mm.

Screw distance: 32.00 mm.

Edge distance: 37.00 mm.

You also benefit from practical adjustment capability: ± 2 mm height adjustment via worm gear, making it easier to fine-tune door alignment after fitting. This is especially useful when working with cabinetry that needs precise leveling.

Order reference: Order Hospa ⌀ 3.5 mm countersunk screws separately to complete the installation.

If you’re upgrading cabinet hinges or fitting new furniture hardware, choose the Mounting Plate, Cruciform, 2 Point Fixing, for Tiomos Click On Hinges. for a confident, engineered fit—built to perform wherever your cabinetry demands accuracy.

Order Hospa ⌀ 3.5 mm countersunk screws separately
