Mounting Plate, Cruciform, 4 Point Fixing, Dowel Fixing, for Tiomos Click On Sys

Tiomos 0mm Mounting Plate 2prt Click 4 Cruci DF

Mounting Plate, Cruciform, 4 Point Fixing, Dowel Fixing, for Tiomos Click On Sys

Name: Mounting Plate, Cruciform, 4 Point Fixing, Dowel Fixing, for Tiomos Click On Sys
SKU: 348.38.541
Price: 1.68 GBP
Availability: InStock

Part Number: 348.38.541

With height adjustment via worm gear, Height 0 mm

Price:

£1.68

Per Item

VAT excluded

Mounting Plate, Cruciform, 4 Point Fixing, Dowel Fixing, for Tiomos Click On Sys (Part No: 348.38.541) is a... Read More

Product Information

Product Details

Mounting Plate, Cruciform, 4 Point Fixing, Dowel Fixing, for Tiomos Click On Sys (Part No: 348.38.541) is a precision-built mounting solution designed specifically for TIOMOS click-on fixing hinges. If you’re aiming for clean alignment, smooth installation, and reliable long-term performance, this mounting plate helps you dial in the perfect fit for your cabinet hardware setup.

Perfectly matched to TIOMOS hinge systems, this 0mm mounting plate features a two-part (2prt) design for confident positioning and secure attachment. The nickel-plated steel construction offers durability and a professional finish that blends well with a wide range of modern furniture styles.

Key features that make installation easier:

With height adjustment via worm gear, you can fine-tune your door alignment by ±2 mm. This flexibility is especially useful when fitting cabinetry across different surfaces or when achieving consistent panel spacing matters.

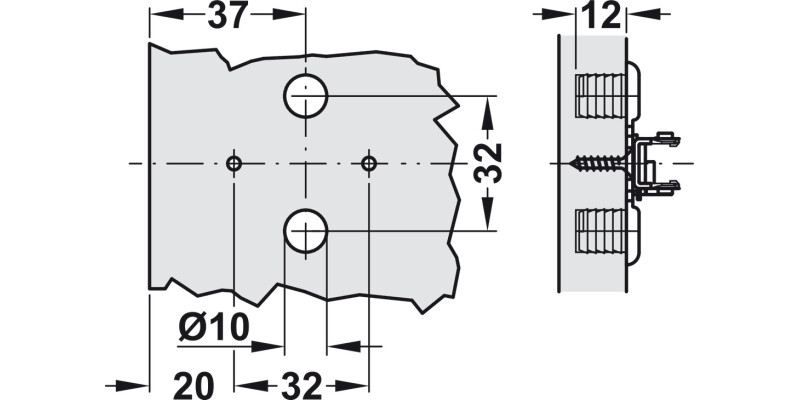

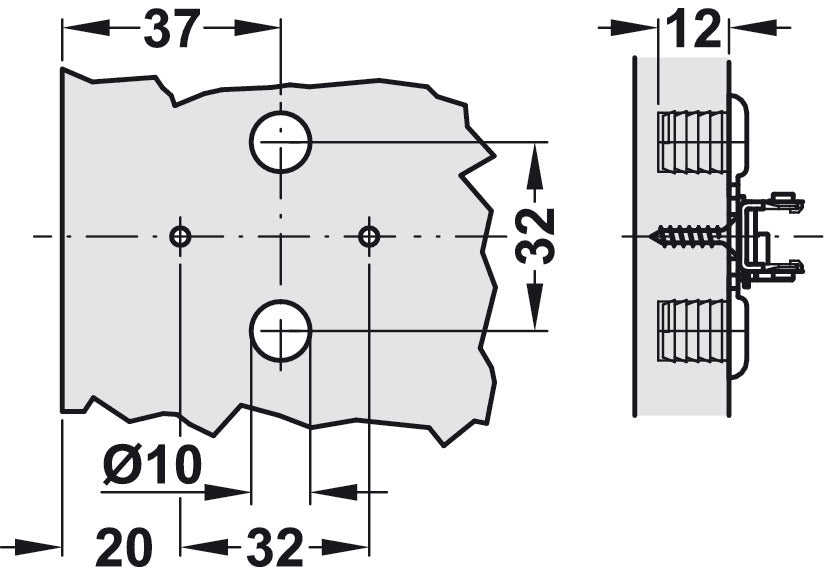

For compatibility and correct mounting geometry, the plate is made for a 10.00 mm drill hole (Ø) and uses a 32.00 mm screw distance—helping ensure accurate, repeatable results.

The mounting plate version is engineered for press fitting with pre-mounted dowels, supporting a stable base and efficient setup. Manufactured by Grass under the Tiomos model series, this part is built to perform with click-fitting hinge applications.

Area of application: For TIOMOS click fixing hinges only.

Upgrade your cabinet hinge installation with the Mounting Plate, Cruciform, 4 Point Fixing, Dowel Fixing, for Tiomos Click On Sys—a dependable, adjustable, and professionally finished choice.

Specifications

Area of application

For TIOMOS click on fixing hinges only

Version

Two part plate

Material

Steel

Colour/finish

nickel plated

For drill hole Ø

10.00 mm

Screw distance

32.00 mm

Adjustment facility

Height adjustment Via worm gear ±2 mm

Mounting plate version

For press fitting with pre-mounted dowels

Model

Tiomos

Manufacturer

Grass

Model series

Tiomos

Order reference

Hospa screw & pre-mounted Euro screw fixing versions available

FAQ

Product Details

Is this mounting plate suitable for TIOMOS click-on cabinet hinges?

Yes. This Tiomos 0 mm mounting plate is designed for use when fitting TIOMOS click fixing hinges only. It is intended to match the TIOMOS hinge fixing system so alignment and adjustment work correctly.

What does “0 mm height” mean on this mounting plate?

The height setting starts at 0 mm, helping you begin installation at the standard position. You can then make fine corrections using the worm gear height adjustment of plus or minus 2 mm if your cabinet doors need slight alignment.

How does the height adjustment work, and how much can I adjust?

Height adjustment is via a worm gear, which allows controlled changes after mounting. You can adjust the hinge height by plus or minus 2 mm, which is useful for evening up door gaps and achieving a neat, consistent finish.

Is this a two part mounting plate, and what difference does that make?

Yes, it is a two part plate version. The two component design supports easier positioning during installation and is intended to work with the Tiomos hinge fixing approach for a secure, stable mounting setup.

What size drill hole and screw spacing does it require?

For the drill hole diameter, use 10.00 mm. The screw distance is 32.00 mm, so matching these measurements helps ensure the plate sits correctly and the hinge can be fastened securely.

How is the mounting plate installed into the cabinet?

This plate is for press fitting with pre mounted dowels. If your cabinet furniture uses dowel positioning for hinge fixing, this version is made to suit that style of installation and helps keep the fitting process straightforward.

What surface finish should I expect on this mounting plate?

It is steel with a nickel plated finish. This coating is chosen to provide a durable surface for typical living and commercial cabinet environments, supporting a professional looking result with compatible hinge hardware.
