Mounting Plate, Inline, Dowel Fixing, for Tiomos Click On System Hinges

Product Details

What does the 2 mm height adjustment do?

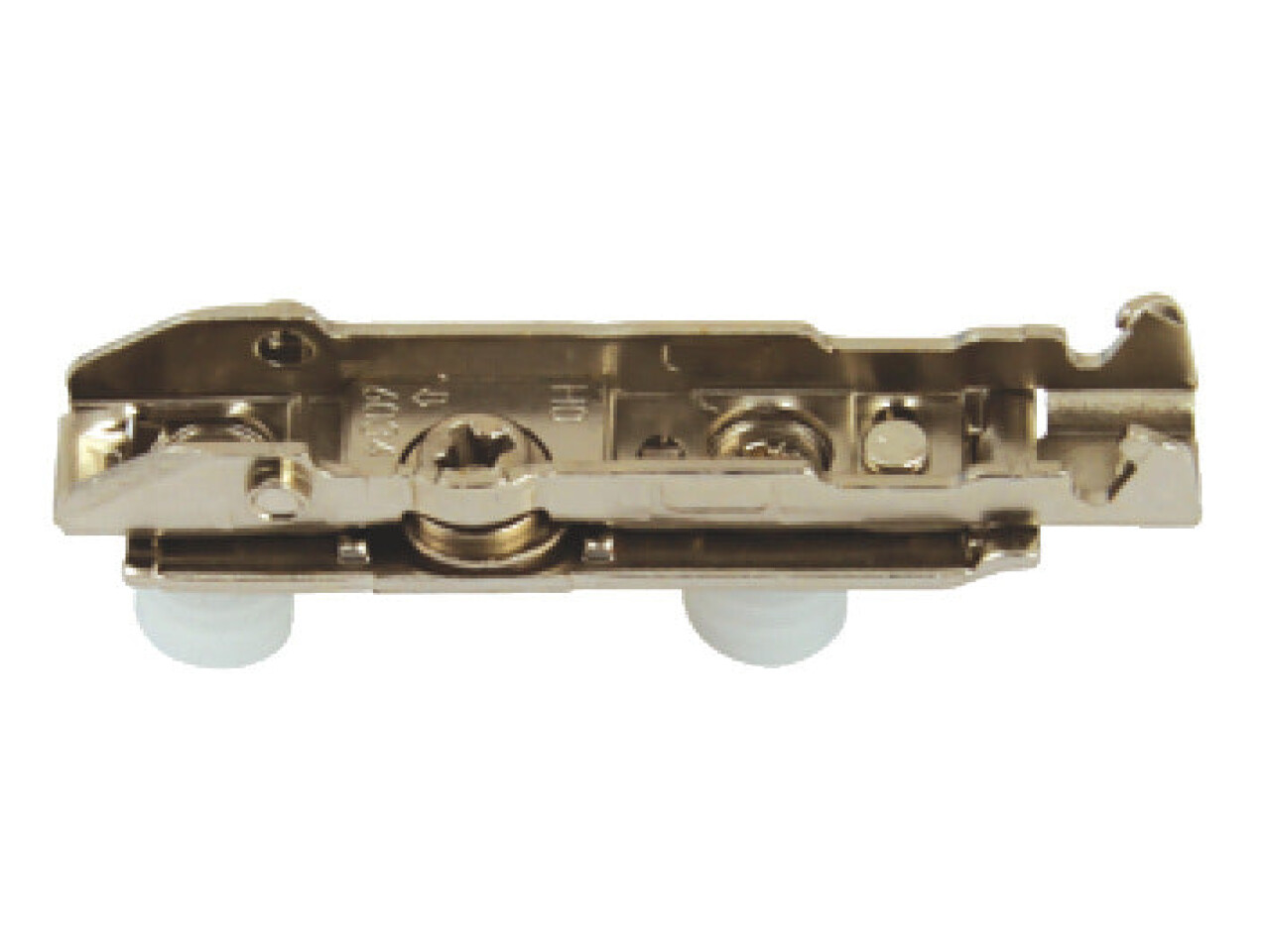

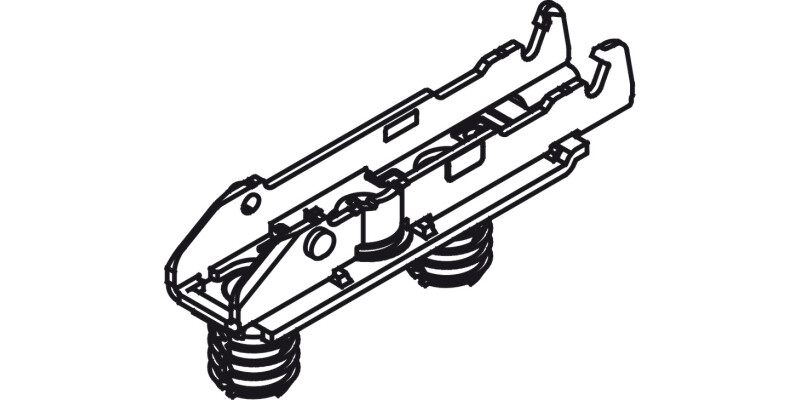

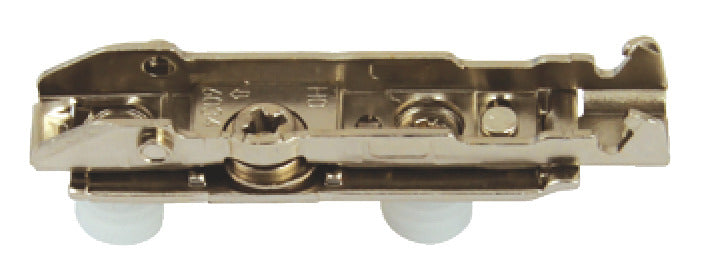

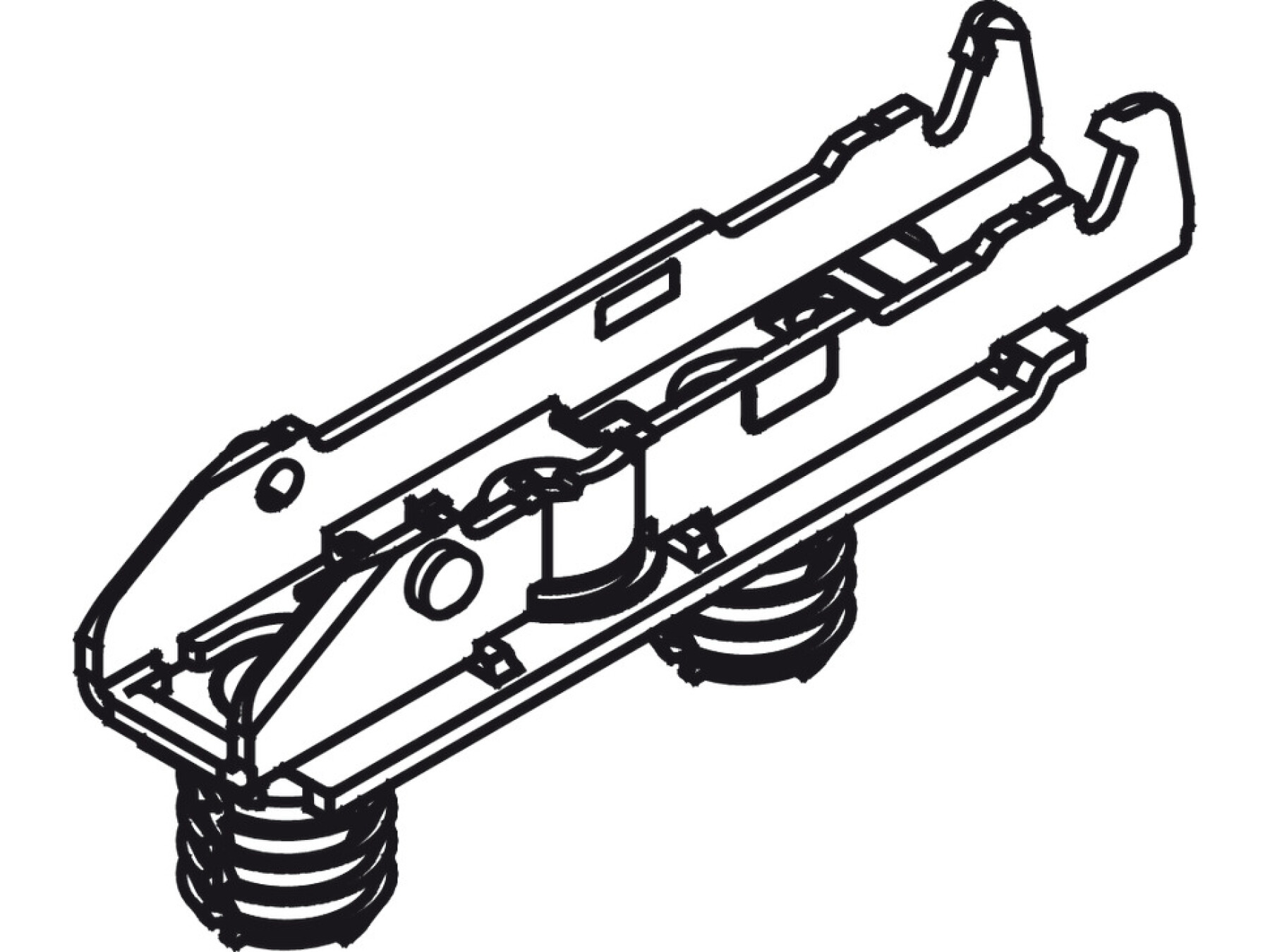

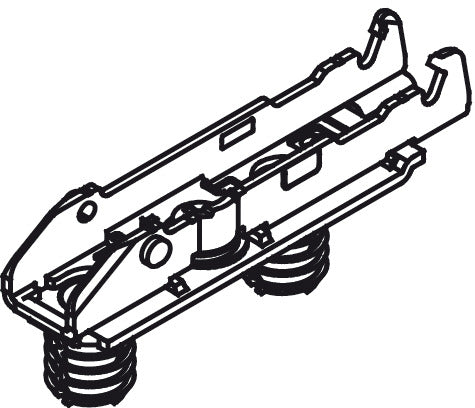

The Tiomos 2 mm Mounting Plate (part number 348.38.012) provides a two part plate with plus or minus 2 mm height adjustment using a worm screw. This helps you fine tune cabinet door alignment without changing the hinge position.

Which hinges is this mounting plate compatible with?

This plate is designed for TIOMOS click inline fixing hinges only. It is intended to work as part of the TIOMOS hinge system, so it will not be a like for like replacement for other hinge brands or mounting setups.

How do the fixing and drilling requirements affect installation?

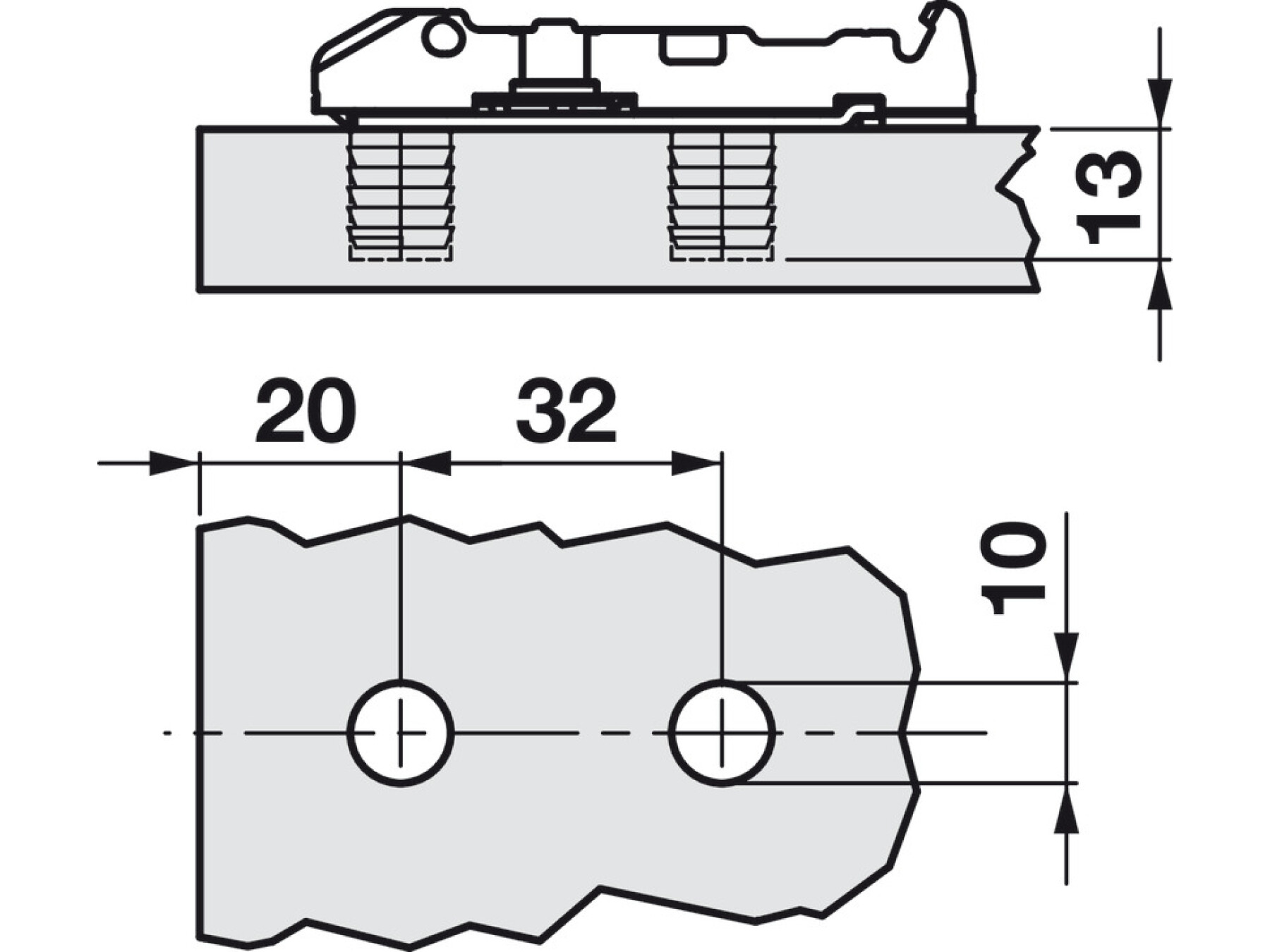

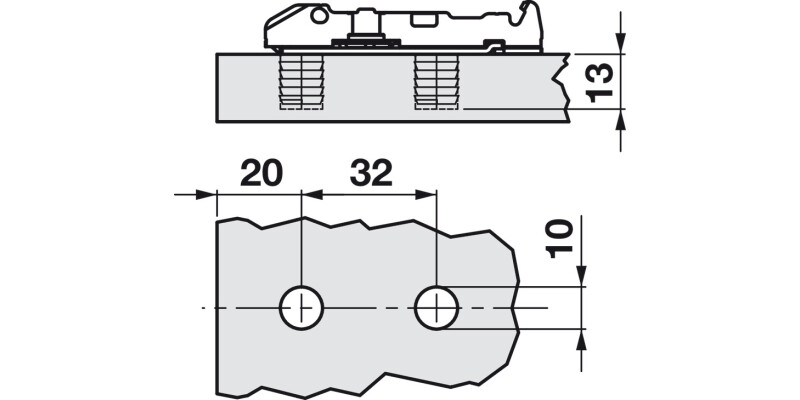

Use this plate with a 10.00 mm drill hole and a 13.00 mm drilling depth. Getting these dimensions right helps the plate sit correctly and supports reliable adjustment during fitting and future maintenance.

Is the nickel plated finish suitable for everyday kitchen and living use?

Yes. The plate is steel with a nickel plated finish, which is commonly chosen for its appearance and resistance to normal household conditions. It is a practical option for both living and commercial cabinet applications.

How much clearance does the plate require from the cabinet edge?

The recommended edge distance is 20.00 mm. Sticking to this guidance improves hinge strength and alignment consistency, especially when multiple hinges are fitted across a door.

What is the distance between hinge components for this plate?

The specified distance is 2.00 mm. This measurement relates to the positioning of the two part system, and it supports correct height adjustment when the plate is installed as intended.

Where can I find the product identification details before ordering?

You can order using Tiomos 2 mm Mounting Plate 2prt Click Inline DF, product part number 348.38.012. Having the part number to hand makes it easier to confirm you are selecting the correct mounting plate for your TIOMOS hinge setup.
