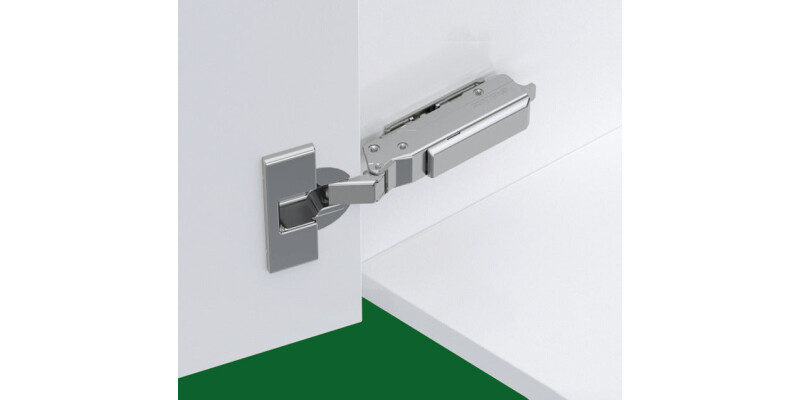

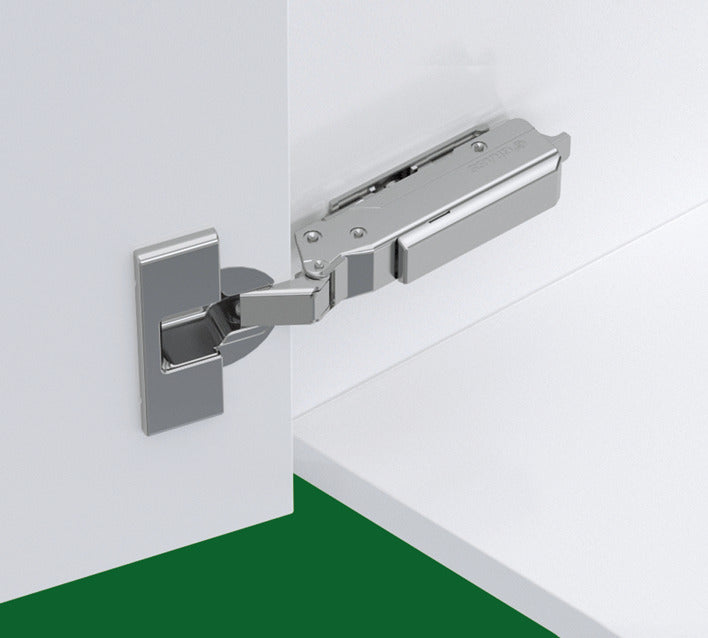

Tiomos 120D Hinge/Plate Set 1prt Hospa
Rated 3.5/5 based on 11 customer reviews
Hafele

Tiomos 120D Hinge/Plate Set 1prt Hospa

  • Product SKU: 348.36.820
  • Availability: In Stock
£1.77

Price inc. VAT

£1.77
Hurry! only 2582 left in stock!
Ask about this product
Your message has been successfully sent to the store owner!
  • Cup fixing: Screw fixing
  • Type of closing: With soft close
  • Drilling depth: Hinge cup 12.6 mm
  • Opening angle: 120 ¬¨¬®‚Äö√†√ª
  • Drilling pattern: 45/9.5
  • Overlay:: Full
  • For door thickness: Up to 24 mm (for door thicknesses 24 mm and above, a trial fitting is recommended)
  • Application: For standard applications
  • Hinge arm: Click on
  • Model: Tiomos
  • Material: Cup and hinge arm: Steel
  • Minimum gap for doors with chamfered edges (r = 1 mm) with factory settingsDoor thickness mmDistance to cup E¬¨¬®‚Äö√тĆmm3.04.05.06.07.0160.60.60.60.60.6170.60.60.60.60.6180.70.70.70.70.7190.90.90.90.90.9201.11.11.11.11.1211.41.31.31.31.3223.02.01.51.51.5246.45.44.43.42.4Minimum gap F
  • Supplied with: 1x 120¬¨¬®‚Äö√†¬¥ Tiomos hinge (348.36.801)1x Mounting plate - choice of three:ECON Cruciform mounting plate, 3 point fixing- Hospa screw fixing - One part plate with ¬¨¬®¬¨¬± 2 mm height adjustment by slot- Nickel-plated steelECON Cruciform mounting plate, 3 point fixing- Wth pre-mounted Euro screws- One part plate with ¬¨¬®¬¨¬± 2 mm height adjustment by slot- Nickel-plated steelCruciform mounting plate, 4 point fixing- For TIOMOS Click on fixing hinges only- Hospa screw fixing- Two part plate with ¬¨¬®¬¨¬± 2 mm height adjustment via worm screw- Nickel-plated steel
  • Order reference: Order Hospa ‚Äö√†√∂‚àö‚⧠3.5 mm countersunk screws separately
