Concealed Cup Hinge, 110 Standard, Click on Arm, Tiomos. : Cabinet Hinges, Furniture Fittings, Living &... Read More

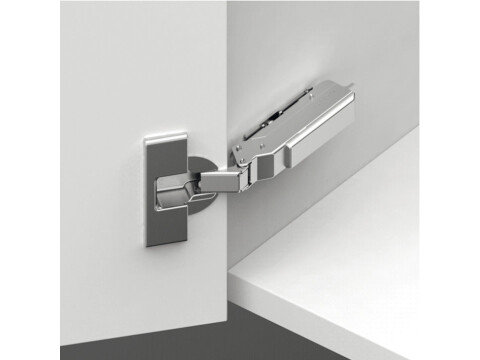

Concealed Cup Hinge, 110 Standard, Click on Arm, Tiomos. : Cabinet Hinges, Furniture Fittings, Living & Commercial Solutions (Part No: 348.31.602) is a reliable concealed cabinet hinge designed for a clean, professional look and smooth everyday use. Built for standard applications, this half overlay / twin mounting concealed hinge helps you achieve a neat gap alignment between doors—ideal for kitchens, wardrobes, and quality furniture builds.
Featuring a cranked hinge arm, this model offers an impressive 110° opening angle for comfortable access to your storage. The hinge is engineered for wood doors and comes with cup drilling support, making it straightforward to install during cabinet assembly.

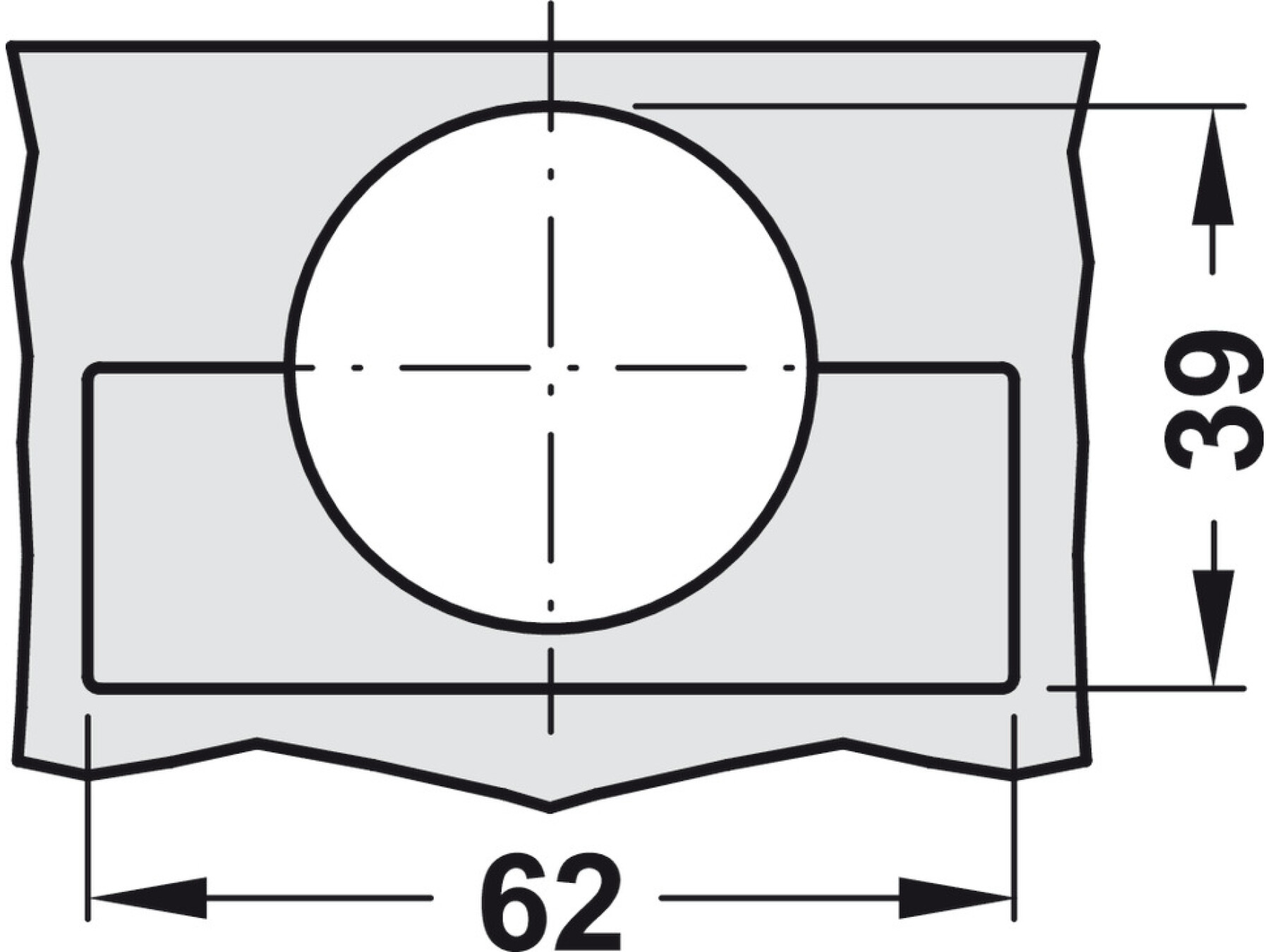

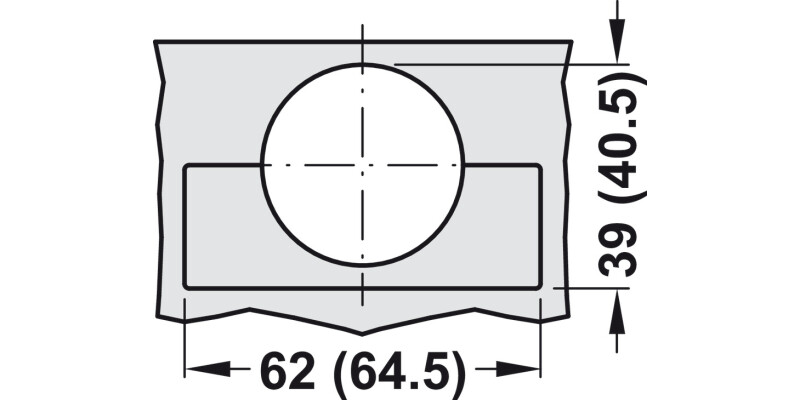

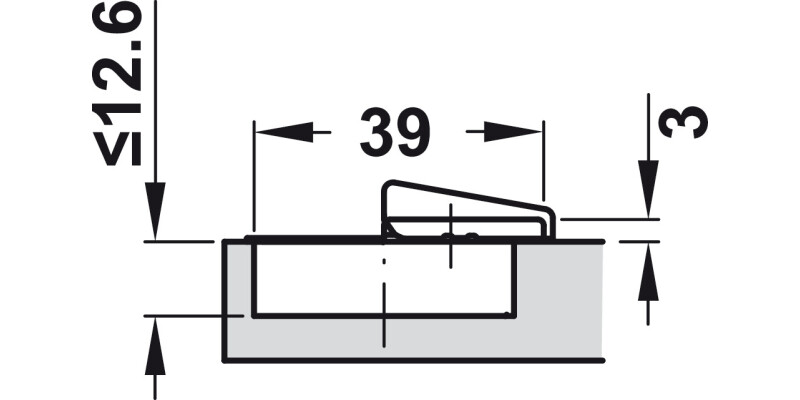

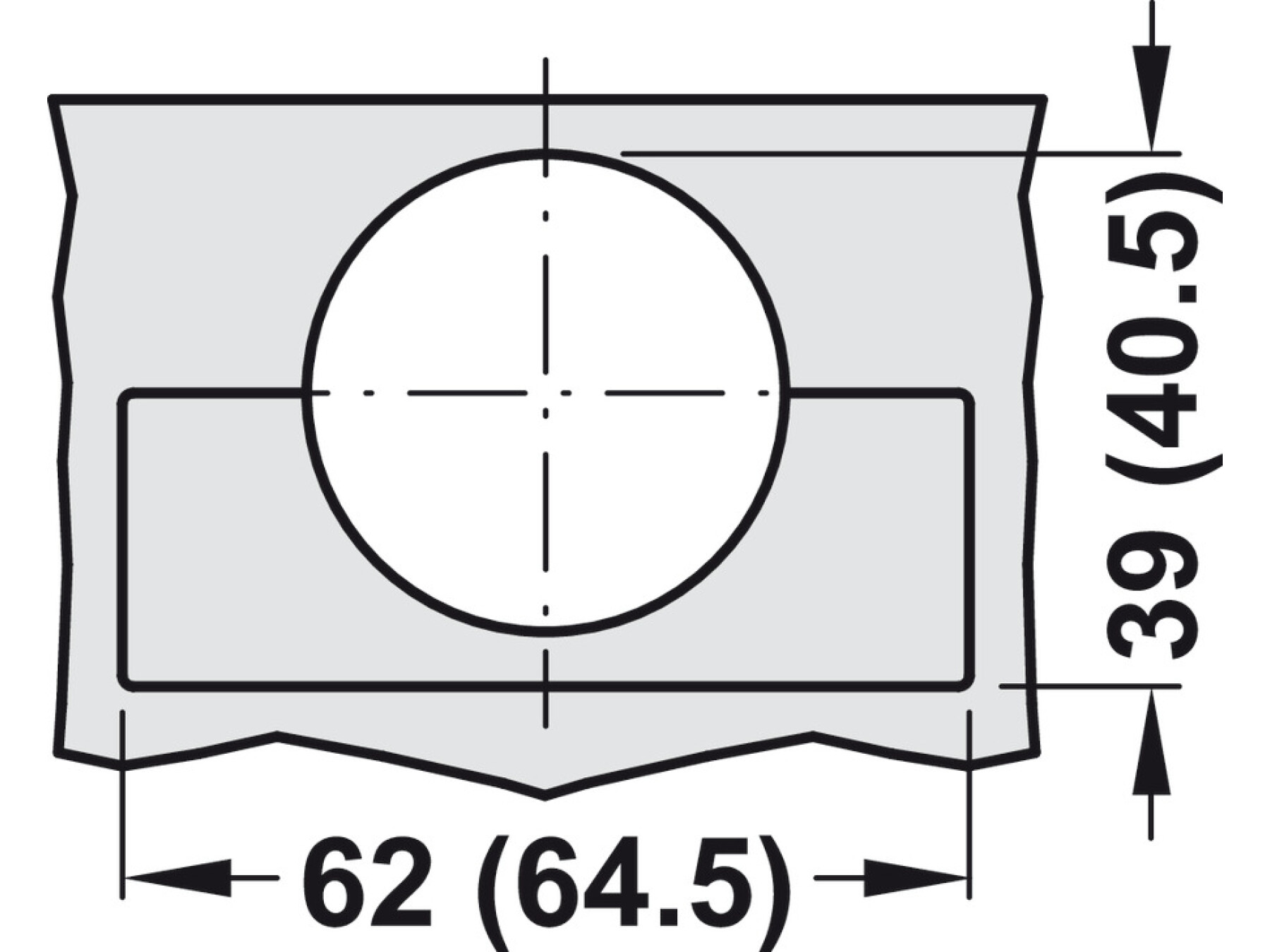

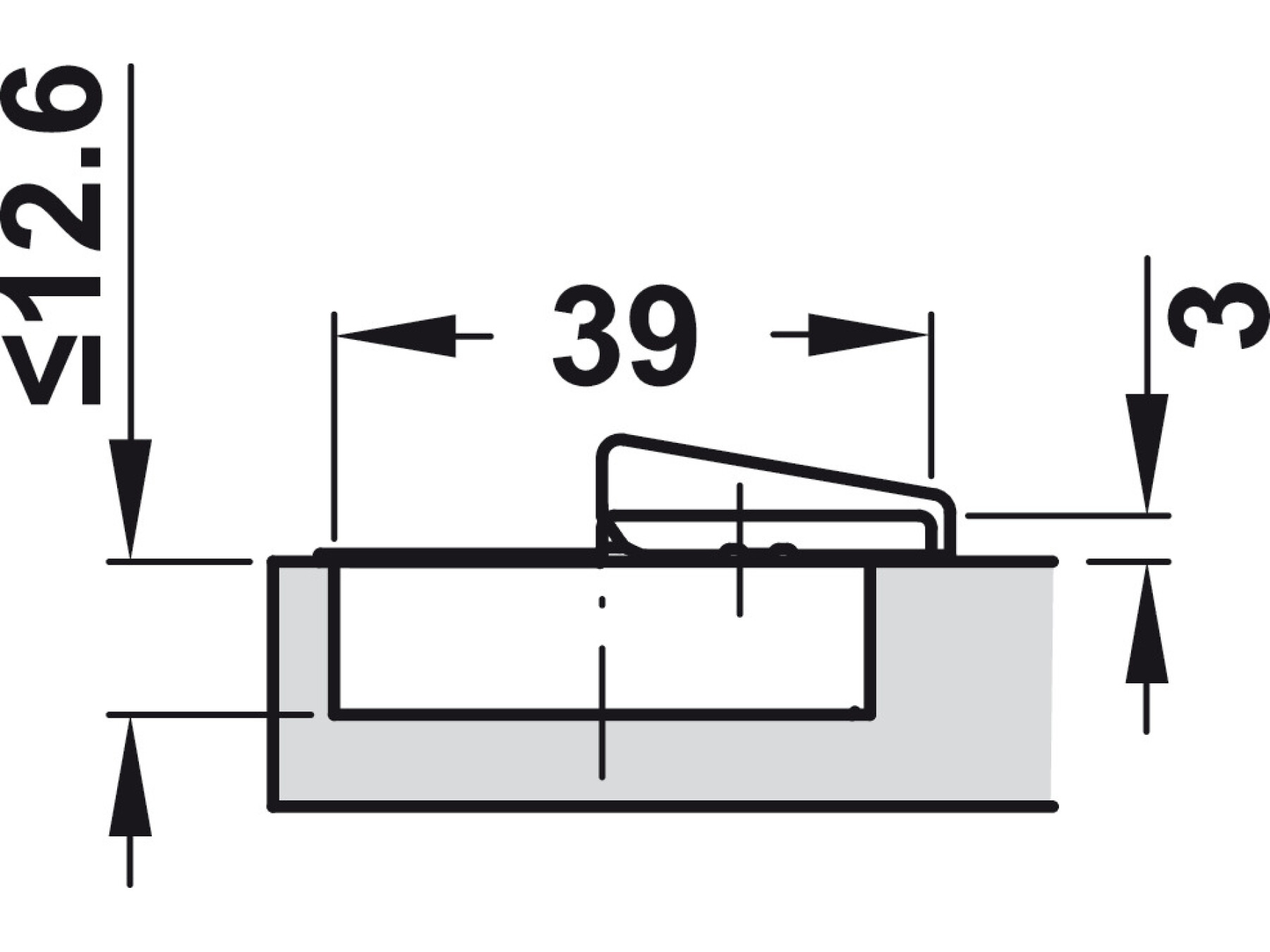

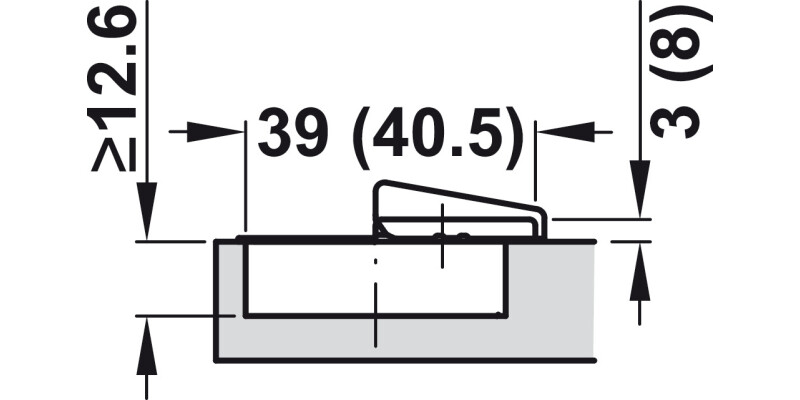

Designed in a durable combination of materials—steel cup and zinc alloy hinge arm—the hinge is finished in nickel plated for a smart, long-lasting appearance. The cup is designed for 35.00 mm drilling, with a 12.60 mm cup drilling depth to help you set up quickly and accurately.
Installation is simplified with a clip-based system: door on cabinet without tools using the click mounting approach. Please note that the mounting plate and Ø 3.5 mm countersunk screws must be ordered separately.
If you’re upgrading or specifying hardware for living or commercial furniture, choose Tiomos and enjoy confident performance with a concealed hinge that looks as good as it works.
for standard applications
Door on cabinet without tools with clip system
Order mounting plate and Hospa Ø 3.5 mm countersunk screws separately

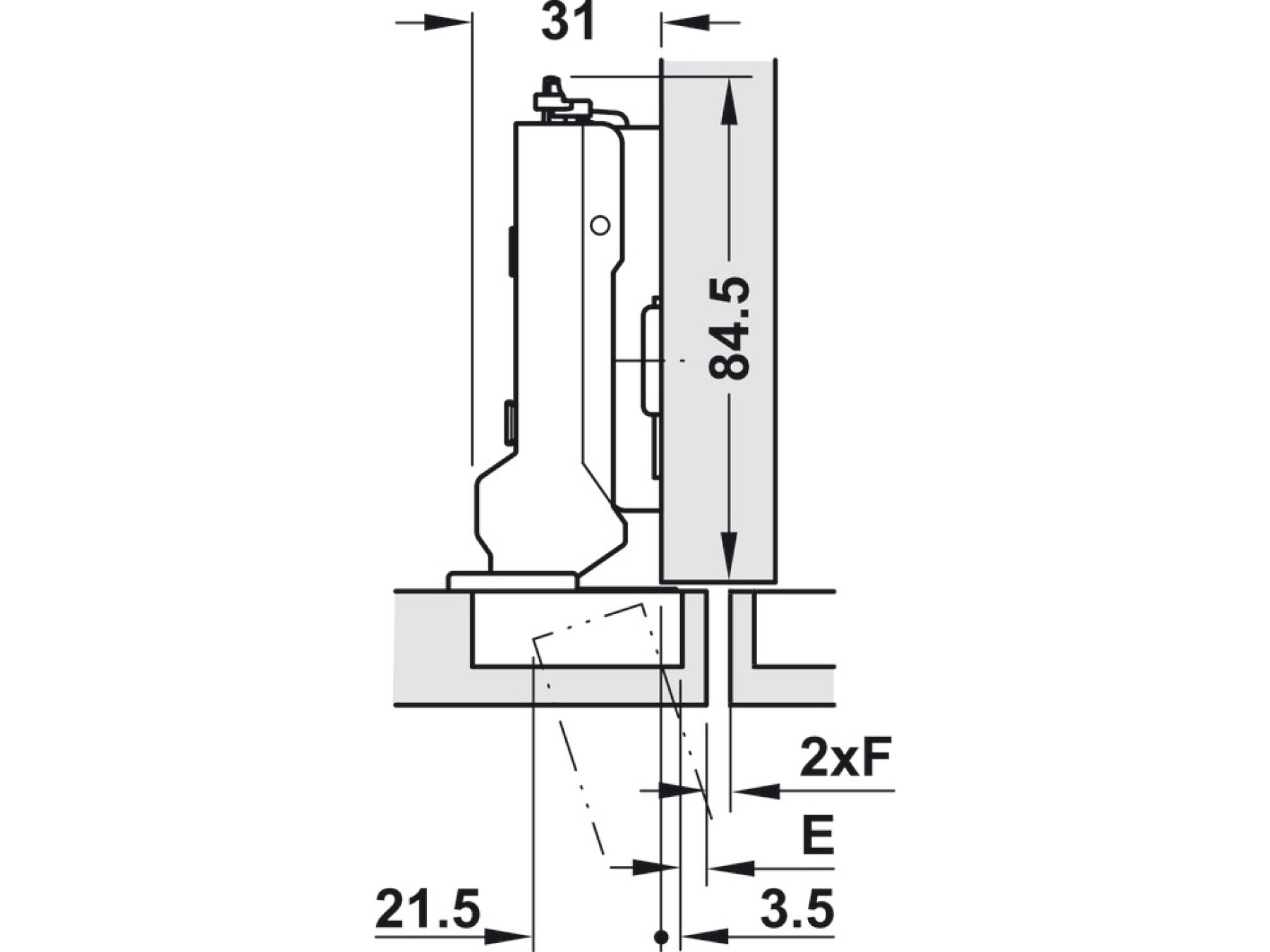

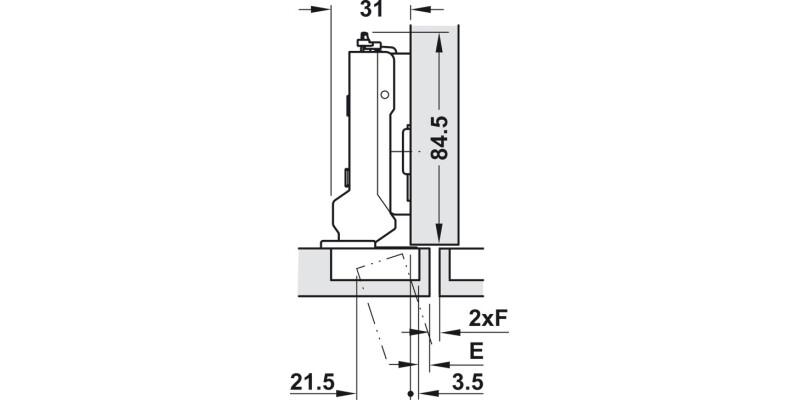

This Tiomos 110D hinge is designed for half overlay applications, including twin mounting. It is a good fit when you want the door to partially overlap the cabinet frame for a clean, concealed look.
No. The hinge is installed door on cabinet without tools with a clip system. This makes it easier to position the door and secure it during cabinet assembly or replacement.

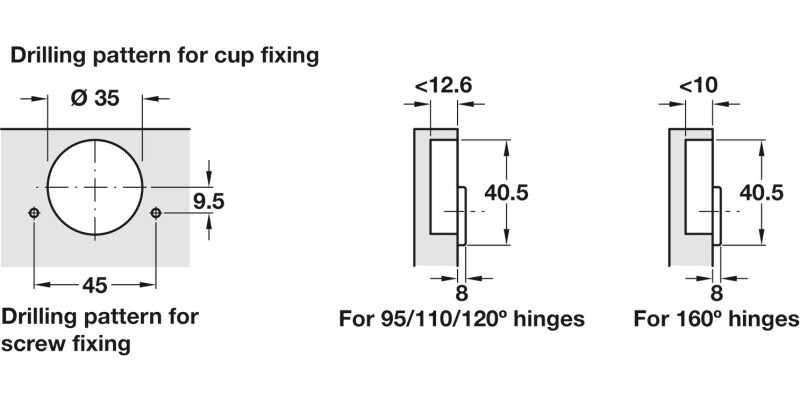

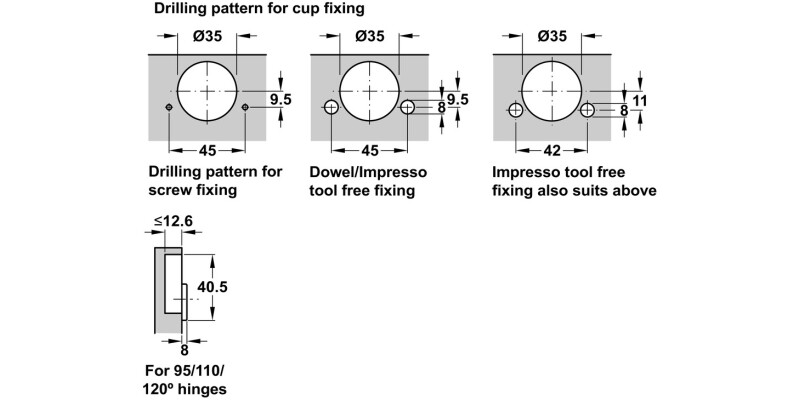

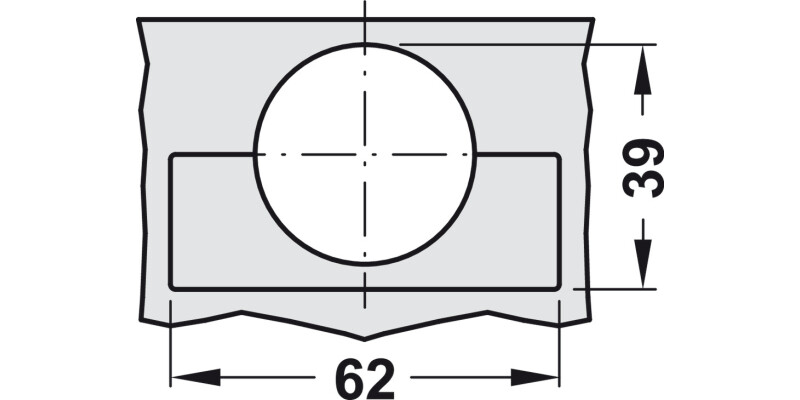

Yes. It is intended for wood doors and includes cup drilling to match concealed hinge installation. The cup drilling specification is 35 mm diameter with a drilling depth of 12.6 mm.
Twin mounting refers to how the hinge is positioned and secured on the door relative to the cabinet. For this product, it is provided as half overlay mounting with twin mounting, helping you achieve the correct alignment and gap settings on compatible cabinet door setups.
No. This specific Tiomos 110D model is without soft close. If you need dampened closing, you would need a soft close hinge or add-on component instead.
The hinge provides an opening angle of 110 degrees, which is suitable for many living and commercial cabinet applications where full access is helpful.
The order mounting plate and Ø 3.5 mm countersunk screws are supplied separately. This means you can select the correct screws for your installation, ensuring a tidy and secure fit.
