Concealed Cup Hinge, 110° Standard, Inset Mounting, Tiomos. (Part No: 348.31.603) is a premium concealed cabinet... Read More

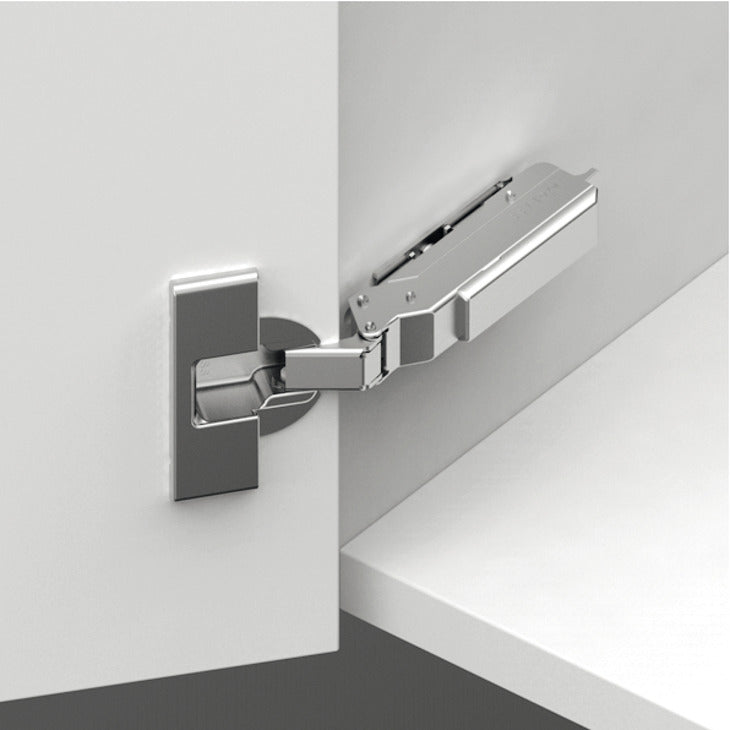

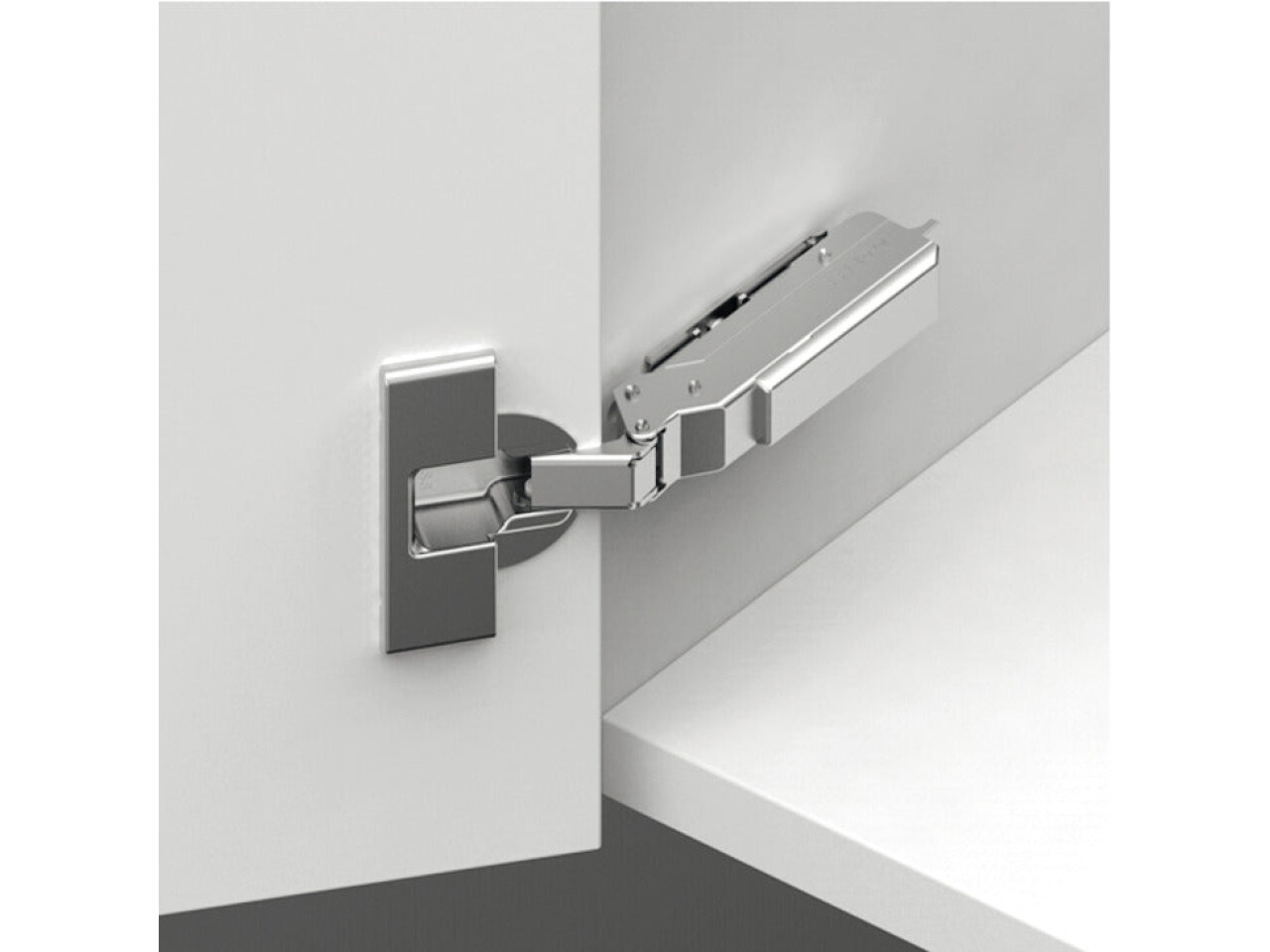

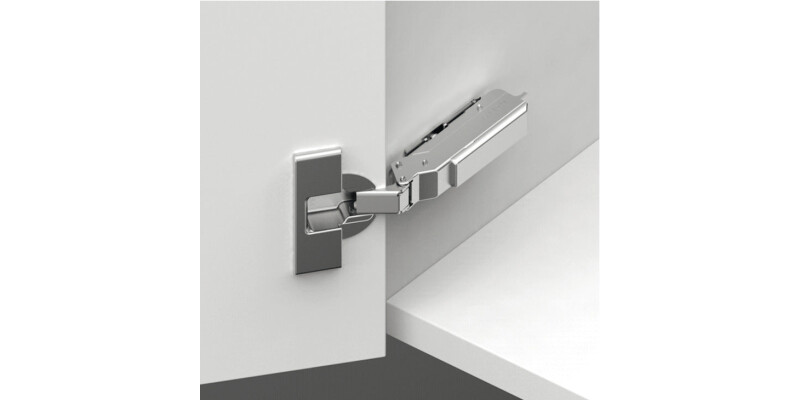

Concealed Cup Hinge, 110° Standard, Inset Mounting, Tiomos. (Part No: 348.31.603) is a premium concealed cabinet hinge designed for clean, professional results in living and commercial furniture applications. With its Click functionality, this hinge makes installation faster and easier—helping you achieve a precise fit with less effort.
Perfect for standard applications, this concealed hinge version features an inset design and a high-cranked geometry for smooth, reliable operation. The hinge is made for wood doors, and it includes the right provisions for cup drilling during assembly, so you can plan your build with confidence.
Featuring a robust construction, the hinge cup is steel with a zinc alloy hinge arm for durable everyday performance. The opening angle of 110° offers generous access to interior cabinet space, making it ideal for kitchens, wardrobes, vanities, and more.

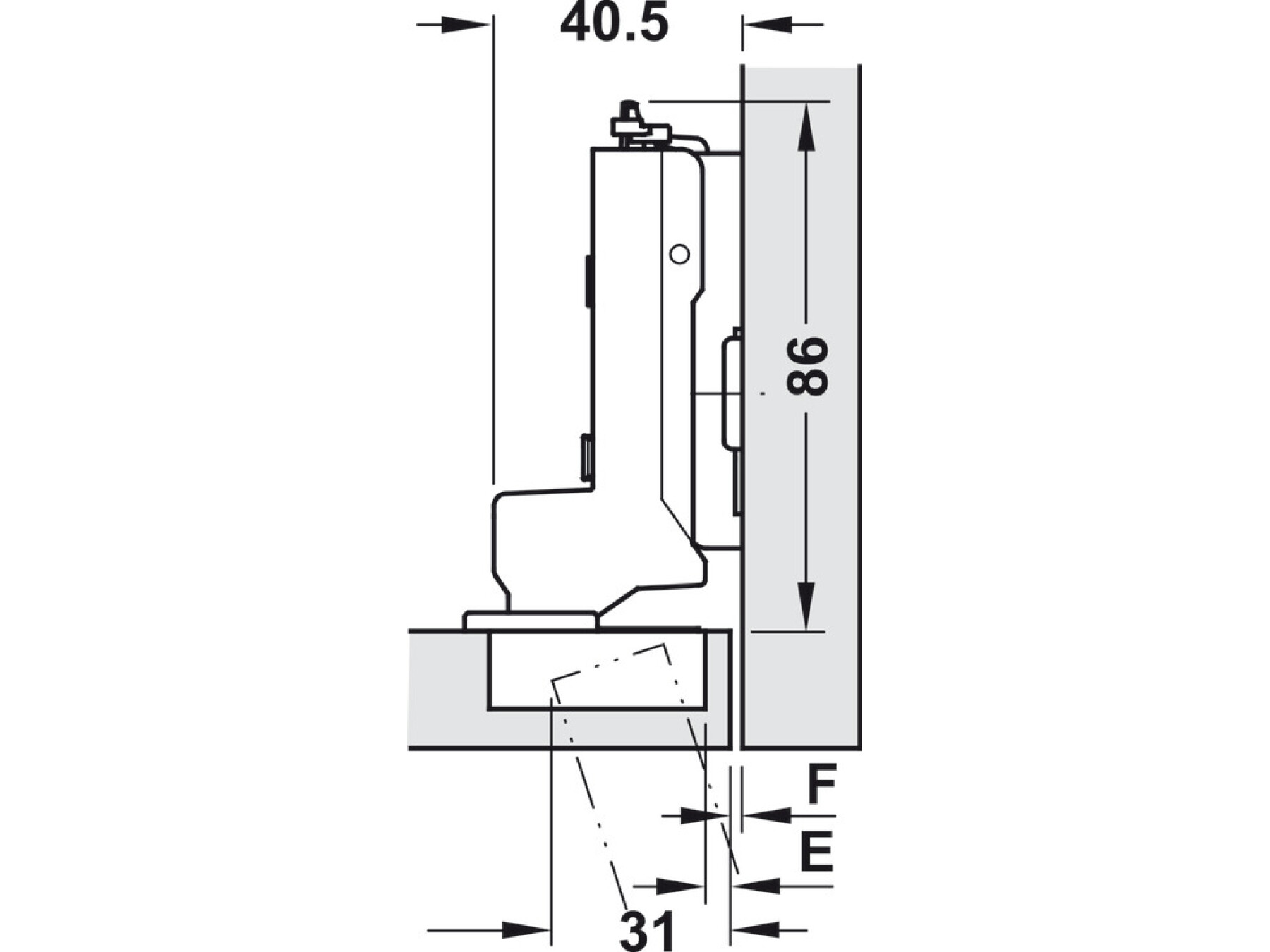

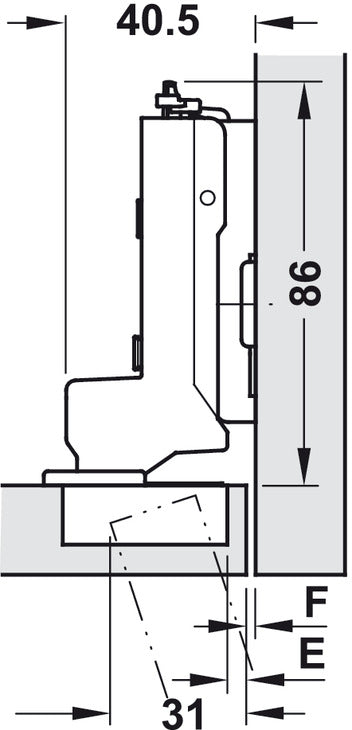

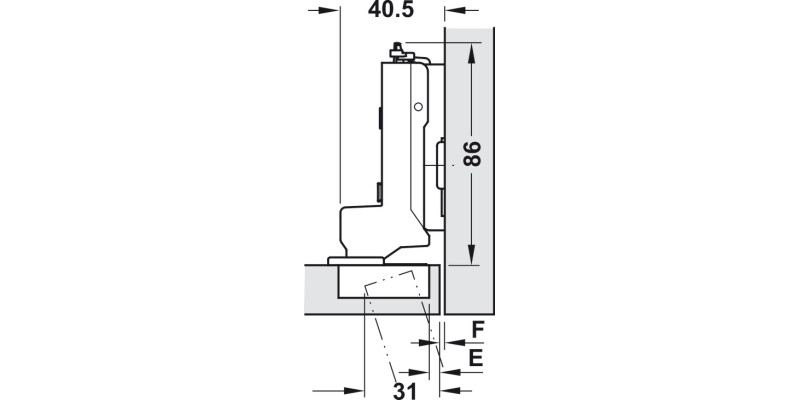

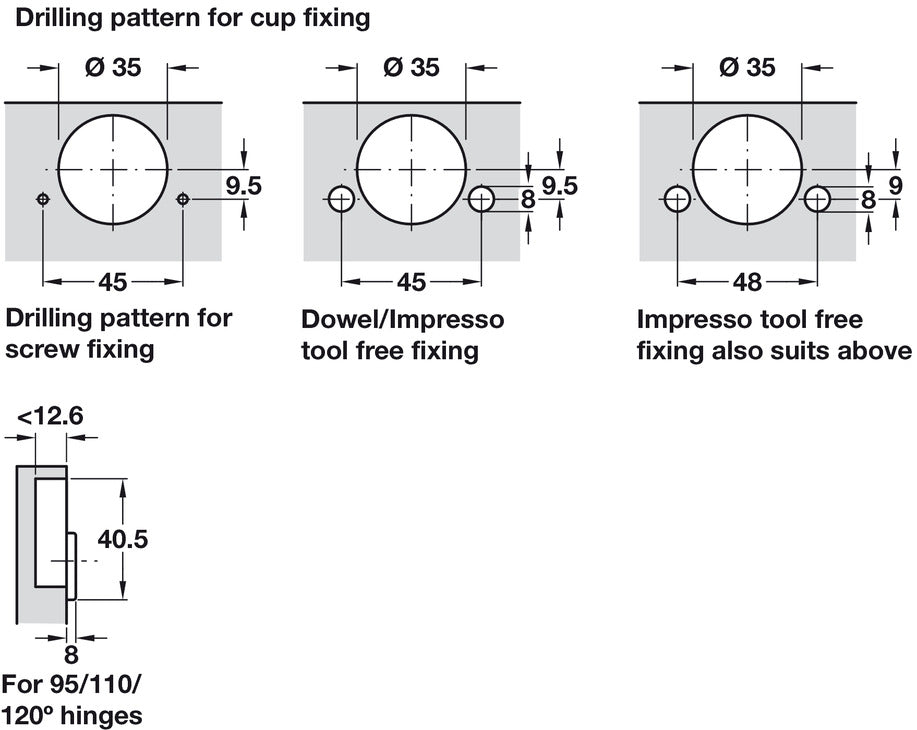

Designed for accurate installation, the cup drilling diameter is 35.00 mm and the cup drilling depth is 12.60 mm. The mounting approach is tool-light: door on cabinet without tools with clip system, then adjust using the correct set-back guidance. Installation note: set back mounting plate screw-on position by door thickness +1.5 mm.
Finish: Nickel plated for a smart, long-lasting look. This model is without soft close, making it a great choice when you prefer a straightforward closing action. Order note: order the mounting plate and Hospa Ø 3.5 mm countersunk screws separately for complete installation readiness.
for standard applications
Door on cabinet without tools with clip system
Set back mounting plate screw-on position by door thickness +1.5 mm.
Order mounting plate and Hospa Ø 3.5 mm countersunk screws separately
