Concealed Cup Hinge, 110°, Full Overlay Mounting, Click on Arm, Tiomos

Product Details

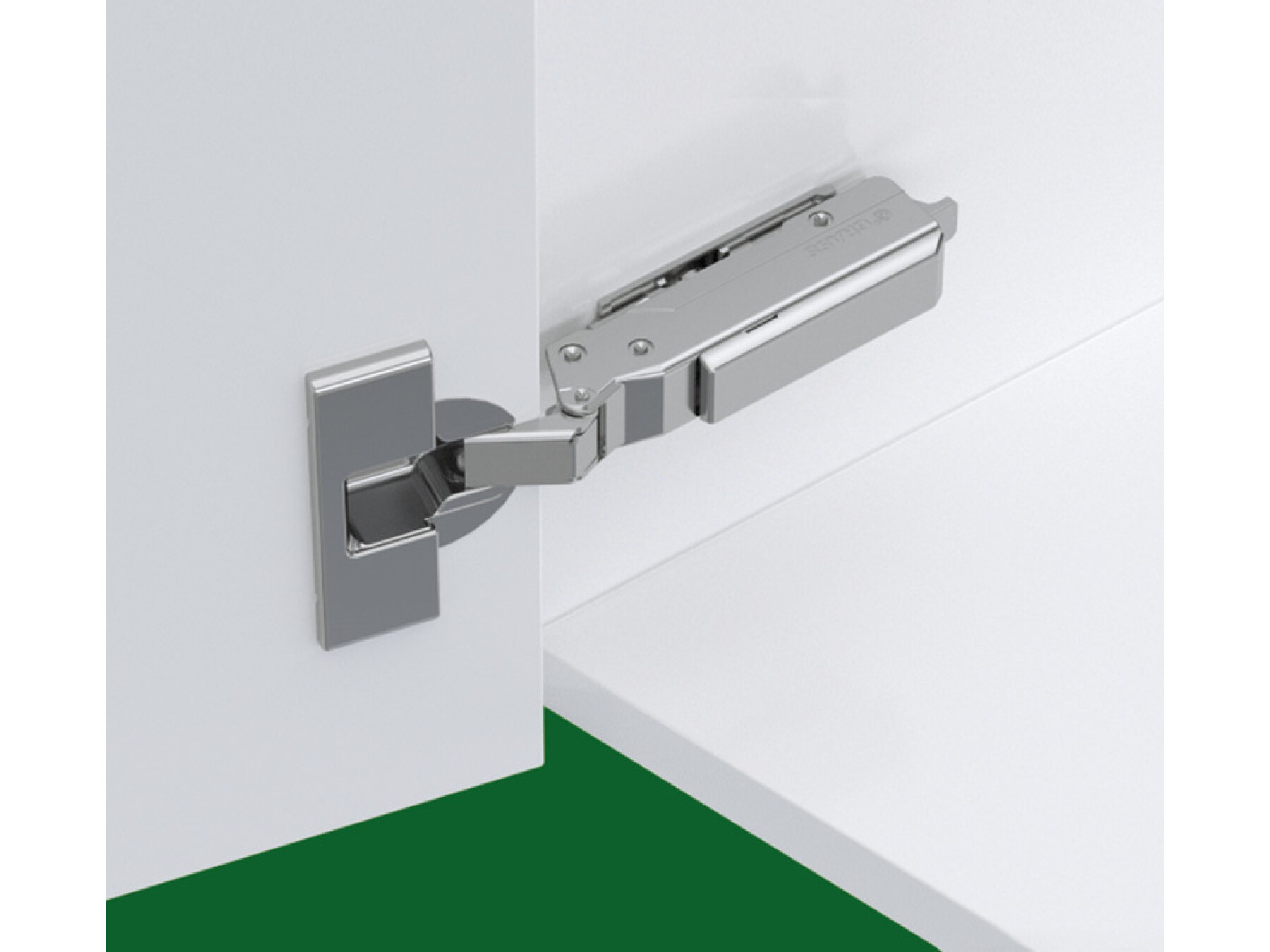

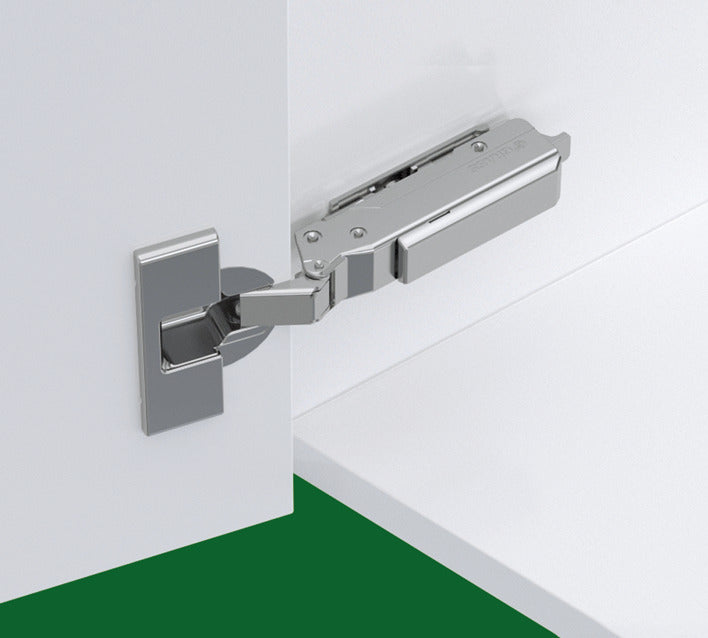

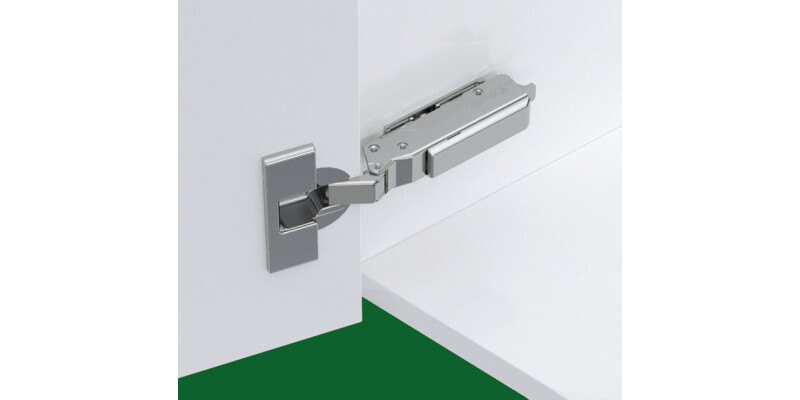

Concealed Cup Hinge, 110°, Full Overlay Mounting, Click on Arm, Tiomos is a premium concealed cabinet hinge designed for smooth, reliable everyday performance in living and commercial furniture. Part No: 348.31.401. Built for standard applications, this hinge offers a clean, professional look thanks to its concealed cup design and full overlay configuration.

Ideal for wood doors, the Tiomos Tipmatic 110D Click SF hinge supports accurate installation with its cup drilling setup. The hinge is concealed and provides a full overlay fit—perfect for achieving consistent door alignment across cabinet runs. Its straight crank type makes it a versatile choice for a wide range of cupboard and cabinet projects.

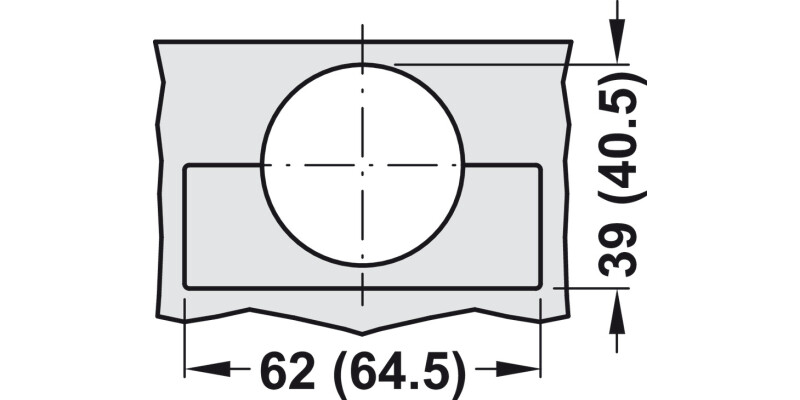

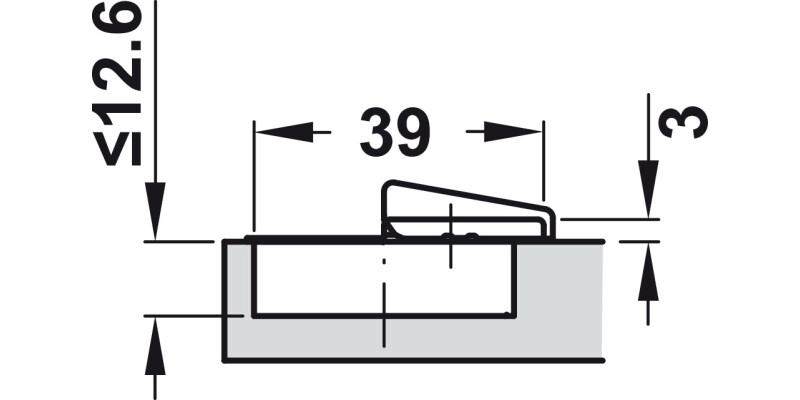

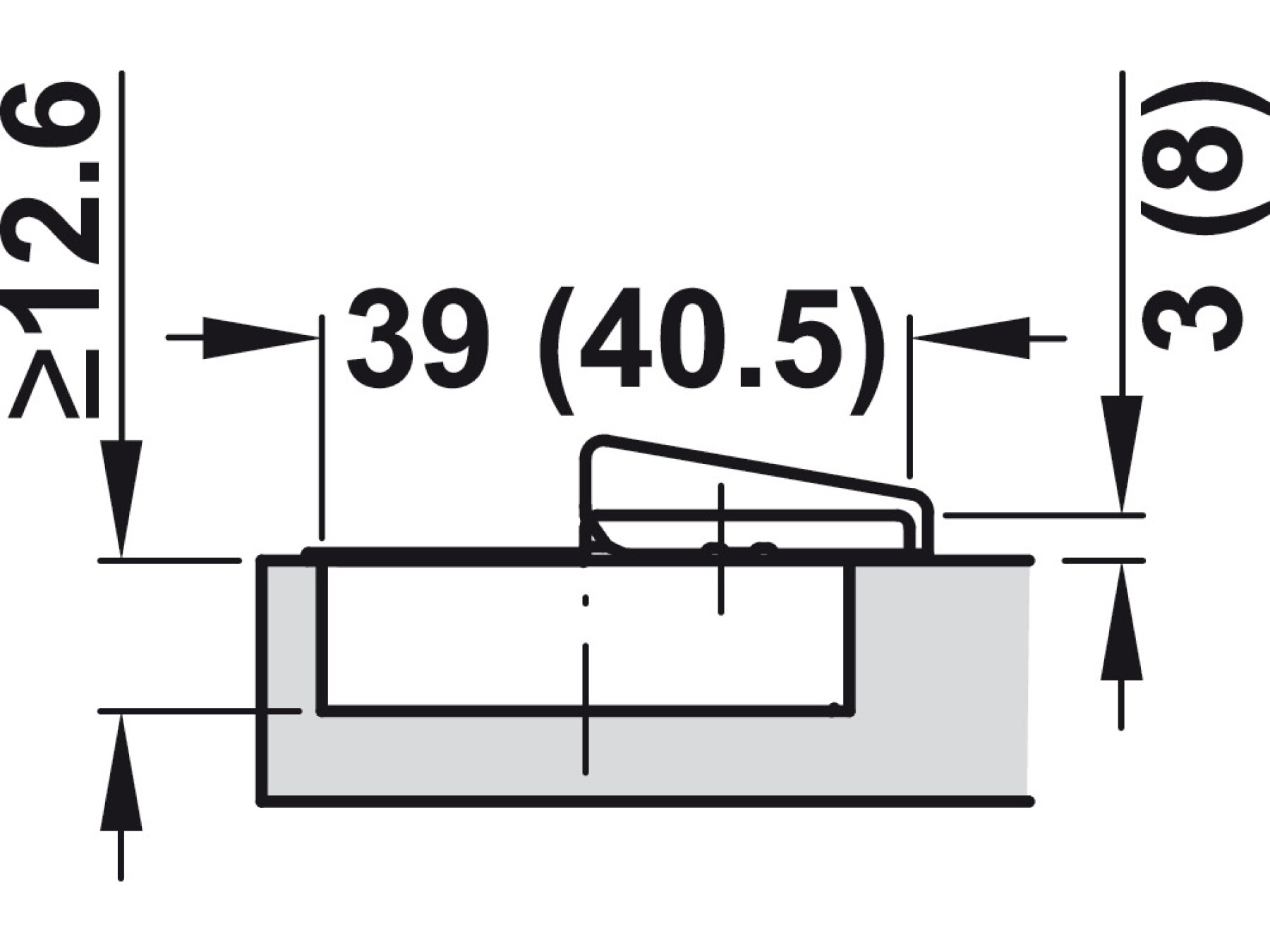

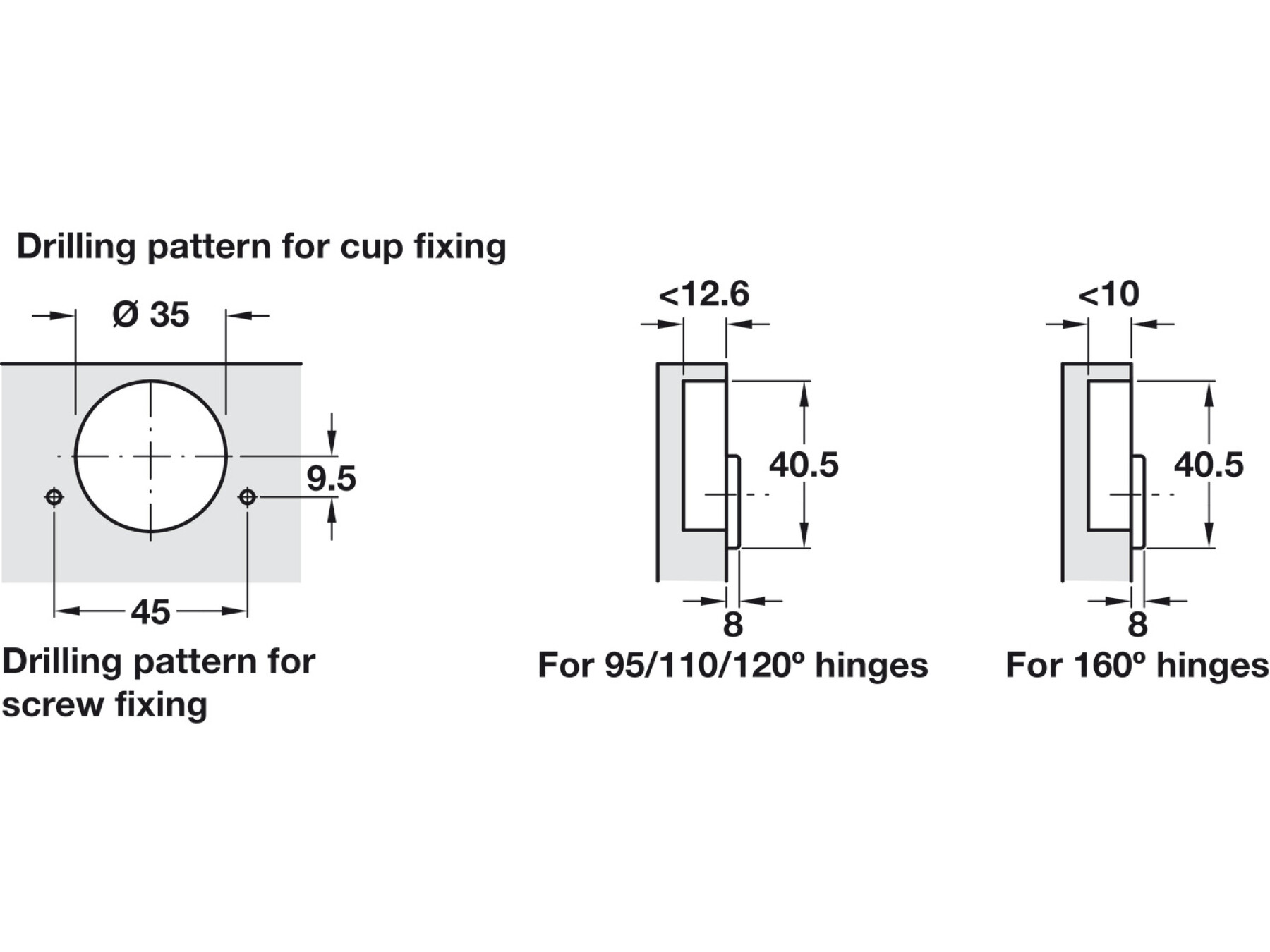

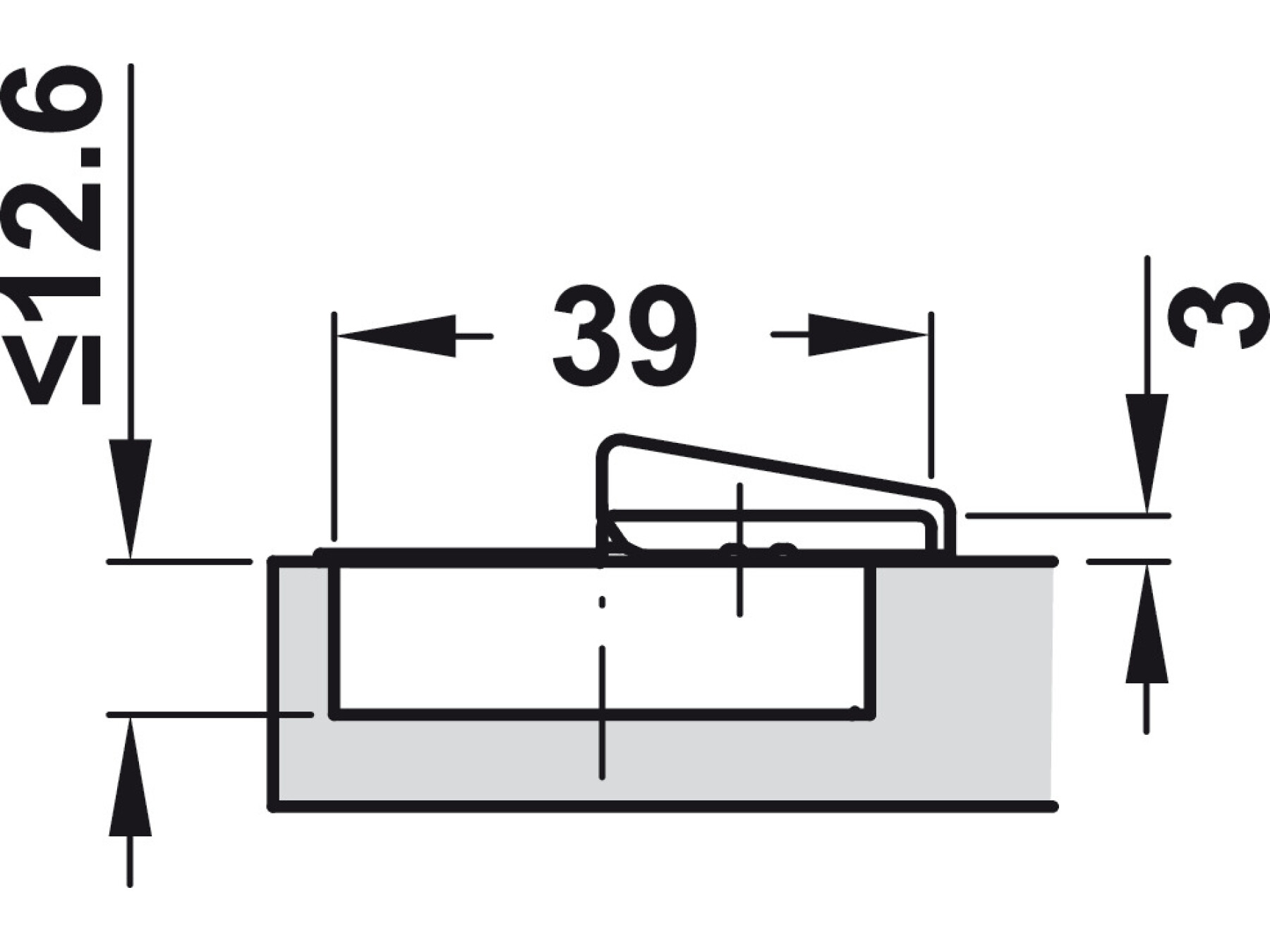

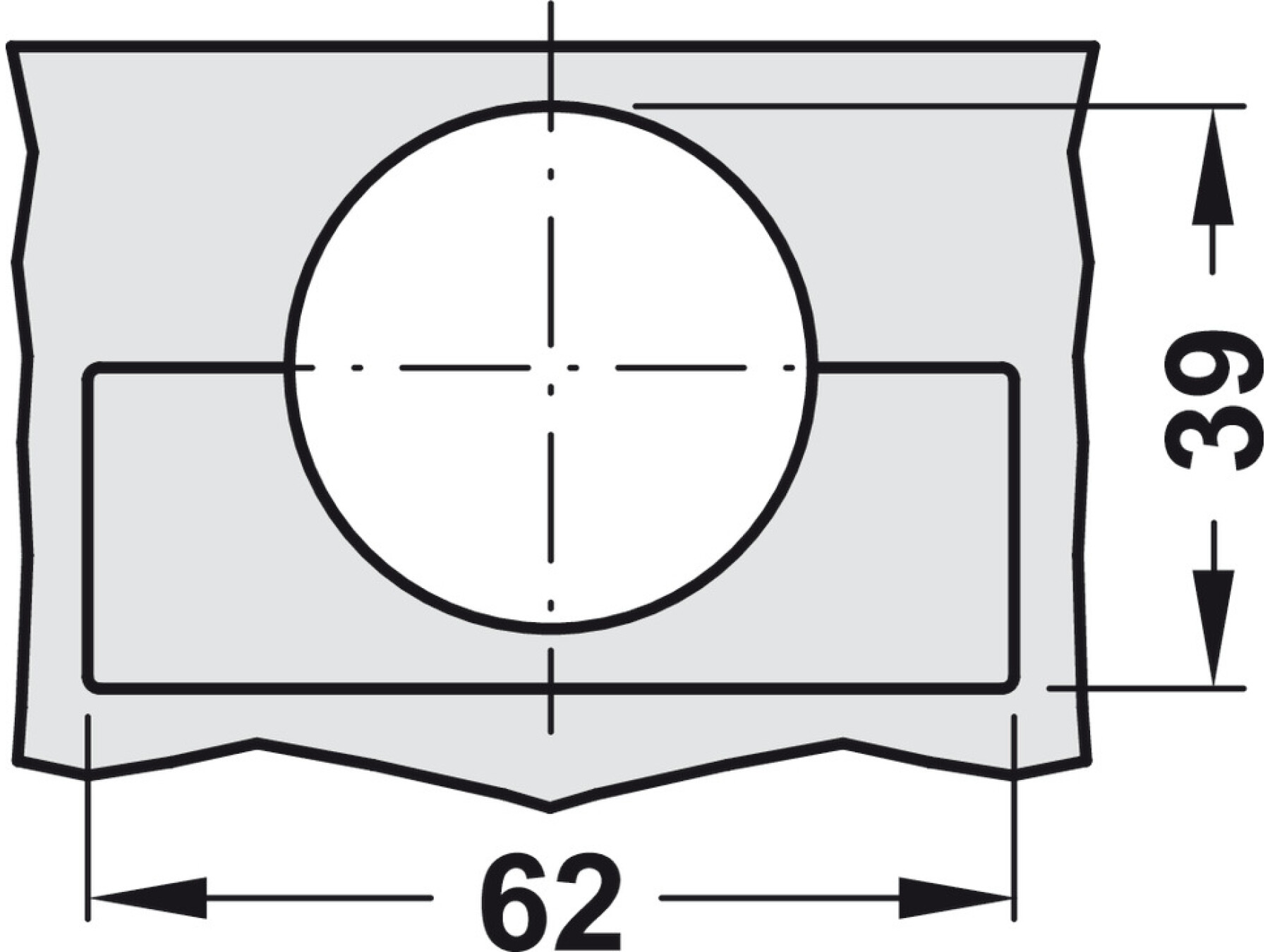

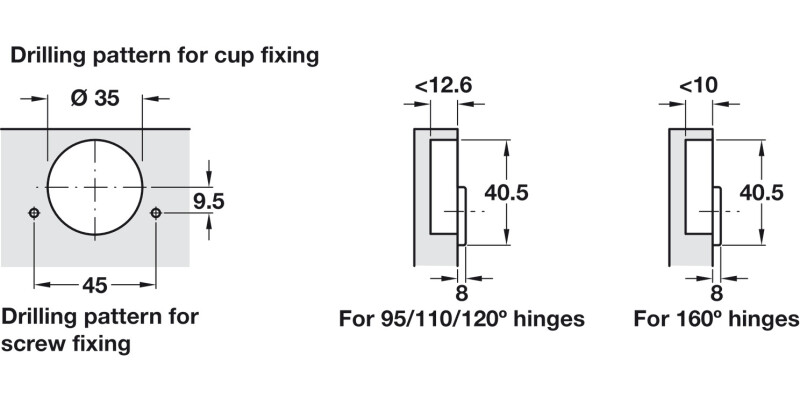

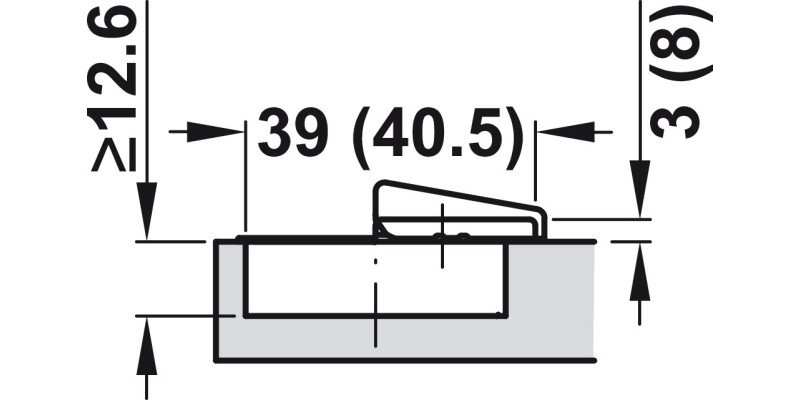

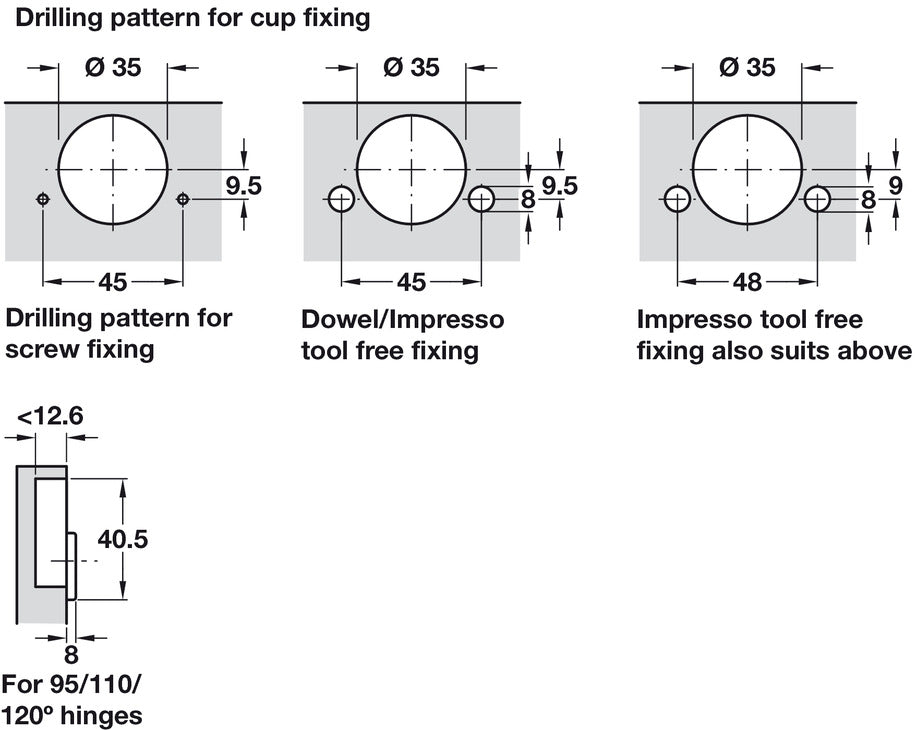

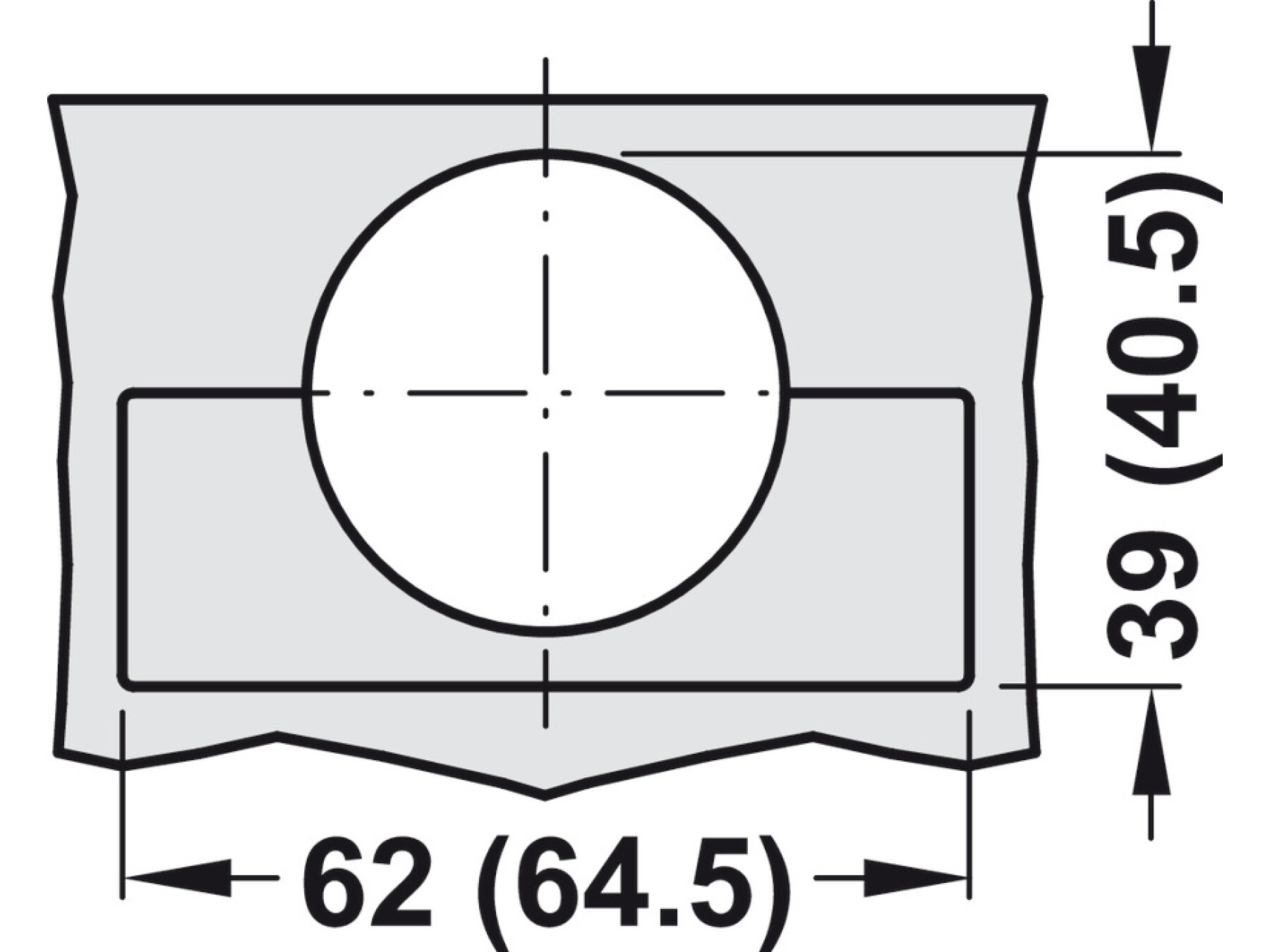

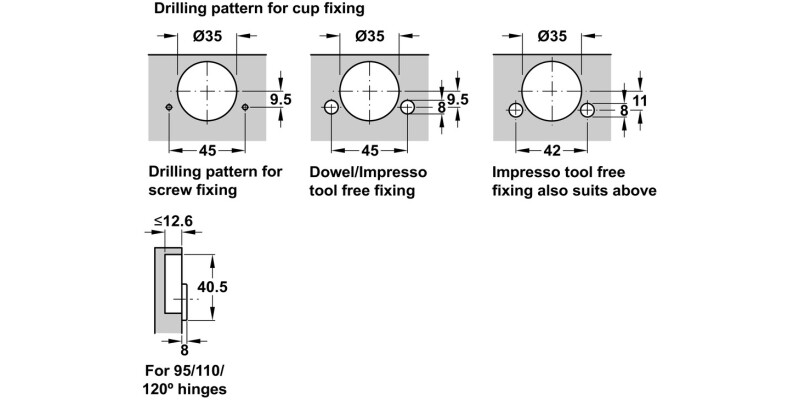

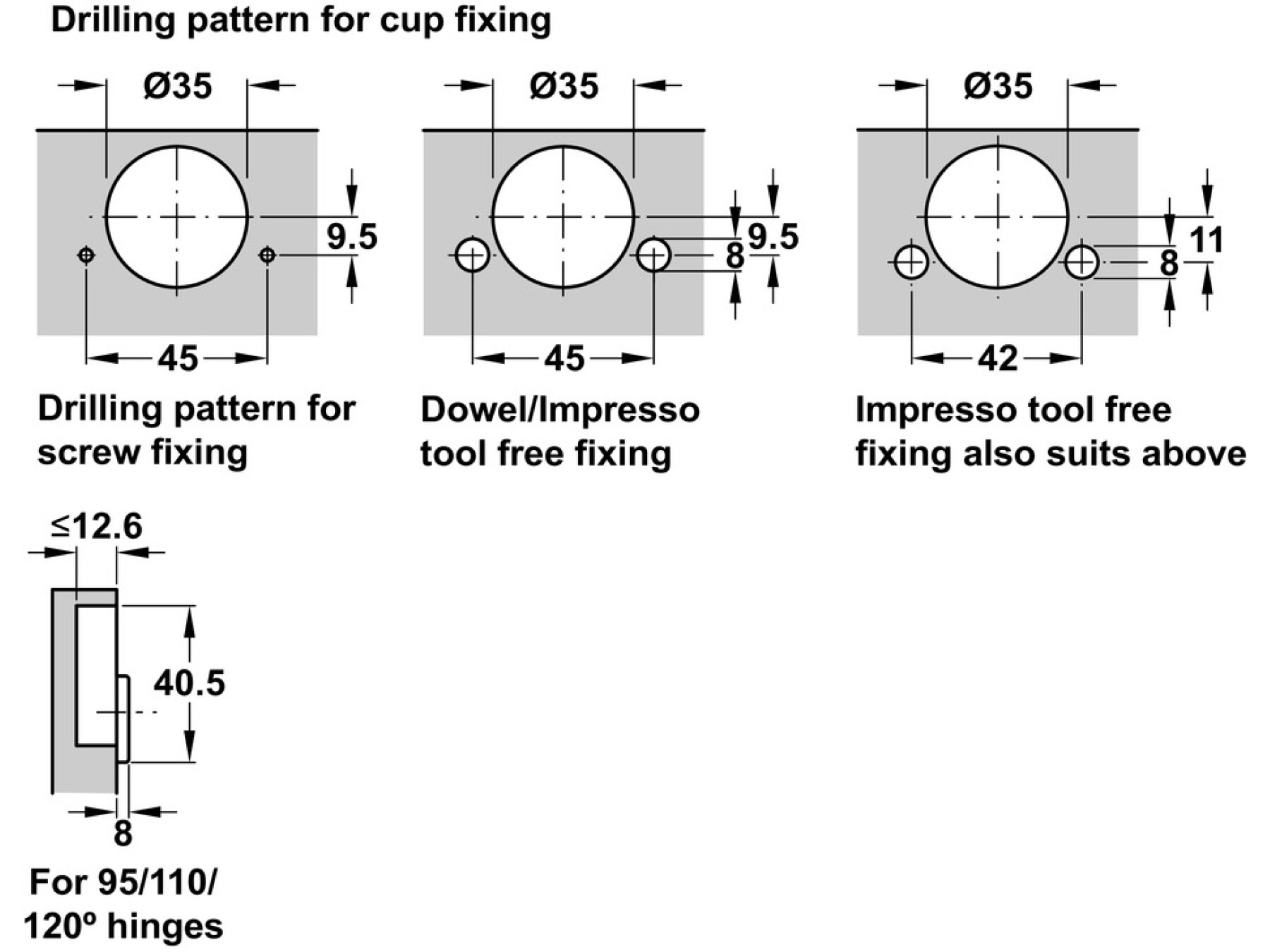

Engineered for durability, the hinge is made from steel and finished to suit practical use. The hinge cup is designed for a 35.00 mm diameter, with a 12.60 mm cup drilling depth for secure mounting and a neat internal fit.

With an opening angle of 110°, it provides comfortable access while keeping your cabinetry tidy. Installation is designed to be efficient: the door can be mounted on the cabinet without tools using the clip system, helping you work faster and reduce assembly time.

Order reference: mounting plate and Hospa Ø 3.5 mm countersunk screws must be ordered separately. Choose the Concealed Cup Hinge, 110°, Full Overlay Mounting, Click on Arm, Tiomos (For standard applications, Screw fixing cup, 45/9.5, without soft close, nickel plated) for dependable concealed hinge performance and a high-quality furniture finish.

Order mounting plate and Hospa Ø 3.5 mm countersunk screws separately
