Exposed Axle Hinge Cup, for 270°/240°/180° Single Pivot Hinge Arms, Quick Mounti

Product Details

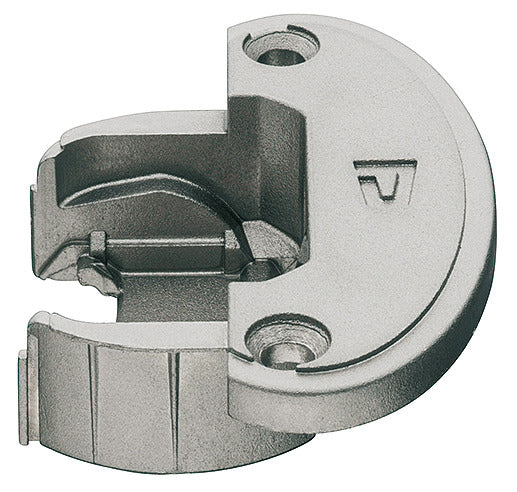

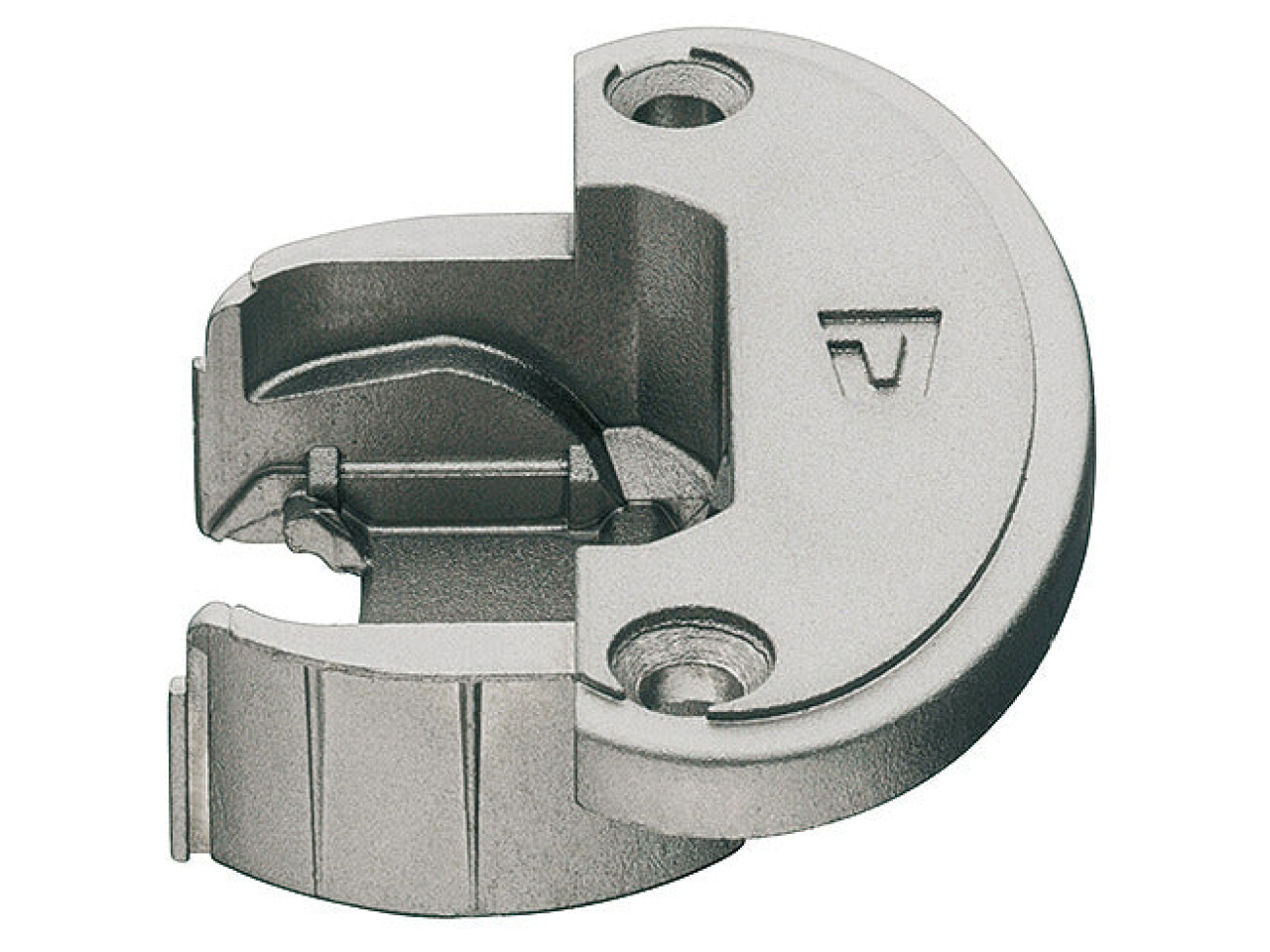

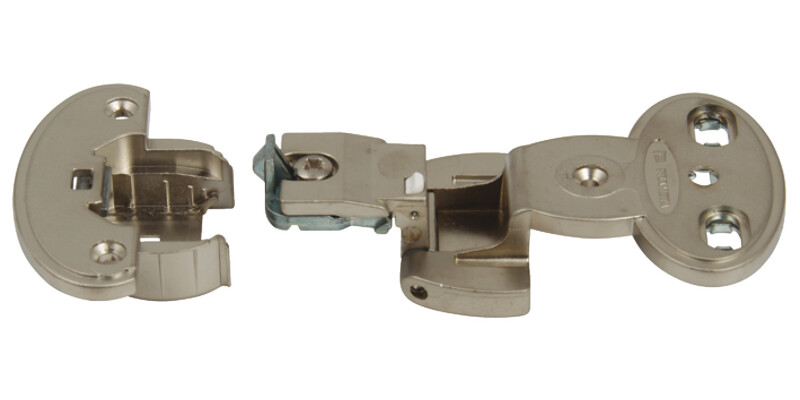

Exposed Axle Hinge Cup, for 270°/240°/180° Single Pivot Hinge Arms, Quick Mounti (Product Part No: 344.00.861) is a high-performance exposed axle hinge cup designed for clean, reliable cabinet assembly in both living and commercial environments. If you’re planning a hinge upgrade or fitting new furniture, this quick-mount cup helps streamline the installation process—so you can get doors aligned fast and finish the job with confidence.

Made from zinc alloy with a matt finish, the cup is built for everyday durability while delivering a subtle, professional look. The hinge cup is specifically suited for door processing for assembly, featuring cup drilling to simplify setup from the start.

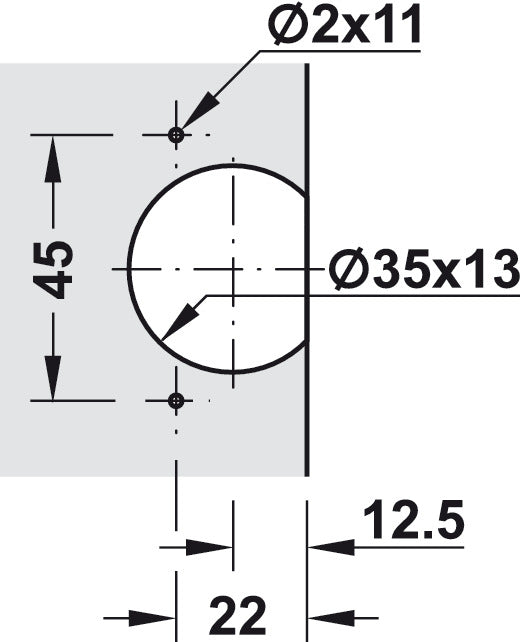

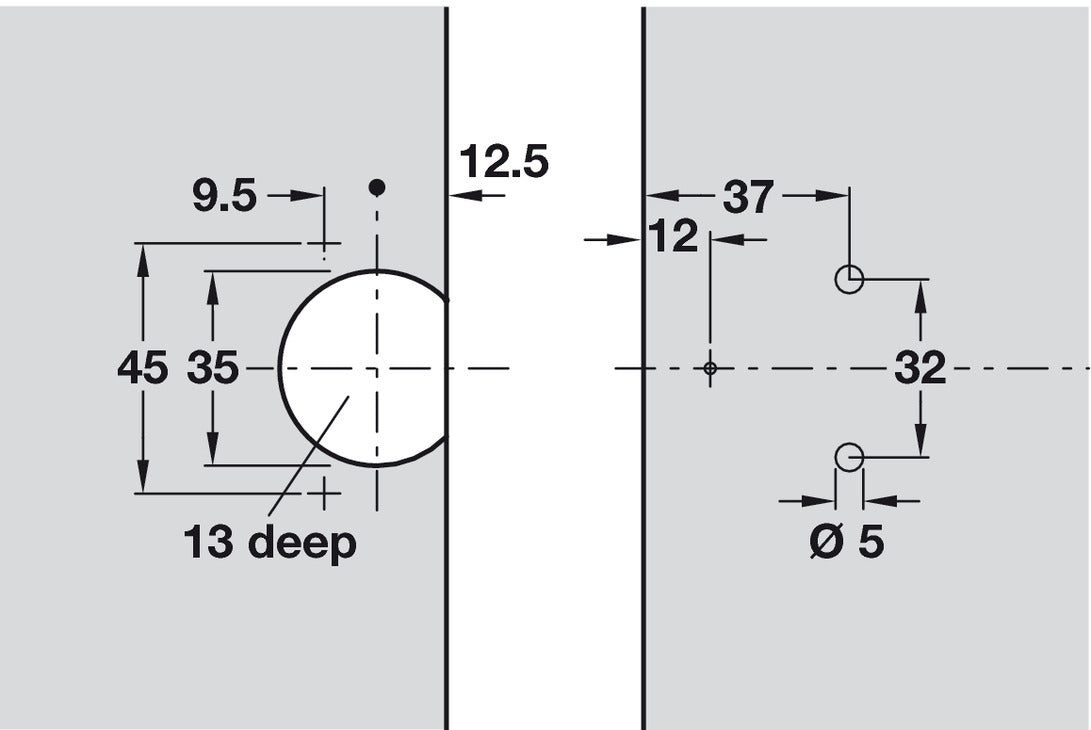

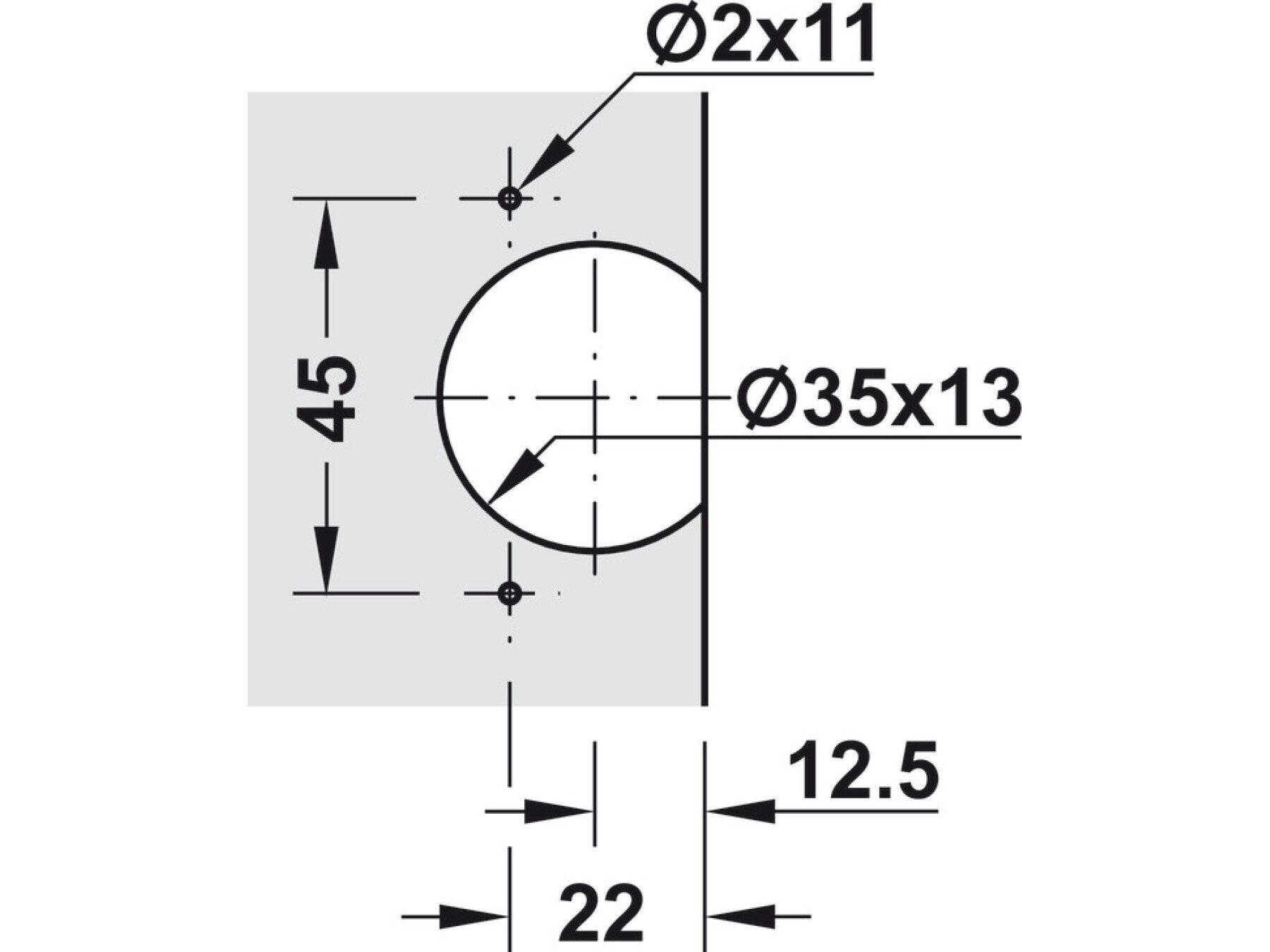

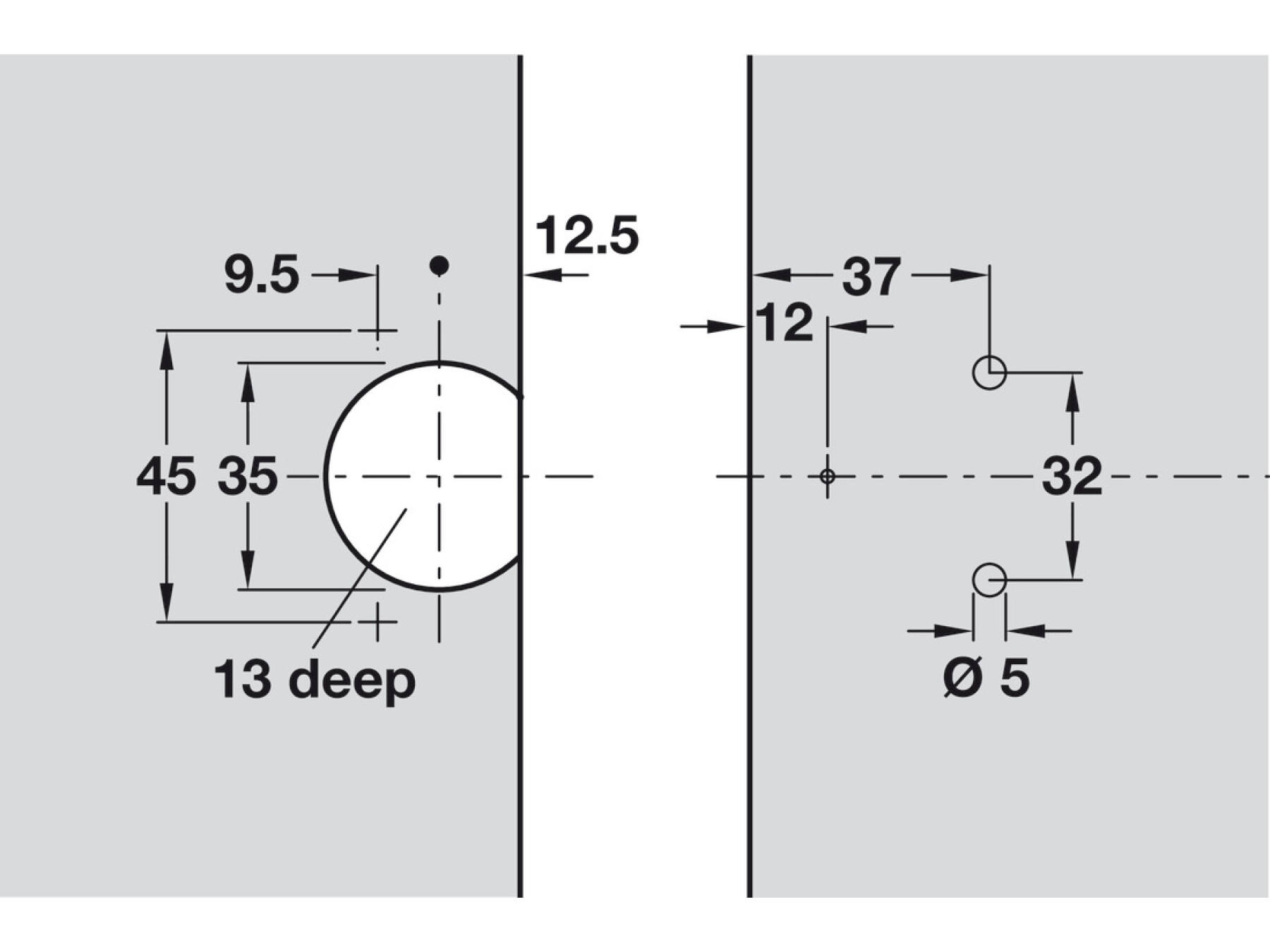

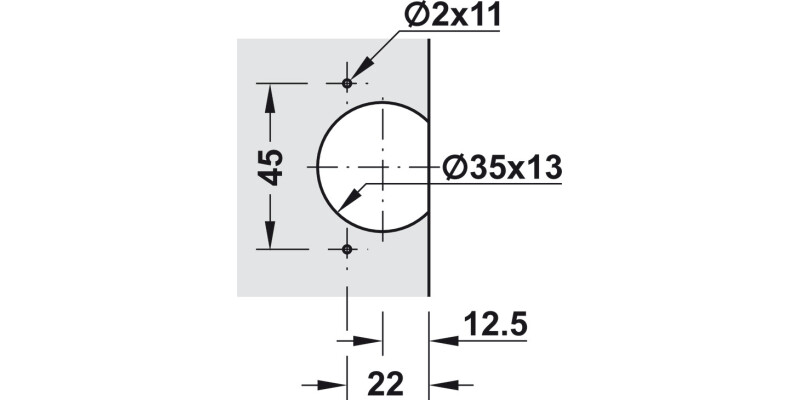

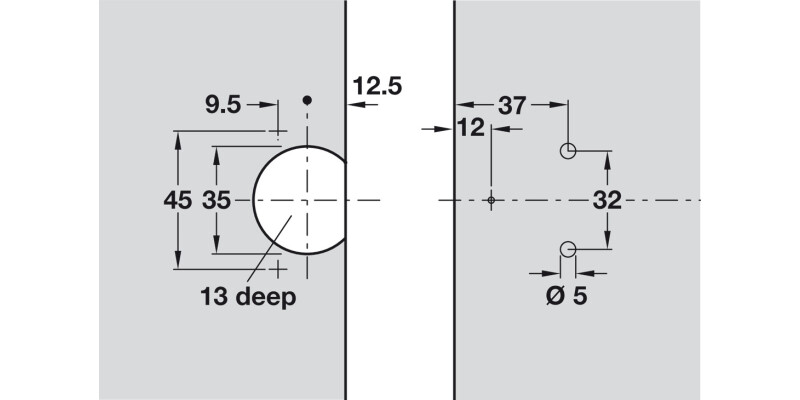

Precision details make a real difference during fitting. This version supports quick mounting, with a cup drilling depth of 13.00 mm and a cup drilling diameter of 35.00 mm. The drilling pattern is 45/9.5, matching the (subtitle) requirement—so you can order and pair components accurately during planning.

Need fine-tuning after installation? The Exposed Axle Hinge Cup, for 270°/240°/180° Single Pivot Hinge Arms, Quick Mounti includes 2-way adjustment for smooth alignment: lateral adjustment of -3 mm and vertical adjustment of ±2 mm. This means you can correct door positioning without hassle, improving both function and appearance.

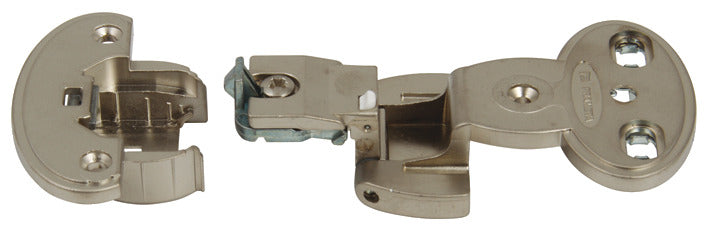

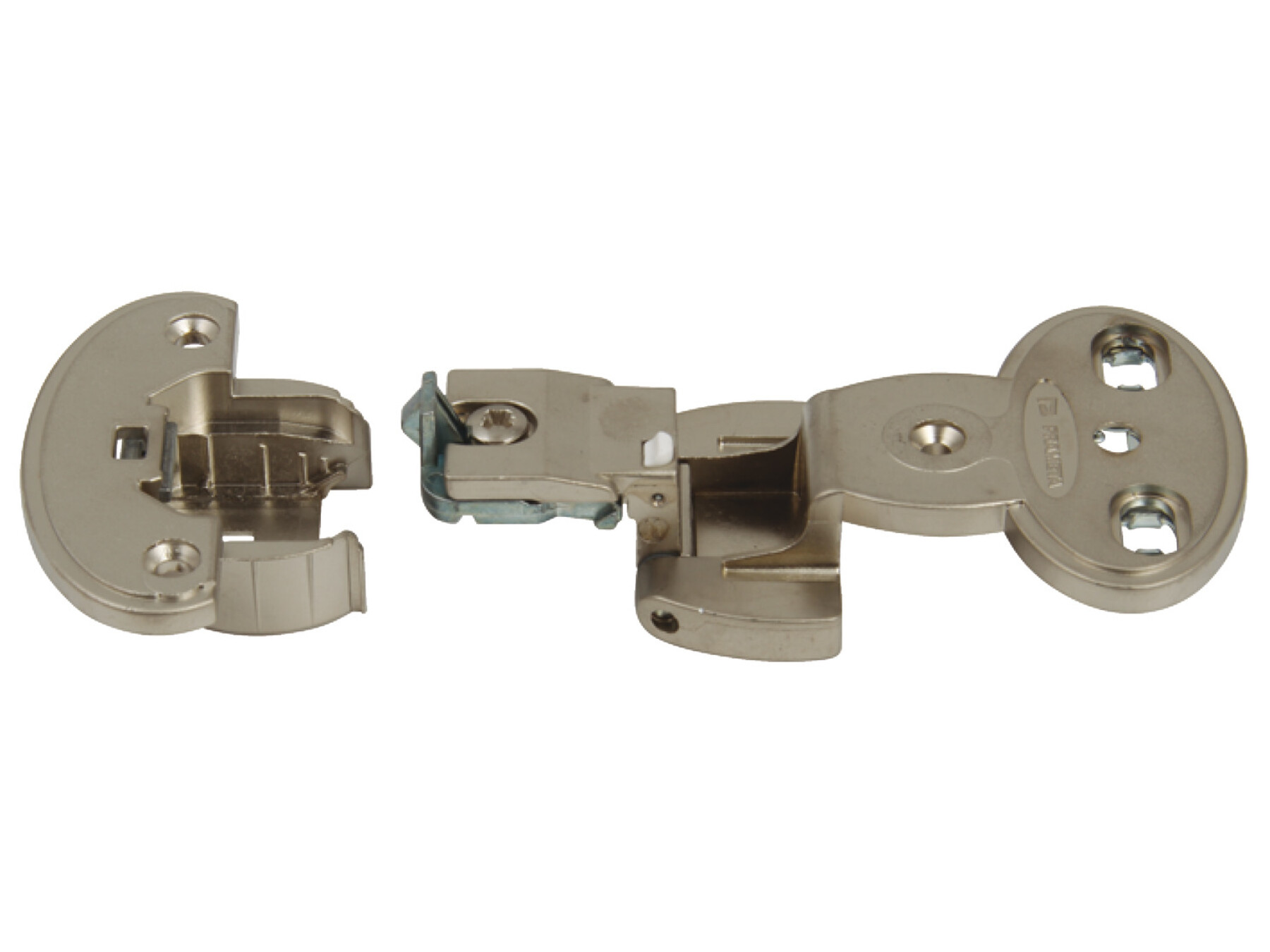

Order hinge arm and cup separately to complete your system with the right matching components. Choose Part No: 344.00.861 for efficient installation, accurate drilling compatibility, and consistent performance.
