Cruciform Mounting Plate, Zinc Plated, Häfele

Product Details

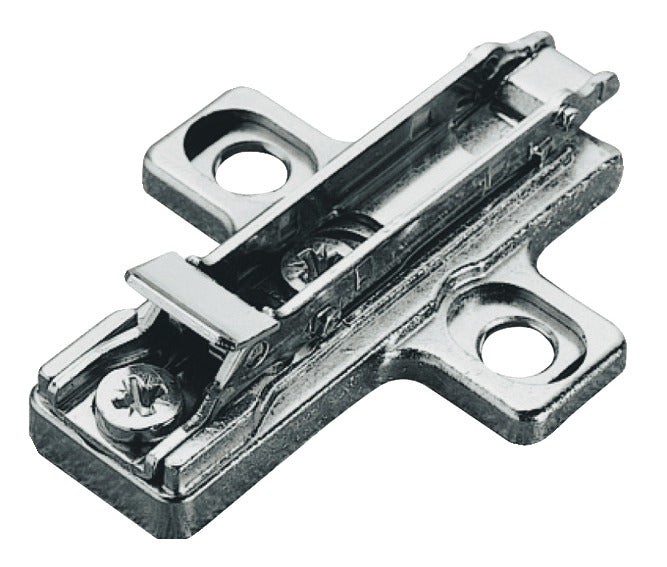

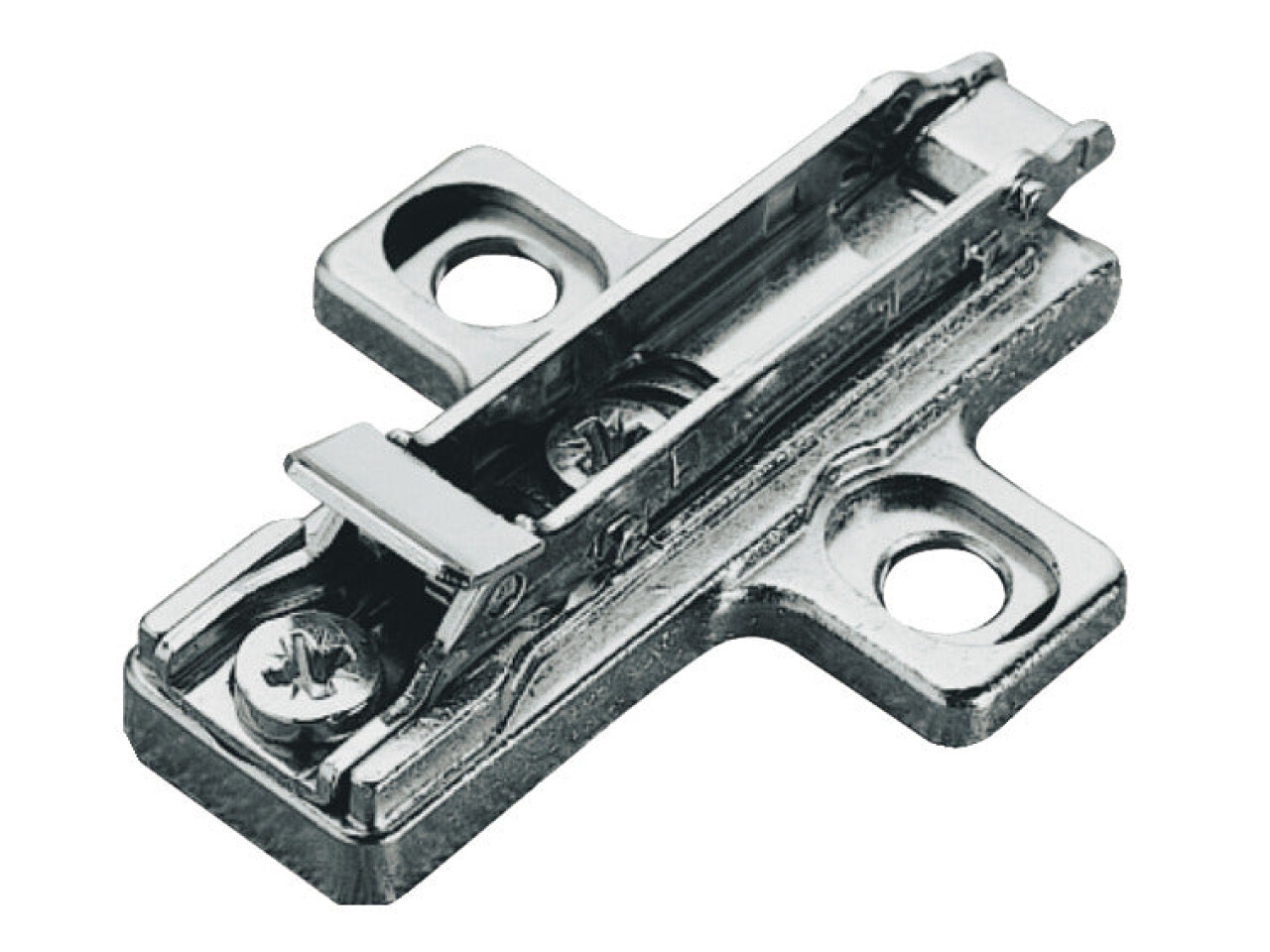

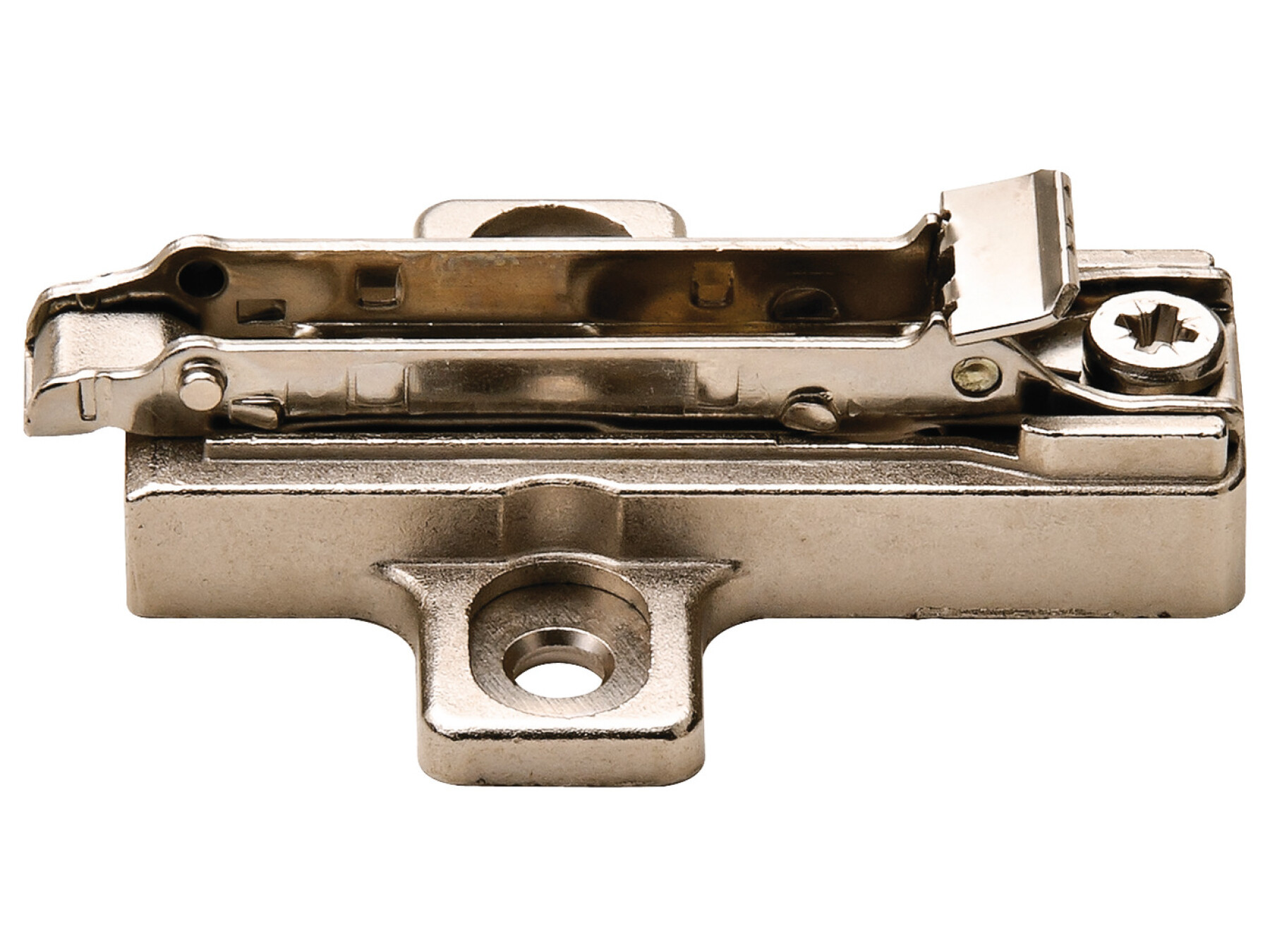

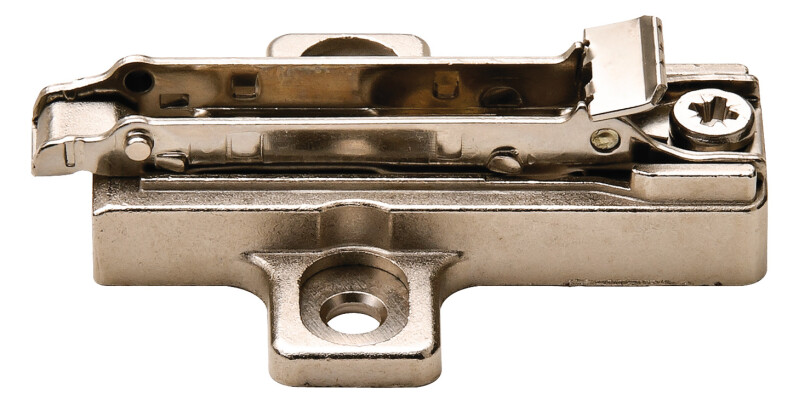

Cruciform Mounting Plate, Zinc Plated, Häfele. (Product Part No: 329.71.503) is a precision-built cruciform mounting plate designed for smooth, reliable fitting in modern cabinet and furniture applications. If you’re building or upgrading with Häfele Duomatic systems, this plate delivers an easy, accurate setup—ideal for installers, furniture makers, and DIY trades who value speed without sacrificing control.

The Cruciform Mounting Plate, Zinc Plated, Häfele. features a quick fixing system with eccentric adjustment, helping you align doors quickly and fine-tune for a professional finish. With height adjustment via eccentric movements of ±2 mm and depth adjustment from -0.5 mm to +2.8 mm, you can dial in consistent gaps and alignment across cabinet runs.

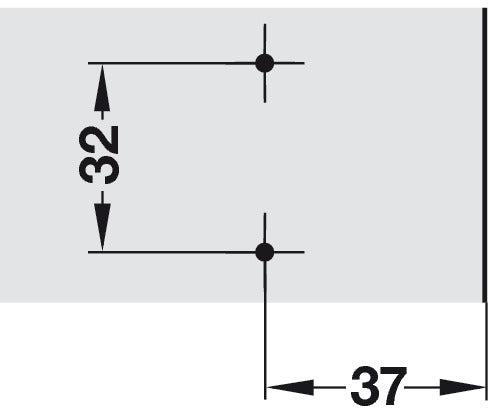

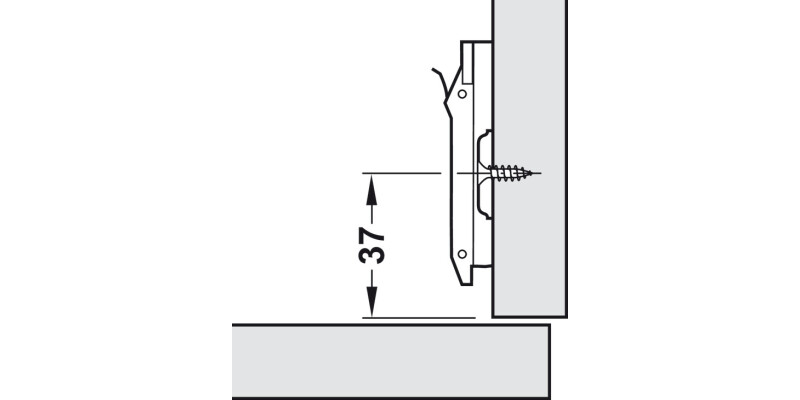

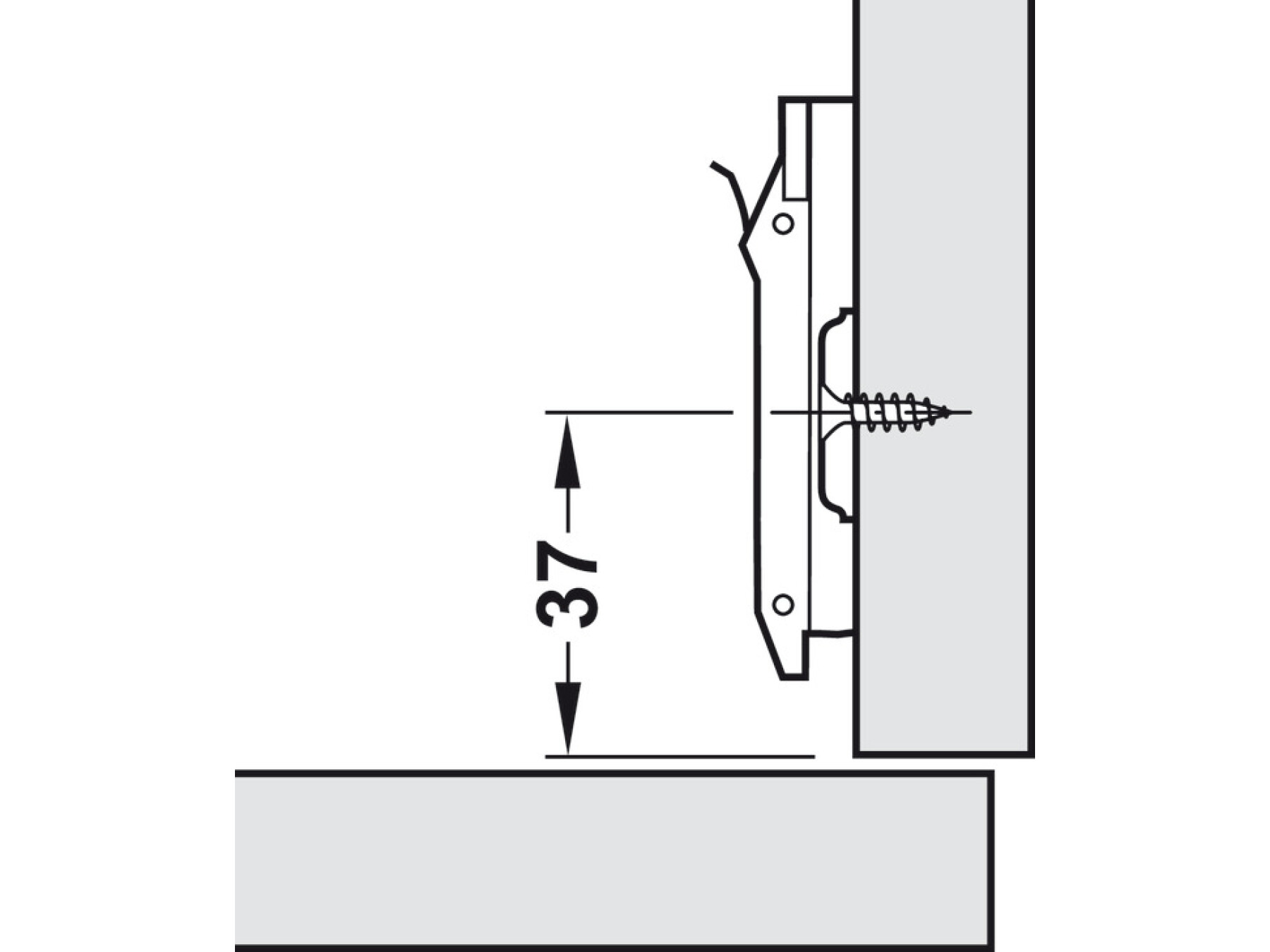

Built from zinc alloy and finished in nickel plated for durability and a quality look, this mounting plate supports efficient installation. It is designed for a 2.00 mm drill hole, with 32.00 mm screw distance and 37.00 mm edge distance—dimensions that help ensure stability and correct positioning.

Area of application: for click on systems. Mounting plate version: for screw fixing using chipboard screws. This plate is part of the Häfele Duomatic SM Cruciform mounting plate range and is suitable for Häfele Metalla 510 concealed hinges.

Choose the Cruciform Mounting Plate, Zinc Plated, Häfele. to streamline fitting, achieve precise adjustment, and complete your cabinet hinges setup with confidence.
