Concealed Cup Hinge, 110° Nexis, Sprung, Half Overlay/Twin Mounting, Click on Ar

Product Details

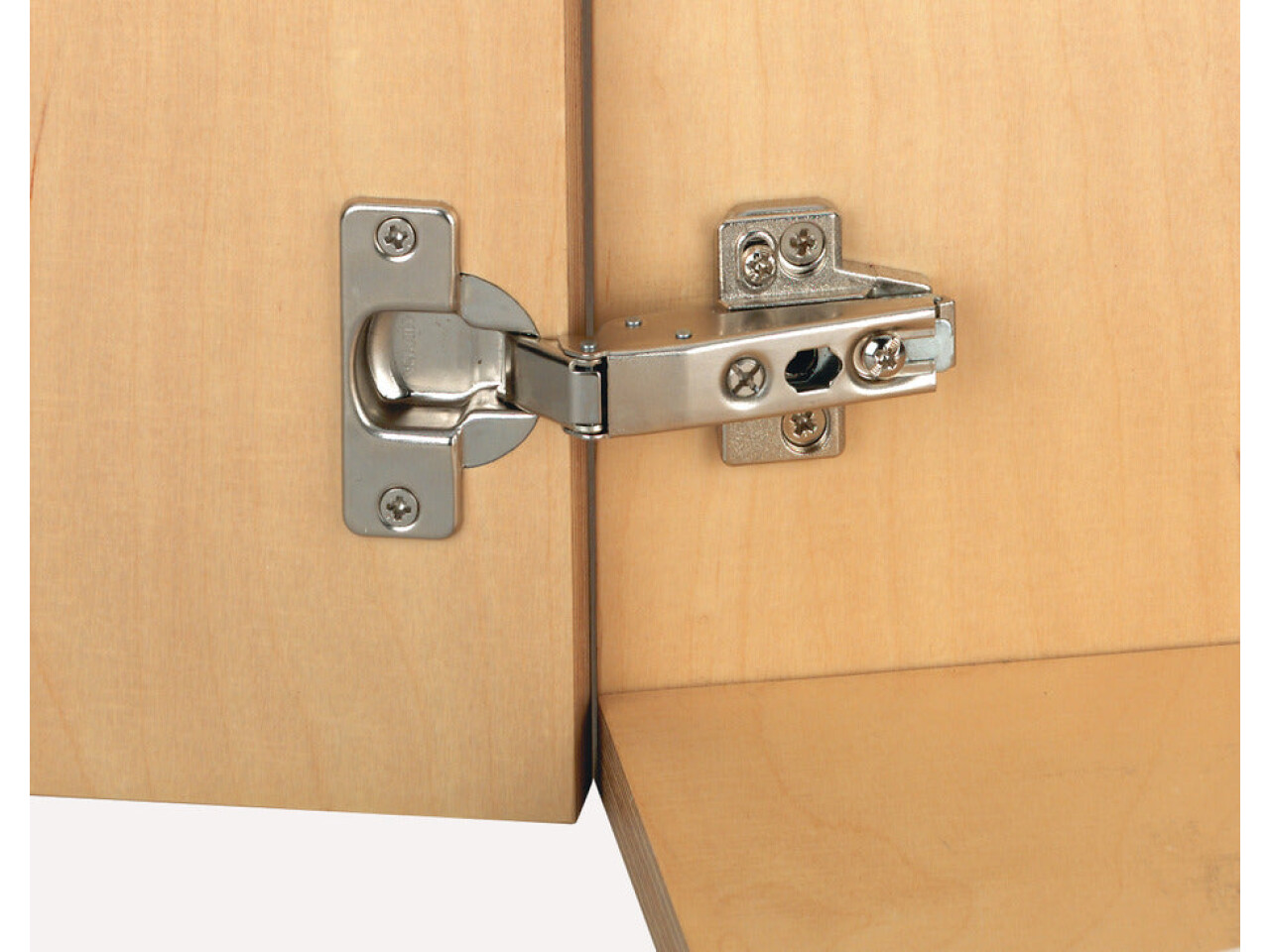

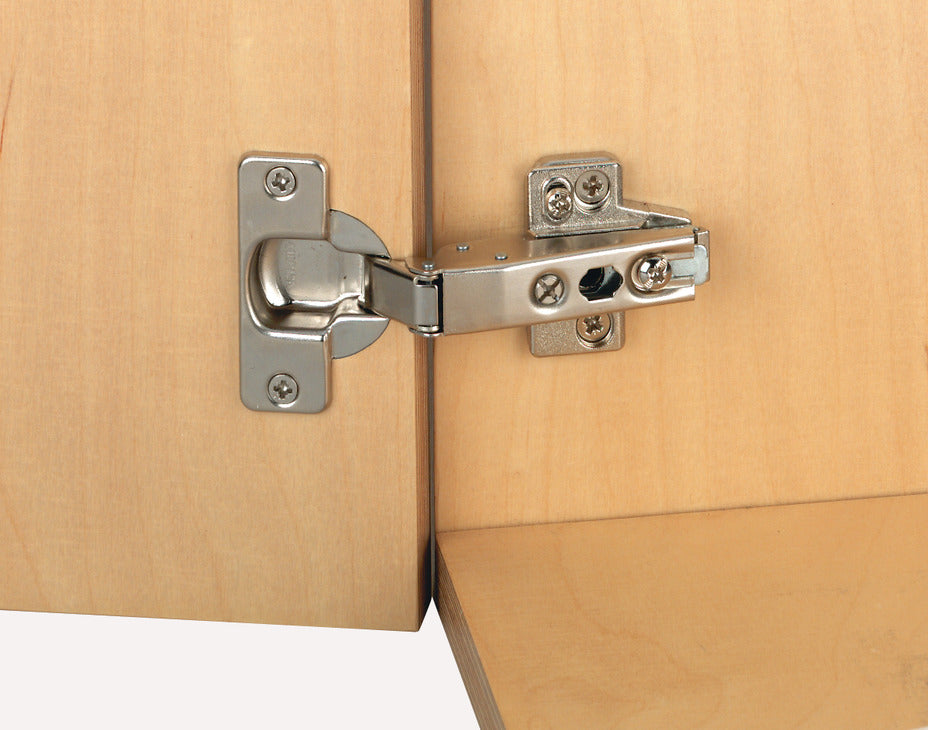

Concealed Cup Hinge, 110° Nexis, Sprung, Half Overlay/Twin Mounting, Click on Ar. (Part No: 322.17.531) is a premium concealed cup hinge designed for clean, professional cabinet installations where smooth closing performance matters. With its soft close compatible design, this hinge helps reduce slam and keeps cabinet doors operating quietly and effortlessly—ideal for both living and commercial furniture projects.

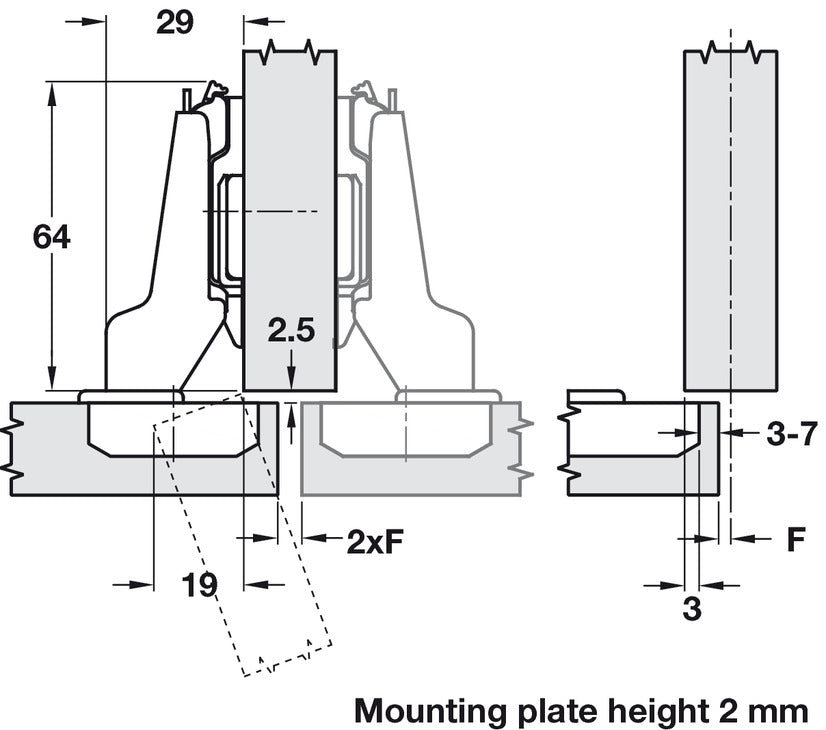

Built for standard applications, the Concealed hinge version: Half overlay ensures reliable alignment and a neat finished look. The cranked crank type offers practical positioning for everyday door use, making it a smart choice for modern cabinet builds.

For accurate fitting, this hinge comes door processing for assembly with cup drilling, helping you achieve consistent installation from the start. The hinge cup is made from durable steel and finished in a nickel plated coating for a refined appearance and long-lasting performance.

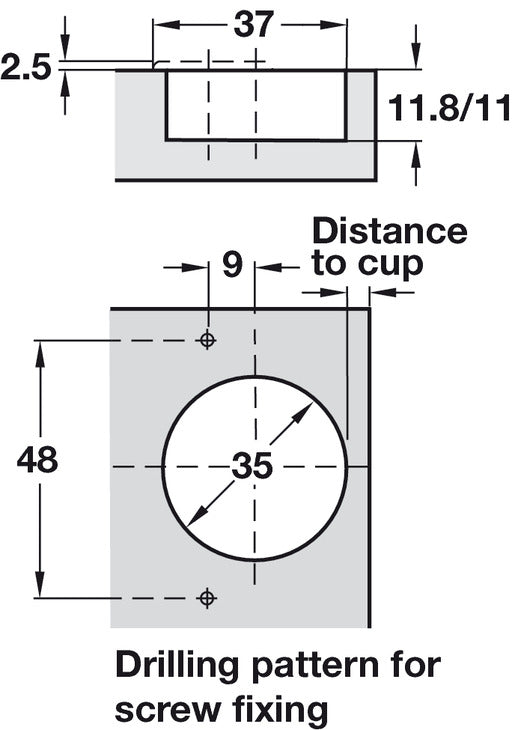

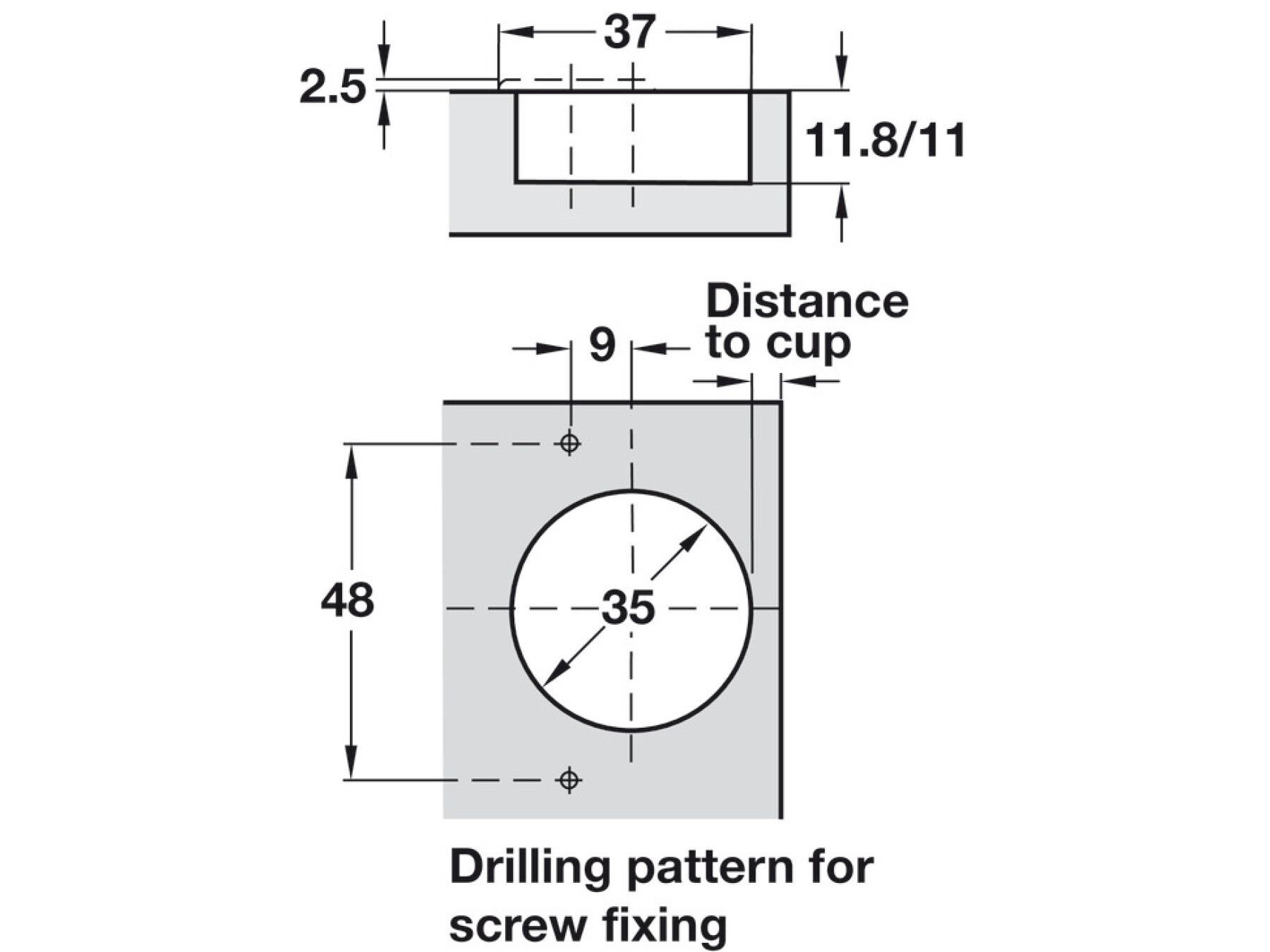

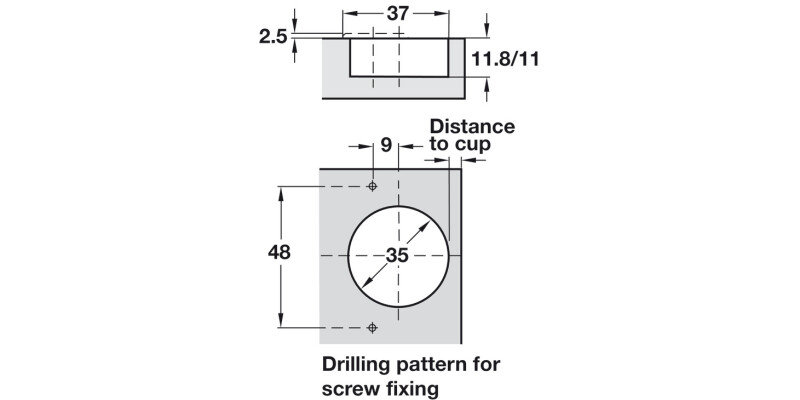

Key fitment details include an opening angle of 110°, with cup drilling depth of 11.00 mm and a cup drilling Ø of 35.00 mm. Cup fixing is for screw fixing, supported by a precise drilling pattern: 48/9.

If you’re upgrading hardware or specifying hinges for a new cabinet system, choose the Concealed Cup Hinge, 110° Nexis, Sprung, Half Overlay/Twin Mounting, Click on Ar for secure mounting, smooth operation, and a high-quality concealed look. Order 322.17.531 today to keep your doors closing beautifully, every time.
