Concealed Cup Hinge, 100� Nexis, Unsprung, Half Overlay Mounting, Click on Arm,

Product Details

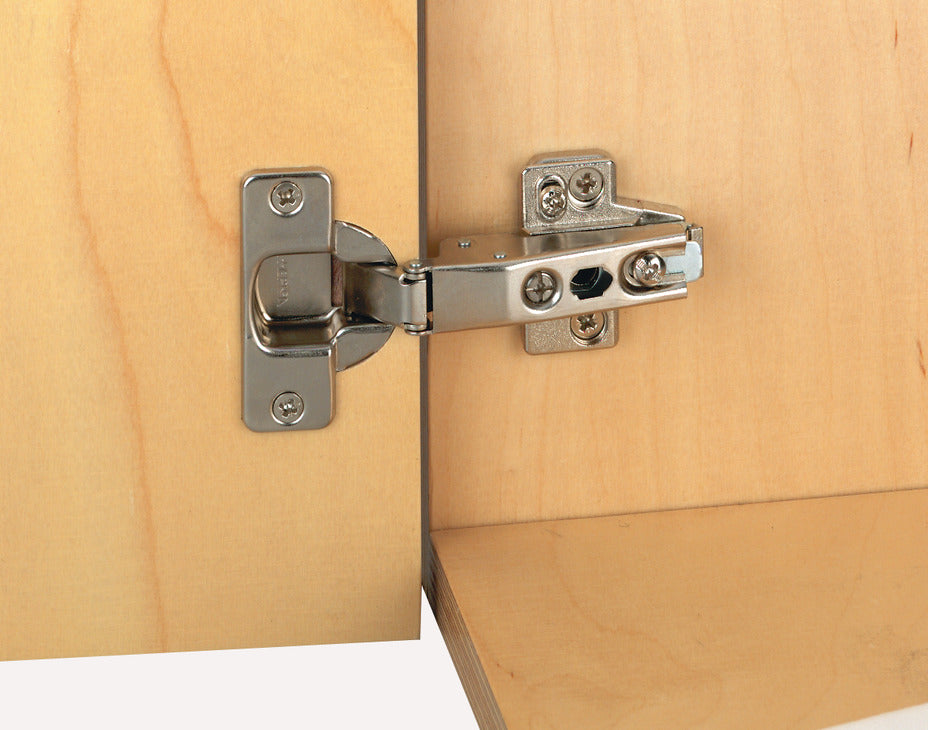

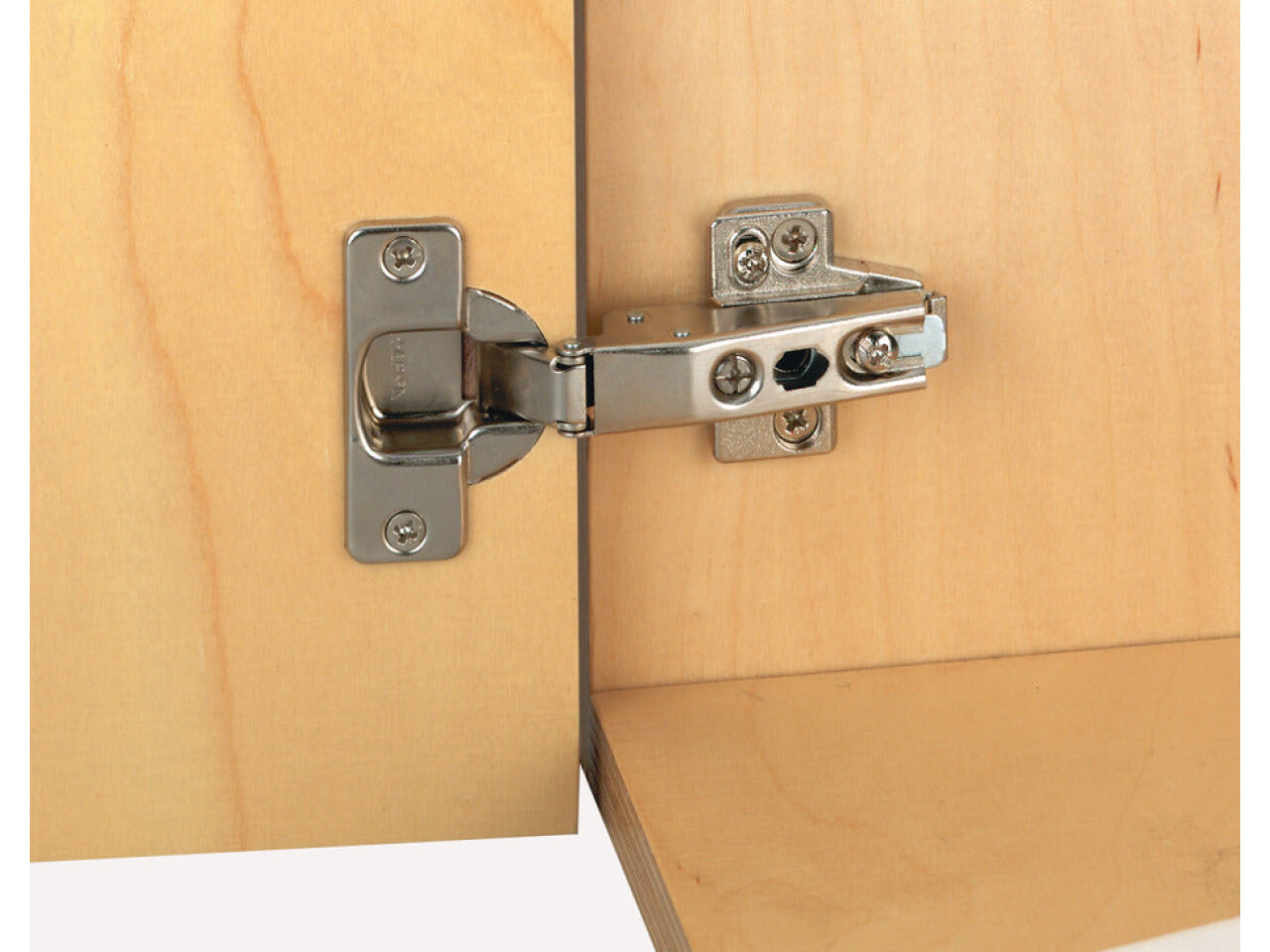

Concealed Cup Hinge, 100� Nexis, Unsprung, Half Overlay Mounting, Click on Arm, (Part No. 322.15.241) is a precision-engineered concealed cabinet hinge designed for clean, modern joinery—especially when you’re working with handle-less door applications. With its smart “Click” action, this hinge makes installation feel straightforward while delivering a smooth, controlled door response you can rely on.

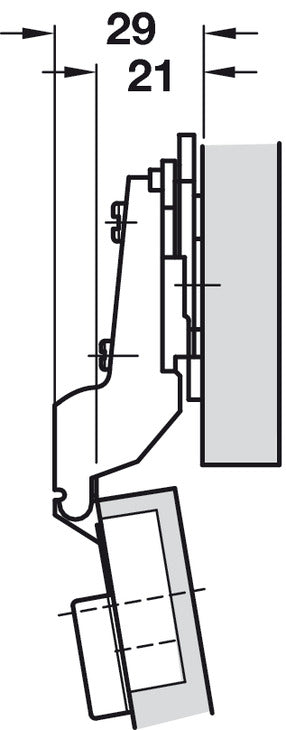

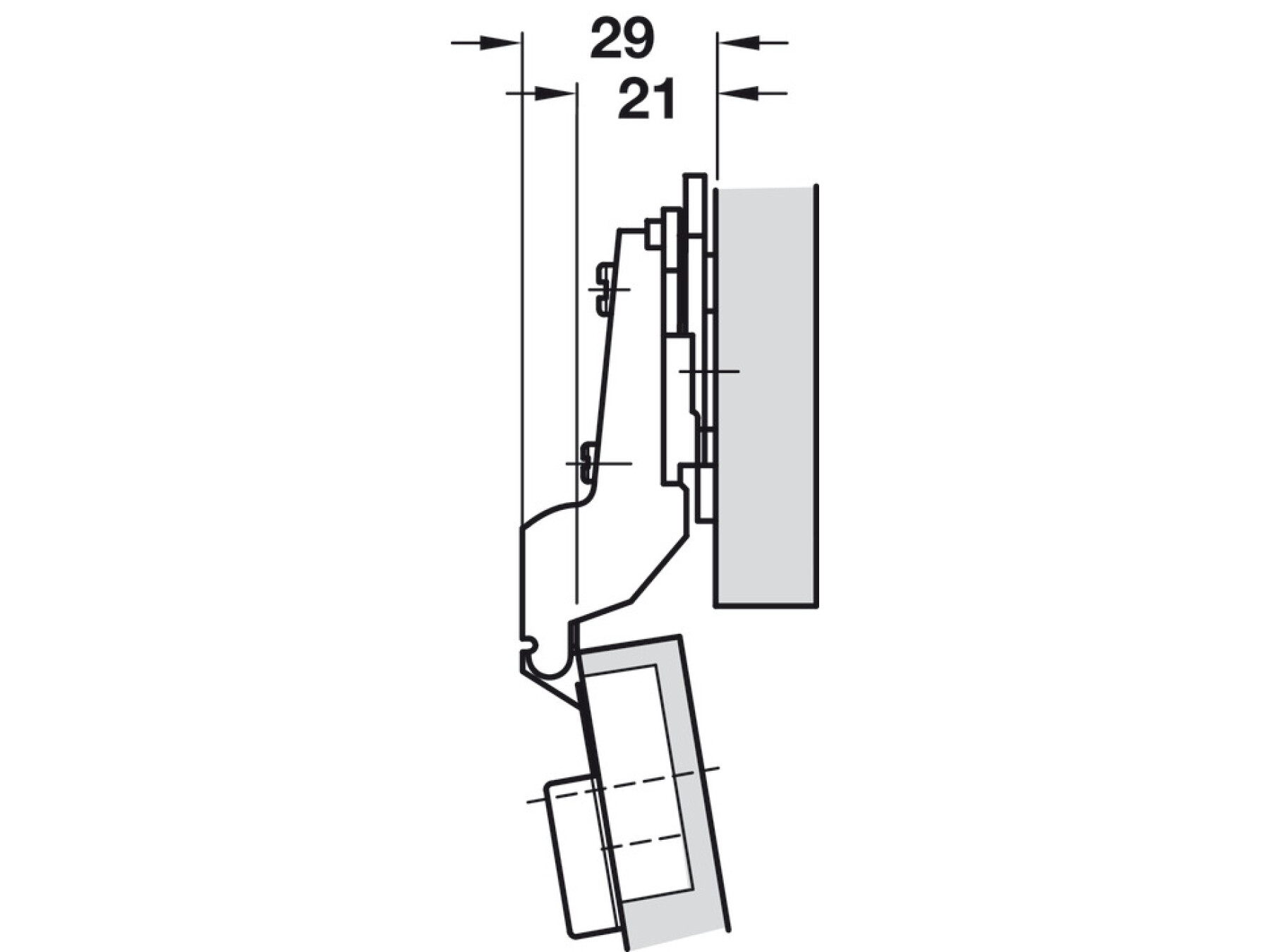

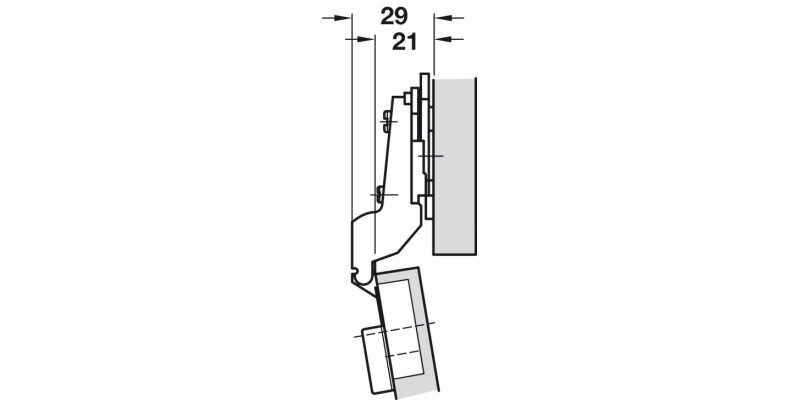

Product subtitle: For handle-less applications, Screw fixing cup, 48/9. That means the hinge is tailored for a sleek look, where the hardware stays discreet and the door lines remain uninterrupted. The half overlay concealed hinge version helps you achieve a neat fit for compatible door layouts, giving your cabinets and furniture a professional, high-end finish.

Designed for everyday performance and solid build quality, the Nexix Tipmatic hinge features a steel construction with a nickel plated finish for durability and a refined appearance. It offers an opening angle of 100°, giving comfortable access without forcing awkward angles.

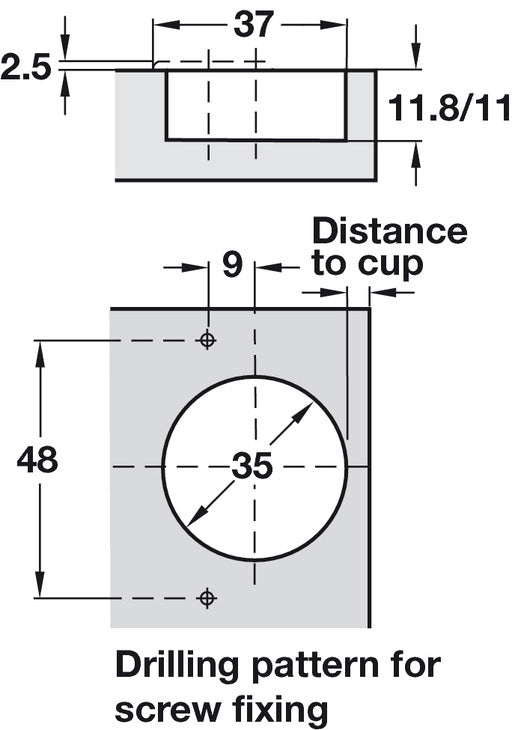

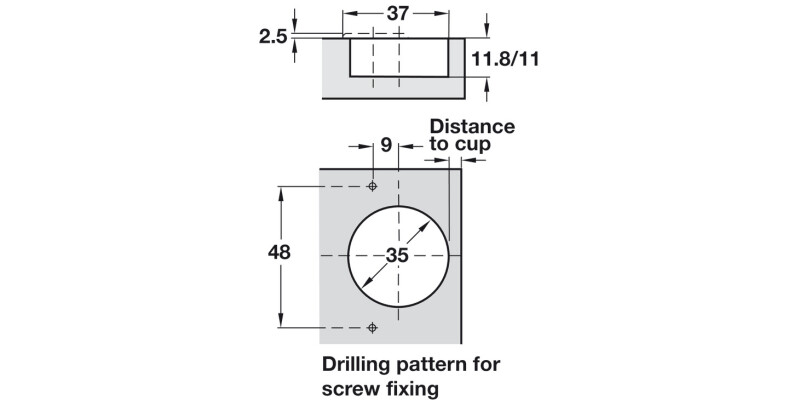

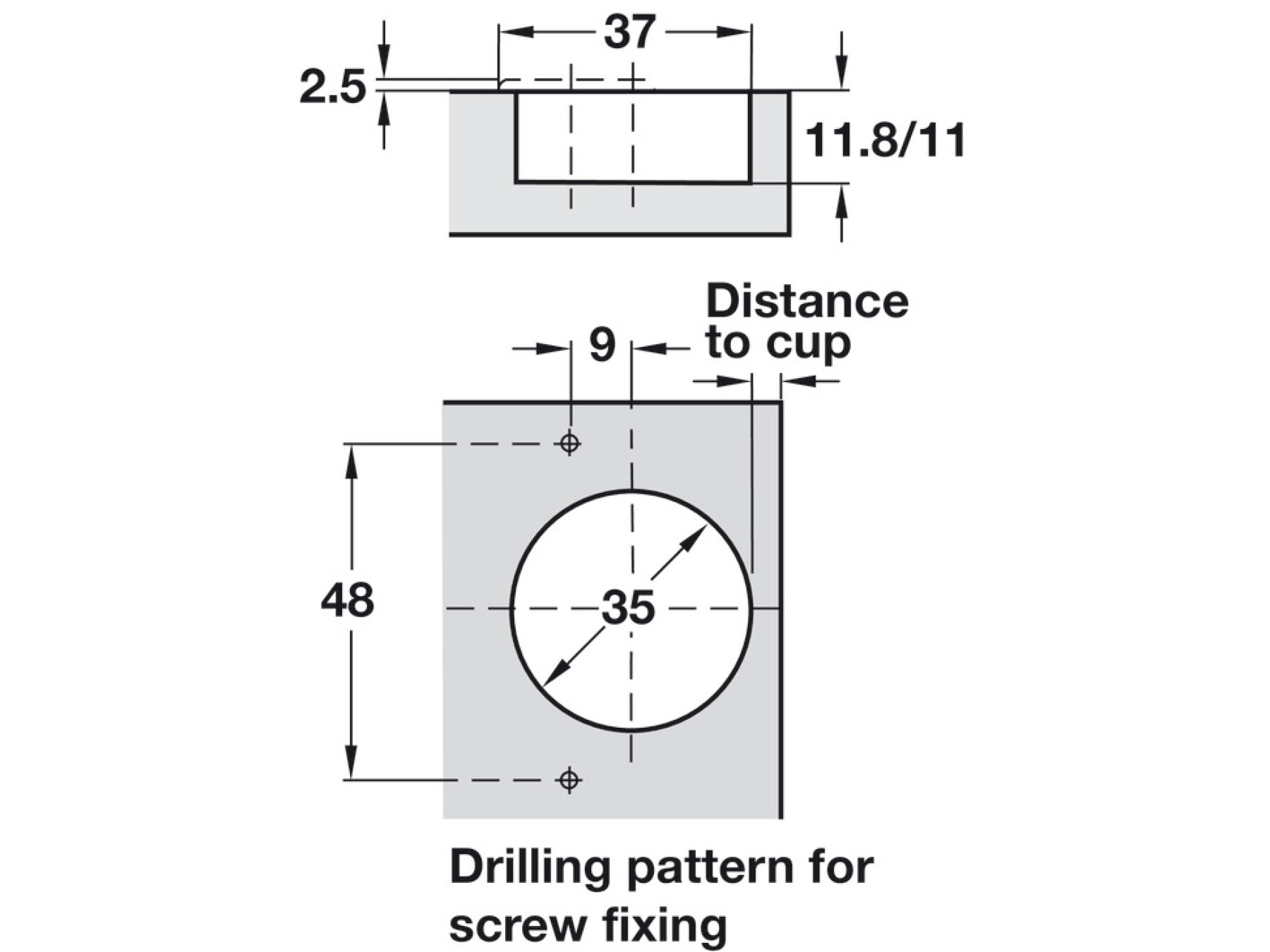

For assembly, the hinge supports cup drilling and is supplied with cup drilling Ø 35.00 mm and a cup drilling depth of 11.80 mm. The screw fixing cup system uses a drilling pattern 48/9, making it ideal for standard, consistent cabinet installations.

Key functionality: This concealed hinge version operates without spring and features a cranked design to support confident door alignment during fitting.

Choose the Concealed Cup Hinge, 100� Nexis, Unsprung, Half Overlay Mounting, Click on Arm, for a tidy, handle-free cabinet upgrade and enjoy the reliability of concealed hinge performance—order now for your next living or commercial furniture project.
