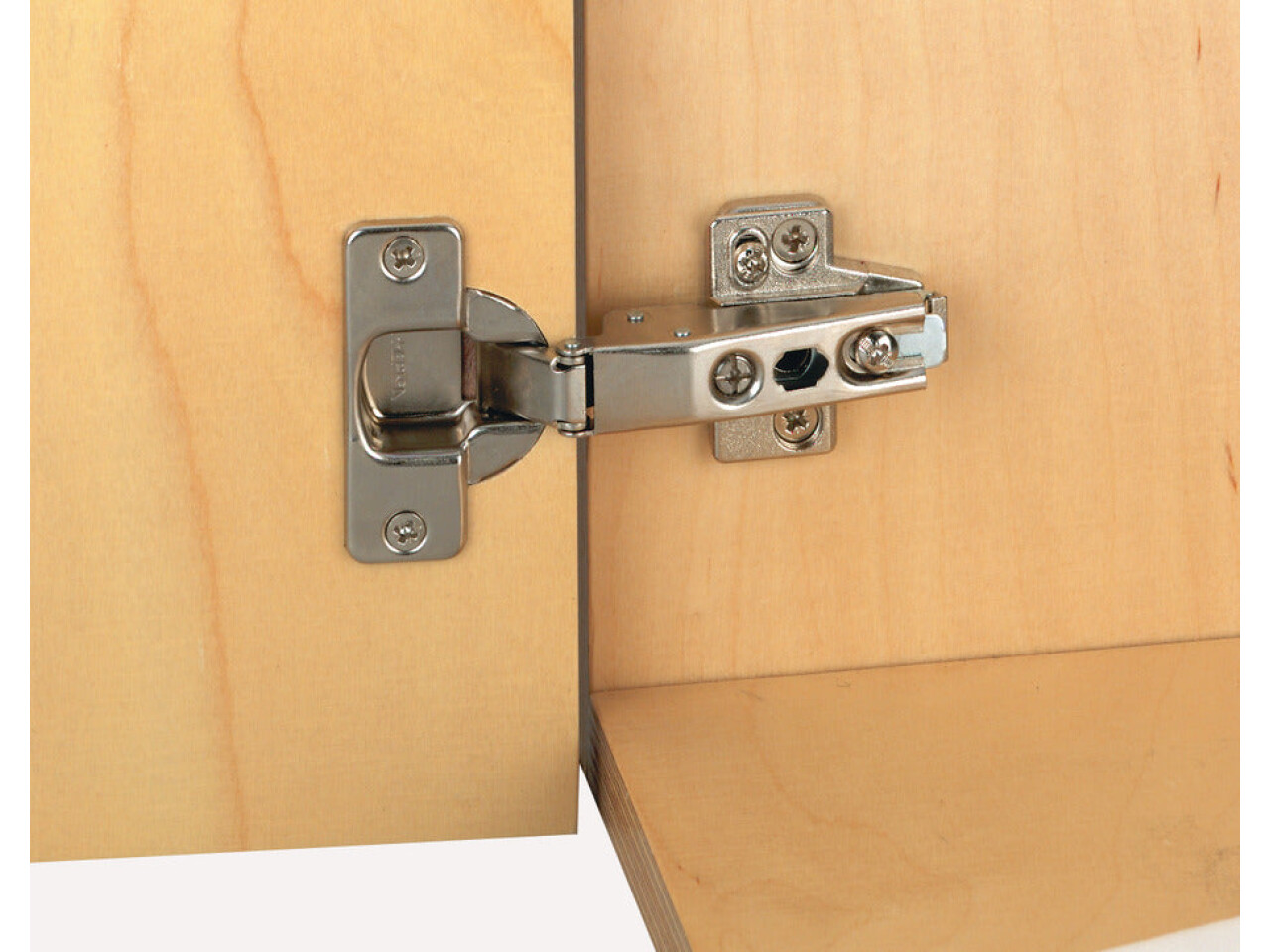

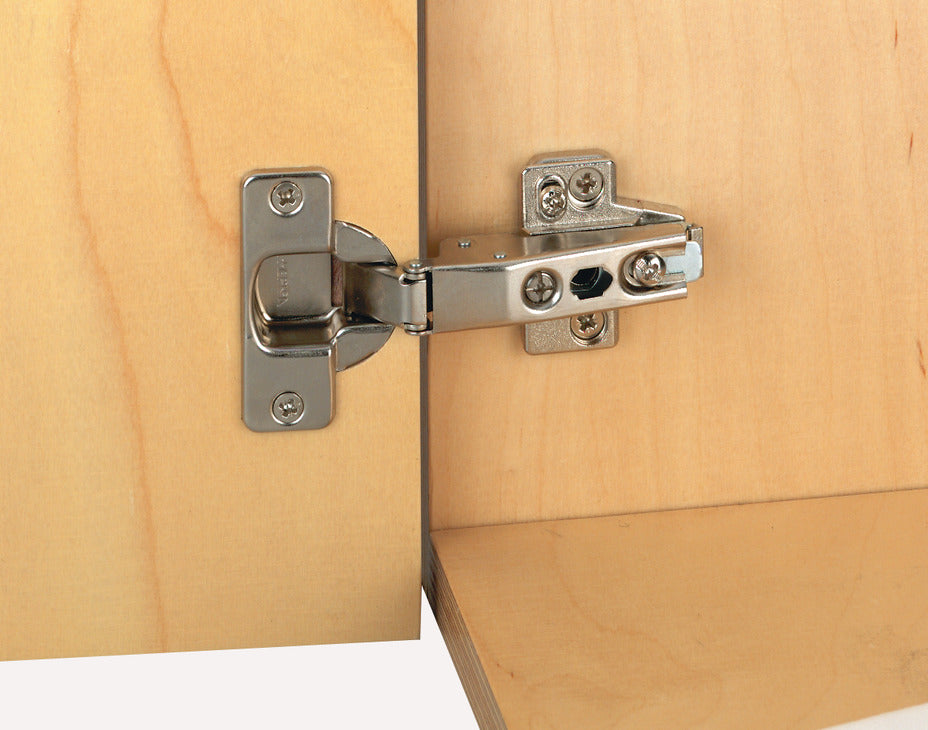

Concealed Cup Hinge, 95° Nexis, Sprung, Inset Mounting, Grass

Product Details

Concealed Cup Hinge, 95° Nexis, Sprung, Inset Mounting, Grass. (Part No: 322.11.532) is a premium concealed cabinet hinge designed for smooth, dependable everyday performance in both living and commercial furniture. As a Concealed Cup Hinge in the Furniture Fittings range, it delivers a clean, minimalist look while keeping the door action controlled and comfortable.

Built with standard applications in mind, this hinge is ideal for interior cabinet doors where you want reliable fit and consistent alignment. The click-on version makes it quick to install—simply use the click-on arm design and get on with building or upgrading your cabinetry.

Featuring a 95° opening angle, the Nexis hinge offers excellent access without compromising on practicality or stability. The concealed inset design (high cranked) is well-suited to cabinet applications requiring a precise, professional finish.

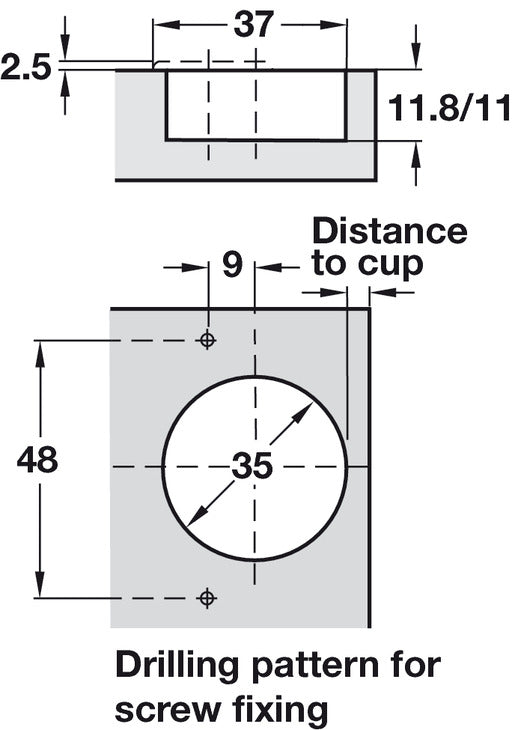

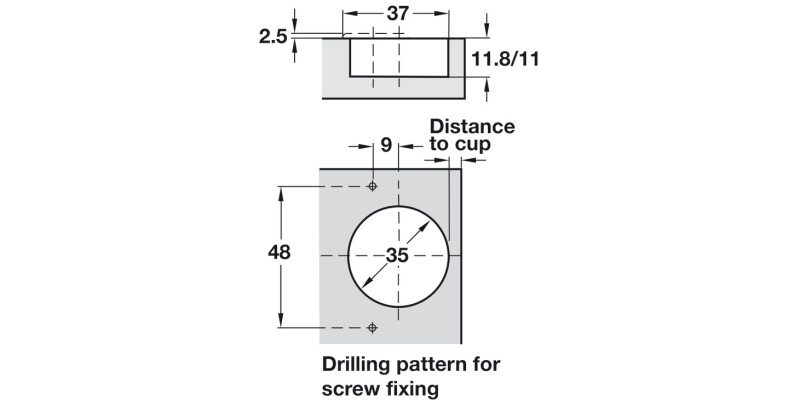

Crafted from steel and finished in a nickel plated coating, it’s engineered for durability and a refined appearance. For assembly, the door is processed with cup drilling, using a 35.00 mm cup diameter and an 11.80 mm cup drilling depth.

The 48/9 drilling pattern ensures accurate screw placement, while the screw fixing cup supports secure installation for long-term use. If you want a concealed, Soft close compatible hinge solution with a quick-fit click mechanism, the Concealed Cup Hinge, 95° Nexis, Sprung, Inset Mounting, Grass. is a smart choice.
