Concealed Cup Hinge, 270°, Full Overlay Mounting, Keyhole Fixing Arm, Häfele

Product Details

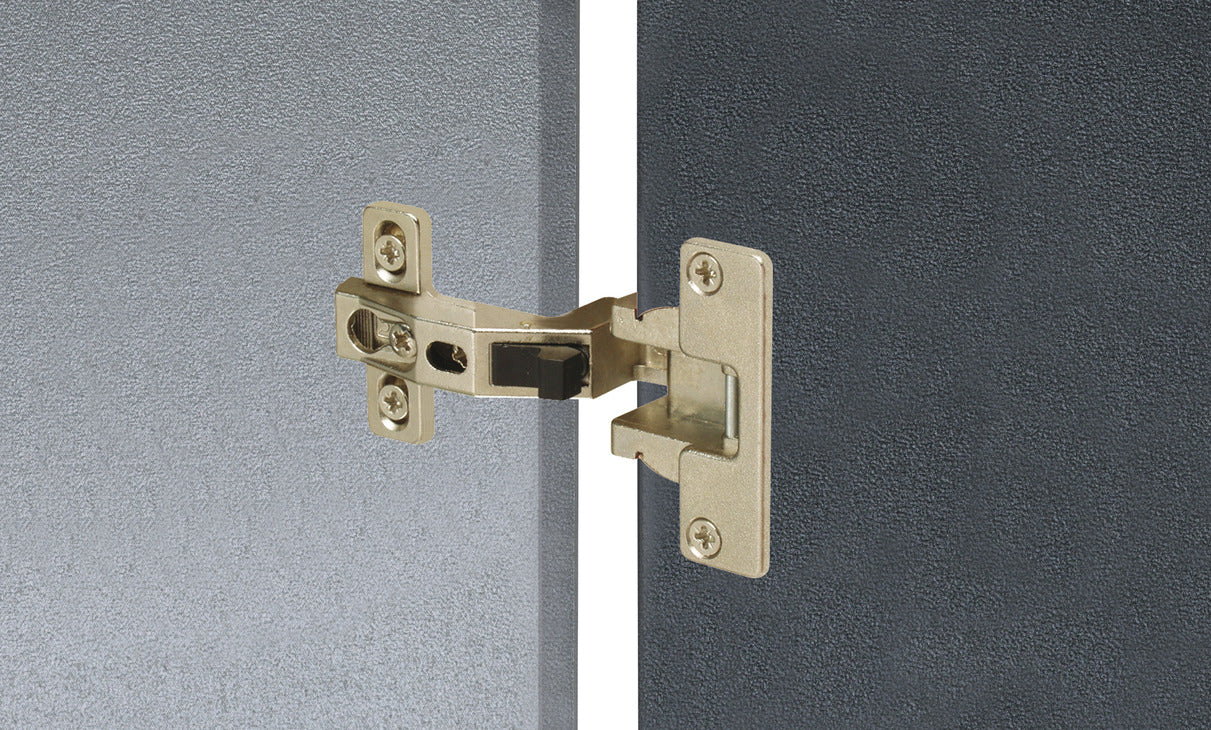

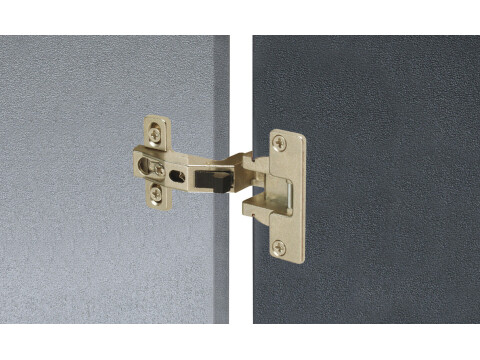

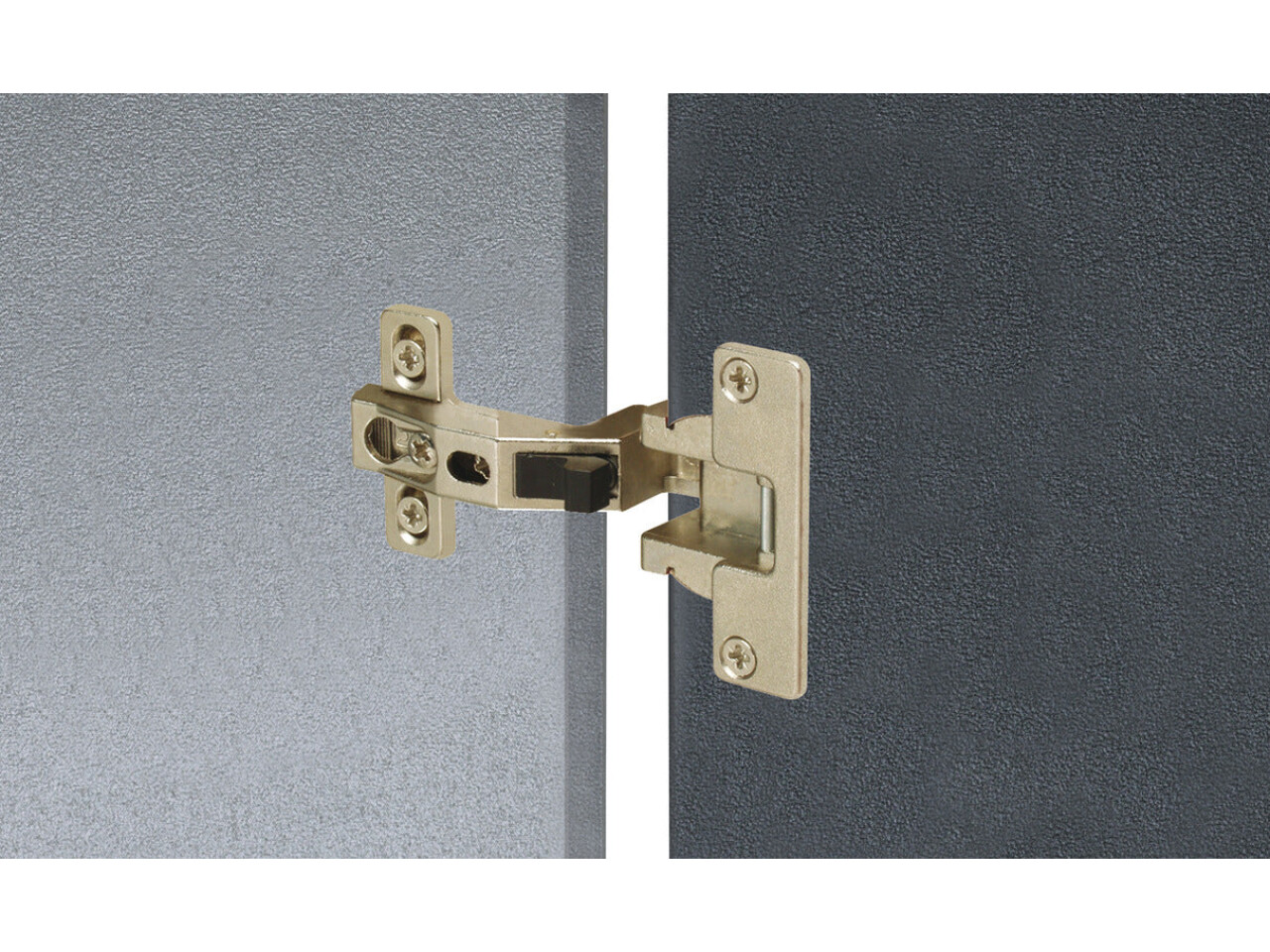

Concealed Cup Hinge, 270°, Full Overlay Mounting, Keyhole Fixing Arm, Häfele (Part No: 312.50.600) is a premium concealed cabinet hinge designed for smooth, reliable door performance in both living and commercial environments. If you’re upgrading kitchen cabinets, wardrobe furniture, or professional fit-outs, this full overlay hinge delivers a clean, modern look while keeping installation straightforward and secure.

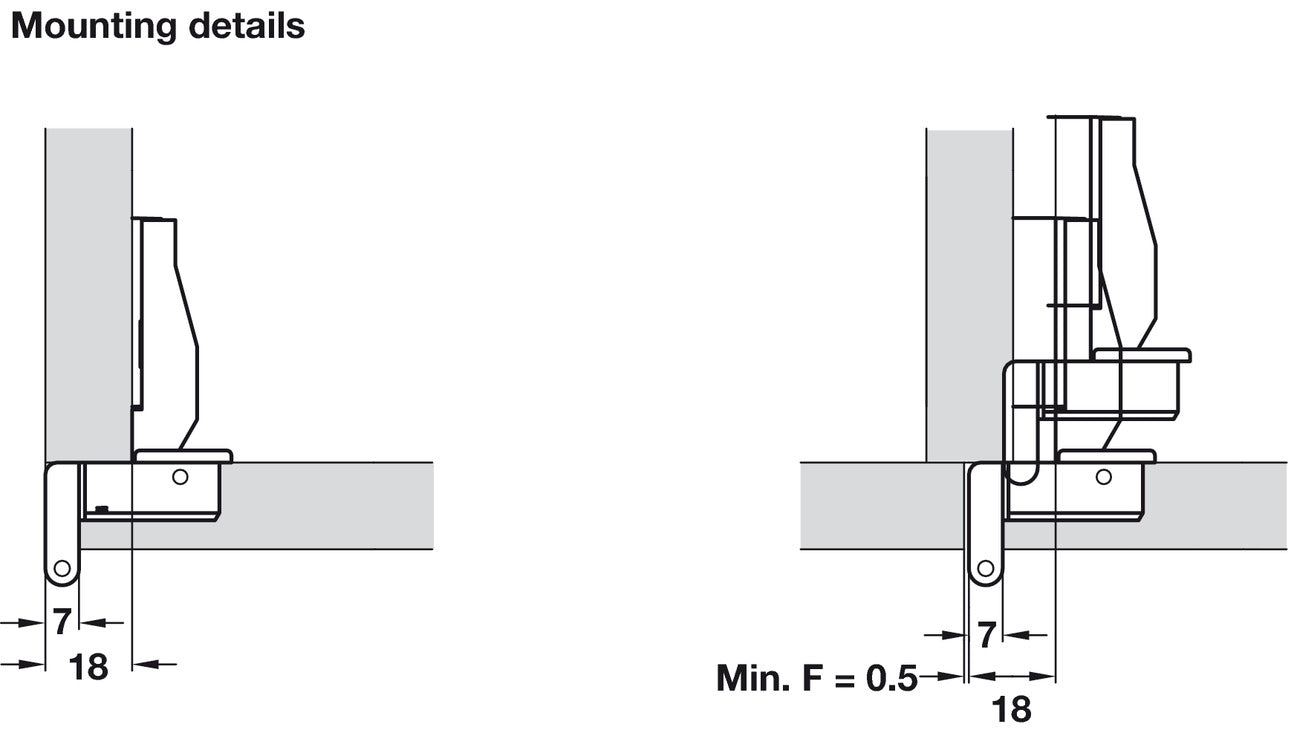

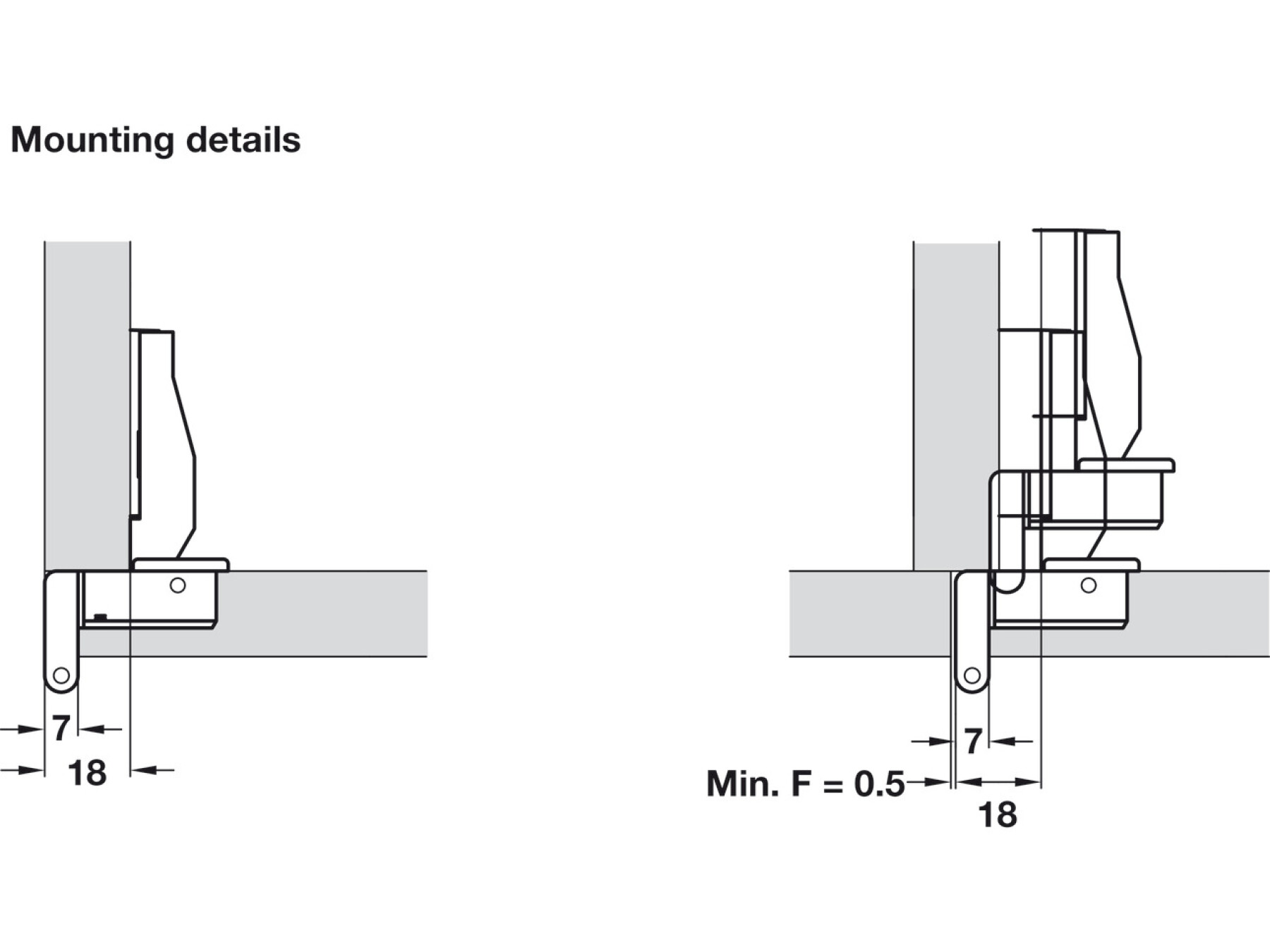

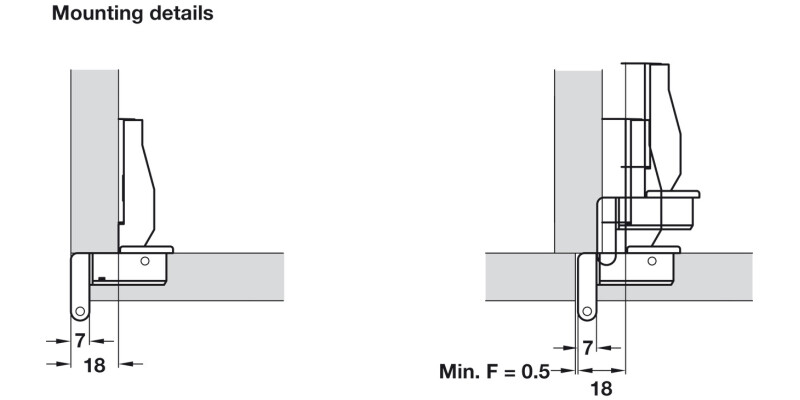

With a 270° opening angle, the door swings wide for easy access and full functionality—ideal for cabinets where usability matters. The hinge is a full overlay concealed hinge version, creating a streamlined front with minimal visible hardware when the door is closed.

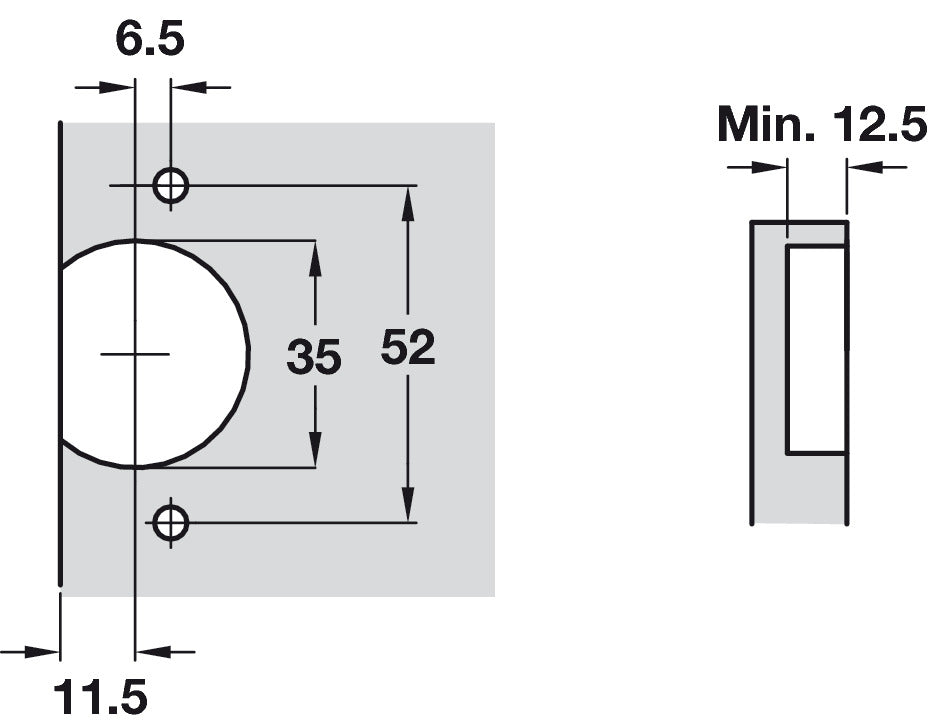

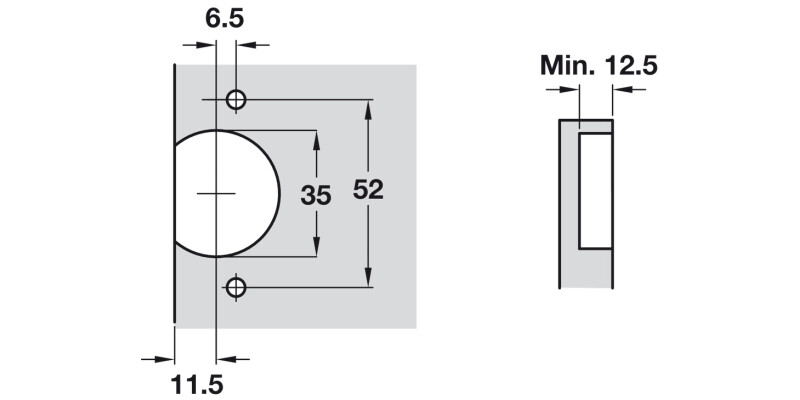

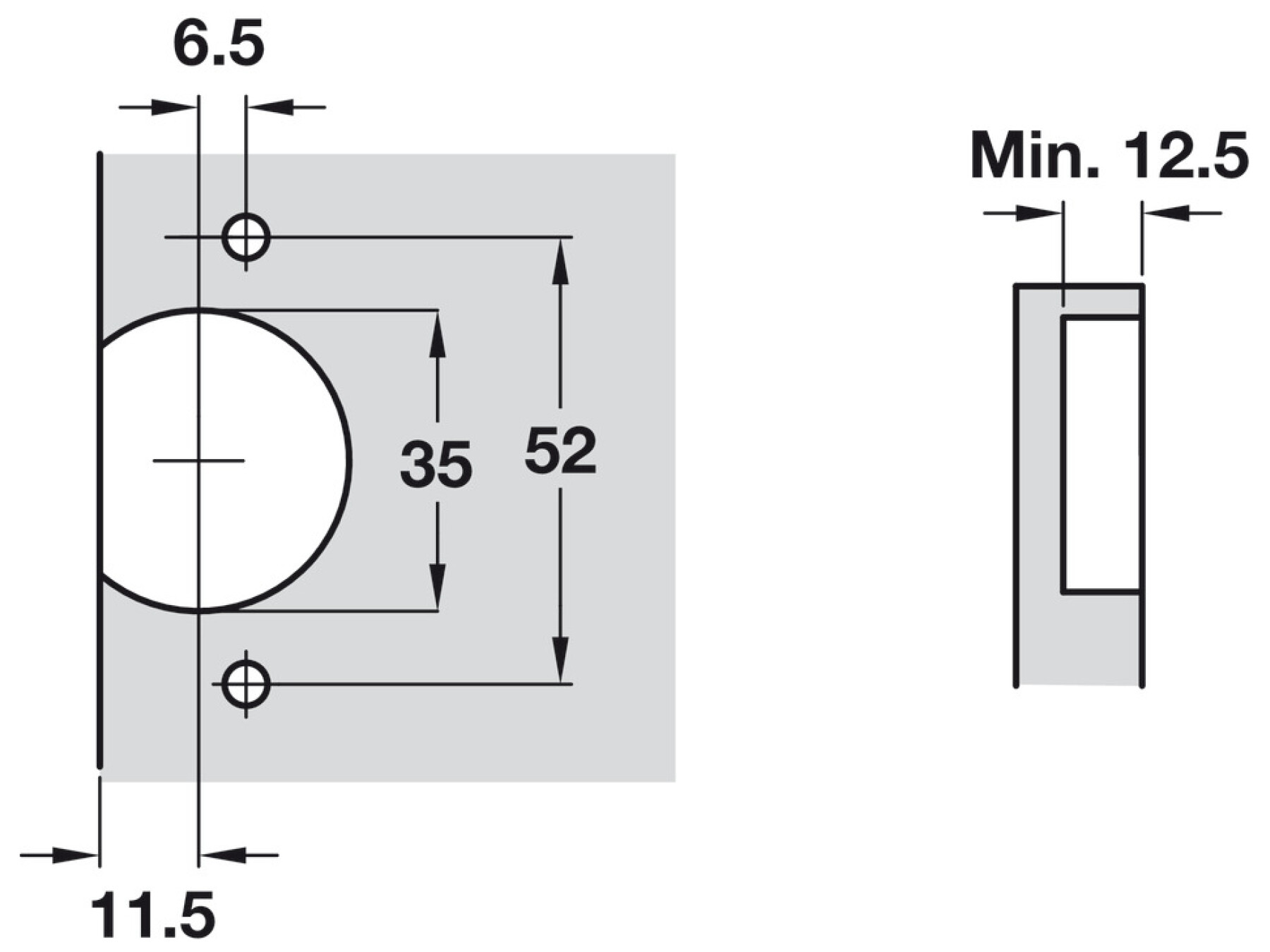

Engineered for precise assembly, the door processing is with cup drilling. The hinge cup is built from zinc alloy, and uses a 35.00 mm cup diameter with a 12.50 mm cup drilling depth for a consistent, professional fit.

For dependable mounting, the cup is screw fixing and follows the 52/6.5 drilling pattern. Installation is supported via a keyhole fixing hinge arm, helping you align and fix the hinge efficiently.

What’s more, this model features a straight crank type for versatile fitting options. You can also enjoy added confidence thanks to the Hafele Lifetime Guarantee (25 years).

Order reference notes: Order HOSPA ⌀ 3.5 mm countersunk screws separately. A keyhole mounting plate is required for proper installation.

Order Hospa ⌀ 3.5 mm countersunk screws separately
Keyhole mounting plate required
