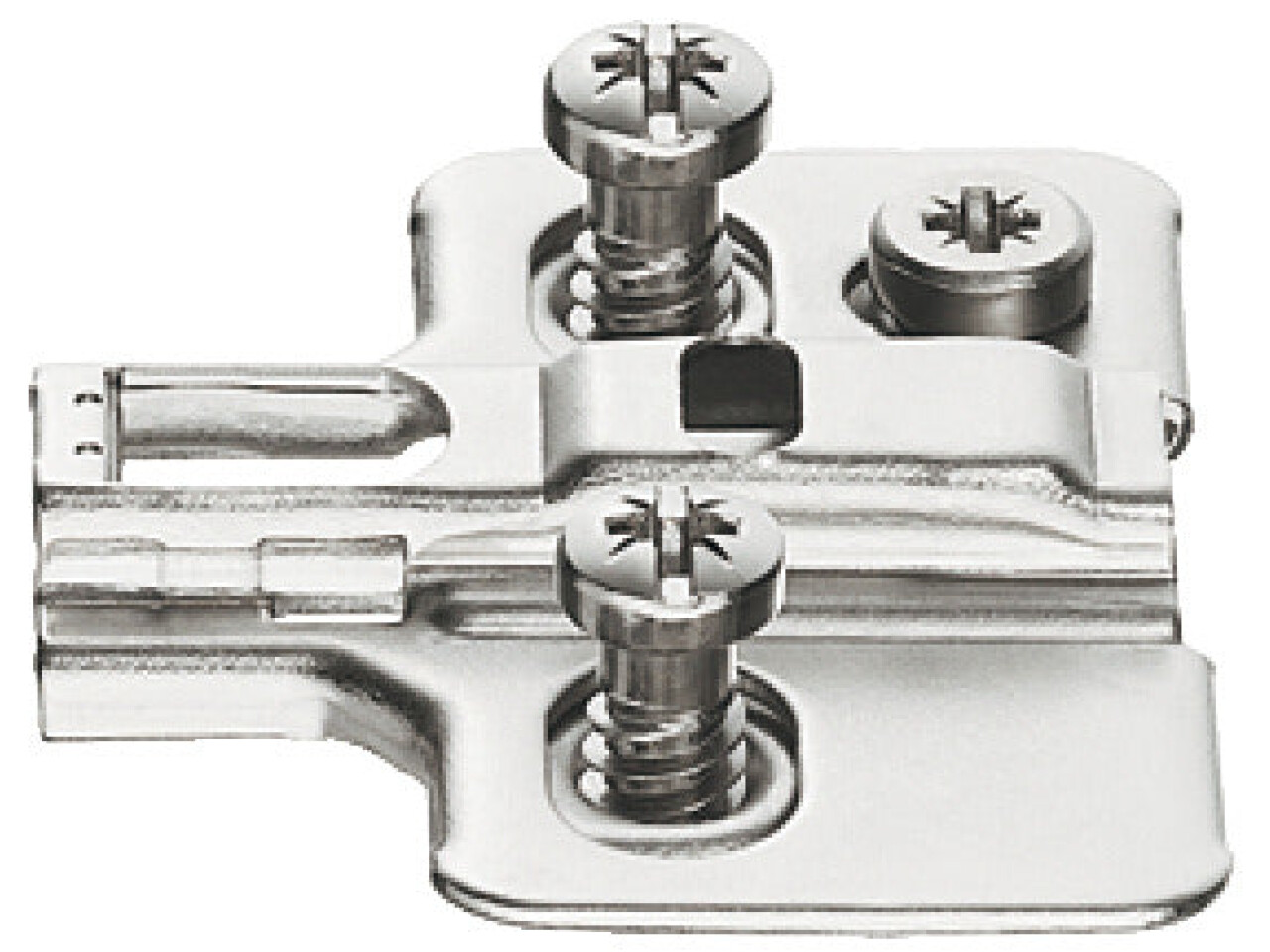

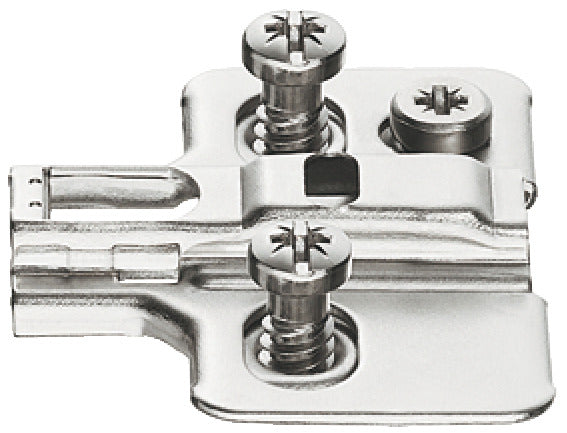

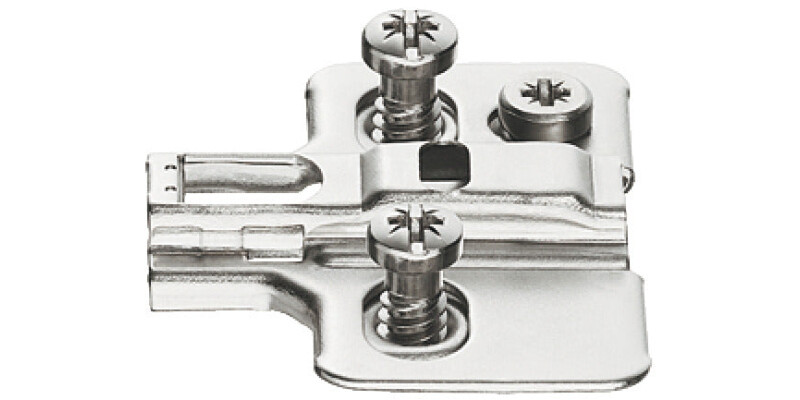

Mounting Plate, Cruciform, with Pre-Mounted Euro Screws, Häfele Metalla 310

Product Details

Is this mounting plate compatible with Hafele quick fixing hinges?

Yes. The Smuso Quick Mounting Plate 2prt Cruci 2mm Euro, part number 311.70.622, is designed for Häfele quick fixing hinges and uses the SM quick fixing system. It matches the Metalla 300 series approach for fast, consistent fitting in cabinet doors.

What does “2 mm height” mean on this mounting plate?

It refers to the height setting of the plate. This version provides ±2 mm height adjustment, helping you fine tune door alignment after installation. This can be especially useful if your carcass or door positioning is slightly out of tolerance.

Do I need to drill new holes to fit this plate?

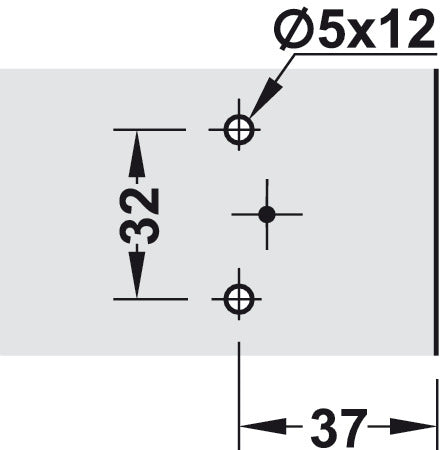

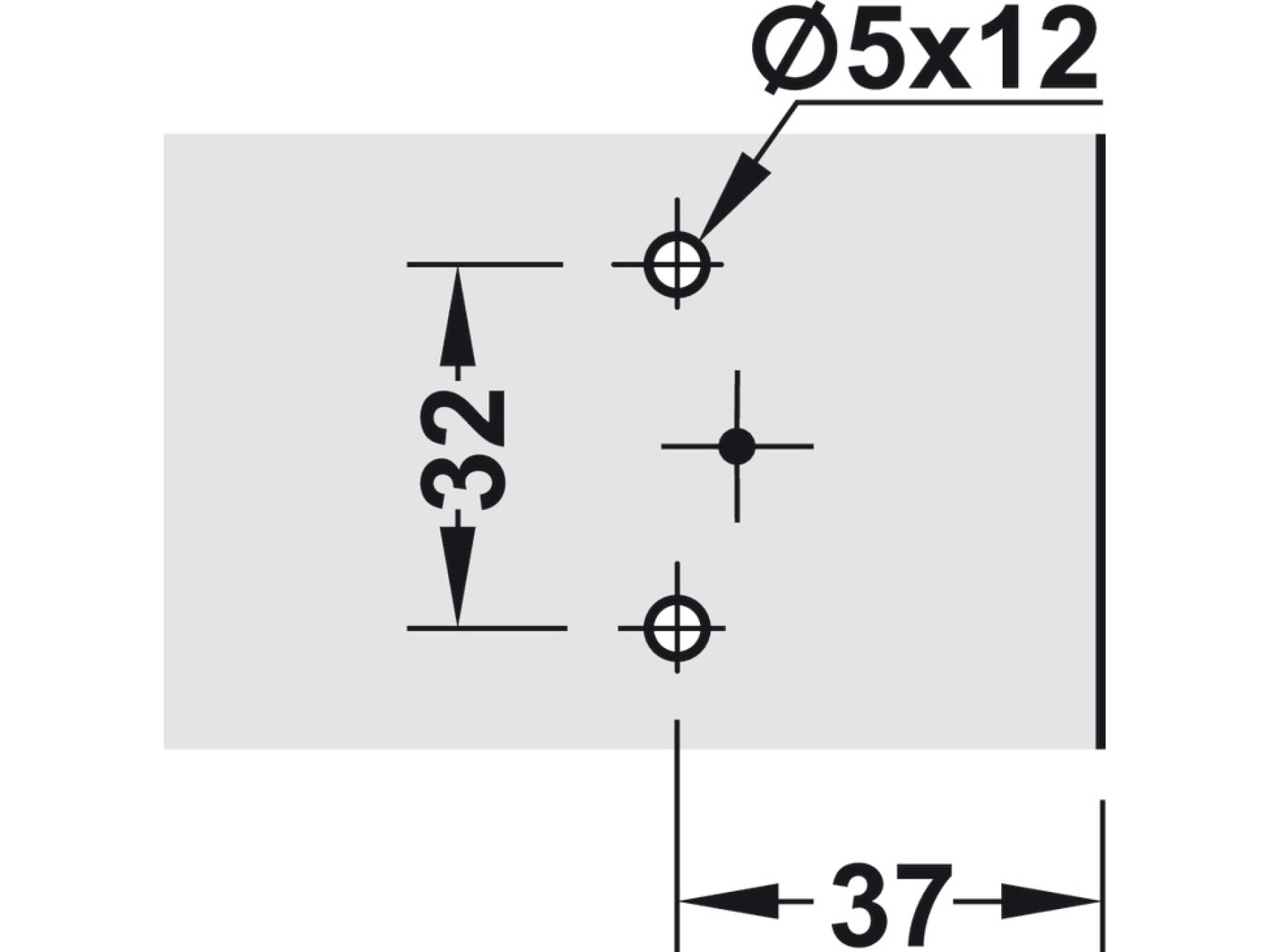

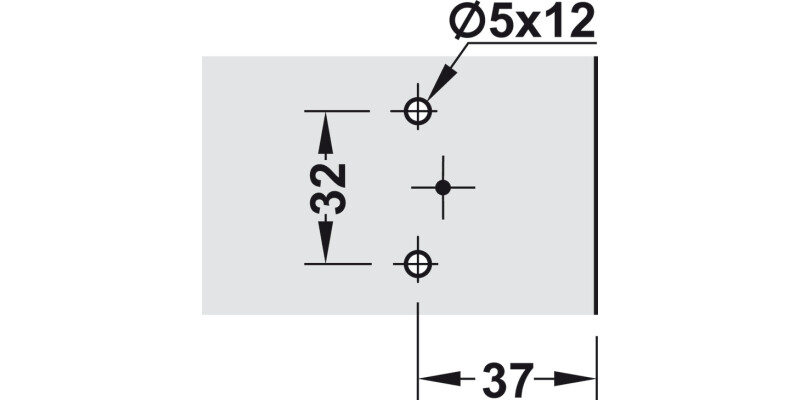

You should drill to the specified Euro fixing pattern. This plate is for an Ø 5.00 mm drill hole with a 12.00 mm drilling depth. Using the correct hole size and depth helps ensure the plate sits properly and allows the fixing system to work as intended.

How does the quick fixing system SM work?

It is made for fast installation. This is a two part plate using the SM quick fixing system. In practice, the system is intended to reduce time spent on hinge positioning because the plate and hinge can be aligned and secured with less manual handling than traditional multi step fitting.

Is the plate for screw fixing, or does it use a clip system?

It is for screw fixing. This mounting plate version is intended for screw fixing with pre mounted Euro screws. That means you use the screws to secure the plate, then fit the hinge using the quick fixing mechanism.

What measurements should I check before ordering, such as screw spacing and edge distance?

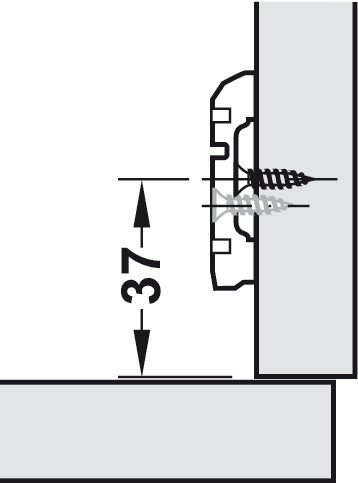

Check these key fit dimensions. For this plate, the screw distance is 32.00 mm and the edge distance is 37.00 mm. Confirming these measurements against your cabinet door and hinge drilling template helps prevent misalignment and avoids rework.

Will this product suit different furniture builds, including living and commercial use?

It is suitable for a wide range of applications. As part of Häfele’s cabinet hinge mounting accessories range, it is intended for living and commercial furniture solutions. Choosing a plate from the same system helps maintain consistent performance across doors and fittings.

Is there a warranty or guarantee on the hinge fitting system?

Yes, Häfele provides a lifetime guarantee. The manufacturer’s Hafele Lifetime Guarantee is 25 years for the relevant system components. This can give added reassurance if you are fitting hinges for long term use.
