Cranked Hinge, for Butting, Overlay Doors, Brass
Part Number: 307.01.636
Crank L1, Left hand, matt nickel plated
Price:
£9.84
Per Item
Cranked Hinge, for Butting, Overlay Doors, Brass (Product Part No: 307.01.636) is a premium architectural door... Read More
Product Information
Product Details

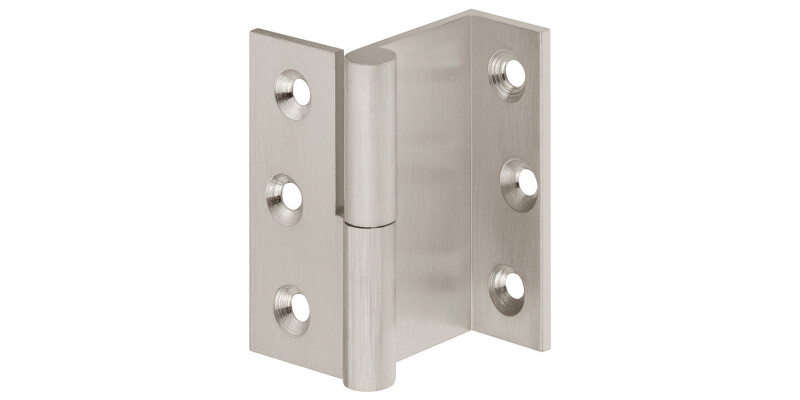

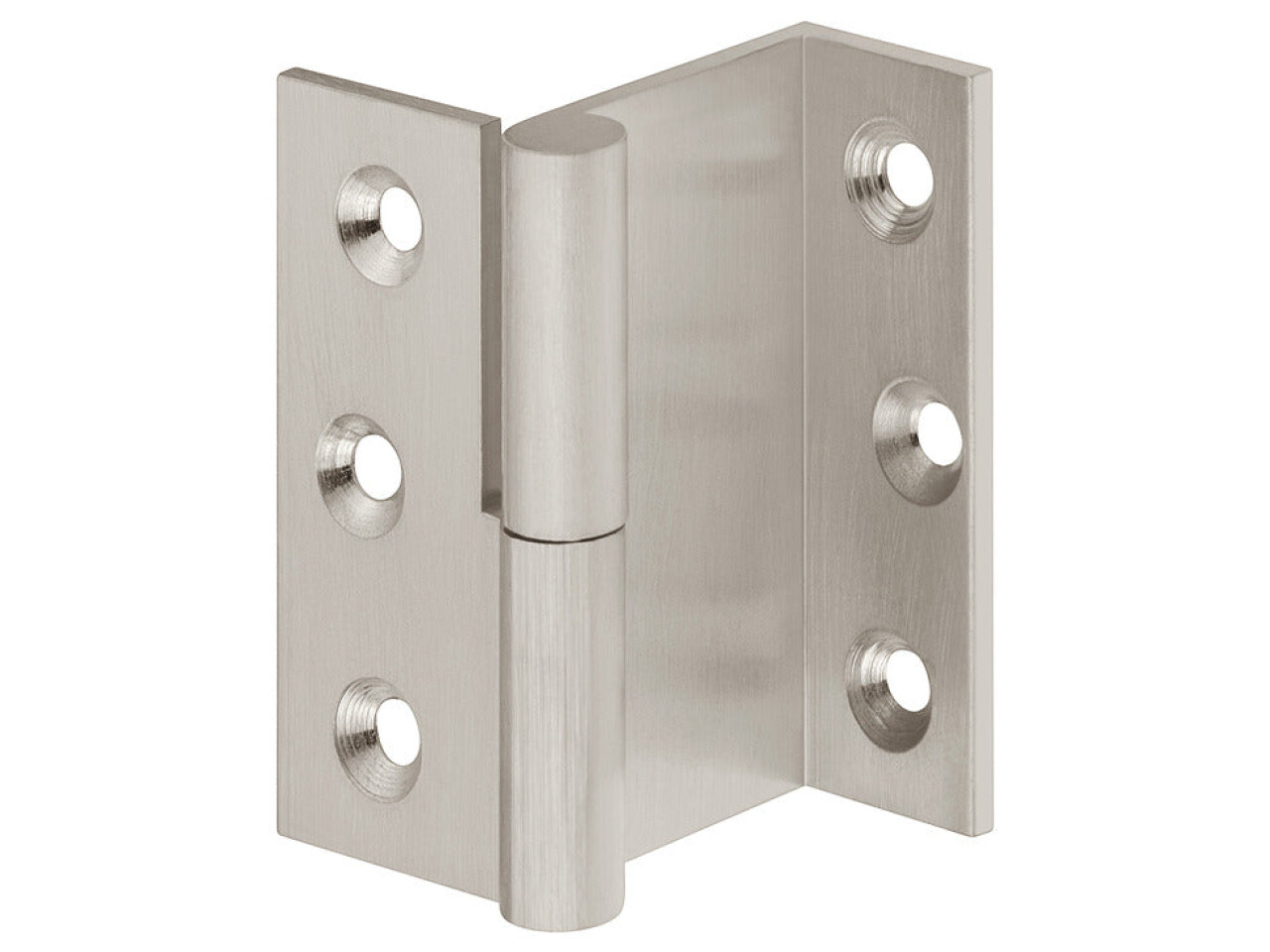

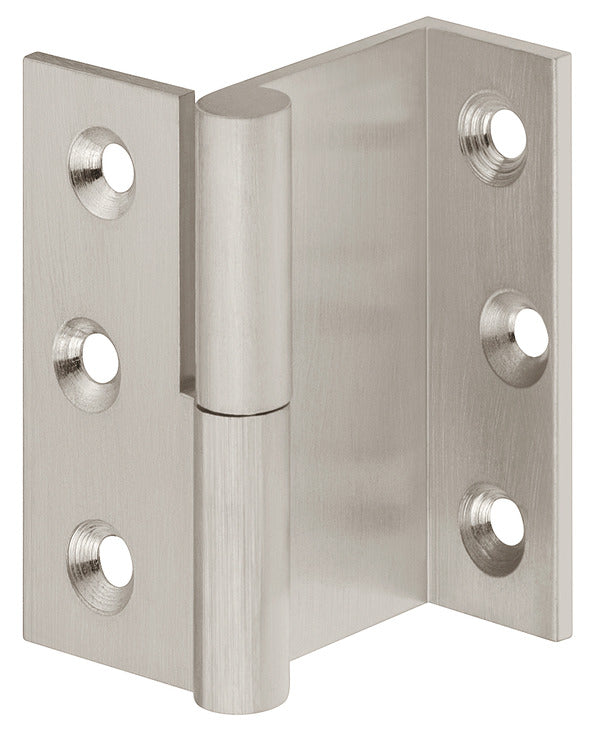

Cranked Hinge, for Butting, Overlay Doors, Brass (Product Part No: 307.01.636) is a premium architectural door hinge designed to deliver a confident, long-lasting swing for overlay doors. If you’re planning a renovation or fitting new hardware, this hinge combines solid brass strength with a refined surface finish—making it as practical as it is visually appealing.
The Cranked Hinge, for Butting, Overlay Doors, Brass features a matt nickel plated look over a durable brass body. This understated shine complements modern and classic interiors alike, helping your door hardware blend seamlessly with your overall ironmongery selection.

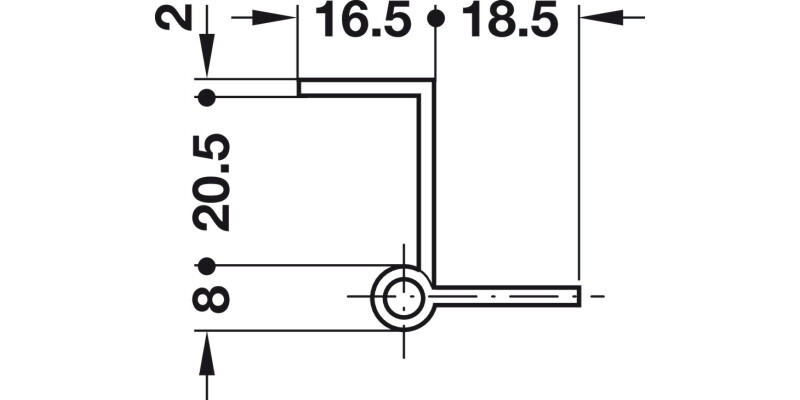

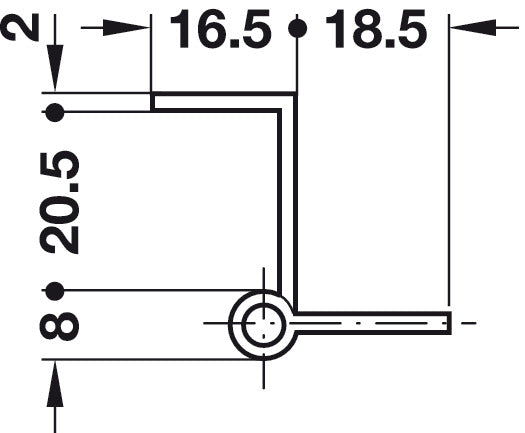

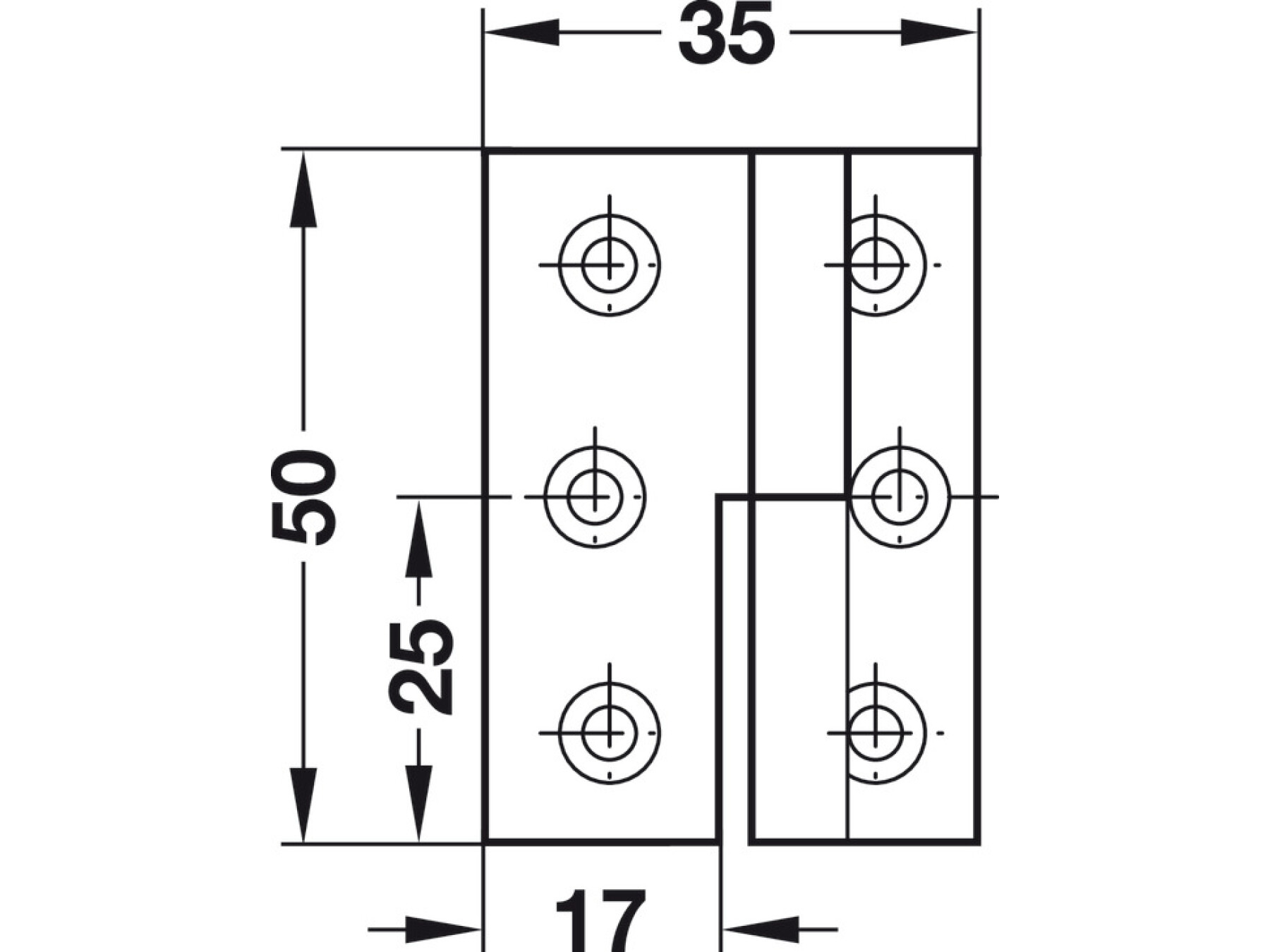

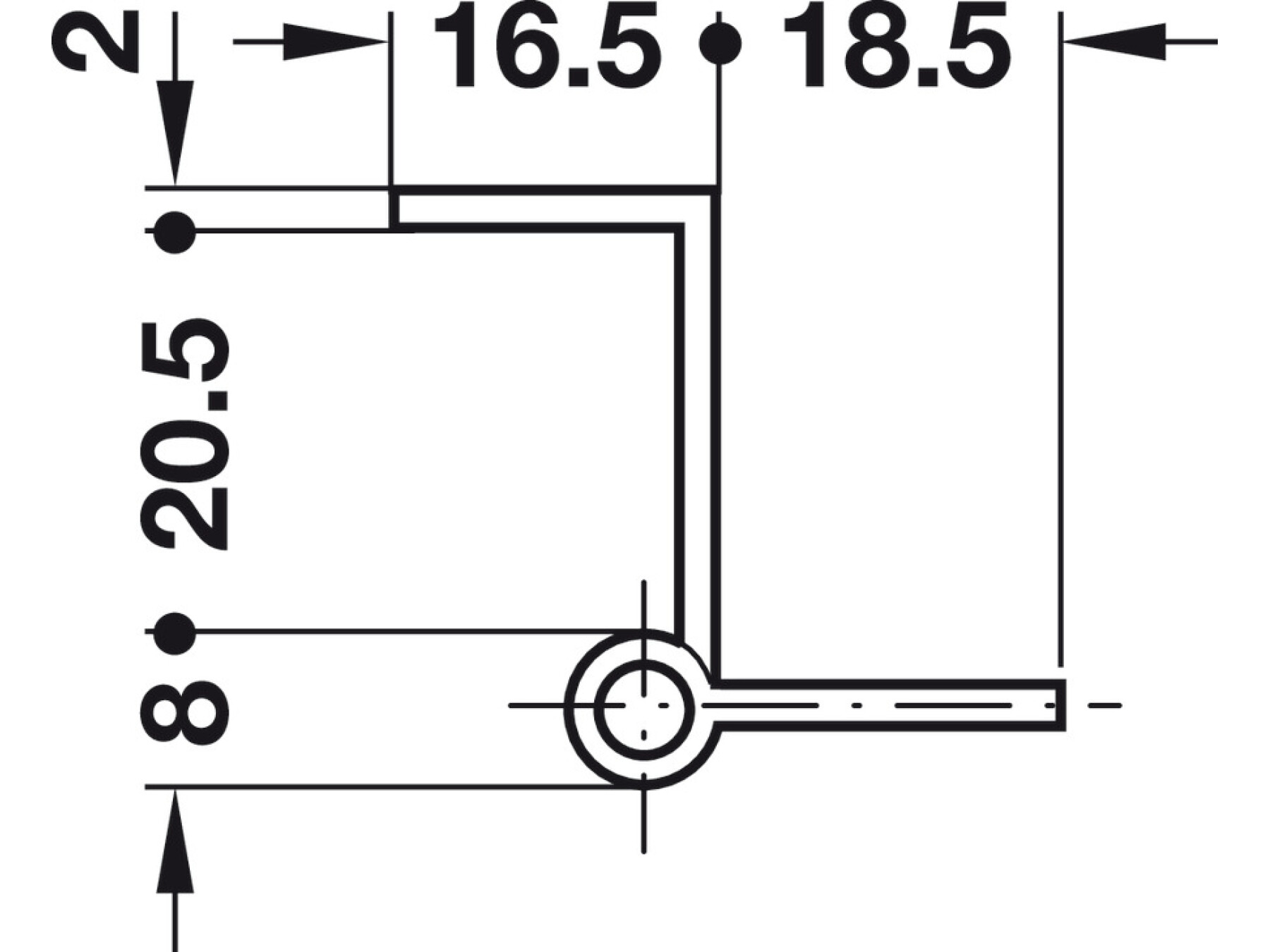

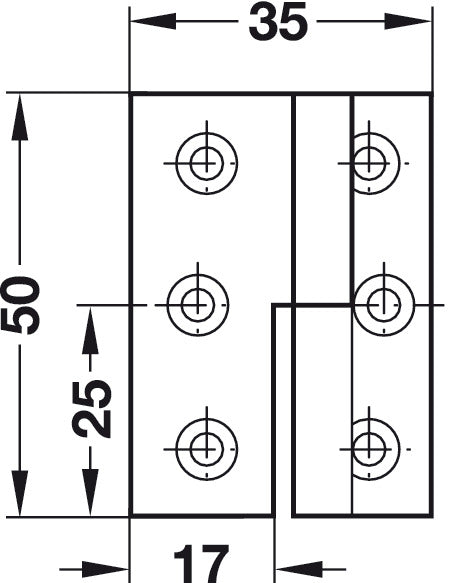

Built for performance, the hinge measures 50.00 mm in length and 35.00 mm in total width, with a 2.00 mm flange thickness. The square flange shape and L1 crank geometry ensure smooth operation when correctly installed. Its 8.00 mm knuckle diameter and 6 drill holes provide a secure fix for stable alignment over time.

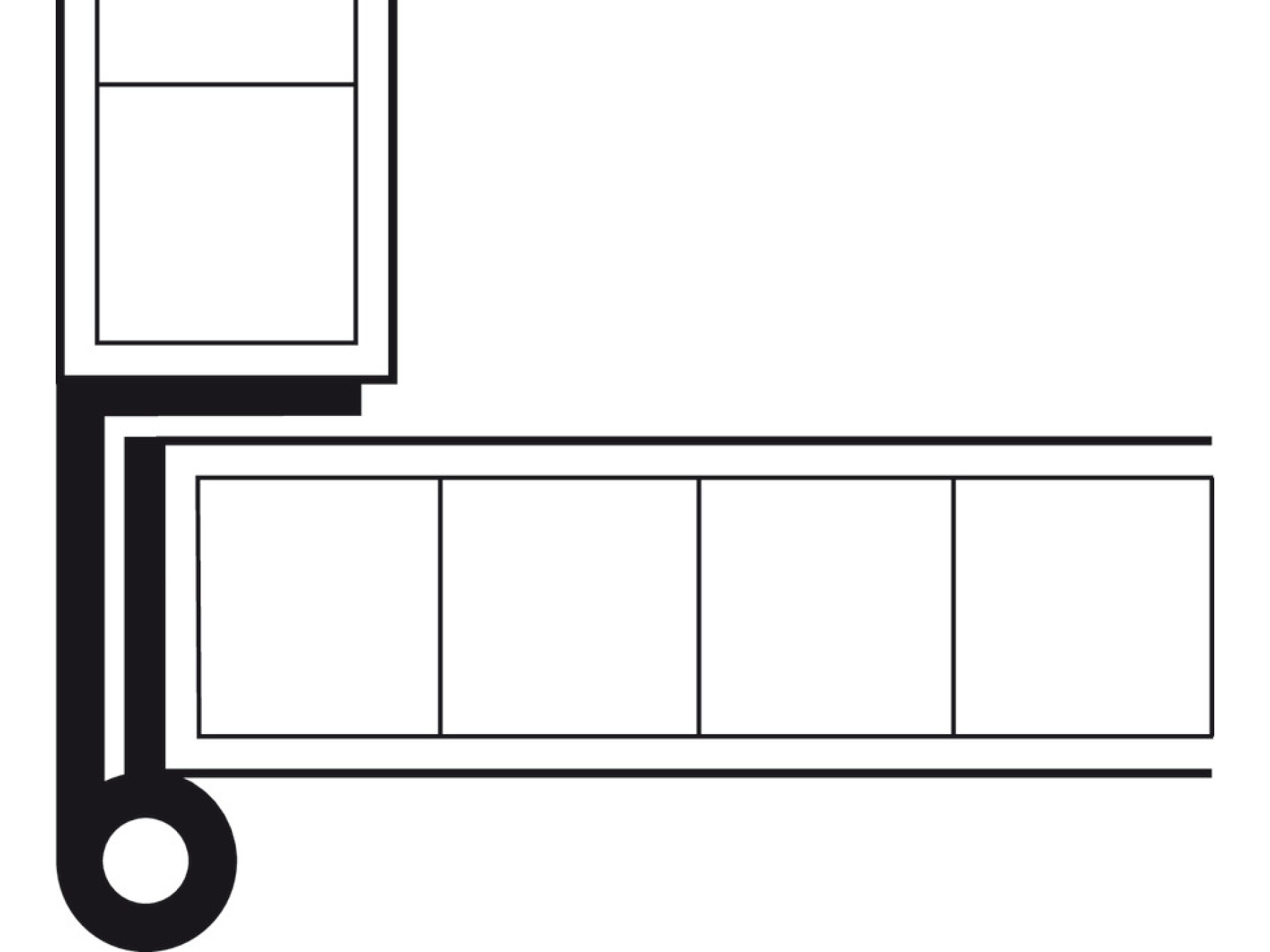

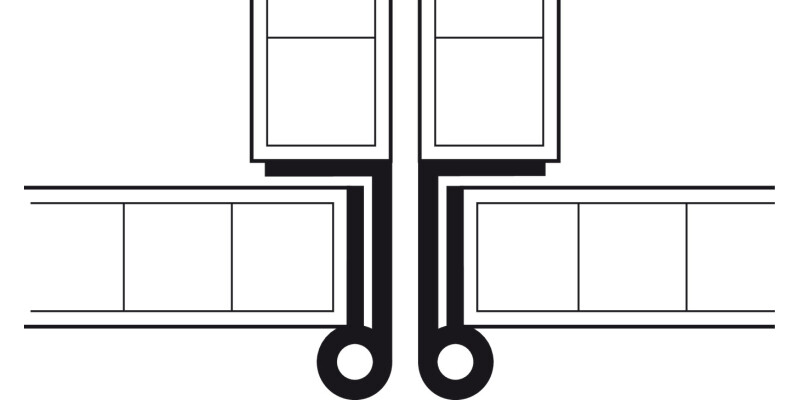

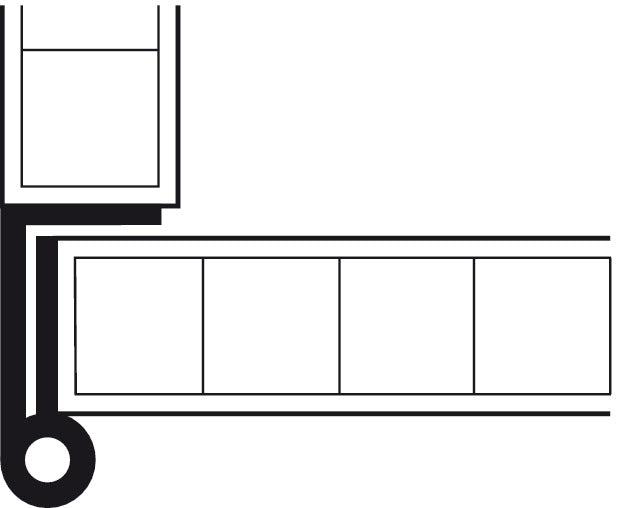

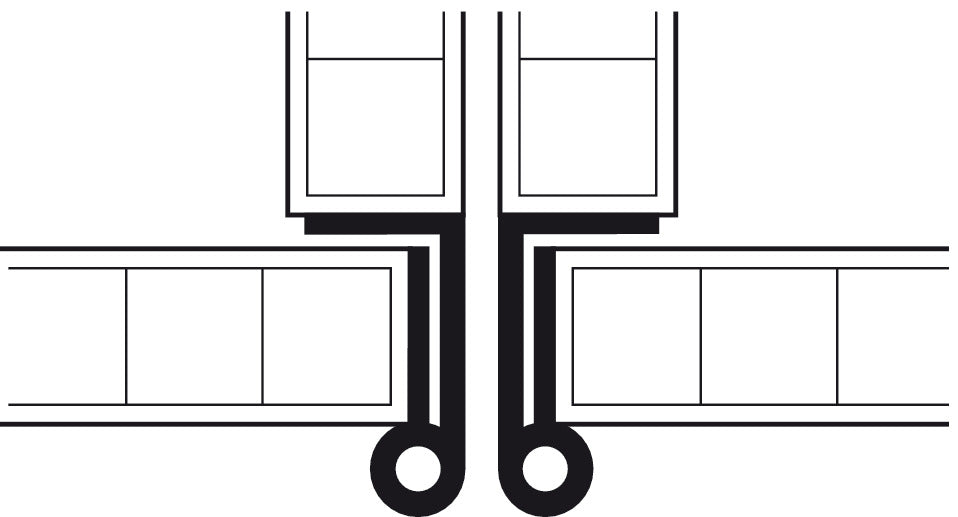

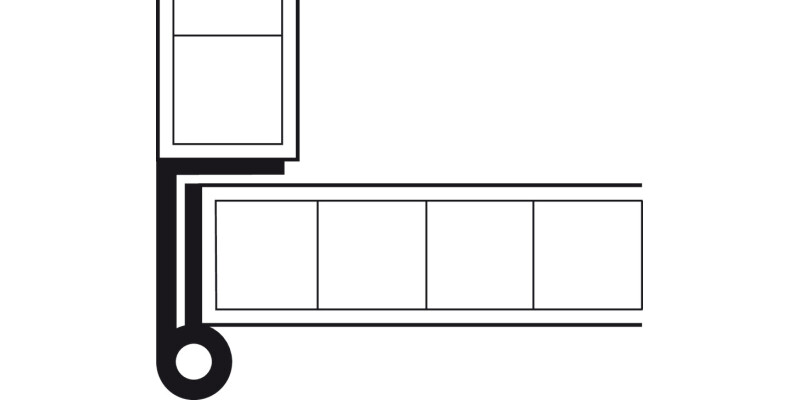

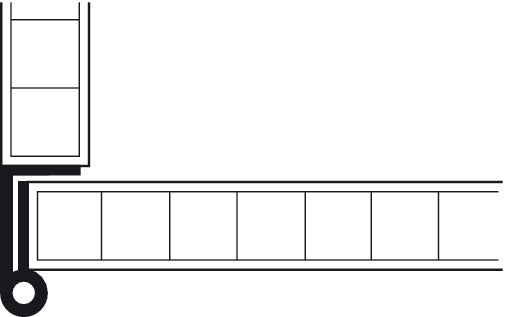

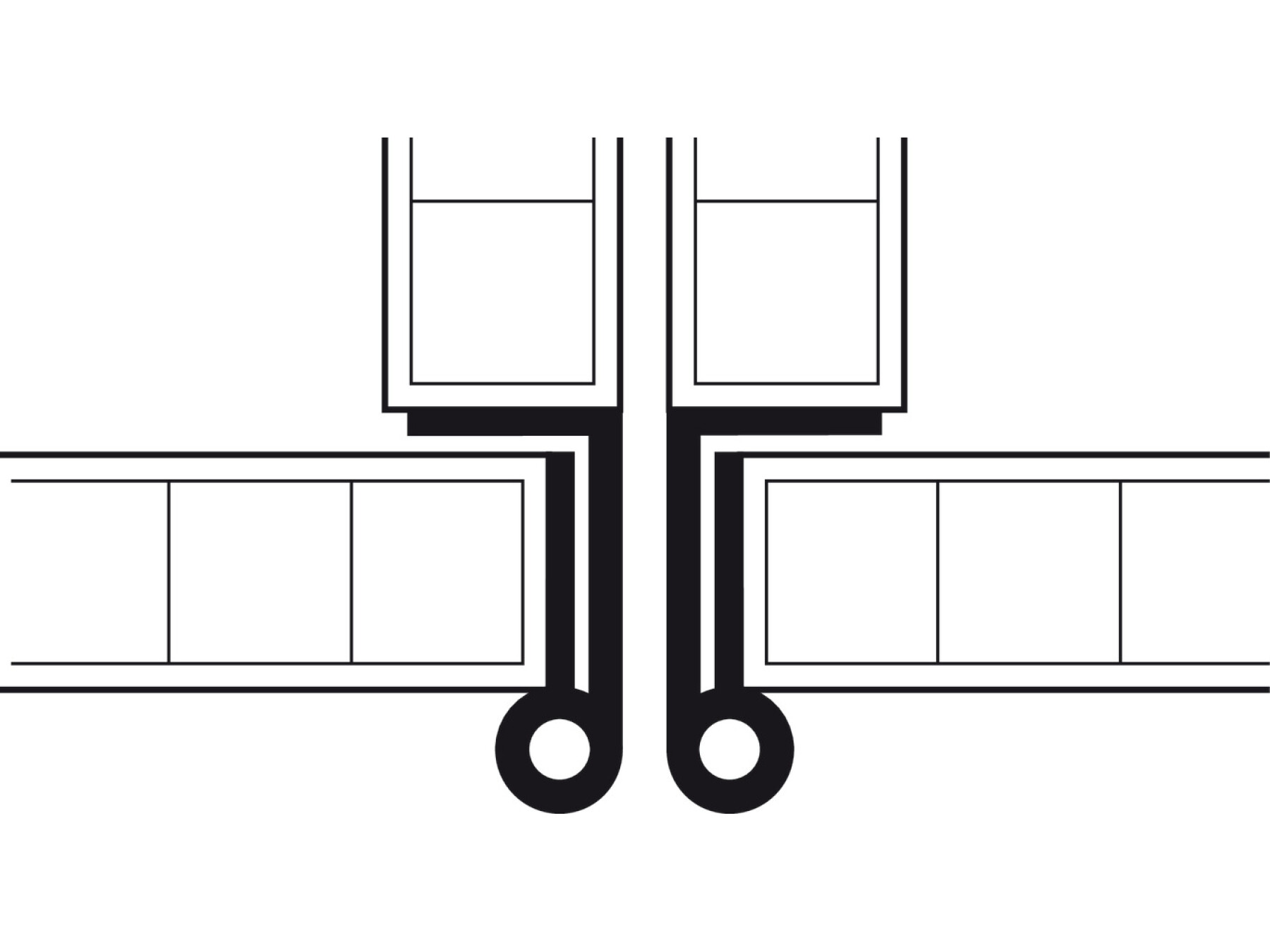

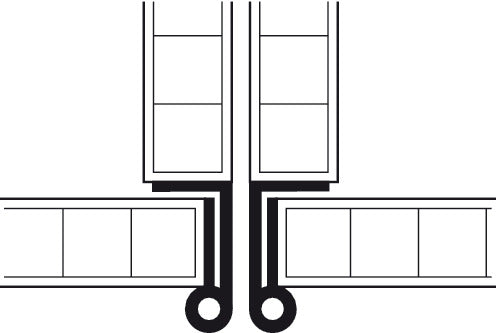

This left-hand (LH) hinge is intended for butting overlay doors and suits door thicknesses of 20–21 mm. Installation is straightforward with screw fixing, using countersunk screws separately—Order reference: Order Hospa Ø 3.0 mm countersunk screws separately.
Choose the Cranked Hinge, for Butting, Overlay Doors, Brass and upgrade your door with heritage craftsmanship, dependable engineering, and an elegant matt nickel plated finish you’ll notice every time you open the door.
Specifications
Material
Brass
Colour/finish
matt, nickel plated
Length
50.00 mm
Total width
35.00 mm
Flange thickness
2.00 mm
Knuckle diameter
8.00 mm
Number of drill holes
6.00
Product category
Cranked Hinge
Area of application
For butting overlay doors
Crank type
L1
Flange shape
square
For door thickness
20 – 21 mm
Installation
For screw fixing
Order reference
Order Hospa Ø 3.0 mm countersunk screws separately
FAQ
Product Details
Is the Cranked Hinge part 307.01.636 left hand or right hand?
This model is left hand (LH), with the crank L1 profile for the hinge side arrangement you need. If you are unsure about hand, check whether your door opening and hinge side match a left hand layout before ordering.
Will it fit an overlay door and what door thickness is supported?
Yes, it is intended for butting overlay doors and is designed for door thickness 20 to 21 mm. Using the correct door thickness helps ensure smooth operation and correct alignment.
What are the key size details of the hinge?
The hinge measures 50 mm in length and 35 mm total width, with a flange thickness of 2 mm and a knuckle diameter of 8 mm. These dimensions are useful when confirming compatibility with your existing hinge positions or door hardware layout.
How is this hinge installed and what fixing is required?
It is screw fixed using countersunk screw fitting. The order reference notes you should obtain Hospa Ø 3.0 mm countersunk screws separately, so you can match the right screw size for secure attachment.
What finish does the Cranked Hinge have and does it suit matt nickel plated systems?
It is matt nickel plated for a consistent architectural look. If you are building or refurbishing a matched set, choosing the same finish across hinges and other ironmongery can help maintain a uniform appearance.
How many fixing holes does the hinge include?
It has 6 drill holes for screw fixing. Counting the holes can help you confirm whether the hinge will suit your pre existing door and frame drilling pattern.
What does the crank type L1 mean for door alignment?
Crank type L1 refers to the hinge crank geometry that affects door swing and alignment on compatible door sets. If your project specifies L1, selecting this exact crank type helps ensure the intended closing and clearance performance.
