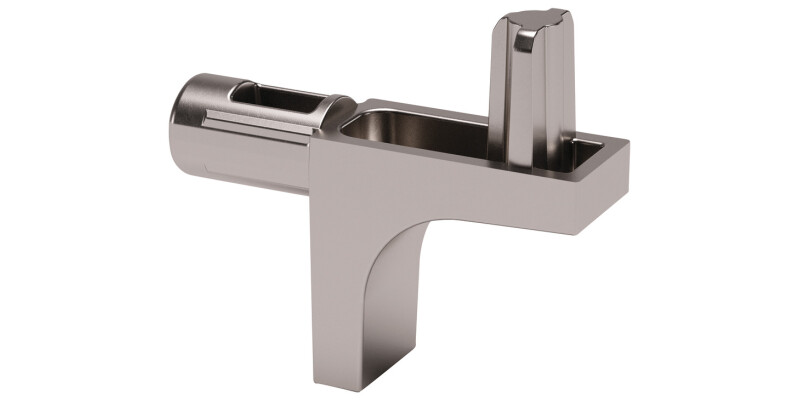

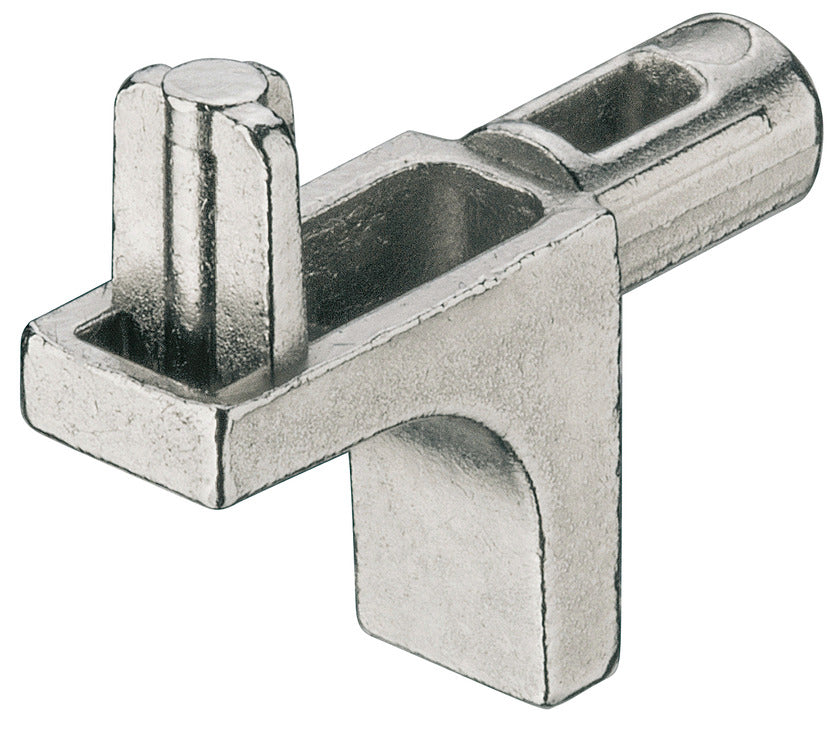

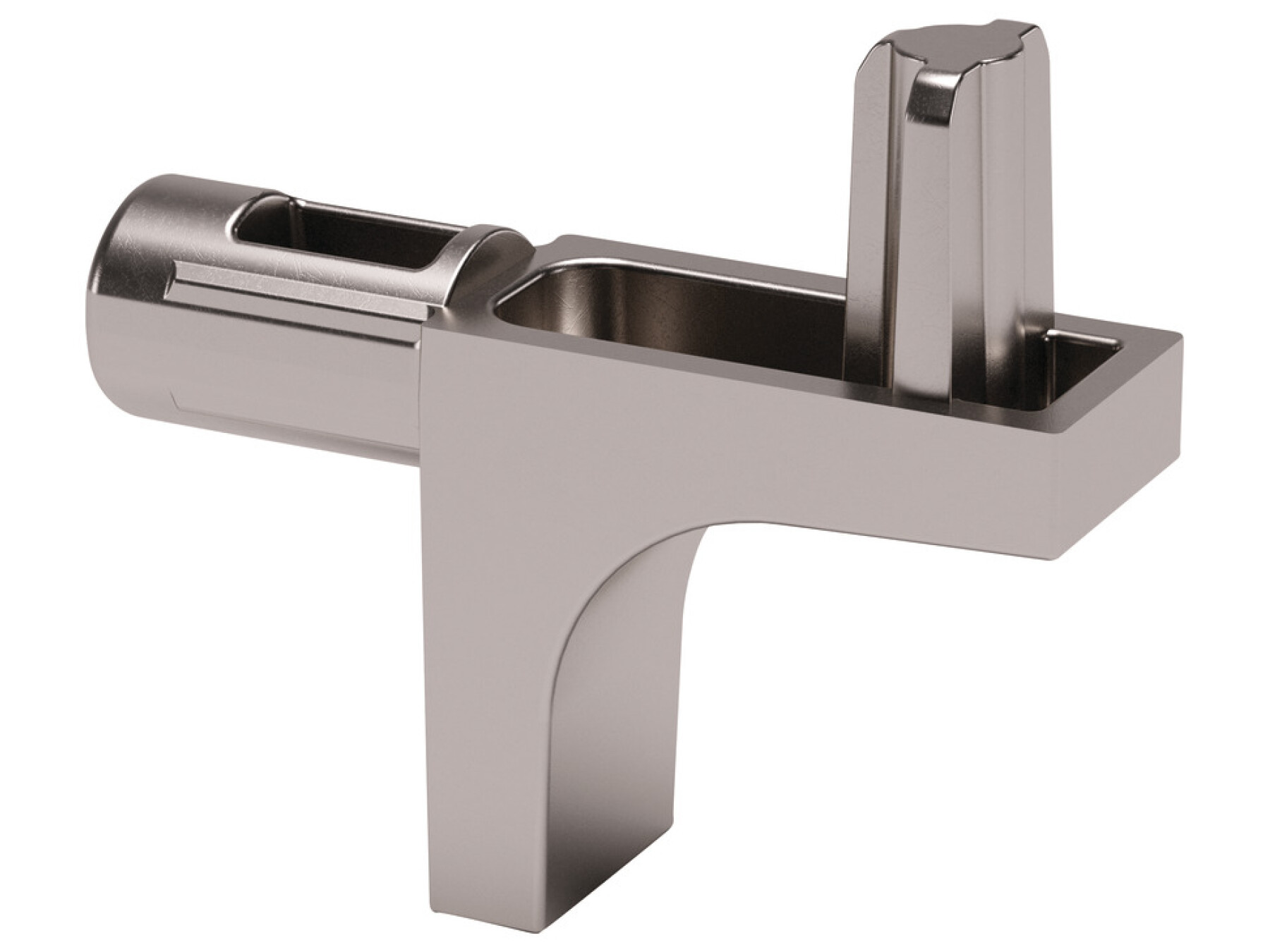

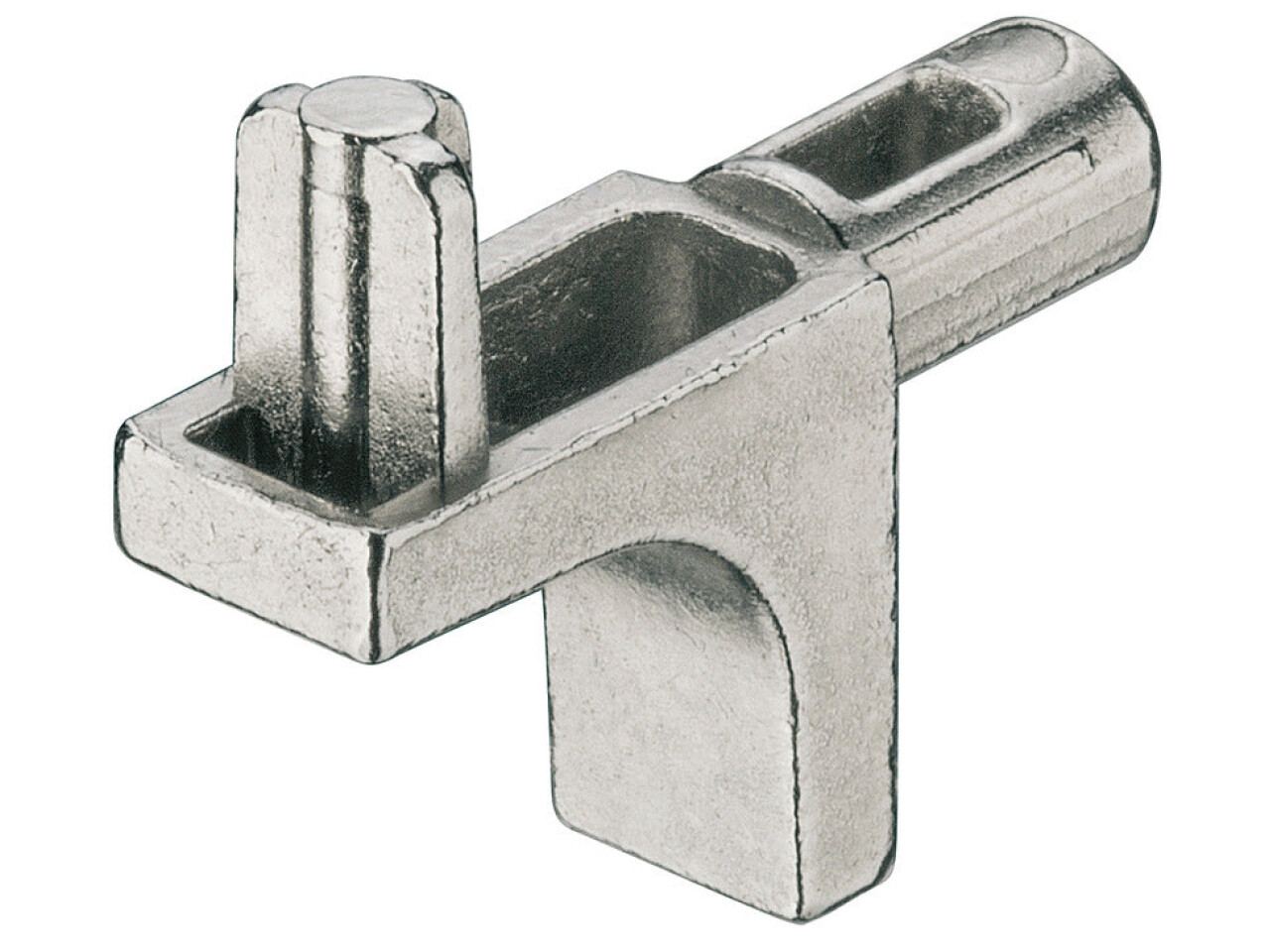

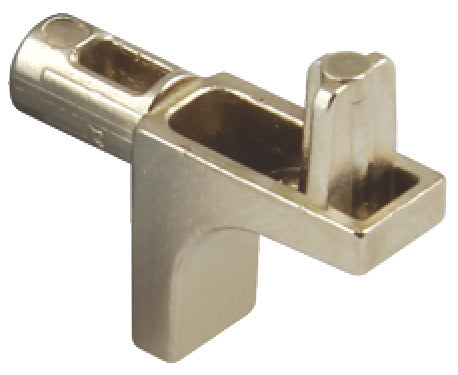

K Line Shelf Support D5mm Plug ZA Nkl
Part Number: 282.84.720
For plug fitting into drill hole Ø 5 mm, Nickel
Price:
£8.86
Per 100 Pack
With ⌀ 5 mm shelf-fixing lug Note on load bearing capacity Load bearing capacity per item, tested in... Read More
Product Information
Product Details
With ⌀ 5 mm shelf-fixing lug
Note on load bearing capacity
Load bearing capacity per item, tested in accordance with DIN EN 16337:2013-08 with 1.7 kg plate for impact test with shelf size 300 x 1000 x 19 mm, i.e. 62.4 kg load bearing capacity when using 4 shelf supports

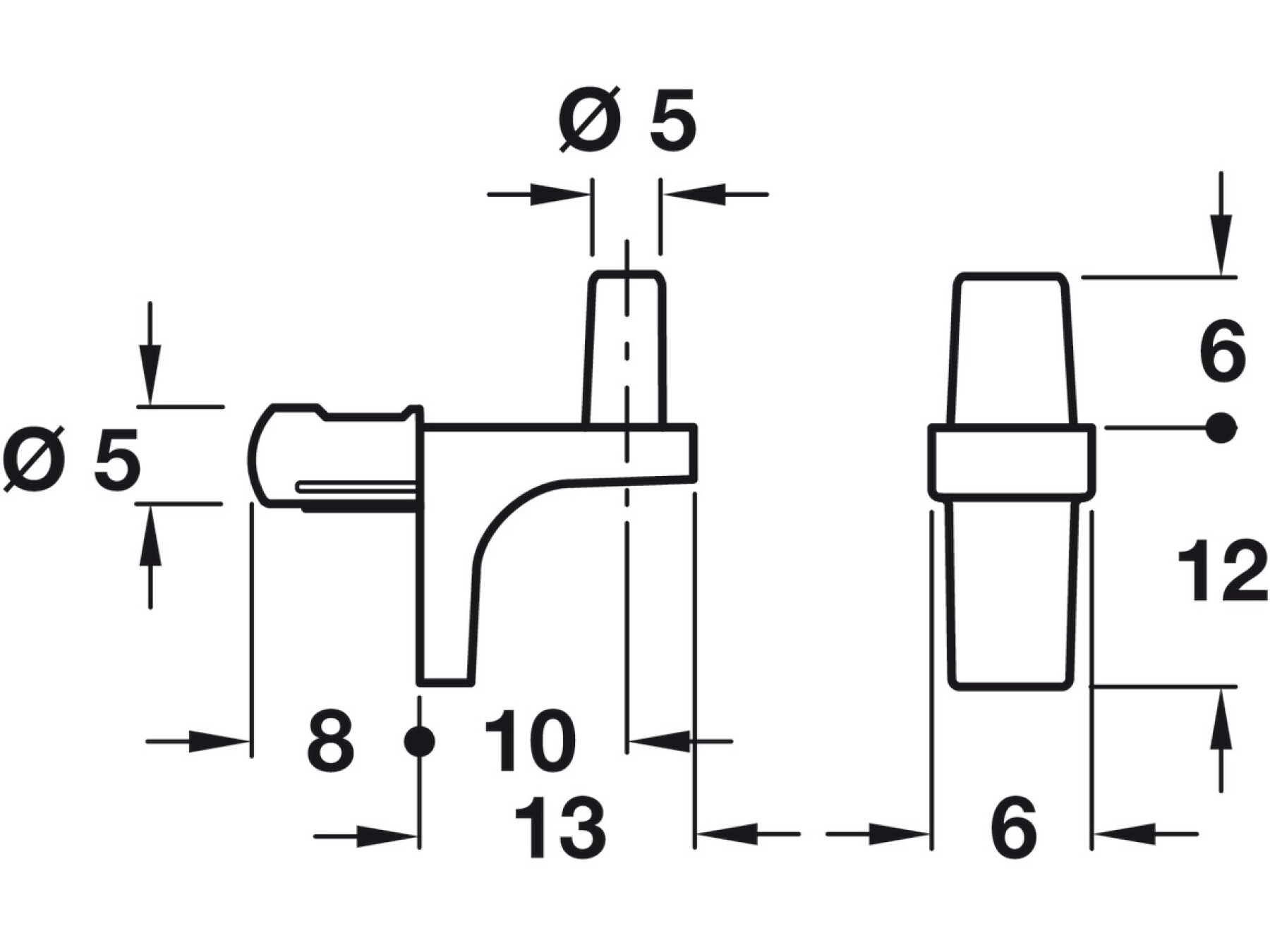

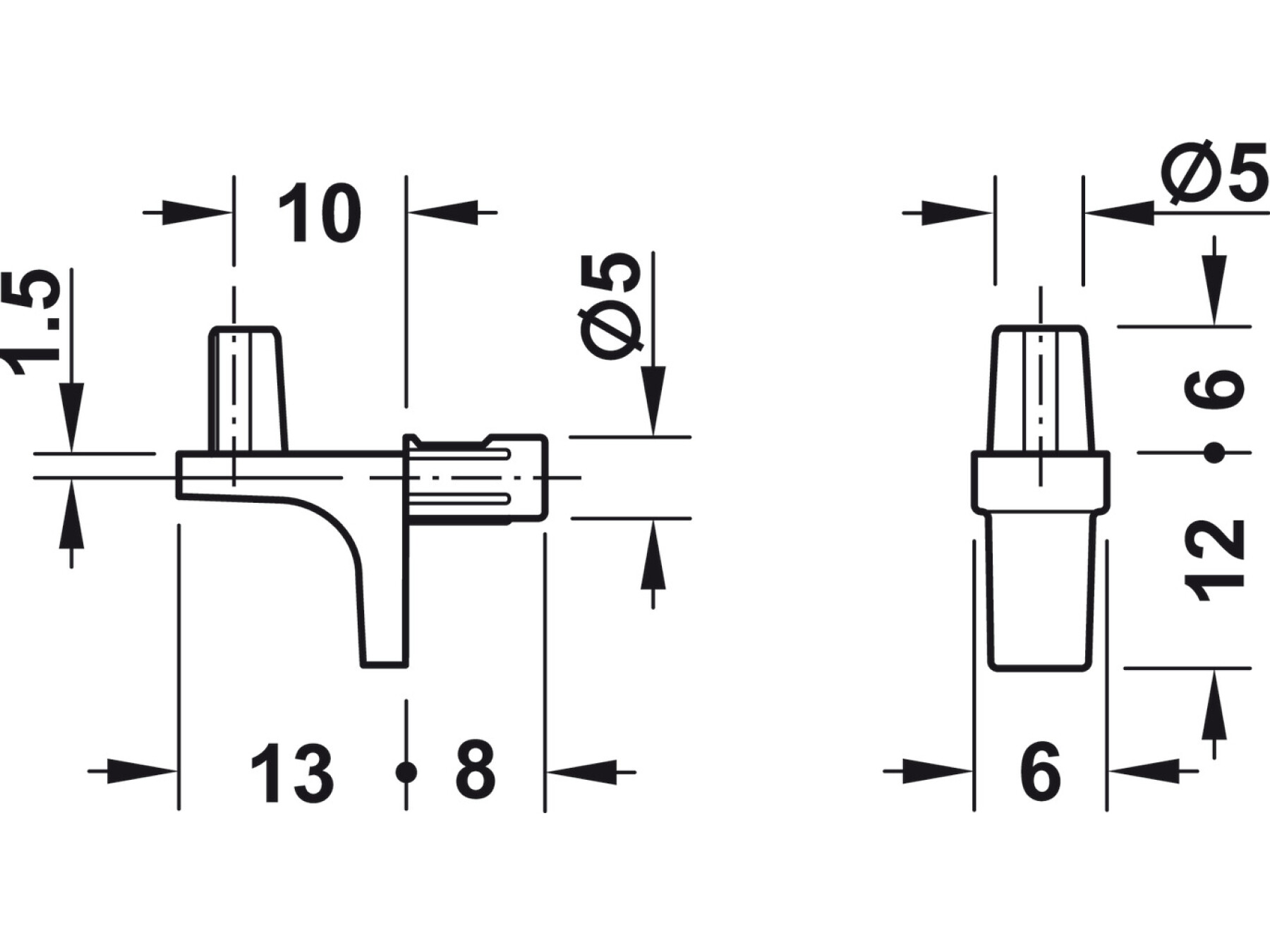

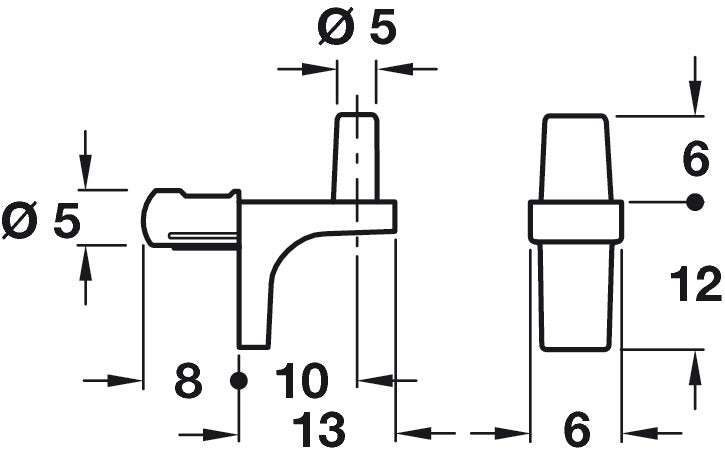

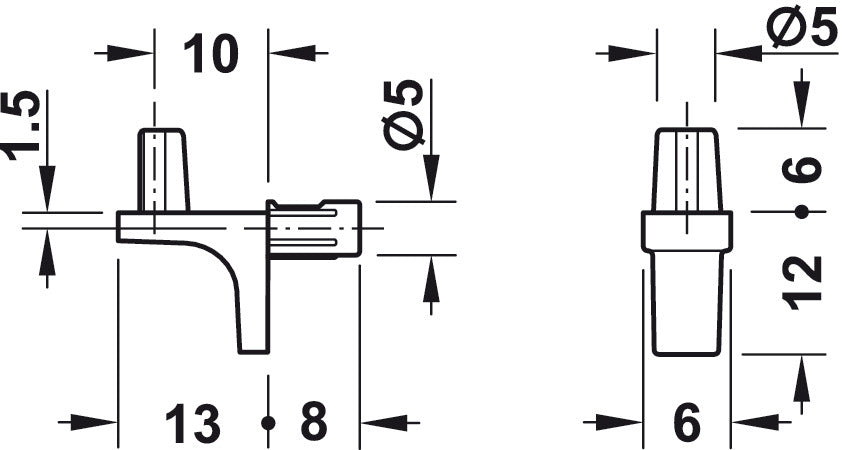

Specifications
Application

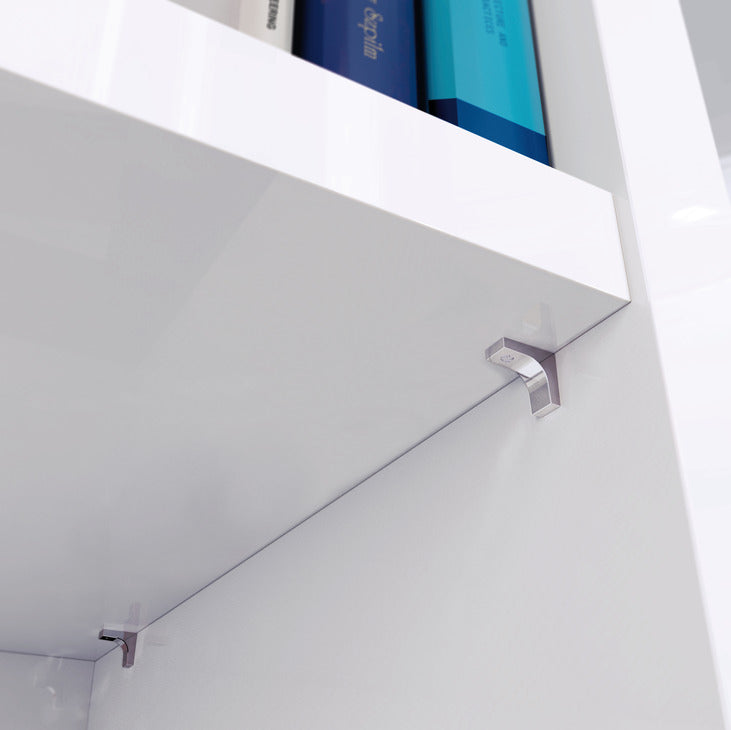

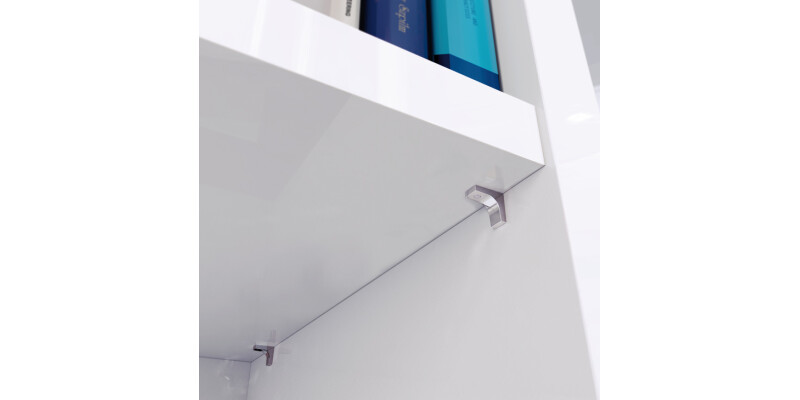

For wooden shelves
Colour/finish
nickel plated
Installation
For insert fitting

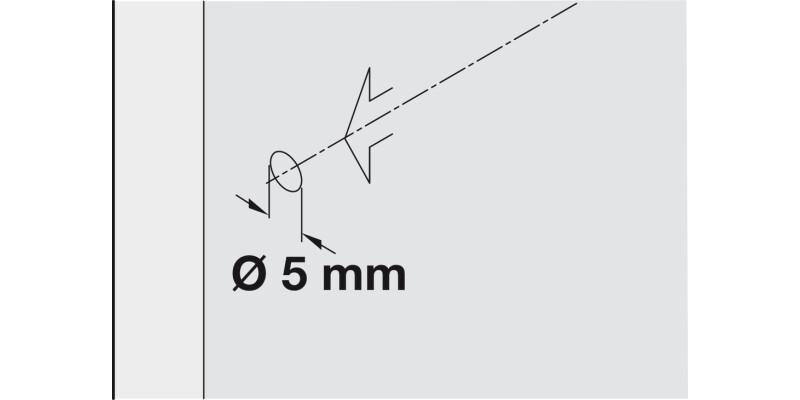

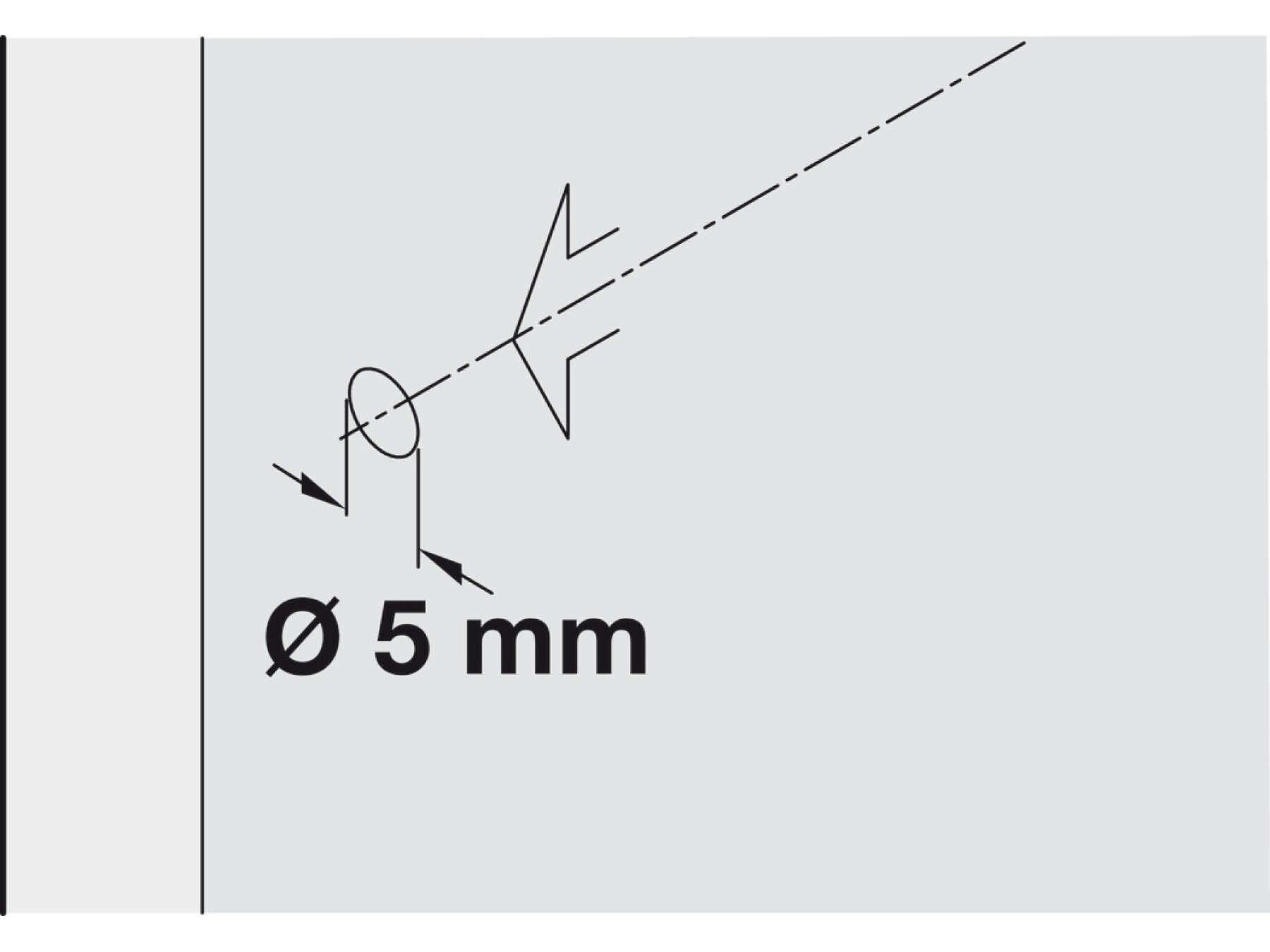

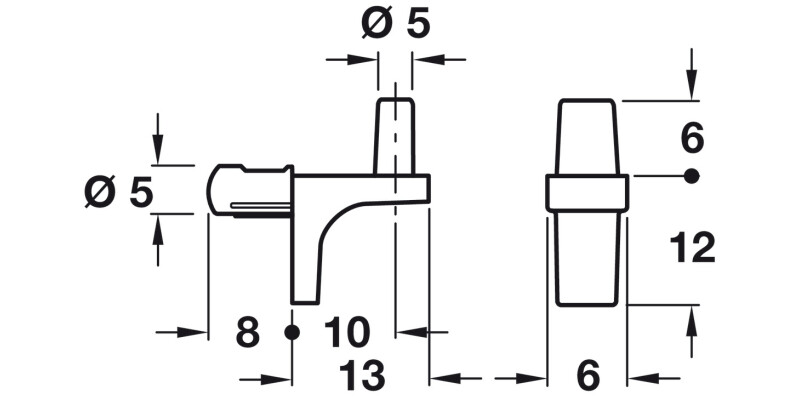

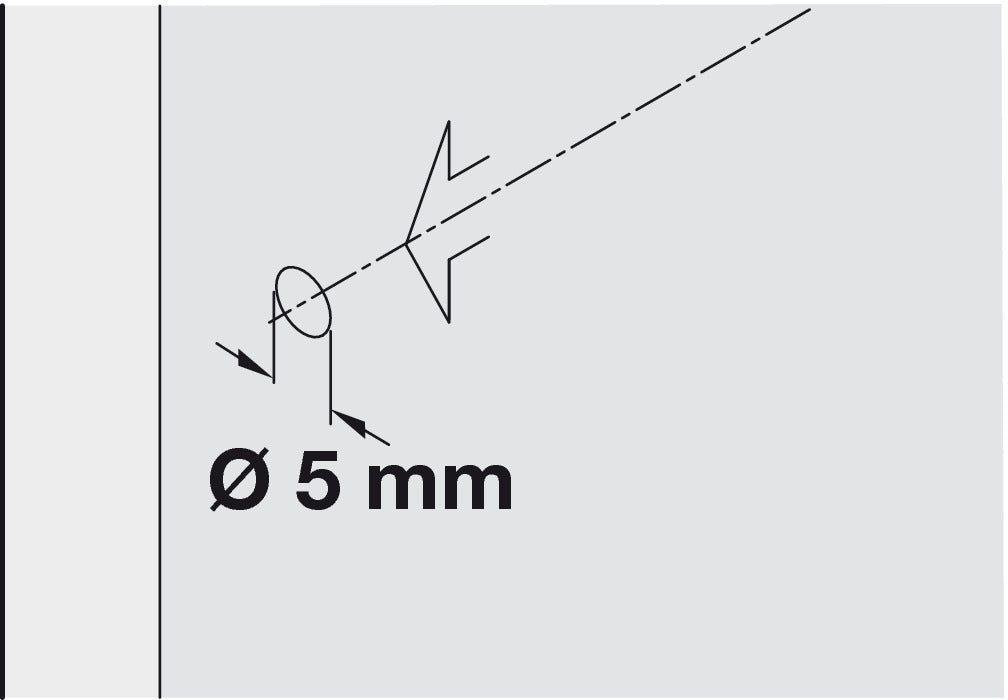

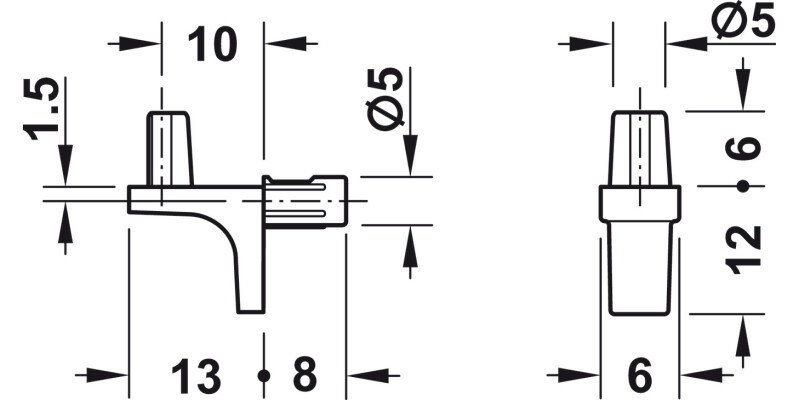

For drill hole Ø
5.00 mm
Distance fixing lug
10.00 mm
Support size
1.50 mm
Pin length
8.00 mm
Material
Zinc alloy
Load bearing capacity per item
15.60 kg
Load bearing capacity with 4 shelf supports
62.40 kg
