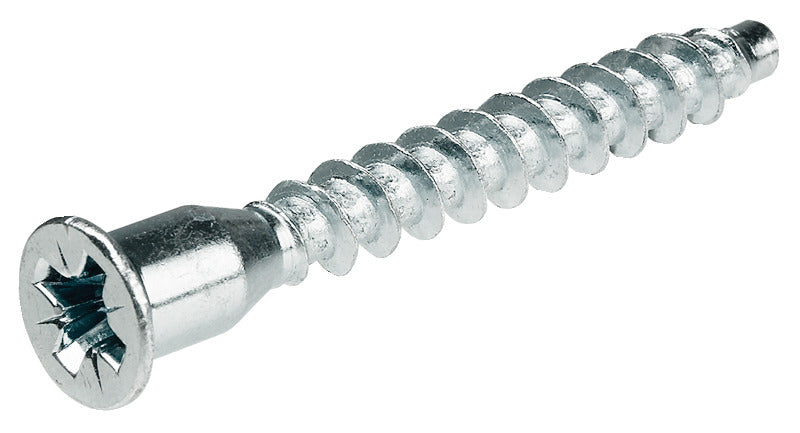

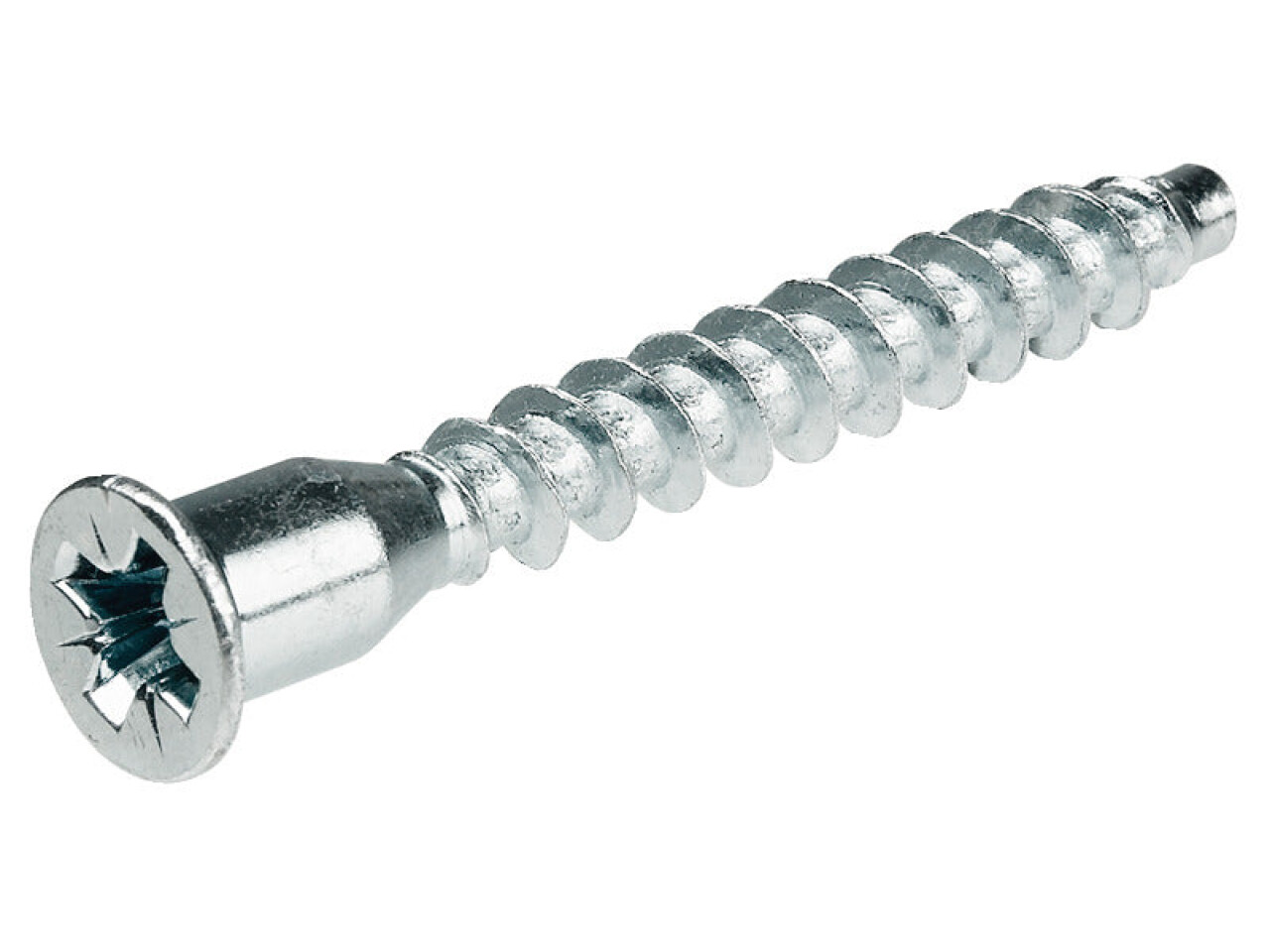

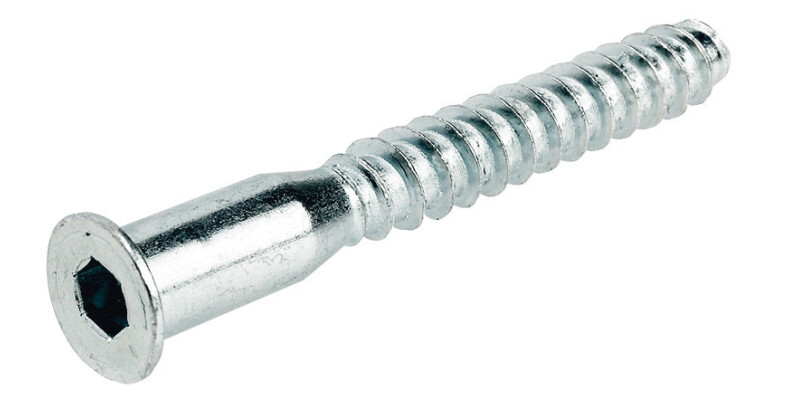

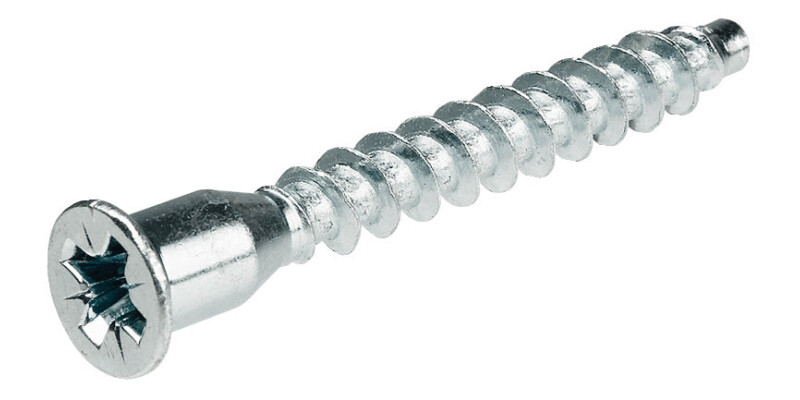

One-Piece Connector, with Ø 10 mm Head, for Ø 5 mm Drill Hole, Confirmat

Product Details

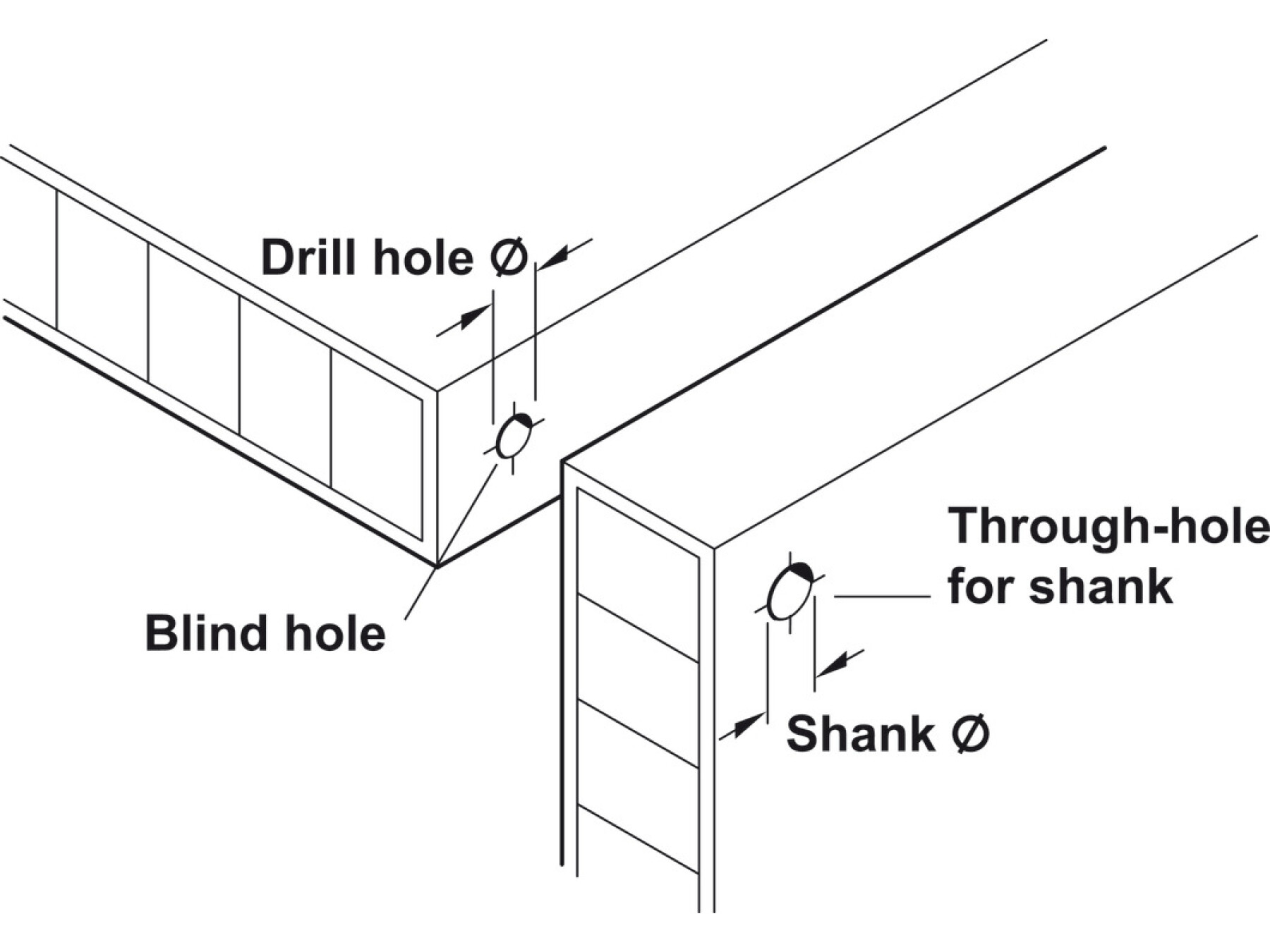

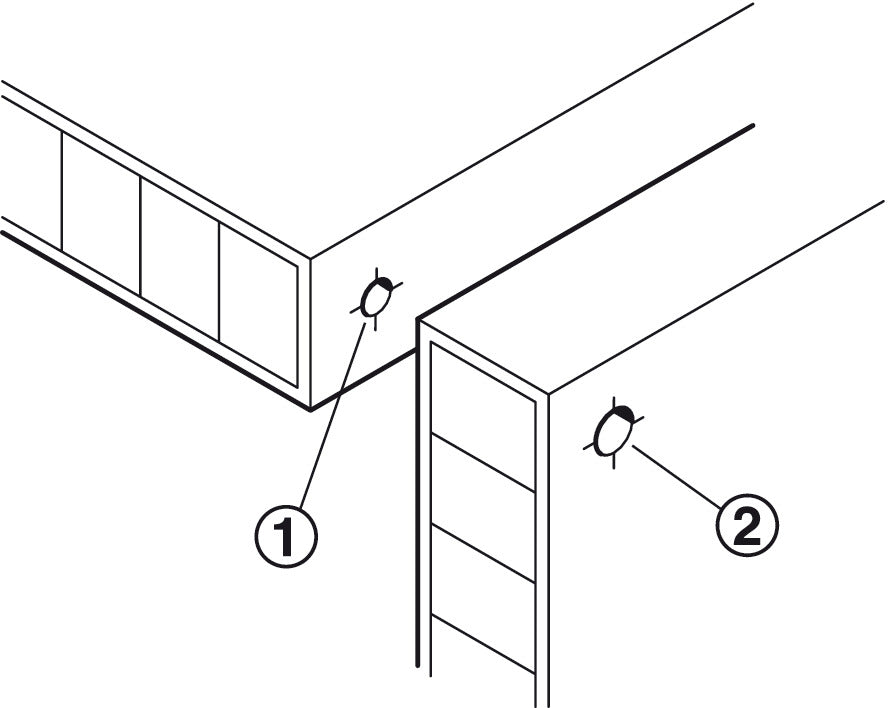

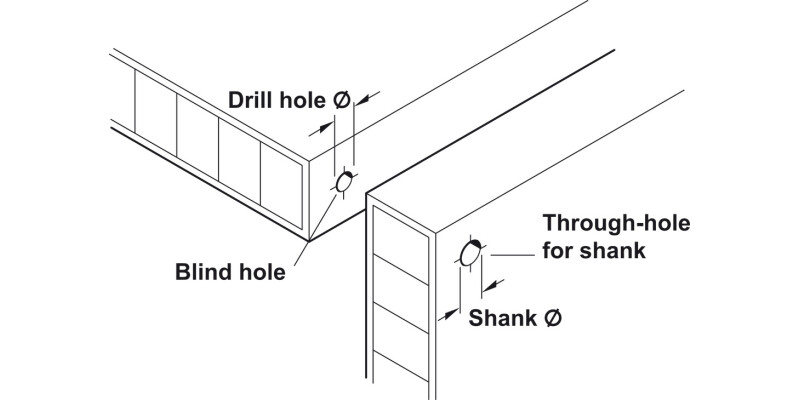

Which drill size should I use for this Confirmat connector?

This screw is designed for a 5.00 mm drill hole. Using the correct pilot hole helps the connector seat properly and reduces the risk of splitting in wood based materials.

What drive type is used on the head?

The head uses a PZ3 cross slot drive. This matches standard PZ3 screwdriver and bit sizes, making it easy to install with common tools.

Is the connector drilled and what is the central hole size?

Yes, it is supplied drilled. The central hole diameter is 3.00 mm, which can be useful for applications that require alignment or controlled passage of a fitting.

What size is it, and will it suit my shelf support or connector setup?

The product is Size 3. If you are replacing an existing connector, matching the size helps maintain correct fit and spacing with compatible shelf support and connector components.

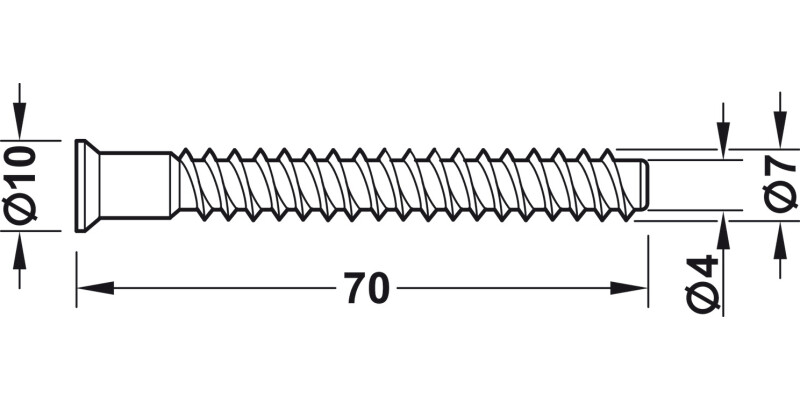

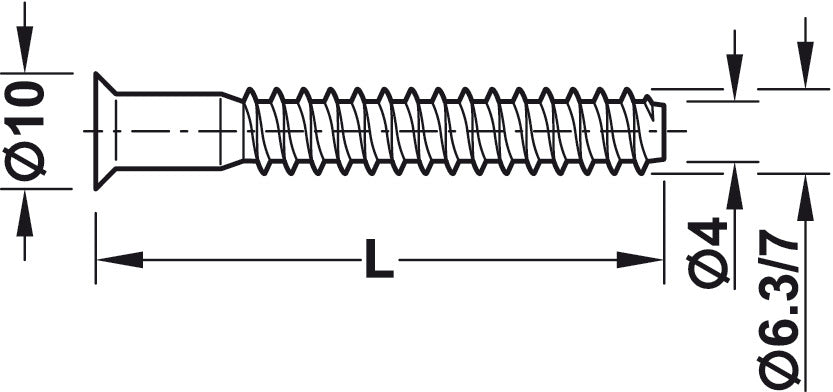

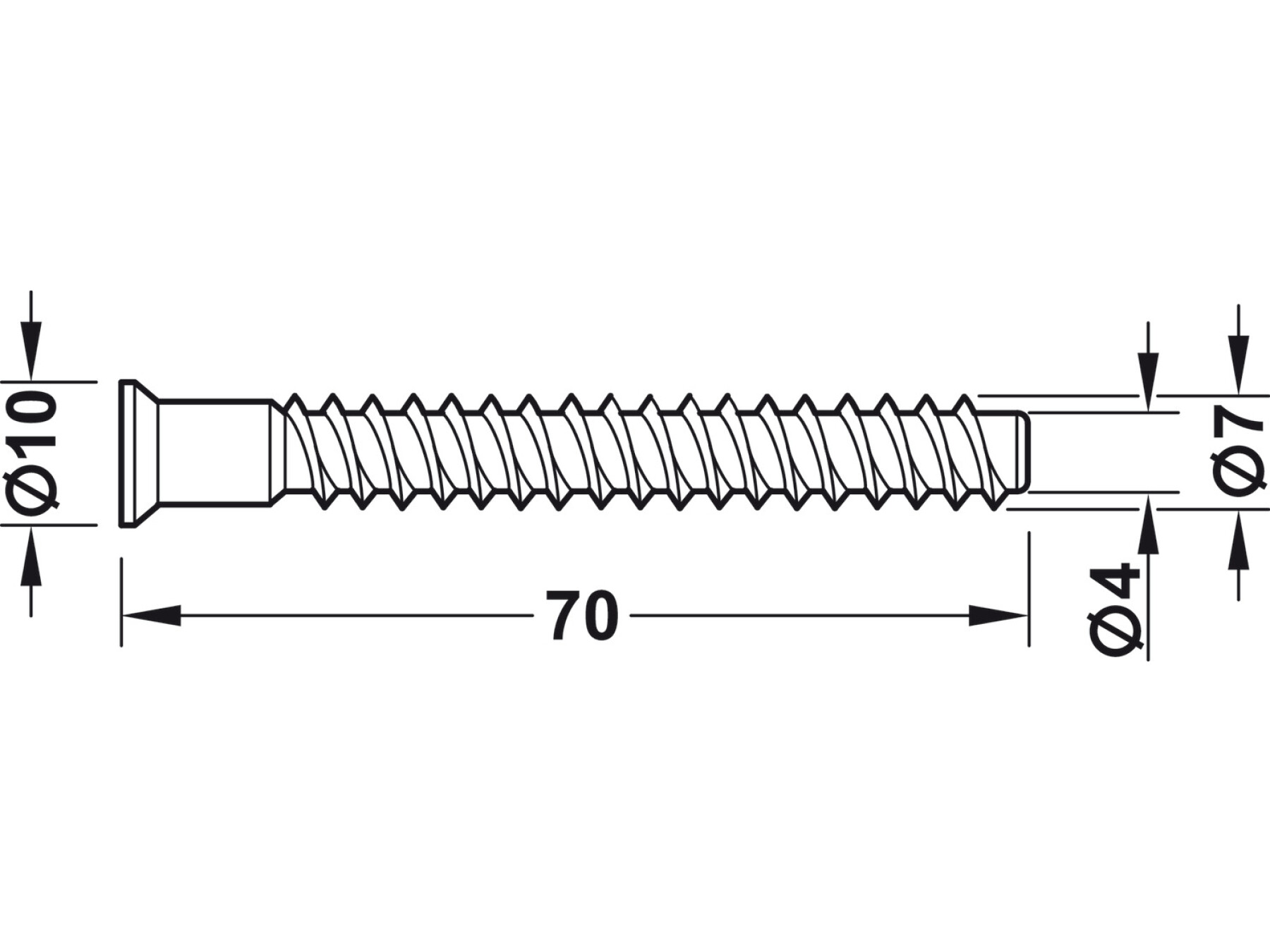

How long is the screw and does the shaft diameter matter?

It has a 70 mm length and a 7.00 mm shaft diameter. These dimensions are important for ensuring the screw reaches the required depth without bottoming out.

What finish does it have and is it suitable for everyday indoor use?

It is galvanized with a zinc plated finish. This coating helps protect the steel against corrosion, making it well suited for typical living and commercial furniture installations where a durable fastener is needed.

How do I tell if the countersunk head will sit correctly?

This connector features a countersunk head. When fitted into a prepared seating, it is designed to sit flush or near flush, helping you achieve a tidier, more professional furniture finish.
