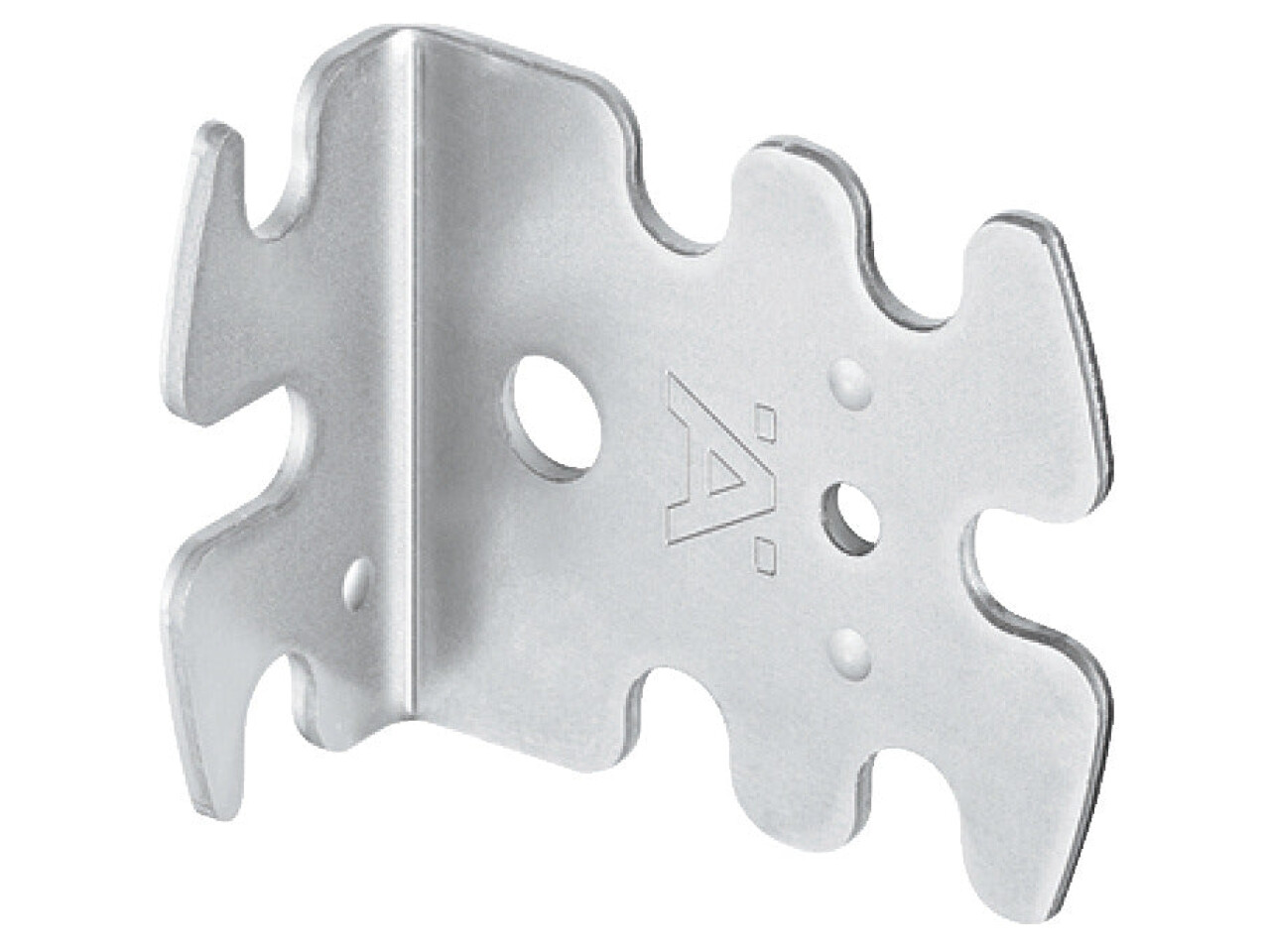

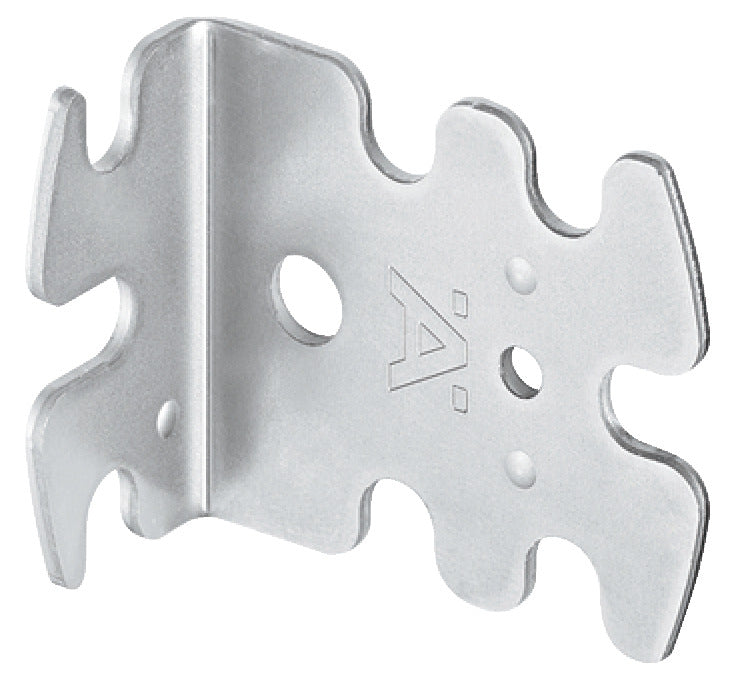

Universal Bracket, Steel, for System Varianta 32 Series-Drilled Holes

Product Details

Can the Universal Bracket Varianta 32 be used for both inset and overlay furniture parts?

Yes. This bracket is designed for connecting cabinet elements and for attaching rear panels, and it works for inset and overlay furniture parts when used with the correct drill system and fitment. It is ideal for building reliable cabinet frames and back panel connections.

Which drilled hole system is this bracket compatible with?

It is for System 32 drilled holes. The product is intended for use with furniture elements that follow the System 32 layout, so you can achieve correct alignment and a consistent fit across compatible components.

How is the bracket installed and what fixings do I need?

Screw fixing is required. The bracket is installed using screws sized for the Varianta application. If you need to order them separately, Varianta screws Ø 3.0 and Ø 5.0 mm are available by request, which helps ensure you match the screw to your cabinet build requirements.

What are the key dimensions and leg length for planning your build?

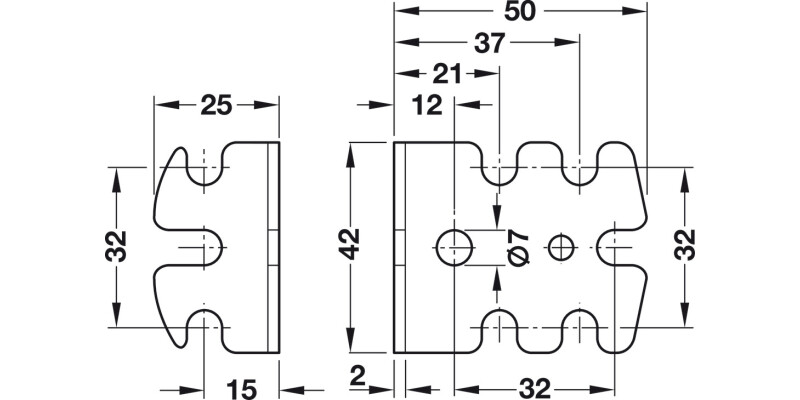

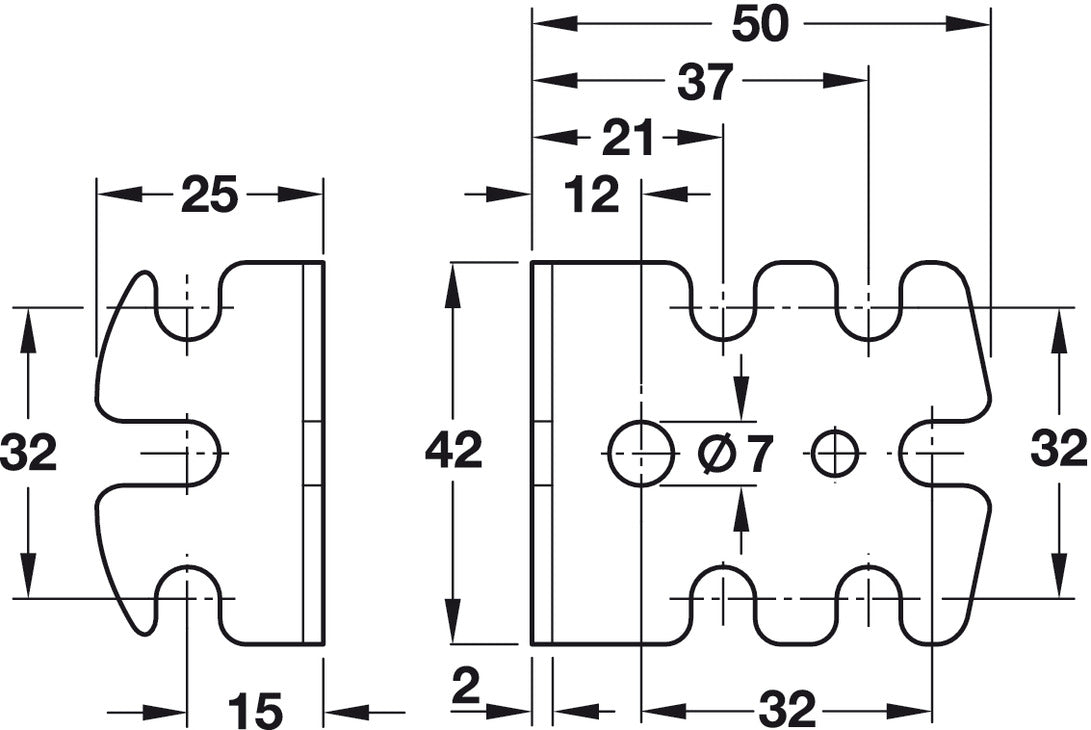

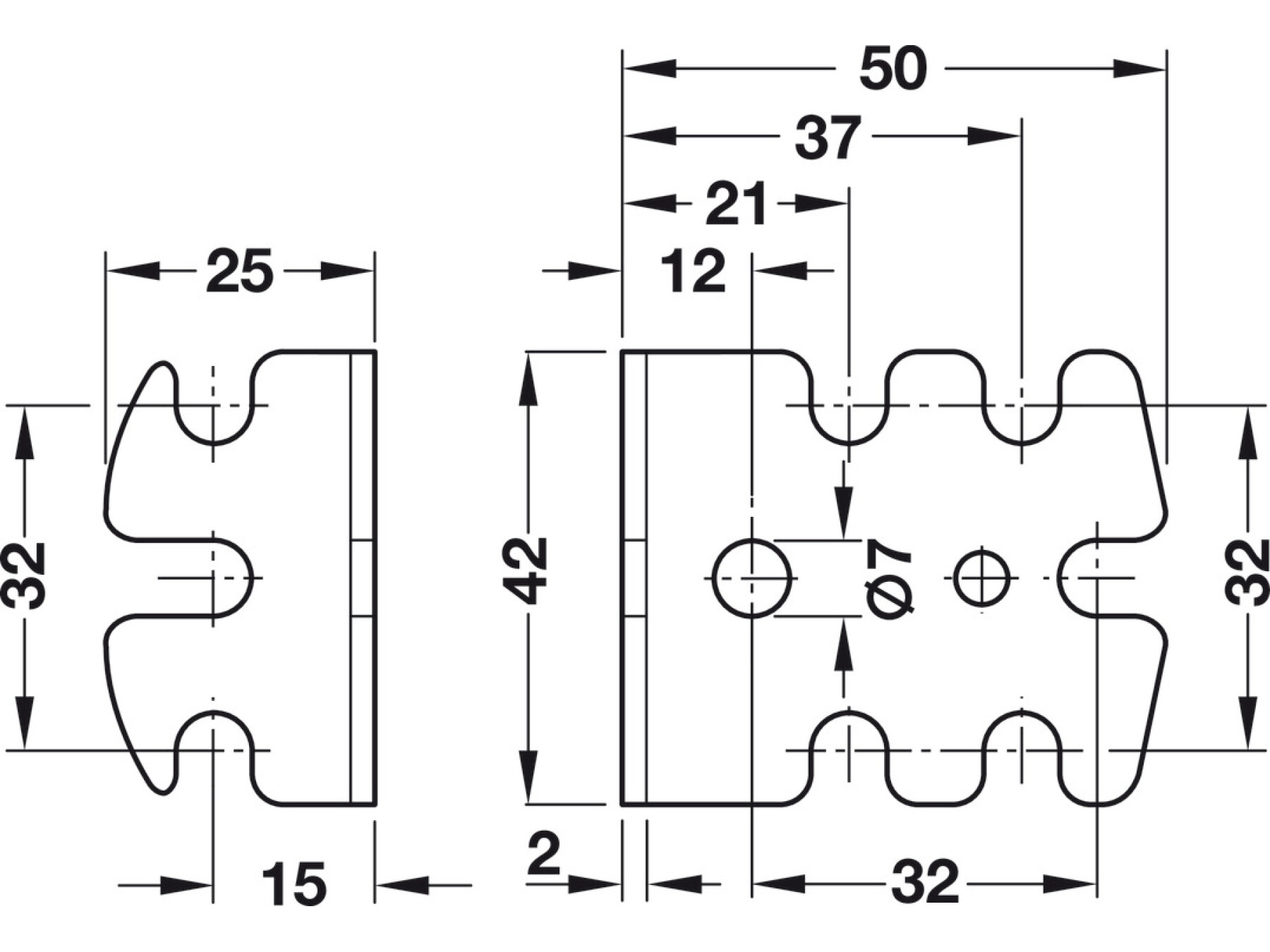

Leg length is 50 mm or 25 mm, and the bracket width is 42.00 mm. Material thickness is 2.00 mm. These details help when you are checking clearance behind panels, planning positioning, and confirming compatibility with existing furniture components.

Will it suit damp areas, or is it only for interior use?

It is bright galvanized for protection. This bright zinc plated finish is intended to improve corrosion resistance for typical furniture environments. It is well suited to most indoor living and commercial settings where brackets may be exposed to everyday humidity levels.

What does the finish look like, and will it affect appearance?

The bracket finish is bright zinc plated. This provides a clean metallic appearance and consistent surface protection. If you are using visible connectors or planning a neat overall build, the bright galvanized look can help maintain a tidy result.

Is there a guarantee for this bracket?

Yes. The Universal Bracket Varianta 32 comes with a Hafele Lifetime Guarantee of 25 years, giving confidence in the quality and long term durability of the connector for supported furniture applications.

What part number should I use when ordering replacements or planning a larger project?

Use part number 264.25.929 when ordering. If you are standardising a project across many cabinet units, having the correct part number and matching compatible screws will help you keep assembly consistent from one unit to the next.
