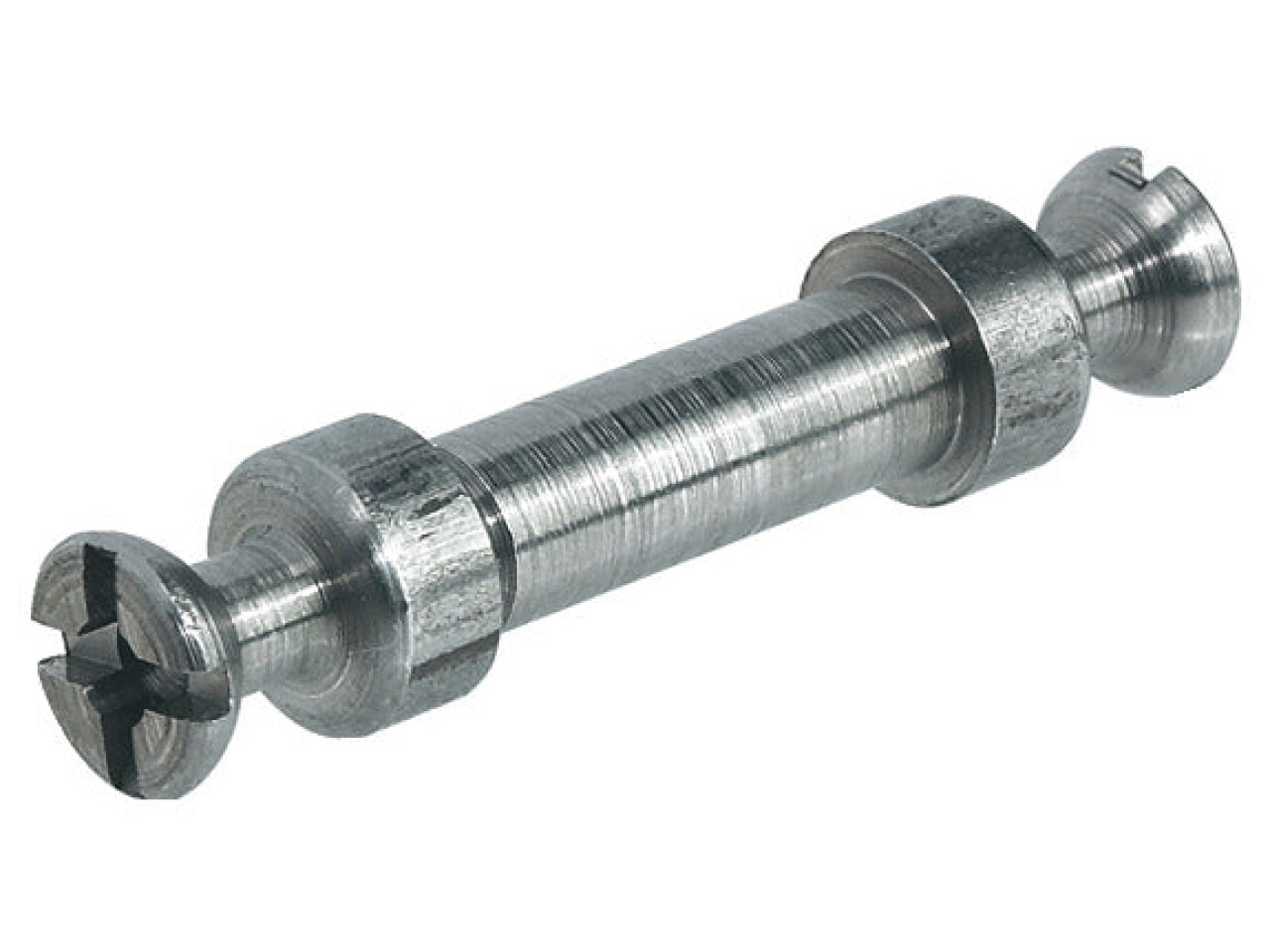

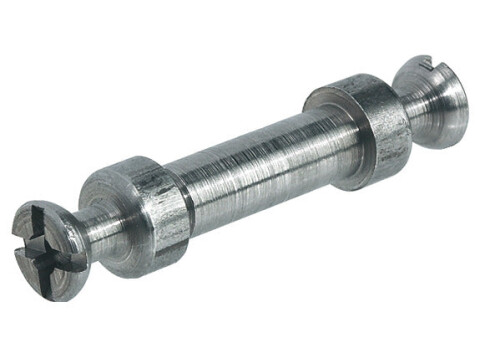

Double-Ended Bolt, for Installation Through Ø 5 mm Holes, Steel, Rafix 20-TAB

Product Details

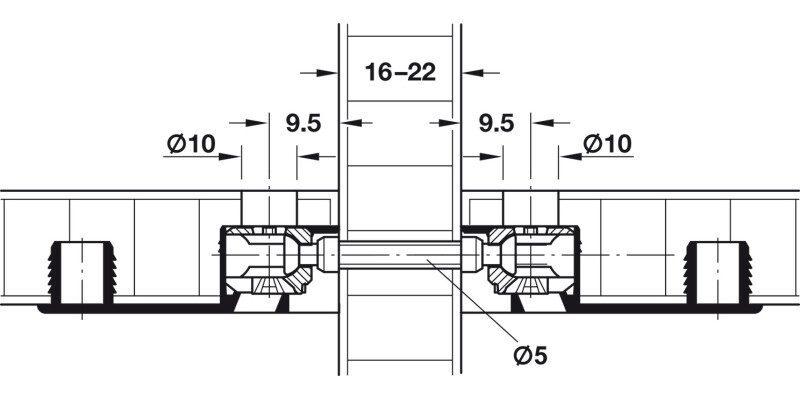

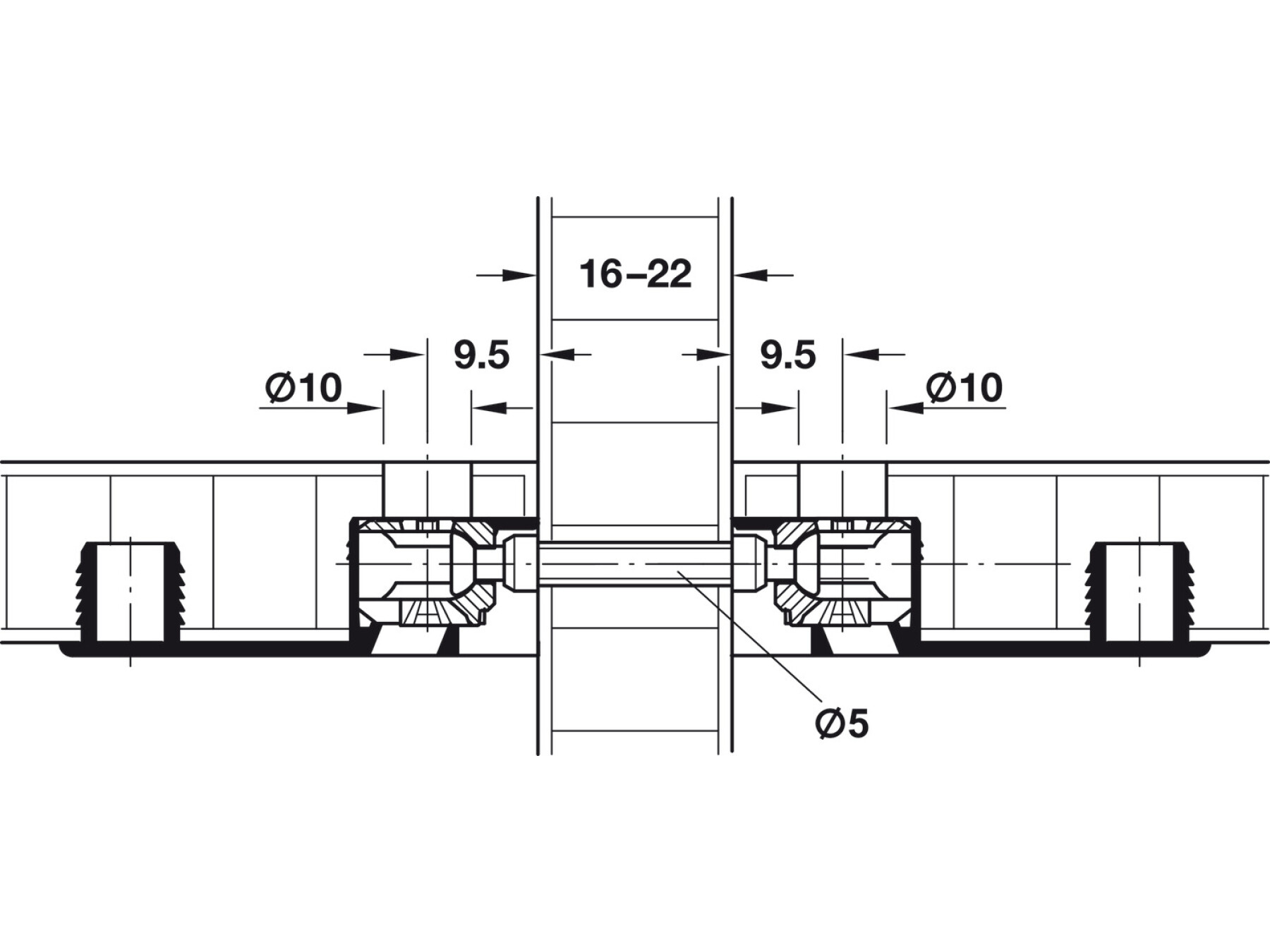

Double-Ended Bolt, for Installation Through Ø 5 mm Holes, Steel, Rafix 20-TAB. (Product Part No: 263.24.041) is the reliable double-ended fixing solution designed for secure, professional furniture and commercial installations. Built to work with panel thicknesses from 16–22 mm, this bolt helps you achieve strong, long-lasting connections where accuracy and durability matter.

Engineered for double-sided installation, the Rafix 20 Tab Bolt supports smooth alignment and a clean assembly process. Simply screw the components together, then clamp using enclosures for a stable joint that stands up to everyday use—ideal for both living spaces and high-traffic commercial environments.

Made from steel, this hardware component is built for strength and consistent performance. The bolt hole size is 5.00 mm, helping ensure a precise fit during installation. For driving, it uses a PZ2 cross slot and a flat blade style, making it compatible with standard fitting tools and enabling efficient tightening.

Designed with longevity in mind, this Rafix bolt is backed by the Hafele Lifetime Guarantee for 25 years. That means greater confidence for installers, furniture manufacturers, and homeowners alike—choose Rafix and build connections you can trust.

Upgrade your next project with the Double-Ended Bolt, for Installation Through Ø 5 mm Holes, Steel, Rafix 20-TAB.—a practical, sturdy connector that delivers secure panel-to-panel results.
