Connector Housing, Plastic, Rafix-20

Product Details

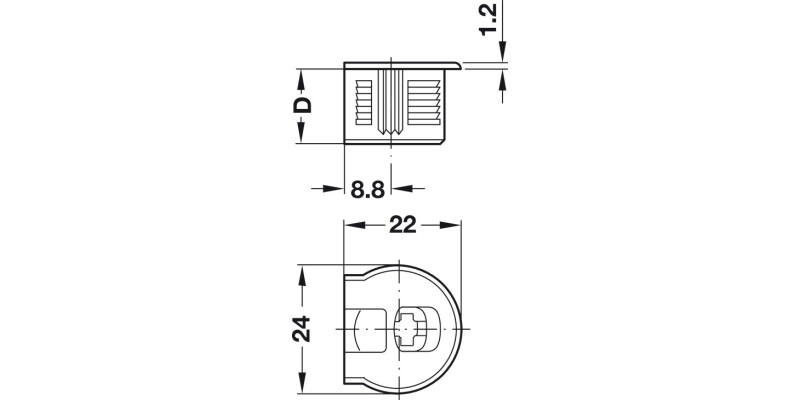

What is the Rafix 20 Housing w Ridge 19mm Pl White used for?

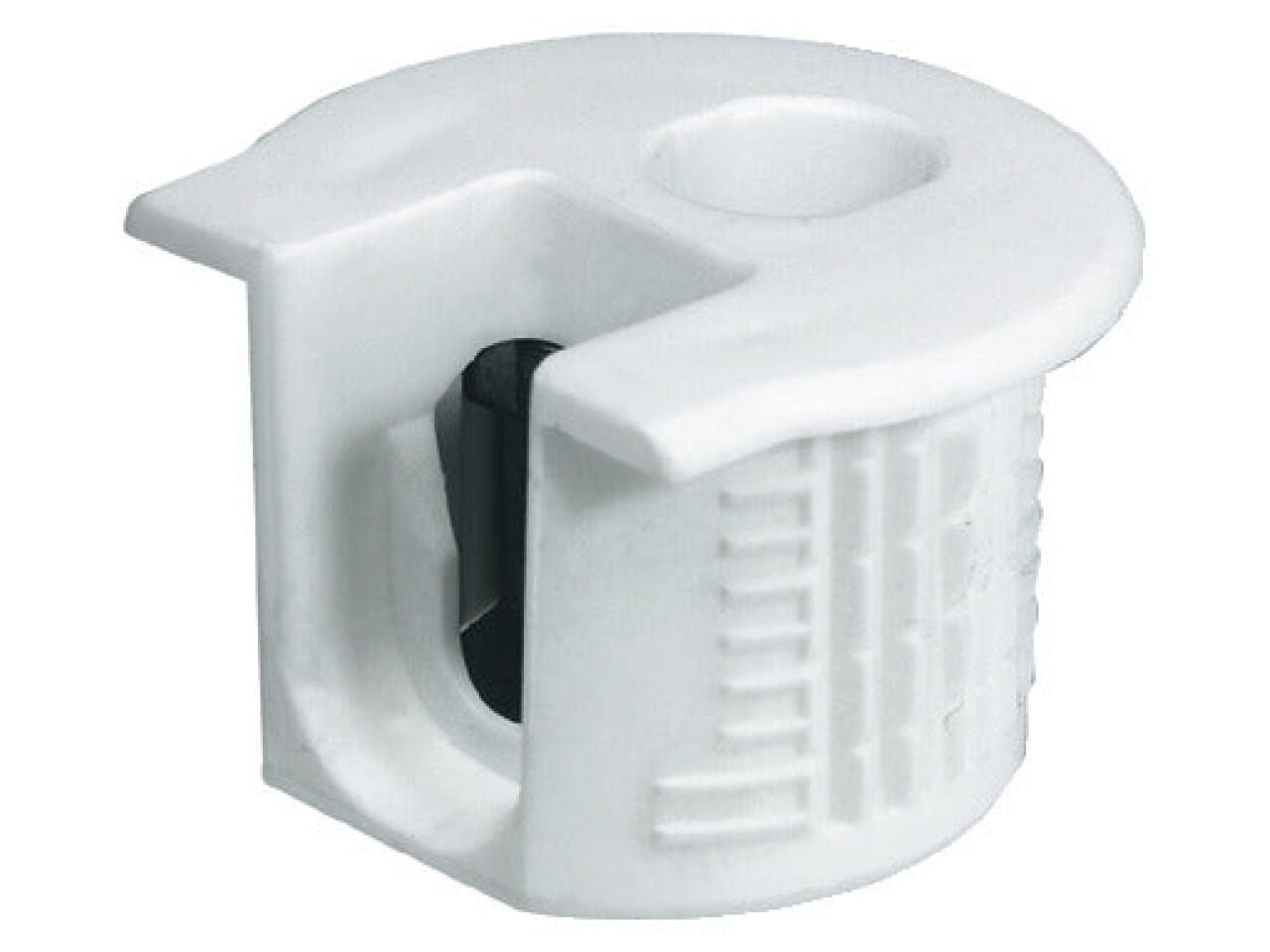

The Rafix 20 Housing w Ridge 19mm Pl White is a connector housing for shelf or cabinet installations in wood cabinets. It is designed to help create a secure, stable joint between components, making it suitable for living and commercial furniture builds. Part No: 263.14.705.

Will this housing fit cabinets made from 19 mm wood?

Yes. This connector housing is specified for wood thickness 19 mm, and the ridge design supports correct positioning during assembly. Using the right thickness is important for achieving consistent alignment and performance.

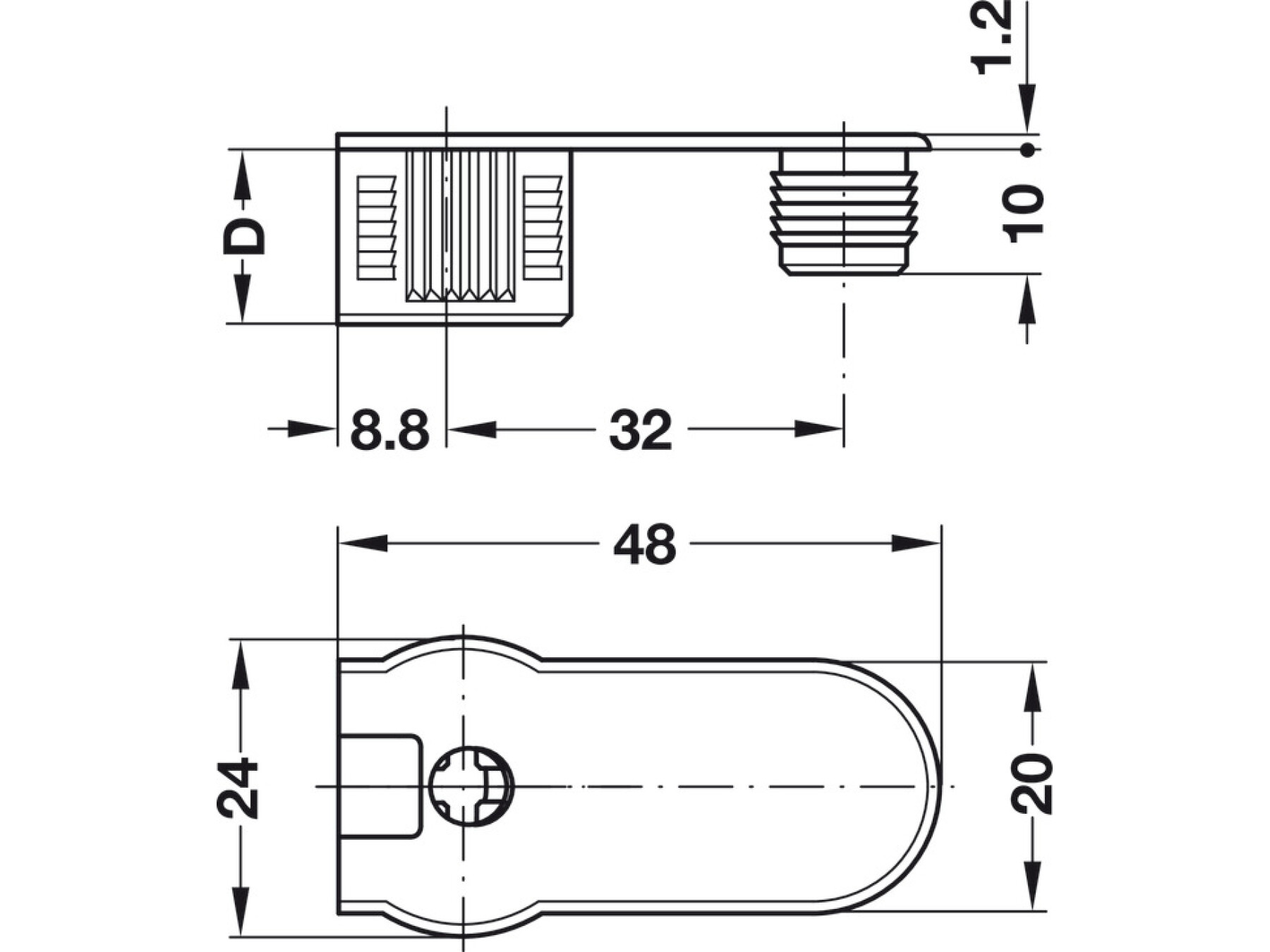

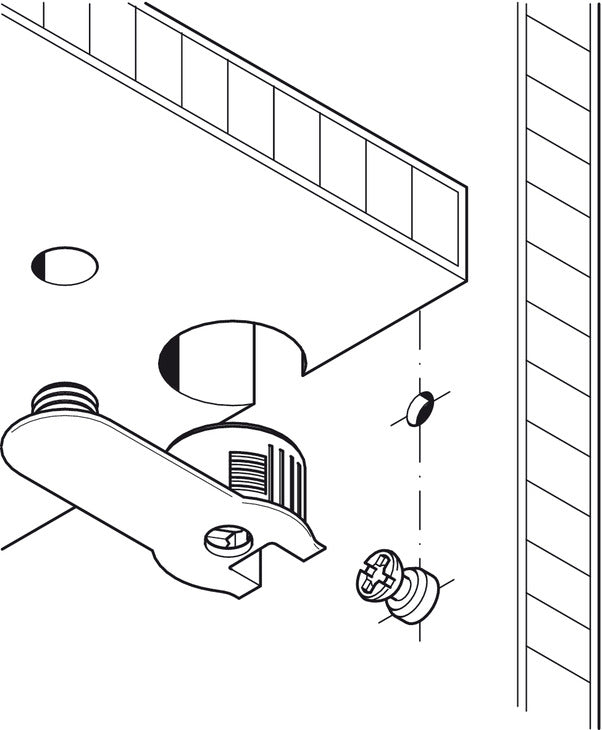

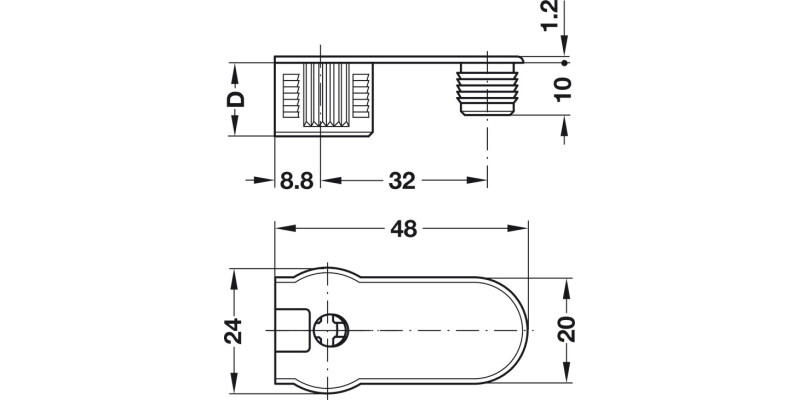

What does the ridge and tightening element mean for installation?

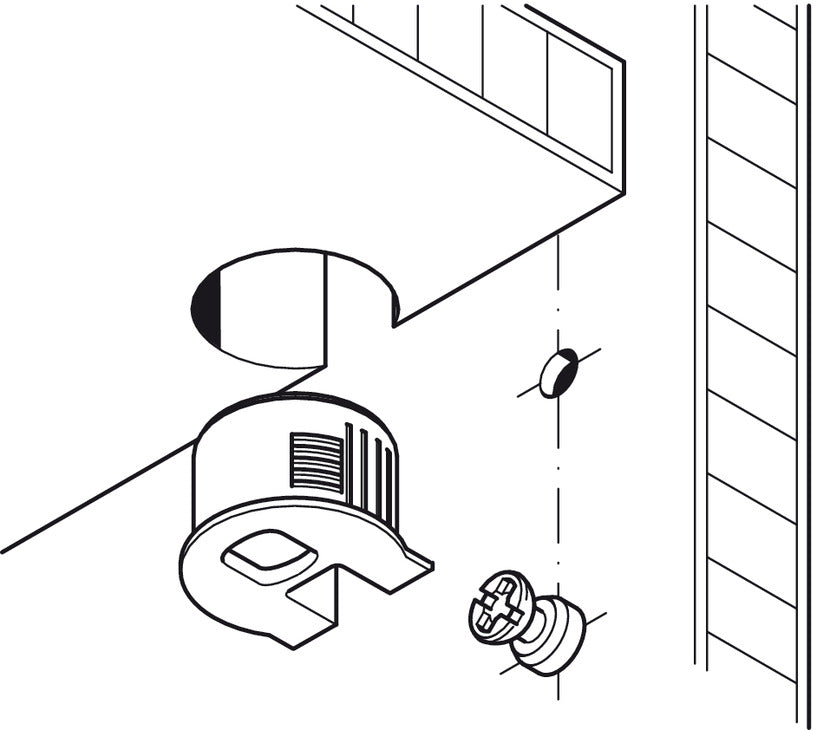

This version includes a ridge and a tightening element, helping the connector lock into place during fitting. These features typically support accurate placement and firm connection when assembling flat packed or cabinet modules.

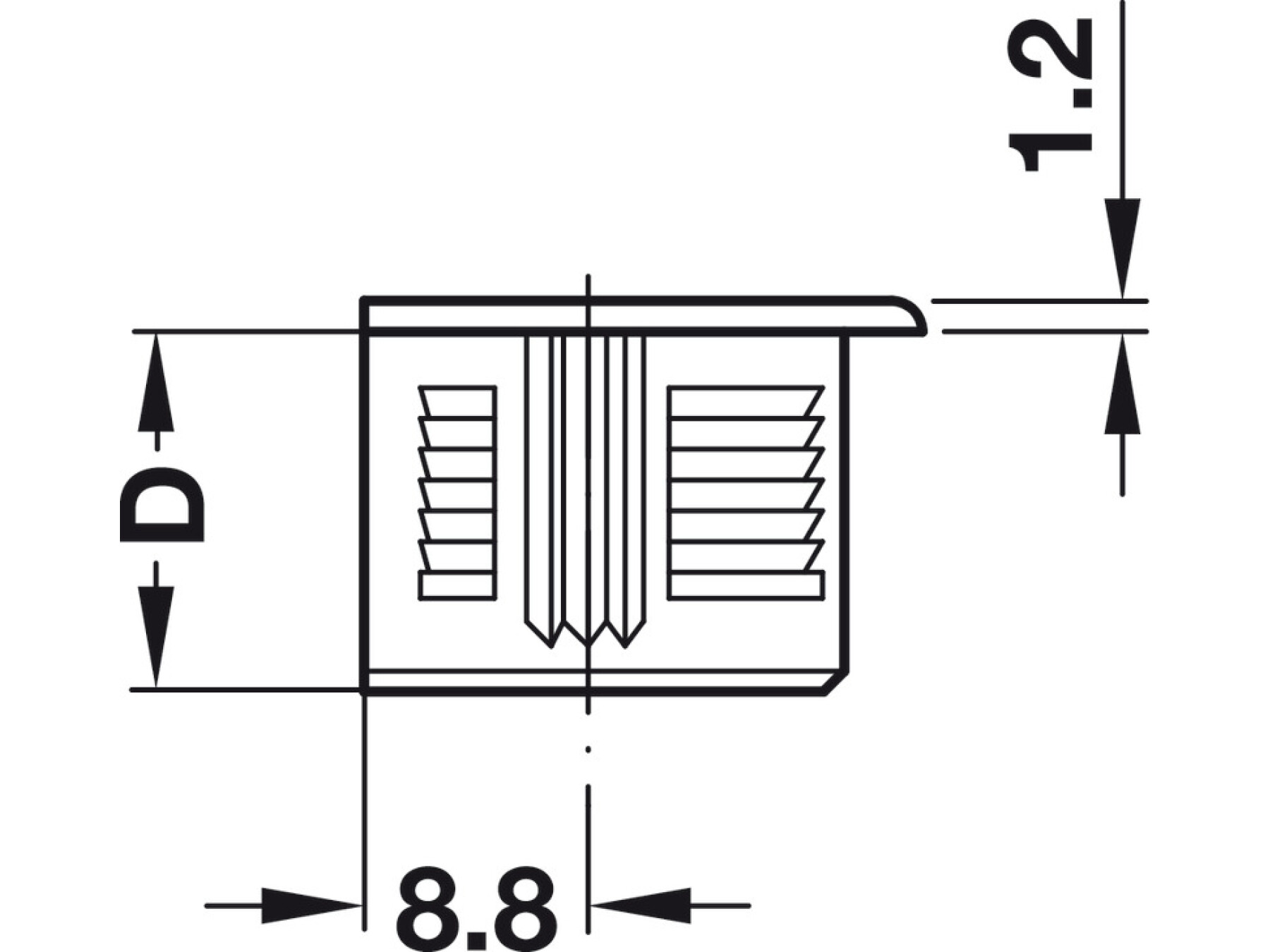

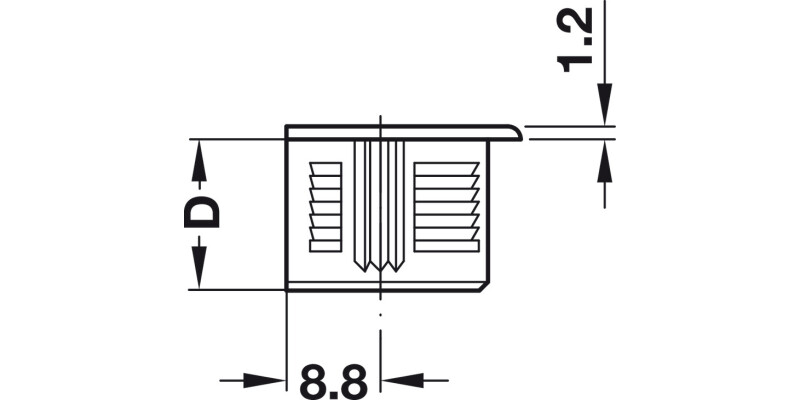

What drill depth should I use when installing this connector housing?

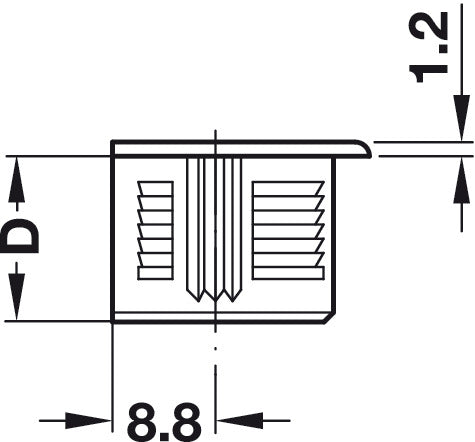

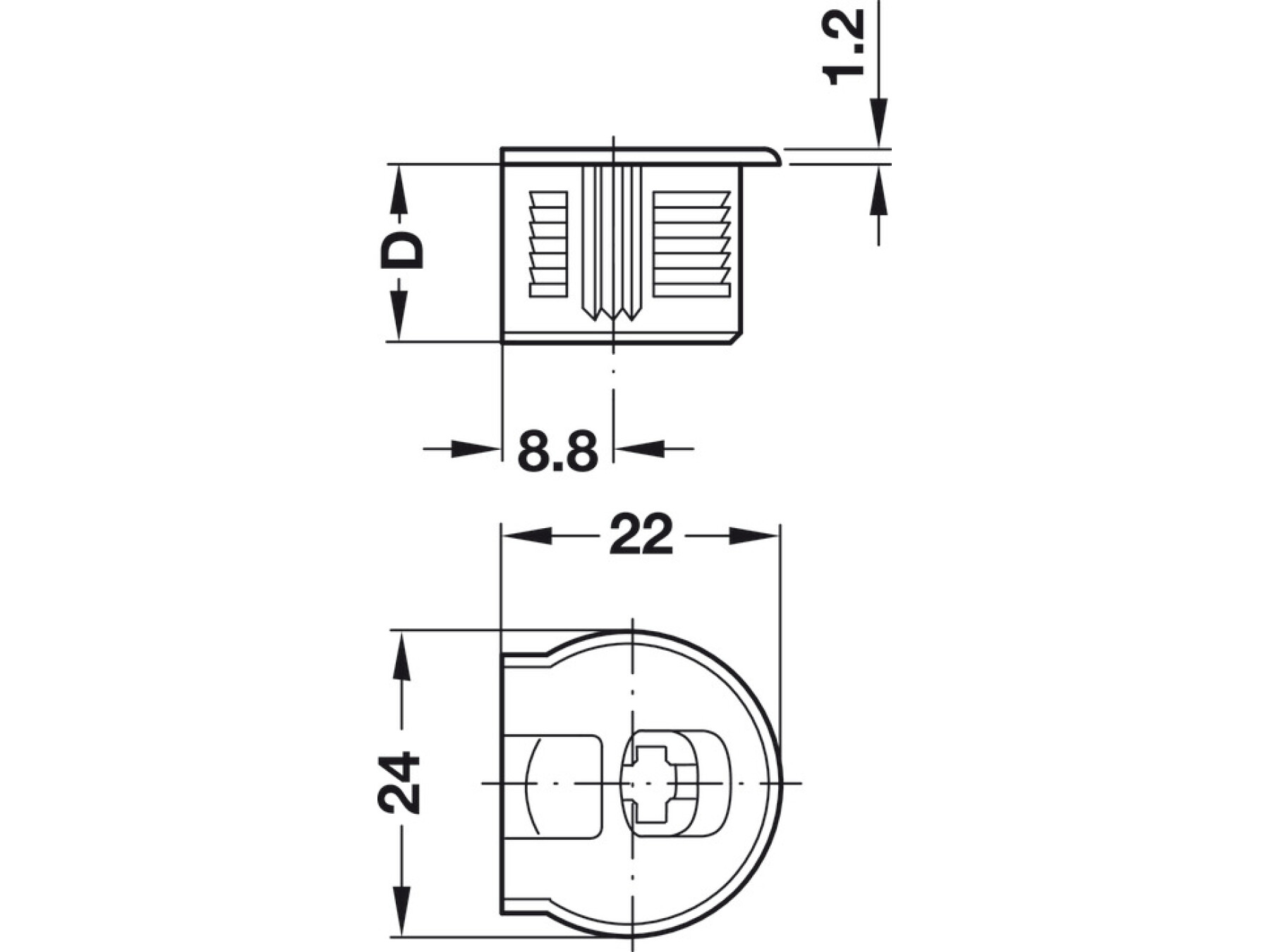

The drilling depth is 14.2 mm with a tolerance of plus or minus 0.2. Following the specified depth helps ensure the housing sits correctly and reduces the risk of poor alignment or weak fastening.

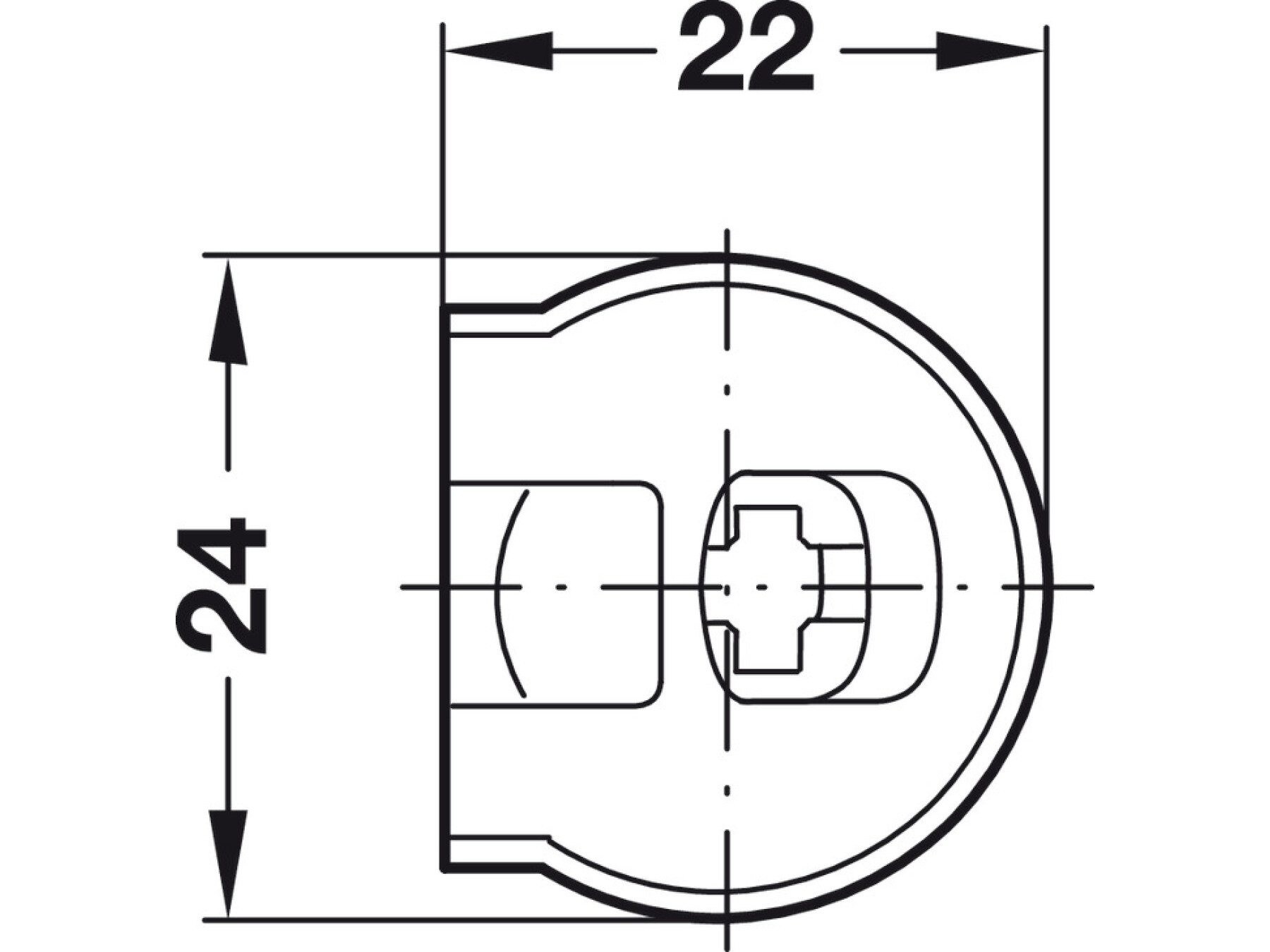

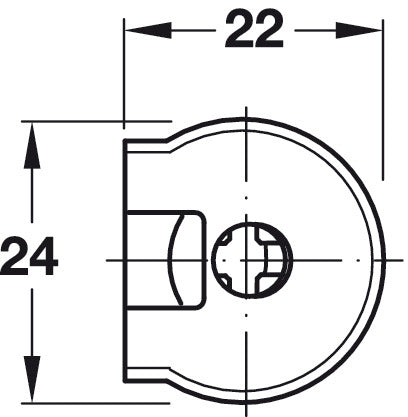

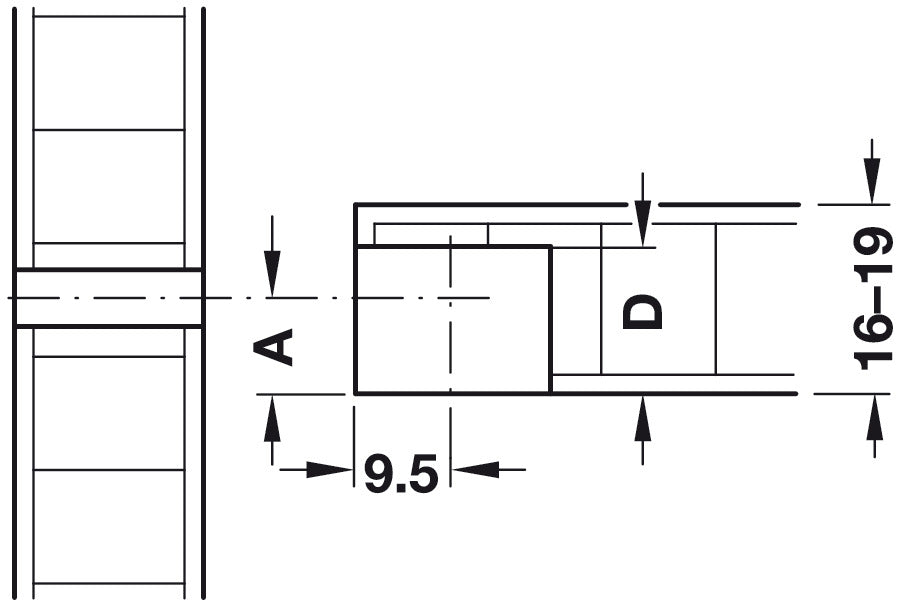

What are the key dimensions I should check before fitting?

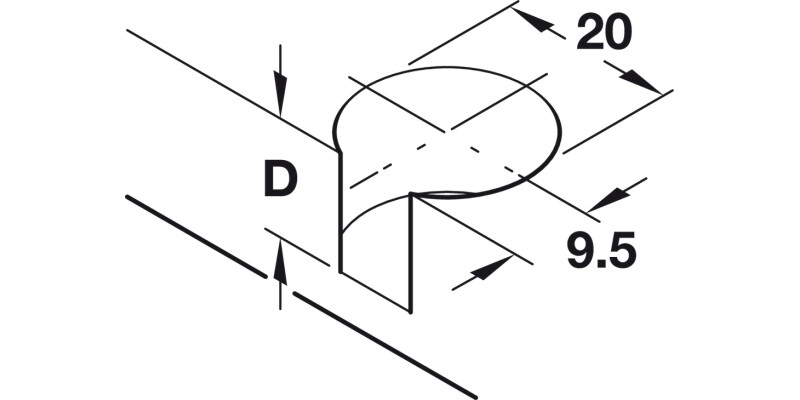

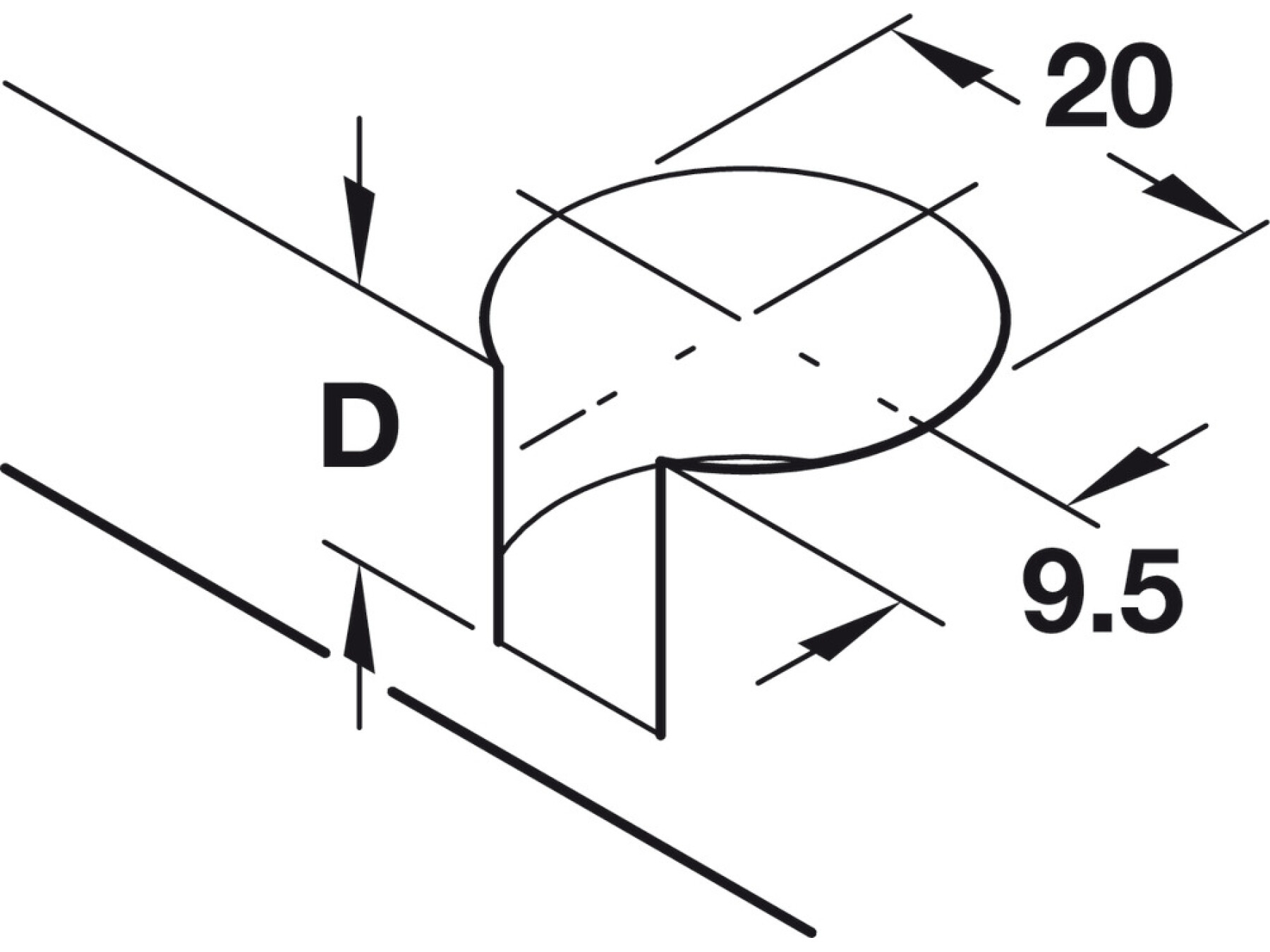

The housing dimension A is 9.5 mm. It is a good idea to confirm this and the specified drilling depth before you start, especially if you are working on existing boards or adjusting your layout.

Which screw driving method is required for this connector housing?

For this connector housing, the drive is PZ2 cross slot. Using the correct driver bit helps you tighten properly without damaging the screw head or stripping the slot.

Is this connector housing suitable for white furniture components?

Yes. The product is supplied in white, which is ideal when you want the connector area to blend with light coloured cabinet panels. Choosing the matching finish can improve the overall appearance after assembly.
