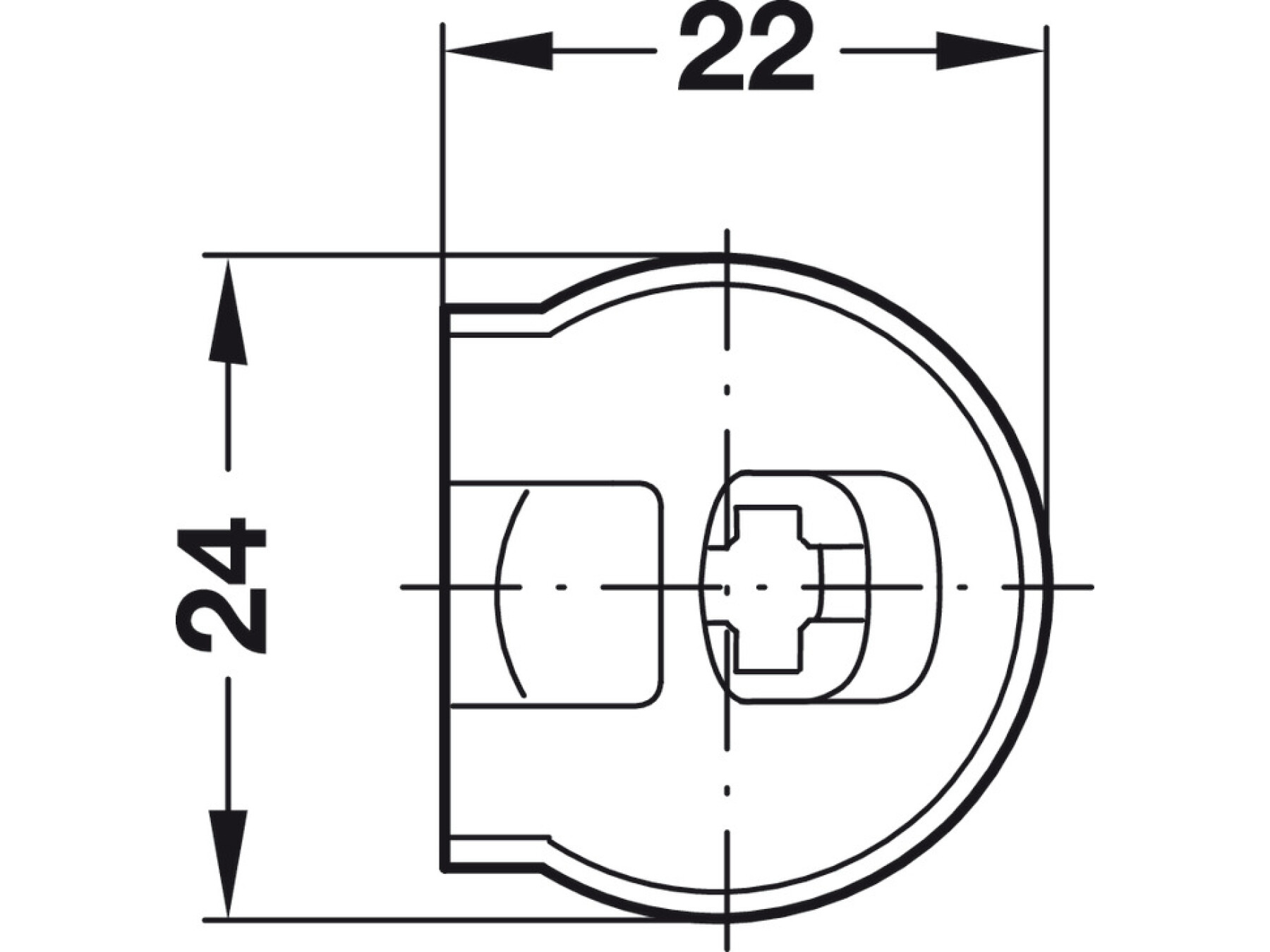

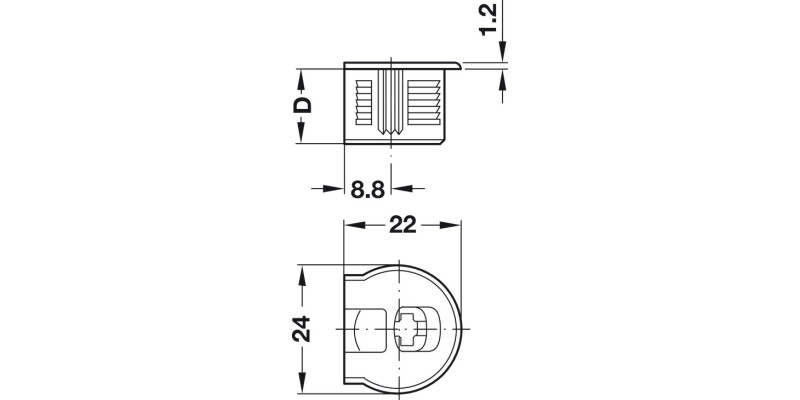

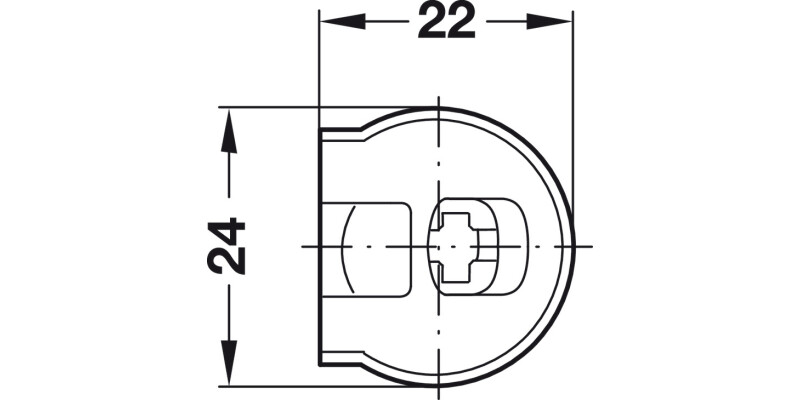

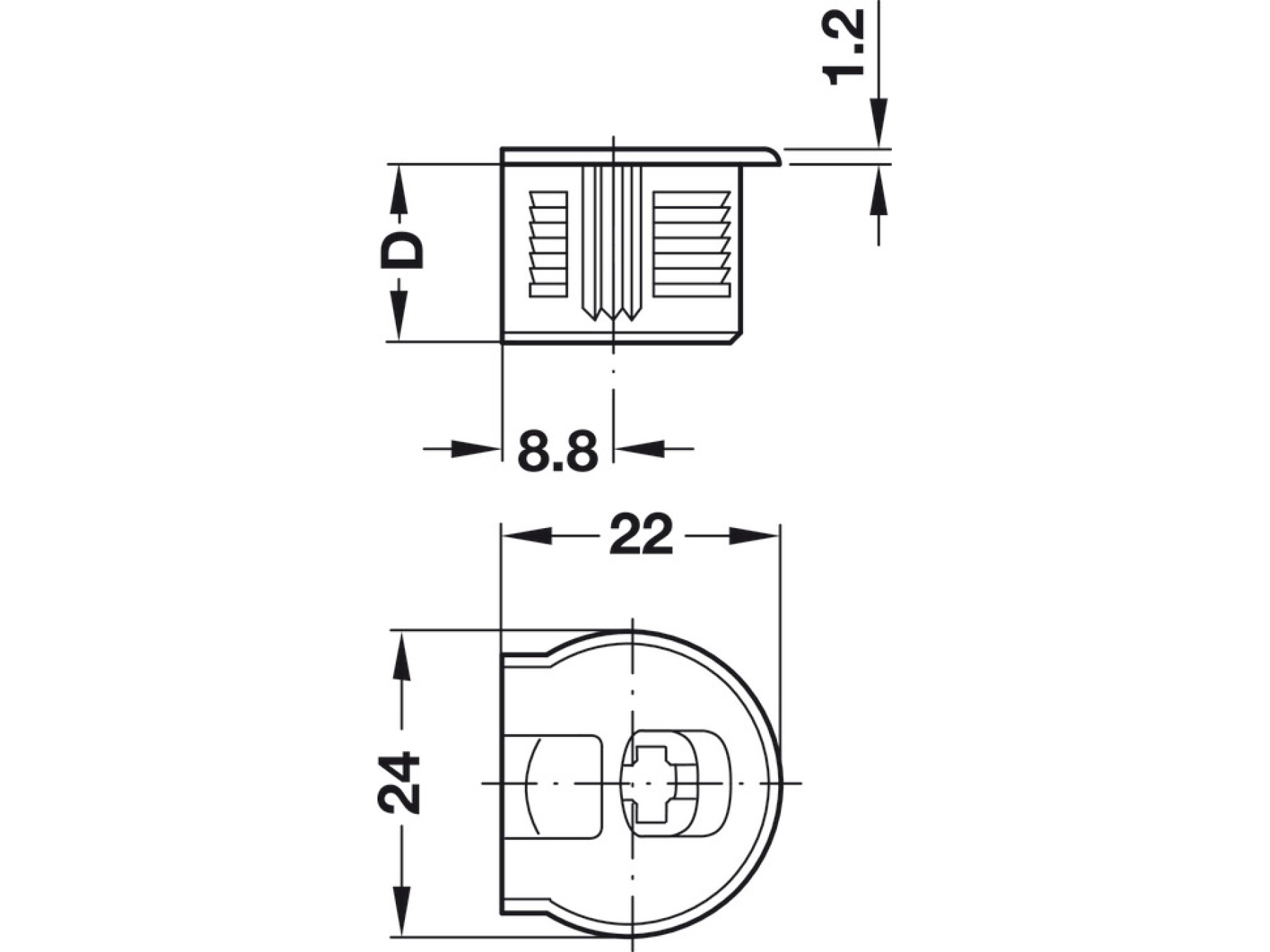

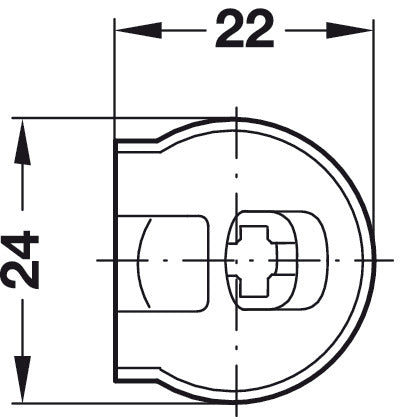

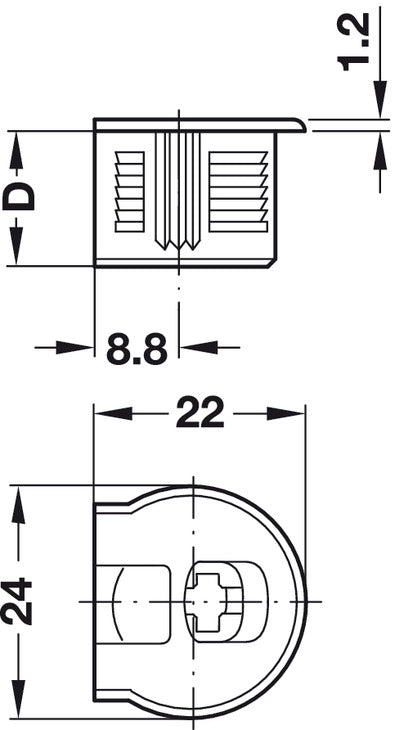

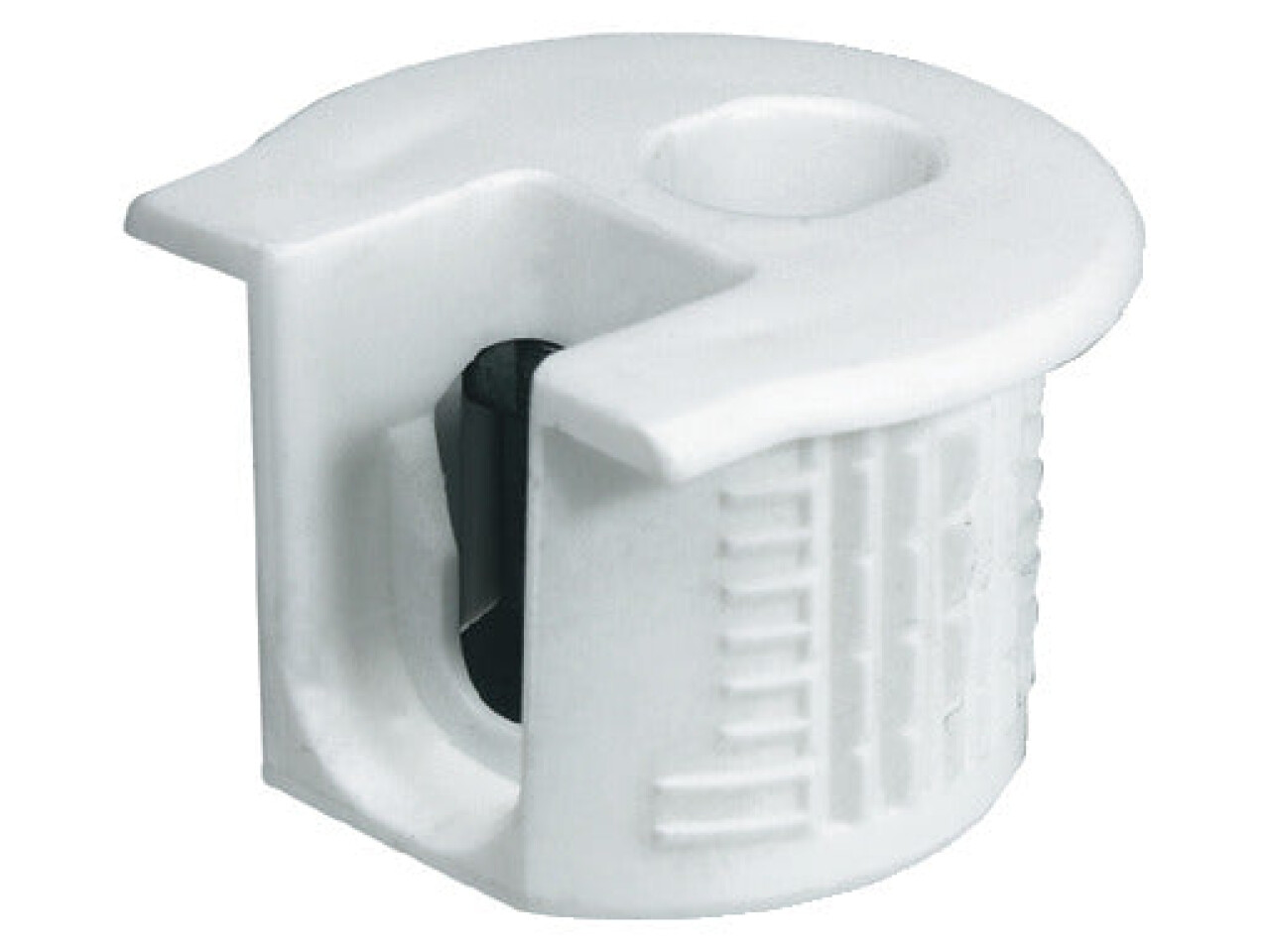

Connector Housing, Plastic, Rafix-20

Product Details

Can Rafix 20 Housing w Ridge 16mm Pl White be used in wood cabinets?

Yes. This connector housing is designed for use with wood cabinets. It is intended to support reliable alignment when forming joints and fittings for living and commercial furniture applications.

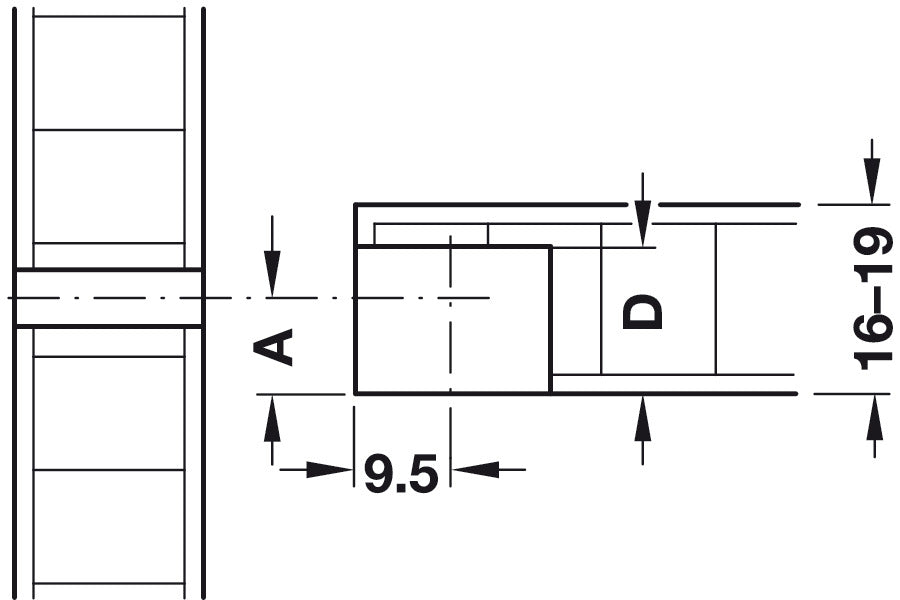

Will it fit boards with a thickness of 16 mm?

It is made for 16 mm wood thickness. The product is specified for wood thickness 16 mm, with the A dimension given as 8.0 mm, helping it match correctly in compatible connector systems.

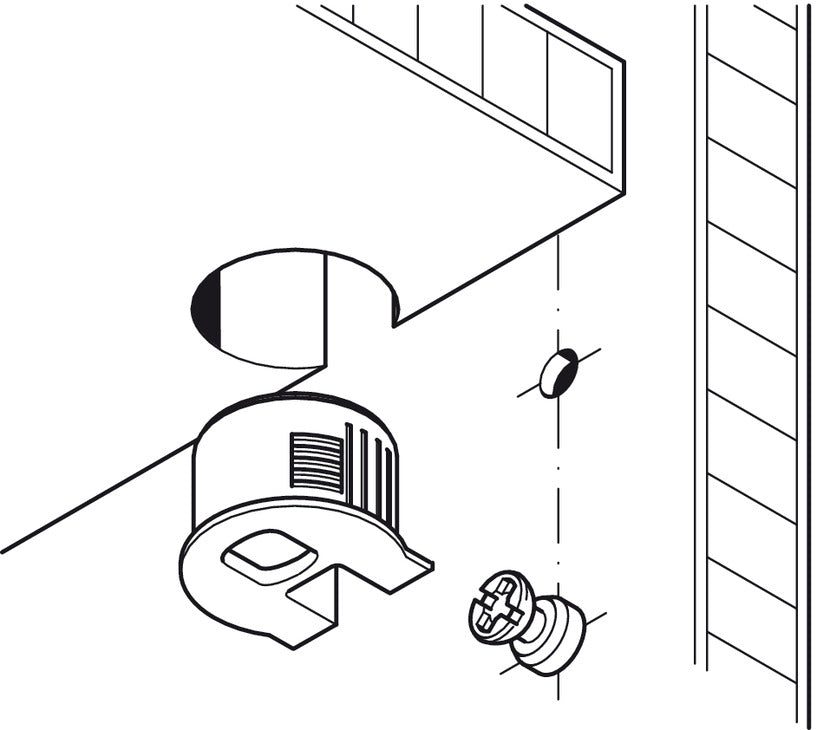

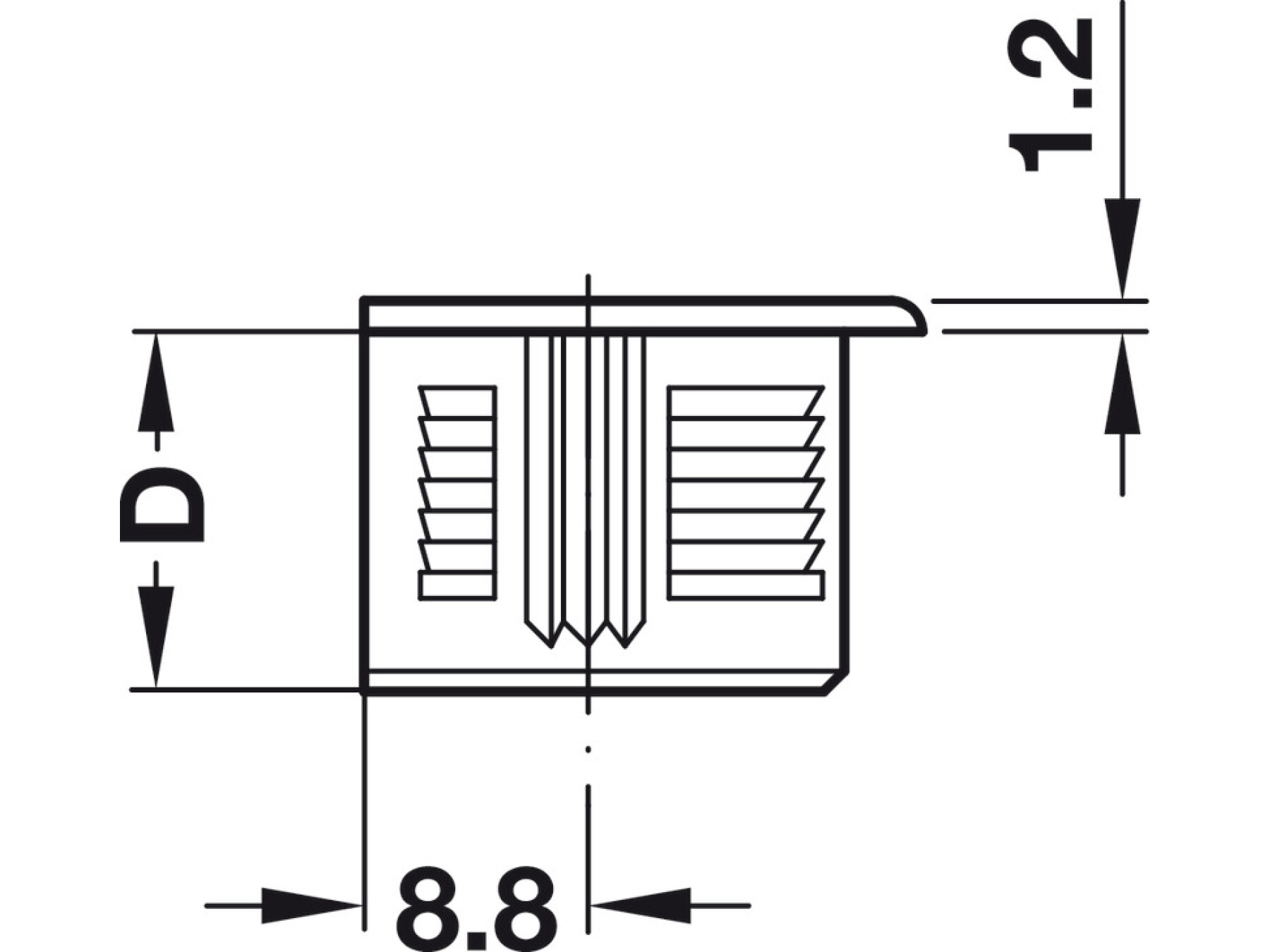

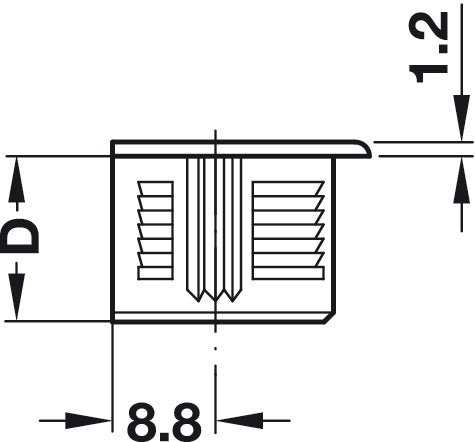

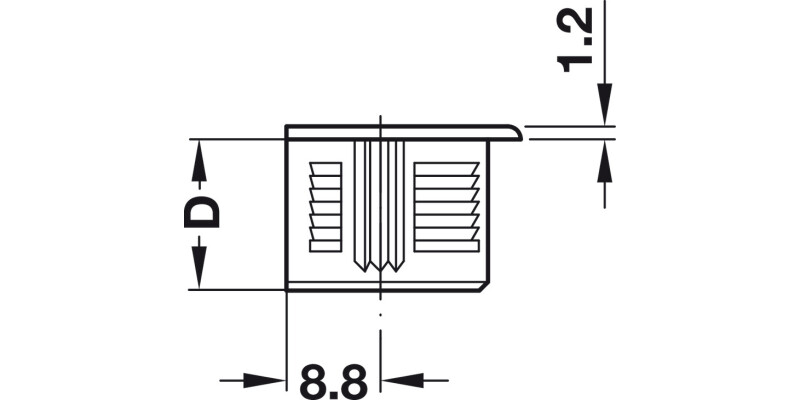

What does the ridge version mean, and how does it help during installation?

The ridge is part of the design for this housing. It helps provide location and positioning during fitting, supporting consistent assembly in connector based builds.

What fixing tools are typically used with this connector housing?

Use a PZ2 cross slot drive. The tightening element is designed to be used with PZ2 tooling, which matches common furniture fitting practices for secure tightening.

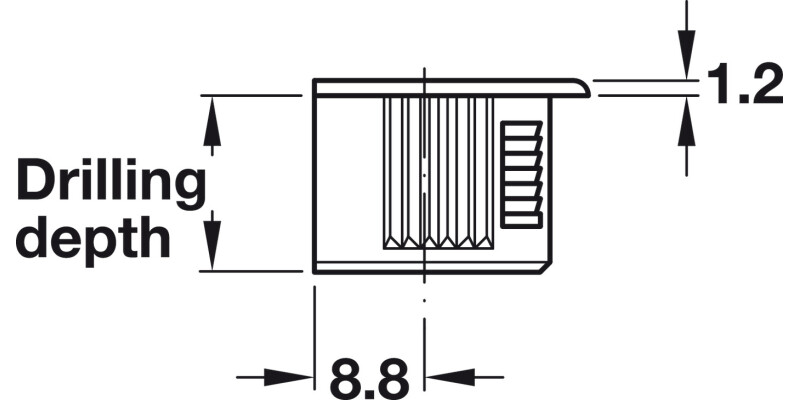

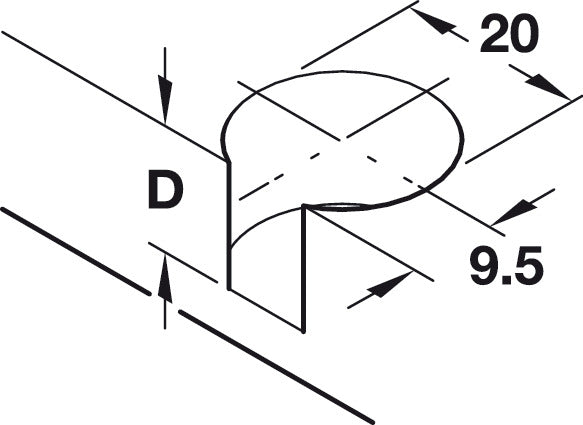

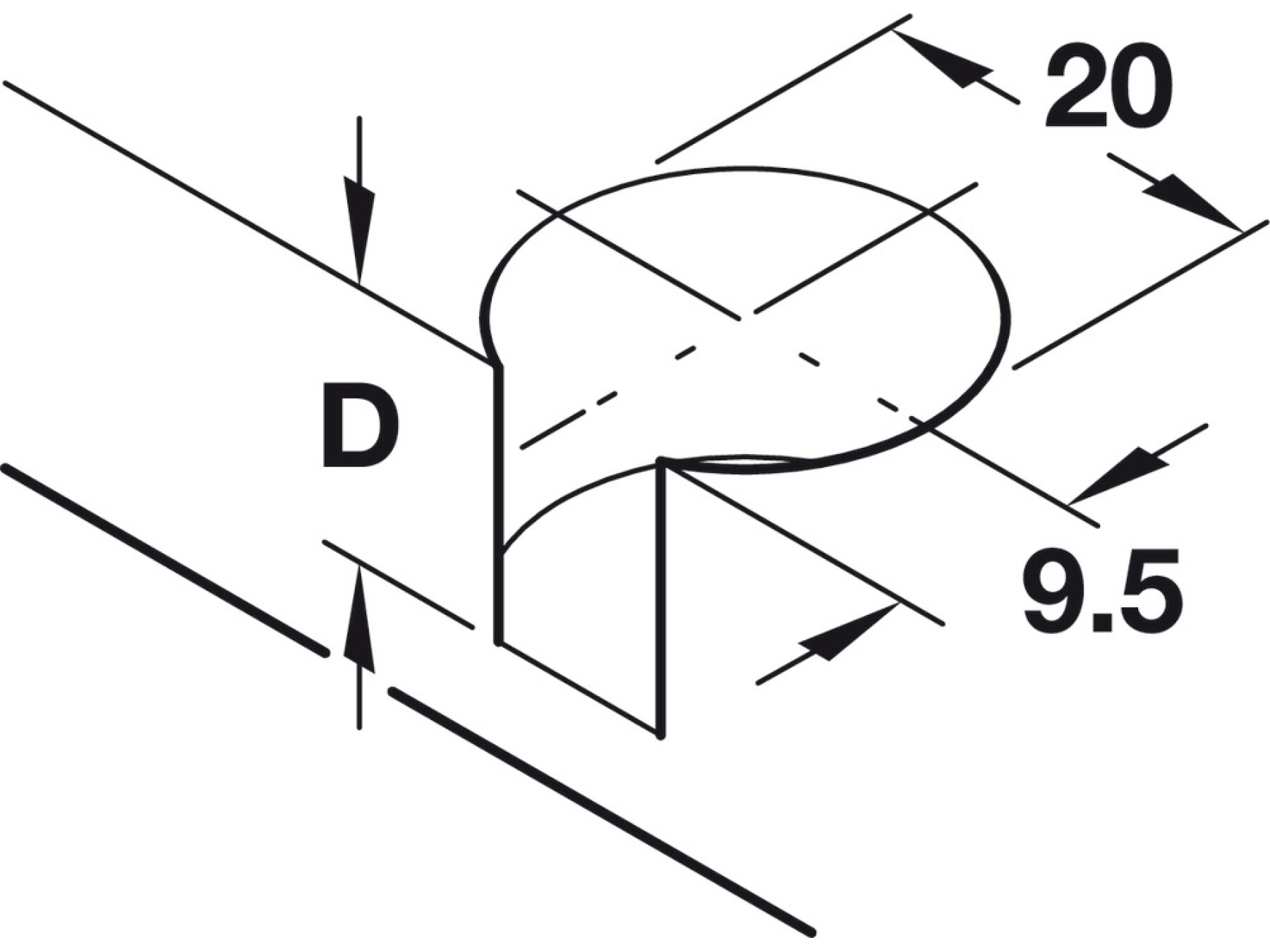

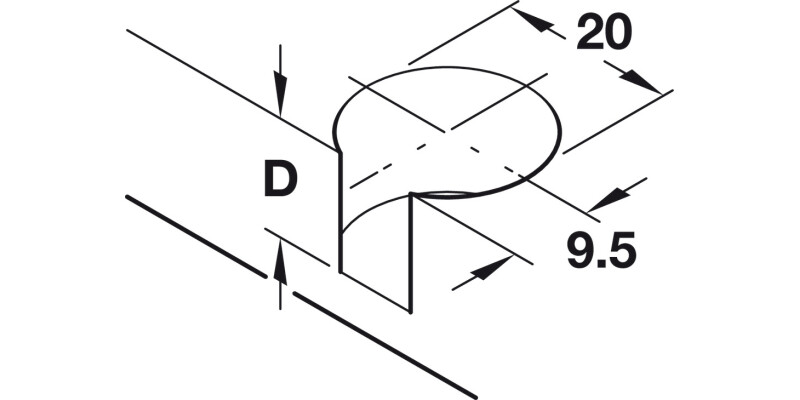

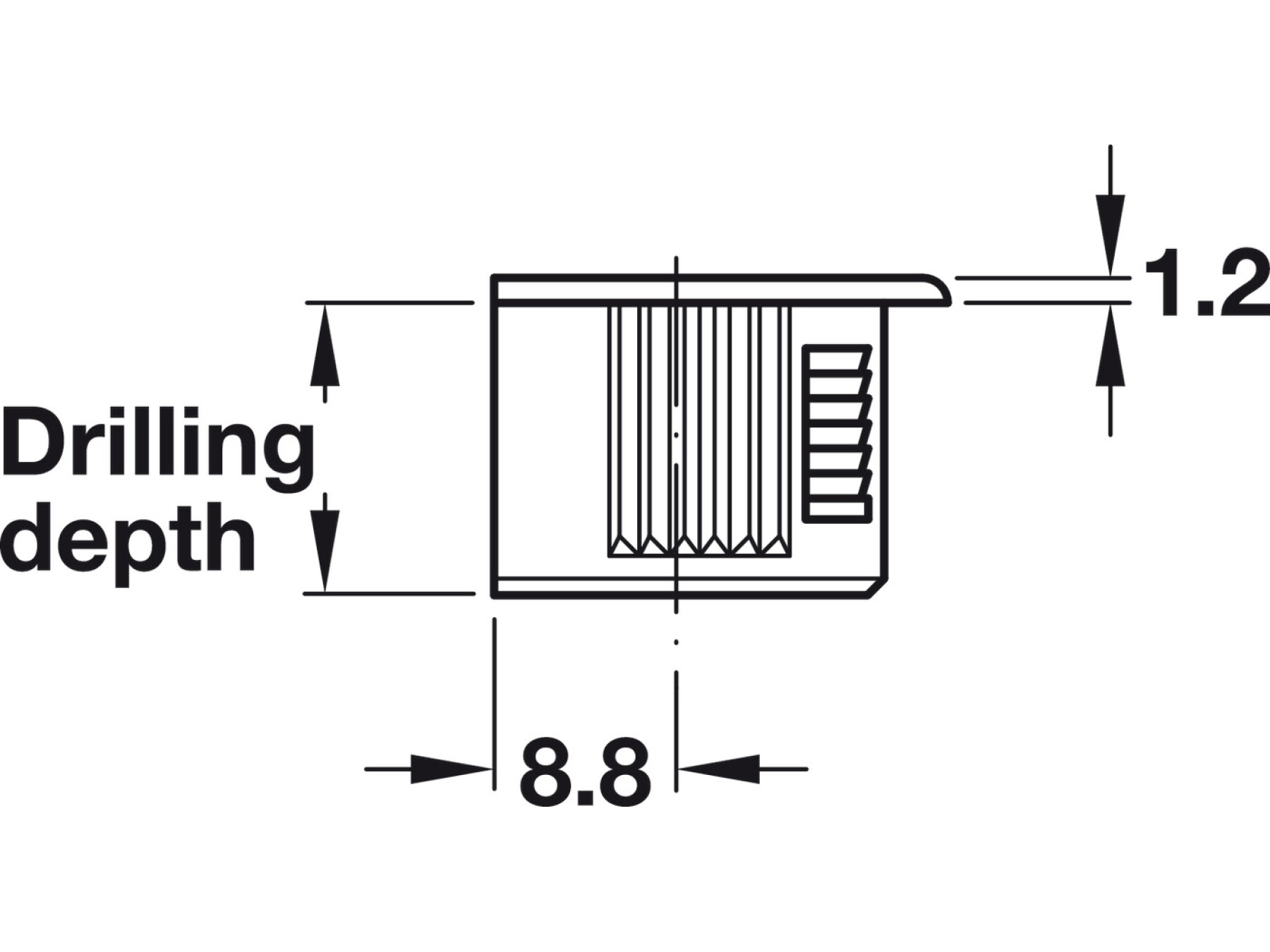

How deep should drilling be for this housing?

Drill to the specified depth. The drilling depth is listed as X 12.7 plus 0.2. Following this ensures the connector housing sits correctly for proper engagement and stability.

Is this a colour matched part, and will it suit a white interior?

Yes, it is supplied in white. The product is specified as white, making it a good match for furniture components with white finishes where a neat appearance matters after assembly.

Which part number should I order if I am replacing an existing connector housing?

Order by part number. This Rafix housing is listed under part no 263.14.703. Using the exact part number helps you match the correct connector housing for your current system.
