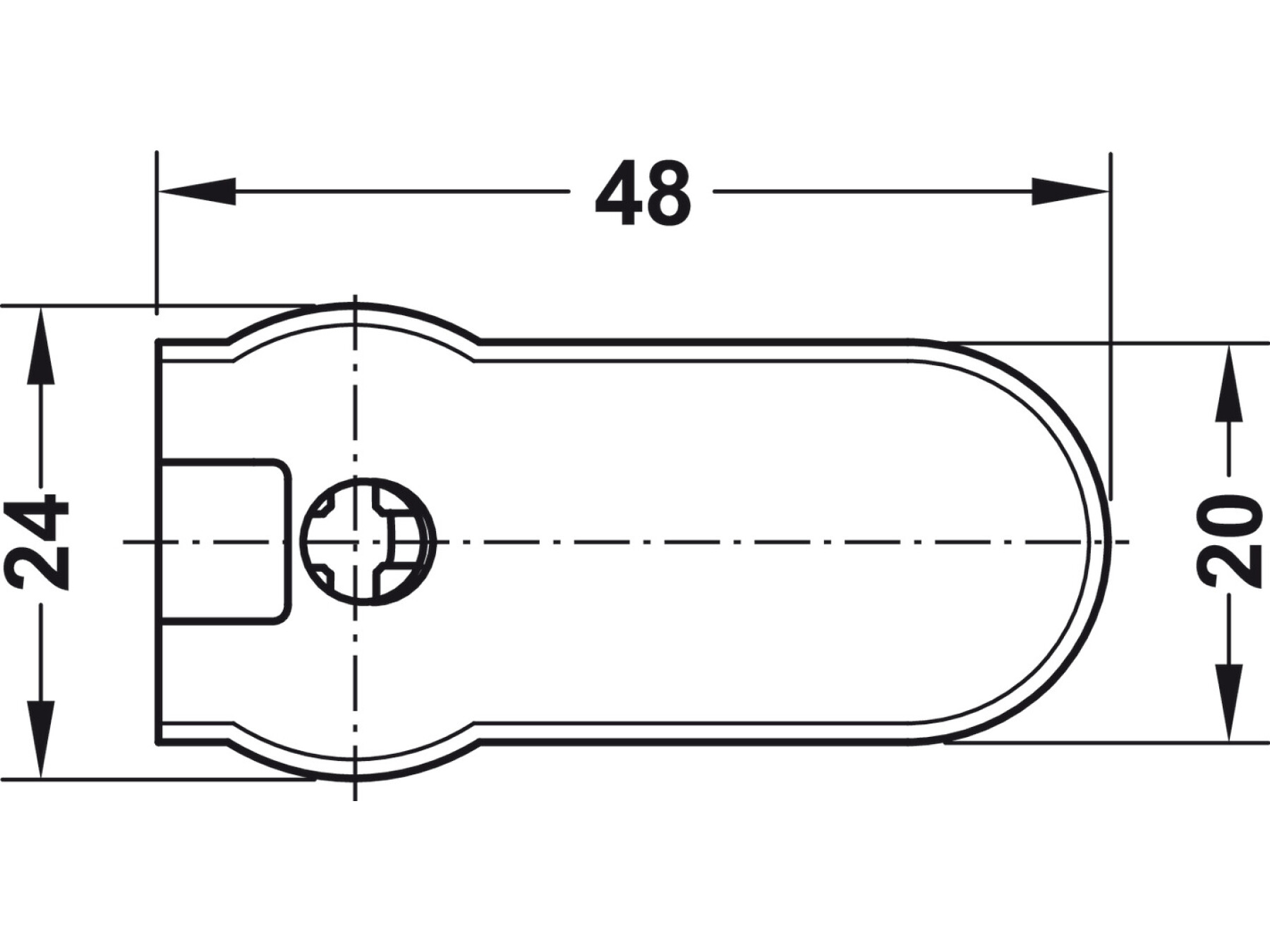

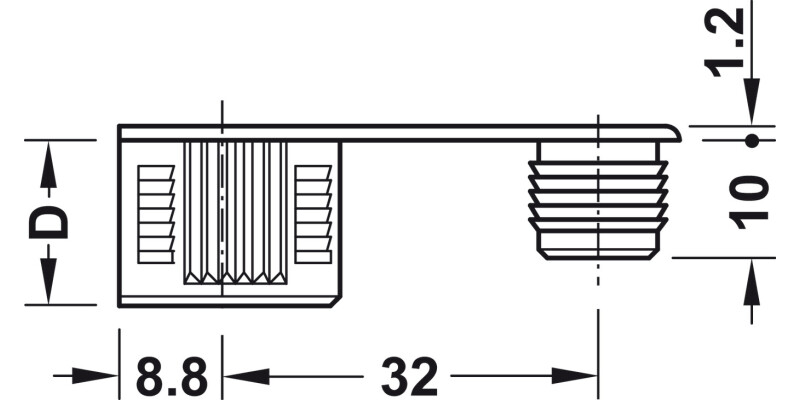

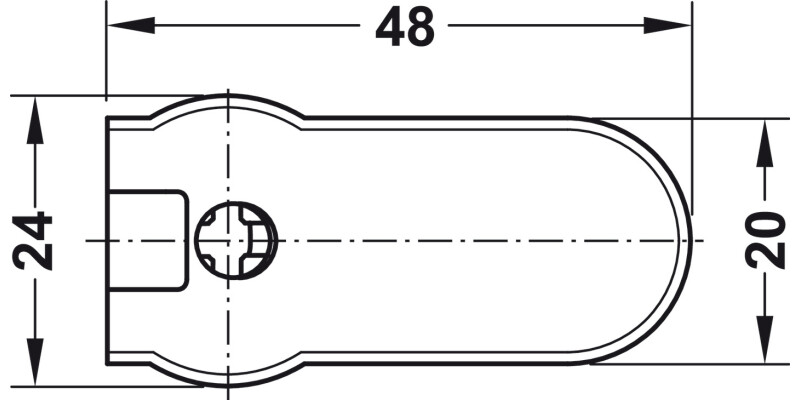

Connector Housing, with Dowel, Plastic, Rafix-20

Product Details

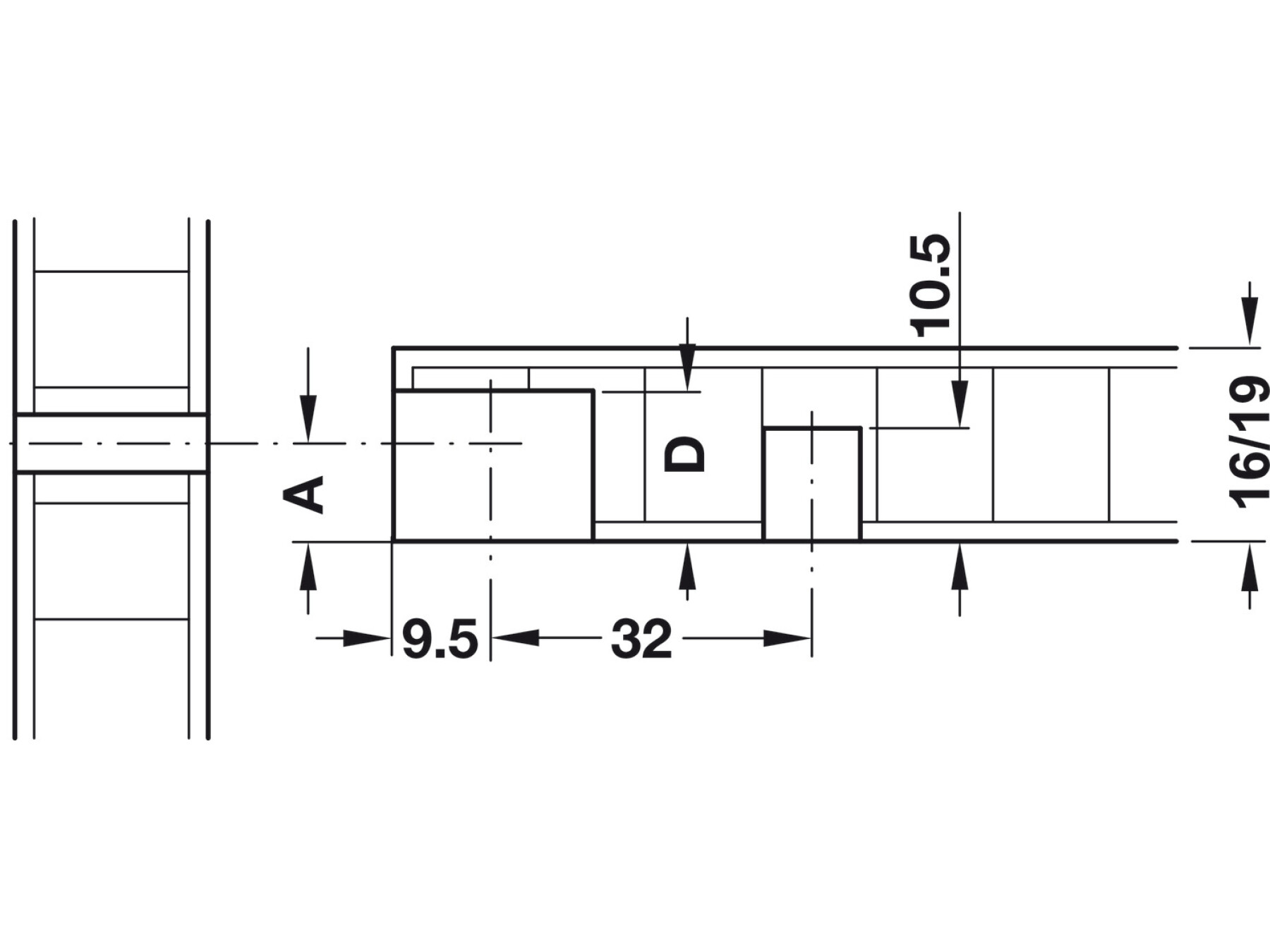

Will this connector housing fit furniture boards with a 16 mm wood thickness?

Yes. Rafix 20 Housing wo Ridge 16mm Pl White is designed specifically for wood thickness 16 mm, helping you achieve a stable fit when installing shelf supports or connectors in particleboard or similar materials.

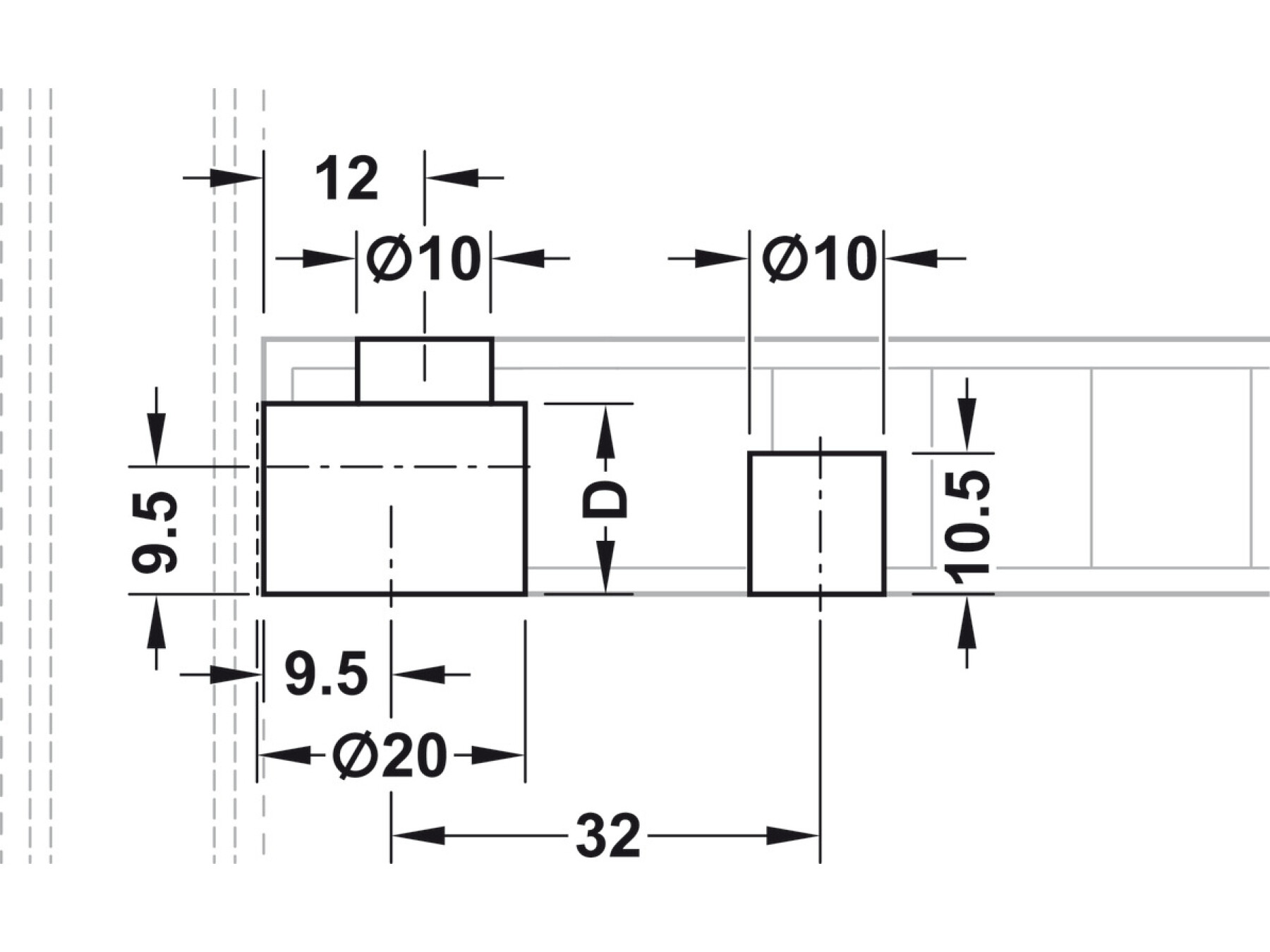

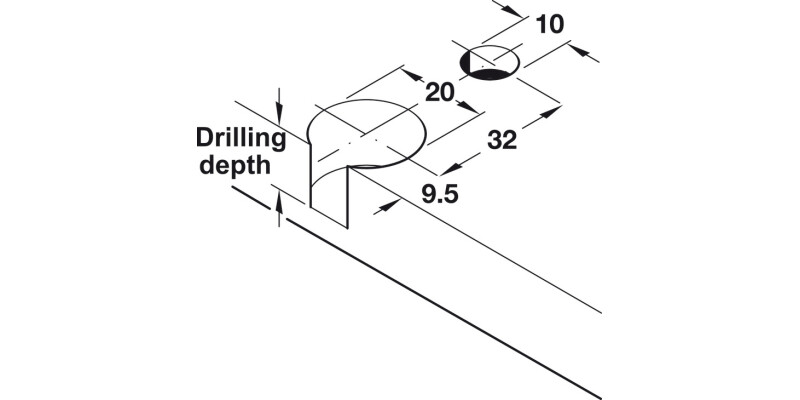

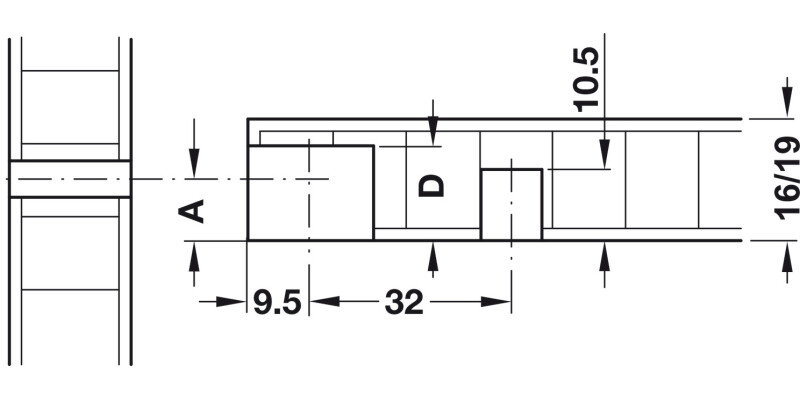

Do I need to change my drilling setup for the required drilling depth?

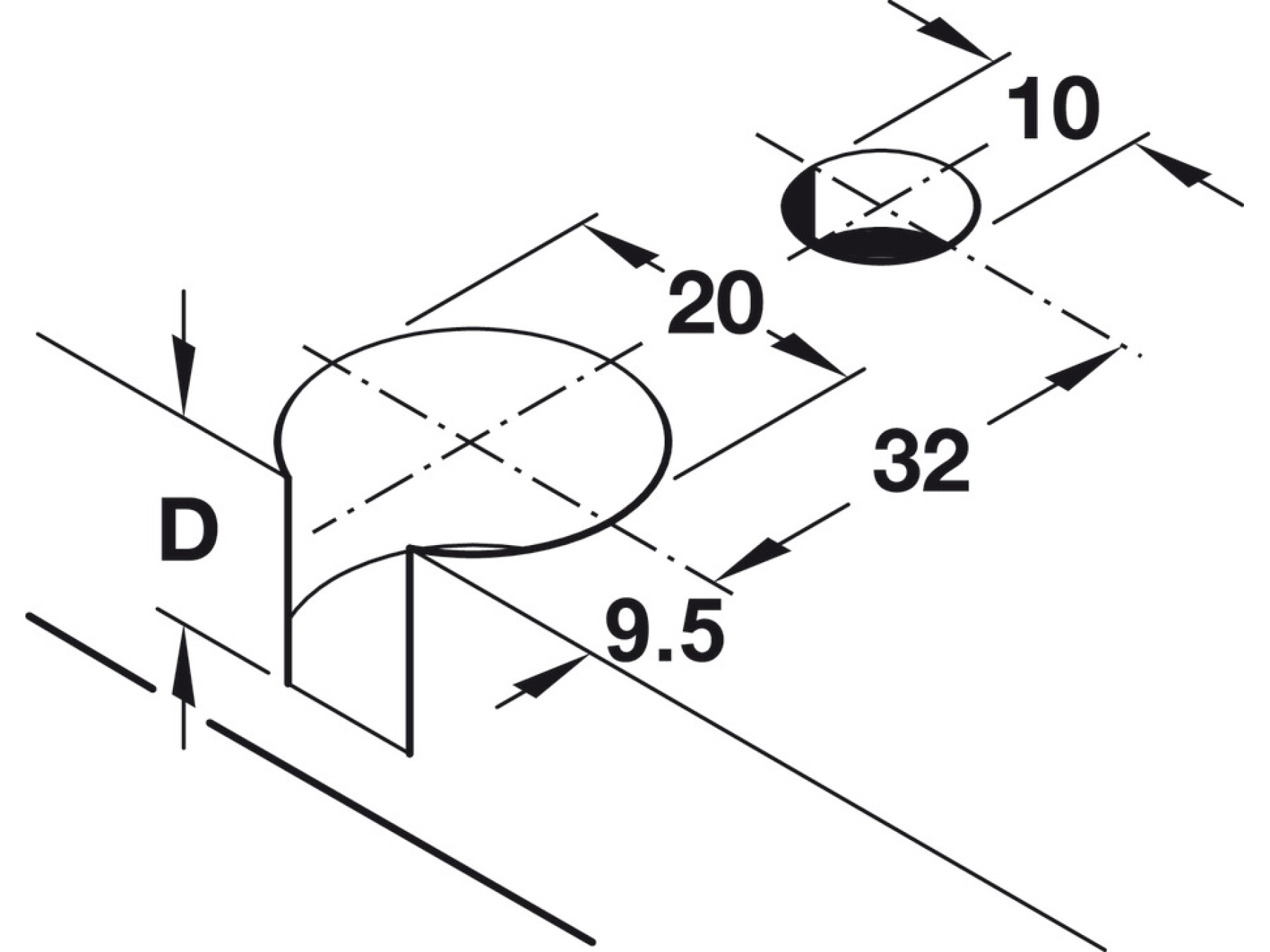

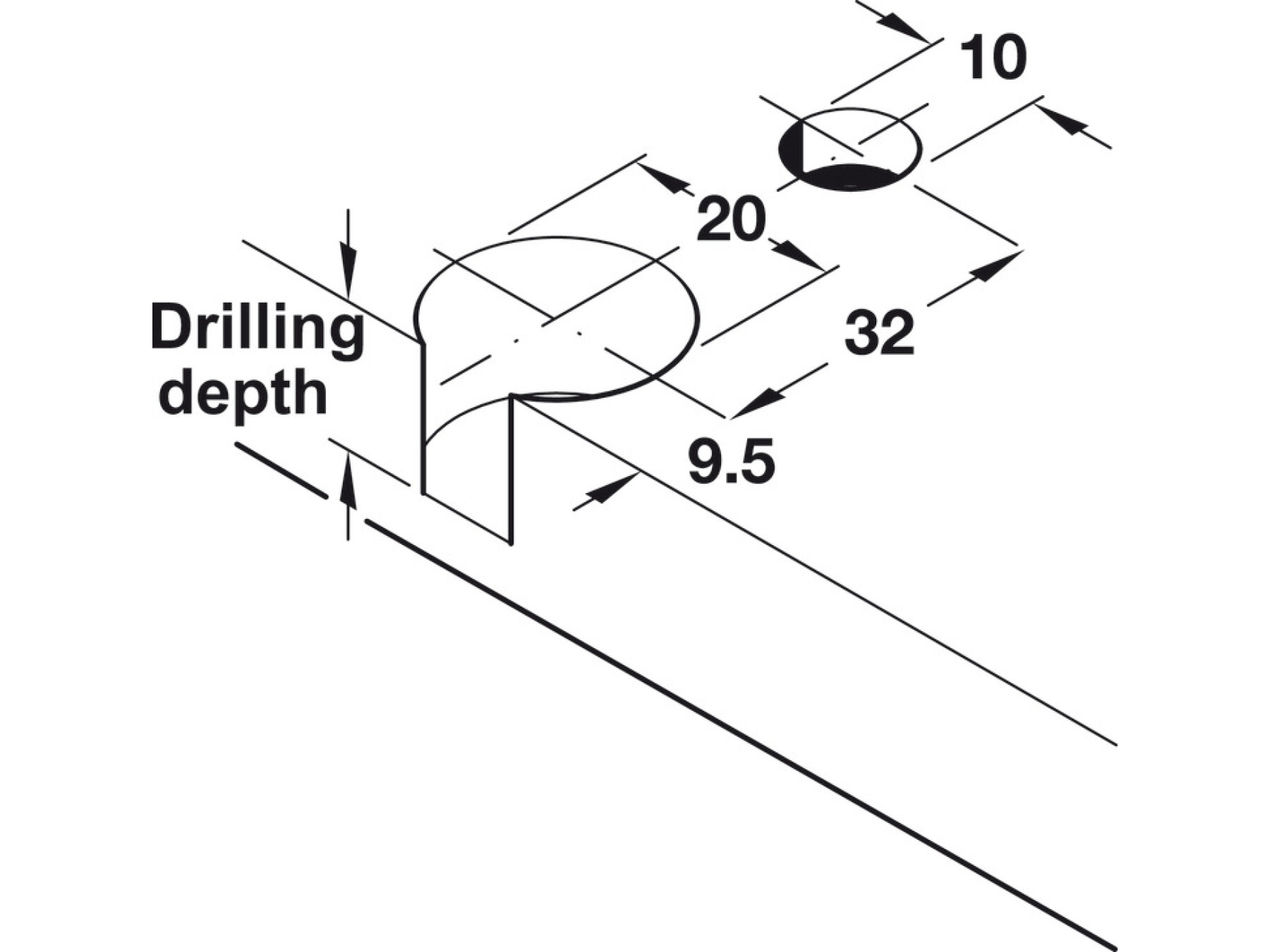

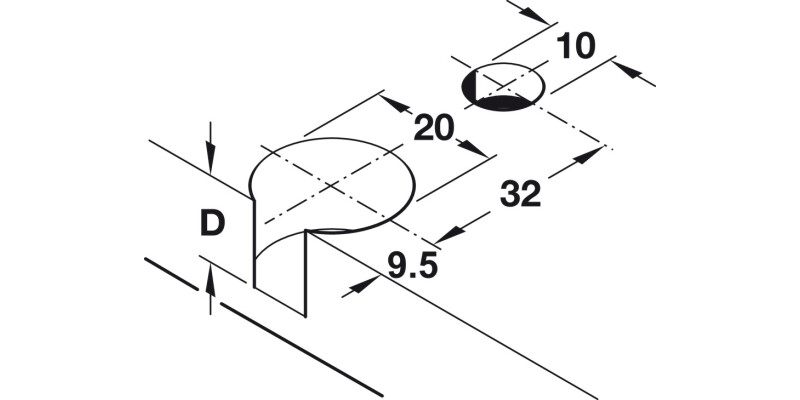

Use the stated drilling depth. The recommended drilling depth is 12.7 mm with a tolerance of plus 0.2 mm. Sticking closely to this figure helps ensure the tightening element and housing seat properly.

What does the “without ridge” version mean for installation?

It has no ridge. This “without ridge” housing version is made to suit applications where the ridge is not required, which can help simplify fitting and alignment during assembly. It is also listed as having a suitable version set including rim, tightening element, dowel, and without ridge styles.

What fixing and tool compatibility should I expect?

This version is driven with a PZ2 cross slot. That means you should use a compatible PZ2 screwdriver or bit when tightening the connector assembly during furniture installation.

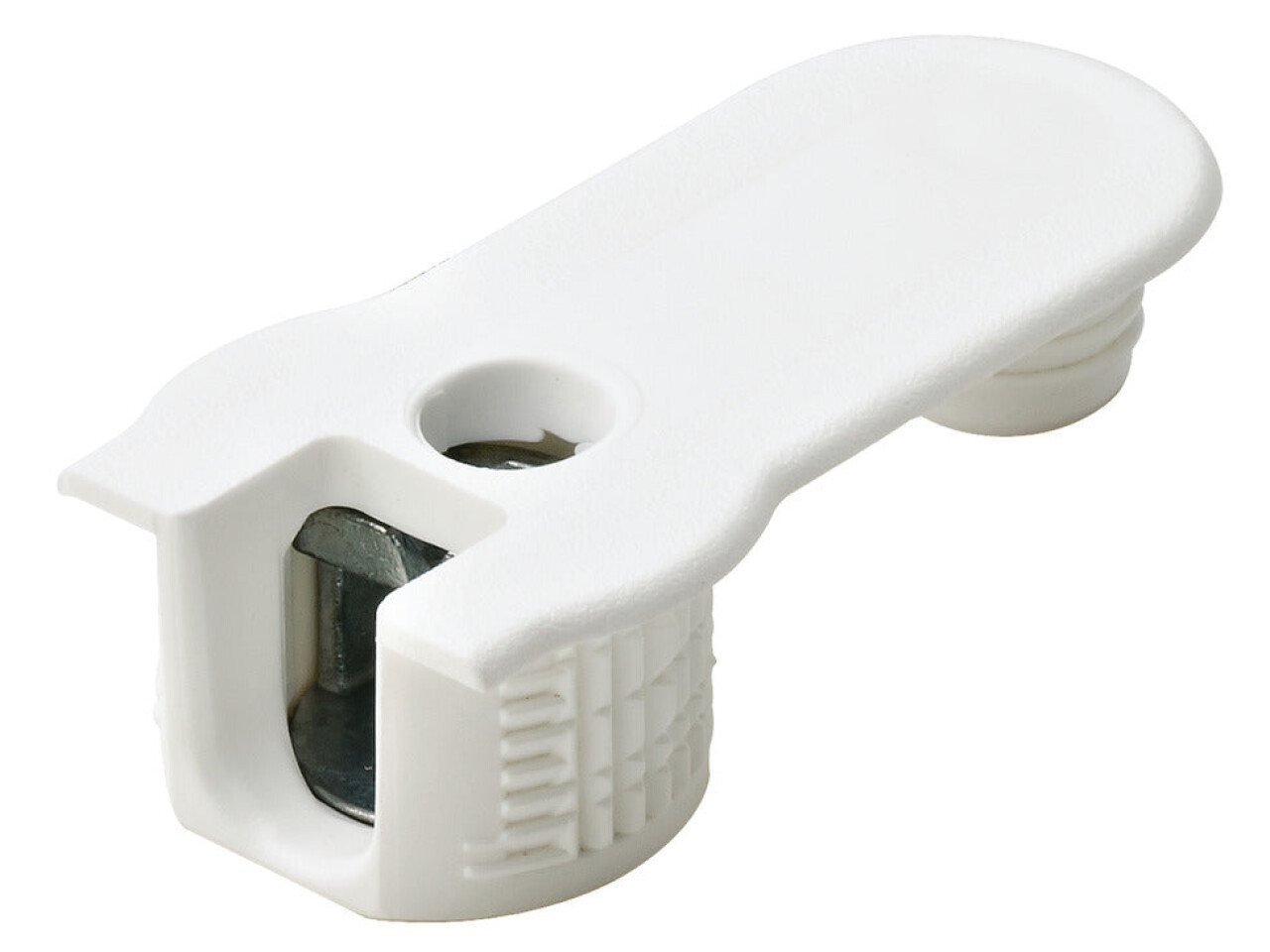

Is the housing suitable for use in a white finish?

Yes. The housing is finished in white, which can blend more easily with light coloured boards and finished panels for a cleaner, more consistent appearance on the inside of the furniture.

Does the tightening element affect compatibility or strength?

It is included and designed to help secure the joint. This housing is specified as having a tightening element. Using the correct housing version with the tightening element supports reliable tightening and helps maintain connection stability over time.

Is there any long term warranty coverage for this product?

There is a Hafele Lifetime Guarantee of 25 years. This provides confidence for ongoing use in living and commercial furniture applications when installed correctly.

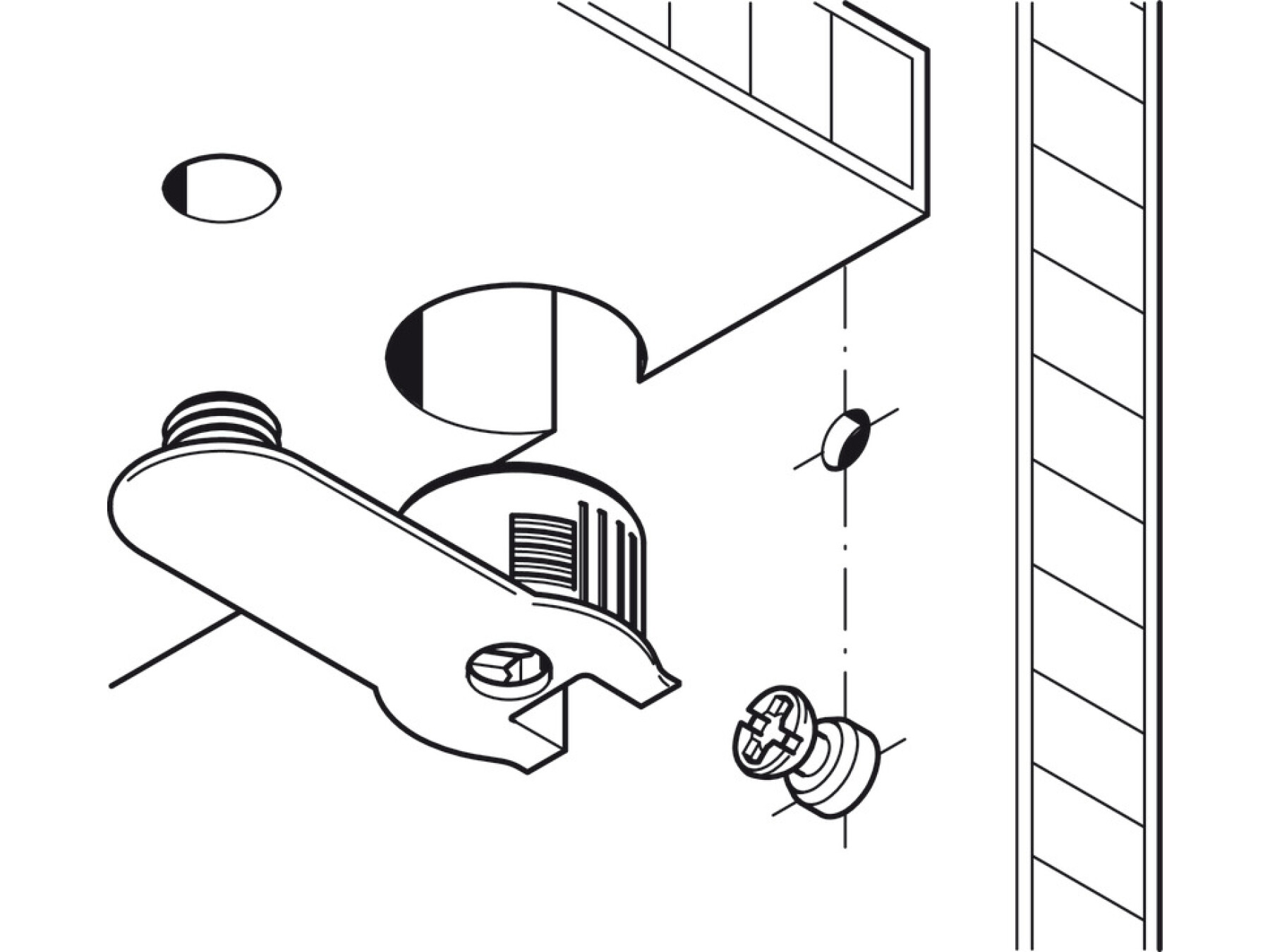

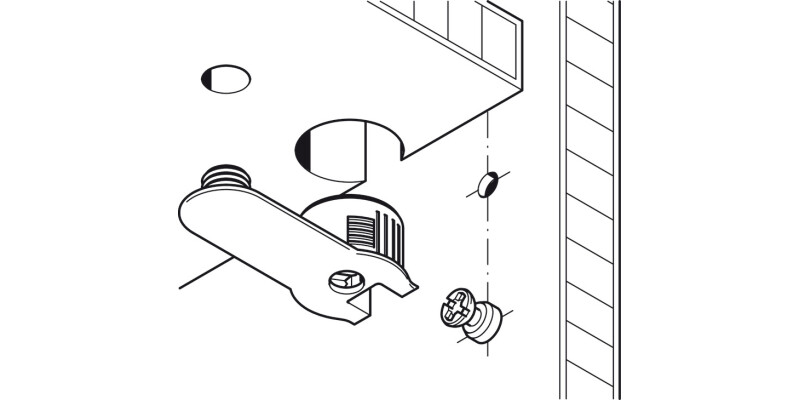

Where in furniture building would customers typically use this connector housing?

It is intended for connector and shelf support systems. Rafix connector housings are commonly used in wardrobe, cabinet, and shelving builds where you need a secure internal connection between panels, supporting tidy assembly and easier adjustments compared with fully fixed alternatives.
