Connector Housing, with Dowel, Plastic, Rafix-20

Product Details

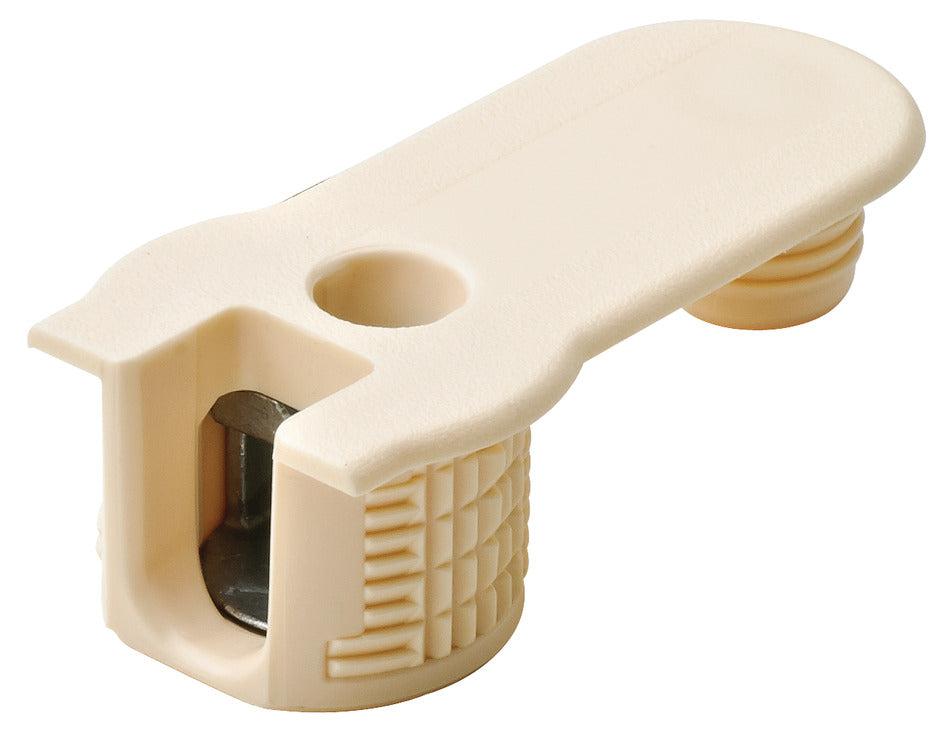

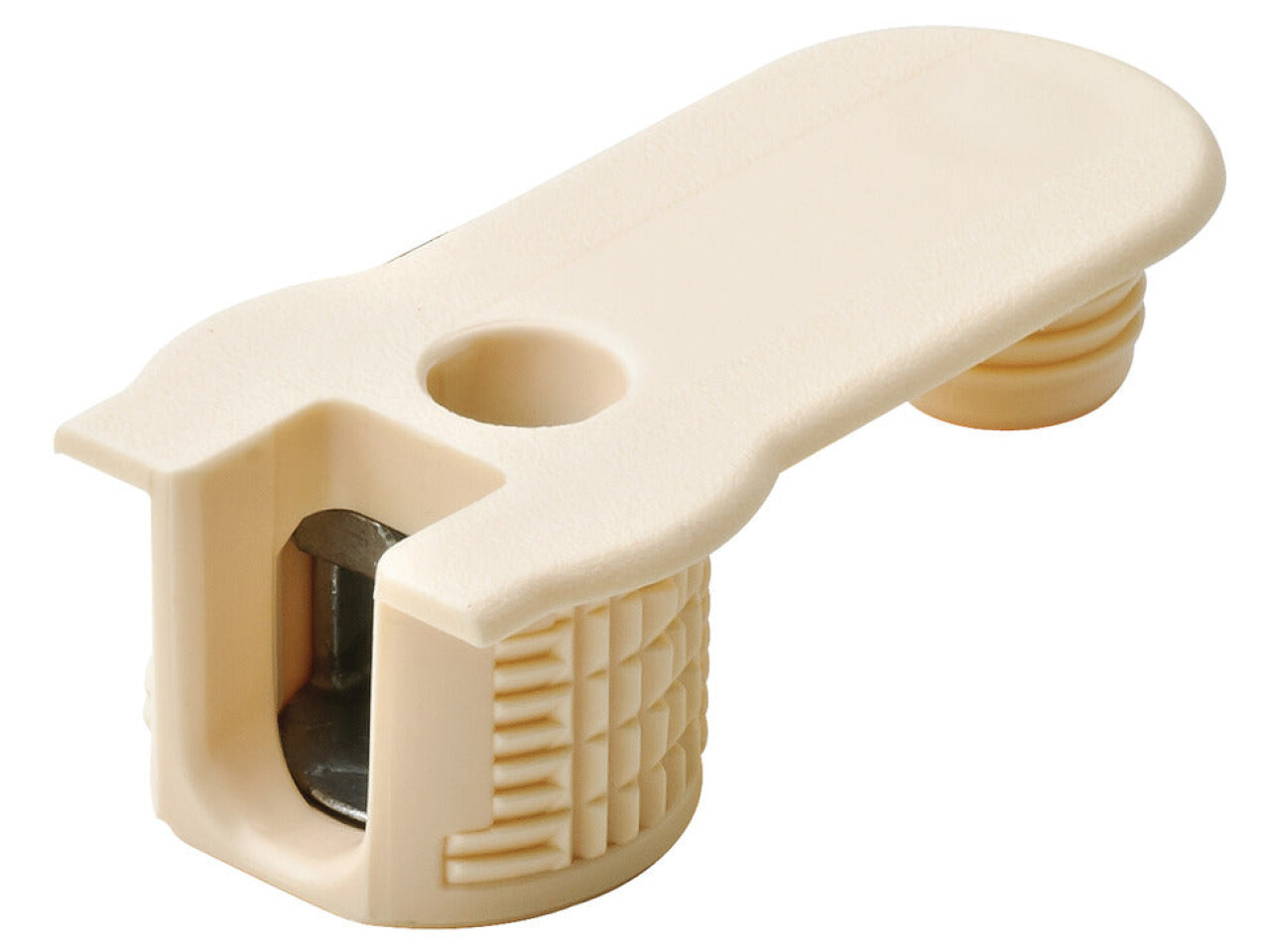

Connector Housing, with Dowel, Plastic, Rafix-20 (Part No: 263.12.405) is a smart, space-saving connector housing designed to help you build stable furniture with clean, precise fitting. If you’re working with 19 mm wood thickness, this beige connector housing—featuring a tightening element and without ridge—supports a secure hold while keeping the installation streamlined and professional.

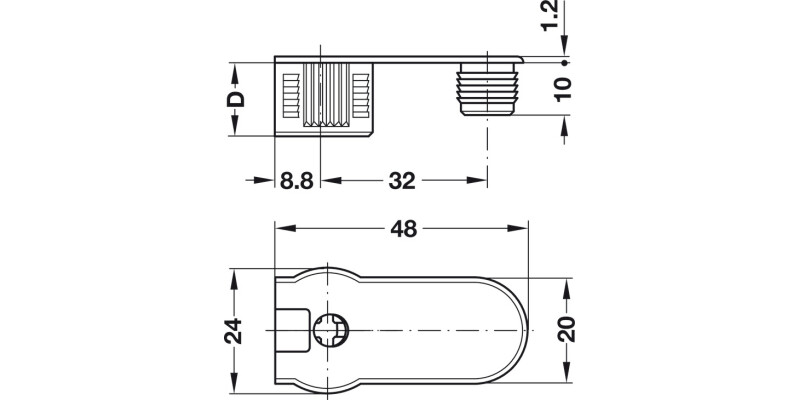

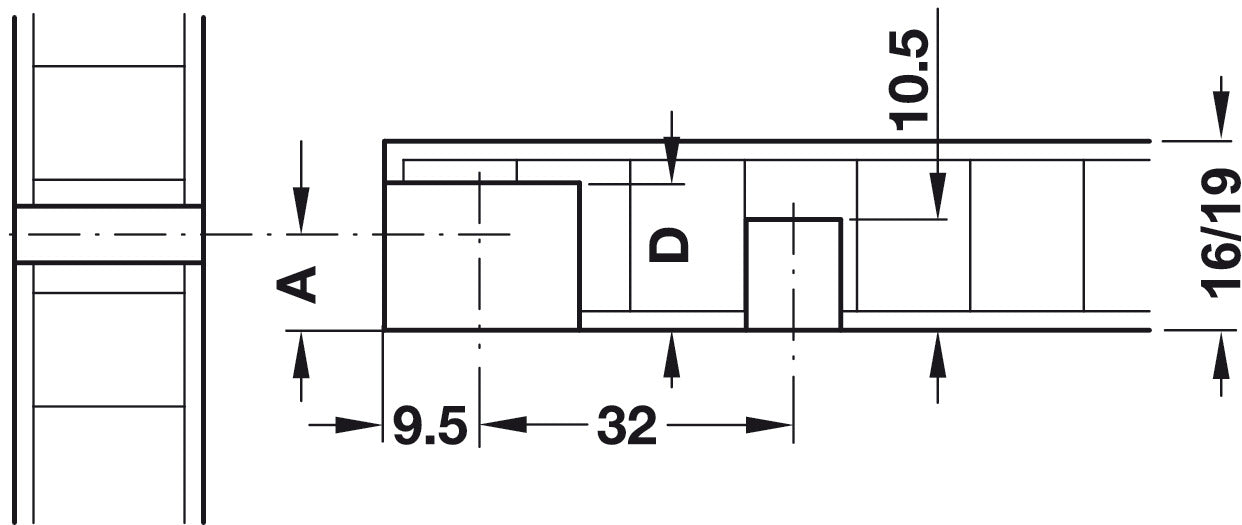

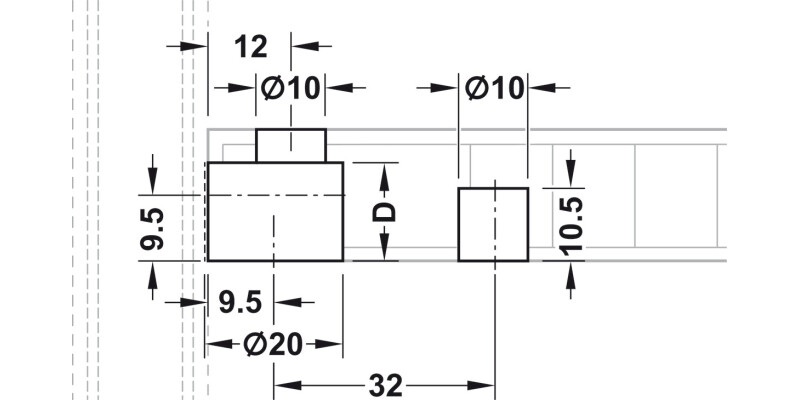

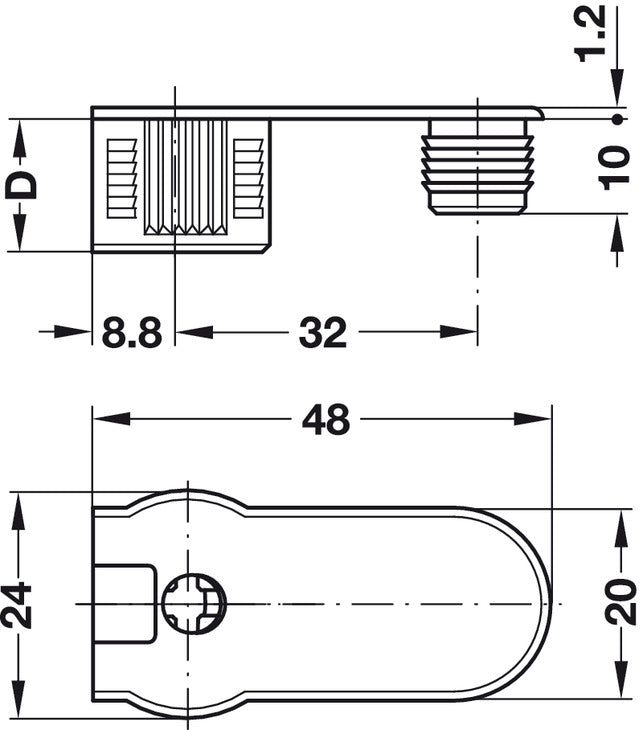

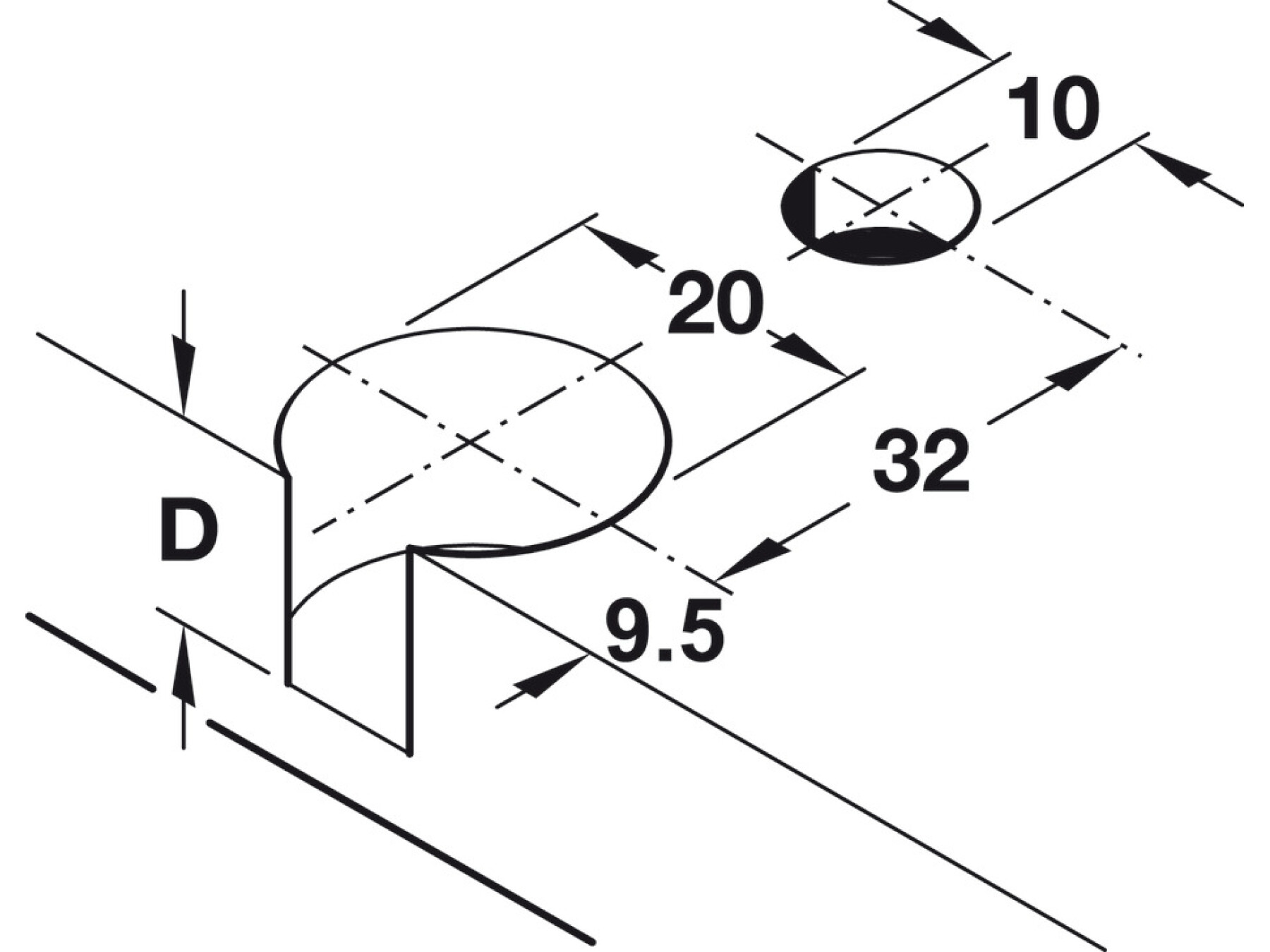

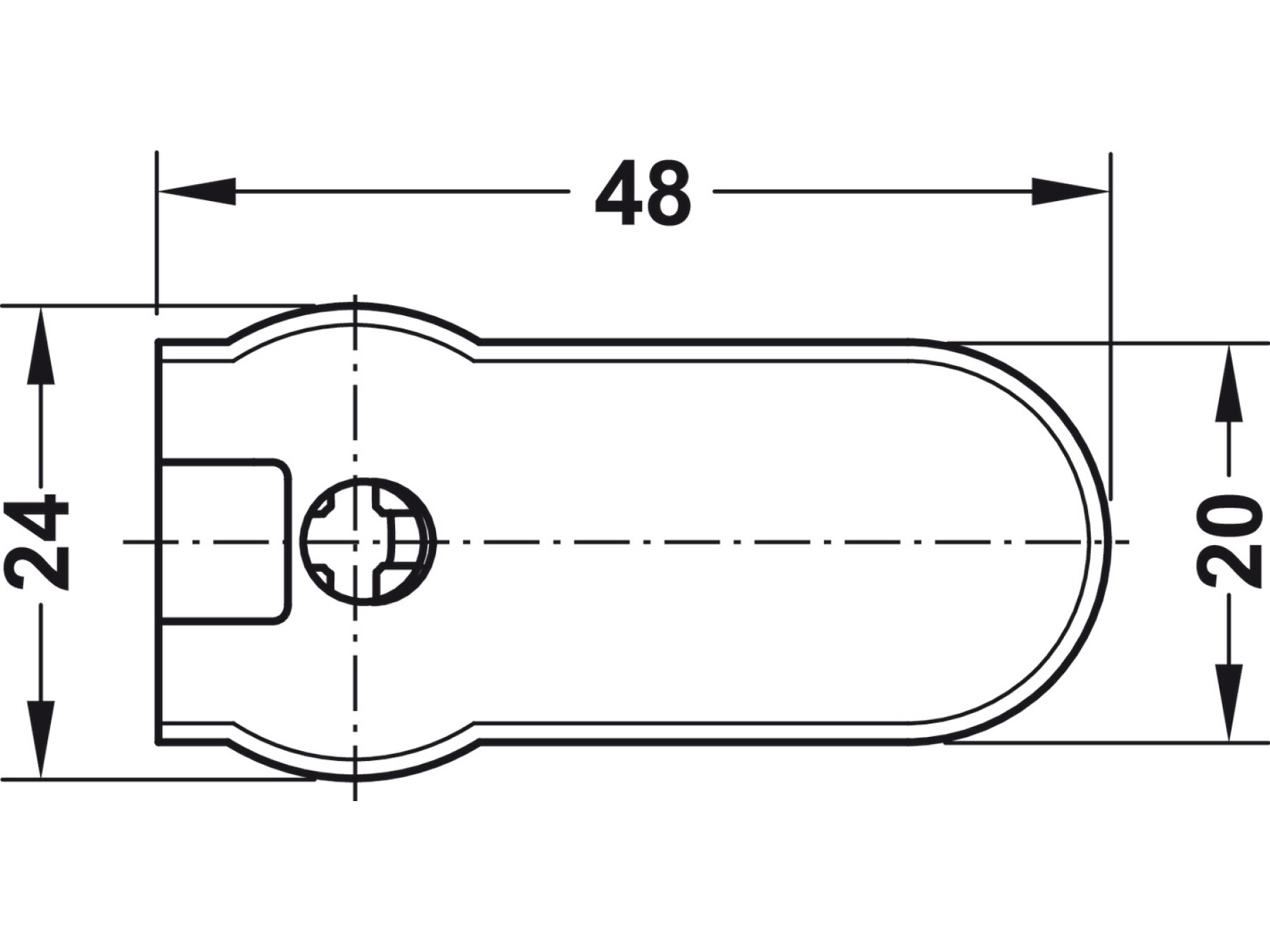

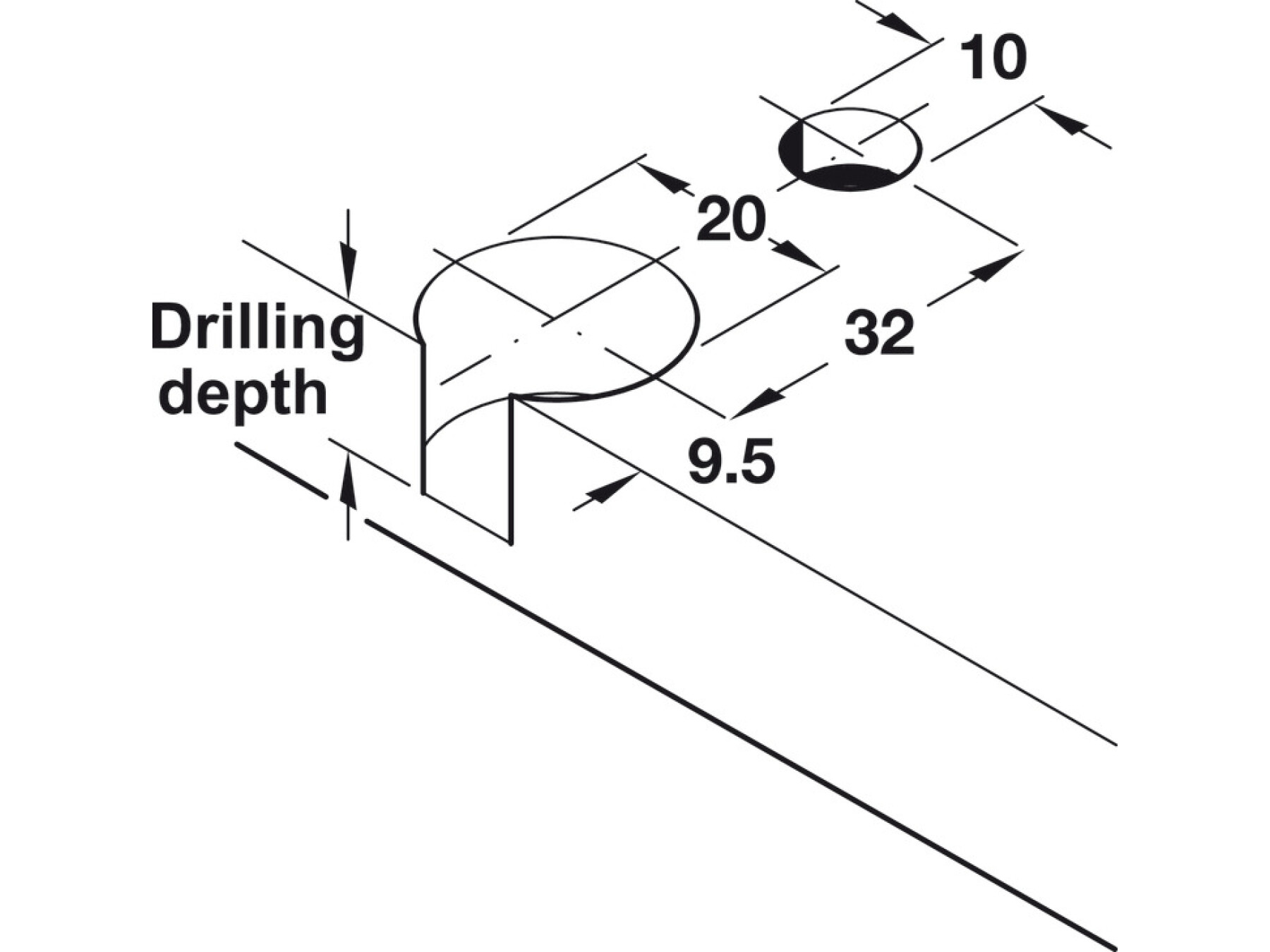

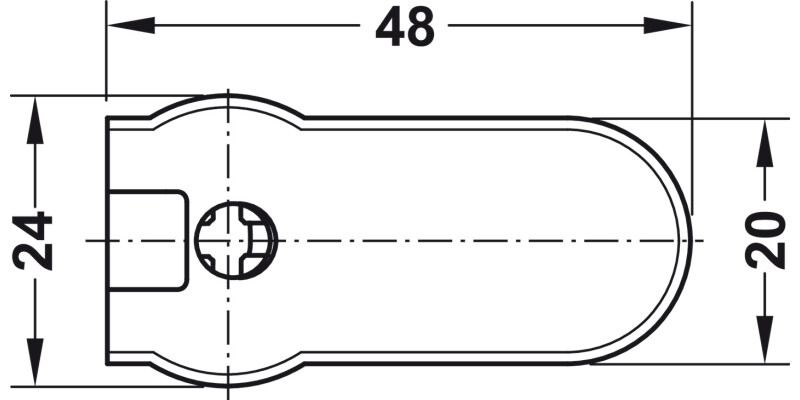

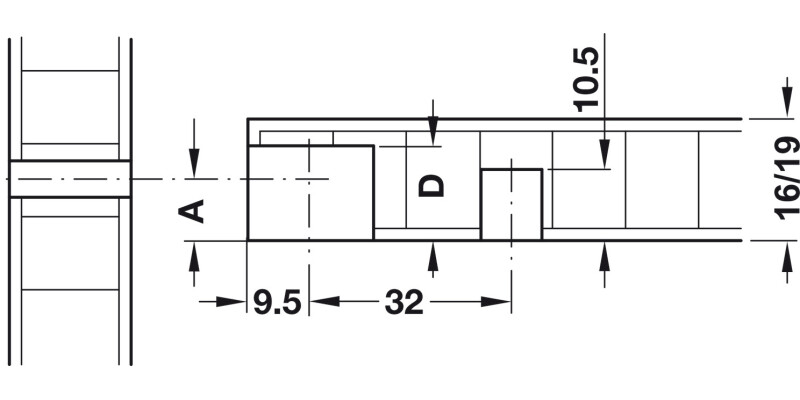

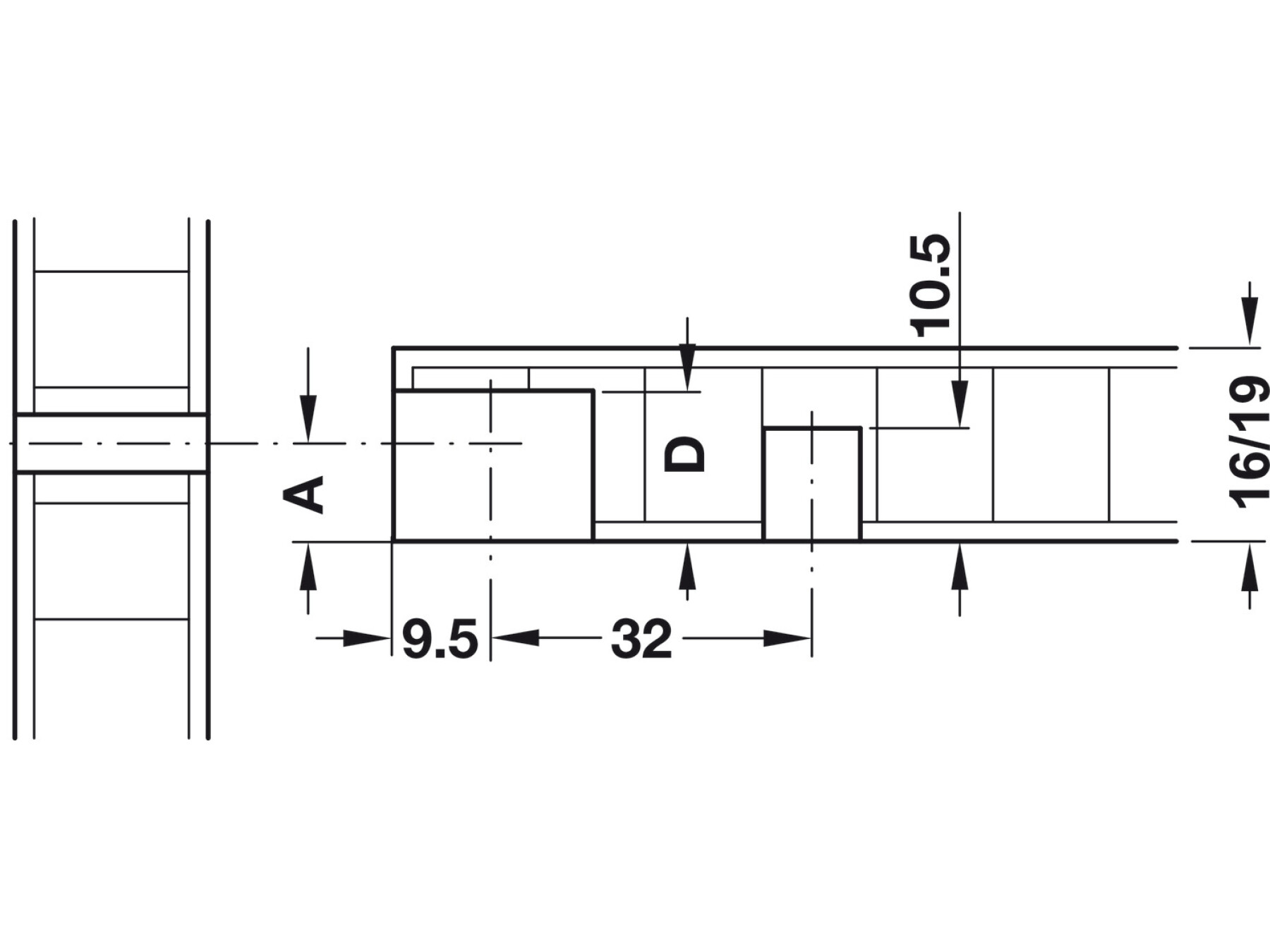

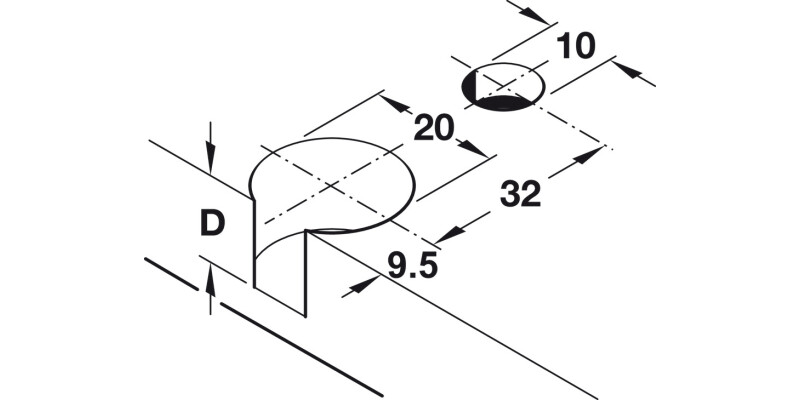

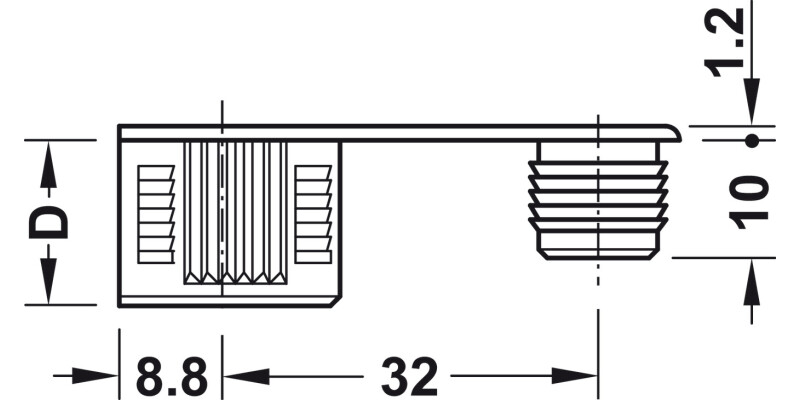

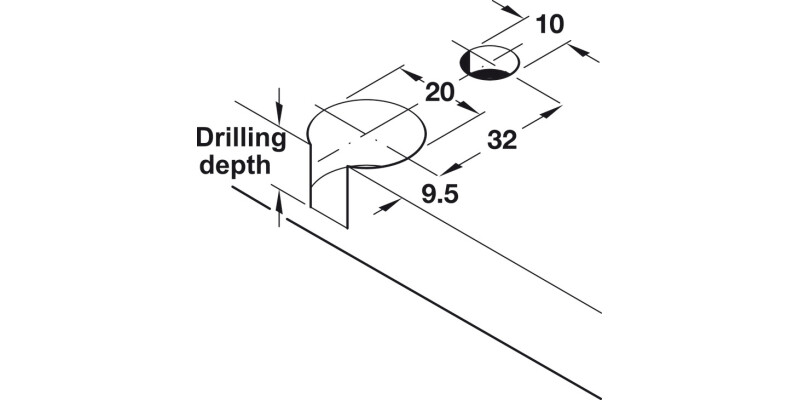

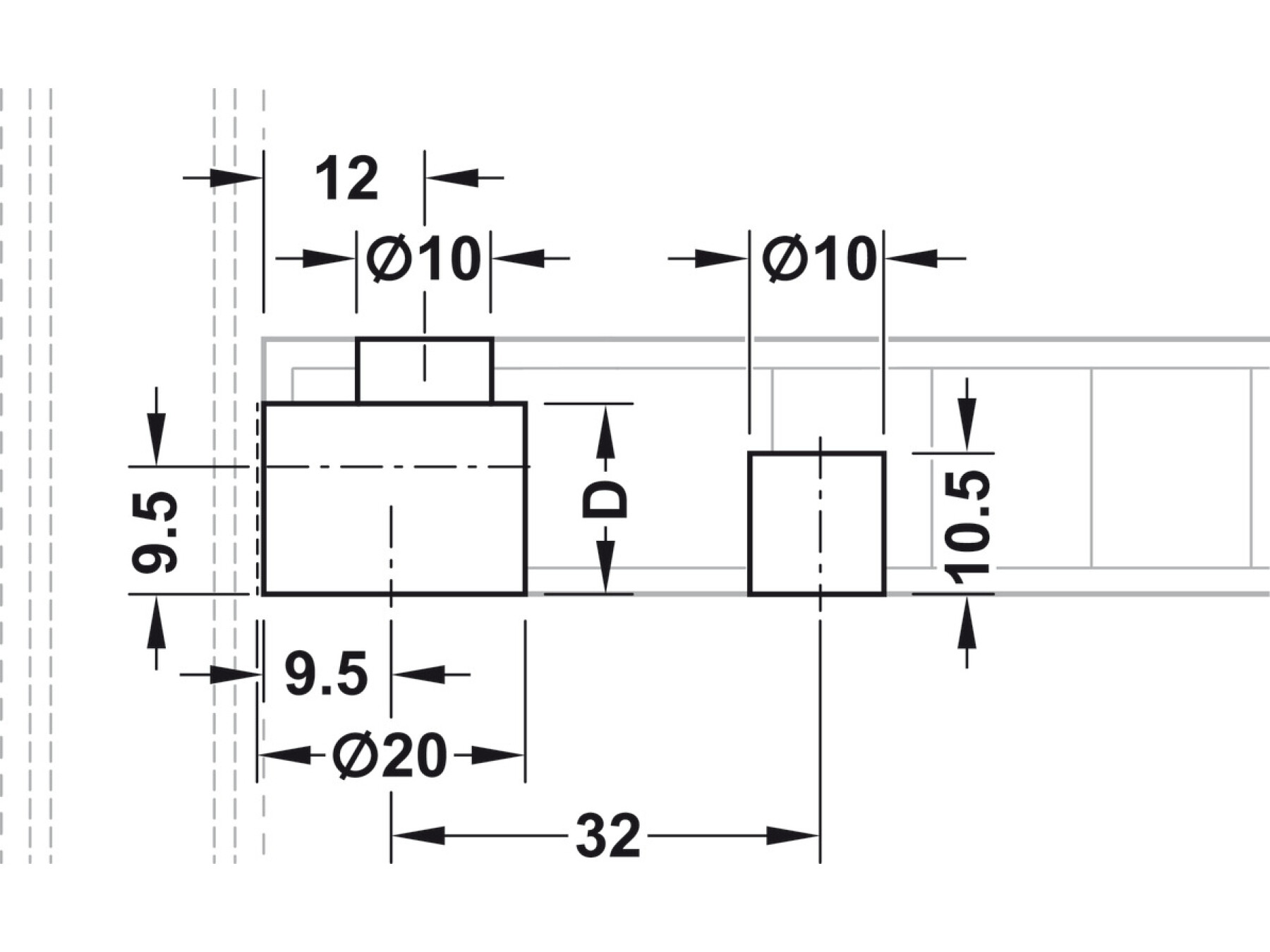

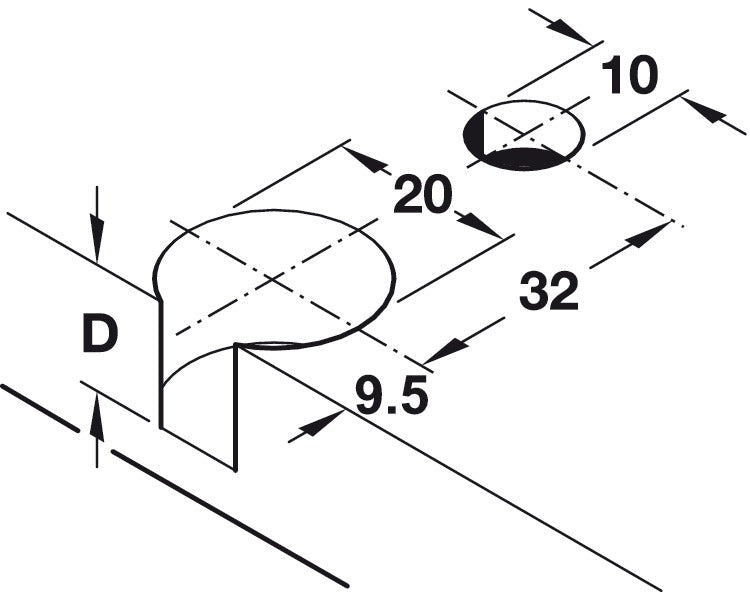

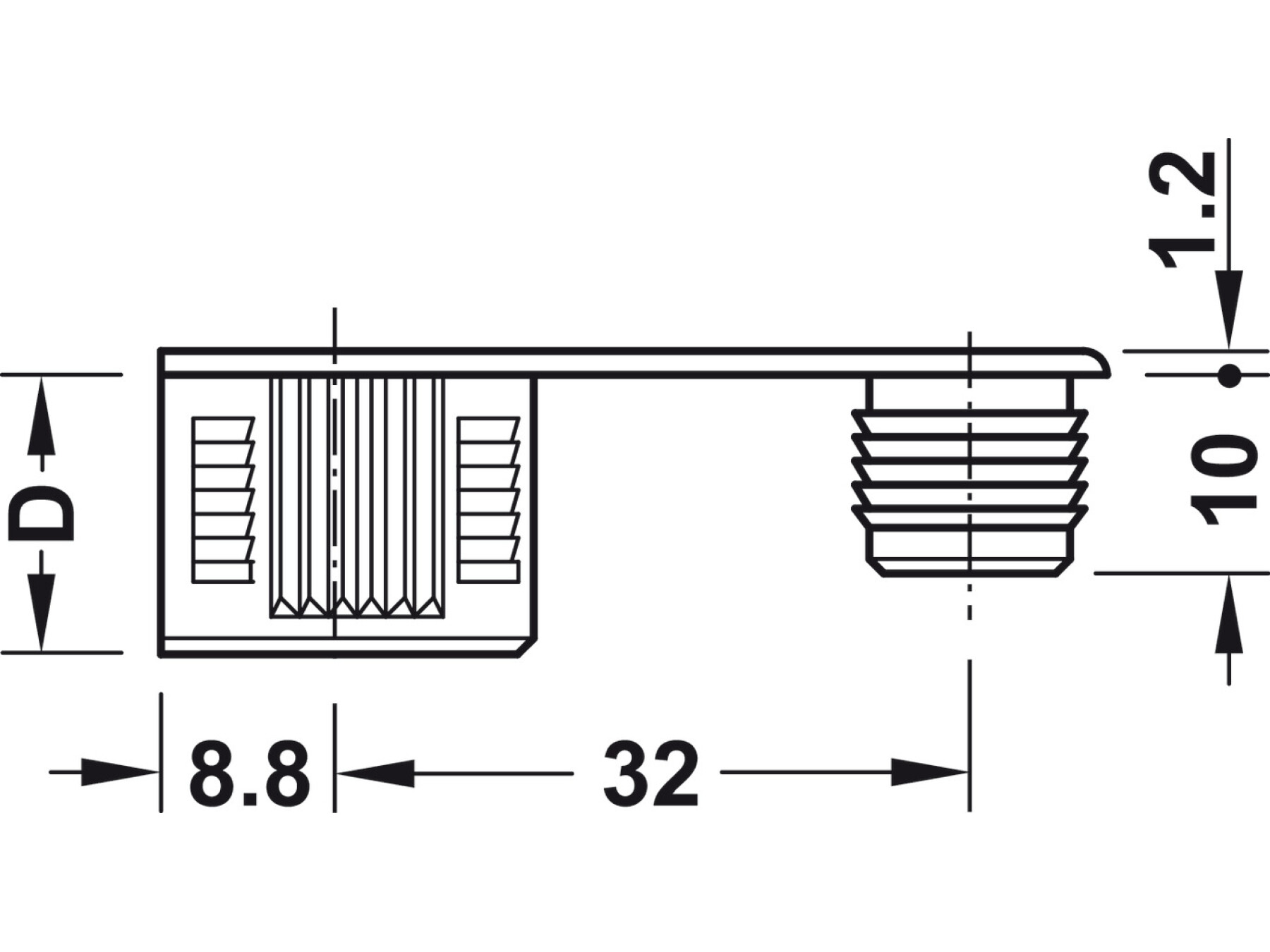

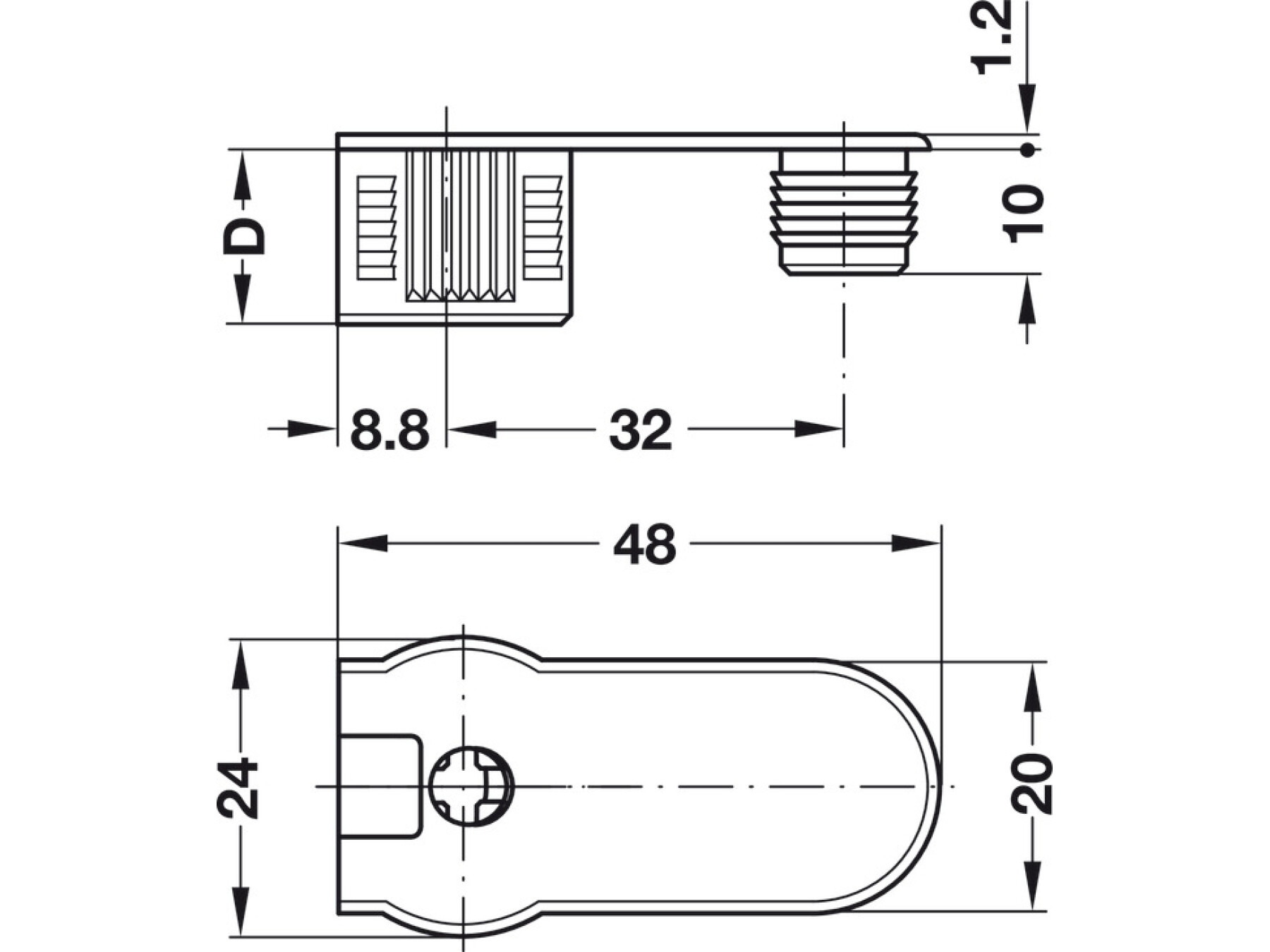

Engineered for reliable assembly, the unit is made from plastic, with the tightening element crafted from zinc alloy for durability where it matters most. The drilling guidance is designed to keep your workflow efficient: the drill hole Ø housing is 20.00 mm, with a drilling depth of 14.2 +0.2 mm. The overall dimension A is 9.5 mm, helping you maintain consistency across projects.

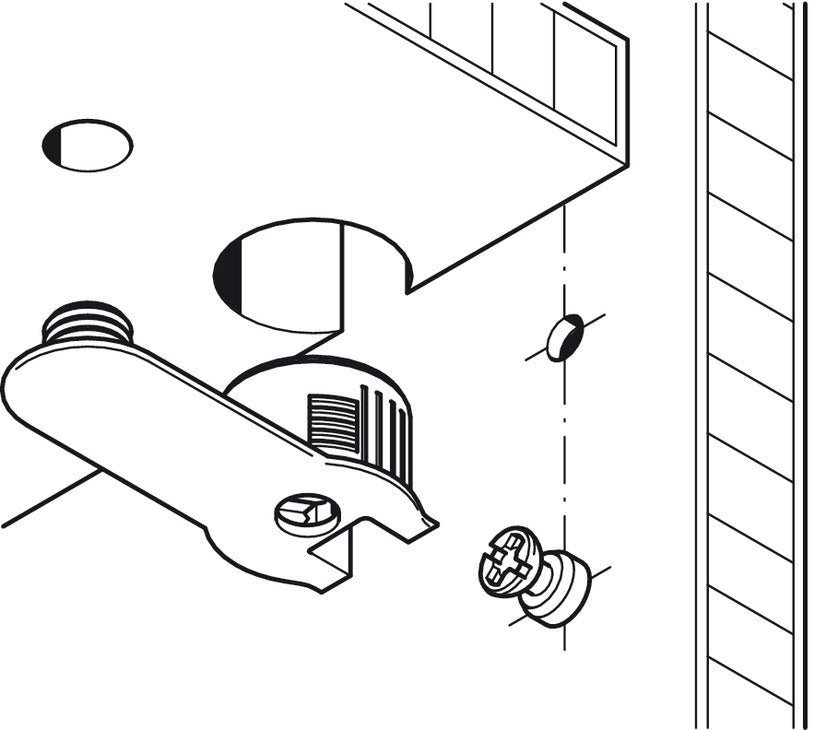

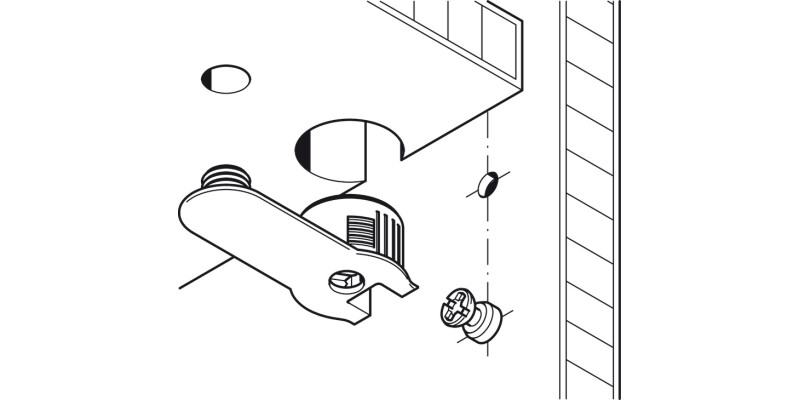

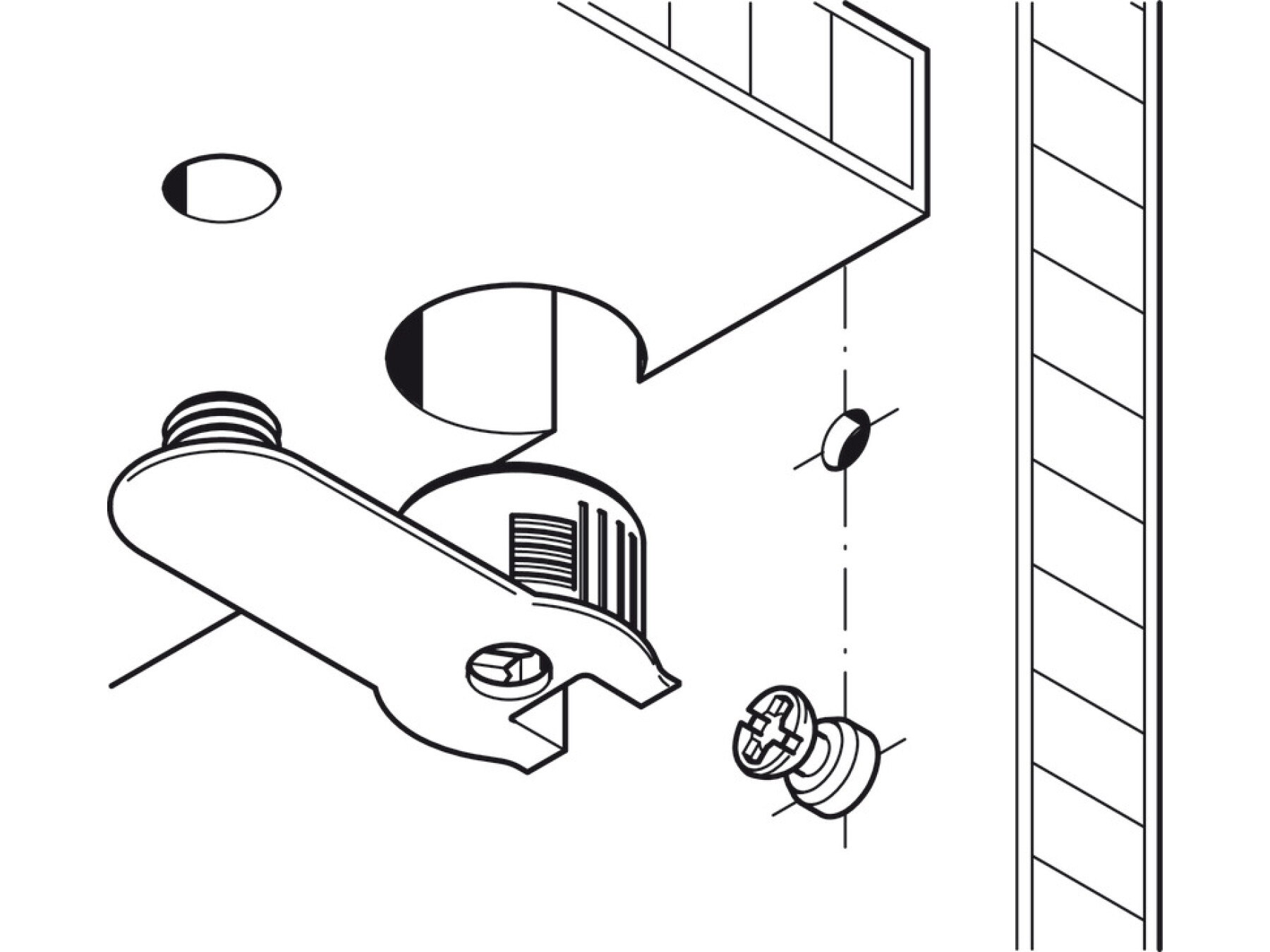

This connector housing is compatible with the PZ2 cross slot drive, making it easy to tighten accurately during installation. The selected version includes with rim, with tightening element, with dowel while remaining without ridge, giving you flexibility for different furniture build needs and finishes.

Choose Connector Housing, with Dowel, Plastic, Rafix-20 for dependable performance in living and commercial solutions. Plus, with the Hafele Lifetime Guarantee (25 years), you can install with confidence—knowing your furniture fittings are built for the long haul.
