Connecting Bolt, with M6 Thread, Steel, S35, Maxifix

Product Details

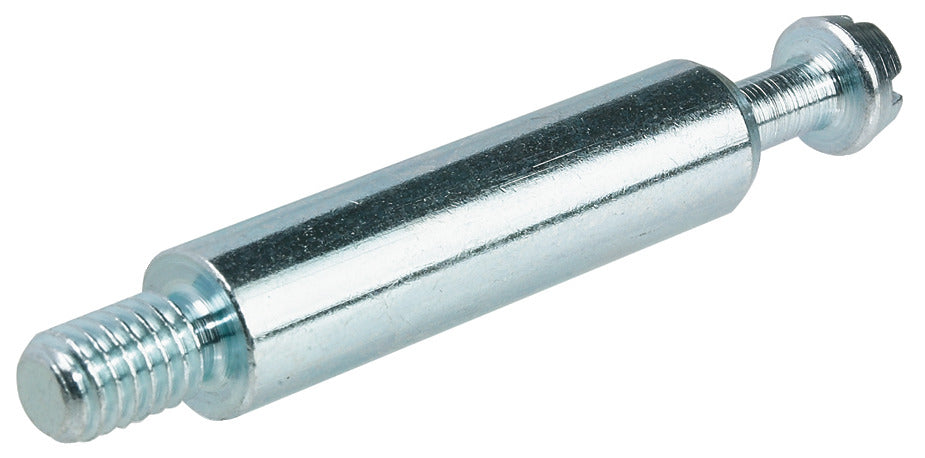

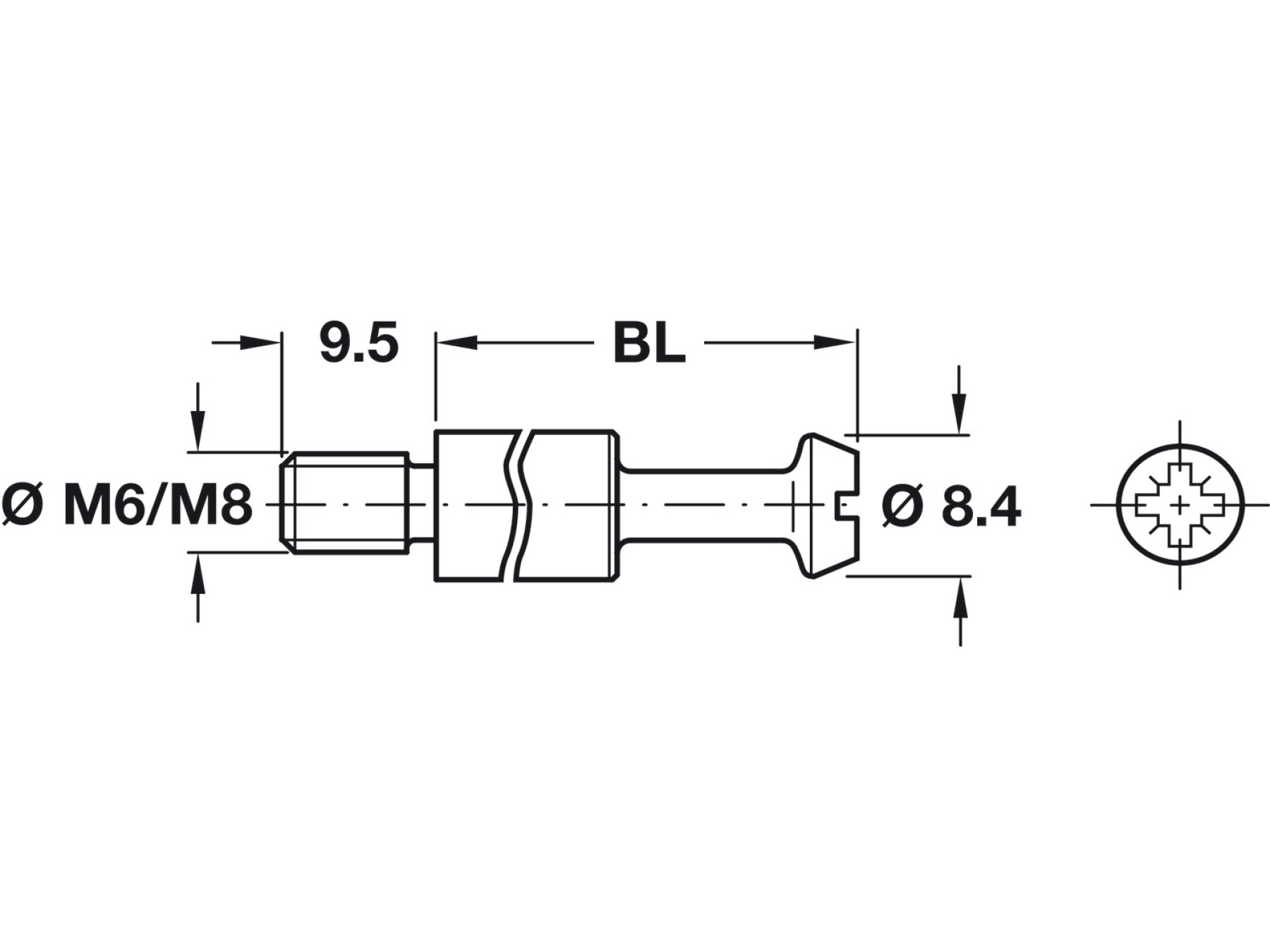

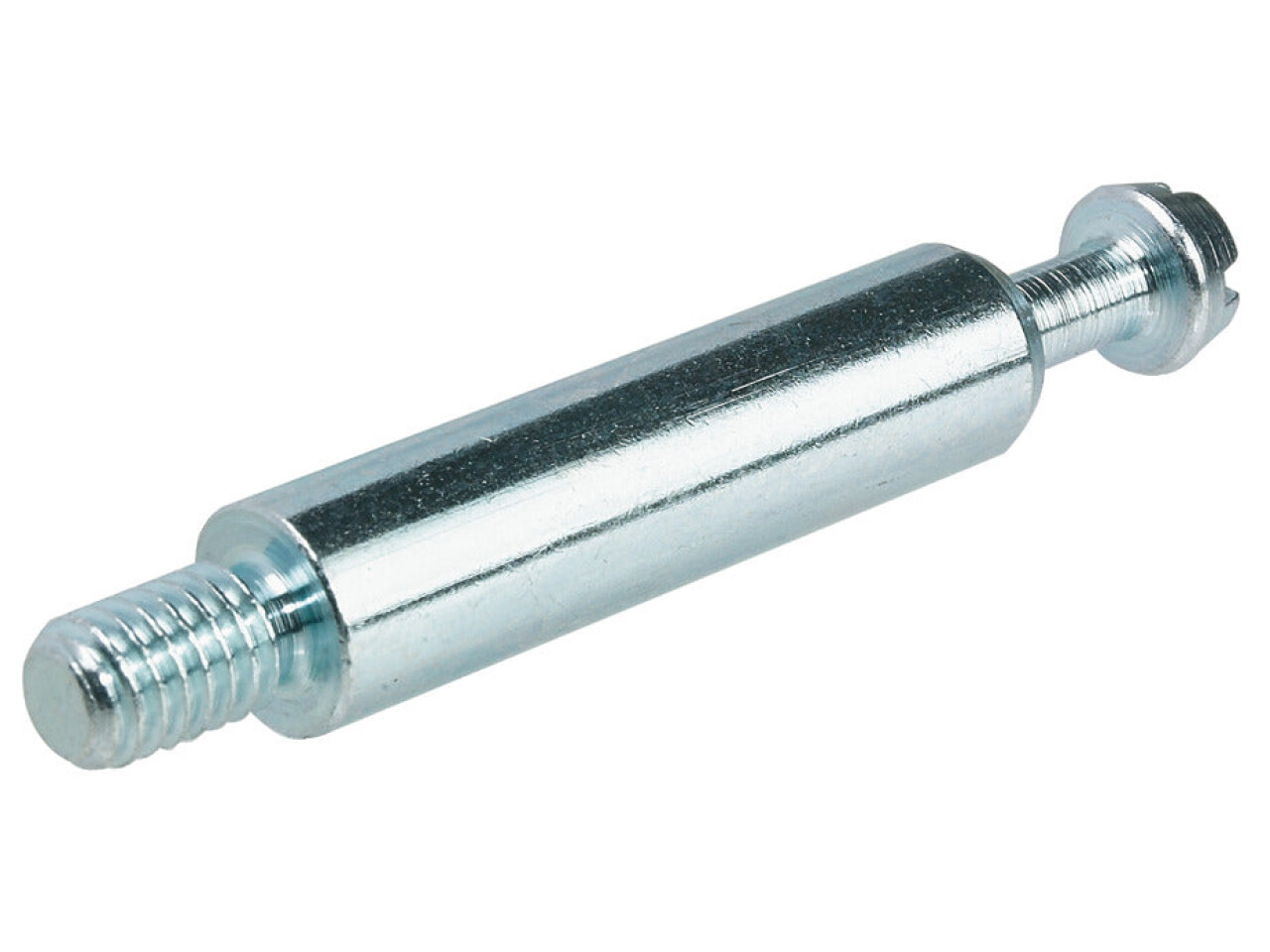

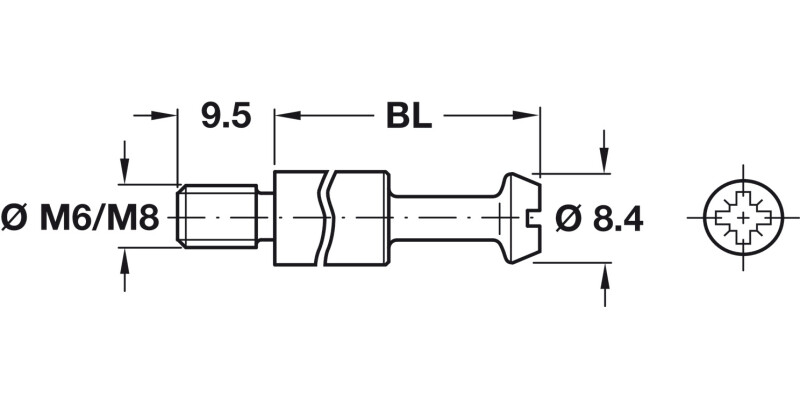

Connecting Bolt, with M6 Thread, Steel, S35, Maxifix. (Product Part No: 262.87.901) is a reliable connecting bolt designed to deliver secure, professional results for both living and commercial furniture solutions. This Connecting Bolt, with M6 Thread, Steel, S35, Maxifix. features a robust bolt head with Ø 8.4 mm, making it ideal for strong concealed connections where accuracy and stability matter.

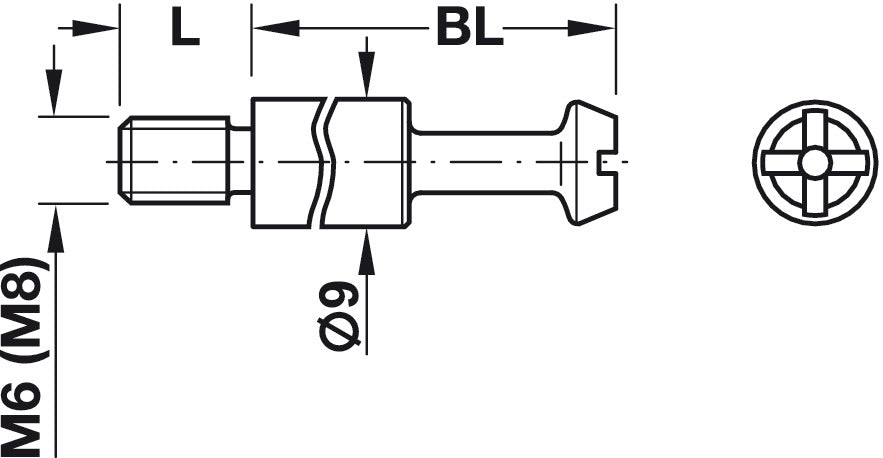

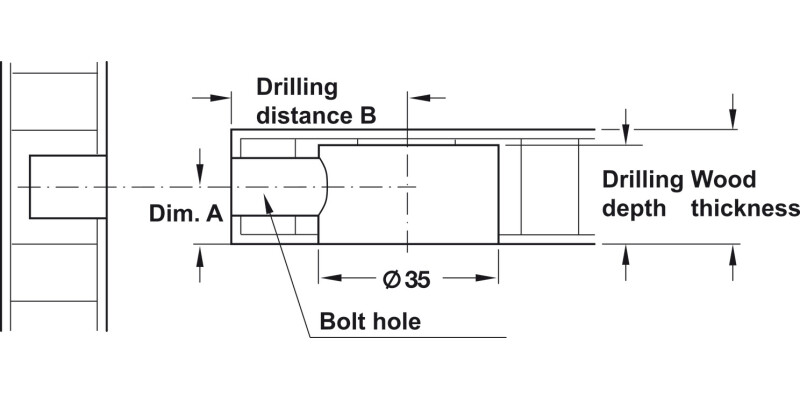

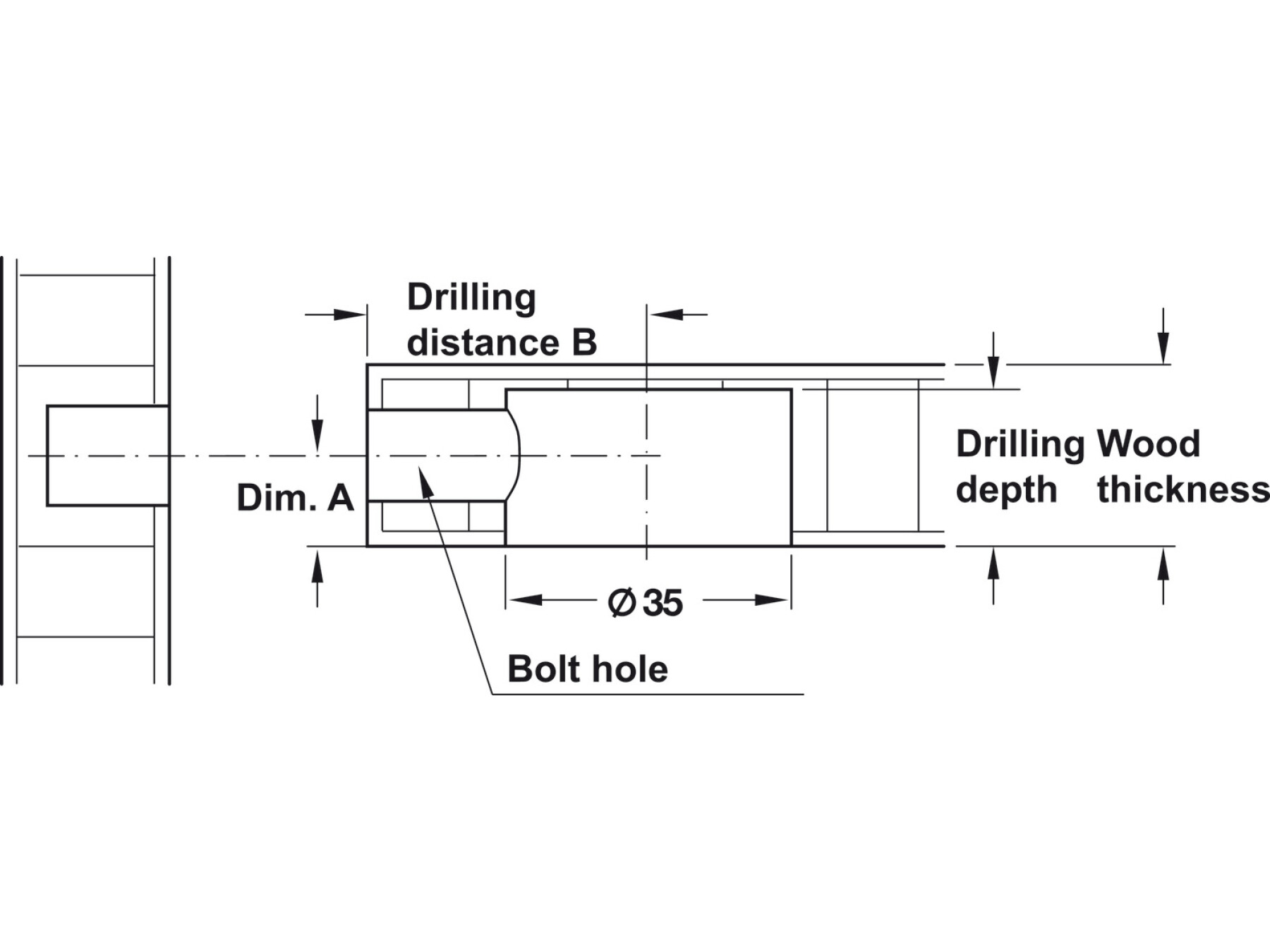

Engineered for precision, the bolt uses an M6 thread with a thread length of 9.50 mm and a matching drilling dimension of 35.00 mm. With a bolt length of 28.50 mm, it’s perfectly suited to create clean, consistent joins when paired with the correct Maxifix housings.

Built from steel and finished in zinc plated protection, this connecting bolt helps resist wear and corrosion, supporting long-lasting performance in everyday use. It also supports smooth installation thanks to the PZ3 cross slot drive and a 9.00 mm bolt hole.

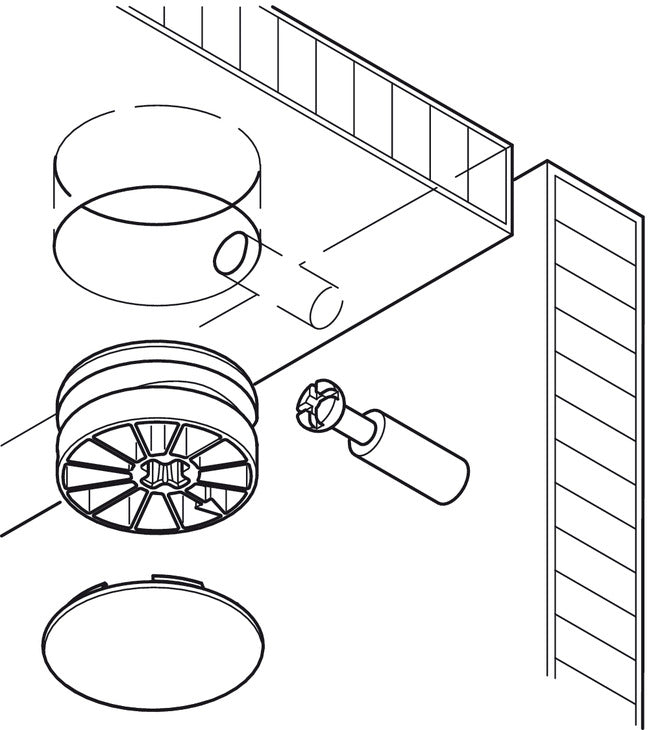

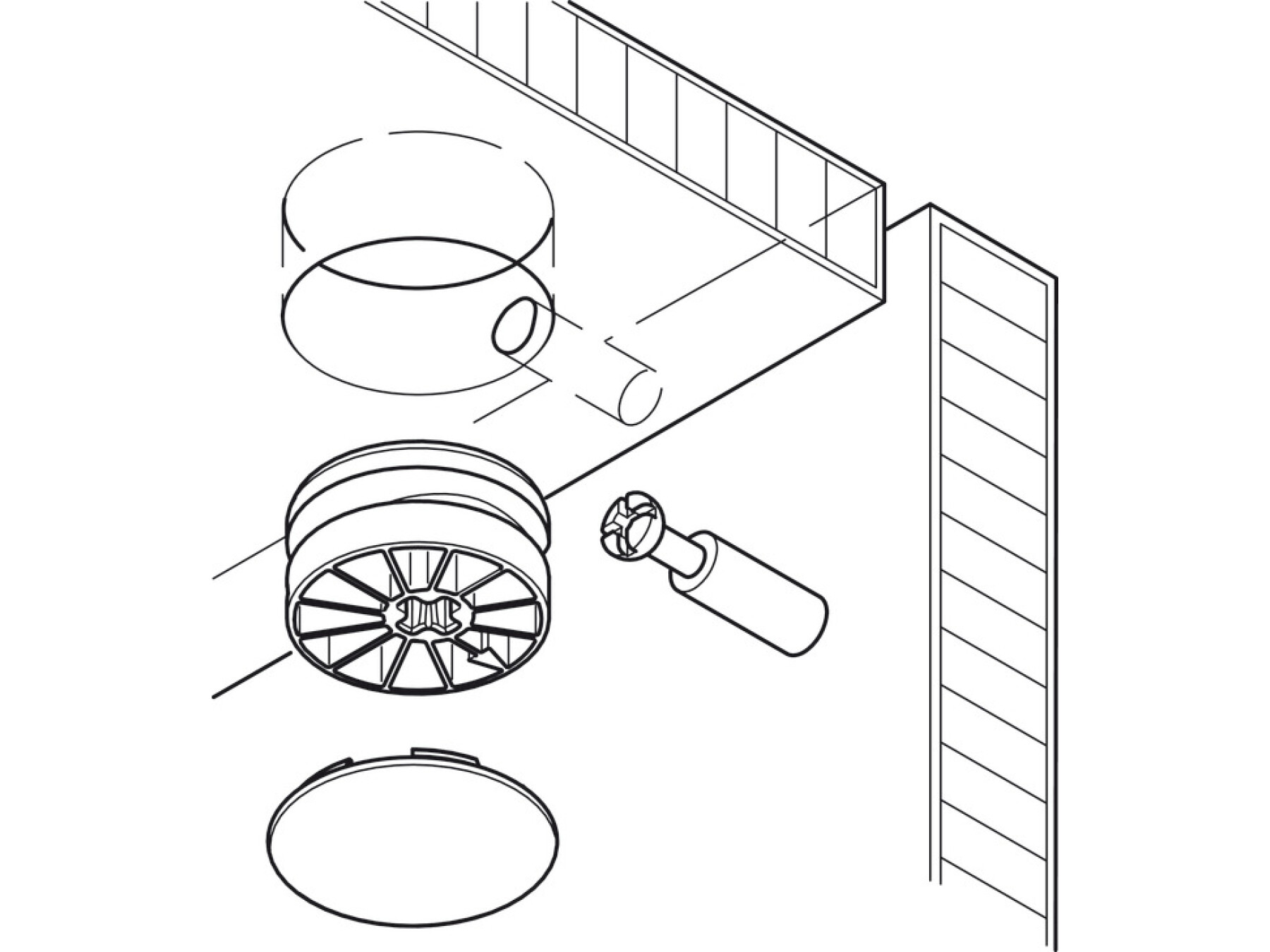

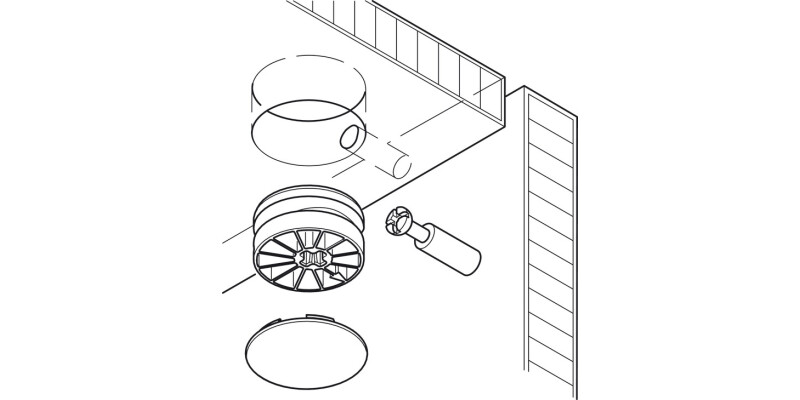

Area of application: for use with Maxifix Housings for min. 18 mm wood. Installation: designed for screw fixing into threaded sleeves, helping you achieve sturdy, accurate assembly with minimal fuss.

Choose a fitting you can trust—this product carries the Häfele Lifetime Guarantee of 25 years. If you’re building wardrobes, cabinet systems, or commercial furniture, the Connecting Bolt, with M6 Thread, Steel, S35, Maxifix. is a smart, dependable upgrade to your fitting setup.
