Clip Cabinet Connector, Internal Element RV/U-T3

Product Details

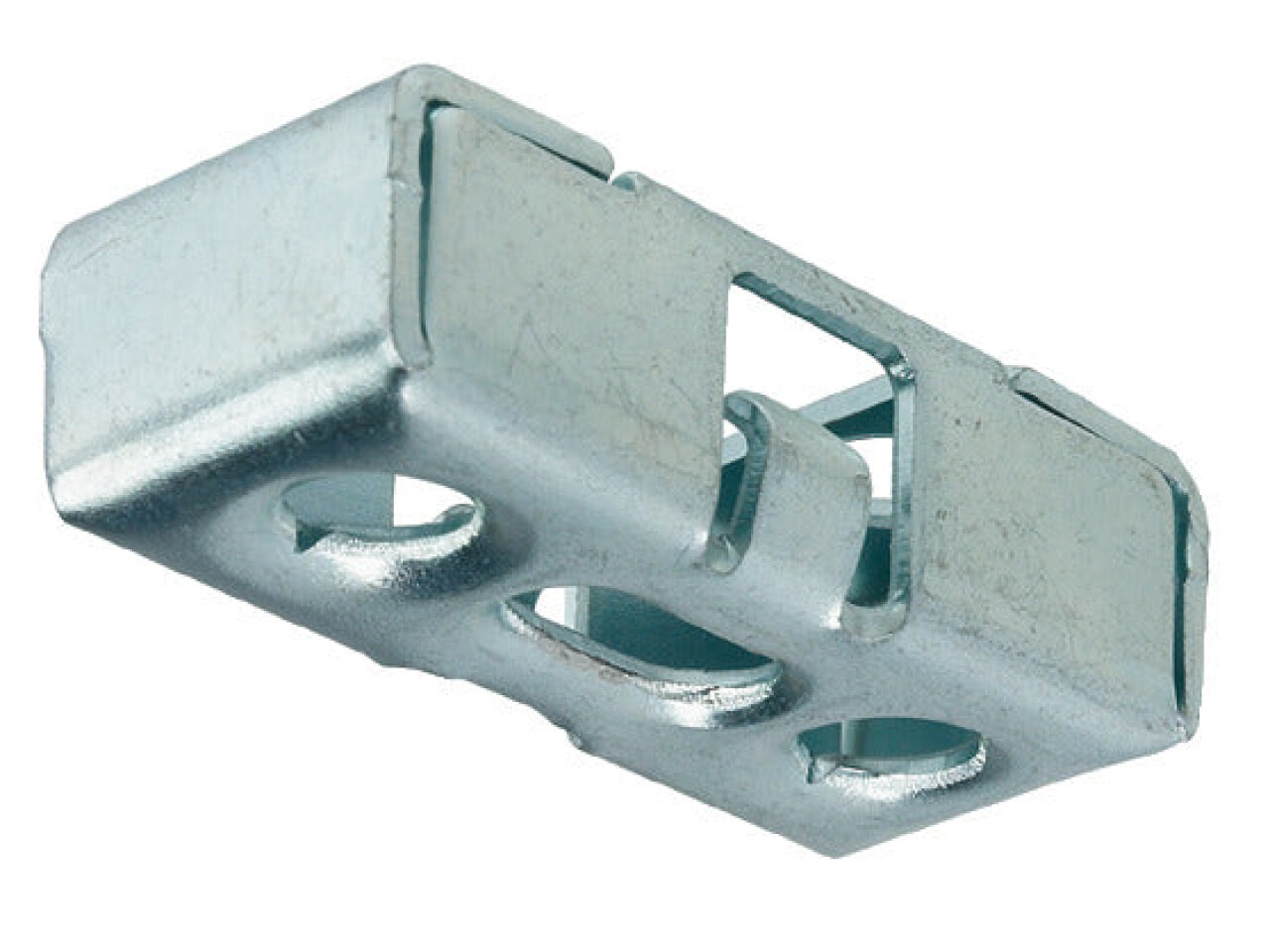

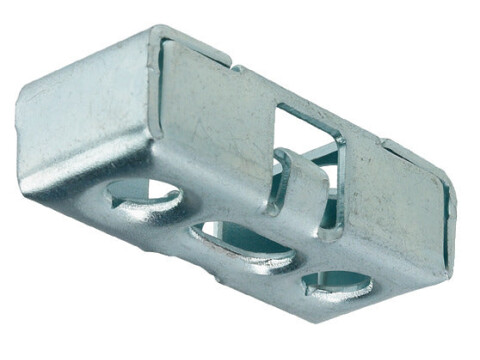

Clip Cabinet Connector, Internal Element RV/U-T3. (Part No: 262.72.953) is a reliable clip cabinet connector designed to deliver clean, stable connections for furniture and commercial installations. If you’re building or upgrading cabinet frameworks, this connector helps achieve strong angular rigidity while making assembly straightforward and secure.

Built with steel and finished in zinc plated galvanization, the connector is made for everyday durability and long-lasting performance. The tolerance compensation ±1.5 mm feature allows for smoother alignment during installation—especially helpful when working with real-world tolerances in cabinetry and shopfitted interiors.

Designed for use as a furniture fitting within living and commercial solutions, this clip cabinet connector is ideal when you want dependable joining strength without guesswork. The connector supports firm positioning for components that must maintain accurate angles over time.

For mounting, it’s screw fixed using the appropriate hardware. The drive is a PZ2 cross slot, making it simple to install with compatible tools. For the best results, please order the required 3.5 mm countersunk head screws separately (Order reference: use Hospa 3.5 mm countersunk head screws).

To top it off, the Hafele Lifetime Guarantee (25 years) offers added confidence—making Clip Cabinet Connector, Internal Element RV/U-T3. a smart choice for quality-focused cabinet connectors and shelf support systems.

Order Hospa 3.5 mm countersunk head screws separately
