Cam Lock Case, for Screw Fixing, Symo 3000

Product Details

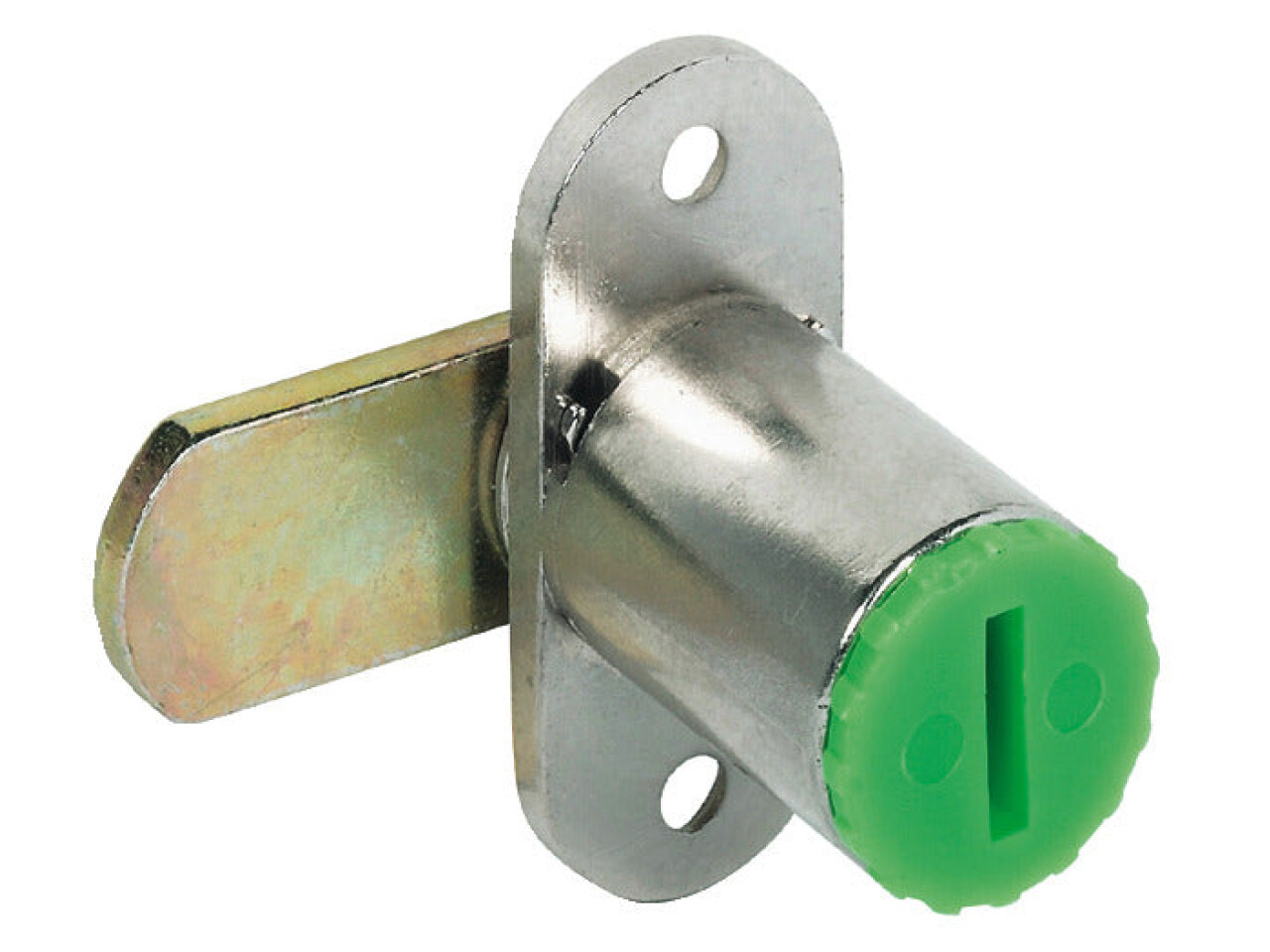

Cam Lock Case, for Screw Fixing, Symo 3000. (Part No. 235.59.610) is a premium cabinet lock case designed for reliable, secure closure in both living and commercial environments. Built for smooth everyday use, this cam lock case is ideal for furniture makers, facility managers, and anyone upgrading locking hardware for cabinets, cupboards, and storage doors.

Perfectly suited for combination with Symo cylinder removable core, the Symo3000 Cam Lockcase 22mm Dir.B features a closure direction of B (with compatible options noted as C, E, H*). This makes it a smart choice when you need the correct handing and consistent locking performance.

Featuring a 90° locking cam (reversible) with 180° key≤22 mm, with a straight locking cam version for a clean, efficient installation.

Finished in nickel plated zinc alloy, it offers both a professional look and long-lasting strength. Installation is straightforward: the lock case is designed for screw fixing with a screw-on plate, making it practical for site fitting and maintenance.

Key details: This model is prepared for a round cylinder with a cylinder housing length of 22.00 mm. No key is included with this lock case. You’ll also want to order the cylinder rosette and Ø 3.5 mm Hospa screws separately for a complete setup.

Supplied with 1 locking cam, 1 mounting screw, and 1 steel washer, the Cam Lock Case, for Screw Fixing, Symo 3000. is an excellent step toward secure, well-finished cabinetry—order yours today.

Order cylinder rosette and Hospa Ø 3.5 mm screws separately

1 Locking cam
1 Mounting screw
1 Steel washer
