Push Button Cylinder, Ø 18 mm, Locking Pin with M5 Internal Thread

Product Details

Will this push button cylinder fit a standard lock panel and sliding door setup?

This cylinder is designed for installation in a lock panel and can also be used on sliding doors. The standard profile makes it suitable for typical furniture and commercial locking applications where a push button cylinder is specified.

What does M5 mean for the locking pin, and do I need to check anything on my door or lock plate?

The unit uses a locking pin with an M5 internal thread. Before fitting, it is important to confirm that your lock panel or pin housing is set up for an M5 thread so the cylinder engages correctly and tightens securely.

How do I order the right cylinder length and diameter for my application?

This model has an 18 mm cylinder diameter and a 22.5 mm cylinder length. If you are replacing an existing cylinder, matching these dimensions is the key check to ensure proper fit through the lock panel.

Does it include keys, and is it keyed alike with the FH2 change range?

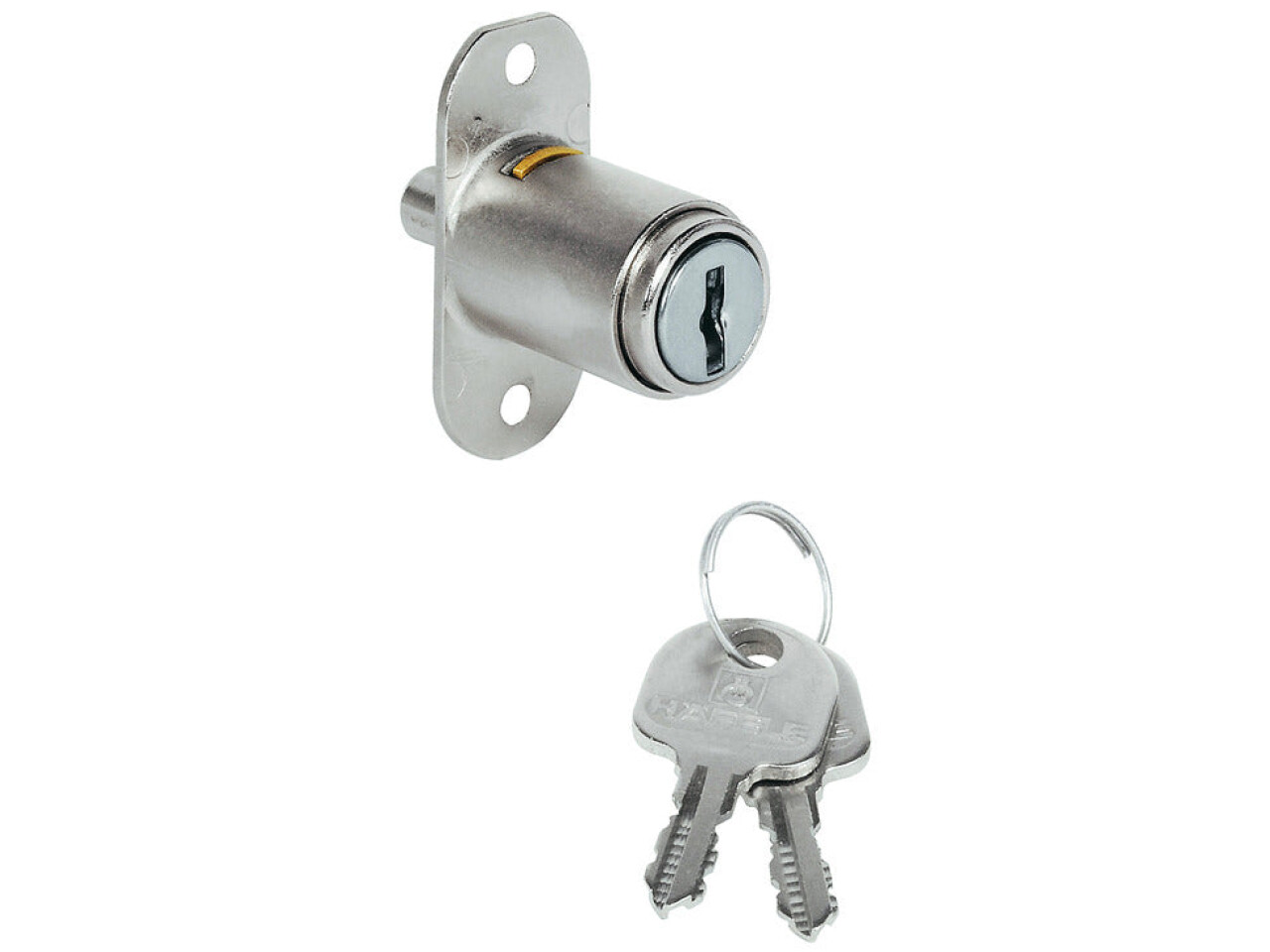

Yes. It is supplied with 2 keys and a push button cylinder. It is also specified as Keyed alike: key change FH2, which means it can be matched to the FH2 keying system where required.

How much cylinder travel should I expect when the lock is operated?

The cylinder has a travel of 12 mm. This is useful when checking clearances in the lock panel and when ensuring the mechanism can accommodate the movement needed for reliable locking and unlocking.

How is the push button cylinder secured during installation?

It is intended for screw fixing during installation. Make sure your lock panel is set up for screw attachment and that you use the correct fixings for the panel thickness and thread compatibility.
