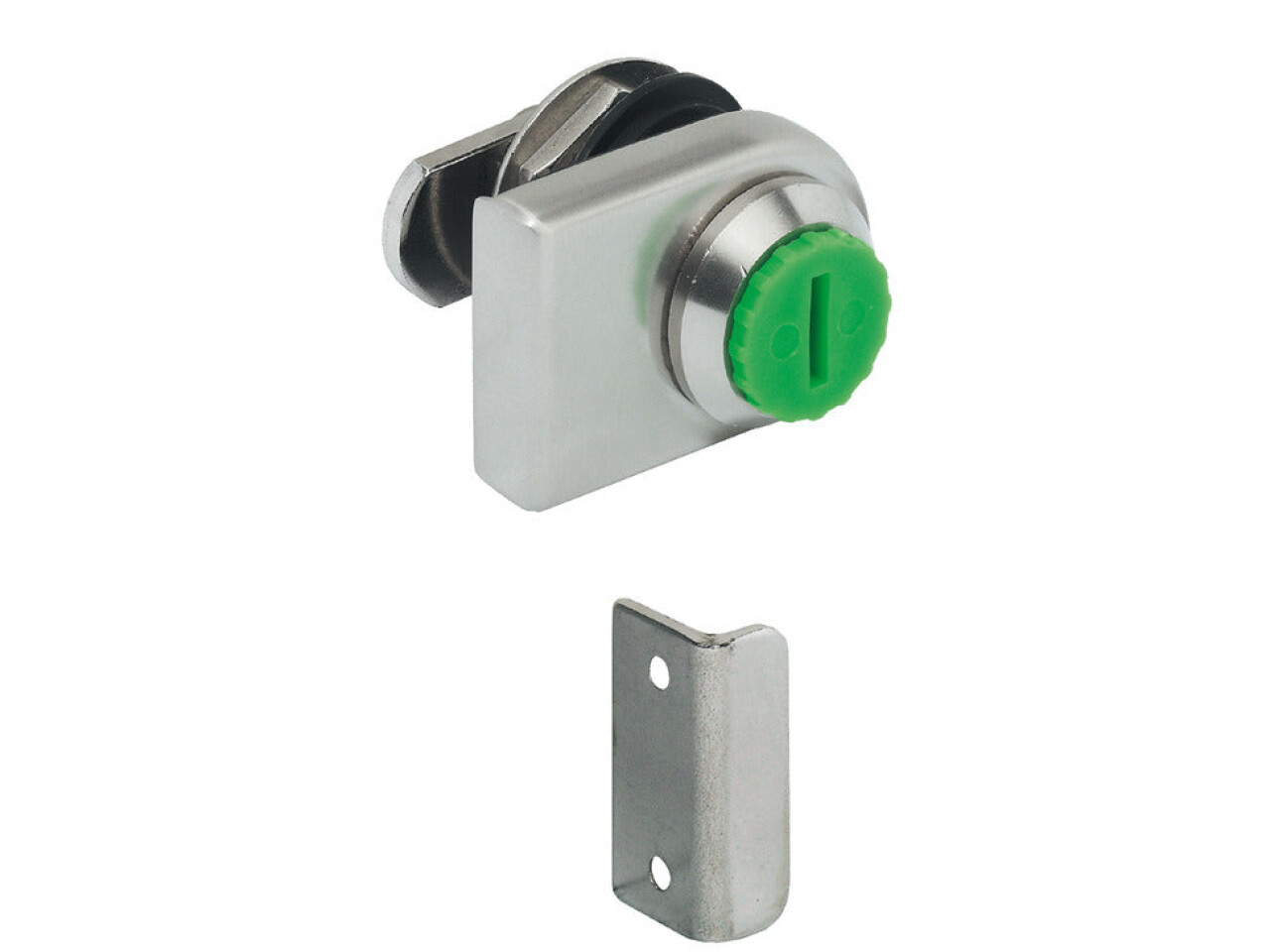

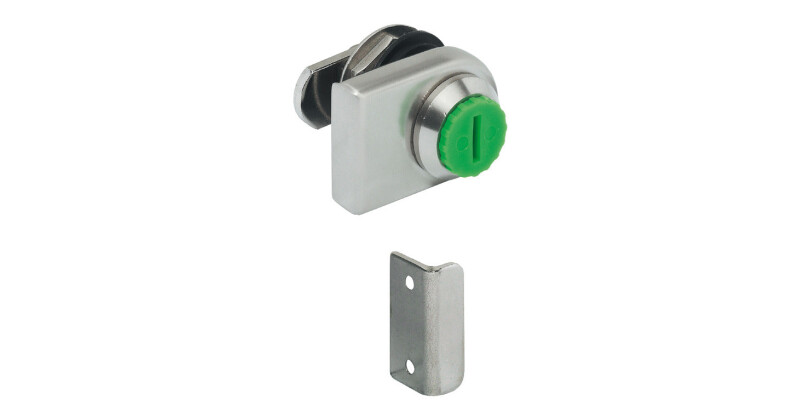

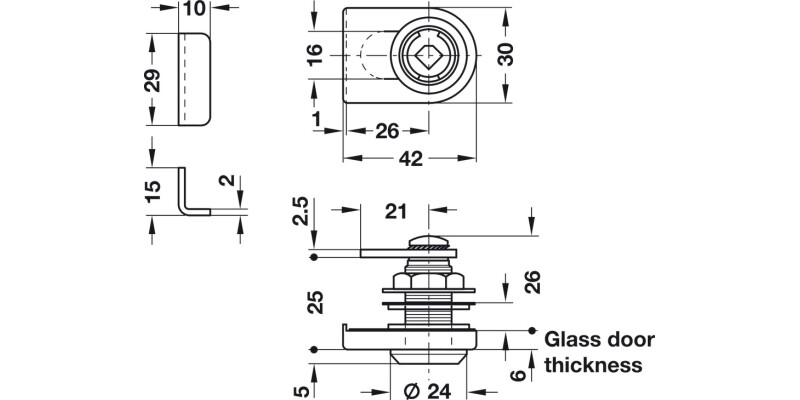

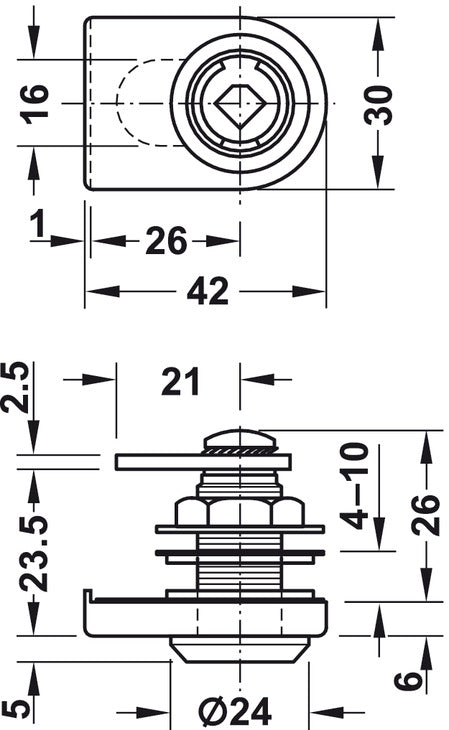

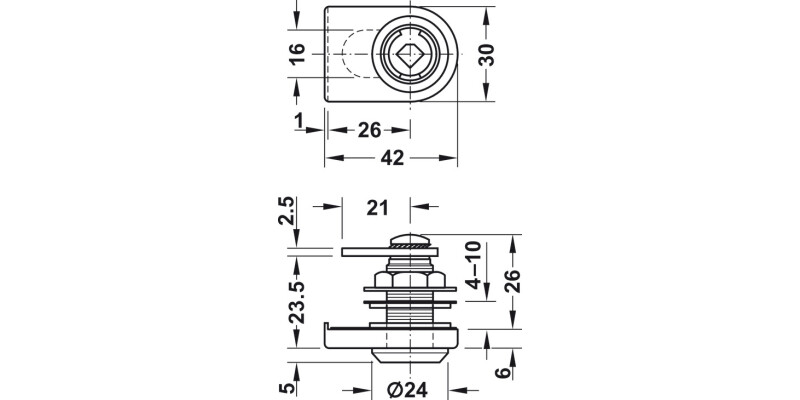

Symo3000 Gls Dr Lever Lockcase B MNP
Part Number: 233.42.710
For combination with Symo cylinder removable core, Closure direction B (C, E, H*), matt nickel plated
Price:
£13.35
Per Item
Closure directions can be altered by re-positioning the cam, but always moving in the same direction*:Closure... Read More
Product Information
Product Details
Closure directions can be altered by re-positioning the cam, but always moving in the same direction*:
Closure direction A can be altered to D, F or G
Closure direction B can be altered to C, E or H
Closure travel: 90º locking cam (reversible), 180º key
Supplied with
1 Locking cam
1 Mounting nut

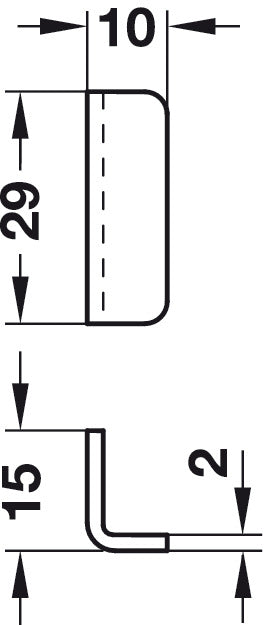

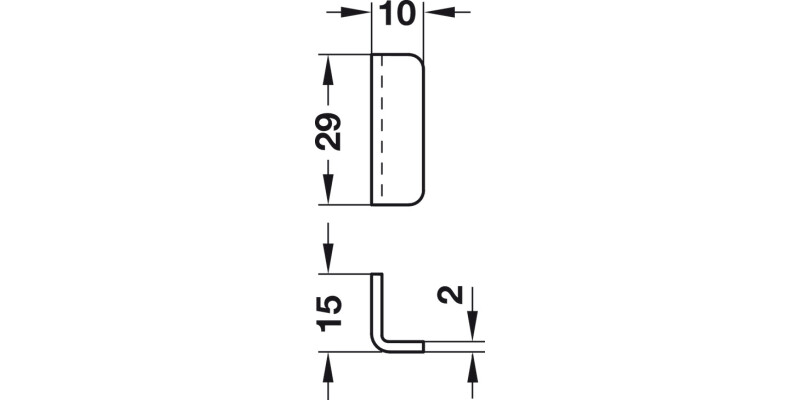

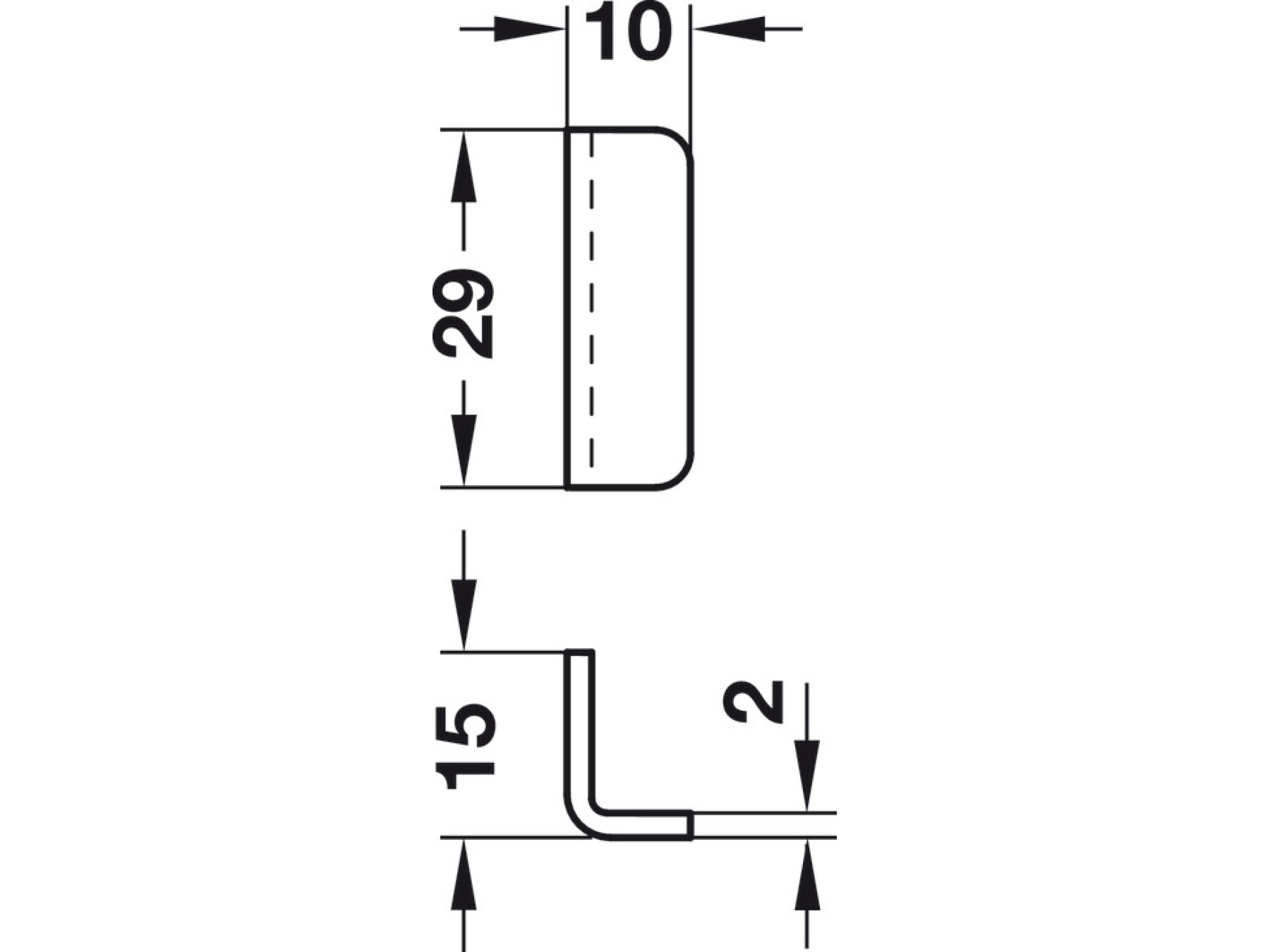

1 Angledsteel striking plate
1 Clamping plate
1 Clamping plastic rosette
The locks can be operated by turning the protective cap with a screwdriver or coin, before the cylinder cores are installed
Specifications
Closure travel
180°
Colour/finish
Nickel plated, Nickel plated polished
Area of application
For cylinder cores that are inserted from the front on site
Suitable for
With straight locking cam
Cylinder shape
prepared for round cylinder
Version
With straight cam
Material
Zinc alloy
For glass thickness
4 – 10 mm
Installation
Right hand
with key
No
Order reference
Please order counterpiece for 2-leaf sliding doors separately.
