Lock Handle, for Cylinder Cores without Rings, Symo 3000

Lock Handle, for Cylinder Cores without Rings, Symo 3000

Name: Lock Handle, for Cylinder Cores without Rings, Symo 3000
SKU: 229.80.610
Price: 6.43 GBP
Availability: InStock

Part Number: 229.80.610

For combination with Symo cylinder removable core, Right hand

Price:

£6.43

Per Item

VAT excluded

Lock Handle, for Cylinder Cores without Rings, Symo 3000. (Part No: 229.80.610) is a sleek, purpose-made lock... Read More

Product Information

Product Details

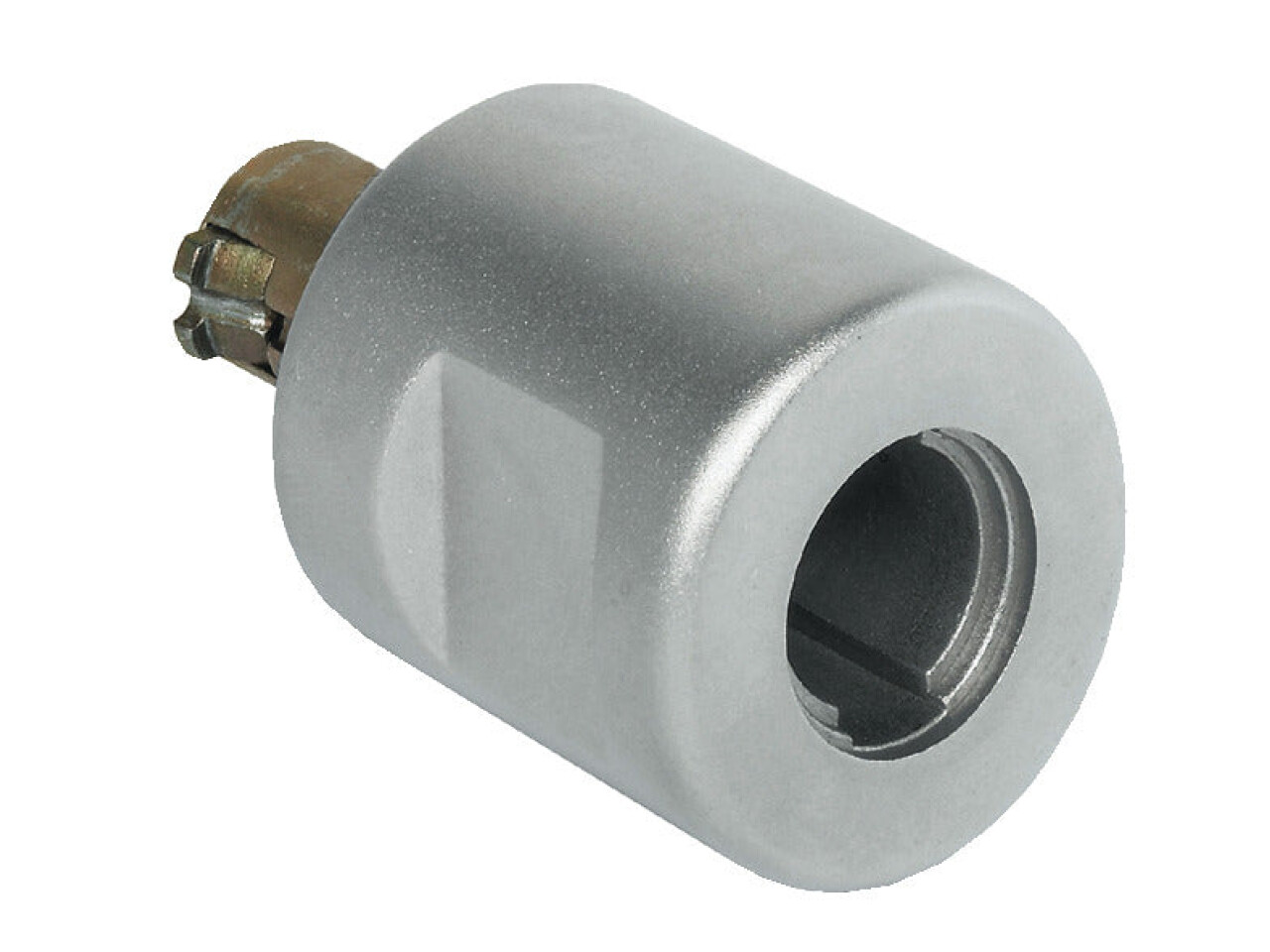

Lock Handle, for Cylinder Cores without Rings, Symo 3000. (Part No: 229.80.610) is a sleek, purpose-made lock handle case designed to complement Symo locking systems for a neat, professional finish on cabinets and furniture doors. If you’re upgrading existing hardware or planning a new install, this right-hand lock handle case helps you achieve a secure, tidy appearance without unnecessary bulk.

Built for reliable use, the Lock Handle, for Cylinder Cores without Rings, Symo 3000 comes in a modern matt look with a refined nickel-plated surface—an ideal choice for contemporary interiors where style matters as much as performance. Made from zinc alloy, it’s both sturdy and practical for everyday cabinet operation.

Compatible across the Symo range, this version features a practical design: without rings, with provision for combination with Symo cylinder removable core. Depending on your preferred locking approach, it can be used with either a Symo cylinder core (key locking) or cover caps (locking without a key). This flexibility makes it easy to tailor the system to your needs.

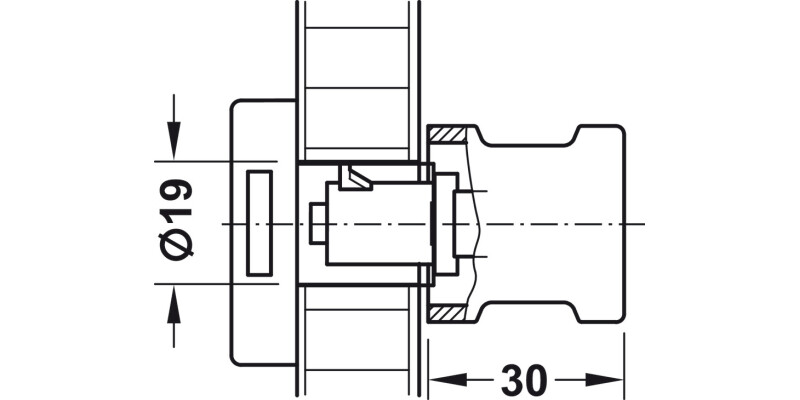

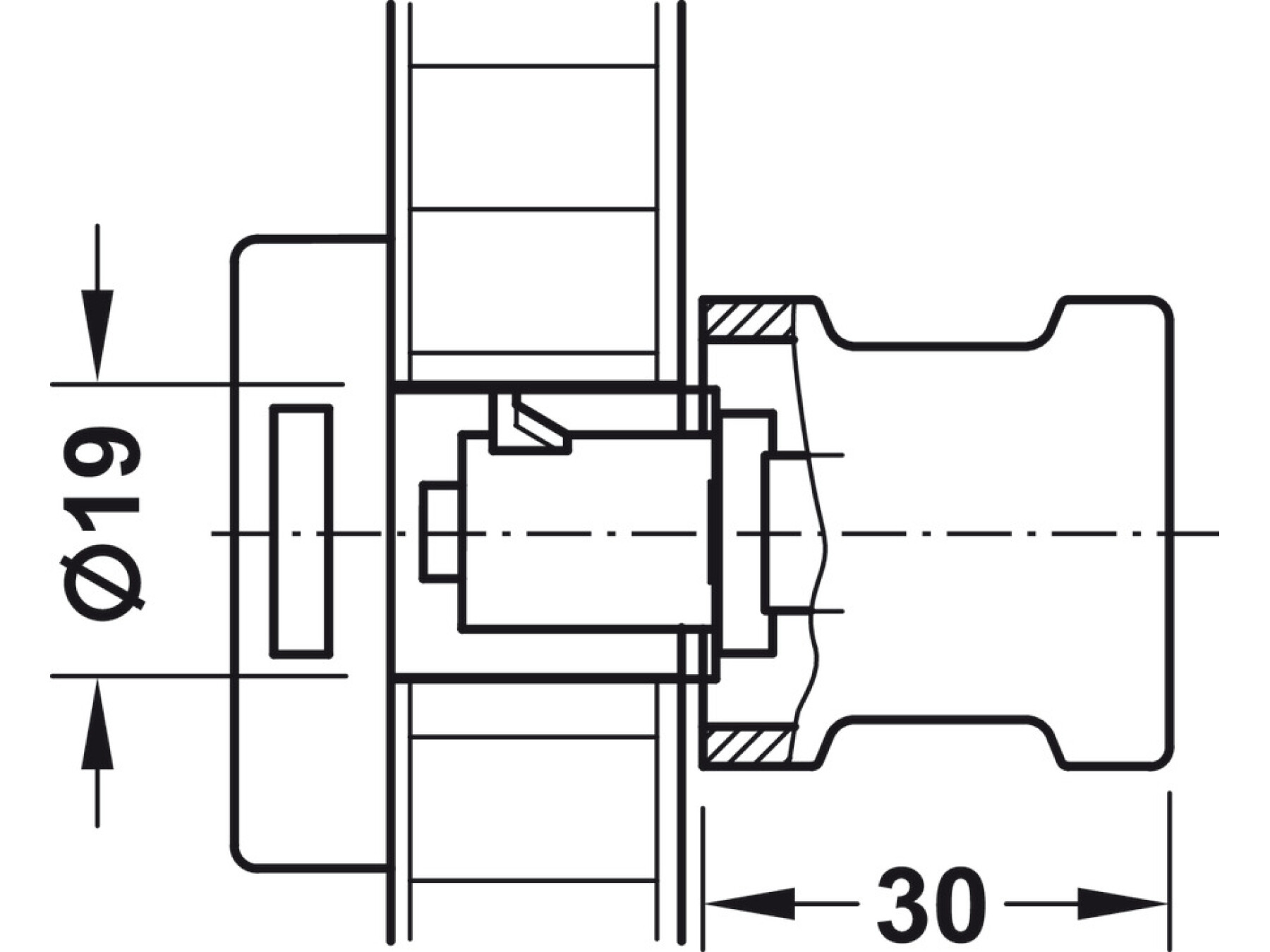

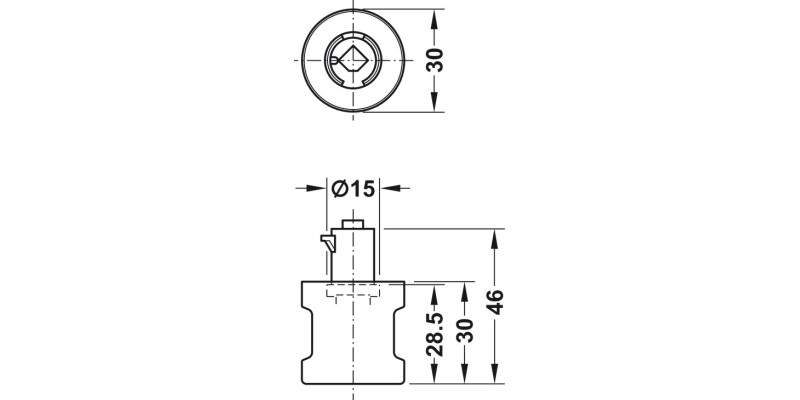

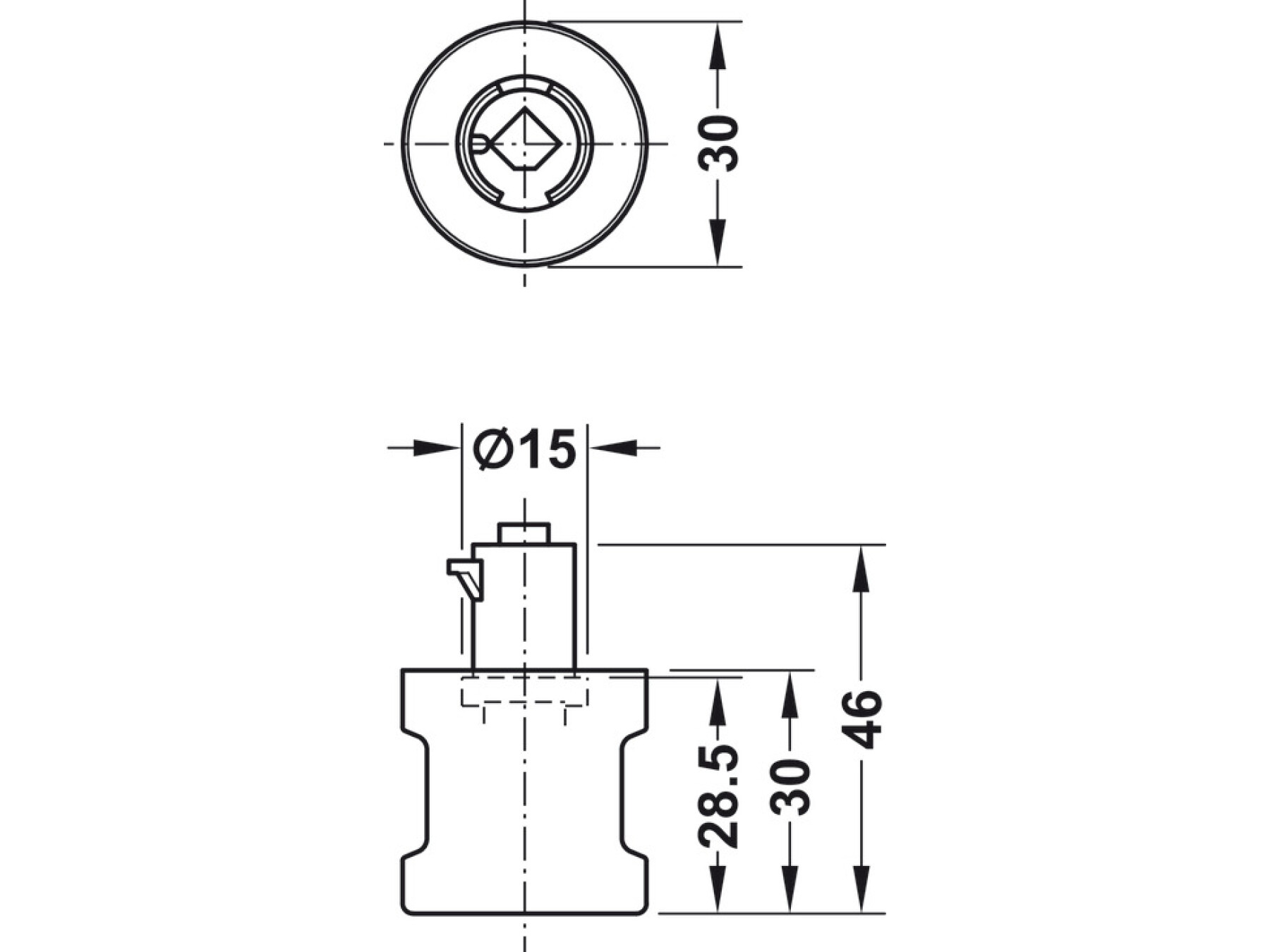

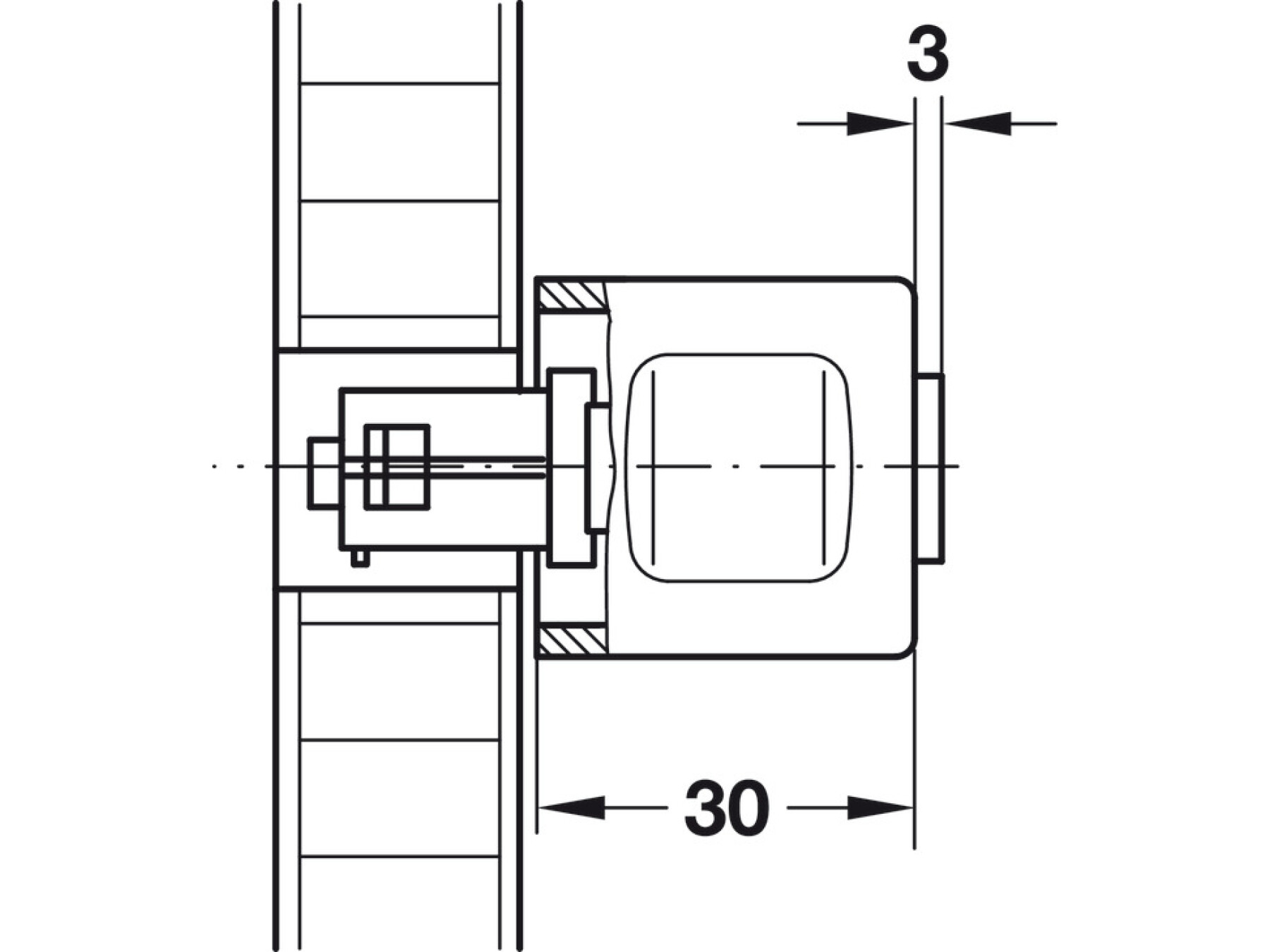

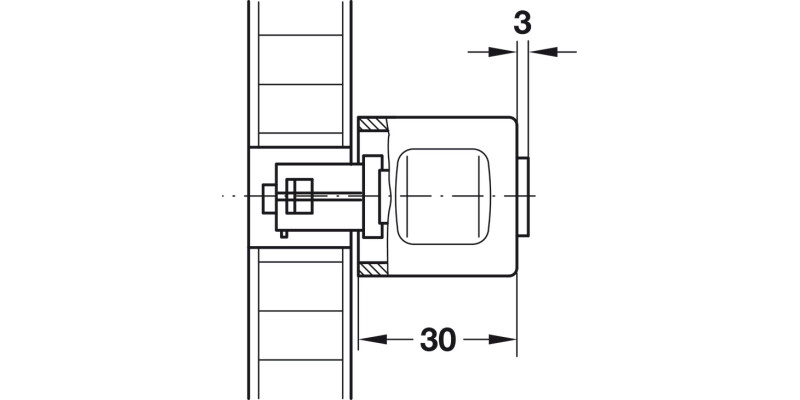

Designed for a 19 mm door thickness, the lock handle case measures 30.00 mm in length and is intended for right-hand installation. Please note: removing the lock handle requires a release pin, which must be ordered separately.

Choose the Lock Handle, for Cylinder Cores without Rings, Symo 3000. to finish your cabinet hardware setup with confidence—secure fit, premium materials, and a clean nickel-matt aesthetic.

Specifications

Version

Without rings
With insert for Symo cylinder cores (locking with key) or cover caps (locking without key)

Finish

Matt

Refinement

Nickel plated

Colour/finish

Nickel plated, Matt

Area of application

For all Symo locks and cylinder cores

Material

Zinc alloy

For door thickness

19 mm

Length

30.00 mm

Installation

Right hand

Order reference

It is only possible to remove the lock handle by using the release pin. Please order separately.

FAQ

Product Details

Is this lock handle compatible with Symo cylinder removable cores?

Yes. This case is designed for combination with a Symo cylinder removable core. It can also be used with insert or cover caps depending on whether you want locking with a key or without a key, helping you keep your system flexible.

Does the case come with rings or fixing for the handle?

No. The version supplied is without rings. If you need the rings for your particular installation, you will need to order the correct separate parts.

Which side is this handle for, and will it suit my cabinet?

It is right hand and is intended for right hand installation. If your cabinet opening and fixing points require a left hand arrangement, you should confirm you have the correct hand before ordering.

What door thickness can the handle case be fitted to?

For door thickness of 19 mm. This specification helps ensure correct fit and alignment with Symo lock and cylinder components.

How does the release and removal of the lock handle work?

The lock handle can only be removed using the release pin. The release pin is not included with this order reference, so you should consider ordering the release pin separately if you expect to remove the handle during maintenance or installation.

What finish and appearance does the lock case have?

Matt nickel plated finish. This gives a durable, modern look that suits many living and commercial cabinet applications.

Is it suitable for all Symo locks and cylinder cores?

Yes. The case is listed for combination with all Symo locks and cylinder cores, making it a practical choice if you are standardising hardware across multiple cabinets.
