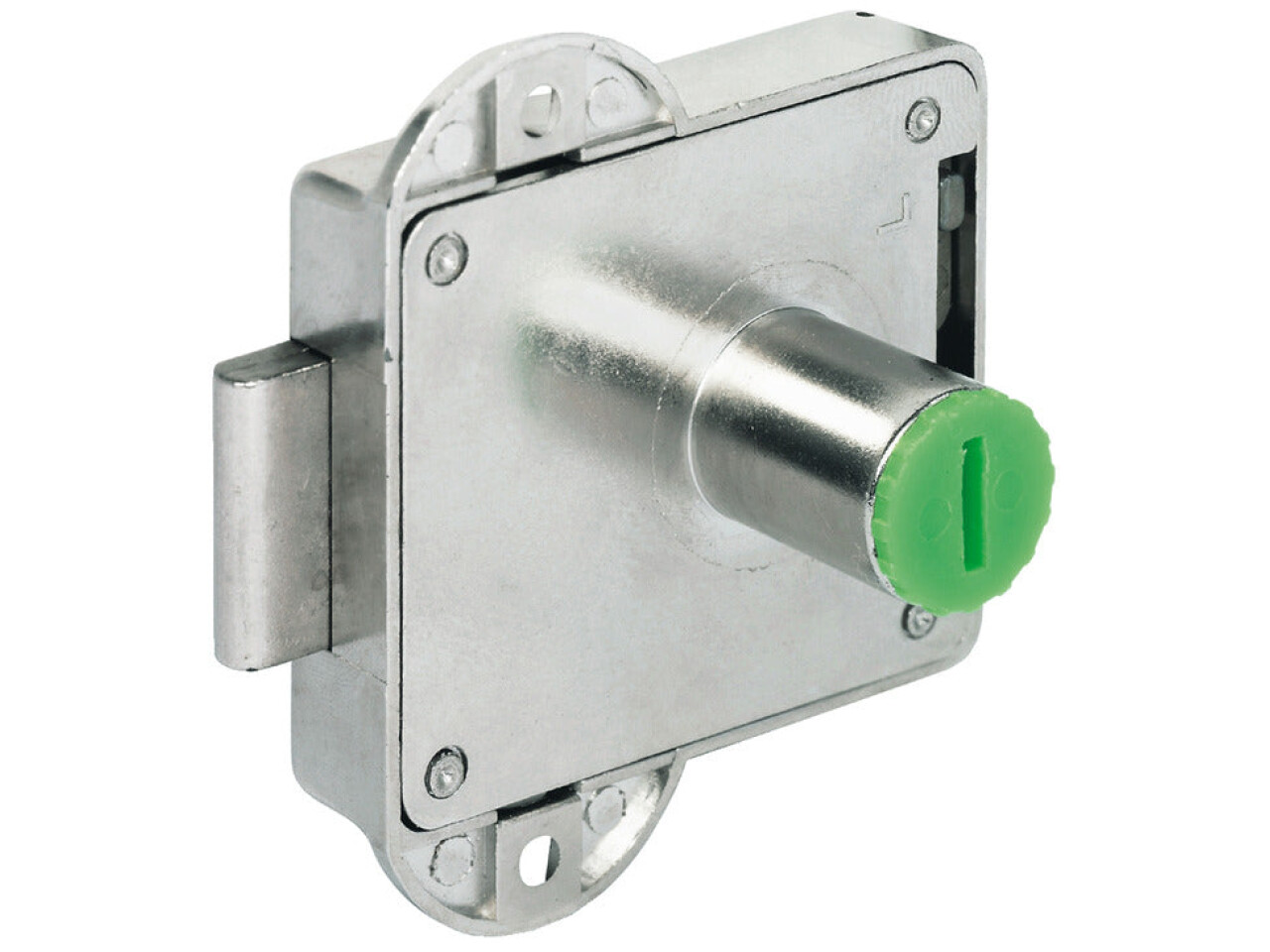

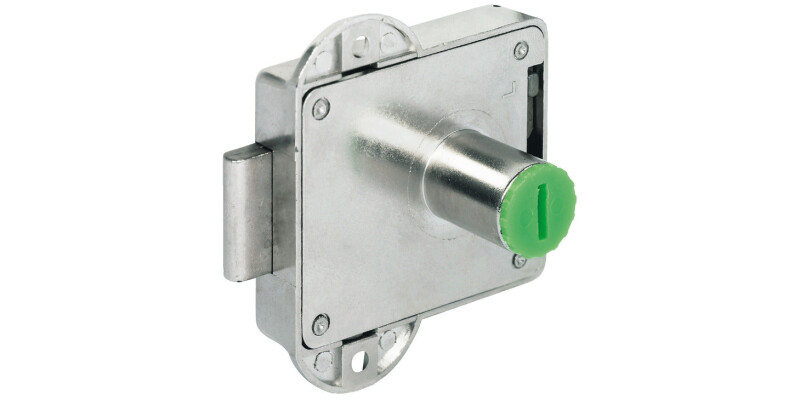

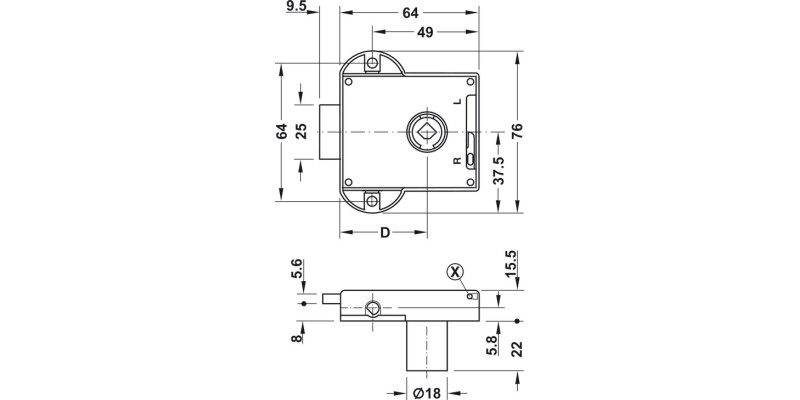

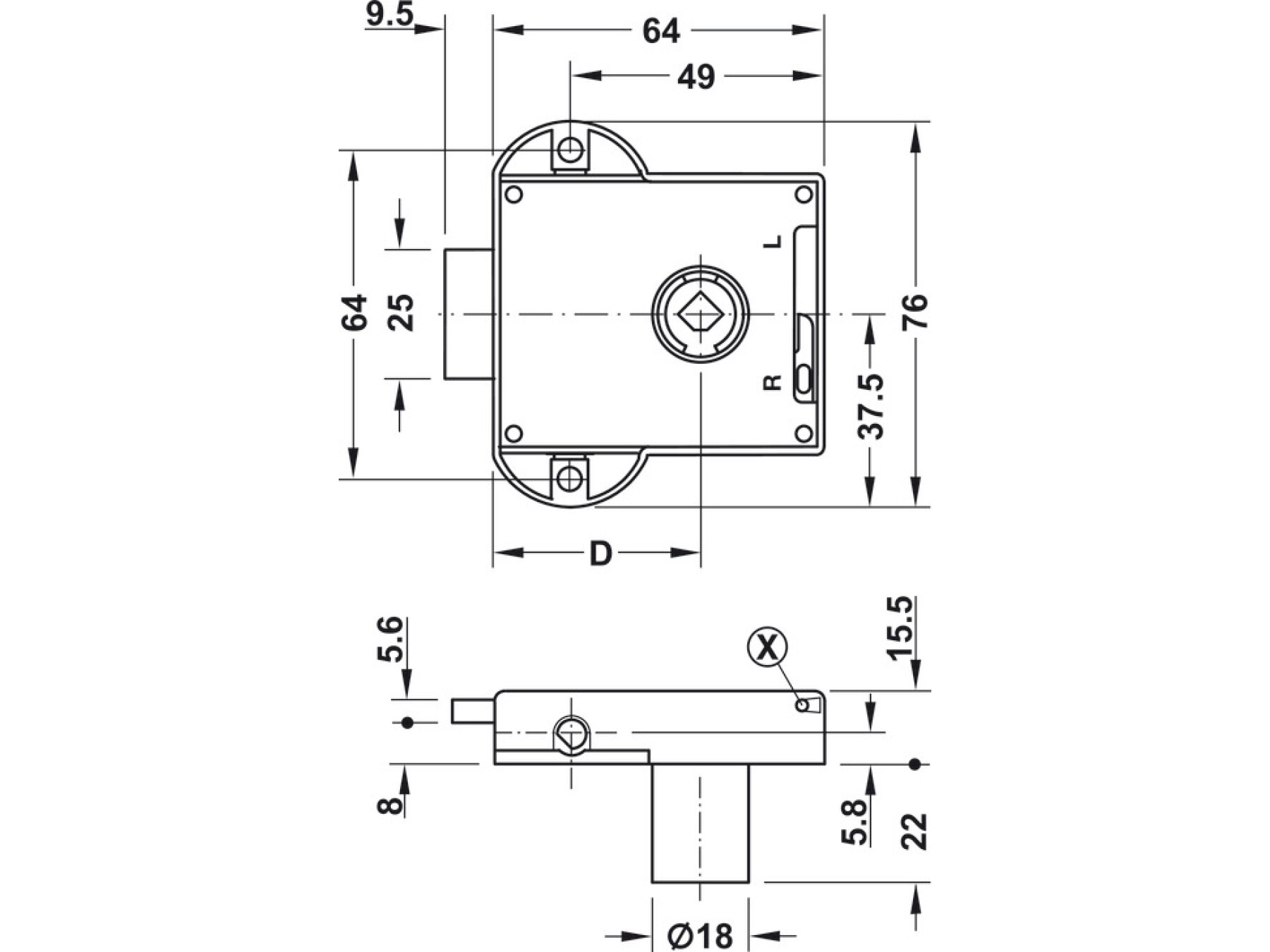

Symo3000 Std Nova Lockcase 40/6mm NP

For continuous profile rod Ø 6 mm or 8 mm
For cylinder cores that are inserted from the front on site

Please note that the pivot rods must be cut to the required size when designing the cabinet and choosing the accessories for the espagnolette lock.
With the existing internal cabinet height ⓒ and installing the espagnolette lock at half height, the upper rod dimension is ⓐ and the lower rod dimension is ⓑ. Housing centre ⓓ – 25 mm
Due to the three different backseats (15, 25 and 40 mm), identical gap sizes can be achieved for corner cabinets and rows of cabinets with the same drilling pattern.
Note: Standard Nova, backset 40 mm is prepared for a continuous profile rod.

The locking direction Ⓧ can also be reversed when the lock is already installed, in this case the lock must be locked.

Unhanded

Zinc alloy

Nickel plated

For screw fixing

Left hand or right hand

Nickel plated
