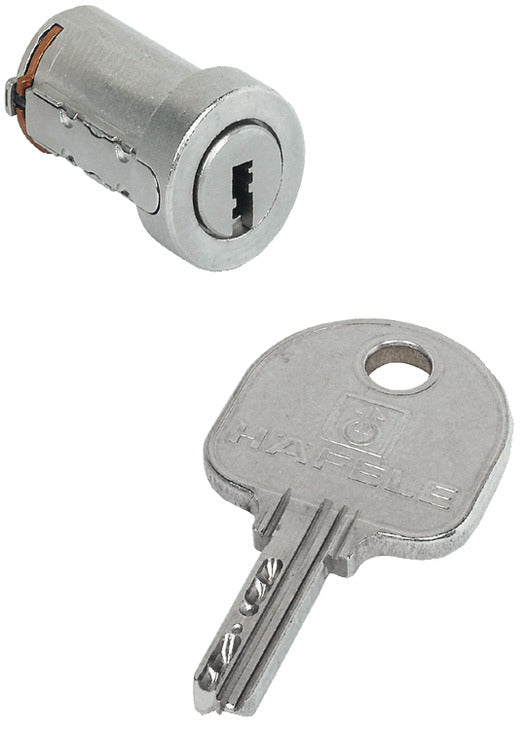

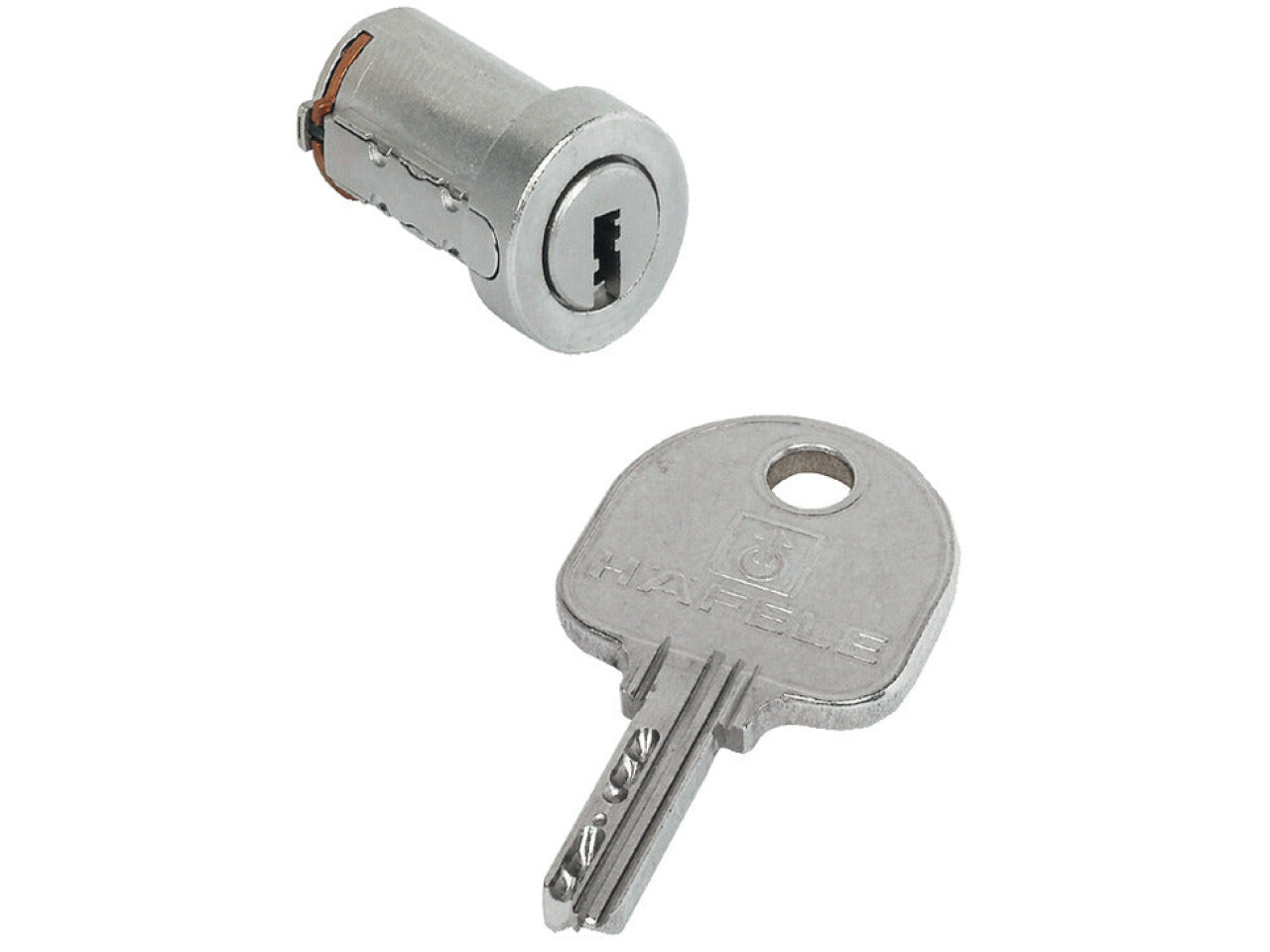

Cylinder Core, with Pin Tumblers, Keyed Alike, Symo Premium 20

Product Details

Is the Symo3000 Cylinder Core suitable for both left hand and right hand fittings?

Yes. This cylinder core is designed for DIN left hand and DIN right hand applications, making it easy to match with the correct Symo system lock setup without needing a separate core for the hand direction.

How does keying work with the “Key change 004 A” version?

Key change 004 A indicates the specific keying profile for this cylinder core. It is supplied with a single key, and it is intended to be used as part of the Symo system keying approach so that your lock set works consistently with the matching configuration.

Will this cylinder core fit my existing Symo 3000 lock case?

It is intended for Symo 3000 lock cases. This version is described as a standard profile cylinder core and is specifically for plugging into a compatible lock case within the Symo system.

Do I need to buy the lock case separately, or is it included?

The lock case and accessories are ordered separately. This product is the cylinder core only, and it is supplied with 1 key to get you started.

What type of key and profile should I expect to use?

Dimple key and a standard profile are supported. This means it is built for the common dimple key style used across many cabinet locking solutions, provided the rest of your Symo system components match the standard profile.

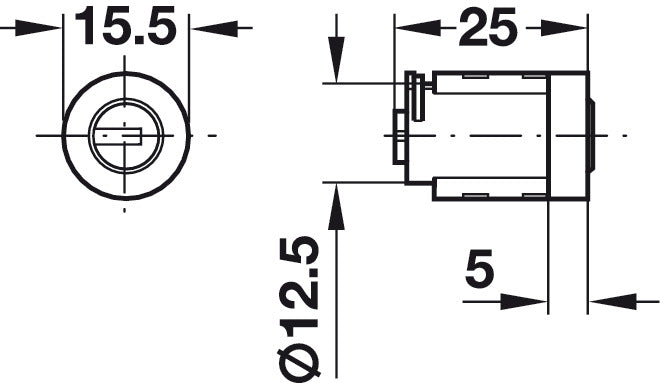

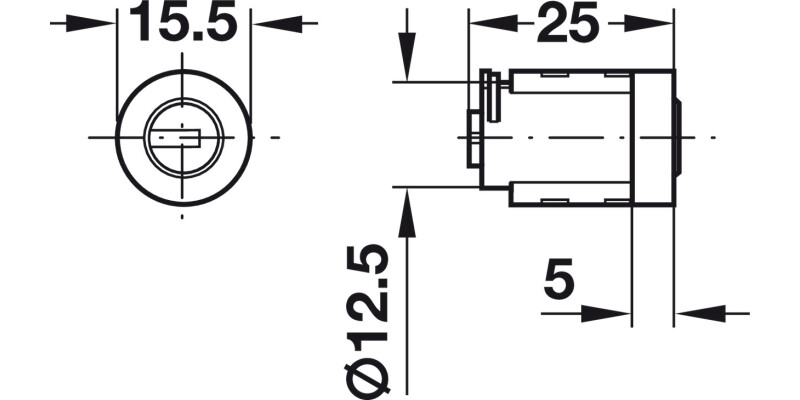

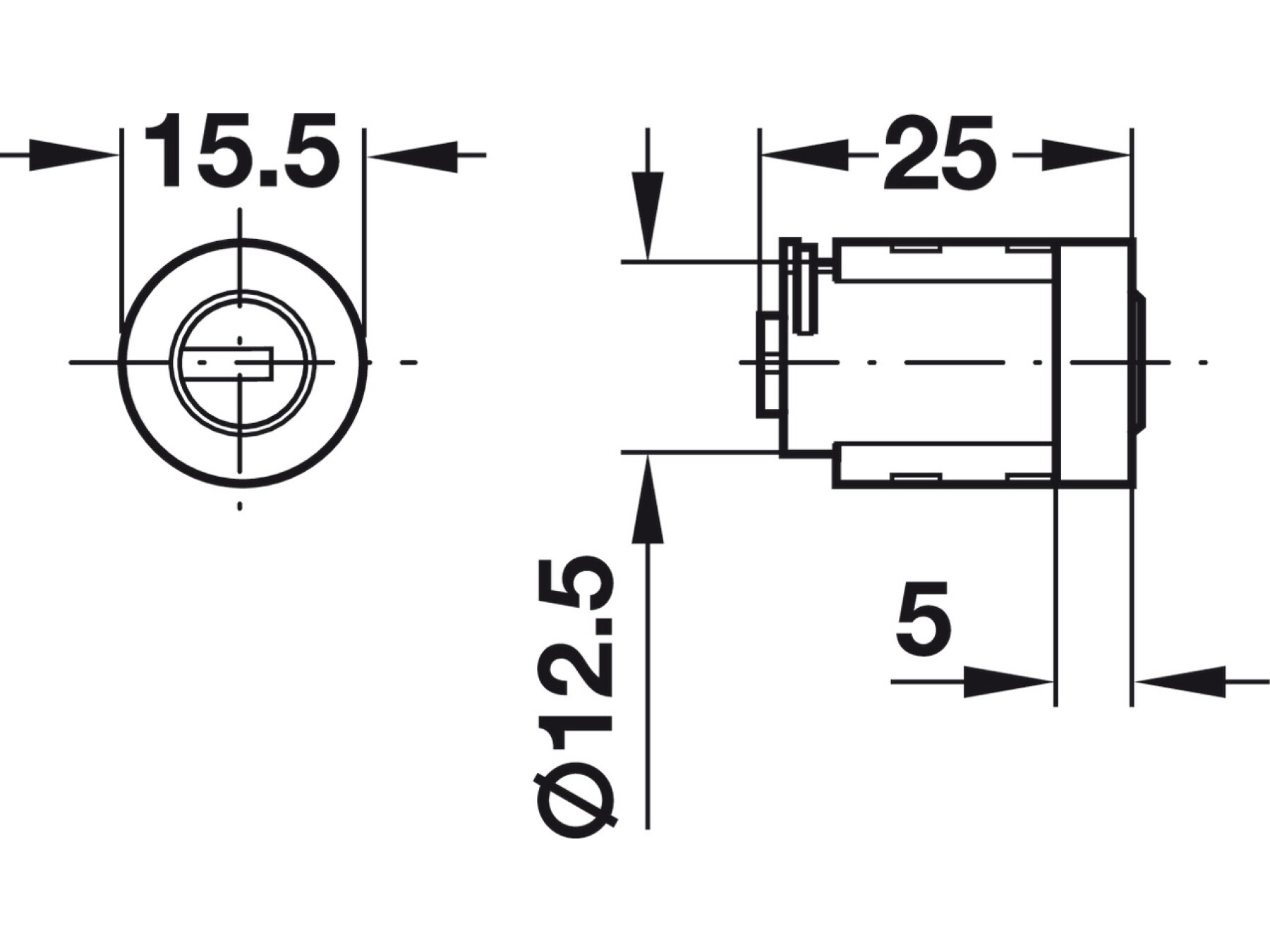

What are the key dimensions of the cylinder core?

Cylinder length is 25.00 mm and cylinder diameter is 12.50 mm. These measurements help confirm compatibility with the lock case you have in place, especially when replacing or upgrading an existing Symo cylinder core.
