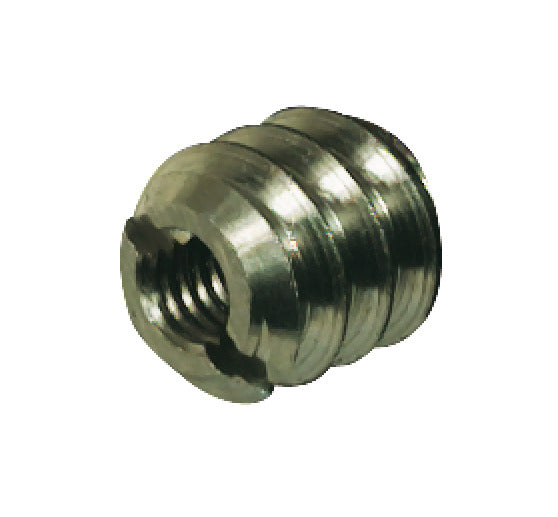

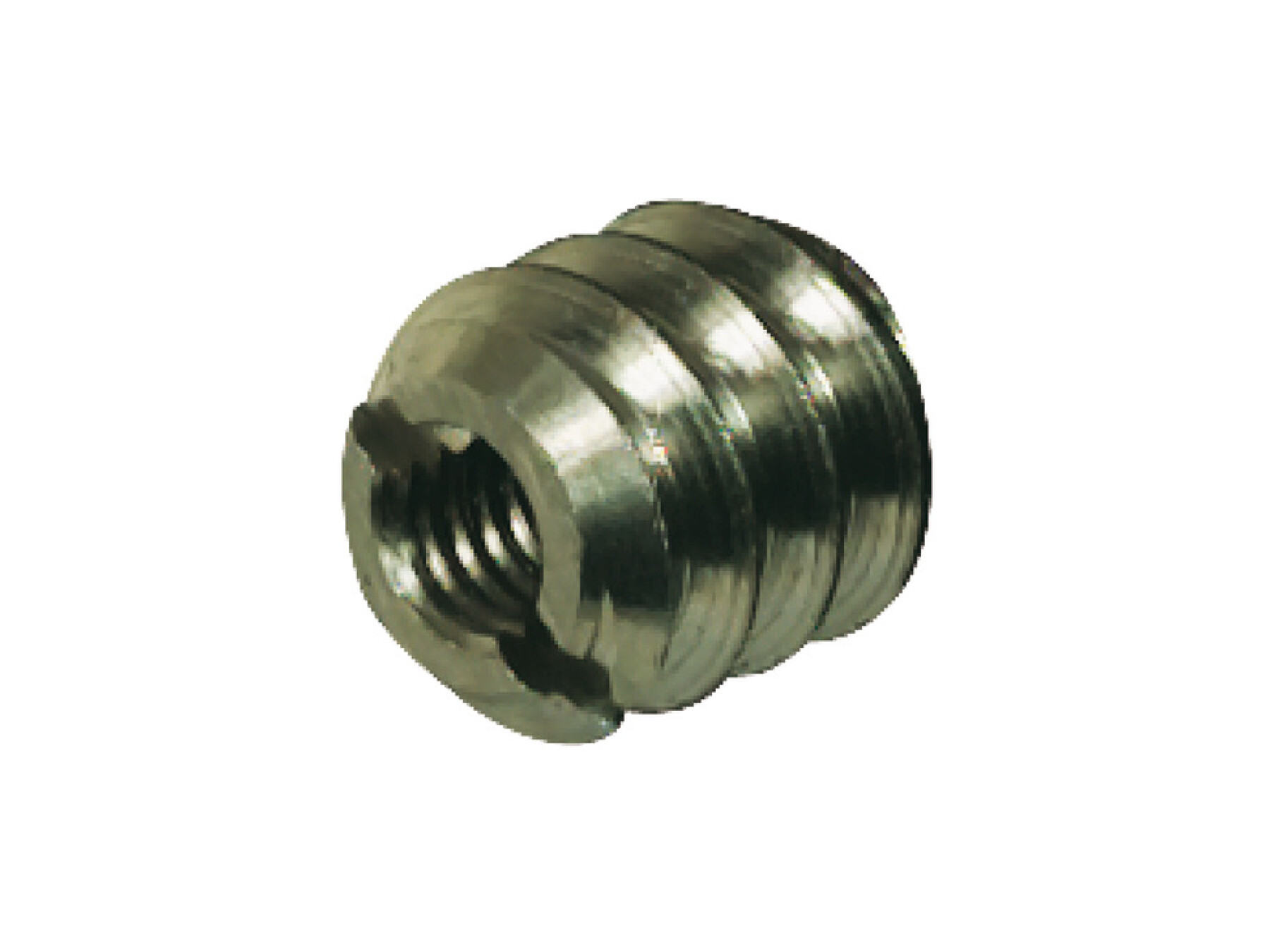

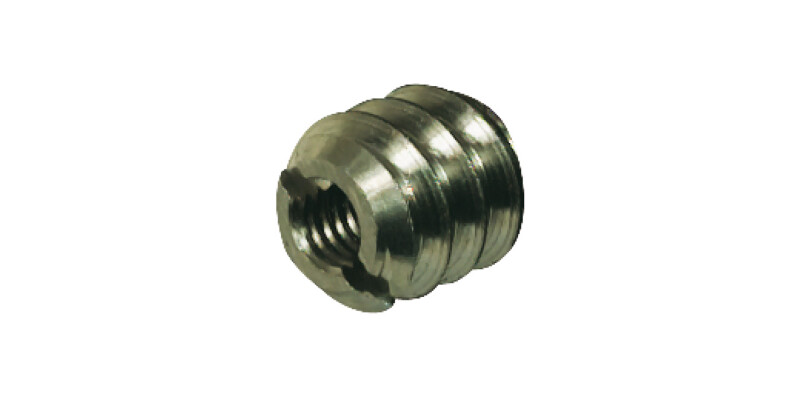

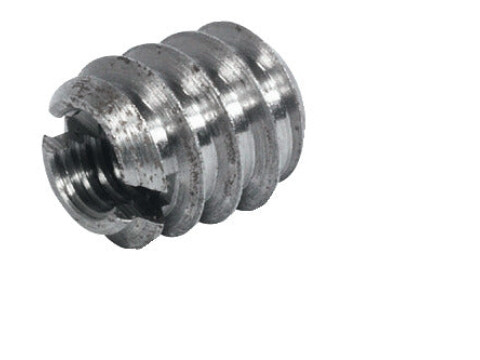

Screw-in Sleeve, with Screwdriver Slot

Product Details

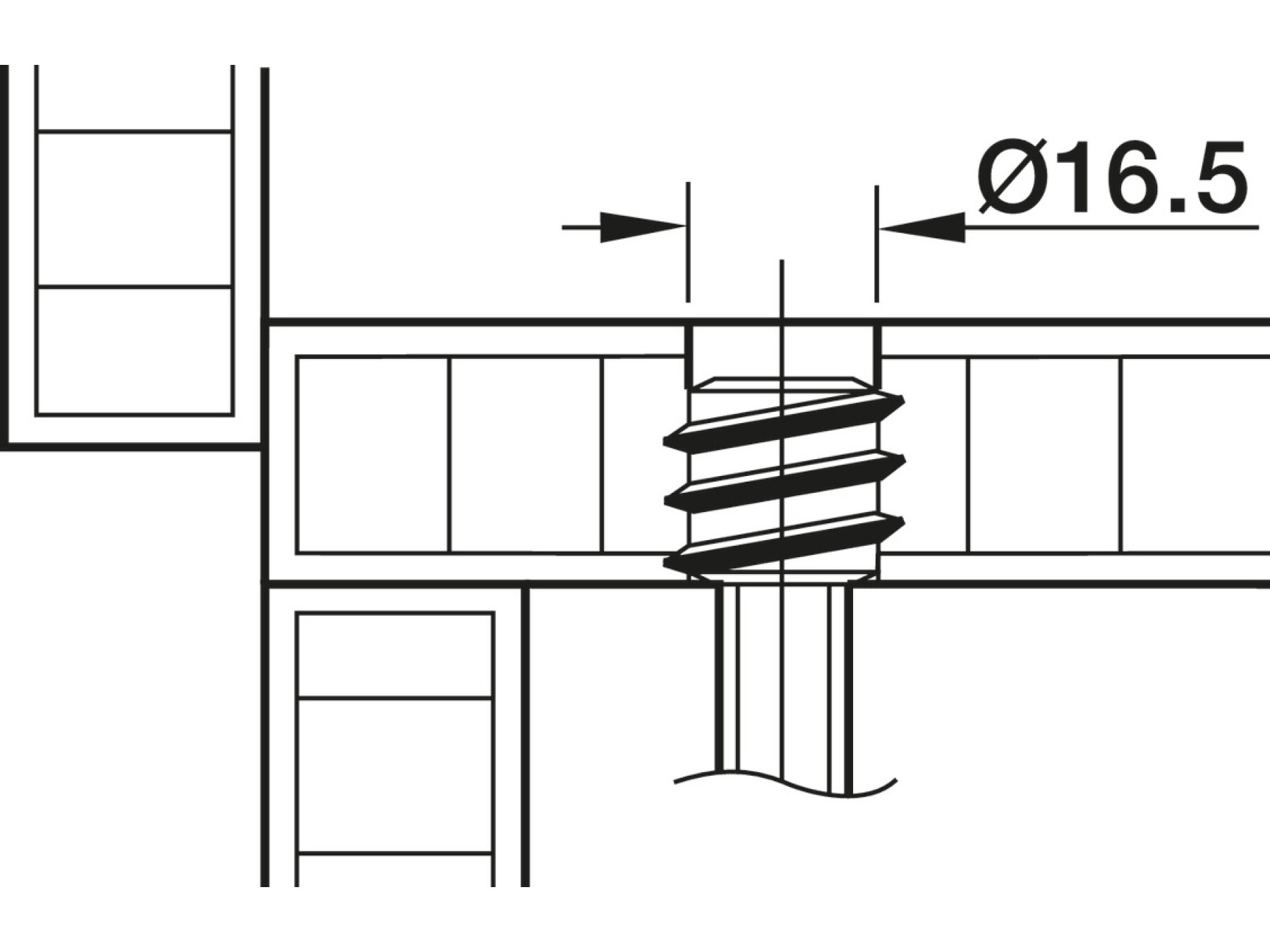

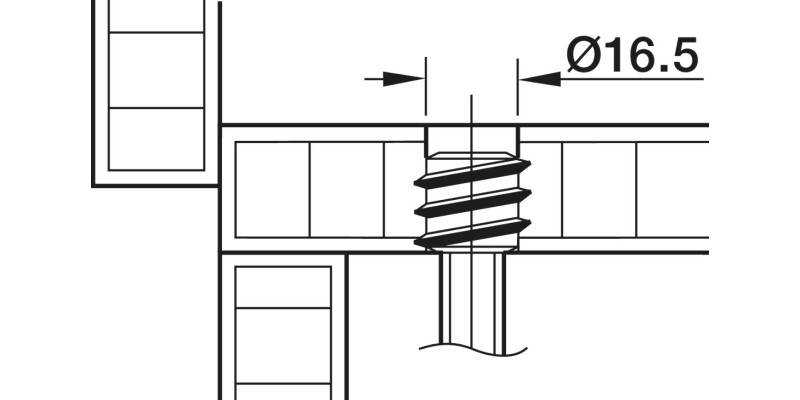

Will this M10 screw in sleeve suit a 15 mm hole?

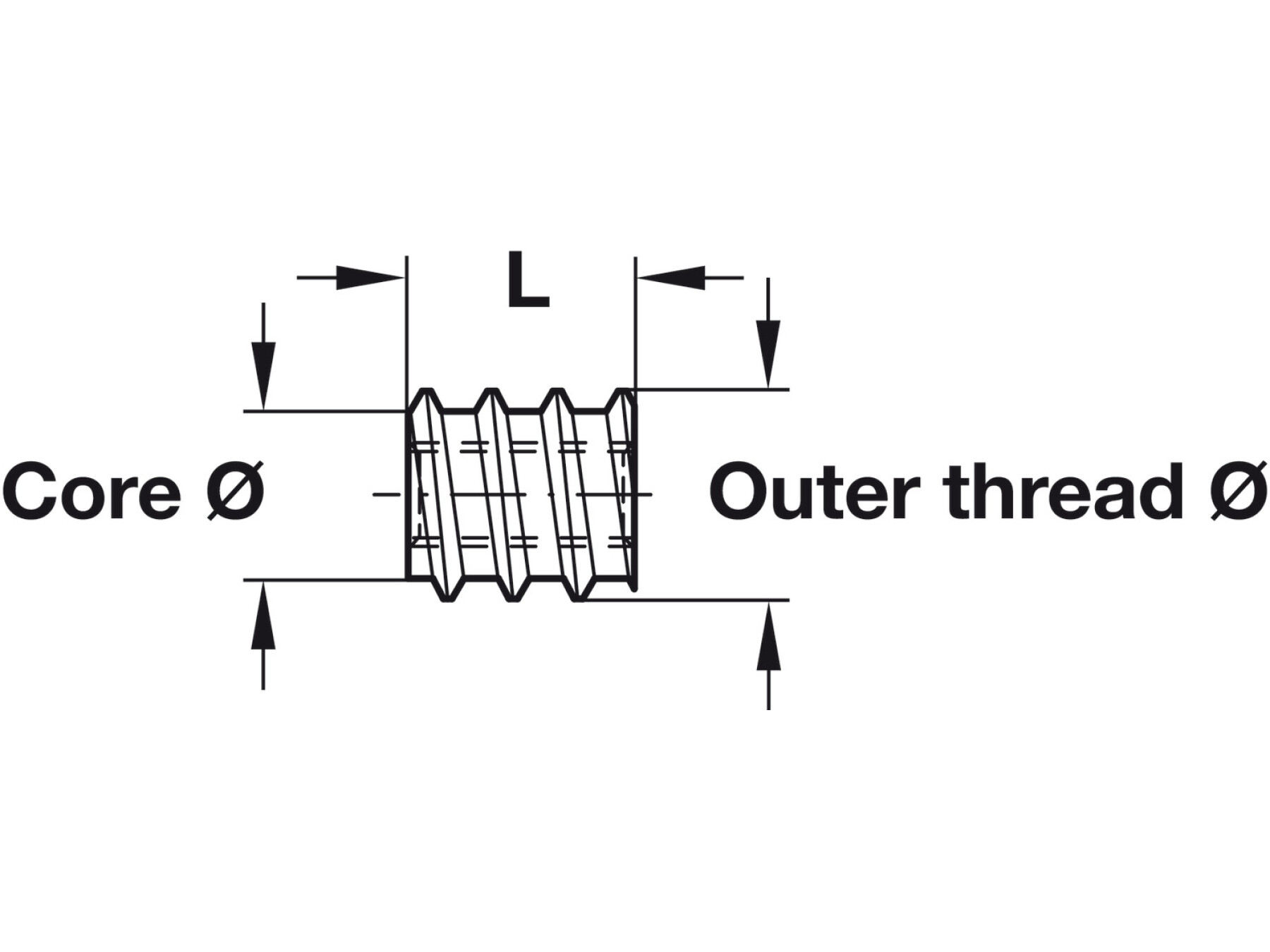

Yes. This Screw In Sleeve is designed specifically for a 15 mm hole and has a core diameter of 15 mm. The outer diameter is 18.5 mm, helping it sit securely in the prepared opening before you insert and tighten the screw.

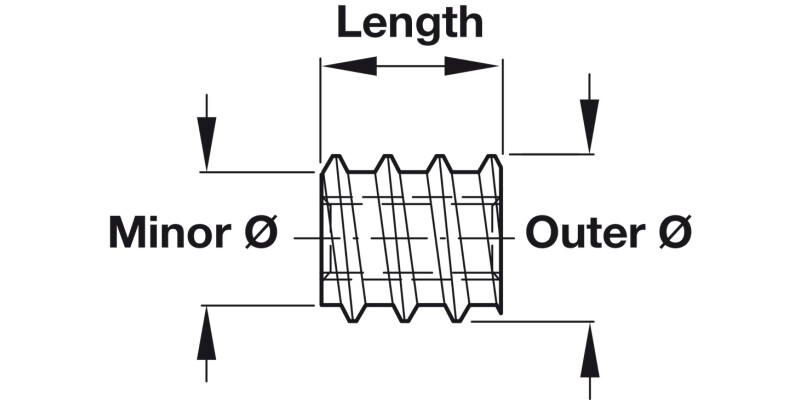

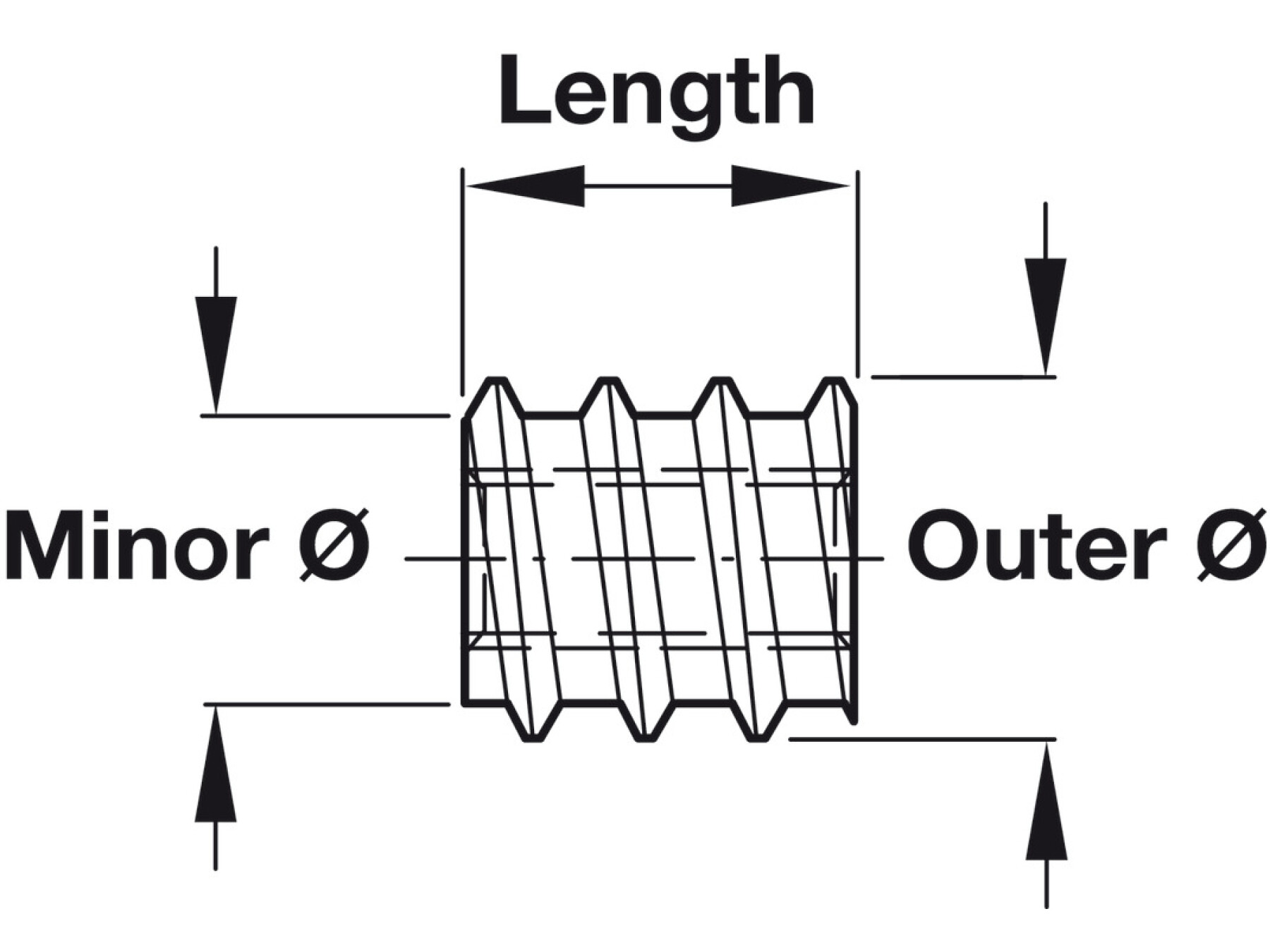

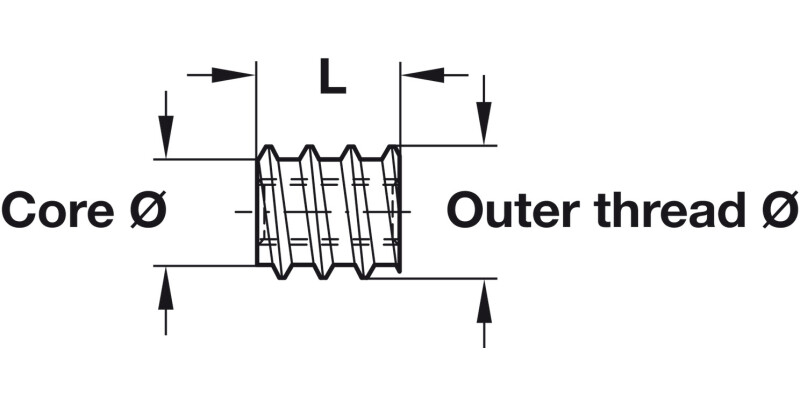

What does the 18.5 mm outer diameter and 15 mm length mean for installation?

18.5 mm outer diameter refers to the sleeve size that sits around the hole, and 15 mm length is the depth the sleeve provides for the fixing. If your application needs a sleeve that projects about 15 mm into the fixing point, this part matches that requirement.

Which screw should I use with the internal M10 thread?

You should use an M10 screw that matches the sleeve’s internal thread. The internal thread is M10, so the screw diameter and thread pitch should correspond to standard M10 hardware for a correct fit.

Is the sleeve zinc plated and does that affect corrosion resistance?

Yes, it is zinc plated. Zinc plating provides a protective coating that can help improve corrosion resistance compared with uncoated steel sleeves. For long term exterior use, always consider your overall environment and whether additional protection is needed.

How is the slot drive used during fitting?

This sleeve uses a slot drive, which allows fitting using the appropriate tool method for slot operated fixings. In practice, the slot helps you position and tighten the sleeve properly so the internal thread is ready for the M10 screw.

Do I need any tools or consumables to fit the Screw In Sleeve M10 D18.5x15mm?

You will typically need the correct hand or power tool for working with the slot drive, plus an M10 screw to complete the fixing. Using the right fastener and tool setup helps ensure the sleeve sits correctly and the thread engages smoothly.
