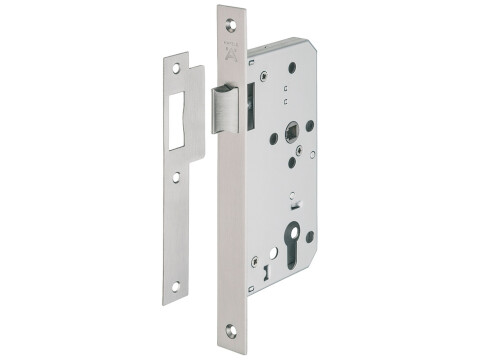

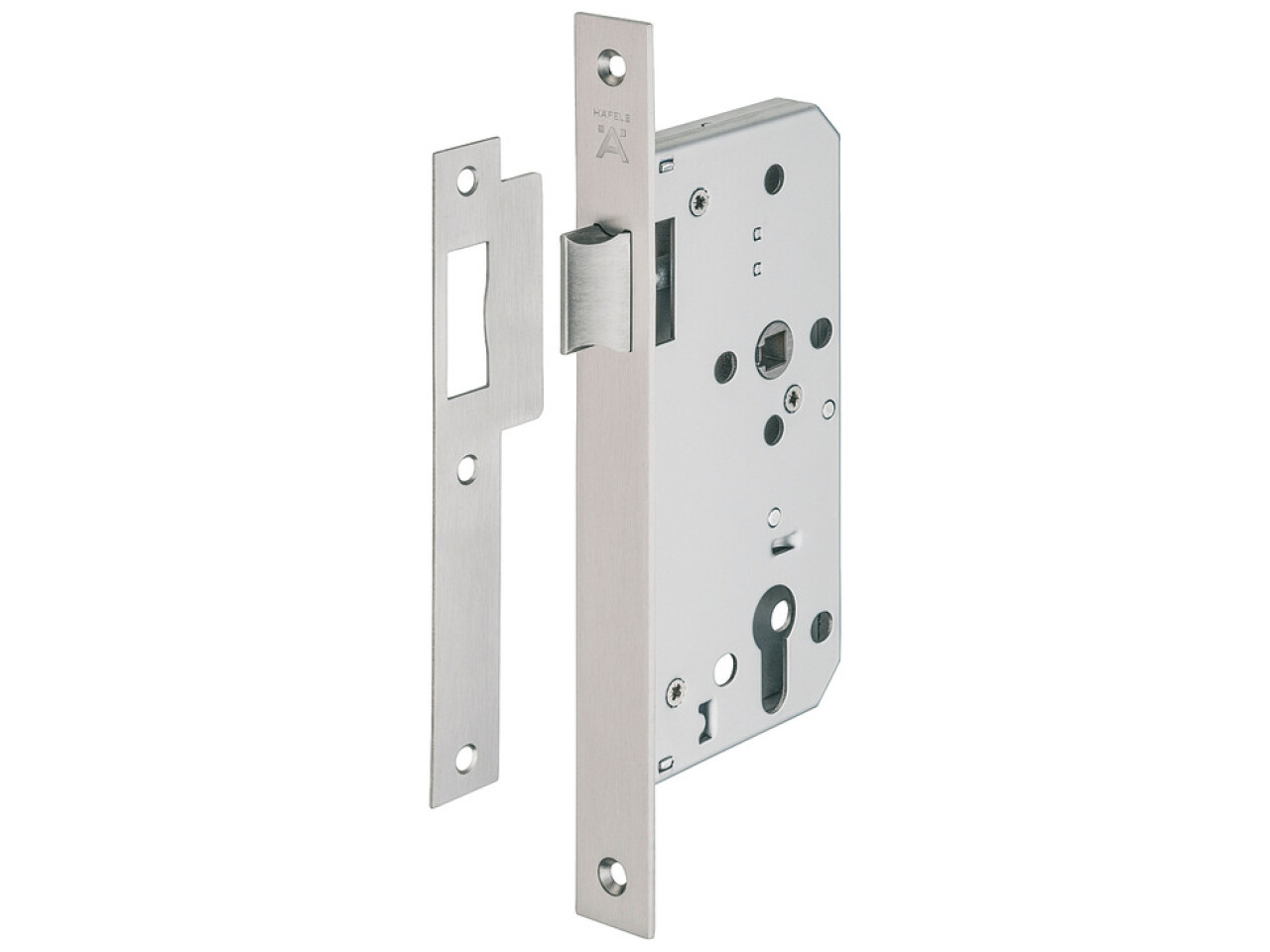

Startec DIN Mort Latch 55/84mm Rad SSS

Part Number: 911.22.922

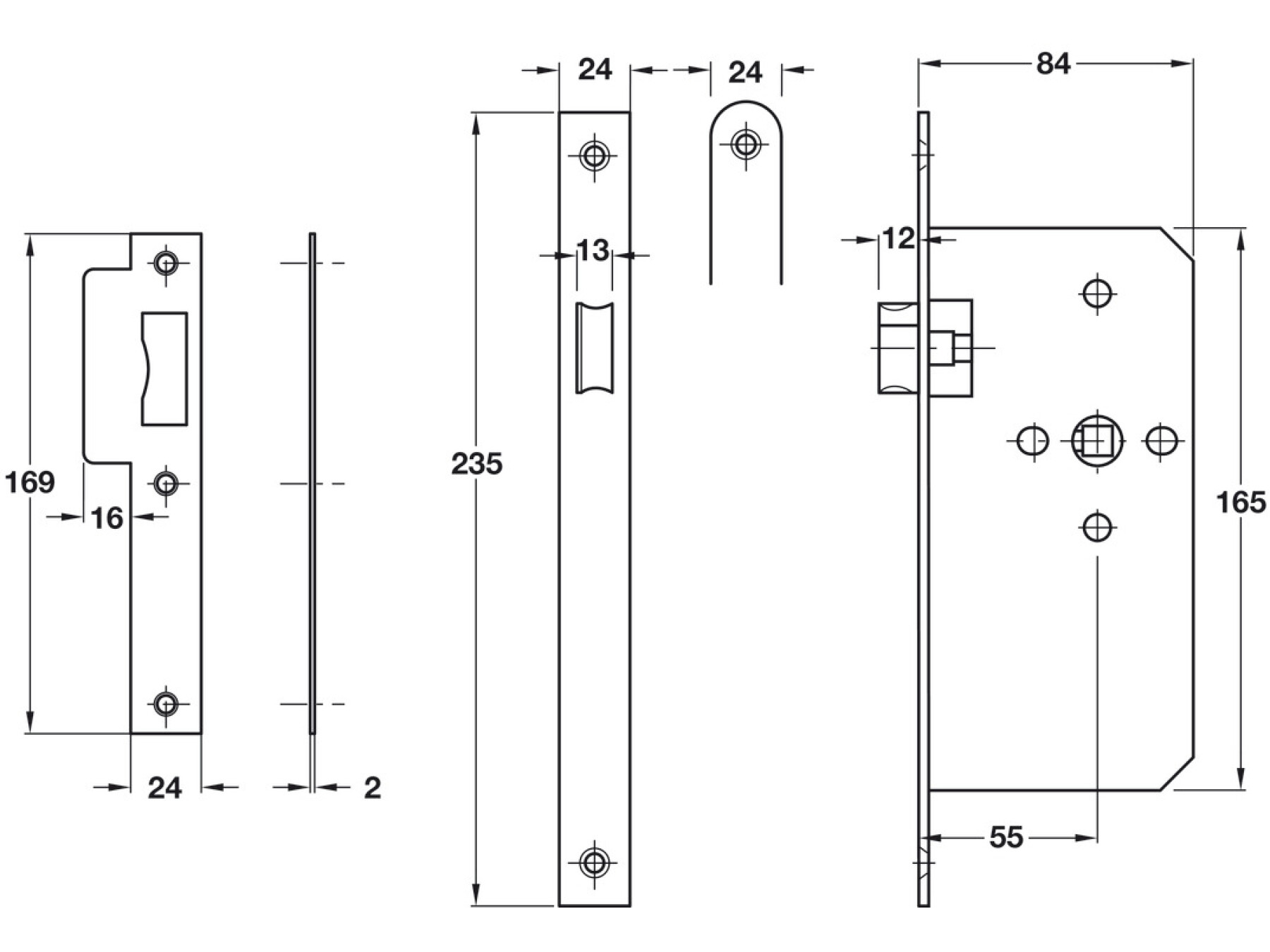

Backset 55 mm, case size 84 mm, Radius forend, Stainless steel
Price:
£18.02
Per Item
VAT excluded

Forend: SquareFor DIN left or DIN right mounting, reversibleLever follower 8 mm Warranty/Guarantee information... Read More

Product Information

Product Details

Forend: Square
For DIN left or DIN right mounting, reversible
Lever follower 8 mm

Warranty/Guarantee information

This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.

For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

Technical data
Type of locking PC
Distance 71.5 mm
Lever follower 8 mm

Approved CF 5395 Certifire
Suitable for use in FD30/60 & 90 minute Timber fire doors when fitted with the accompanying fire protection intumescent kit. These cylinder locks have been tested on a min. 44 mm thick timber door for 30 mins fire resistance or min. 54 mm thick doors for 60 mins fire resistance
CE marked
Tested in accordance with BS EN 12209

Specifications

Type of locking

PC

Distance

71.50 mm

Forend Type

55.00 mm

Forend width

24.00 mm

Door construction

Unrebated

Lever follower

8.00 mm

Mounting

DIN left/right (reversible)

Material

Case: Steel
Forend: Stainless steel

Latchbolt version

Standard latch

Application

Residential areas

For door type

Hinged doors

Version

Strike plate with bolt pocket

Colour/finish

Stainless steel

Forend length

235.00 mm

Deadbolt version

Without deadbolt

Standard

Suitability according to DIN 18251 Part 1, grade 3

Hafele Lifetime Guarantee

10 years

Supplied with

1 mortice latch lock
1 striking plate
